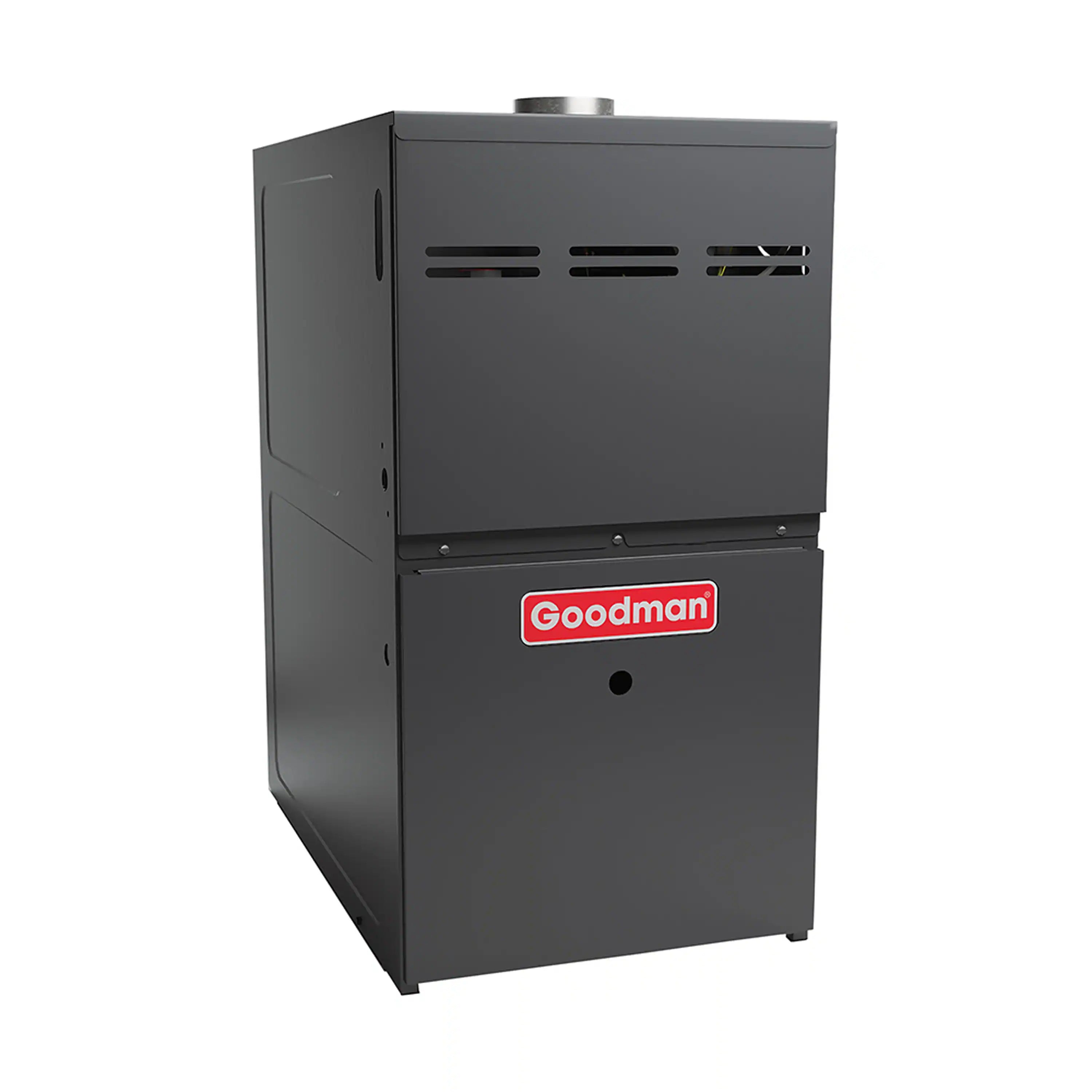

The Goodman GR9S80_U Gas Furnace delivers 80% AFUE efficiency with a multi-speed ECM blower motor and single-stage gas valve at 40,000 BTUH. Compliant with California SCAQMD Rule 1111 Ultra-Low NOx 14 ng/J emissions standard and eligible for SCAQMD Clean Air Furnace Rebate. Multi-position upflow/horizontal installation.
Features| General Information | |
|---|---|
| Brand | Goodman |
| Series | GR9S80_U |
| SKU | GR9S800403AU |
| Product Category | Unitary |
| Unit Type | Indoor |
| Manufacturer | Goodman |
| Electrical | |
| Voltage/Phase/Hz | 115 V / 1 Ph / 60 Hz |
| Max Breaker Size | 15 A |
| Min. Breaker Size | 8.7 A |
| Efficiency Ratings | |
| AFUE | 80 % |
| ENERGY STAR® Certified | No |
| Dimensions & Weight | |
| Height | 33-3/8 in |
| Width | 14 in |
| Depth | 28 in |
| Weight | 86 lb |
| Additional Information | |
| Product Features | "Heavy-duty aluminized-steel tubular heat exchanger"Silicon Nitride igniter"Color-coded low-voltage terminals Multi-speed ECM blower motor with continuous fan speedFault code LED OutputSingle-Stage gas ValveSingle-speed inducer draft blowerFor installation in California’s South Coast AirQuality Management District (SCAQMD) only:This furnace complies with the SCAQMDRule 1111 14 ng/J NOx emission limit.This furnace is eligible for theSCAQMD Clean Air Furnace Rebate " |
| Warranty | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| Proposition 65 Warning | Yes |
