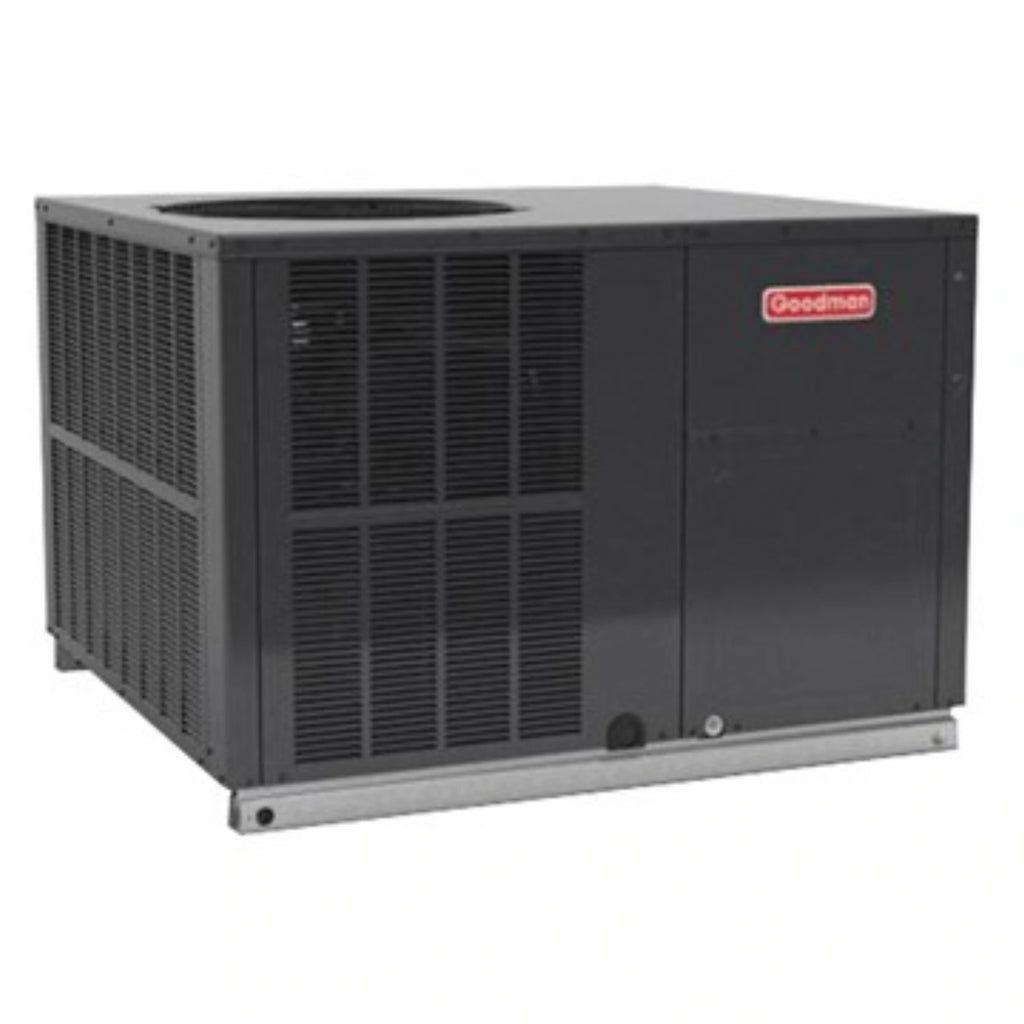

Goodman packaged air conditioner unit, dark gray with front vents and control panel
Roll over image to zoom in Click on image to zoom
Goodman packaged air conditioner unit, dark gray with front vents and control panel
Click on image to zoom

Goodman GPCM3 Packaged Air Conditioner 5 Ton 13.4 SEER2 R-32 Single-Stage Downflow/Horizontal (GPCM36031)

GoodmanSKU: GPCM36031
Price:
$4,499.40 $5,602.00SAVE 19%
In Stock
Estimated delivery: Sep 9th-23rd
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.

Description

The Goodman GPCM3 offers reliable 13.4 SEER2 cooling performance in a versatile 5 Ton packaged unit with convertible downflow or horizontal airflow. Features include a multi-speed ECM blower motor, all-aluminum evaporator coil, and copper tube/aluminum fin condenser coil for efficient heat transfer. Housed in a rugged galvanized steel cabinet with Architectural Gray powder-paint finish, this unit is built to withstand harsh weather conditions when properly anchored. AHRI Certified and UL Listed.

Features
  • Energy-efficient compressor
  • Multi-speed ECM indoor blower motor
  • Covertible airflow: horizontal or downflow application
  • All-Aluminum evaporator coil
  • Copper tube / aluminum fin condenser coil
  • Eletric heat kit available as a field-installed option
  • AHRI Certified
  • UL listed
Cabinet Features
  • Heavy-gauge galvanized steel cabinet with attractive Architectural Gray powder-paint finish
  • Aluminum foil-facing internal insulation reinforced with fiberglass scrim
  • Fully insulated blower compartment with convenient access panels
  • Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193
  • Louvered condenser coil protection
  • One footprint for all tonnages
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
DIMENSIONS & WEIGHT
Height
42-3/4 in
Width
47 in
Depth
51 in
Weight
448 lb
GENERAL INFORMATION
Brand
Goodman
Series
GPCM3
SKU
GPCM36031
Product Category
Unitary
Unit Type
Outdoor
Manufacturer
Goodman
Product Features
  • Energy-efficient compressor
  • Multi-speed ECM indoor blower motor
  • Covertible airflow: horizontal or downflow application
  • All-Aluminum evaporator coil
  • Copper tube / aluminum fin condenser coil
  • Eletric heat kit available as a field-installed option
  • AHRI Certified
  • UL listed
CAPACITY & PERFORMANCE
Tonnage
5.0
Cooling BTU
55000 Btu/H
Maximum CFM
1700 ft³/min
SEER2
13.4
EER2
10.6
COMPRESSOR & MOTORS
Compressor Type
Scroll
Compressor Stages
Single Stage
NOISE LEVELS
Decibel Level (dBA)
79 dBA
ELECTRICAL REQUIREMENTS
Voltage/Phase/Hz
208-230 V / 1 Ph / 60 Hz
Max Breaker Size
60 A
Min. Breaker Size
38.8 A
REFRIGERANT & PIPING
Refrigerant
R-32
Factory Refrigerant Charge
143 oz
Liquid Line
3/8 in
Suction Line
1/2 in
SAFETY
Safety Information
R32 Outdoor
Proposition 65 Warning
Yes
WARRANTY
Warranty
ALL PARTS - 5 YEARS PARTS
