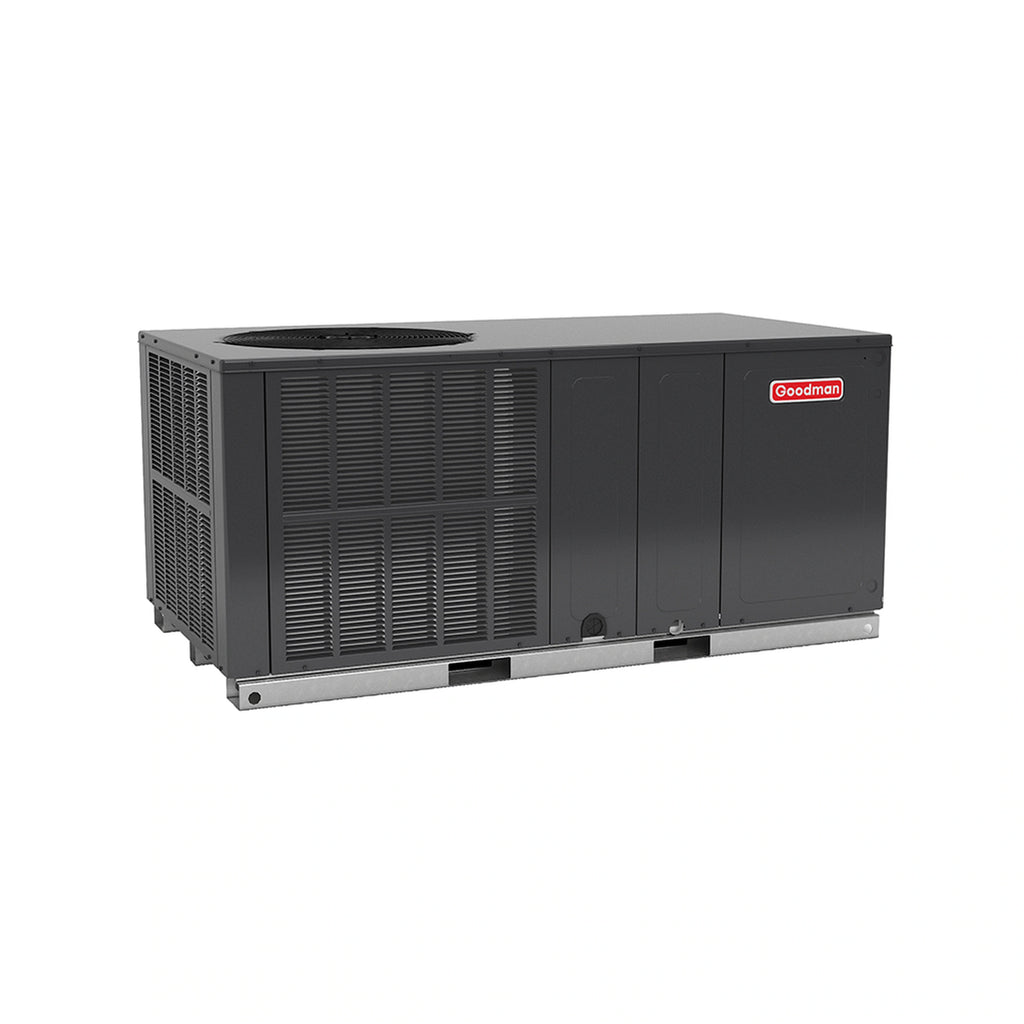

Goodman packaged air conditioner with louvered panels and top vent, dark gray outdoor unit
Roll over image to zoom in Click on image to zoom
Goodman packaged air conditioner with louvered panels and top vent, dark gray outdoor unit
Click on image to zoom

Goodman GPCH3 Packaged Air Conditioner 3 Ton 13.4 SEER2 Single-Stage (GPCH33631)

GoodmanSKU: GPCH33631
Price:
$2,971.20 $3,699.00SAVE 19%
In Stock
Estimated delivery: Sep 9th-23rd
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.

Description

The Goodman GPCH3 delivers efficient 13.4 SEER2 cooling in a 3 Ton packaged air conditioner with quiet horizontal discharge. Equipped with a multi-speed ECM blower motor, all-aluminum evaporator coil, and compressor sound blanket for whisper-quiet operation. Built in a durable heavy-gauge galvanized steel cabinet with Architectural Gray finish, this unit ships factory-charged and offers optional electric heat for year-round versatility. AHRI Certified and UL Listed.

Features
  • Energy-efficient compressor
  • Multi-speed ECM indoor blower motor
  • Quiet horizontal discharge
  • All-Aluminum evaporator coil
  • Copper tube / aluminum fin condenser coil
  • Compressor sound blanket
  • Totally enclosed permanently lubricated condenser fan motor
  • Fully charged system
  • Eletric heat kit available as a field-installed option
  • AHRI Certified
  • UL listed
Cabinet Features
  • Heavy-gauge galvanized steel cabinet with attractive Architectural Gray powder-paint finish
  • Aluminum foil-facing internal insulation reinforced with fiberglass scrim
  • Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193
  • Fully insulated blower compartment with convenient access panels
  • Louvered condenser coil protection
  • One footprint for all tonnages
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
DIMENSIONS & WEIGHT
Height
35 in
Width
66 in
Depth
34 in
Weight
380 lb
GENERAL INFORMATION
Brand
Goodman
Series
GPCH3
SKU
GPCH33631
Product Category
Unitary
Unit Type
Outdoor
Manufacturer
Goodman
Product Features
  • Energy-efficient compressor
  • Multi-speed ECM indoor blower motor
  • Quiet horizontal discharge
  • All-Aluminum evaporator coil
  • Copper tube / aluminum fin condenser coil
  • Compressor sound blanket
  • Totally enclosed permanently lubricated condenser fan motor
  • Fully charged system
  • Eletric heat kit available as a field-installed option
  • AHRI Certified
  • UL listed
CAPACITY & PERFORMANCE
Tonnage
3.0
Cooling BTU
36000 Btu/H
Maximum CFM
1150 ft³/min
SEER2
13.4
EER2
10.6
COMPRESSOR & MOTORS
Compressor Type
Scroll
Compressor Stages
Single Stage
NOISE LEVELS
Decibel Level (dBA)
76 dBA
ELECTRICAL REQUIREMENTS
Voltage/Phase/Hz
208-230 V / 1 Ph / 60 Hz
Max Breaker Size
35 A
Min. Breaker Size
24.8 A
REFRIGERANT & PIPING
Refrigerant
R-32
Factory Refrigerant Charge
64
Liquid Line
3/8 in
Suction Line
1/2 in
SAFETY
ENERGY STAR® Certified
No
Safety Information
R32 Outdoor
Proposition 65 Warning
Yes
WARRANTY
Warranty
ALL PARTS - 5 YEARS PARTS
