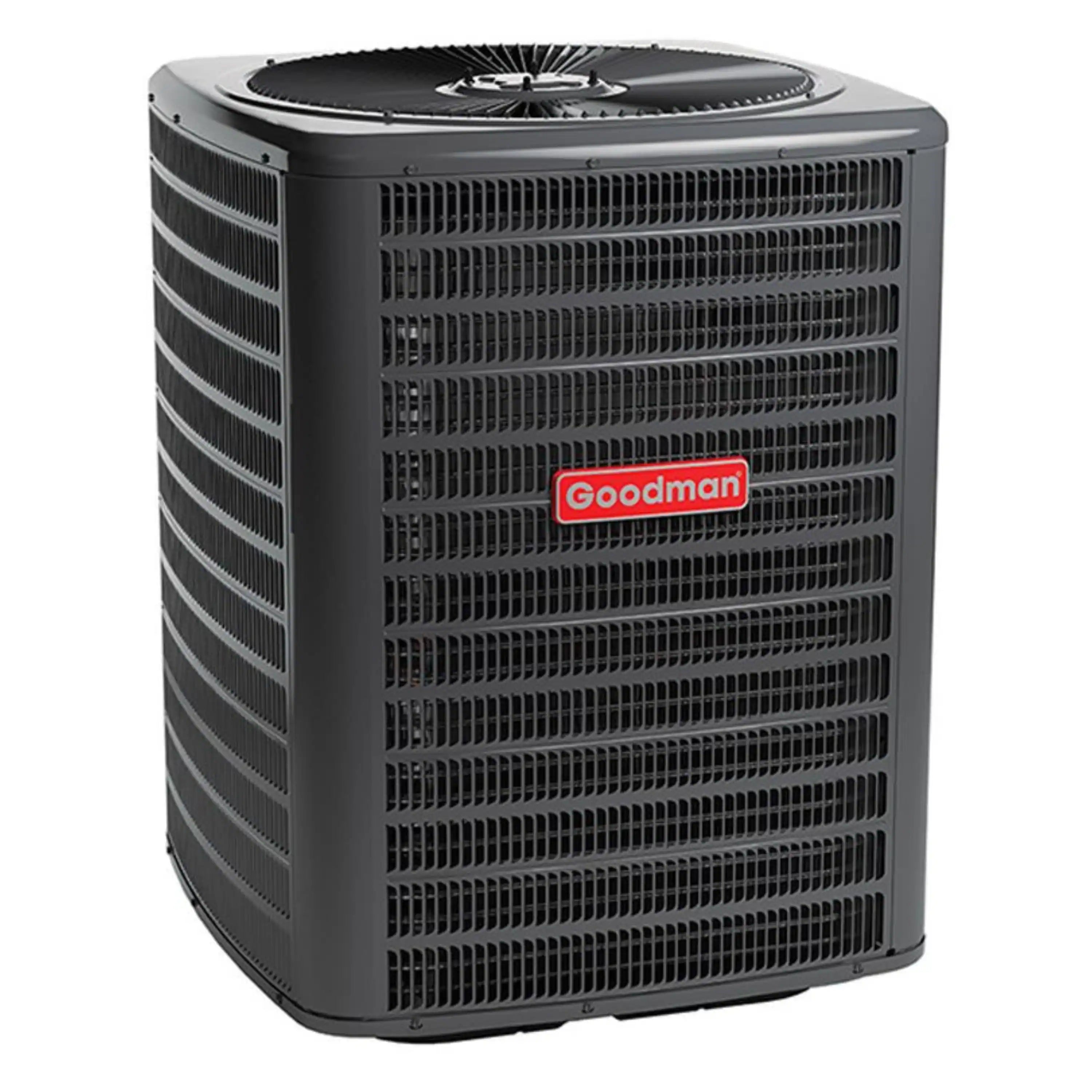

Goodman split air conditioner outdoor condenser unit, black with front grille and fan

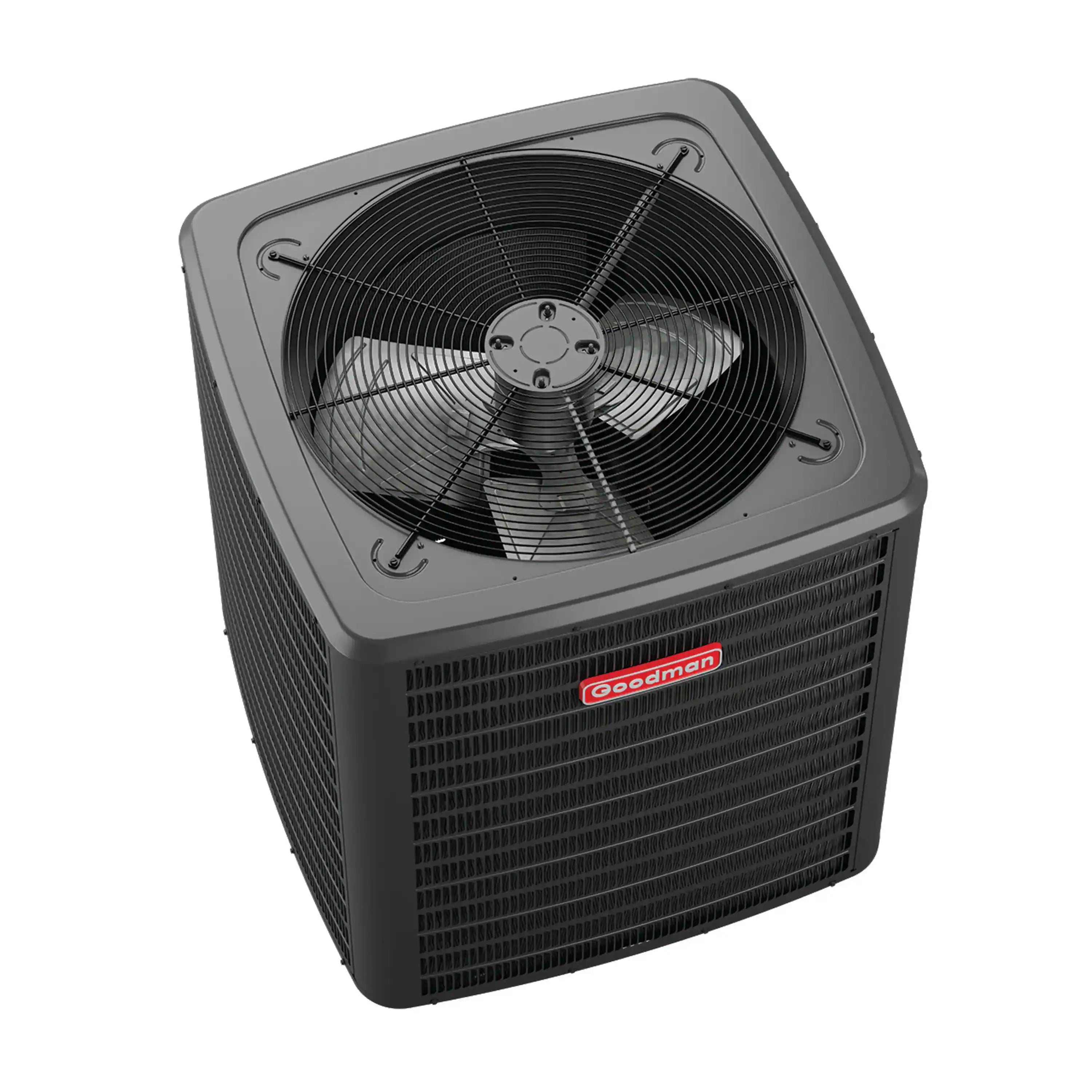

Goodman split air conditioner outdoor condenser unit, black with top fan and grille
Roll over image to zoom in Click on image to zoom
Goodman split air conditioner outdoor condenser unit, black with front grille and fanGoodman split air conditioner outdoor condenser unit, black with top fan and grille
Click on image to zoom

Goodman GLXS4M Split Air Conditioner 14.3 SEER2 R-32 Single-Stage (GLXS4MA3010)

GoodmanSKU: GLXS4MA3010
Price:
$1,785.42 $2,223.00SAVE 19%
In Stock
Estimated delivery: Sep 9th-23rd
Free Curbside Delivery — carrier calls to schedule

Free Curbside Delivery

Included on every order
Ships free by freight carrier. Your order leaves the warehouse tracked, on a palletized freight truck.
The carrier calls ahead. You'll schedule a delivery window that works for you before the truck heads out.
Delivered to the curb. The item is placed at the end of your driveway. Moving it inside is your responsibility, so plan to have help on hand for heavy pieces.
Before you sign: inspect the packaging for damage. Signing the delivery receipt confirms it arrived in good condition.

Description

The Goodman GLXS4M Split System Air Conditioner delivers 14.3 SEER2 efficiency with R-32 refrigerant at 2.5 Ton capacity. Features single-stage cooling and durable powder-painted cabinet with easy service access. Optimized for next-generation R-32 refrigerant with lower GWP. AHRI Certified and ETL Listed.

Features
  • Removable grille-style top design compliant with UL 60335-2-40
  • Venturi for increased velocity of airflow
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Wire fan discharge grille
  • Steel louver coil guard
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field-installed accessories
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Cabinet Features
  • High-Efficiency Scroll Compressor
  • Factory-installed filter drier
  • Fully charged for 15’ of tubing length
  • 5mm diameter copper tube/enhanced aluminum fin coil
  • Service valves with sweat connections and easy-to-access gauge ports
  • Enclosed contactor with lug connection
  • Ground lug connection
  • High-pressure switch
  • AHRI Certified
  • ETL Listed
DIMENSIONS & WEIGHT
Height
29 in
Width
35-3/4 in
Depth
29 in
Weight
70 lb
GENERAL INFORMATION
Brand
Goodman
Series
GLXS4M
SKU
GLXS4MA3010
Product Category
Unitary
Unit Type
Outdoor
Manufacturer
Goodman
Product Features
Removable grille-style top design compliant with UL 60335-2-40;Venturi for increased velocity of airflow;Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval;Wire fan discharge grille;Steel louver coil guard;Top and side maintenance access;Single-panel access to controls with space provided for field-installed accessories;When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
CAPACITY & PERFORMANCE
Tonnage
2.5
Cooling BTU
28400 Btu/H
Cooling Operating Range
55 °F to 125 °F
SEER2
14.3
EER2
11.7
COMPRESSOR & MOTORS
Compressor Type
Scroll
Compressor Stages
Single Stage
NOISE LEVELS
Decibel Level (dBA)
70 dBA
ELECTRICAL REQUIREMENTS
Voltage/Phase/Hz
208/240 V / 1 Ph / 60 Hz
Max Breaker Size
25 A
Min. Breaker Size
15.349999999999998 A
REFRIGERANT & PIPING
Refrigerant
R-32
Factory Refrigerant Charge
64 oz
Liquid Line
3/8 in
Suction Line
7/8 in
Max Line Set Length
200 ft
SAFETY
ENERGY STAR® Certified
No
Proposition 65 Warning
Yes
WARRANTY
Warranty
ALL PARTS - 5 YEARS PARTS
