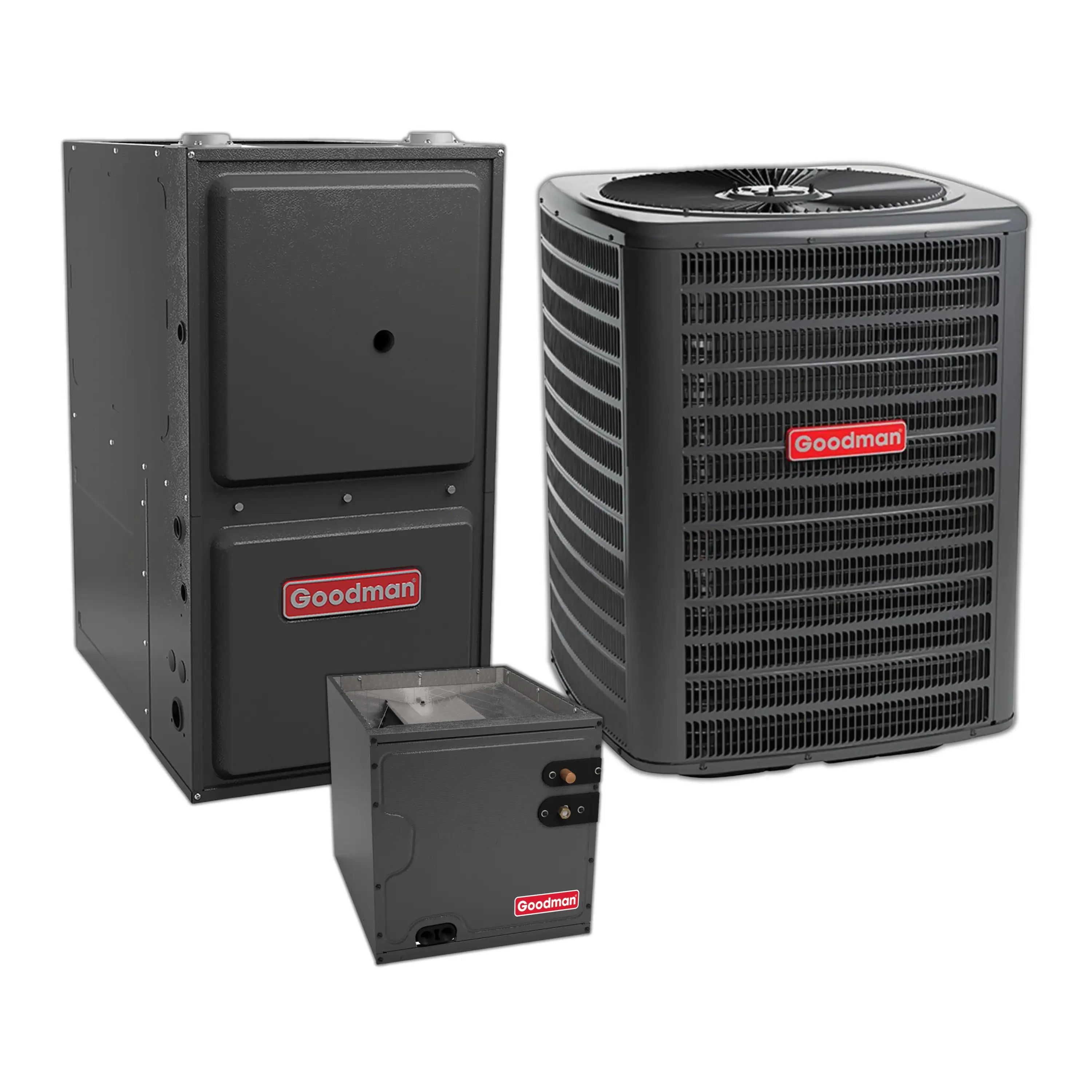

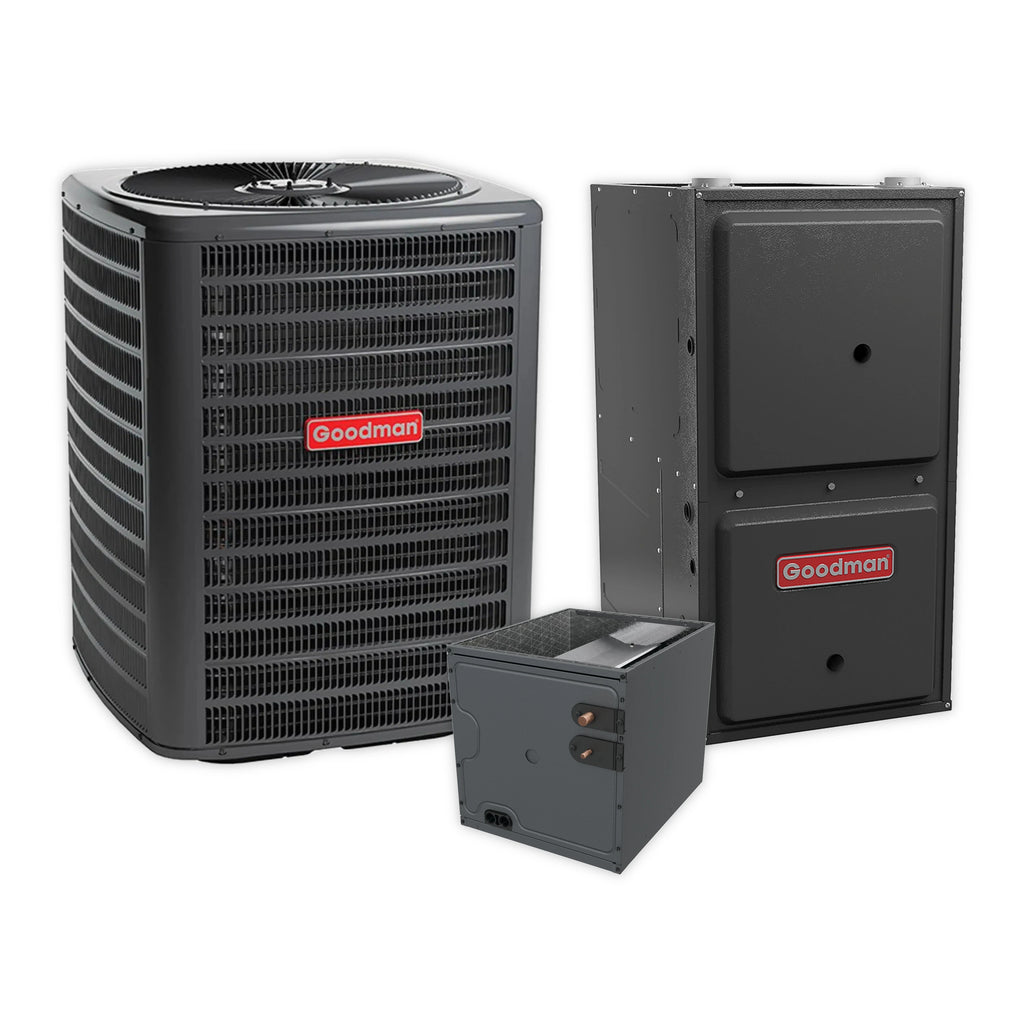

Goodman 2.5 Ton 14.3 SEER2 Heat Pump, 96% AFUE 80K BTU Gas Furnace and Evaporator Coil

The Goodman GLZSM4 is a 2.5 Ton split system heat pump delivering up to 15.2 SEER2 / 14.3 SEER2 / 7.8 HSPF2 efficiency with SmartShift technology for quiet, reliable defrost. Features a high-efficiency compressor, enhanced aluminum fin coils, and single-speed PSC condenser fan motor. Ships fully charged for 15' of tubing length. Built in a heavy-gauge galvanized steel cabinet. AHRI Certified and ETL Listed.

• High-efficiency compressor
• SmartShift® technology to ensure quiet reliable defrost
• Enhanced aluminum fin coil- 5 mm diameter on 1.5T-3.5 Ton
• Enhanced aluminum fin coil with 7mm diameter copper tubes in 4.0- to 5.0-ton
• Single-speed PSC condenser fan motor
• Factory-installed bi-flow liquid-line filter drier
• Factory-installed suction-line accumulator
• Factory-installed compressor crankcase heater
• Factory-installed high-capacity muffler
• High- and low-pressure switches
• Service valves with sweat connections and easy access to gauge ports
• Fully charged for 15’ of tubing length
• Fully enclosed contractor with lug connection
• Ground lug connection
• Capacitors with extended life
• AHRI Certified
• ETL Listed

• Removable grille-style top design compliant with UL 60335-2-40
• Steel louver coil guard
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Top and side maintenance access
• When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available).

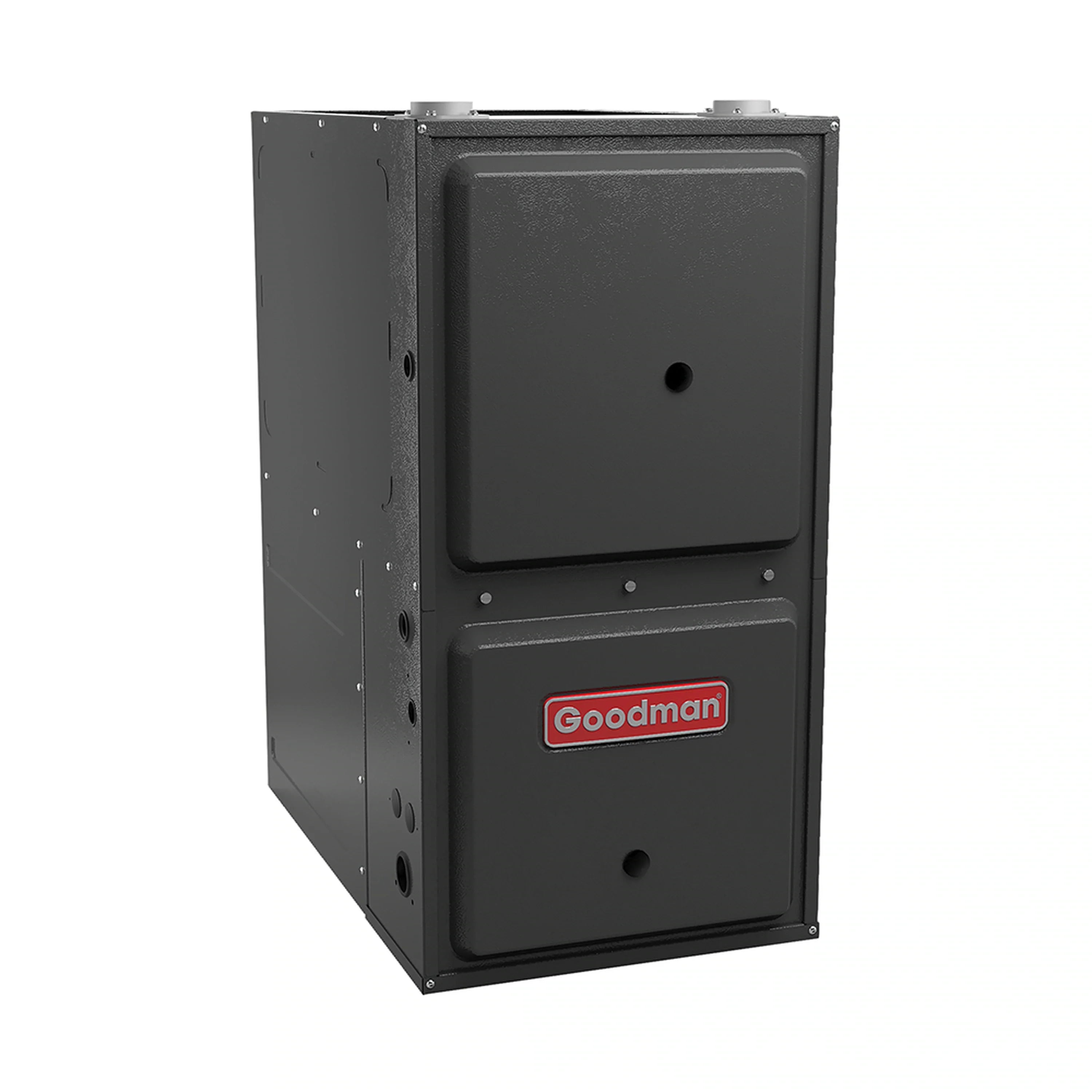

The Goodman GR9S96 Gas Furnace delivers 96% AFUE efficiency with a multi-speed ECM blower motor and single-stage gas valve for efficient heating at 80,000 BTUH. Features heavy-duty aluminized-steel tubular heat exchanger, stainless-steel sloped secondary heat exchanger, and Silicon Nitride igniter. California Low NOx compliant at 40 ng/J. Multi-position upflow/horizontal installation.

• Heavy-dutyluminized-steel tubular heat exchanger
• Stainless-steel sloped secondary heat exchanger
• Silicon Nitride igniter
• Color-coded low-voltage terminals
• Multi-speed ECM blower motor with continuous fan speed
• Fault code LED Output
• 7.HRI Certified - ETL Listed
• Energy Star
• Single-Stage gas Valve
• 10. Furnace control board with self-diagnosticsnd provisions for electronicir cleanernd 120-volt or 24-volt humidifiers
• 1Low constant fan speed circulatesir throughout the home
• 1High static
• 13.ll models comply with California Ultra-Low N0x 14 ng/J

The Goodman CAPTA AlumaFin7 evaporator coil is a 3 Ton all-aluminum coil optimized for R-32 refrigerant with upflow/downflow application. Features factory-installed thermal expansion valves, R-32 sensor, and 21" depth for easier attic access. Includes rust-resistant UV-resistant thermoplastic drain pan with secondary drain connections. Galvanized leather grain-embossed finish. AHRI Certified and ETL Listed.

• All-Aluminum evaporator coil
• Optimized for use with R-32 refrigerant including circuits and manifolds
• R-32 sensor designed for the life span of the coil
• Factory-installed thermal expansion valves for cooling and heat pump applications
• Standardized copper suction tube stub length
• Check flowrator for cooling and heat pump applications
• Vertical application
• 21" depth for easier attic access
• Single front access panel
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Rust resistant, thermoplastic drain pan featuring a low water-retention design
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
• UV-resistant drain pan
• AHRI certified
• ETL Listed
