SKU: GLZS4BA3010AMST30BU1300
$4,239.00 $5,518.00

BTUs
In Stock Estimated delivery: Jul 29th-12th
  • Secure Payment
    Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa
    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Free Shipping*
  • 30-Day Return Policy⁺

Package Overview

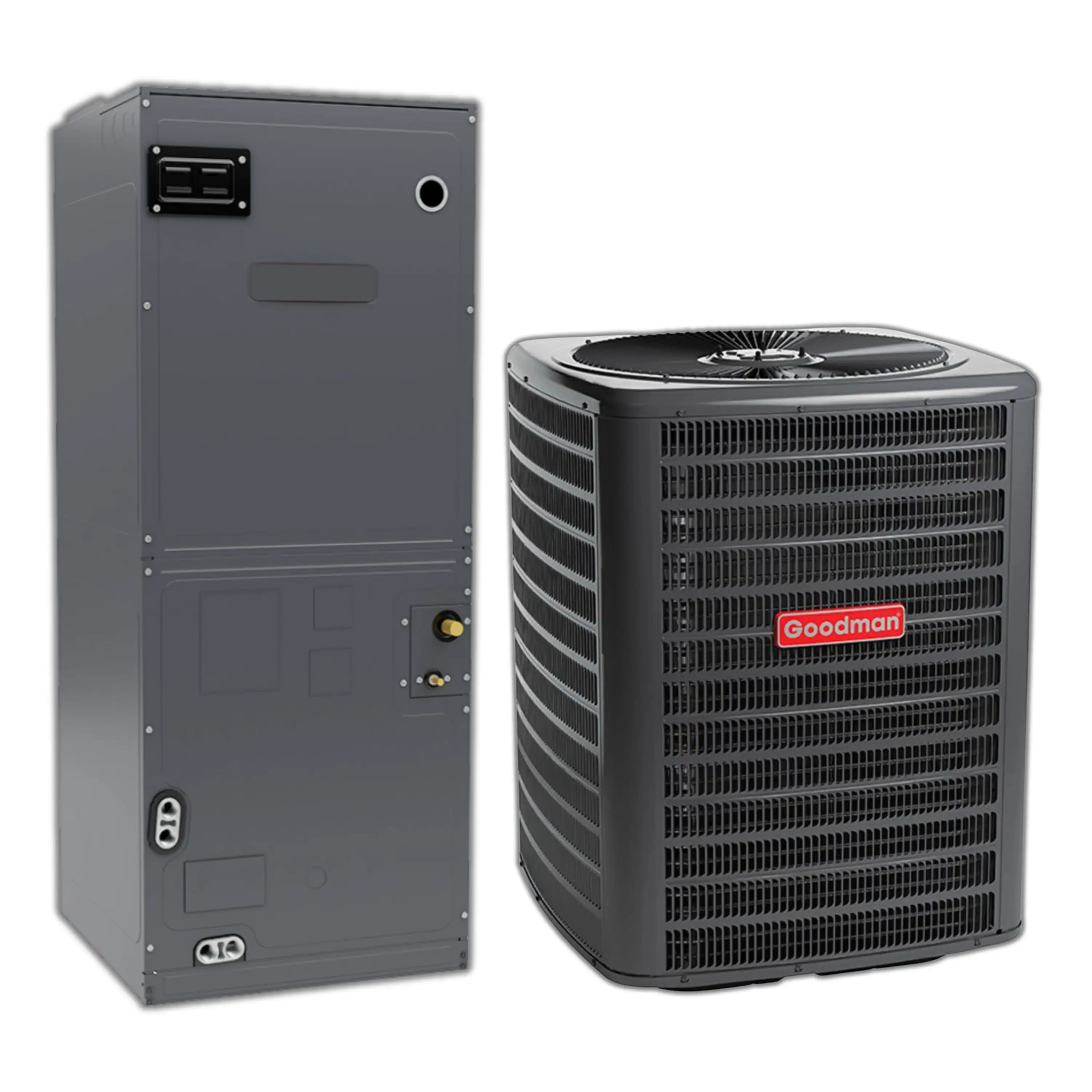

Goodman 2.5 Ton 14.5 SEER2 Heat Pump System | Air Handler | R-32 Refrigerant | Covers 1,300-1,600 Sq. Ft.

Features:

  • Condenser Cooling Capacity: 28K BTU (2.5 Ton)
  • Energy Efficiency: 14.5 SEER2
  • Recommended Coverage Area: 1,300-1,600 Sq. Ft.
  • Installation Type: Split System with Air Handler
  • Refrigerant: R-32
  • Voltage: 208/240 V / 1 Ph / 60 Hz
  • Compressor: Single Stage
  • Sound Level: 77 dBA
  • AHRI Certified & ETL Listed

Package Includes:

Goodman GLZS4B Split Heat Pump 14.3 SEER2 / .8 HSPF2 R-32 Single-Stage (GLZS4BA3010)
Goodman GLZS4B Split Heat Pump 14.3 SEER2 / .8 HSPF2 R-32 Single-Stage (GLZS4BA3010)
In Stock Estimated delivery: Jul 29th-12th
Description
Product Specs
Manuals & Guides

The Goodman GLZS4B is a 2.5 Ton split system heat pump delivering 14.3 SEER2 / 7.8 HSPF2 efficiency with SmartShift technology for quiet, reliable defrost. Features a high-efficiency compressor, factory-installed components, and enhanced aluminum fin coils with 5mm copper tubes. Built in a heavy-gauge galvanized steel cabinet with Architectural Gray finish. Meets 2023 Florida Building Code when properly anchored. AHRI Certified and ETL Listed.

Features
  • High-Efficiency Compressor
  • SmartShift technology to ensure quiet reliable defrost
  • Factory-installed bi-flow liquid line filter drier
  • Factory-installed suction-line accumulator
  • Factory-installed compressor crankcase heater
  • Factory-installed high-capacity muffler
  • Enhanched aluminum fin coil with 5mm diameter coper tubes in 1.5 -to 3.5 ton
  • Enhanched aluminum fin coil with 7mm diameter coper tubes in 4.0 -to 5.0 ton
  • High and low-pressure switches
  • Fully charged for 15’ of tubing length
  • Service valves with sweat connections and easy-to-access gauge ports
  • Fully enclosed contactor with lug connection
  • Ground lug connection
  • Single-speed PSC condenser fan motor
  • Capacitor with extended life
  • AHRI Certified
  • ETL Listed
Cabinet Features
  • Removable grille style top design compliant with UL 60335-2-40
  • Steel louver coil guard
  • Heavy-gauge galvanized-steel cabinet
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Top and side maintenance access
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available
DIMENSIONS & WEIGHT
Height 39.5 in
Width 29 in
Depth 29 in
Weight 174 lb
GENERAL INFORMATION
Brand Goodman
Series GLZS4B
SKU GLZS4BA3010
Product Category Unitary
Unit Type Outdoor
Manufacturer Goodman
Product Features
  • High-Efficiency Compressor
  • SmartShift technology to ensure quiet reliable defrost
  • Factory-installed bi-flow liquid line filter drier
  • Factory-installed suction-line accumulator
  • Factory-installed compressor crankcase heater
  • Factory-installed high-capacity muffler
  • Enhanched aluminum fin coil with 5mm diameter coper tubes in 1.5 -to 3.5 ton
  • Enhanched aluminum fin coil with 7mm diameter coper tubes in 4.0 -to 5.0 ton
  • High and low-pressure switches
  • Fully charged for 15’ of tubing length
  • Service valves with sweat connections and easy-to-access gauge ports
  • Fully enclosed contactor with lug connection
  • Ground lug connection
  • Single-speed PSC condenser fan motor
  • Capacitor with extended life
  • AHRI Certified
  • ETL Listed
CAPACITY & PERFORMANCE
Cooling BTU 28400 Btu/H
Heating BTU 28400 Btu/H
Cooling Operating Range 55 °F to 125 °F
Heating Operating Range -20 °F to 70 °F
SEER2 14.5
HSPF2 7.8
EER2 12.0
COMPRESSOR & MOTORS
Compressor Type Rotary
Compressor Stages Single Stage
NOISE LEVELS
Decibel Level (dBA) 77 dBA
ELECTRICAL REQUIREMENTS
Voltage/Phase/Hz 208/240 V / 1 Ph / 60 Hz
Max Breaker Size 25 A
Min. Breaker Size 15 A
REFRIGERANT & PIPING
Refrigerant R-32
Factory Refrigerant Charge 81 oz
Liquid Line 3/8 in
Suction Line 3/4 in
Max Line Set Length 200 ft
SAFETY
ENERGY STAR® Certified No
Safety Information R32 Outdoor
Proposition 65 Warning Yes
WARRANTY
Warranty ALL PARTS - 5 YEARS PARTS
Goodman AMST Air Handler R-32 (AMST30BU1300)
Goodman AMST Air Handler R-32 (AMST30BU1300)
In Stock Estimated delivery: Jul 29th-12th
Description
Product Specs
Manuals & Guides

The Goodman AMST multi-position air handler is designed for ducted mini-split applications. Features flexible installation options with multi-position capability. Provides quiet, efficient air distribution when paired with Goodman mini-split outdoor units. Ideal for applications requiring traditional ducted airflow in a mini-split system.

Features
  • Internal factory-installed thermal expansion valves for cooling and heat pump applications
  • Direct drive, 9-speed ECM blower motor
  • Factory installed 7mm AlumaFin7™ Evaporator Coil on 1½ to 3½ Ton models and 3/8 in. Evaporator Coil on 4 to 5 Ton models
  • All-aluminum evaporator coil with high-performance coated fin stock
  • Coil mounting track for quick repositioning
  • Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.
  • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
  • 3 kW – 25 kW electric heater kits
  • AHRI certified
  • ETL listed
Cabinet Features
  • Rigid SmartFrame cabinet
  • Horizontal or vertical configuration capabilities
  • 21” depth for easier attic access
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Screw-less sides and back helps to reduce condensation when installed in humid locations
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Glue-less cabinet insulation retention
  • Tool-less filter access
DIMENSIONS & WEIGHT
Height 53-7/16 in
Width 17-9/16 in
Depth 21 in
Weight 129 lb
GENERAL INFORMATION
Brand Goodman
Series AMST
SKU AMST30BU1300
Product Category Unitary
Unit Type Indoor
Manufacturer Goodman
Product Features
  • Internal factory-installed thermal expansion valves for cooling and heat pump applications
  • Direct drive, 9-speed ECM blower motor
  • Factory installed 7mm AlumaFin7™ Evaporator Coil on 1½ to 3½ Ton models and 3/8 in. Evaporator Coil on 4 to 5 Ton models
  • All-aluminum evaporator coil with high-performance coated fin stock
  • Coil mounting track for quick repositioning
  • Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation
  • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
  • 3 kW – 25 kW electric heater kits
  • AHRI certified
  • ETL listed
CAPACITY & PERFORMANCE
Tonnage 2.5
ELECTRICAL REQUIREMENTS
Voltage/Phase/Hz 208/230 V / 1 Ph / 60 Hz
Max Breaker Size 15 A
Min. Breaker Size 5.6 A
REFRIGERANT & PIPING
Refrigerant R-32
Factory Refrigerant Charge 0.5 oz
Liquid Line 3/8 in
Suction Line 3/4 in
SAFETY
Proposition 65 Warning Yes
WARRANTY
Warranty ALL PARTS - 5 YEARS PARTS
