The Goodman GLZS4B is a 2 Ton split system heat pump delivering 14.3 SEER2 / 7.8 HSPF2 efficiency with SmartShift technology for quiet, reliable defrost. Features a high-efficiency compressor, factory-installed components, and enhanced aluminum fin coils with 5mm copper tubes. Built in a heavy-gauge galvanized steel cabinet with Architectural Gray finish. Meets 2023 Florida Building Code when properly anchored. AHRI Certified and ETL Listed.
Features| General Information | |
|---|---|
| Brand | Goodman |
| Series | GLZS4B |
| SKU | GLZS4BA2410 |
| Product Category | Unitary |
| Unit Type | Outdoor |
| Manufacturer | Goodman |
| Electrical | |
| Voltage/Phase/Hz | 208/240 V / 1 Ph / 60 Hz |
| Max Breaker Size | 15 A |
| Min. Breaker Size | 11.2 A |
| Capacity & Performance | |
| Cooling BTU | 23600 Btu/H |
| Heating BTU | 22000 Btu/H |
| Cooling Operating Range | 55 °F to 125 °F |
| Heating Operating Range | -20 °F to 70 °F |
| Decibel Level (dBA) | 74 dBA |
| Efficiency Ratings | |
| SEER2 | 15.2 |
| HSPF2 | 7.5 |
| EER2 | 12.5 |
| ENERGY STAR® Certified | No |
| Compressor & Refrigerant | |
| Compressor Type | Rotary |
| Compressor Stages | Single Stage |
| Refrigerant | R-32 |
| Factory Refrigerant Charge | 70 oz |
| Liquid Line | 3/8 in |
| Suction Line | 3/4 in |
| Max Line Set Length | 200 ft |
| Dimensions & Weight | |
| Height | 32.5 in |
| Width | 29 in |
| Depth | 29 in |
| Weight | 160 lb |
| Additional Information | |
| Product Features | High-Efficiency Compressor;SmartShift technology to ensure quiet reliable defrost;Factory-installed bi-flow liquid line filter drier;Factory-installed suction-line accumulator;Factory-installed compressor crankcase heater;Factory-installed high-capacity muffler;Enhanched aluminum fin coil with 5mm diameter coper tubes in 1.5 -to 3.5 ton;Enhanched aluminum fin coil with 7mm diameter coper tubes in 4.0 -to 5.0 ton;High and low-pressure switches;Fully charged for 15’ of tubing length;Service valves with sweat connections and easy-to-access gauge ports;Fully enclosed contactor with lug connection;Ground lug connection;Single-speed PSC condenser fan motor;Capacitor with extended life;AHRI Certified;ETL Listed |
| Warranty | ALL PARTS - 5 YEARS PARTS |
| Safety Information | R32 Outdoor |
| Proposition 65 Warning | Yes |

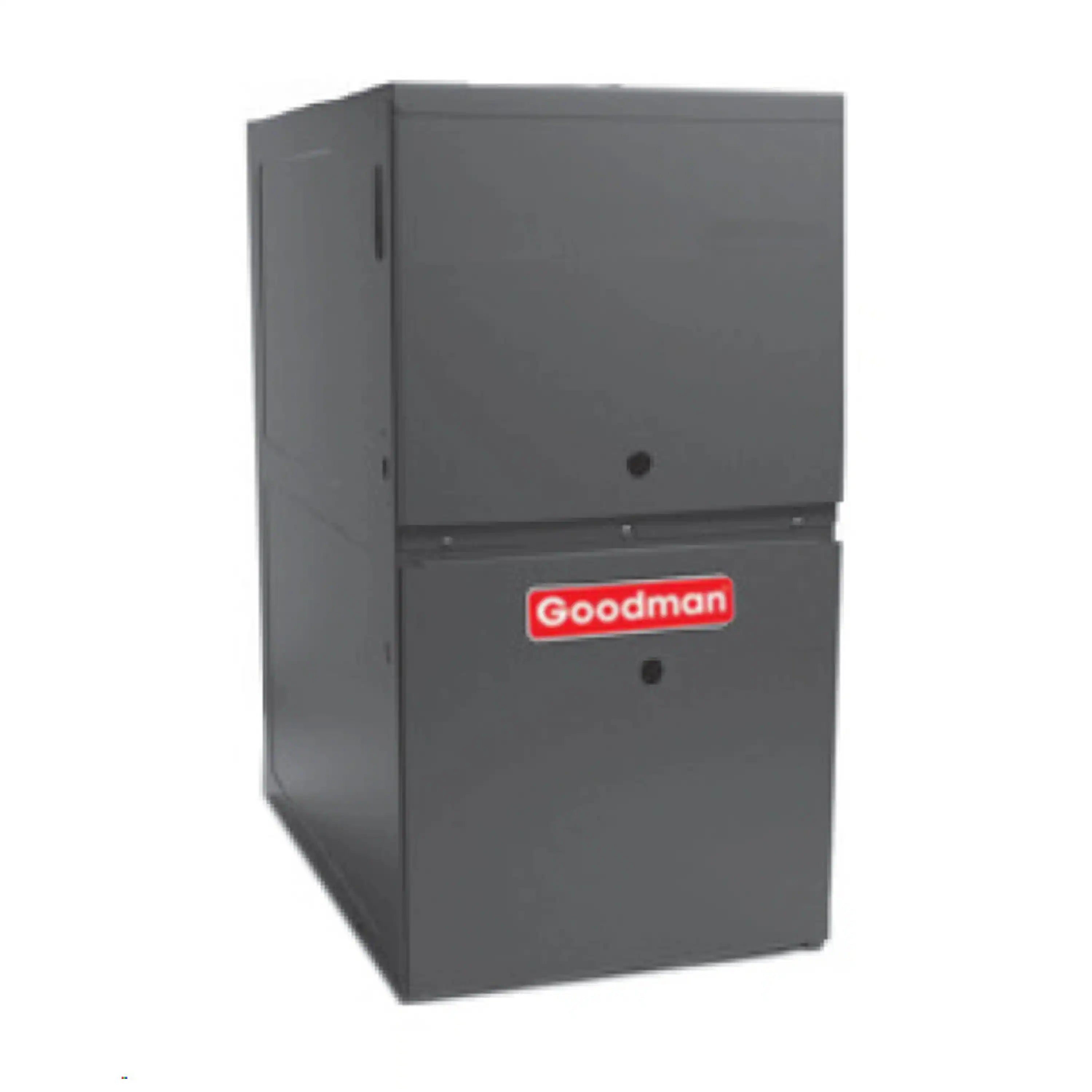

The Goodman GR9T80 Gas Furnace delivers 80% AFUE efficiency with a multi-speed ECM blower motor and two-stage gas valve for consistent heating at 80,000 BTUH. Features heavy-duty aluminized-steel tubular heat exchanger, Silicon Nitride igniter, and furnace control board with self-diagnostics. Multi-position upflow/horizontal installation.
Features| General Information | |
|---|---|
| Brand | Goodman |
| SKU | GR9T800803BN |
| Product Category | Unitary |
| Unit Type | Indoor |
| Manufacturer | Goodman |
| Electrical | |
| Voltage/Phase/Hz | 115 V / 1 Ph / 60 Hz |
| Max Breaker Size | 15 A |
| Min. Breaker Size | 8.7 A |
| Efficiency Ratings | |
| AFUE | 80 % |
| Dimensions & Weight | |
| Height | 33-3/8 in |
| Width | 17-1/2 in |
| Depth | 28 in |
| Weight | 118 lb |
| Additional Information | |
| Product Features | Heavy-dutyluminized-steel tubular heat exchanger;"Silicon Nitride igniter";Color-coded low-voltage terminals;Two-Stage gas valve;Multi-speed ECM blower motor with continuous fan speed;Fault code LED Output;Two-stage gas valve;Furnace control board with self-diagnosticsnd provisions for electronicir cleanernd 120-volt or 24-volt humidifiers |
| Warranty | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| Proposition 65 Warning | Yes |

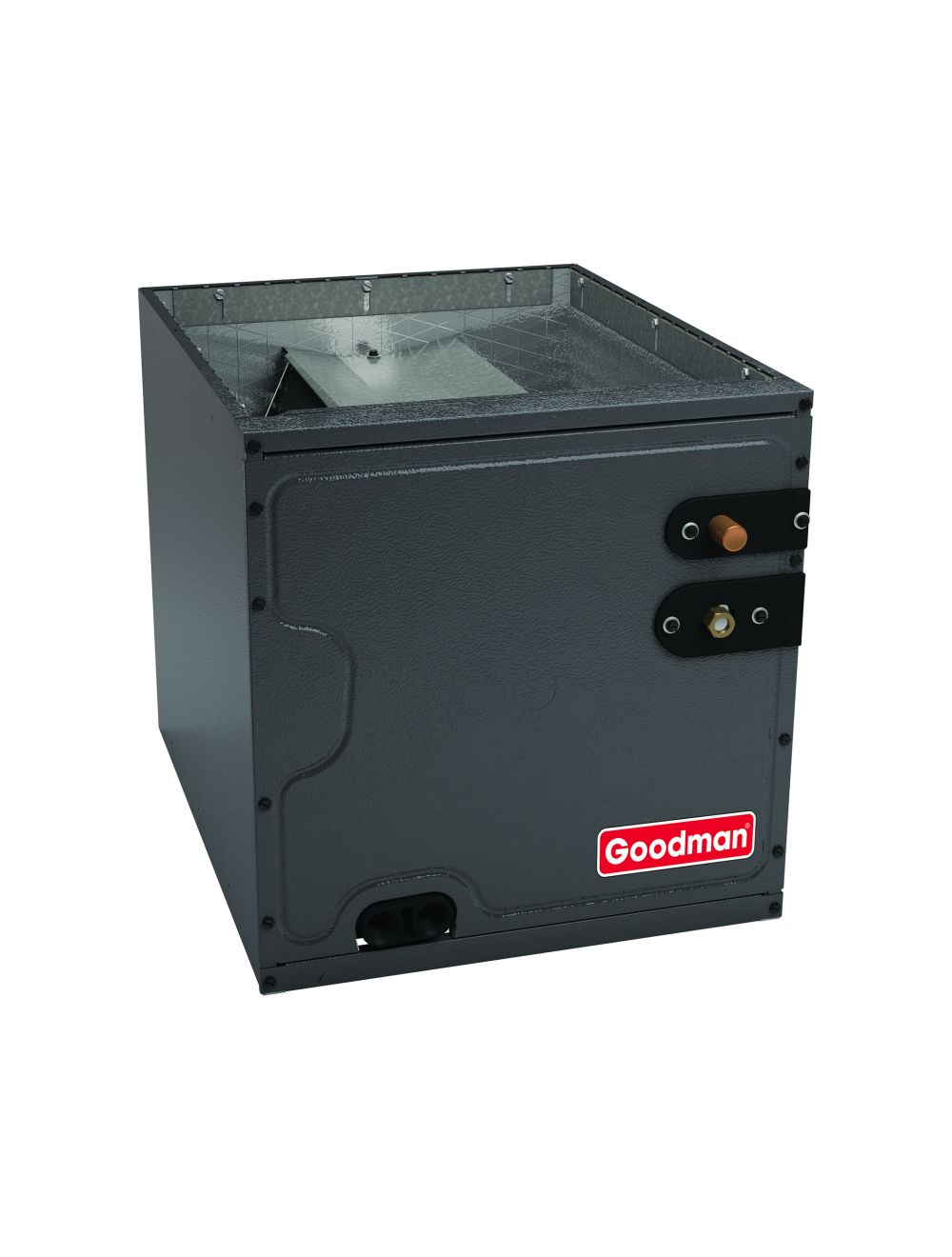

The Goodman CAPTA AlumaFin7 evaporator coil is a 2 Ton all-aluminum coil optimized for R-32 refrigerant with upflow/downflow application. Features factory-installed thermal expansion valves, R-32 sensor, and 21" depth for easier attic access. Includes rust-resistant UV-resistant thermoplastic drain pan with secondary drain connections. Galvanized leather grain-embossed finish. AHRI Certified and ETL Listed.
Features| General Information | |
|---|---|
| Brand | Goodman |
| Series | CAPTA AlumaFin7™ |
| SKU | CAPTA2422B3 |
| Product Category | Unitary |
| Unit Type | Indoor |
| Manufacturer | Goodman |
| Capacity & Performance | |
| Tonnage | 2.0 |
| Compressor & Refrigerant | |
| Refrigerant | R-32 |
| Liquid Line | 3/8 in |
| Suction Line | 3/4 in |
| Dimensions & Weight | |
| Height | 22 in |
| Width | 17-1/2 in |
| Depth | 21 in |
| Additional Information | |
| Product Features | All-Aluminum evaporator coil ;Optimized for use with R-32 refrigerant including circuits and manifolds;R-32 sensor designed for the life span of the coil;Factory-installed thermal expansion valves for cooling and heat pump applications;Standardized copper suction tube stub length;Check flowrator for cooling and heat pump applications;Vertical application;21" depth for easier attic access;Single front access panel;Foil-faced insulation covers the internal casing to reduce cabinet condensation;Galvanized, leather grain-embossed finish;Rust resistant, thermoplastic drain pan featuring a low water-retention design;DecaBDE-free thermoplastic drain pan with secondary drain connections;Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity;UV-resistant drain pan;AHRI certified;ETL Listed |
| Warranty | ALL PARTS - 5 YEARS PARTS |
| Proposition 65 Warning | Yes |
