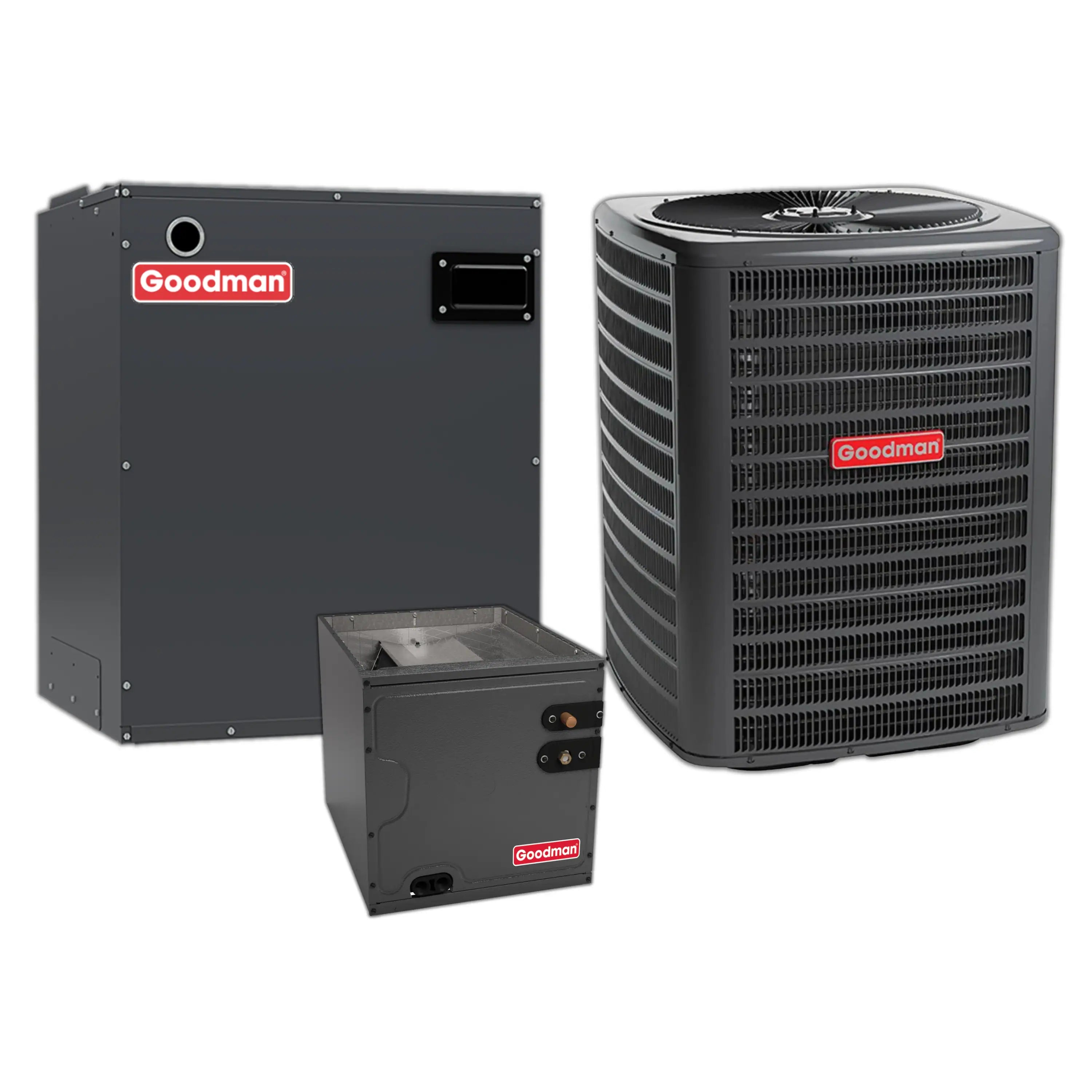

Goodman 1.5 Ton 14.3 SEER2 Heat Pump and Air Handler and Evaporator Coil

The Goodman GLZS4B is a 1.5 Ton split system heat pump delivering 14.3 SEER2 / 7.8 HSPF2 efficiency with SmartShift technology for quiet, reliable defrost. Features a high-efficiency compressor, factory-installed components, and enhanced aluminum fin coils with 5mm copper tubes. Built in a heavy-gauge galvanized steel cabinet with Architectural Gray finish. Meets 2023 Florida Building Code when properly anchored. AHRI Certified and ETL Listed.

• High-Efficiency Compressor
• SmartShift technology to ensure quiet reliable defrost
• Factory-installed bi-flow liquid line filter drier
• Factory-installed suction-line accumulator
• Factory-installed compressor crankcase heater
• Factory-installed high-capacity muffler
• Enhanched aluminum fin coil with 5mm diameter coper tubes in 1.5 -to 3.5 ton
• Enhanched aluminum fin coil with 7mm diameter coper tubes in 4.0 -to 5.0 ton
• High and low-pressure switches
• Fully charged for 15’ of tubing length
• Service valves with sweat connections and easy-to-access gauge ports
• Fully enclosed contactor with lug connection
• Ground lug connection
• Single-speed PSC condenser fan motor
• Capacitor with extended life
• AHRI Certified
• ETL Listed

• Removable grille style top design compliant with UL 60335-2-40
• Steel louver coil guard
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Top and side maintenance access
• When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available

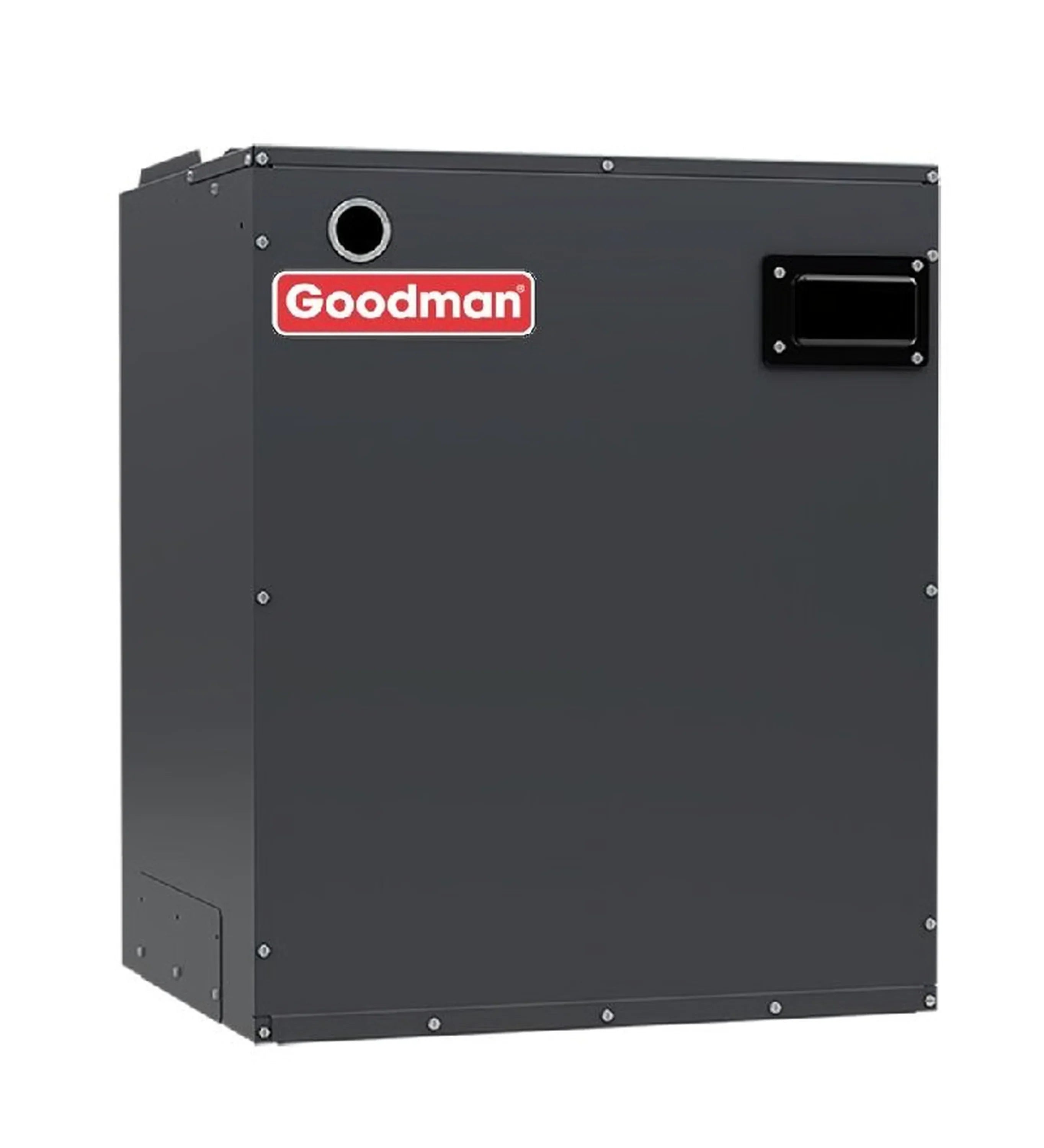

The Goodman MBVB Modular Blower is designed to deliver efficient, reliable airflow and enhanced indoor comfort for modern HVAC systems. Equipped with a variable-speed ECM blower motor, this unit maintains consistent airflow by automatically adjusting to changing static pressure conditions within the duct system. Its ability to provide constant CFM across a wide range of operating conditions helps improve system efficiency, comfort, and overall performance. The blower also supports multi-stage heat pump and cooling applications, allowing it to integrate seamlessly into a variety of residential HVAC setups while providing improved humidity control and more consistent temperature management.

This modular blower also features integrated ComfortBridge™ Technology, which enables advanced communication and configuration for optimized system performance. With built-in Bluetooth connectivity and Goodman’s CoolCloud™ mobile application, installers can easily commission, configure, and diagnose the system directly from a phone or tablet. Additional features such as advanced airflow and tonnage configuration, a CFM indicator, adjustable low-CFM fan operation, and fault recall for the six most recent system issues make maintenance and troubleshooting straightforward. The MBVB modular blower is AHRI certified, ETL listed, and compliant with UL 60335-2-40 standards, ensuring dependable performance and safety for long-term home comfort.

Features

• Variable-speed ECM blower motor

• Integrated communicating ComfortBridge™ Technology

• Commissioning and diagnostics via on board Bluetooth with the CoolCloud™ phone and tablet application

• Advanced configuration of the airflow and tonnage in communicating mode

• Provides constant CFM over a wide range of static pressure conditions independent of duct system

• CFM indicator

• Fault recall of six most recent faults

• Provides adjustable low CFM for efficient fan-only operation

• Improved humidity and comfort control

• Built-in compatibility with multi-stage heat pump and cooling applications

• UL 60335 2-40 Compliant

• AHRI certified; ETL listed

The Goodman CAPTA AlumaFin7 evaporator coil is a 2.5 Ton all-aluminum coil optimized for R-32 refrigerant with upflow/downflow application. Features factory-installed thermal expansion valves, R-32 sensor, and 21" depth for easier attic access. Includes rust-resistant UV-resistant thermoplastic drain pan with secondary drain connections. Galvanized leather grain-embossed finish. AHRI Certified and ETL Listed.

• All-Aluminum evaporator coil
• Optimized for use with R-32 refrigerant including circuits and manifolds
• R-32 sensor designed for the life span of the coil
• Factory-installed thermal expansion valves for cooling and heat pump applications
• Standardized copper suction tube stub length
• Check flowrator for cooling and heat pump applications
• Vertical application
• 21" depth for easier attic access
• Single front access panel
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Rust resistant, thermoplastic drain pan featuring a low water-retention design
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
• UV-resistant drain pan
• AHRI certified
• ETL Listed
