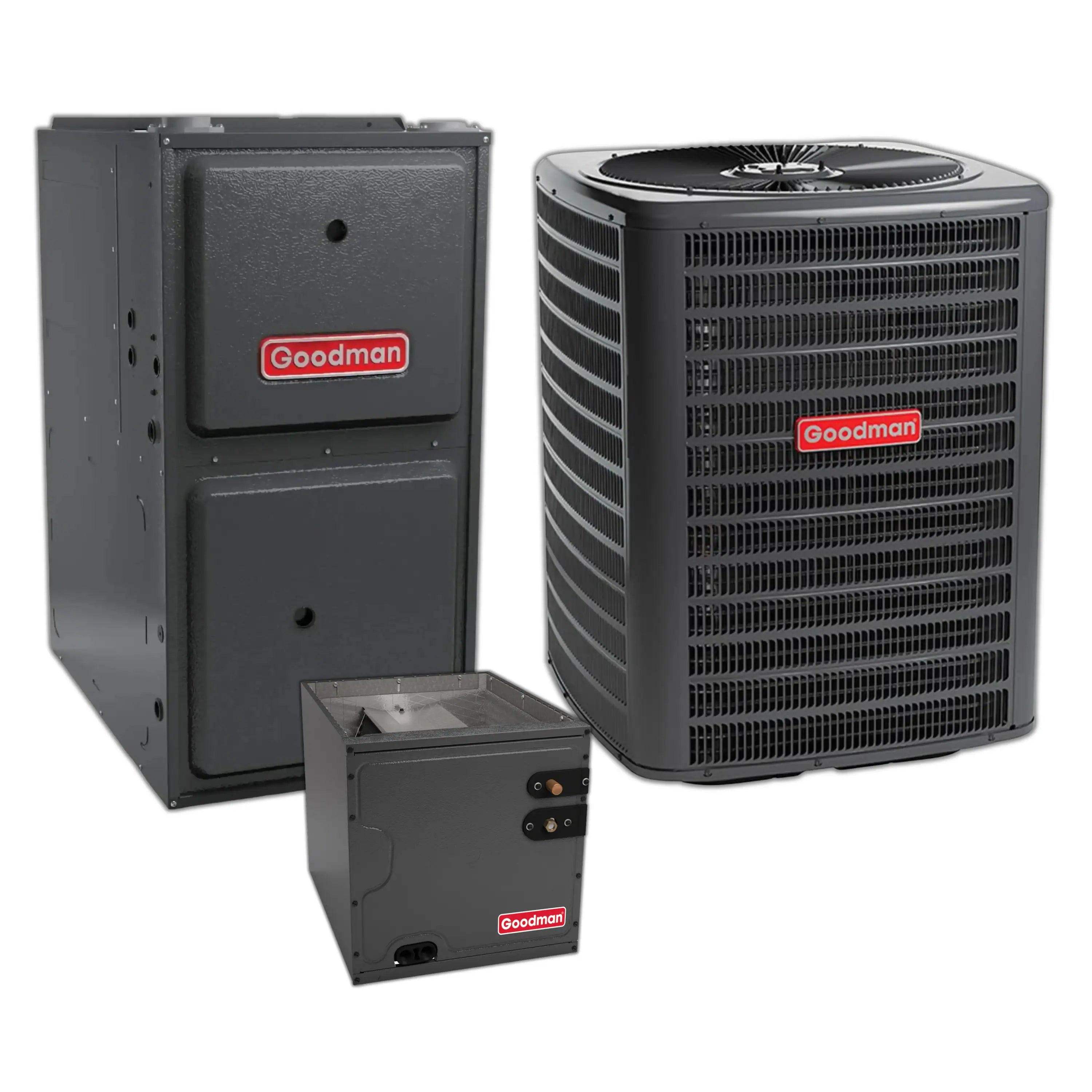

Goodman 3.0 Ton 14.3 SEER2 Central Air Conditioner, 96% AFUE 100K BTU Gas Furnace and Evaporator Coil

The Goodman GLXS4M Split System Air Conditioner delivers 14.3 SEER2 efficiency with R-32 refrigerant at 3 Ton capacity. Features single-stage cooling and durable powder-painted cabinet with easy service access. Optimized for next-generation R-32 refrigerant with lower GWP. AHRI Certified and ETL Listed.

• Removable grille-style top design compliant with UL 60335-2-40
• Venturi for increased velocity of airflow
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Wire fan discharge grille
• Steel louver coil guard
• Top and side maintenance access
• Single-panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

• High-Efficiency Scroll Compressor
• Factory-installed filter drier
• Fully charged for 15’ of tubing length
• 5mm diameter copper tube/enhanced aluminum fin coil
• Service valves with sweat connections and easy-to-access gauge ports
• Enclosed contactor with lug connection
• Ground lug connection
• High-pressure switch
• AHRI Certified
• ETL Listed

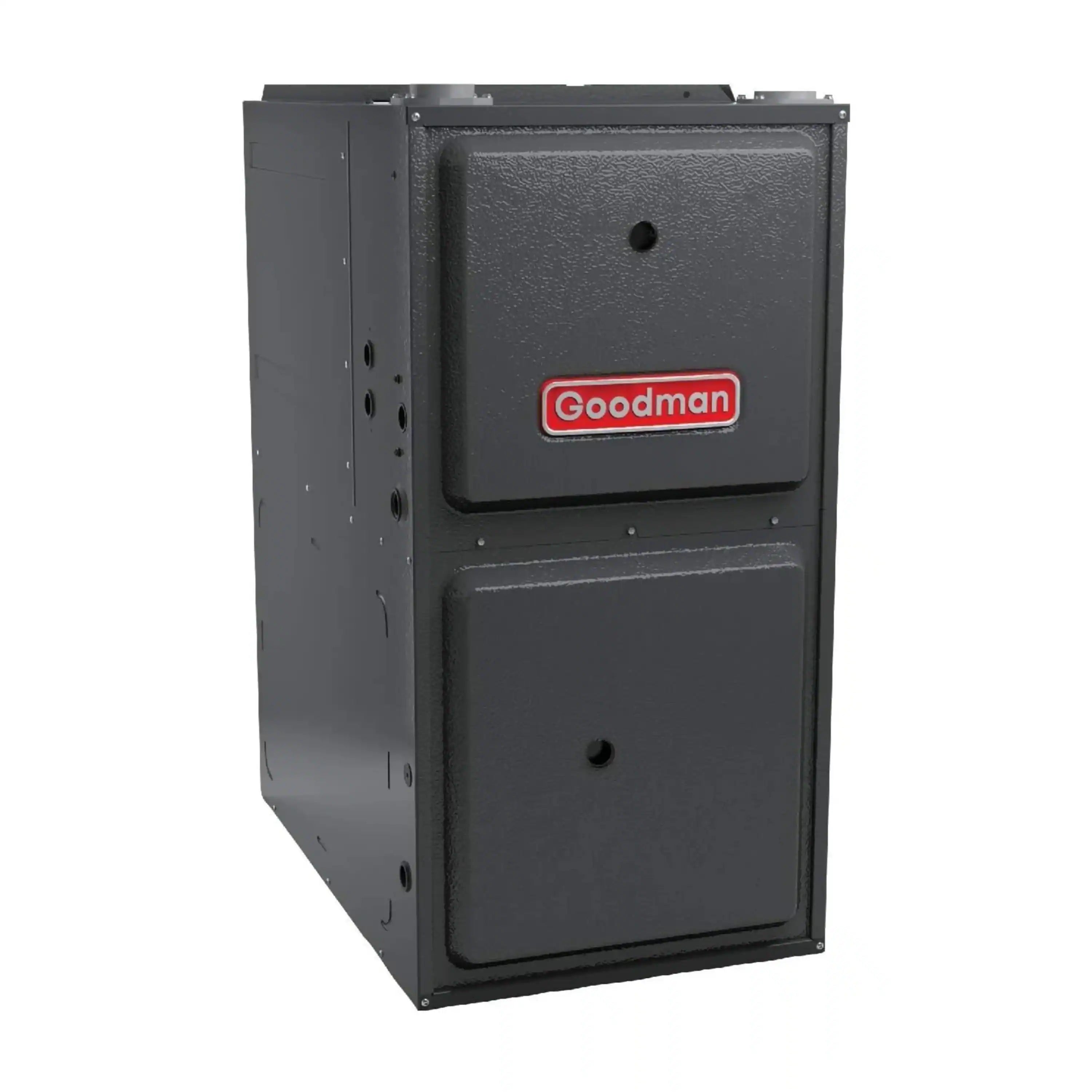

The Goodman GR9T96 Gas Furnace delivers 96% AFUE efficiency with a multi-speed ECM blower motor and two-stage gas valve for consistent heating at 100,000 BTUH. Features heavy-duty aluminized-steel tubular heat exchanger, stainless-steel sloped secondary heat exchanger, and Silicon Nitride igniter. California Low NOx compliant at 40 ng/J. Multi-position upflow/horizontal installation.

• "Heavy-duty aluminized-steel tubular heat exchangerStainless-steel sloped secondary heat exchangerSilicon Nitride igniterColor-coded low-voltage terminalsTwo-Stage gas valveMulti-speed ECM blower motor with continuous fan speedAll models comply with California 40 ng/JFault code LED OutputAHRI Certified - ETL Listed10. Energy Star1Two-stage gas valve1Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers"

• "Multi-position installation: upflow, horizontal left or rightCertified for direct vent (2-pipe) or non-direct vent (1 pipe)Easy to install top venting with optional side ventConvenient left or right connection for gas and electrical serviceCabinet air leakage (Qleak) less than or equal to 2%Fully insulated heat exchanger and blower sectionBottom or side return air applicationsHeavy-gage steel cabinet with durable finish"

The Goodman CAPTA AlumaFin7 evaporator coil is a 3.5 Ton all-aluminum coil optimized for R-32 refrigerant with upflow/downflow application. Features factory-installed thermal expansion valves, R-32 sensor, and 21" depth for easier attic access. Includes rust-resistant UV-resistant thermoplastic drain pan with secondary drain connections. Galvanized leather grain-embossed finish. AHRI Certified and ETL Listed.

• All-Aluminum evaporator coil
• Optimized for use with R-32 refrigerant including circuits and manifolds
• R-32 sensor designed for the life span of the coil
• Factory-installed thermal expansion valves for cooling and heat pump applications
• Standardized copper suction tube stub length
• Check flowrator for cooling and heat pump applications
• Vertical application
• 21" depth for easier attic access
• Single front access panel
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Rust resistant, thermoplastic drain pan featuring a low water-retention design
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
• UV-resistant drain pan
• AHRI certified
• ETL Listed
