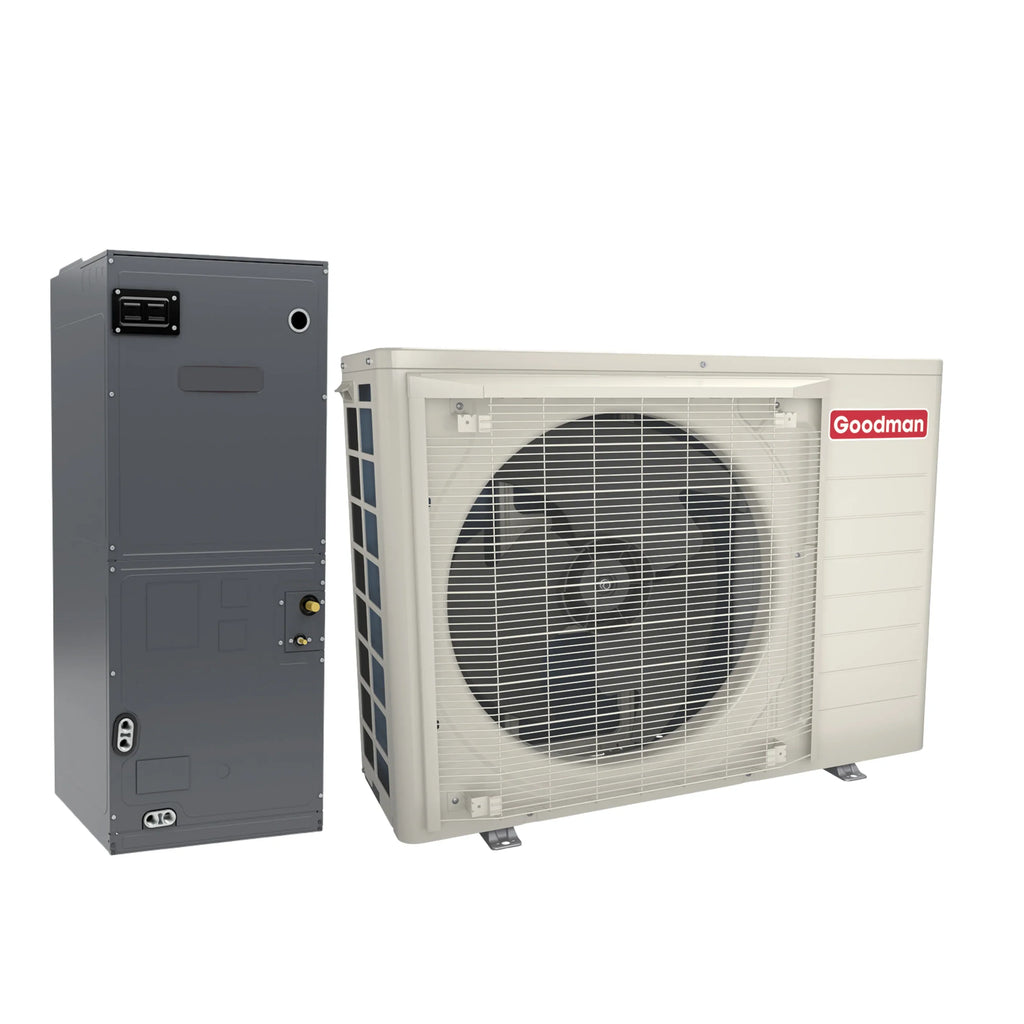

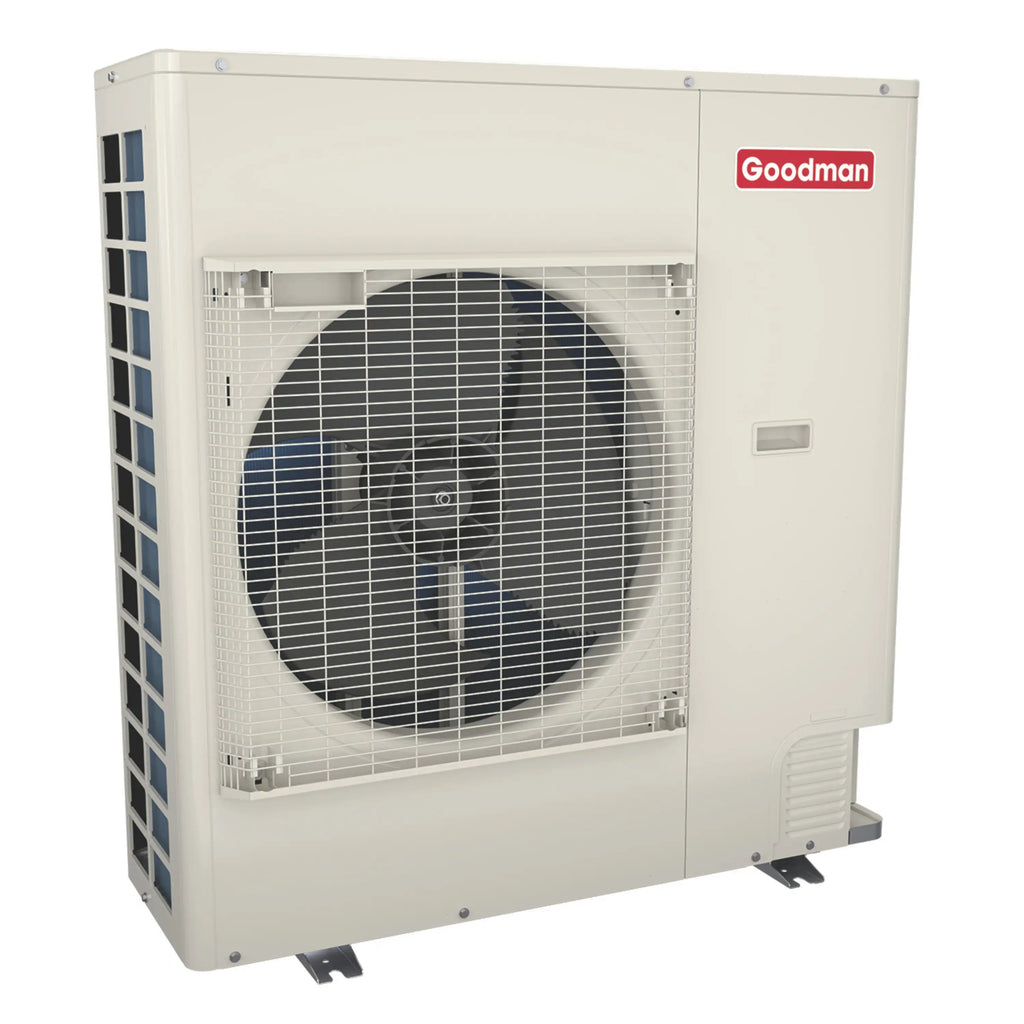

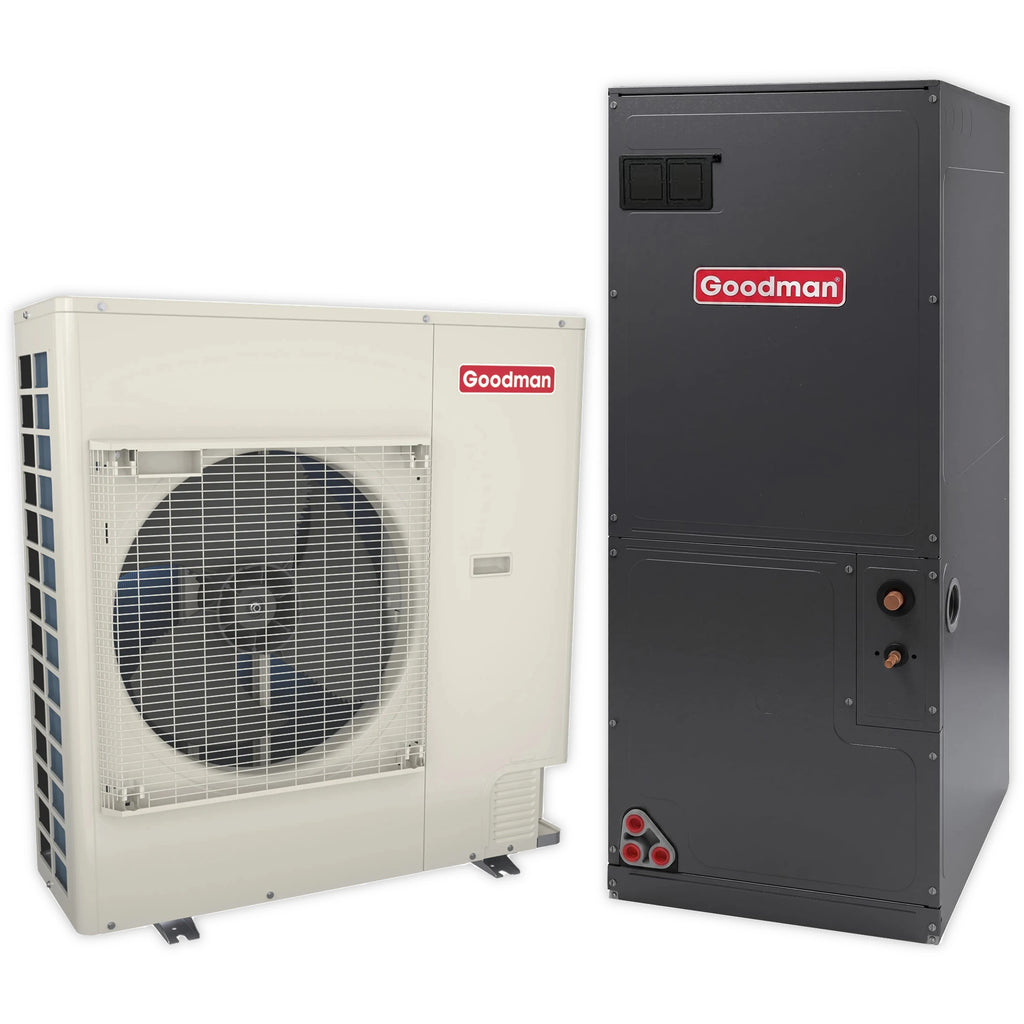

The Goodman GSV6S is a 3.5 Ton variable-speed split system heat pump delivering 16.2 SEER2 efficiency with inverter technology. Features variable-speed swing compressors, quiet digitally commutated fan motor, and Quiet-mode with sound levels as low as 45dBA. Compatible with Goodman GTST connected thermostat. Built in a heavy-gauge galvanized steel cabinet with Ivory white finish and ZAM corrosion-resistant frame. AHRI Certified and ETL Listed.
Features| General Information | |
|---|---|
| Brand | Goodman |
| Series | GSV6S |
| SKU | GZV6SA4210 |
| Product Category | Unitary |
| Unit Type | Outdoor |
| Manufacturer | Goodman |
| Electrical | |
| Voltage/Phase/Hz | 208/230 V / 1 Ph / 60 Hz |
| Max Breaker Size | 35 A |
| Min. Breaker Size | 31.8 A |
| Capacity & Performance | |
| Tonnage | 3.5 |
| Cooling BTU | 41000 Btu/H |
| Heating BTU | 40000 Btu/H |
| Cooling Operating Range | 0 °F to 115 °F |
| Heating Operating Range | -10 °F to 70 °F |
| Decibel Level (dBA) | 70 dBA |
| Efficiency Ratings | |
| SEER2 | 17.0 |
| HSPF2 | 8.2 |
| EER2 | 9.0 |
| ENERGY STAR® Certified | No |
| Compressor & Refrigerant | |
| Compressor Type | Inverter |
| Compressor Stages | Variable |
| Refrigerant | R-32 |
| Factory Refrigerant Charge | 100 oz |
| Liquid Line | 3/8 in |
| Suction Line | 7/8 in |
| Max Line Set Length | 100 ft |
| Dimensions & Weight | |
| Height | 39 in |
| Width | 37 in |
| Depth | 12.625 in |
| Weight | 168 lb |
| Additional Information | |
| Product Features | Variable-speed swing compressors;Quiet digitally commutated fan motor • High-density compressor sound blanket;Compatible with Goodman GTST connected thermostat and other Goodman communicating equipment;Propietary control algorithmic logic;In communicating mode, only two lowvoltage wires to outdoor unit required;Diagnostic indicator lights, seven-segment LED display, and fault code storage;Propietary Inside intelligence for diagnostics;Quiet-mode - provides enhanced acoustical comfort, up to 3 different sound levels (as low as 45dBA);Field-selectable boost mode increases compressor speed during unusually high loads;Field-installed bi-flow filter drier;Coil and ambient temperature sensors;Suction pressure transducer;Sweat connection service valves with easy access to gauge ports;AHRI Certified; ETL Listed |
| Warranty | ALL PARTS - 5 YEARS PARTS |
| Safety Information | R32 Outdoor |
| Proposition 65 Warning | Yes |

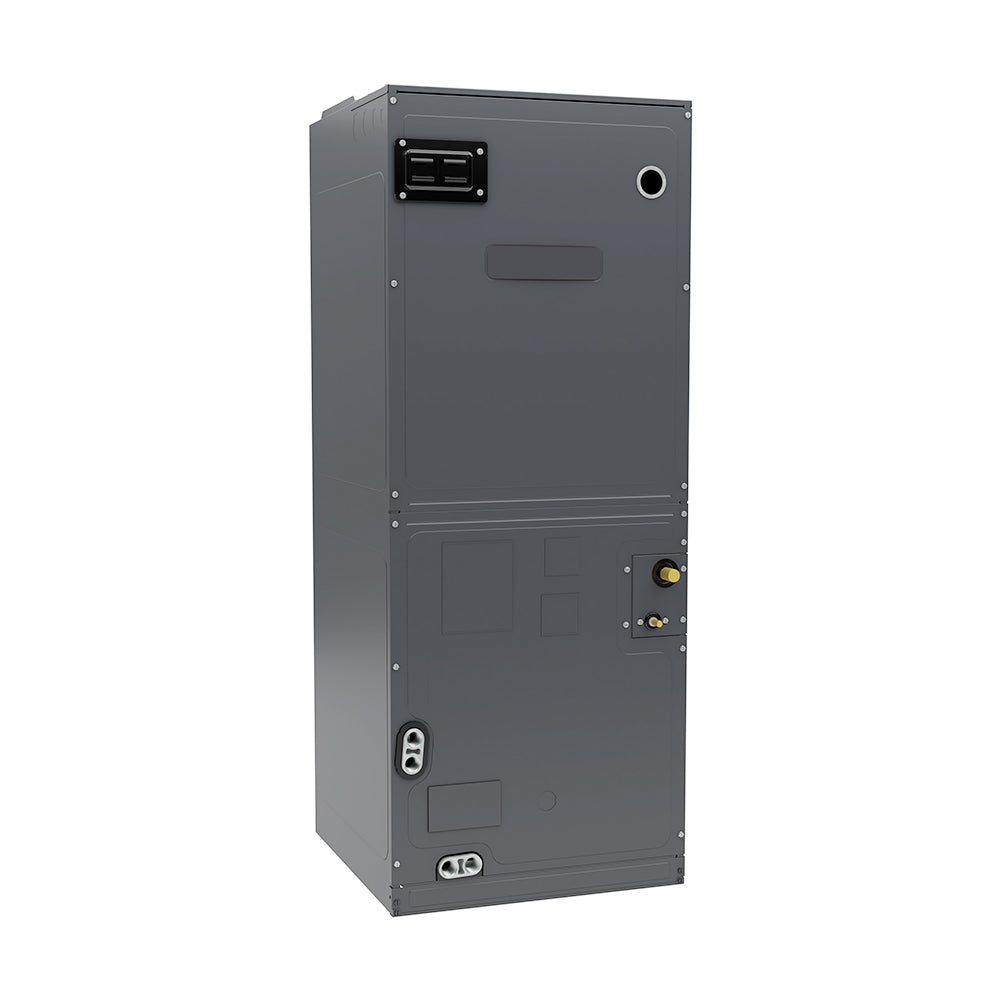

The Goodman AHVE Inverter-Compatible Air Handler delivers premium 4 Ton comfort with a variable-speed ECM blower motor for superior humidity control. Designed for inverter heat pump systems, it features an EEV, all-aluminum evaporator coil, and Daikin One+ smart thermostat compatibility. Available electric heat kits from 3-25 kW provide supplemental heating. Built with a low-profile 21" depth and tool-less filter access. AHRI Certified and ETL Listed.
Features| General Information | |
|---|---|
| Brand | Goodman |
| Series | Inverter compatible Air Handler |
| SKU | AHVE48CP1300 |
| Product Category | Unitary |
| Unit Type | Indoor |
| Manufacturer | Goodman |
| Electrical | |
| Voltage/Phase/Hz | 208/230 V / 1 Ph / 60 Hz |
| Max Breaker Size | 15/15 A |
| Min. Breaker Size | 6.5/6.5 A |
| Capacity & Performance | |
| Tonnage | 4.0 |
| Compressor & Refrigerant | |
| Refrigerant | R-32 |
| Factory Refrigerant Charge | 0 oz |
| Liquid Line | 3/8 in |
| Suction Line | 7/8 in |
| Dimensions & Weight | |
| Height | 58 in |
| Width | 21 in |
| Depth | 21 in |
| Weight | 148 lb |
| Additional Information | |
| Product Features | Electronic Expansion Valve (EEV) for cooling and heat pump applications;7 mm evaporator coil tube size;Variable-speed ECM blower motor;Compatible with Daikin One+ smart thermostat and other Daikin communicating equipment;Provides constant CFM over a wide range of static pressure conditions independent of duct system;CFM indicator;Thermostat provides adjustable low CFM for efficient fan-only operation;All-aluminum evaporator coil;Fault recall of six most recent faults;Improved humidity and comfort control;AHRI certified;ETL listed;Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193;Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193;3 kW – 25 kW electric heater kits;Horizontal or vertical configuration capabilities;21" depth for easier attic access;DecaBDE-free thermoplastic drain pan with secondary drain connections;Screw-less sides and back helps to reduce condensation when installed in humid locations;Foil-faced insulation covers the internal casing to reduce cabinet condensation;Galvanized, leather grain-embossed finish;Glue-less cabinet insulation retention;Tool-less filter access |
| Warranty | ALL PARTS - 5 YEARS PARTS |
| Proposition 65 Warning | Yes |
