Click on image to zoom
What's in this package
Every piece below is included in your system price — matched to optimize efficiency, power and compatibility. Tap a piece to see its full description, specs and manuals.

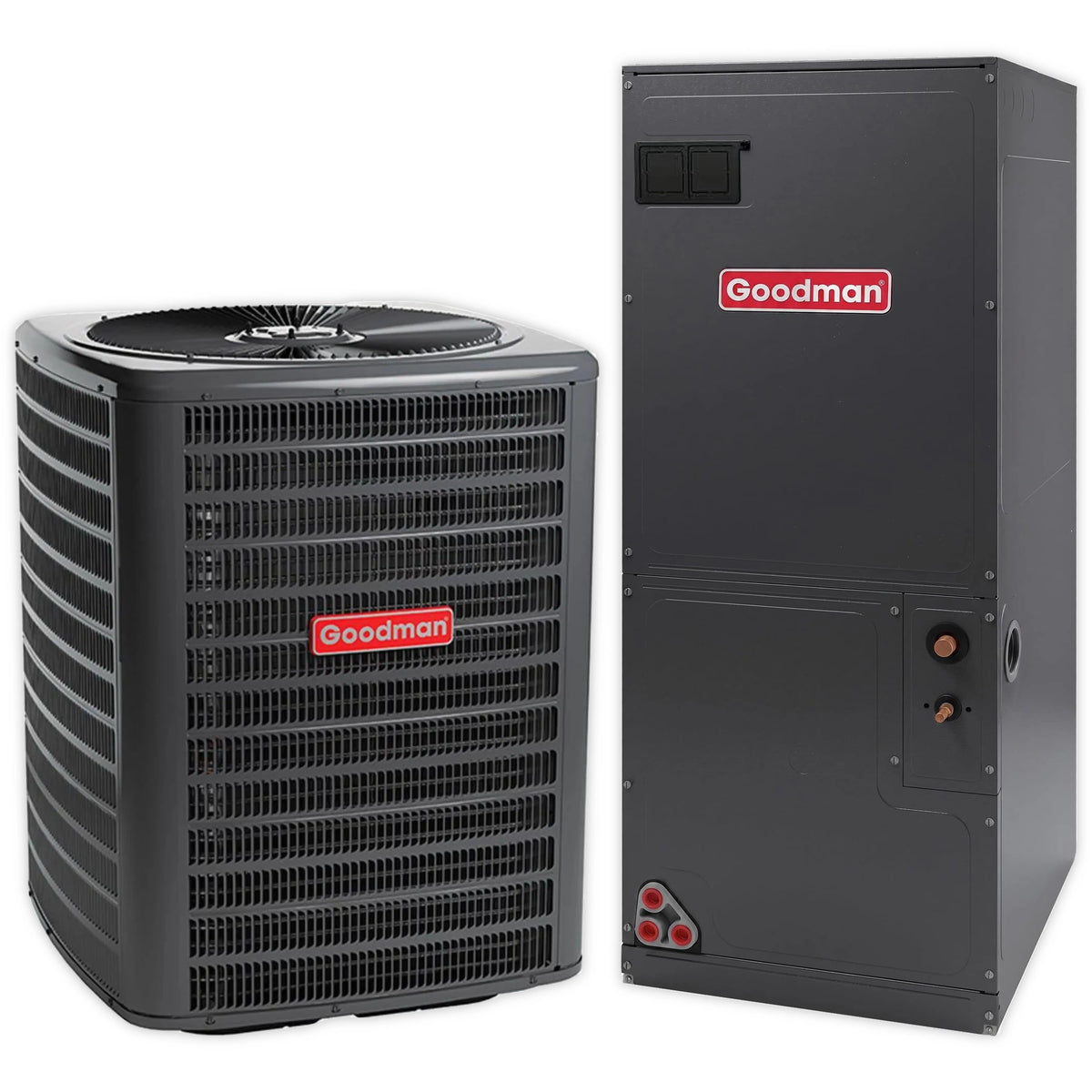

Piece 1 of 2 — CENTRAL CONDENSER
The Goodman GLXS5B Split System Air Conditioner delivers 15.2 SEER2 efficiency with R-32 refrigerant at 4 Ton capacity. Features single-stage cooling and durable powder-painted cabinet with easy service access. Optimized for next-generation R-32 refrigerant with lower GWP. AHRI Certified and ETL Listed.
Features- High-efficiency scroll compressor
- Factory-installed filter drier
- Fully charged for 15’ of tubing length
- Copper tube/enhanced aluminum fincoil -5mm diameter on 1.5-3.0T
- Service valves with sweat connectionsand easy-to-access gauge ports
- Enclosed contactor with lug connection
- Ground lug connection
- High-pressure switch
- AHRI Certified
- ETL Listed
- Removable grille-style top designcompliant with UL 60335-2-40
- Heavy-gauge galvanized-steel cabinet
- Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approval
- Steel louver coil guard
- Single-panel access to controls with spaceprovided for field-installed accessories
- When properly anchored, meets the 2023 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)
DIMENSIONS & WEIGHT
- Height
- 36.5 in
- Width
- 35-1/2 in
- Depth
- 35.5 in
GENERAL INFORMATION
- Brand
- Goodman
- Series
- GLXS5B
- SKU
- GLXS5BA4810
- Product Category
- Unitary
- Unit Type
- Outdoor
- Manufacturer
- Goodman
- Product Features
- High-efficiency scroll compressor
- Factory-installed filter drier
- Fully charged for 15’ of tubing length
- Copper tube/enhanced aluminum fincoil -5mm diameter on 1.5-3.0T
- Service valves with sweat connectionsand easy-to-access gauge ports
- Enclosed contactor with lug connection
- Ground lug connection
- High-pressure switch
- AHRI Certified
- ETL Listed
CAPACITY & PERFORMANCE
- Tonnage
- 4.0
- Cooling Operating Range
- 55 °F to 115 °F
COMPRESSOR & MOTORS
- Compressor Type
- Scroll
- Compressor Stages
- Single Stage
- Liquid Valve Size
- 3/8 in
NOISE LEVELS
- Decibel Level (dBA)
- 74.7 dBA
ELECTRICAL REQUIREMENTS
- Voltage/Phase/Hz
- 208/230 V / 1 Ph / 60 Hz
- Max Breaker Size
- 40 A
- Min. Breaker Size
- 25.5 A
REFRIGERANT & PIPING
- Refrigerant
- R-32
- Factory Refrigerant Charge
- 138 oz
- Suction Line
- 7/8 in
- Max Line Set Length
- 79 ft
SAFETY
- Proposition 65 Warning
- Yes
WARRANTY
- Warranty
- ALL PARTS - 5 YEARS PARTS
Piece 2 of 2 — CENTRAL AIR HANDLER
Goodman AMVT Variable Speed Air Handlers with all-aluminum evaporator coils provide top of the line performance and efficiency in your home HVAC system. The all-aluminum evaporator coil is constructed from aluminum tubing, fins, and end plates, giving you a single metal solution for outstanding, time-tested, heat transfer performance properties. The AMVT air handler is compatible with the ComfortNet system of communicating control products.
Standard Features:
- Internal factory-installed thermal expansion valves for cooling and heat pump applications
- Variable-speed ECM blower motor
- Compatible with Goodman smart thermostat and other Goodman communicating equipment
- Auto configuration of the airflow and tonnage in communicating mode
- All-aluminum evaporator coil
- Provides constant CFM over a wide range of static pressure conditions independent of duct system
- CFM indicator
- Fault recall of six most recent faults
- Provides adjustable low CFM for efficient fan-only operation
- Improved humidity and comfort control
- Built-in compatibility with multi-stage heat pump and cooling applications
- Factory installed R-32 sensor designed for the lifespan of the coil
- Optimized for the use with R-32 refrigerant
- UL 60335 2-40 Compliant
- AHRI certified; ETL listed
Cabinet Features
- Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
- Field-installed electric heater kits available
- Horizontal or vertical configuration capabilities
- 21" depth for easier attic access
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Screw-less sides and back helps to reduce condensation when installed in humid locations
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Glue-less cabinet insulation retention
- Tool-less filter access
DIMENSIONS & WEIGHT
- Width
- 21 1/8in
- Depth
- 21in
- Height
- 58in
- Blower Width
- 10in
- Product Weight
- 158 lbs
- Shipping Weight
- 158 lbs
GENERAL INFORMATION
- Product Type
- Multi-Positional Air Handler
- Configuration
- Downflow / Horizontal / Upflow
- Fuel Type
- Electricity
- Requires Downflow Kit
- Yes
- Mobile Home Compatible
- No
- High Output Cool
- 48000 BTU
- Electric Heat Capabilities (Optional)
- 5 / 8 / 10 / 15 / 19 kW
- Blower Type
- Variable Speed
- Metering Device
- TXV (Factory Installed)
- RDS On-Board
- Yes
- RDS Factory-Programmed For
- R-32
- R-32 Air Conditioner
- Yes
- R-410A Air Conditioner
- No
- R-454B Air Conditioner
- No
- Cabinet/Chassis Size
- C
- Blower Diameter
- 10in
- Return Air Opening Size
- 19.5 x 14.63in
- Supply Air Opening Size
- 19.813 x 11.313in
CAPACITY & PERFORMANCE
- Tonnage
- 4 Tons
- Blower Cooling Capacity
- 4 Tons
COMPRESSOR & MOTORS
- Blower Motor Horse Power
- 3/4 HP
- Multi-Stage Compressor Compatible
- Yes
ELECTRICAL REQUIREMENTS
- Voltage
- 208 - 240V
- Frequency
- 60 Hz
- Voltage Phase
- 1
- Minimum Ampacity
- 6.5 Amps
- Maximum Fuse/Breaker
- 15 Amps
REFRIGERANT & PIPING
- Primary Refrigerant
- R-32
- Refrigerant Metering Device Compatibility
- R-32
- Liquid Line Size (OD)
- 3/8in
- Suction Line Size (OD)
- 7/8in
FILTER & HEATING
- R-32 Heat Pump
- Yes
- R-410A Heat Pump
- No
- R-454B Heat Pump
- No
CONTROLS & CONNECTIVITY
- Drain Connection (I.D.)
- 0.75in
SAFETY
- ENERGY STAR Certified
- Yes
- Qualified Manufacturer ID (QMID)
- I7Q6
WARRANTY
- Parts Warranty
- 10 Years (With Online Registration)
Authorized Goodman Dealer
Full manufacturer warranty on every Goodman product we sell.
Central Split System FAQs
What is a central HVAC system?
A central HVAC system uses a network of ducts to heat and cool your entire home from a single unit. It typically consists of an outdoor condenser (or heat pump) and an indoor air handler connected by refrigerant lines, distributing conditioned air through vents in every room.
What's the difference between a heat pump system and a traditional A/C system?
A heat pump can both heat and cool your home by reversing its refrigerant cycle, making it a year-round solution without a separate furnace. A traditional central A/C system only cools — you'd pair it with a gas furnace or electric air handler for heating. Heat pumps are generally more energy-efficient in moderate climates.
What size central HVAC system do I need?
Sizing depends on your home's square footage, insulation, climate zone, and ceiling height. As a general rule: 1 ton of cooling covers roughly 400–600 sq ft. A 2,000 sq ft home typically needs a 3–4 ton system. Use our live chat to speak with an HVAC specialist who can help you size correctly.
Can I buy a central HVAC system online and install it myself?
You can purchase central HVAC equipment online and save significantly versus buying through a local contractor. However, installation must be performed by a licensed HVAC technician in most states — the refrigerant handling and electrical work require certification. We recommend buying the equipment here and hiring a local installer separately.
What SEER2 rating should I look for?
SEER2 (Seasonal Energy Efficiency Ratio 2) measures cooling efficiency — higher numbers mean lower energy costs. Federal minimums are 14–15 SEER2 depending on your region. For the best long-term savings, look for systems rated 16 SEER2 or higher. Many of our MRCOOL and Senville systems reach 17–18 SEER2.
Does Home Outlet Direct offer financing for central HVAC purchases?
Yes. Financing is available on qualifying orders, making it easier to invest in a high-efficiency central HVAC system without paying everything upfront. See our financing page for details on terms and eligibility.
Do central HVAC systems from Home Outlet Direct come with a warranty?
All systems come with the manufacturer's warranty. We also offer extended warranty and protection plans for added peace of mind. Brands like MRCOOL and Goodman are backed by industry-leading coverage.
What is a Goodman split system?
A Goodman split system is a central HVAC setup with an outdoor condenser and an indoor air handler or furnace. Together they provide whole-home heating and cooling, offering better efficiency and quieter operation than window units.
What SEER2 ratings do Goodman split systems come in?
Goodman central split systems range from 14.3 SEER2 up to 22.5 SEER2 depending on the model, with higher ratings meaning greater energy savings on monthly utility bills.
Do Goodman split systems come with a warranty?
Yes. Goodman offers industry-leading limited warranties — typically up to 10 years on parts when registered — giving homeowners long-term peace of mind on their investment.
What size Goodman split system do I need?
Sizing depends on your home's square footage. For example, a 1.5-ton system typically covers 600–1,000 sq. ft., while a 4-ton system suits 2,200–2,600 sq. ft. An HVAC professional can perform a Manual J load calculation for accuracy.
What refrigerant do Goodman central split systems use?
Current Goodman split systems use R-32 refrigerant, which has a lower global warming potential (GWP) than older R-410A systems, making them a more eco-friendly choice.
Can I install a Goodman split system myself?
Goodman split systems require professional installation by a licensed HVAC technician, both for safety and to keep the manufacturer's warranty valid.
Does Home Outlet Direct offer free shipping on Goodman split systems?
Yes, Home Outlet Direct offers free shipping on Goodman central split systems along with wholesale pricing, making it one of the most affordable ways to purchase a full HVAC kit online.
