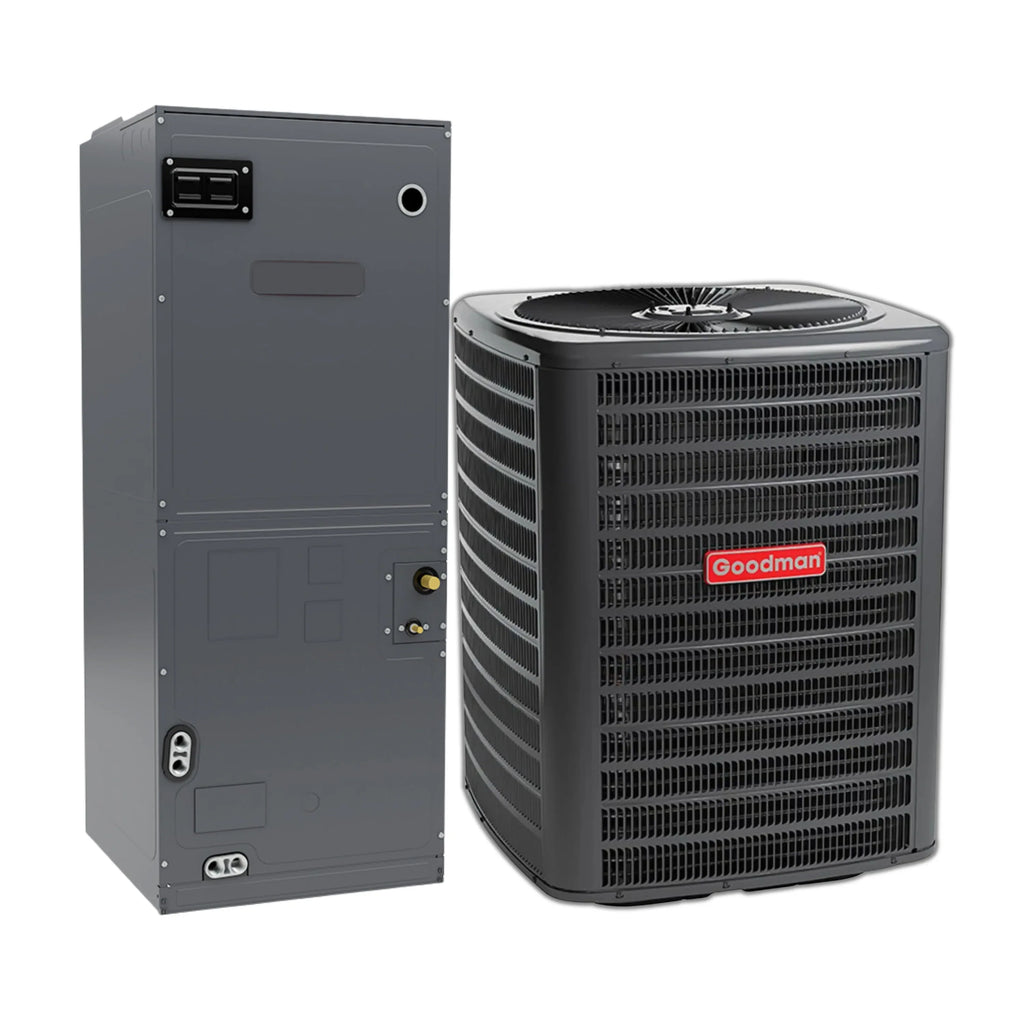

Goodman 4 Ton 14.3 SEER2 R-32 Heat Pump Condenser & Variable-Speed Air Handler with 10kW Heat Kit

The Goodman GLZS4B is a 4 Ton split system heat pump delivering 14.3 SEER2 / 7.8 HSPF2 efficiency with SmartShift technology for quiet, reliable defrost. Features a high-efficiency compressor, factory-installed components, and enhanced aluminum fin coils with 7mm copper tubes. Built in a heavy-gauge galvanized steel cabinet with Architectural Gray finish. Meets 2023 Florida Building Code when properly anchored. AHRI Certified and ETL Listed.

• High-Efficiency Compressor
• SmartShift technology to ensure quiet reliable defrost
• Factory-installed bi-flow liquid line filter drier
• Factory-installed suction-line accumulator
• Factory-installed compressor crankcase heater
• Factory-installed high-capacity muffler
• Enhanched aluminum fin coil with 5mm diameter coper tubes in 1.5 -to 3.5 ton
• Enhanched aluminum fin coil with 7mm diameter coper tubes in 4.0 -to 5.0 ton
• High and low-pressure switches
• Fully charged for 15’ of tubing length
• Service valves with sweat connections and easy-to-access gauge ports
• Fully enclosed contactor with lug connection
• Ground lug connection
• Single-speed PSC condenser fan motor
• Capacitor with extended life
• AHRI Certified
• ETL Listed

• Removable grille style top design compliant with UL 60335-2-40
• Steel louver coil guard
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Top and side maintenance access
• When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available

Goodman AMVT Variable Speed Air Handlers with all-aluminum evaporator coils provide top of the line performance and efficiency in your home HVAC system. The all-aluminum evaporator coil is constructed from aluminum tubing, fins, and end plates, giving you a single metal solution for outstanding, time-tested, heat transfer performance properties. The AMVT air handler is compatible with the ComfortNet system of communicating control products.

Standard Features:

• Internal factory-installed thermal expansion valves for cooling and heat pump applications
• Variable-speed ECM blower motor
• Compatible with Goodman smart thermostat and other Goodman communicating equipment
• Auto configuration of the airflow and tonnage in communicating mode
• All-aluminum evaporator coil
• Provides constant CFM over a wide range of static pressure conditions independent of duct system
• CFM indicator
• Fault recall of six most recent faults
• Provides adjustable low CFM for efficient fan-only operation
• Improved humidity and comfort control
• Built-in compatibility with multi-stage heat pump and cooling applications
• Factory installed R-32 sensor designed for the lifespan of the coil
• Optimized for the use with R-32 refrigerant
• UL 60335 2-40 Compliant
• AHRI certified; ETL listed

Cabinet Features

• Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
• Field-installed electric heater kits available
• Horizontal or vertical configuration capabilities
• 21" depth for easier attic access
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Screw-less sides and back helps to reduce condensation when installed in humid locations
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Glue-less cabinet insulation retention
• Tool-less filter access
