SKU: GLXS3BN4810AMST48CU1300
$4,303.00 $5,598.00

BTUs
In Stock Estimated delivery: Jul 29th-12th
  • Secure Payment
    Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa
    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Free Shipping*
  • 30-Day Return Policy⁺

Package Overview

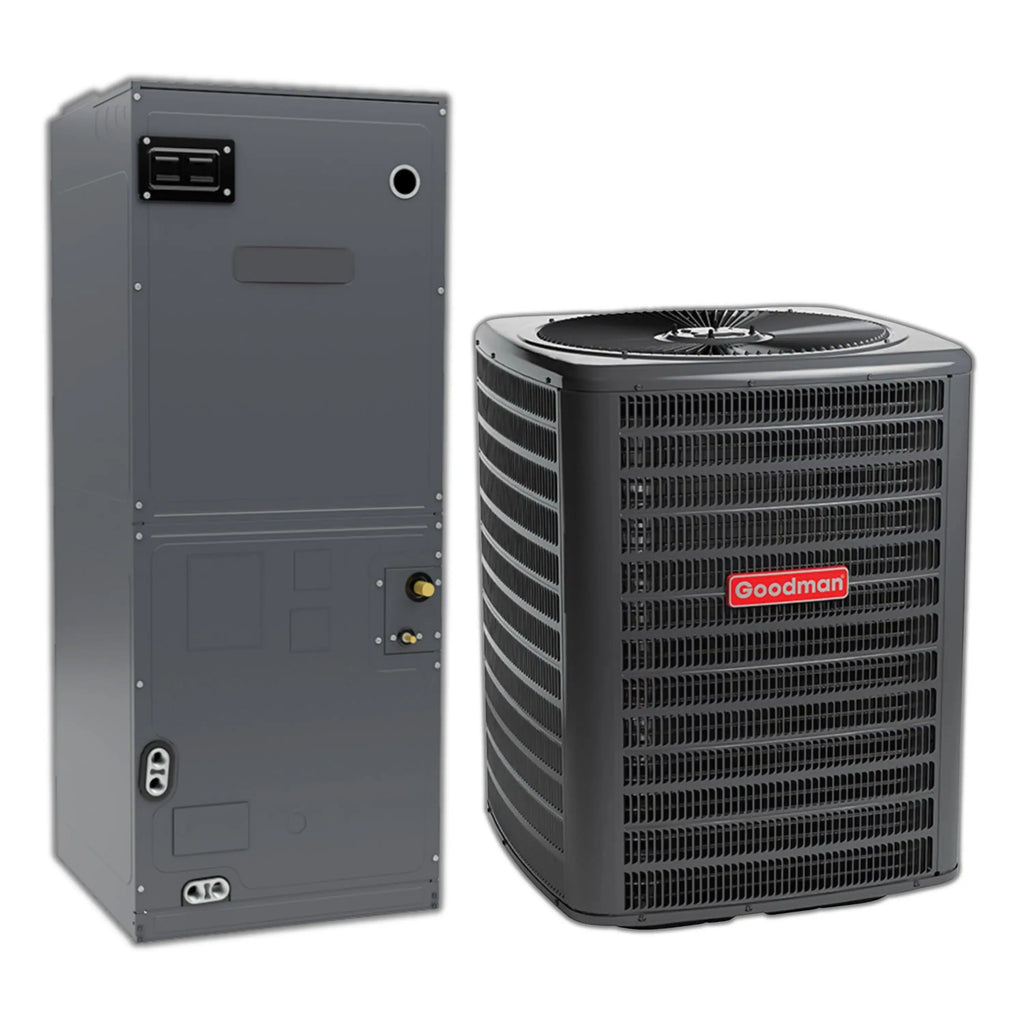

Goodman 4 Ton 13.4 SEER2 Central Air Conditioning System | Air Handler | R-32 Refrigerant | Covers 2,200-2,600 Sq. Ft.

Features:

  • Condenser Cooling Capacity: 48K BTU (4 Ton)
  • Energy Efficiency: 13.4 SEER2
  • Recommended Coverage Area: 2,200-2,600 Sq. Ft.
  • Installation Type: Split System with Air Handler
  • Refrigerant: R-32
  • Voltage: 208/230 V / 1 Ph / 60 Hz
  • Compressor: Single Stage
  • Air Handler: Multi-Speed ECM Motor
  • AHRI Certified & ETL Listed

Package Includes:

Goodman GLXS3B Split Air Conditioner 13.4 SEER2 R-32 Single-Stage (GLXS3BN4810)
Goodman GLXS3B Split Air Conditioner 13.4 SEER2 R-32 Single-Stage (GLXS3BN4810)
In Stock Estimated delivery: Jul 29th-12th
Description
Product Specs
Manuals & Guides

The Goodman GLXS3B Split System Air Conditioner delivers 13.4 SEER2 efficiency with R-32 refrigerant at 4 Ton capacity. Features single-stage cooling and durable powder-painted cabinet with easy service access. Optimized for next-generation R-32 refrigerant with lower GWP. AHRI Certified and ETL Listed.

Features
  • Energy-Efficienct Compressor
  • Fully charged for 15' of tubing length
  • Copper tube/ enhanced aluminum fin coil-5mm diameter
  • Factory-installed filter drier
  • Sweat connection service valves with easy access to gauge ports
  • Enclosed contactor with lug connection
  • High-pressure switch
  • Capacitors with extended life
  • AHRI Certified
  • ETL Listed
Cabinet Features
  • Removable grille-style top design compliant with UL 60335-2-40
  • Venturi for increased velocity of airflow
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Wire fan discharge grille
  • Steel louver coil guard
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field-installed accessories
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
DIMENSIONS & WEIGHT
Height 39.5 in
Width 29 in
Depth 29 in
Weight 188 lb
GENERAL INFORMATION
Brand Goodman
Series GLXS3B
SKU GLXS3BN4810
Product Category Unitary
Unit Type Outdoor
Manufacturer Goodman
Product Features
  • Energy-Efficienct Compressor
  • Fully charged for 15' of tubing length
  • Copper tube/ enhanced aluminum fin coil-5mm diameter
  • Factory-installed filter drier
  • Sweat connection service valves with easy access to gauge ports
  • Enclosed contactor with lug connection
  • High-pressure switch
  • Capacitors with extended life
  • AHRI Certified
  • ETL Listed
CAPACITY & PERFORMANCE
Tonnage 4.0
Cooling BTU 45500 Btu/H
Cooling Operating Range 55 °F to 115 °F
SEER2 13.4
EER2 11.0
COMPRESSOR & MOTORS
Compressor Type Scroll
Compressor Stages Single Stage
NOISE LEVELS
Decibel Level (dBA) 71 dBA
ELECTRICAL REQUIREMENTS
Voltage/Phase/Hz 208/230 V / 1 Ph / 60 Hz
Max Breaker Size 40 A
Min. Breaker Size 25.6 A
REFRIGERANT & PIPING
Refrigerant R-32
Factory Refrigerant Charge 84 oz
Liquid Line 3/8 in
Suction Line 1-1/8 in
Max Line Set Length 200 ft
SAFETY
ENERGY STAR® Certified No
Proposition 65 Warning Yes
WARRANTY
Warranty ALL PARTS - 5 YEARS PARTS
Goodman AMST Air Handler R-32 (AMST48CU1300)
Goodman AMST Air Handler R-32 (AMST48CU1300)
In Stock Estimated delivery: Jul 29th-12th
Description
Product Specs
Manuals & Guides

The Goodman AMVT multi-position air handler is designed for ducted mini-split applications with variable-speed technology. Features flexible multi-position installation options for versatile applications. Provides quiet, efficient air distribution when paired with Goodman mini-split outdoor units. Ideal for applications requiring traditional ducted airflow with enhanced comfort control.

Features
  • Internal factory-installed thermal expansion valves for cooling and heat pump applications
  • Direct drive, 9-speed ECM blower motor
  • Factory installed 7mm AlumaFin7™ Evaporator Coil on 1½ to 3½ Ton models and 3/8 in. Evaporator Coil on 4 to 5 Ton models
  • All-aluminum evaporator coil with high-performance coated fin stock
  • Coil mounting track for quick repositioning
  • Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.
  • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
  • 3 kW – 25 kW electric heater kits
  • AHRI certified
  • ETL listed
Cabinet Features
  • Rigid SmartFrame cabinet
  • Horizontal or vertical configuration capabilities
  • 21” depth for easier attic access
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Screw-less sides and back helps to reduce condensation when installed in humid locations
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Glue-less cabinet insulation retention
  • Tool-less filter access
DIMENSIONS & WEIGHT
Height 58 in
Width 21-1/8 in
Depth 21 in
Weight 153 lb
GENERAL INFORMATION
Brand Goodman
Series AMST
SKU AMST48CU1300
Product Category Unitary
Unit Type Indoor
Manufacturer Goodman
Product Features
  • Internal factory-installed thermal expansion valves for cooling and heat pump applications
  • Direct drive, 9-speed ECM blower motor
  • Factory installed 7mm AlumaFin7™ Evaporator Coil on 1½ to 3½ Ton models and 3/8 in. Evaporator Coil on 4 to 5 Ton models
  • All-aluminum evaporator coil with high-performance coated fin stock
  • Coil mounting track for quick repositioning
  • Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation
  • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
  • 3 kW – 25 kW electric heater kits
  • AHRI certified
  • ETL listed
CAPACITY & PERFORMANCE
Tonnage 4.0
ELECTRICAL REQUIREMENTS
Voltage/Phase/Hz 208/230 V / 1 Ph / 60 Hz
Max Breaker Size 15 A
Min. Breaker Size 7.1 A
REFRIGERANT & PIPING
Refrigerant R-32
Factory Refrigerant Charge 0.5 oz
Liquid Line 3/8 in
Suction Line 3/4 in
SAFETY
Proposition 65 Warning Yes
WARRANTY
Warranty ALL PARTS - 5 YEARS PARTS
