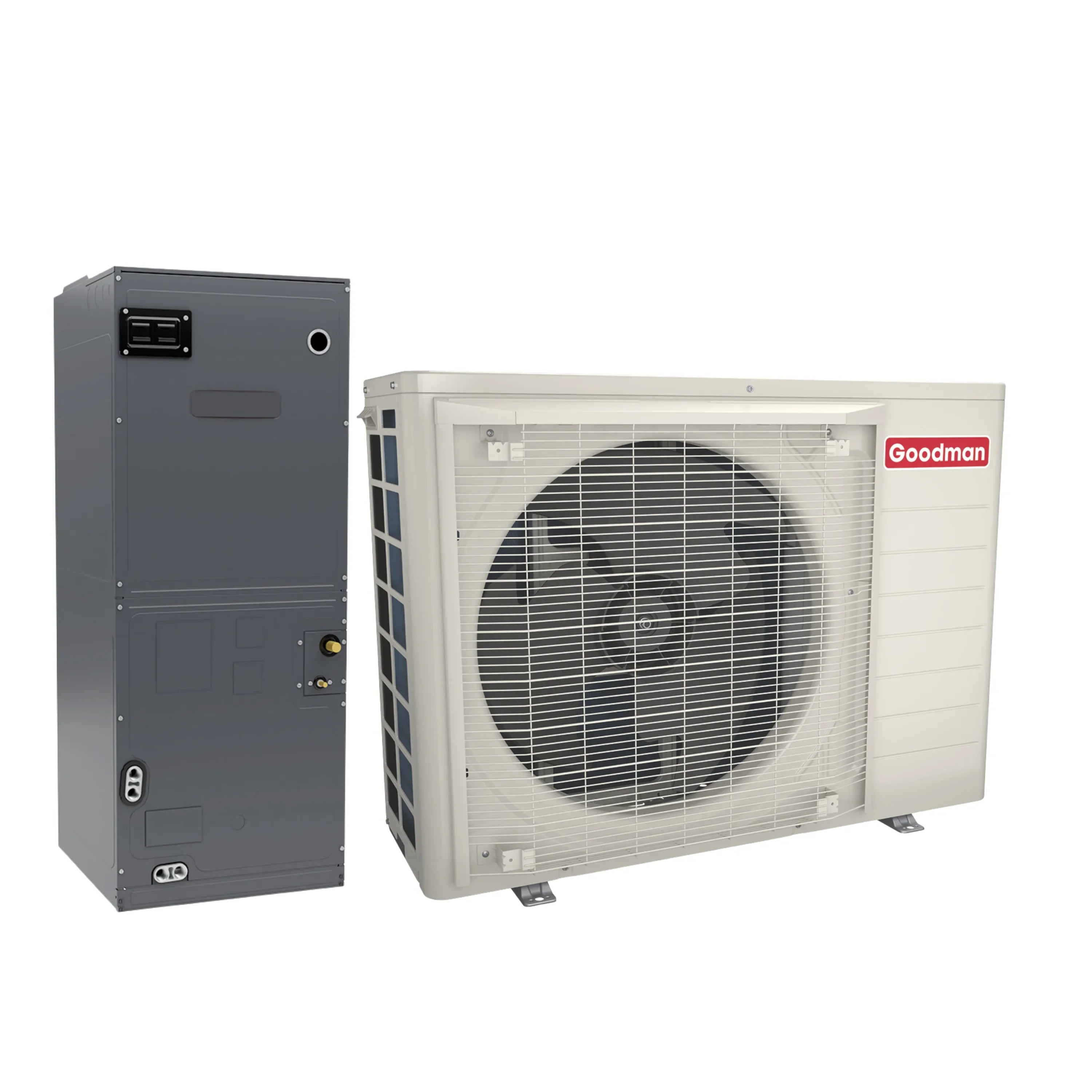

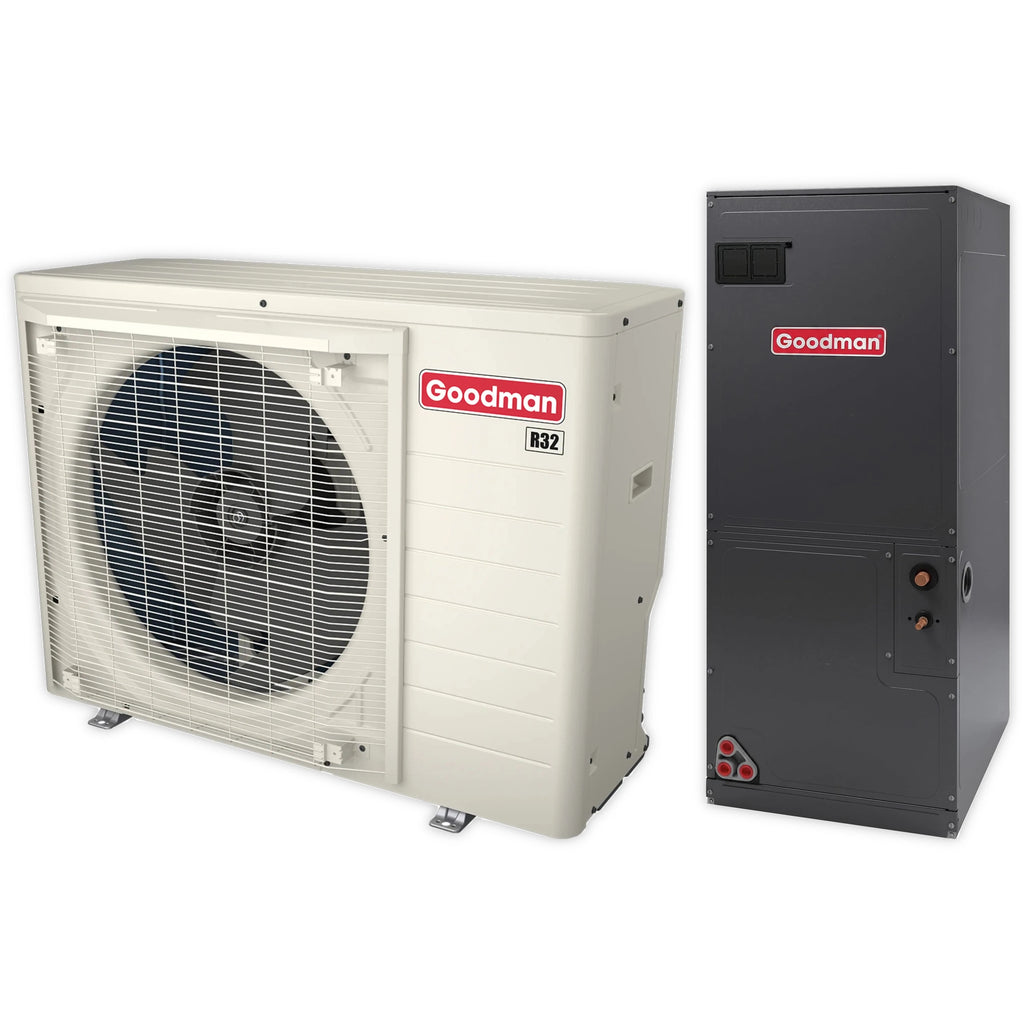

Goodman 3 Ton 17.5 SEER2 R-32 Heat Pump Condenser & Variable-Speed Air Handler with 10kW Heat Kit

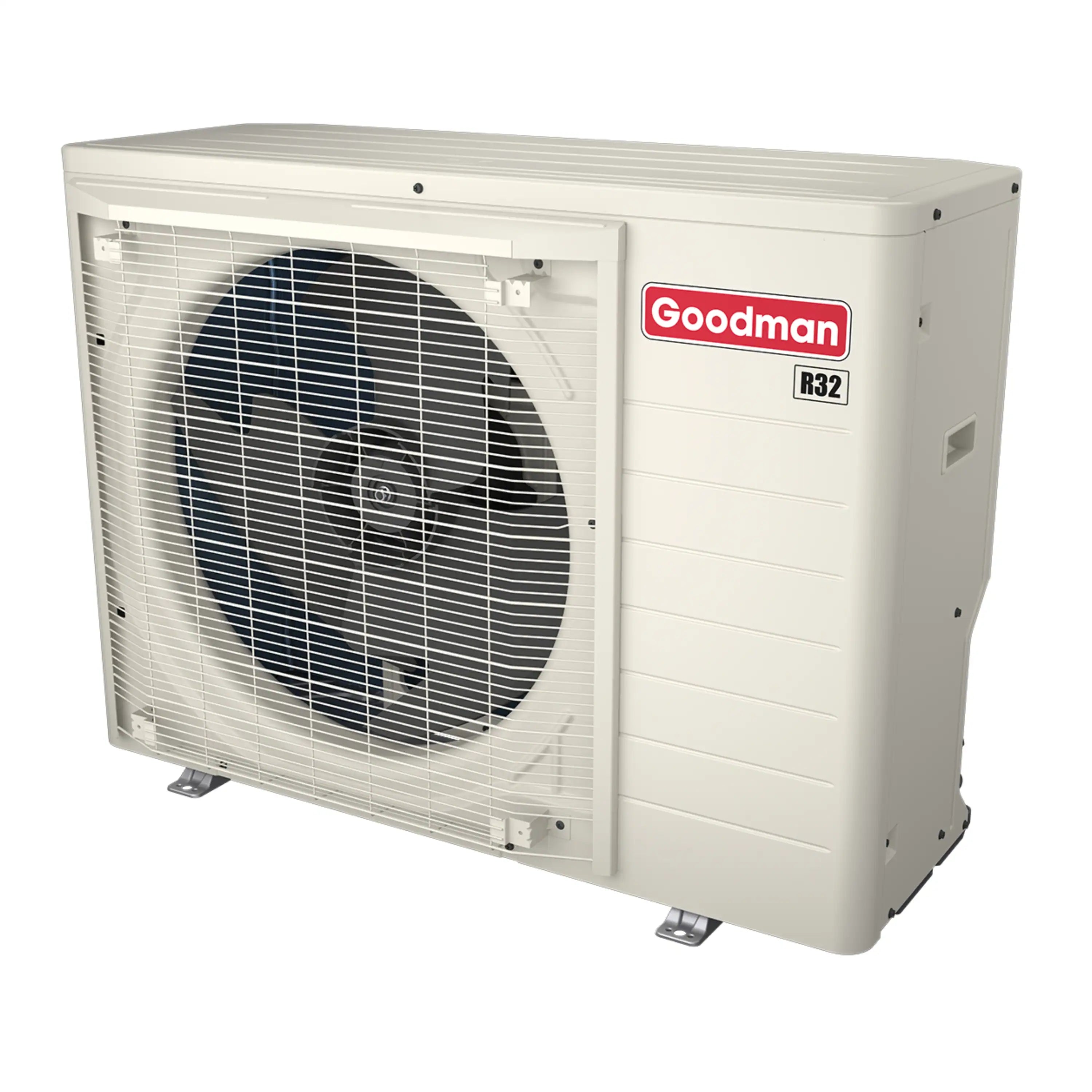

The Goodman GSV7SA is a premium 2 Ton variable-speed split system heat pump delivering 17.5 SEER2 efficiency with strong heating capacity. Features variable-speed swing compressors, quiet digitally commutated fan motor, and Quiet-mode with sound levels as low as 45dBA. Compatible with Goodman GTST connected thermostat. Built in a heavy-gauge galvanized steel cabinet with Ivory white finish. AHRI Certified and ETL Listed.

• Variable-speed swing compressors
• Strong heating capacity
• Quiet digitally commutated fan motor
• High-density compressor sound blanket
• Compatible with Goodman GTST connected thermostat and otherGoodman communicating equipment
• Proprietary control algorithmic logic
• In communicating mode, only two low-voltage wires to outdoor unit required
• Diagnostic indicator lights, seven-segmentLED display, and fault code storage
• Propietary Inside intelligence for diagnostics
• Quiet-mode - provides enhanced acoustical comfort, up to 3 different sound levels (as low as 45dBA)
• Field-selectable boost mode increases compressor speed during unusually high loads
• Field-installed bi-flow filter drier
• Coil and ambient temperature sensors
• Suction pressure transducer
• Sweat connection service valves with easyaccess to gauge ports
• AHRI Certified
• ETL Listed

• Heavy-gauge galvanized steel cabinet with grille-style sound control side design
• Custom Ivory white powder-paint finish
• High corrosion (ZAM®), unpainted steel bottom frame and legs
• 500-hour salt-spray tested
• Wire fan discharge grille
• Top and side maintenance access
• When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

The Goodman AHVE Inverter-Compatible Air Handler delivers premium 3 Ton comfort with a variable-speed ECM blower motor for superior humidity control. Designed for inverter heat pump systems, it features an EEV, all-aluminum evaporator coil, and Daikin One+ smart thermostat compatibility. Available electric heat kits from 3-25 kW provide supplemental heating. Built with a low-profile 21" depth and tool-less filter access. AHRI Certified and ETL Listed.

• Electronic Expansion Valve (EEV) for cooling and heat pump applications
• 7 mm evaporator coil tube size
• Variable-speed ECM blower motor
• Compatible with Daikin One+ smart thermostat and other Daikin communicating equipment
• Provides constant CFM over a wide range of static pressure conditions independent of duct system
• CFM indicator
• Thermostat provides adjustable low CFM for efficient fan-only operation
• All-aluminum evaporator coil
• Fault recall of six most recent faults
• Improved humidity and comfort control
• AHRI certified
• ETL listed
• Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
• 3 kW – 25 kW electric heater kits
• Horizontal or vertical configuration capabilities
• 21" depth for easier attic access
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Screw-less sides and back helps to reduce condensation when installed in humid locations
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Glue-less cabinet insulation retention
• Tool-less filter access

• Cabinet air leakage less than 2.0% at 1.0 inch H₂O when
• tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H₂O when
• tested in accordance with ASHRAE standard 193
• 3 kW – 25 kW electric heater kits
• Horizontal or vertical configuration capabilities
• 21" depth for easier attic access
• DecaBDE-free thermoplastic drain pan
• with secondary drain connections
• Screw-less sides and back helps to reduce
• condensation when installed in humid locations
• Foil-faced insulation covers the internal
• casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Glue-less cabinet insulation retention
• Tool-less filter access
