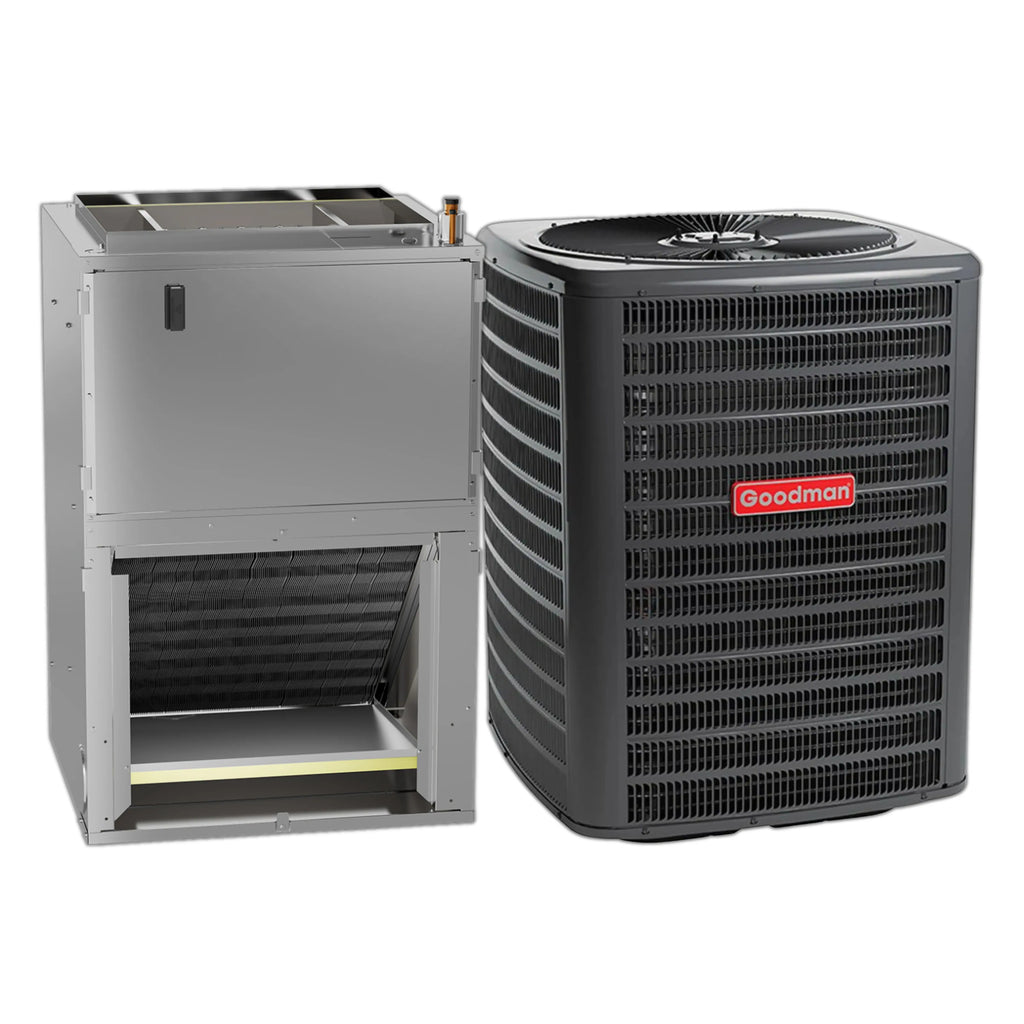

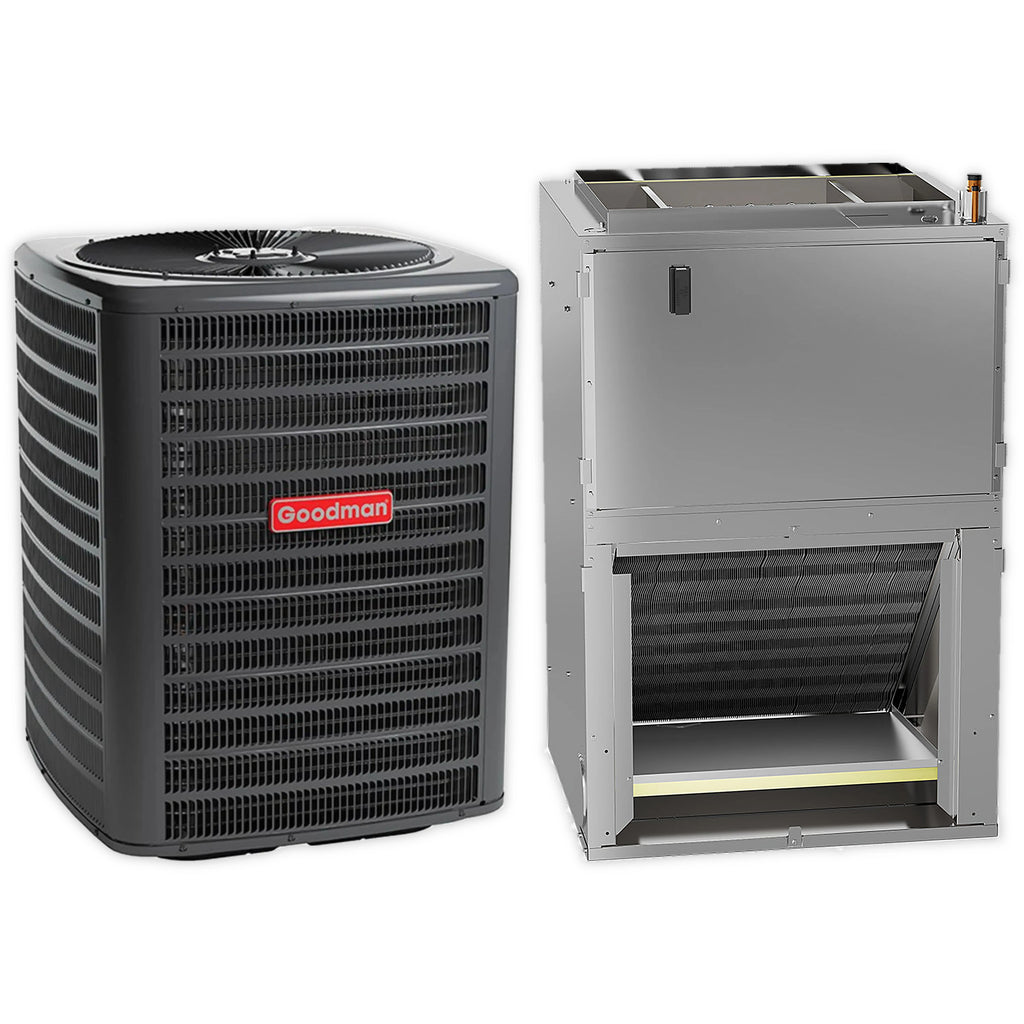

Goodman 3 Ton 14.5 SEER2 Central Air Conditioner Condenser with Wall Mounted Air Handler & 8kW Heat Kit

The Goodman GLXS5B Split System Air Conditioner delivers 15.2 SEER2 efficiency with R-32 refrigerant at 3 Ton capacity. Features single-stage cooling and durable powder-painted cabinet with easy service access. Optimized for next-generation R-32 refrigerant with lower GWP. AHRI Certified and ETL Listed.

• High-efficiency scroll compressor
• Factory-installed filter drier
• Fully charged for 15’ of tubing length
• Copper tube/enhanced aluminum fincoil -5mm diameter on 1.5-3.0T
• Service valves with sweat connectionsand easy-to-access gauge ports
• Enclosed contactor with lug connection
• Ground lug connection
• High-pressure switch
• AHRI Certified
• ETL Listed

• Removable grille-style top designcompliant with UL 60335-2-40
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approval
• Steel louver coil guard
• Single-panel access to controls with spaceprovided for field-installed accessories
• When properly anchored, meets the 2023 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)

The Goodman AMST multi-position air handler is designed for ducted mini-split applications. Features flexible installation options with multi-position capability. Provides quiet, efficient air distribution when paired with Goodman mini-split outdoor units. Ideal for applications requiring traditional ducted airflow in a mini-split system.

• AWST Models: Equipped wit a fully adjustable TXV
• Direct-drive, multi-speed motors allows air volume variation for heating/cooling
• Direct-drive, multi-speed motors allows air volume variation for heating/cooling
• Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
• Aluminum tubing coils on all models
• Factory-installed pull-type disconnect
• Thermoplastic drain pan with bottom primary and secondary drain connections
• AHRI Certified and ETL Listed
• Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.

• Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
• Built-in filter rack (filter included)
• Large chassis (2-1/2 and 3 ton units), front return only
• Small chassis (1-1/2 and 2 ton units), front or bottom return
• Wall-hanging bracket provided
