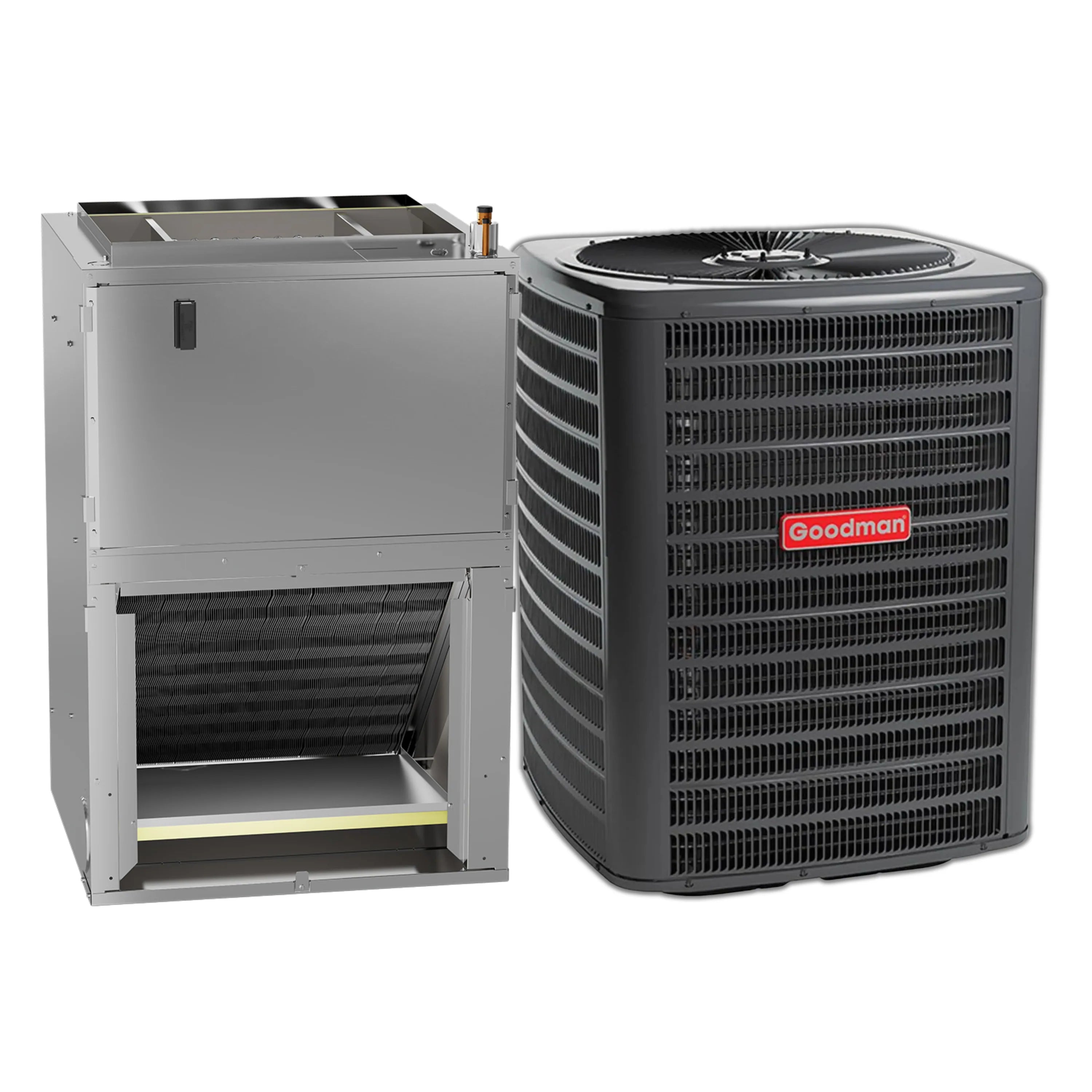

Goodman 3 Ton 14.3 SEER2 R-32 Heat Pump Condenser & Air Handler with 10kW Heat Kit
Goodman 3 Ton 14.3 SEER2 R-32 Heat Pump Condenser & Air Handler with 10kW Heat Kit
Goodman 3 Ton 14.3 SEER2 R-32 Heat Pump Condenser & Air Handler with 10kW Heat Kit
Goodman 3 Ton 14.3 SEER2 R-32 Heat Pump Condenser & Air Handler with 10kW Heat Kit
Goodman 3 Ton 14.3 SEER2 R-32 Heat Pump Condenser & Air Handler with 10kW Heat Kit
Click on image to zoom Click on image to zoom
Goodman 3 Ton 14.3 SEER2 R-32 Heat Pump Condenser & Air Handler with 10kW Heat Kit
Goodman 3 Ton 14.3 SEER2 R-32 Heat Pump Condenser & Air Handler with 10kW Heat Kit
Goodman 3 Ton 14.3 SEER2 R-32 Heat Pump Condenser & Air Handler with 10kW Heat Kit
Goodman 3 Ton 14.3 SEER2 R-32 Heat Pump Condenser & Air Handler with 10kW Heat Kit

Goodman 3 Ton 14.3 SEER2 R-32 Heat Pump Condenser & Air Handler with 10kW Heat Kit

SKU: GLZS4BA3010AWST36LU1305
$3,791.00 $4,938.00

KW:
In Stock Estimated delivery: Jul 29th-12th
  • Secure Payment
    Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa
    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Free Shipping*
  • 30-Day Return Policy⁺

Package Overview

This complete Goodman heat pump system combines a high-efficiency 2.5-ton outdoor condenser with a wall-mounted air handler, delivering reliable year-round comfort for homes up to 1,200-1,500 square feet. The outdoor unit features 14.3 SEER2 energy efficiency with R-32 refrigerant, providing approximately 30,000 BTU of heating and cooling capacity. Built with durable galvanized steel construction and AHRI certified for quality assurance.

The matched air handler includes a factory-installed 5kW electric heat kit for supplemental heating, multi-speed ECM blower motor for quiet operation, and a TXV expansion valve for optimal refrigerant flow. This professionally matched system ensures maximum efficiency, proper refrigerant charge, and reliable performance backed by Goodman's industry-leading warranty protection.

Features:

  • 2.5-Ton Capacity (30,000 BTU) - Ideal for 1,200-1,500 sq. ft.
  • 14.3 SEER2 Energy Efficiency Rating
  • R-32 Eco-Friendly Refrigerant
  • 7.8 HSPF2 Heating Performance
  • Wall-Mounted Air Handler with 5kW Heat Kit
  • Multi-Speed ECM Blower Motor
  • Factory-Installed TXV Expansion Valve
  • SmartShift® Defrost Technology
  • AHRI Certified Matched System
  • Heavy-Gauge Galvanized Steel Construction
  • 10-Year Parts Limited Warranty

Package Includes:

Goodman GLZS4B Split Heat Pump 14.3 SEER2 / .8 HSPF2 R-32 Single-Stage (GLZS4BA3010)
Goodman GLZS4B Split Heat Pump 14.3 SEER2 / .8 HSPF2 R-32 Single-Stage (GLZS4BA3010)
In Stock Estimated delivery: Jul 29th-12th
Description
Product Specs
Manuals & Guides

The Goodman GLZS4B is a 2.5 Ton split system heat pump delivering 14.3 SEER2 / 7.8 HSPF2 efficiency with SmartShift technology for quiet, reliable defrost. Features a high-efficiency compressor, factory-installed components, and enhanced aluminum fin coils with 5mm copper tubes. Built in a heavy-gauge galvanized steel cabinet with Architectural Gray finish. Meets 2023 Florida Building Code when properly anchored. AHRI Certified and ETL Listed.

Features
  • High-Efficiency Compressor
  • SmartShift technology to ensure quiet reliable defrost
  • Factory-installed bi-flow liquid line filter drier
  • Factory-installed suction-line accumulator
  • Factory-installed compressor crankcase heater
  • Factory-installed high-capacity muffler
  • Enhanched aluminum fin coil with 5mm diameter coper tubes in 1.5 -to 3.5 ton
  • Enhanched aluminum fin coil with 7mm diameter coper tubes in 4.0 -to 5.0 ton
  • High and low-pressure switches
  • Fully charged for 15’ of tubing length
  • Service valves with sweat connections and easy-to-access gauge ports
  • Fully enclosed contactor with lug connection
  • Ground lug connection
  • Single-speed PSC condenser fan motor
  • Capacitor with extended life
  • AHRI Certified
  • ETL Listed
Cabinet Features
  • Removable grille style top design compliant with UL 60335-2-40
  • Steel louver coil guard
  • Heavy-gauge galvanized-steel cabinet
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Top and side maintenance access
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available
DIMENSIONS & WEIGHT
Height 39.5 in
Width 29 in
Depth 29 in
Weight 174 lb
GENERAL INFORMATION
Brand Goodman
Series GLZS4B
SKU GLZS4BA3010
Product Category Unitary
Unit Type Outdoor
Manufacturer Goodman
Product Features
  • High-Efficiency Compressor
  • SmartShift technology to ensure quiet reliable defrost
  • Factory-installed bi-flow liquid line filter drier
  • Factory-installed suction-line accumulator
  • Factory-installed compressor crankcase heater
  • Factory-installed high-capacity muffler
  • Enhanched aluminum fin coil with 5mm diameter coper tubes in 1.5 -to 3.5 ton
  • Enhanched aluminum fin coil with 7mm diameter coper tubes in 4.0 -to 5.0 ton
  • High and low-pressure switches
  • Fully charged for 15’ of tubing length
  • Service valves with sweat connections and easy-to-access gauge ports
  • Fully enclosed contactor with lug connection
  • Ground lug connection
  • Single-speed PSC condenser fan motor
  • Capacitor with extended life
  • AHRI Certified
  • ETL Listed
CAPACITY & PERFORMANCE
Cooling BTU 28400 Btu/H
Heating BTU 28400 Btu/H
Cooling Operating Range 55 °F to 125 °F
Heating Operating Range -20 °F to 70 °F
SEER2 14.5
HSPF2 7.8
EER2 12.0
COMPRESSOR & MOTORS
Compressor Type Rotary
Compressor Stages Single Stage
NOISE LEVELS
Decibel Level (dBA) 77 dBA
ELECTRICAL REQUIREMENTS
Voltage/Phase/Hz 208/240 V / 1 Ph / 60 Hz
Max Breaker Size 25 A
Min. Breaker Size 15 A
REFRIGERANT & PIPING
Refrigerant R-32
Factory Refrigerant Charge 81 oz
Liquid Line 3/8 in
Suction Line 3/4 in
Max Line Set Length 200 ft
SAFETY
ENERGY STAR® Certified No
Safety Information R32 Outdoor
Proposition 65 Warning Yes
WARRANTY
Warranty ALL PARTS - 5 YEARS PARTS
Goodman AWST Air Handler 3 Ton R-32 (AWST36LU1305)
Goodman AWST Air Handler 3 Ton R-32 (AWST36LU1305)
In Stock Estimated delivery: Jul 29th-12th
Description
Product Specs
Manuals & Guides

The Goodman AMST multi-position air handler is designed for ducted mini-split applications. Features flexible installation options with multi-position capability. Provides quiet, efficient air distribution when paired with Goodman mini-split outdoor units. Ideal for applications requiring traditional ducted airflow in a mini-split system.

Features
  • AWST Models: Equipped wit a fully adjustable TXV
  • Direct-drive, multi-speed motors allows air volume variation for heating/cooling
  • Direct-drive, multi-speed motors allows air volume variation for heating/cooling
  • Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
  • Aluminum tubing coils on all models
  • Factory-installed pull-type disconnect
  • Thermoplastic drain pan with bottom primary and secondary drain connections
  • AHRI Certified and ETL Listed
  • Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.
Cabinet Features
  • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
  • Built-in filter rack (filter included)
  • Large chassis (2-1/2 and 3 ton units), front return only
  • Small chassis (1-1/2 and 2 ton units), front or bottom return
  • Wall-hanging bracket provided
DIMENSIONS & WEIGHT
Height 36 in
Width 24 in
Depth 21 in
Weight 109 lb
GENERAL INFORMATION
Brand Goodman
Series AWST
SKU AWST36LU1305
Product Category Unitary
Unit Type Indoor
Manufacturer Goodman
Product Features AWST Models: Equipped wit a fully adjustable TXV;Direct-drive, multi-speed motors allows air volume variation for heating/cooling;Direct-drive, multi-speed motors allows air volume variation for heating/cooling;Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW;Aluminum tubing coils on all models;Factory-installed pull-type disconnect;Thermoplastic drain pan with bottom primary and secondary drain connections;AHRI Certified and ETL Listed;Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.
CAPACITY & PERFORMANCE
Tonnage 3.0
ELECTRICAL REQUIREMENTS
Voltage/Phase/Hz 208/230 V / 1 Ph / 60 Hz
Max Breaker Size 30/30 A
Min. Breaker Size 26.4/29.8 A
REFRIGERANT & PIPING
Refrigerant R-32
Factory Refrigerant Charge 0.5 oz
Liquid Line 3/8 in
Suction Line 3/4 in
SAFETY
Proposition 65 Warning Yes
WARRANTY
Warranty ALL PARTS - 5 YEARS PARTS
