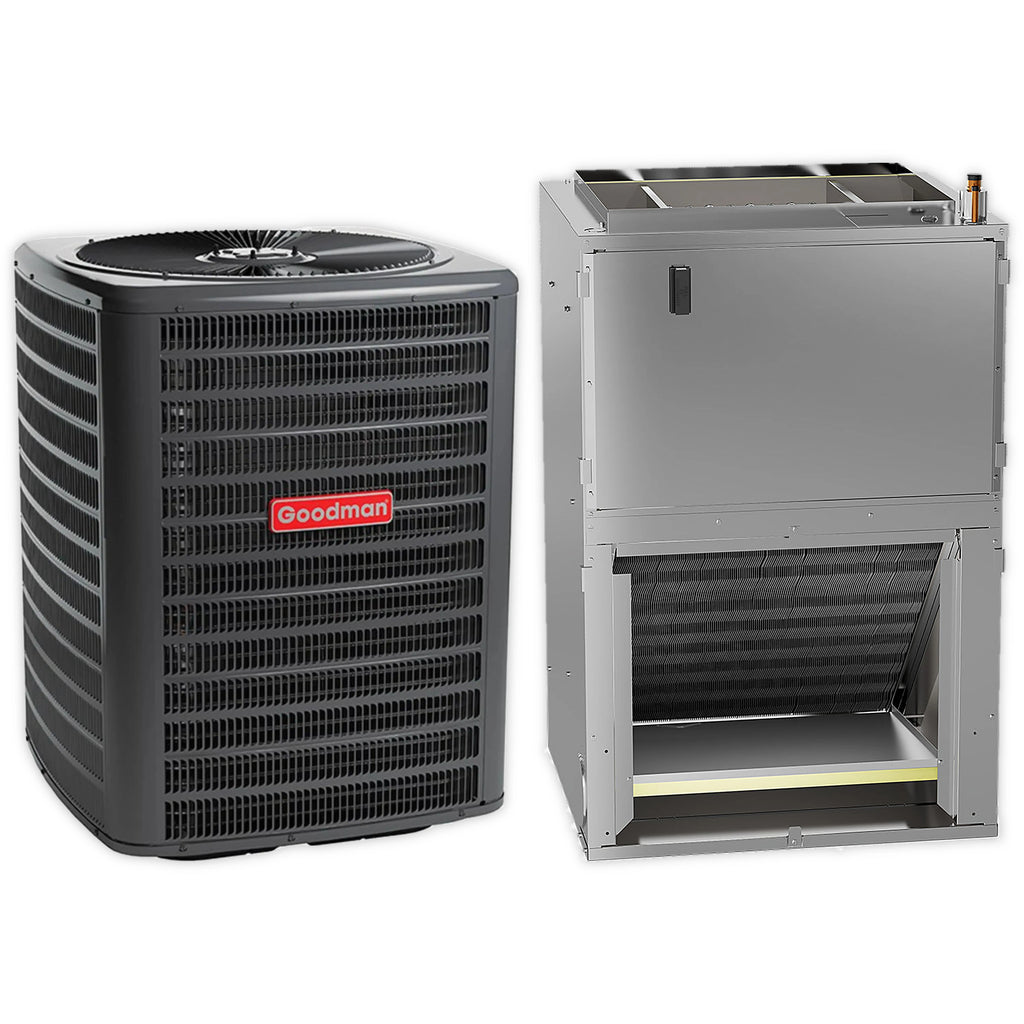

The Goodman GLZSM4 is a 3 Ton split system heat pump delivering up to 15.2 SEER2 / 14.3 SEER2 / 7.8 HSPF2 efficiency with SmartShift technology for quiet, reliable defrost. Features a high-efficiency compressor, enhanced aluminum fin coils, and single-speed PSC condenser fan motor. Ships fully charged for 15' of tubing length. Built in a heavy-gauge galvanized steel cabinet. AHRI Certified and ETL Listed.
Features| General Information | |
|---|---|
| Brand | Goodman |
| Series | GLZSM4 |
| SKU | GLZS4MA3610 |
| Product Category | Unitary |
| Unit Type | Outdoor |
| Manufacturer | Goodman |
| Electrical | |
| Voltage/Phase/Hz | 208/240 V / 1 Ph / 60 Hz |
| Max Breaker Size | 35 A |
| Min. Breaker Size | 21.5 A |
| Capacity & Performance | |
| Cooling BTU | 35000 Btu/H |
| Heating BTU | 35000 Btu/H |
| Cooling Operating Range | 55 °F to 125 °F |
| Heating Operating Range | -20 °F to 70 °F |
| Decibel Level (dBA) | 75 dBA |
| Efficiency Ratings | |
| SEER2 | 15.0 |
| HSPF2 | 7.5 |
| EER2 | 12.5 |
| ENERGY STAR® Certified | No |
| Compressor & Refrigerant | |
| Compressor Type | Scroll |
| Compressor Stages | Single Stage |
| Refrigerant | R-32 |
| Factory Refrigerant Charge | 83 oz |
| Liquid Line | 3/8 in |
| Suction Line | 1-1/8 in |
| Max Line Set Length | 200 ft |
| Dimensions & Weight | |
| Height | 35.75 in |
| Width | 35-1/2 in |
| Depth | 35.5 in |
| Weight | 208 lb |
| Additional Information | |
| Product Features | High-efficiency compressor;SmartShift® technology to ensure quiet reliable defrost;Enhanced aluminum fin coil- 5 mm diameter on 1.5T-3.5 Ton;Enhanced aluminum fin coil with 7mm diameter copper tubes in 4.0- to 5.0-ton;Single-speed PSC condenser fan motor;Factory-installed bi-flow liquid-line filter drier;Factory-installed suction-line accumulator;Factory-installed compressor crankcase heater;Factory-installed high-capacity muffler;High- and low-pressure switches;Service valves with sweat connections and easy access to gauge ports;Fully charged for 15’ of tubing length;Fully enclosed contractor with lug connection;Ground lug connection;Capacitors with extended life;AHRI Certified;ETL Listed |
| Warranty | ALL PARTS - 5 YEARS PARTS |
| Safety Information | R32 Outdoor |
| Proposition 65 Warning | Yes |

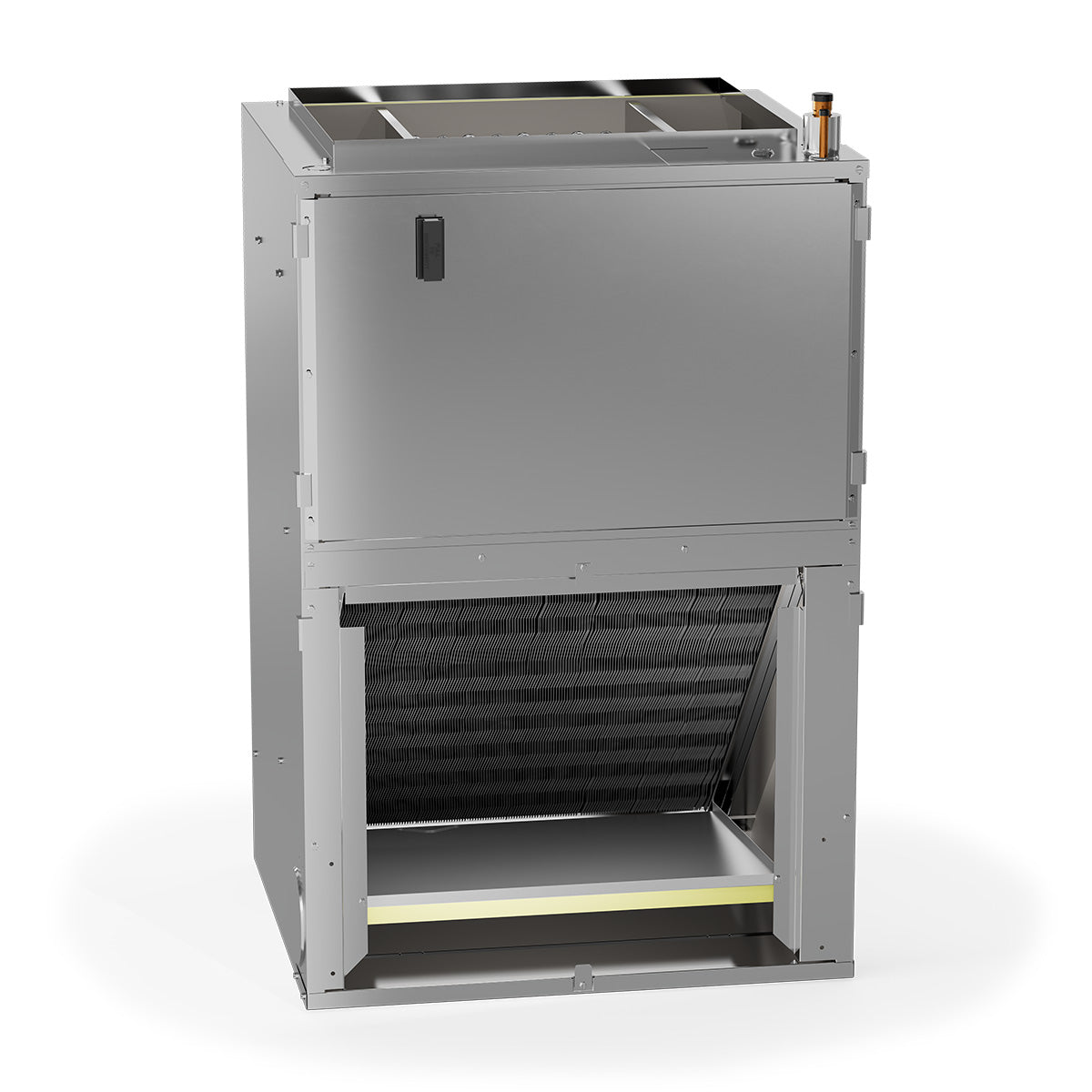

The Goodman AMST multi-position air handler is designed for ducted mini-split applications. Features flexible installation options with multi-position capability. Provides quiet, efficient air distribution when paired with Goodman mini-split outdoor units. Ideal for applications requiring traditional ducted airflow in a mini-split system.
Features| General Information | |
|---|---|
| Brand | Goodman |
| Series | AWST |
| SKU | AWST36LU1305 |
| Product Category | Unitary |
| Unit Type | Indoor |
| Manufacturer | Goodman |
| Electrical | |
| Voltage/Phase/Hz | 208/230 V / 1 Ph / 60 Hz |
| Max Breaker Size | 30/30 A |
| Min. Breaker Size | 26.4/29.8 A |
| Capacity & Performance | |
| Tonnage | 3.0 |
| Compressor & Refrigerant | |
| Refrigerant | R-32 |
| Factory Refrigerant Charge | 0.5 oz |
| Liquid Line | 3/8 in |
| Suction Line | 3/4 in |
| Dimensions & Weight | |
| Height | 36 in |
| Width | 24 in |
| Depth | 21 in |
| Weight | 109 lb |
| Additional Information | |
| Product Features | AWST Models: Equipped wit a fully adjustable TXV;Direct-drive, multi-speed motors allows air volume variation for heating/cooling;Direct-drive, multi-speed motors allows air volume variation for heating/cooling;Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW;Aluminum tubing coils on all models;Factory-installed pull-type disconnect;Thermoplastic drain pan with bottom primary and secondary drain connections;AHRI Certified and ETL Listed;Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation. |
| Warranty | ALL PARTS - 5 YEARS PARTS |
| Proposition 65 Warning | Yes |
