What's in this package
$426.83 less than buying separatelyEvery piece below is included in your system price — matched to optimize efficiency, power and compatibility. Tap a piece to see its full description, specs and manuals.

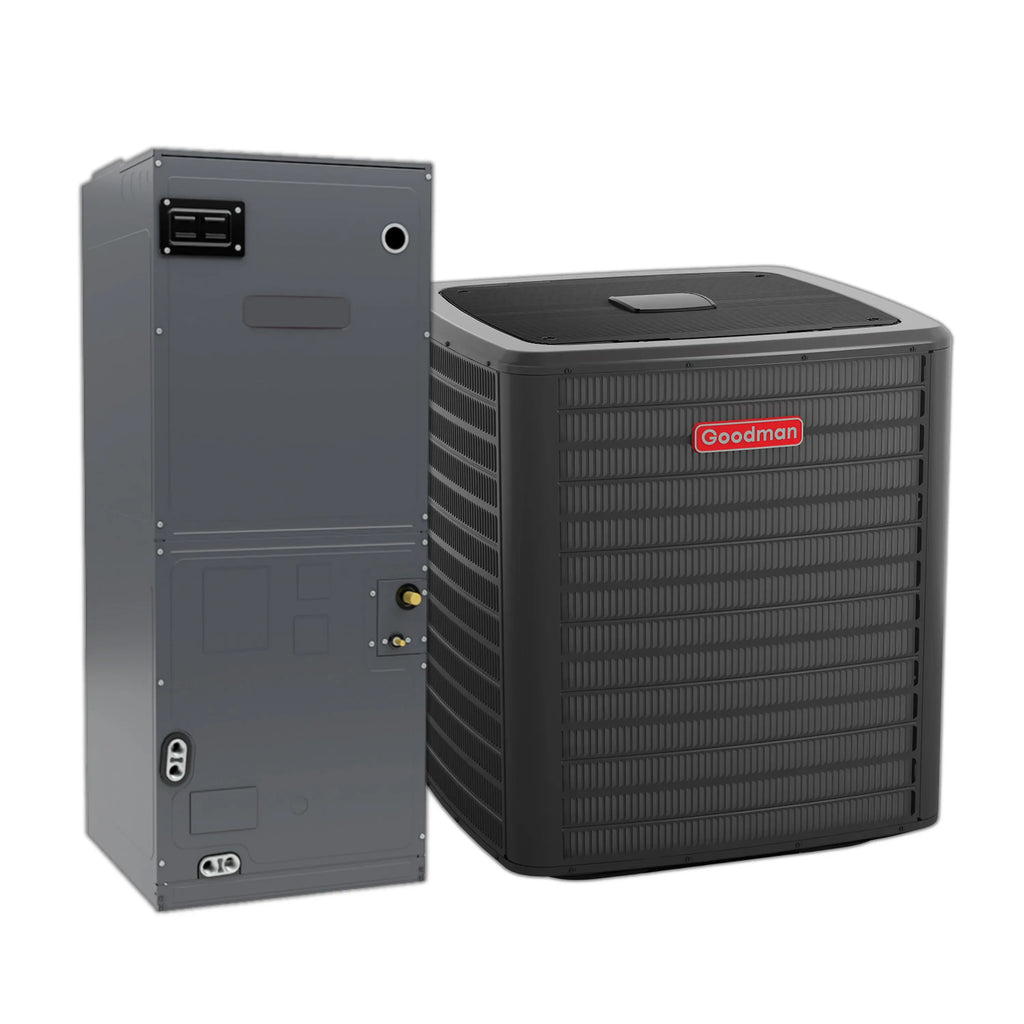

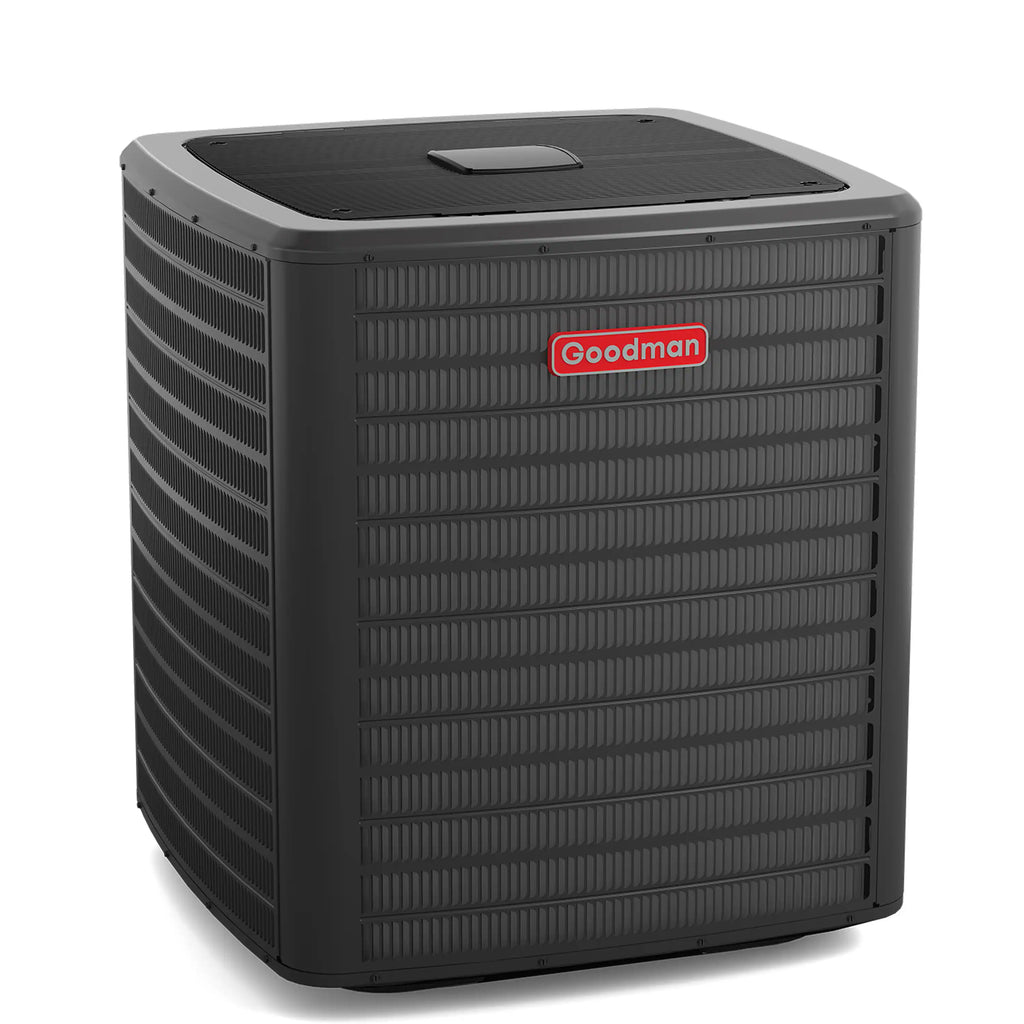

Piece 1 of 2 — CENTRAL CONDENSER
The Goodman GLXT7C Split System Air Conditioner delivers 17.2 SEER2 efficiency at 2 Ton capacity. Features two-stage scroll compressor for enhanced comfort and efficiency, and durable powder-painted cabinet with easy service access. AHRI Certified and ETL Listed.
Features- Two-Stage Copeland Ultra-Tech scroll compressor
- Quiet two-speed ECM outdoor fan motor
- Integrated communicating ComfortBridge™ Technology
- Commissioning and diagnostics via Bluetooth indoor board via CoolCloud™ App
- Copeland® ComfortAlert™ built in diagnostics
- Copper tube/enhanced aluminum fin coil - 5mm on 2.0-3.0T
- Color-coded terminal strip for non-communicating set-up
- Only two low-voltage wires required in communication mode
- Factory-installed filter drier
- Factory-installed transformer
- Factory-installed high and low-pressure switches
- High-density foam compressor sound blanket
- Fully charged for 15’ of tubing length
- Ambient temperature sensors
- Ground lug connection
- AHRI Certified - ETL Listed
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Heavy-gauge galvanized steel cabinet
- Baked-on powder-paint finish with 500-hour salt-spray approval
- Steel louver coil guard with rust-resistant screws.
- Top and side maintenance access
- Single-panel access to controls with space for field-installed accessories
- Service valves with sweat connections and easy-access gauge ports
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds(Anchor bracket kits available.)
DIMENSIONS & WEIGHT
- Height
- 39.5 in
- Width
- 35-1/2 in
- Depth
- 35.5 in
- Weight
- 214 lb
GENERAL INFORMATION
- Brand
- Goodman
- Series
- GLXT7C
- SKU
- GLXT7CA2410
- Product Category
- Unitary
- Unit Type
- Outdoor
- Manufacturer
- Goodman
- Product Features
- Two-Stage Copeland Ultra-Tech scroll compressor
- Quiet two-speed ECM outdoor fan motor
- Integrated communicating ComfortBridge™ Technology
- Commissioning and diagnostics via Bluetooth indoor board via CoolCloud™ App
- Copeland® ComfortAlert™ built in diagnostics
- Copper tube/enhanced aluminum fin coil - 5mm on 2.0-3.0T
- Color-coded terminal strip for non-communicating set-up
- Only two low-voltage wires required in communication mode
- Factory-installed filter drier
- Factory-installed transformer
- Factory-installed high and low-pressure switches
- High-density foam compressor sound blanket
- Fully charged for 15’ of tubing length
- Ambient temperature sensors
- Ground lug connection
- AHRI Certified - ETL Listed
CAPACITY & PERFORMANCE
- Tonnage
- 2.0
- Cooling BTU
- 24000 Btu/H
- Cooling Operating Range
- 55 °F to 125 °F
- SEER2
- 15.2
- EER2
- 12.2
COMPRESSOR & MOTORS
- Compressor Type
- Scroll
- Compressor Stages
- Two Stage
NOISE LEVELS
- Decibel Level (dBA)
- 69 dBA
ELECTRICAL REQUIREMENTS
- Voltage/Phase/Hz
- 208/230 V / 1 Ph / 60 Hz
- Max Breaker Size
- 20 A
- Min. Breaker Size
- 15 A
REFRIGERANT & PIPING
- Refrigerant
- R-32
- Factory Refrigerant Charge
- 104 oz
- Liquid Line
- 3/8 in
- Suction Line
- 3/4 in
- Max Line Set Length
- 200 ft
SAFETY
- ENERGY STAR® Certified
- No
- Proposition 65 Warning
- Yes
WARRANTY
- Warranty
- ALL PARTS - 5 YEARS PARTS

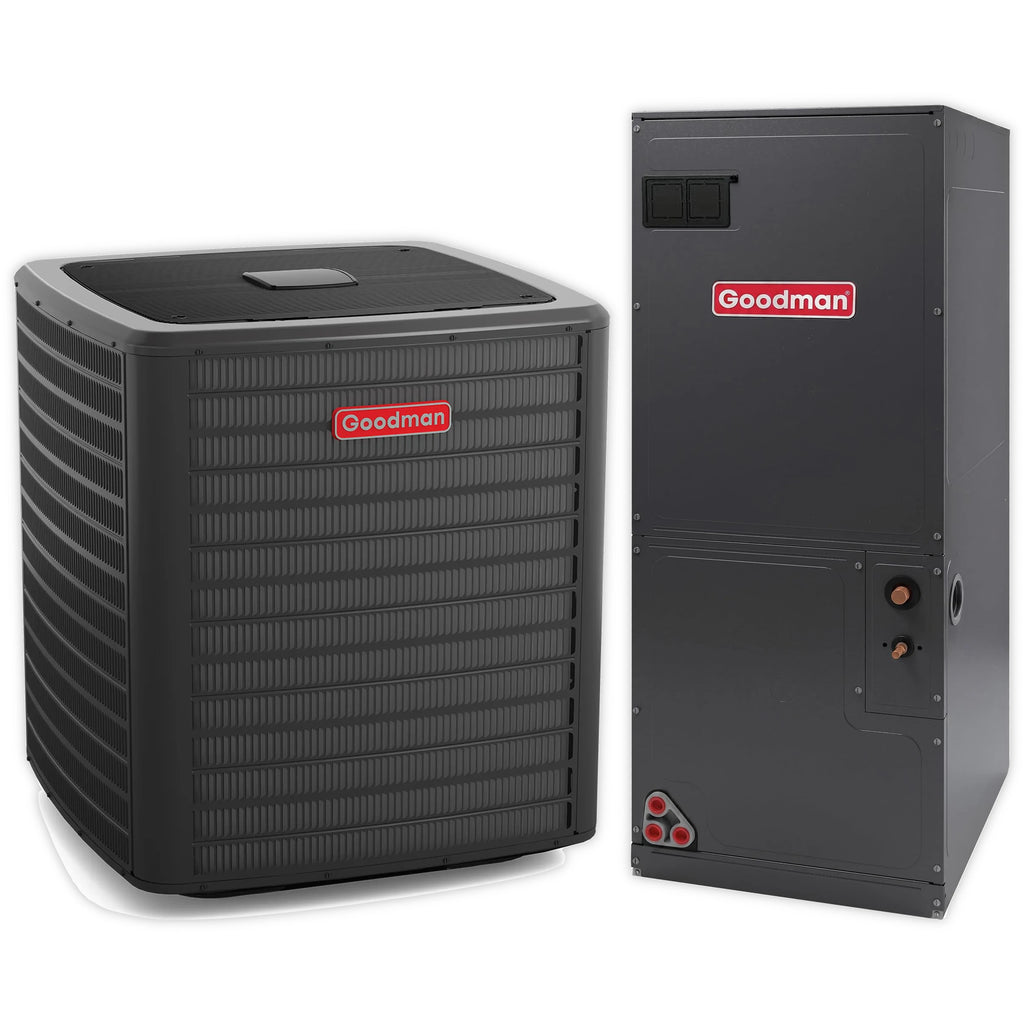

Piece 2 of 2 — CENTRAL AIR HANDLER
The Goodman AMVT24BP1300 is a 2 Ton (24,000 Btu/h) R-32 multi-position, variable-speed, ECM-based air handler with an internal factory-installed thermal expansion valve (TXV) for cooling and heat-pump applications. ComfortBridge™ compatible and designed to work with a Goodman smart thermostat and other Goodman communicating equipment, it delivers constant CFM across a wide range of static pressure for quiet, efficient, year-round comfort. AHRI certified and ETL listed.
Features- Internal factory-installed thermal expansion valve (TXV) for cooling and heat-pump applications
- Variable-speed ECM blower motor
- Compatible with a Goodman smart thermostat and other Goodman communicating equipment
- Auto configuration of the airflow and tonnage in communicating mode
- All-aluminum evaporator coil
- Provides constant CFM over a wide range of static pressure conditions independent of the duct system
- CFM indicator and fault recall of the six most recent faults
- Provides adjustable low CFM for efficient fan-only operation
- Improved humidity and comfort control
- Built-in compatibility with multi-stage heat pump and cooling applications
- Factory-installed R-32 sensor designed for the lifespan of the coil; optimized for use with R-32 refrigerant
- UL 60335 2-40 compliant; AHRI certified; ETL listed
- Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
- Accepts 3 kW - 25 kW electric heater kits
- Horizontal or vertical configuration capabilities
- 21" depth for easier attic access
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Screw-less sides and back help to reduce condensation when installed in humid locations
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Glue-less cabinet insulation retention and tool-less filter access
DIMENSIONS & WEIGHT
- Height
- 45 in
- Width
- 17-1/2 in
- Depth
- 21 in
- Ship Weight
- 117 lb
GENERAL INFORMATION
- Brand
- Goodman
- Series
- AMVT (R-32)
- SKU
- AMVT24BP1300
- Product Category
- Unitary
- Unit Type
- Indoor
- Manufacturer
- Goodman
- Style
- Multi-Position Variable-Speed ECM Air Handler
- Expansion Device
- Internal TXV
- Motor
- Variable-Speed ECM
CAPACITY & PERFORMANCE
- Nominal Capacity
- 2 Ton
- Cooling Capacity
- 24,000 Btu/h
- Blower Motor
- 1/2 HP
ELECTRICAL REQUIREMENTS
- Voltage
- 208/240 V
- Phase / Frequency
- 1 Ph / 60 Hz
- Voltage Range
- 197-253 V
- Min. Circuit Ampacity
- 4.9/4.9 A
- Max. Overcurrent Device
- 15/15 A
- Blower Motor FLA
- 3.9 A
REFRIGERANT & PIPING
- Refrigerant
- R-32
- Liquid Line
- 3/8 in
- Suction Line
- 3/4 in
- Coil Drain Connection
- 3/4 in FPT
HEATER KITS
- Electric Heater Kits
- 3 kW - 25 kW
SAFETY
- Proposition 65 Warning
- Yes
WARRANTY
- Warranty
- ALL PARTS - 5 YEARS PARTS
Authorized Goodman Dealer
Full manufacturer warranty on every Goodman product we sell.
Central Split System FAQs
What is a central HVAC system?
A central HVAC system uses a network of ducts to heat and cool your entire home from a single unit. It typically consists of an outdoor condenser (or heat pump) and an indoor air handler connected by refrigerant lines, distributing conditioned air through vents in every room.
What's the difference between a heat pump system and a traditional A/C system?
A heat pump can both heat and cool your home by reversing its refrigerant cycle, making it a year-round solution without a separate furnace. A traditional central A/C system only cools — you'd pair it with a gas furnace or electric air handler for heating. Heat pumps are generally more energy-efficient in moderate climates.
What size central HVAC system do I need?
Sizing depends on your home's square footage, insulation, climate zone, and ceiling height. As a general rule: 1 ton of cooling covers roughly 400–600 sq ft. A 2,000 sq ft home typically needs a 3–4 ton system. Use our live chat to speak with an HVAC specialist who can help you size correctly.
Can I buy a central HVAC system online and install it myself?
You can purchase central HVAC equipment online and save significantly versus buying through a local contractor. However, installation must be performed by a licensed HVAC technician in most states — the refrigerant handling and electrical work require certification. We recommend buying the equipment here and hiring a local installer separately.
What SEER2 rating should I look for?
SEER2 (Seasonal Energy Efficiency Ratio 2) measures cooling efficiency — higher numbers mean lower energy costs. Federal minimums are 14–15 SEER2 depending on your region. For the best long-term savings, look for systems rated 16 SEER2 or higher. Many of our MRCOOL and Senville systems reach 17–18 SEER2.
Does Home Outlet Direct offer financing for central HVAC purchases?
Yes. Financing is available on qualifying orders, making it easier to invest in a high-efficiency central HVAC system without paying everything upfront. See our financing page for details on terms and eligibility.
Do central HVAC systems from Home Outlet Direct come with a warranty?
All systems come with the manufacturer's warranty. We also offer extended warranty and protection plans for added peace of mind. Brands like MRCOOL and Goodman are backed by industry-leading coverage.
What is a Goodman split system?
A Goodman split system is a central HVAC setup with an outdoor condenser and an indoor air handler or furnace. Together they provide whole-home heating and cooling, offering better efficiency and quieter operation than window units.
What SEER2 ratings do Goodman split systems come in?
Goodman central split systems range from 14.3 SEER2 up to 22.5 SEER2 depending on the model, with higher ratings meaning greater energy savings on monthly utility bills.
Do Goodman split systems come with a warranty?
Yes. Goodman offers industry-leading limited warranties — typically up to 10 years on parts when registered — giving homeowners long-term peace of mind on their investment.
What size Goodman split system do I need?
Sizing depends on your home's square footage. For example, a 1.5-ton system typically covers 600–1,000 sq. ft., while a 4-ton system suits 2,200–2,600 sq. ft. An HVAC professional can perform a Manual J load calculation for accuracy.
What refrigerant do Goodman central split systems use?
Current Goodman split systems use R-32 refrigerant, which has a lower global warming potential (GWP) than older R-410A systems, making them a more eco-friendly choice.
Can I install a Goodman split system myself?
Goodman split systems require professional installation by a licensed HVAC technician, both for safety and to keep the manufacturer's warranty valid.
Does Home Outlet Direct offer free shipping on Goodman split systems?
Yes, Home Outlet Direct offers free shipping on Goodman central split systems along with wholesale pricing, making it one of the most affordable ways to purchase a full HVAC kit online.
