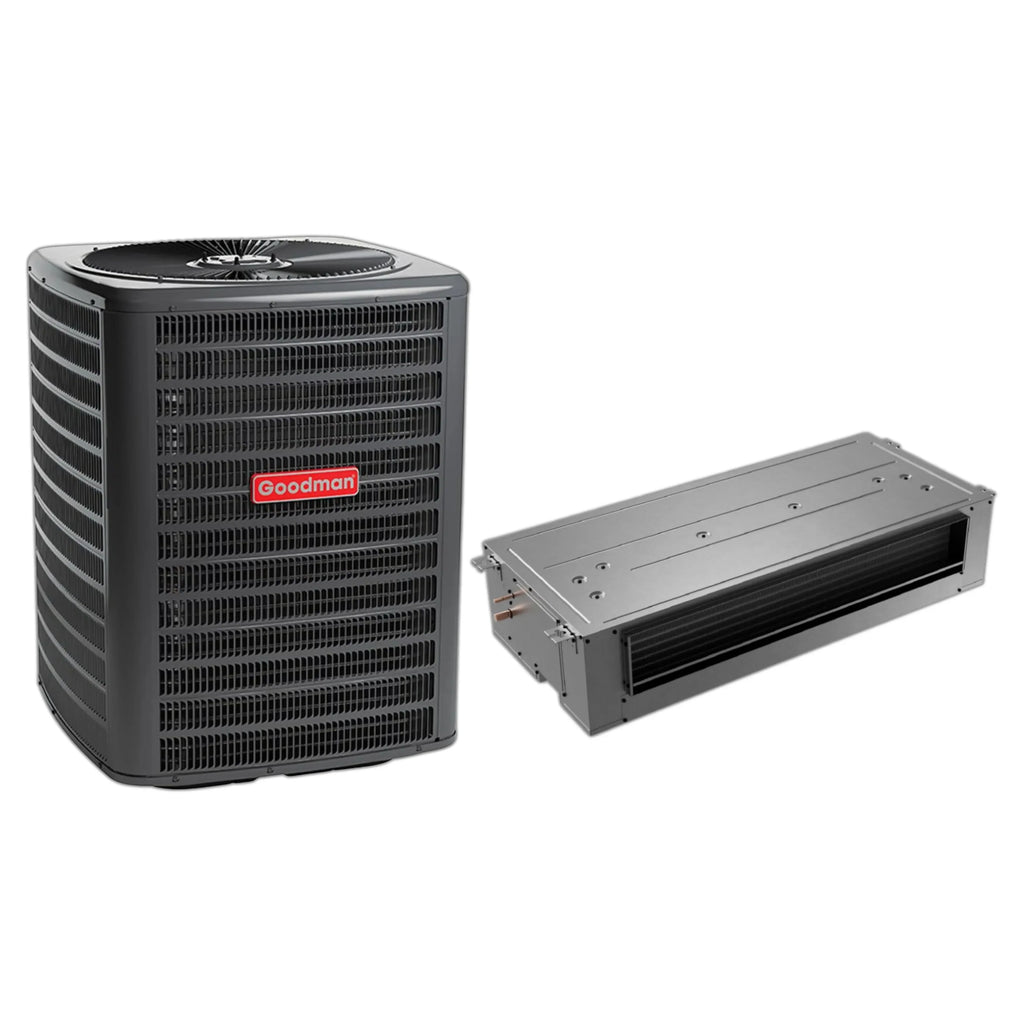

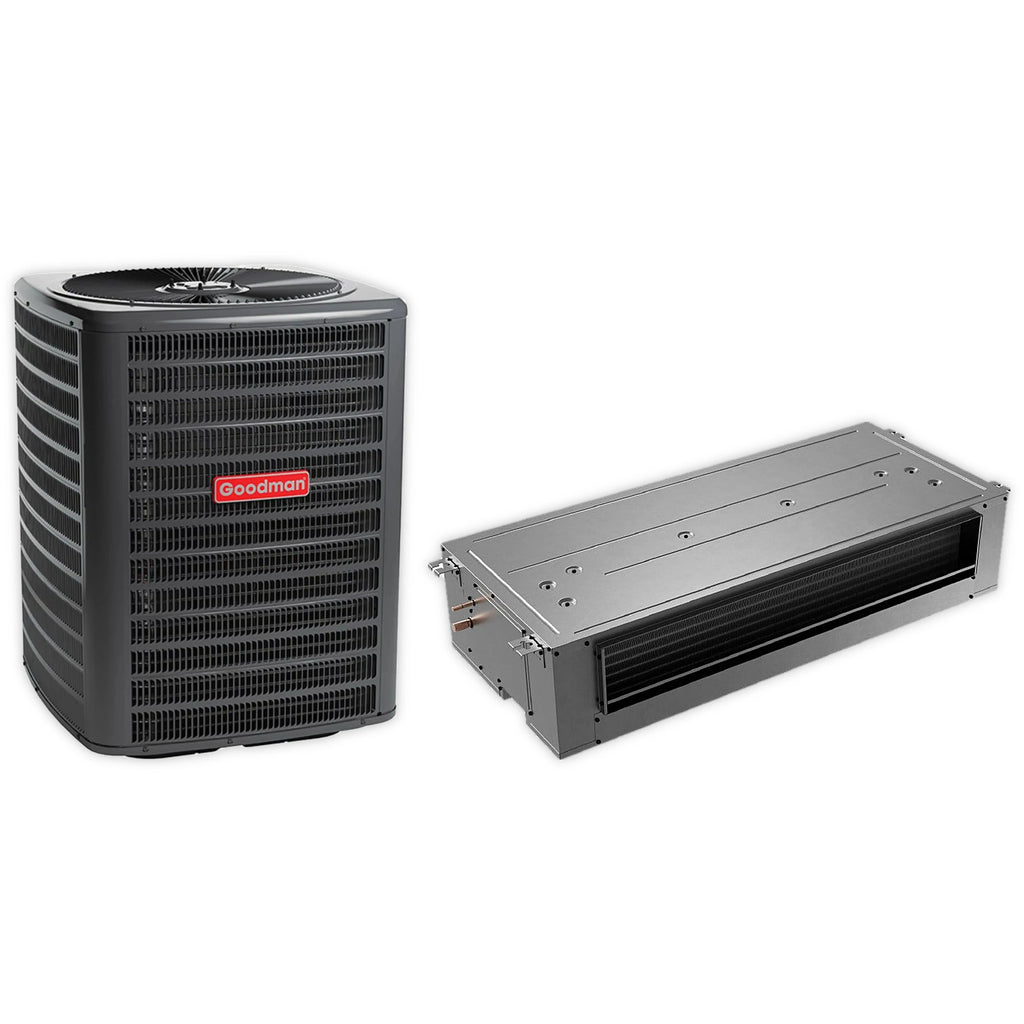

The Goodman GLXS5B Split System Air Conditioner delivers 15.2 SEER2 efficiency with R-32 refrigerant at 2 Ton capacity. Features single-stage cooling and durable powder-painted cabinet with easy service access. Optimized for next-generation R-32 refrigerant with lower GWP. AHRI Certified and ETL Listed.
Features| DIMENSIONS & WEIGHT | |
|---|---|
| Height | 32 in |
| Width | 29 in |
| Depth | 29 in |
| GENERAL INFORMATION | |
| Brand | Goodman |
| Series | GLXS5B |
| SKU | GLXS5BA2410 |
| Product Category | Unitary |
| Unit Type | Outdoor |
| Manufacturer | Goodman |
| Product Features |
|
| CAPACITY & PERFORMANCE | |
| Tonnage | 2.0 |
| Cooling Operating Range | 55 °F to 115 °F |
| COMPRESSOR & MOTORS | |
| Compressor Type | Scroll |
| Compressor Stages | Single Stage |
| Liquid Valve Size | 3/8 in |
| NOISE LEVELS | |
| Decibel Level (dBA) | 68.8 dBA |
| ELECTRICAL REQUIREMENTS | |
| Voltage/Phase/Hz | 208/230 V / 1 Ph / 60 Hz |
| Max Breaker Size | 20 A |
| Min. Breaker Size | 13.8 A |
| REFRIGERANT & PIPING | |
| Refrigerant | R-32 |
| Factory Refrigerant Charge | 65 oz |
| Suction Line | 3/4 in |
| Max Line Set Length | 79 ft |
| SAFETY | |
| Proposition 65 Warning | Yes |
| WARRANTY | |
| Warranty | ALL PARTS - 5 YEARS PARTS |

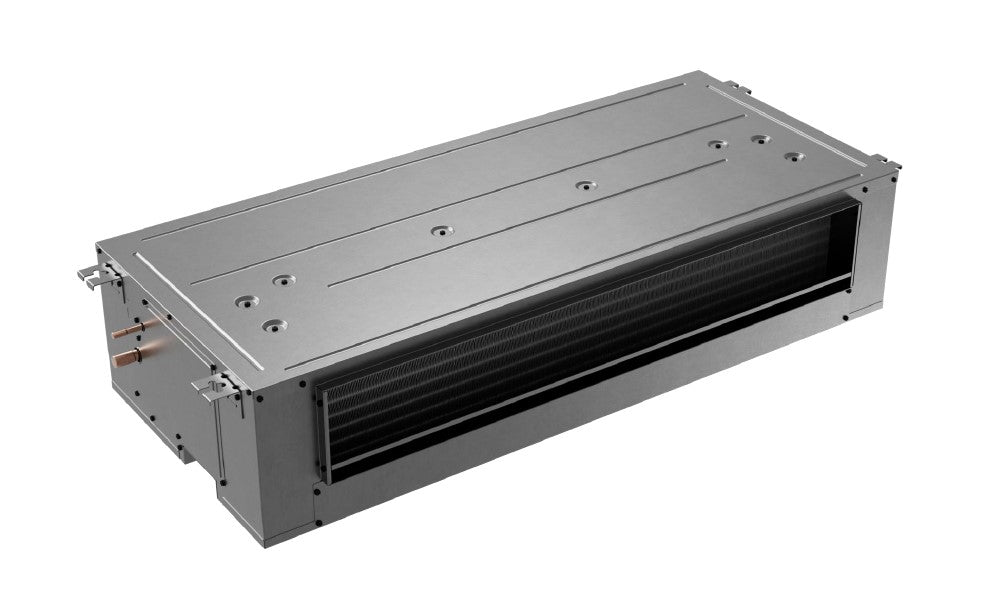

The Goodman ACST Air Handler offers dependable 2 Ton capacity with a multi-speed ECM motor for efficient and quiet performance. Equipped with a factory-installed TXV, all-aluminum evaporator coil, and electric heat options from 5-10 kW, this versatile unit handles both heating and cooling needs. Features galvanized-steel construction with R-32 refrigerant compatibility and factory-installed leak detection sensor. AHRI Certified and ETL Listed.
Features| DIMENSIONS & WEIGHT | |
|---|---|
| Height | 11 in |
| Width | 54-1/5 in |
| Depth | 22.2 in |
| Weight | 97 lb |
| GENERAL INFORMATION | |
| Brand | Goodman |
| Series | ACST |
| SKU | ACST24LU1310 |
| Product Category | Unitary |
| Unit Type | Indoor |
| Manufacturer | Goodman |
| Product Features | 1. Factory installed TXV for heat pump and cooling-only applications;2. All-Aluminum tube/aluminum fin coil;3. Direct-drive, resilient-mount, multi-speed motor;3. Sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 and 10 kW;4. High-efficiency evaporator coil;5. Quiet operation;6. AHRI Certified;7. Suitable for both front and bottom return;8. Factory installed casing;9. UL 2-40 cerified;10. ETL Listed;11. Suitable for free-return installation (non-ducted return air);12. Galvanized-steel construction;13. Factory-installed pull-type disconnect;14. Easy service access;15. Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation. |
| CAPACITY & PERFORMANCE | |
| Tonnage | 2.0 |
| ELECTRICAL REQUIREMENTS | |
| Voltage/Phase/Hz | 208/230 V / 1 Ph / 60 Hz |
| Max Breaker Size | 50/60 A |
| Min. Breaker Size | 47.6/54.6 A |
| REFRIGERANT & PIPING | |
| Factory Refrigerant Charge | 0 oz |
| Liquid Line | 3/8 in |
| Suction Line | 3/4 in |
| SAFETY | |
| Proposition 65 Warning | Yes |
| WARRANTY | |
| Warranty | ALL PARTS - 5 YEARS PARTS |
