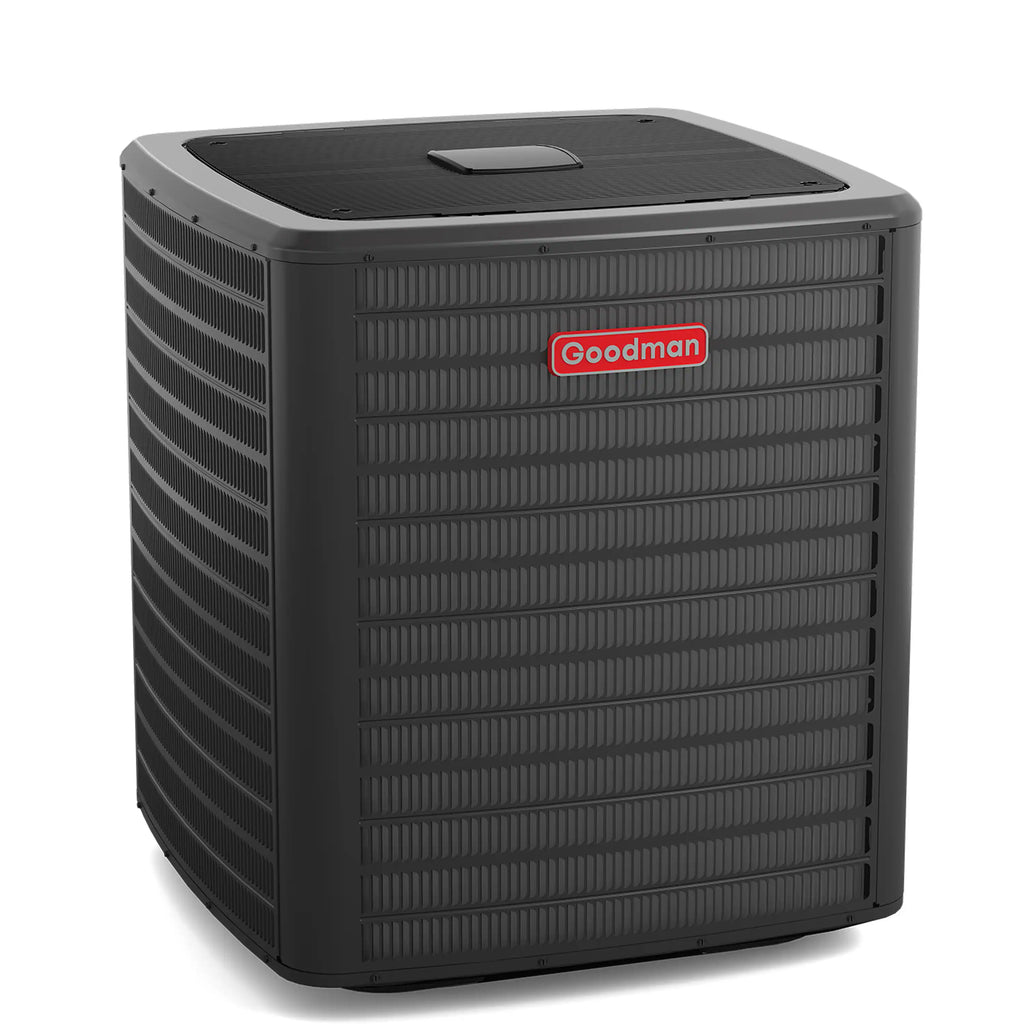

The Goodman GLZT7C is a premium 3 Ton split system heat pump delivering 17.2 SEER2 / 8.1 HSPF2 efficiency with two-stage operation and ComfortBridge technology. Features a Two-Stage Copeland UltraTech scroll compressor, two-speed ECM condenser fan motor, and ComfortAlert built-in diagnostics. Compatible with CoolCloud app via Bluetooth. Built in a heavy-gauge galvanized steel cabinet. AHRI Certified and ETL Listed.
Features| General Information | |
|---|---|
| Brand | Goodman |
| Series | GLZT7C |
| SKU | GLZT7CA3610 |
| Product Category | Unitary |
| Unit Type | Outdoor |
| Manufacturer | Goodman |
| Electrical | |
| Voltage/Phase/Hz | 208/240 V / 1 Ph / 60 Hz |
| Max Breaker Size | 35 A |
| Min. Breaker Size | 20.8 A |
| Capacity & Performance | |
| Tonnage | 3.0 |
| Cooling BTU | 34800 Btu/H |
| Heating BTU | 34400 Btu/H |
| Cooling Operating Range | 55 °F to 125 °F |
| Heating Operating Range | -20 °F to 70 °F |
| Decibel Level (dBA) | 71 dBA |
| Efficiency Ratings | |
| SEER2 | 17.2 |
| HSPF2 | 8.1 |
| EER2 | 12.5 |
| ENERGY STAR® Certified | Yes |
| Compressor & Refrigerant | |
| Compressor Type | Scroll |
| Compressor Stages | Two Stage |
| Refrigerant | R-32 |
| Factory Refrigerant Charge | 129 oz |
| Liquid Line | 3/8 in |
| Suction Line | 3/4 in |
| Max Line Set Length | 150 ft |
| Dimensions & Weight | |
| Height | 35.5 in |
| Width | 35-1/2 in |
| Depth | 35.75 in |
| Weight | 262 lb |
| Additional Information | |
| Product Features | Two-Stage Copeland® UltraTech scroll compressor;High-density foam compressor sound blanket;Integrated communicating ComfortBridge™ technology;Commissioning and diagnostics via indoor board Bluetooth with the CoolCloud™ phone and tablet application;ComfortAlert™ built in diagnostics;Copper tube/enhanced aluminum fin coil- 5mm on 2.0-3.0T;Copper tube/enhanced aluminum fin coil - 7mm on 4.0-5.0T;Efficient, two-speed ECM condenser fan motor;Simple low-voltage wiring to outdoor unit in communicating mode;Diagnostic indicator lights and storage of six fault codes;Color-coded terminal strip for non-communicating set-up;High- and low-pressure switches;Time-delay technology with short-cycle protection to ensure quiet, reliable defrost;Factory-installed bi-flow liquid-line filter drier;Factory-installed suction-line accumulator;Factory-installed compressor crankcase heater;Factory-installed high-capacity muffler;Factory-installed coil and ambient temperature sensors;AHRI Certified;ETL Listed |
| Warranty | ALL PARTS - 5 YEARS PARTS |
| Safety Information | R32 Outdoor |
| Proposition 65 Warning | Yes |

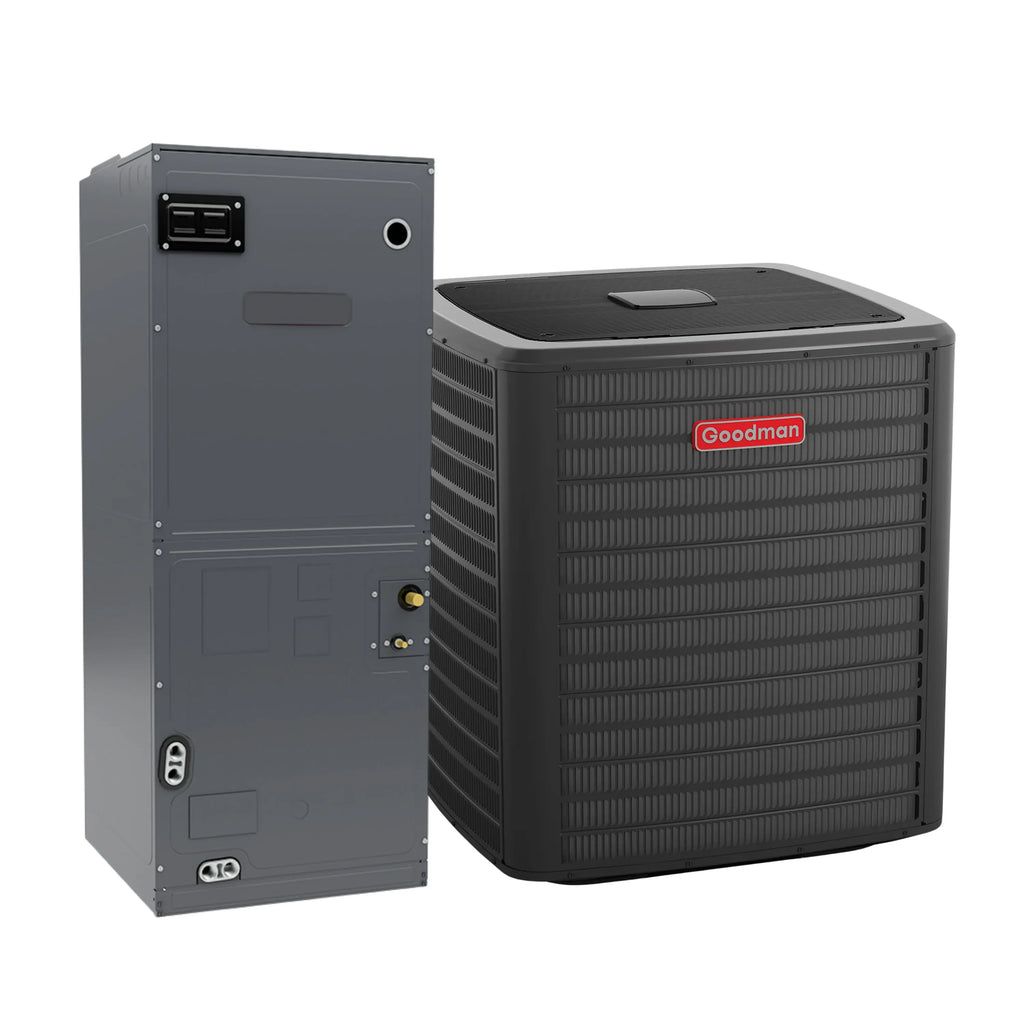

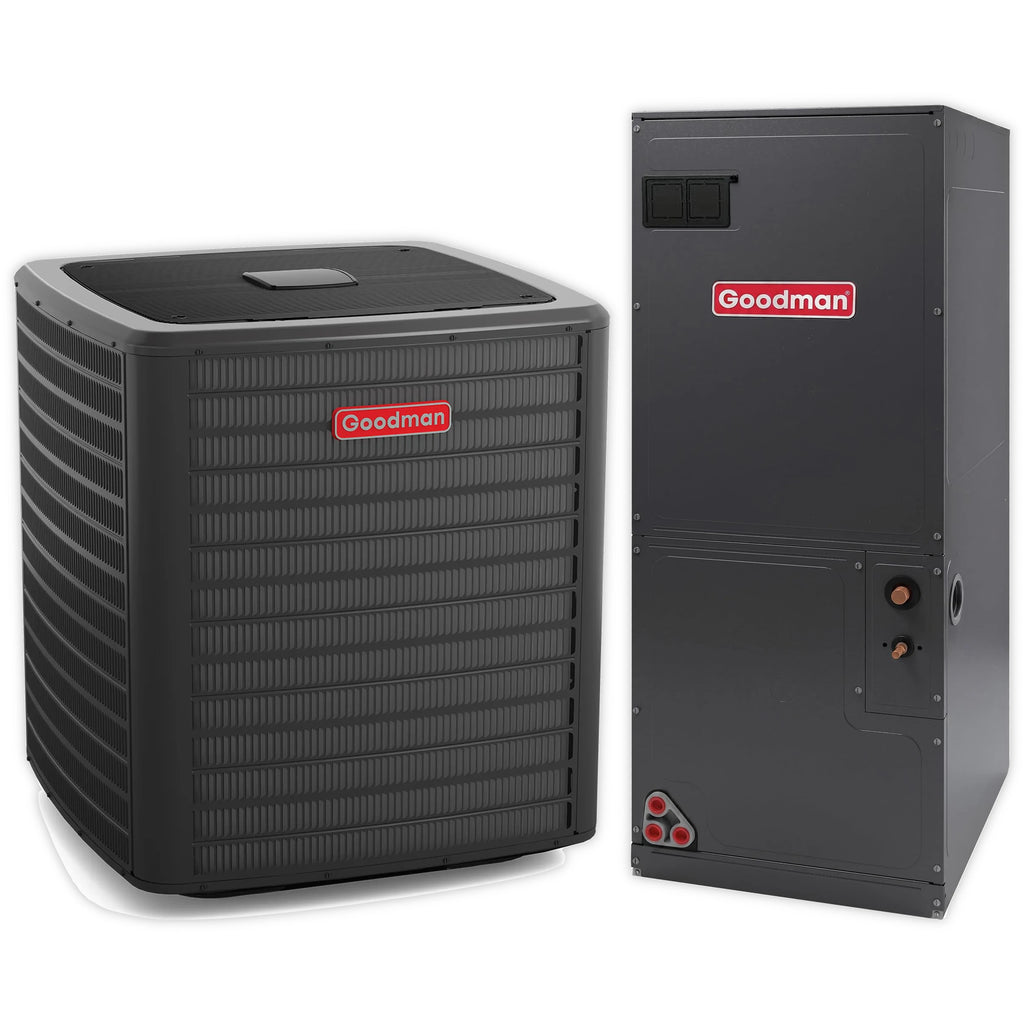

The Goodman AMVT Air Handler delivers premium indoor comfort with variable-speed ECM blower motor and integrated ComfortBridge Technology for intelligent system communication. Featuring factory-installed TXVs for both cooling and heat pump applications, this unit provides improved humidity control and constant CFM across varying static pressure conditions.
Optimized for R-32 refrigerant with factory-installed leak detection sensor, the rigid SmartFrame cabinet offers horizontal or vertical installation flexibility with a compact 21" depth for easier attic access. ASHRAE 193 tested for low cabinet air leakage with galvanized, leather grain-embossed finish.
Features
Cabinet Features
| General Information | |
|---|---|
| Brand | Goodman |
| Series | R-32 AMVT |
| SKU | AMVT36BP1300 |
| Product Category | Unitary |
| Unit Type | Indoor |
| Manufacturer | Goodman |
| Compressor & Refrigerant | |
| Refrigerant | R-32 |
| Additional Information | |
| Product Features | 1. Internal factory-installed thermal expansion valves for cooling and heat pump applications;2. Variable-speed ECM blower motor;3. Integrated communicating ComfortBridge Technology;4. Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application. ;5. Auto configuration of the airflow and tonnage in communicating mode;6. Provides constant CFM over a wide range of static pressure conditions independent of duct system;7. CFM indicator;8. Fault recall of six most recent faults;9. Provides adjustable low CFM for efficient fan-only operation;10. Improved humidity and comfort control;11. Built-in compatibility with multi-stage heat pump and cooling applications;12. Optimized for R-32 refrigerant with factory installed leak detection sensor for A2L mitigation. |
| Warranty | ALL PARTS - 10 YEARS PARTS |
| Proposition 65 Warning | Yes |
