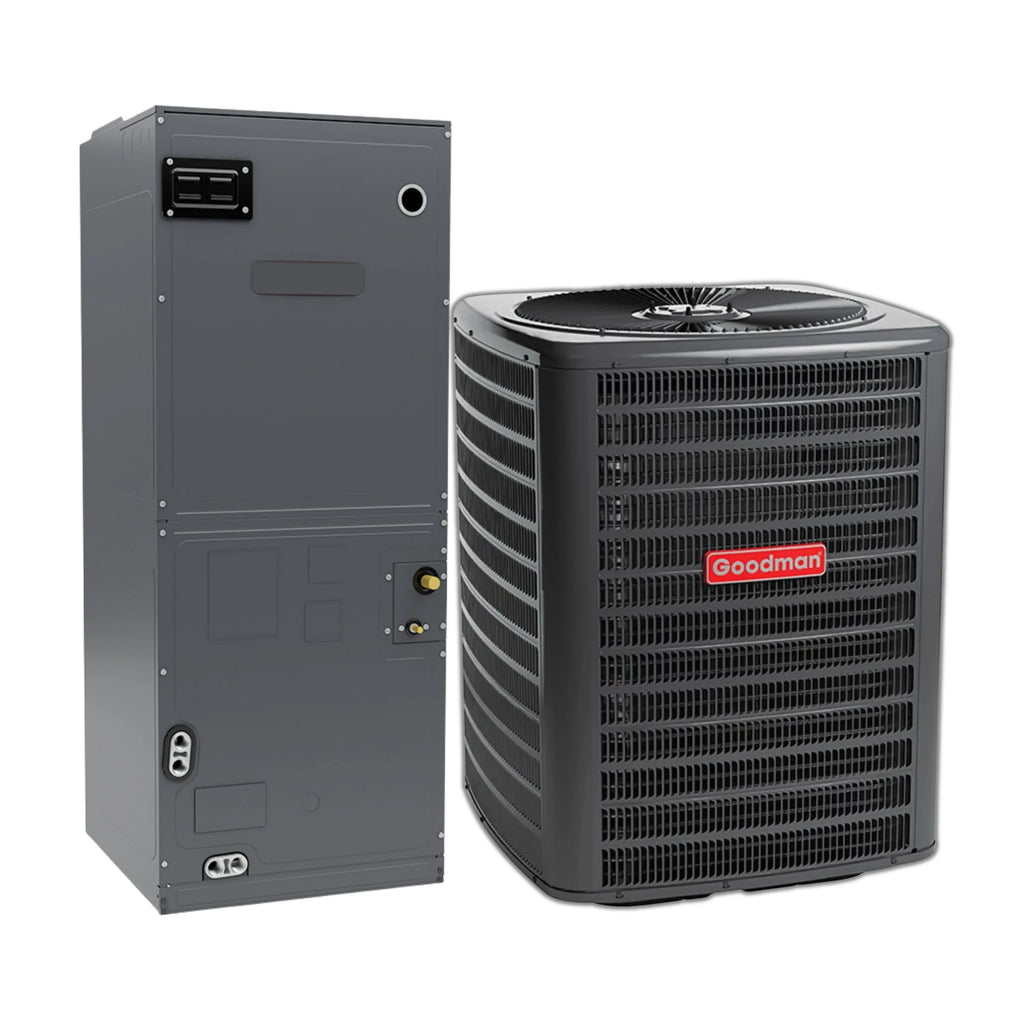

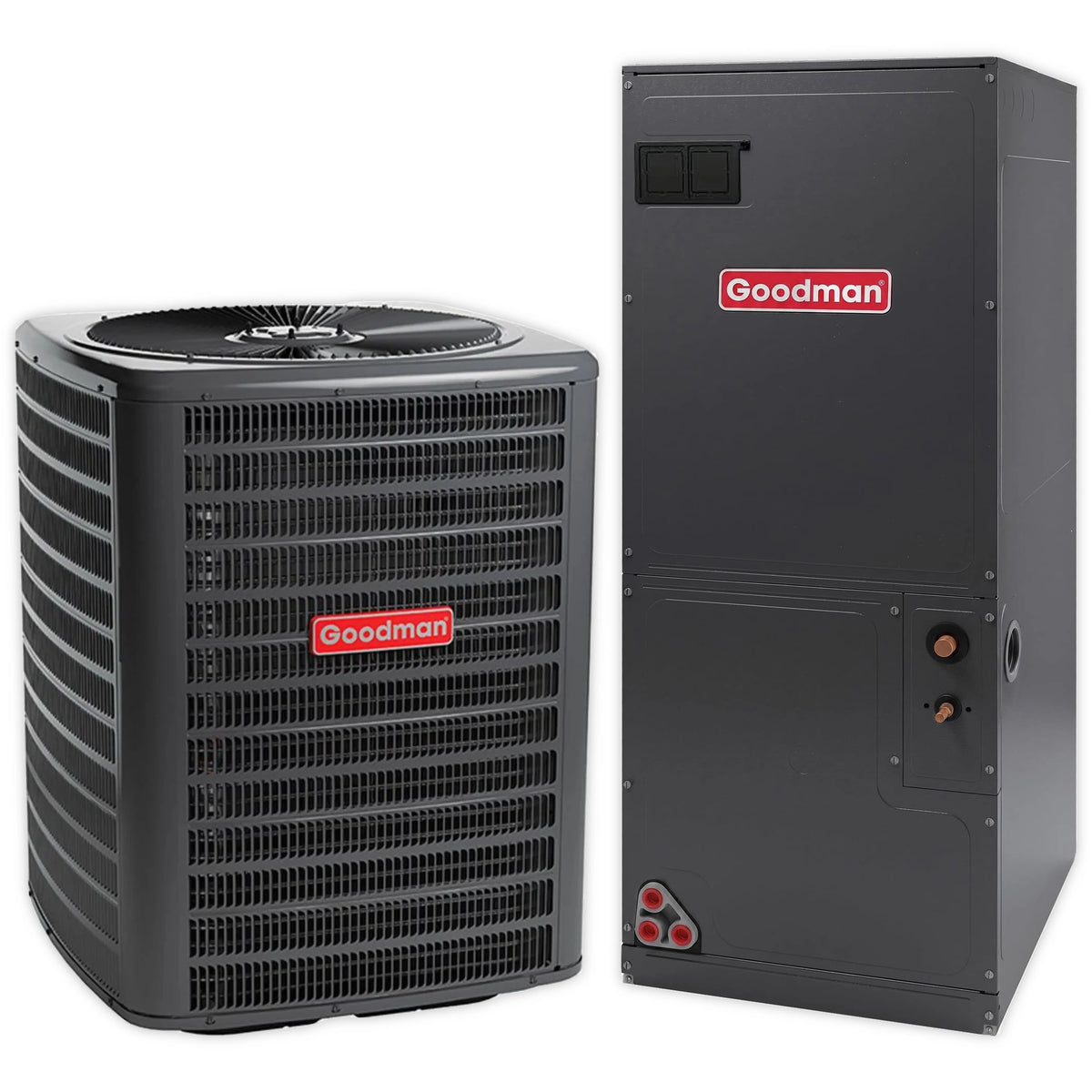

The Goodman GLZS5B is a 3 Ton split system heat pump delivering 15.2 SEER2 / 7.8 HSPF2 efficiency with SmartShift technology for quiet, reliable defrost. Features a high-efficiency scroll compressor, enhanced aluminum fin coils, and factory-installed components. Ships fully charged and includes single-speed PSC condenser fan motor. Built in a heavy-gauge galvanized steel cabinet with Architectural Gray finish. AHRI Certified and ETL Listed.
Features| General Information | |
|---|---|
| Brand | Goodman |
| Series | GLZS5B |
| SKU | GLZS5BA3610 |
| Product Category | Unitary |
| Unit Type | Outdoor |
| Manufacturer | Goodman |
| Electrical | |
| Voltage/Phase/Hz | 208/230 V / 1 Ph / 60 Hz |
| Max Breaker Size | 40 A |
| Min. Breaker Size | 24 A |
| Capacity & Performance | |
| Tonnage | 3.0 |
| Heating BTU | 35000 Btu/H |
| Cooling Operating Range | 55 °F to 125 °F |
| Heating Operating Range | -20 °F to 70 °F |
| Decibel Level (dBA) | 71.1 dBA |
| Efficiency Ratings | |
| SEER2 | 15.2 |
| HSPF2 | 7.8 |
| EER2 | 12.5 |
| ENERGY STAR® Certified | Yes |
| Compressor & Refrigerant | |
| Compressor Type | Scroll |
| Compressor Stages | Single Stage |
| Refrigerant | R-32 |
| Factory Refrigerant Charge | 95 oz |
| Liquid Line | 3/8 in |
| Suction Line | 7/8 in |
| Max Line Set Length | 200 ft |
| Dimensions & Weight | |
| Height | 39.5 in |
| Width | 35-1/2 in |
| Depth | 35.5 in |
| Weight | 222 lb |
| Additional Information | |
| Product Features | High-efficiency scroll compressor;SmartShift® technology to ensure quiet reliable defrost;Enhanced aluminum fin with coil-5mm diameter copper tubes in 1.5T-3.5T;Enhanced aluminum fin coil with 7mm diameter copper tubes 4.0-5.0 ton;Single-speed PSC condenser fan motor;Factory-installed suction-line accumulator;Factory-installed compressor crankcase heater;Factory-installed high-capacity muffler;High- and low-pressure switches;Service valves with sweat connections and easy access to gauge ports;Fully charged for 15’ of tubing length;Fully enclosed contactor;Ground lug connection;Capacitor with extended life; AHRI Certified; ETL Listed |
| Warranty | ALL PARTS - 5 YEARS PARTS |
| Safety Information | R32 Outdoor |
| Proposition 65 Warning | Yes |
The Goodman AMVT Air Handler delivers premium indoor comfort with variable-speed ECM blower motor and integrated ComfortBridge Technology for intelligent system communication. Featuring factory-installed TXVs for both cooling and heat pump applications, this unit provides improved humidity control and constant CFM across varying static pressure conditions.
Optimized for R-32 refrigerant with factory-installed leak detection sensor, the rigid SmartFrame cabinet offers horizontal or vertical installation flexibility with a compact 21" depth for easier attic access. ASHRAE 193 tested for low cabinet air leakage with galvanized, leather grain-embossed finish.
Features
Cabinet Features
| General Information | |
|---|---|
| Brand | Goodman |
| Series | R-32 AMVT |
| SKU | AMVT36BP1300 |
| Product Category | Unitary |
| Unit Type | Indoor |
| Manufacturer | Goodman |
| Compressor & Refrigerant | |
| Refrigerant | R-32 |
| Additional Information | |
| Product Features | 1. Internal factory-installed thermal expansion valves for cooling and heat pump applications;2. Variable-speed ECM blower motor;3. Integrated communicating ComfortBridge Technology;4. Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application. ;5. Auto configuration of the airflow and tonnage in communicating mode;6. Provides constant CFM over a wide range of static pressure conditions independent of duct system;7. CFM indicator;8. Fault recall of six most recent faults;9. Provides adjustable low CFM for efficient fan-only operation;10. Improved humidity and comfort control;11. Built-in compatibility with multi-stage heat pump and cooling applications;12. Optimized for R-32 refrigerant with factory installed leak detection sensor for A2L mitigation. |
| Warranty | ALL PARTS - 10 YEARS PARTS |
| Proposition 65 Warning | Yes |
