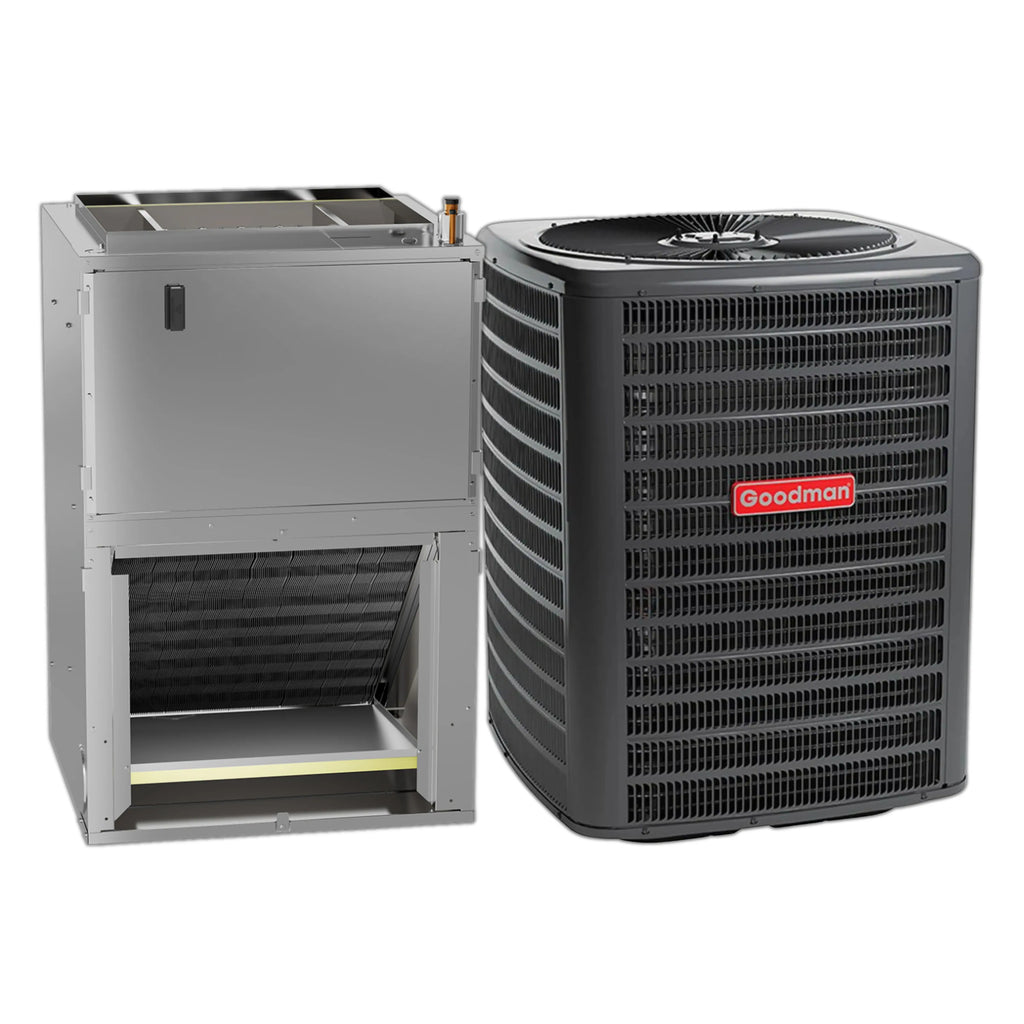

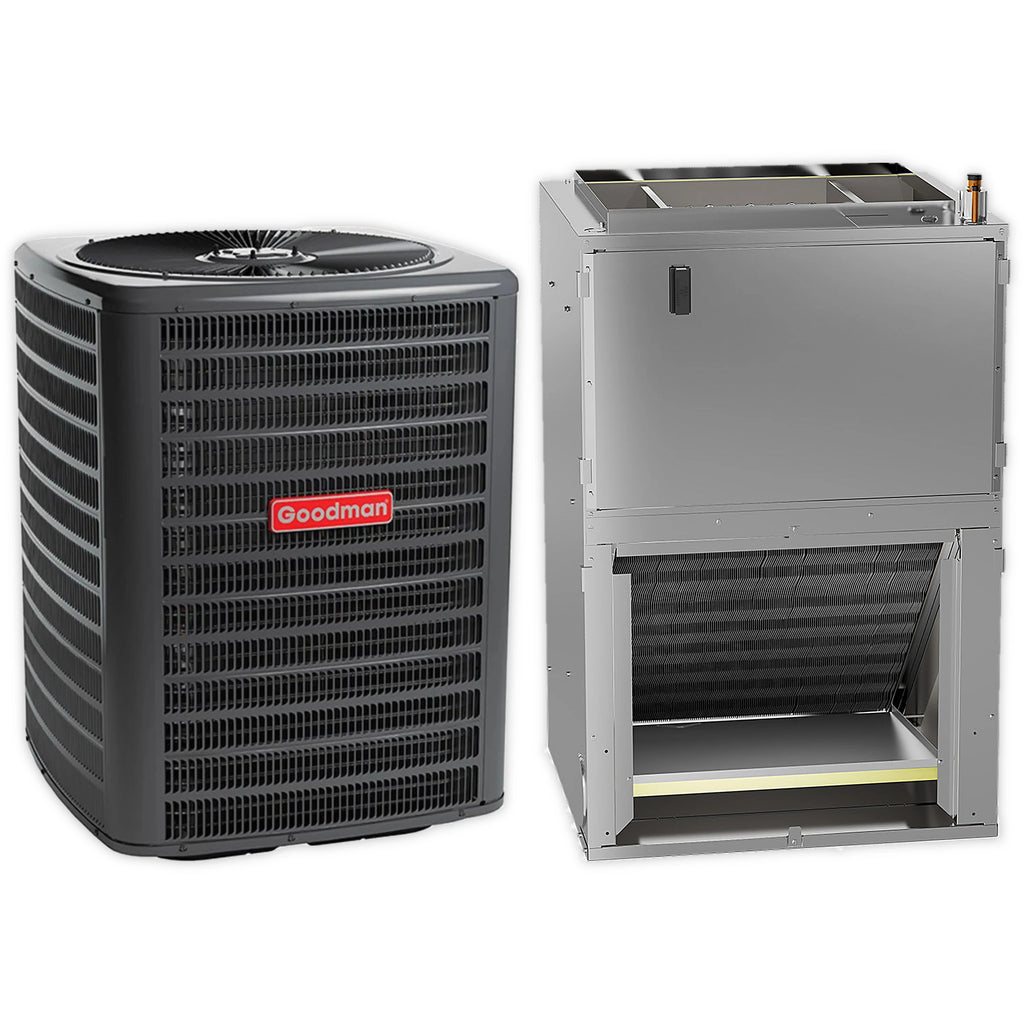

Goodman 2.5 Ton 14.5 SEER2 Central Air Conditioner Condenser with Wall Mounted Air Handler & 8kW Heat Kit
Goodman 2.5 Ton 14.5 SEER2 Central Air Conditioner Condenser with Wall Mounted Air Handler & 8kW Heat Kit
Goodman 2.5 Ton 14.5 SEER2 Central Air Conditioner Condenser with Wall Mounted Air Handler & 8kW Heat Kit
Goodman 2.5 Ton 14.5 SEER2 Central Air Conditioner Condenser with Wall Mounted Air Handler & 8kW Heat Kit
Goodman 2.5 Ton 14.5 SEER2 Central Air Conditioner Condenser with Wall Mounted Air Handler & 8kW Heat Kit
Click on image to zoom Click on image to zoom
Goodman 2.5 Ton 14.5 SEER2 Central Air Conditioner Condenser with Wall Mounted Air Handler & 8kW Heat Kit
Goodman 2.5 Ton 14.5 SEER2 Central Air Conditioner Condenser with Wall Mounted Air Handler & 8kW Heat Kit
Goodman 2.5 Ton 14.5 SEER2 Central Air Conditioner Condenser with Wall Mounted Air Handler & 8kW Heat Kit
Goodman 2.5 Ton 14.5 SEER2 Central Air Conditioner Condenser with Wall Mounted Air Handler & 8kW Heat Kit

Goodman 2.5 Ton 14.5 SEER2 Central Air Conditioner Condenser with Wall Mounted Air Handler & 8kW Heat Kit

SKU: GLXS5BA3010AWST30LU1308
$3,650.00 $4,748.00

KW:
In Stock Estimated delivery: Jun 22nd-6th
  • Secure Payment
    Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa
    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Free Shipping*
  • 30-Day Return Policy⁺

Package Overview

Goodman 2.5 Ton 15.2 SEER2 Central Air Conditioning System | Air Handler | R-32 Refrigerant | Covers 1,300-1,600 Sq. Ft.

Features:

  • Condenser Cooling Capacity: 30K BTU (2.5 Ton)
  • Energy Efficiency: 15.2 SEER2
  • Recommended Coverage Area: 1,300-1,600 Sq. Ft.
  • Installation Type: Split System with Air Handler
  • Refrigerant: R-32
  • Voltage: 208/230 V / 1 Ph / 60 Hz
  • Compressor: Single Stage
  • Air Handler: Multi-Speed ECM Motor
  • AHRI Certified & ETL Listed

Package Includes:

Goodman GLXS5B Split Air Conditioner 15.2 SEER2 R-32 Single-Stage (GLXS5BA3010)
Goodman GLXS5B Split Air Conditioner 15.2 SEER2 R-32 Single-Stage (GLXS5BA3010)
In Stock Estimated delivery: Jun 22nd-6th
Description
Product Specs
Manuals & Guides

The Goodman GLXS5B Split System Air Conditioner delivers 15.2 SEER2 efficiency with R-32 refrigerant at 2.5 Ton capacity. Features single-stage cooling and durable powder-painted cabinet with easy service access. Optimized for next-generation R-32 refrigerant with lower GWP. AHRI Certified and ETL Listed.

Features
  • High-efficiency scroll compressor
  • Factory-installed filter drier
  • Fully charged for 15’ of tubing length
  • Copper tube/enhanced aluminum fincoil -5mm diameter on 1.5-3.0T
  • Service valves with sweat connectionsand easy-to-access gauge ports
  • Enclosed contactor with lug connection
  • Ground lug connection
  • High-pressure switch
  • AHRI Certified
  • ETL Listed
Cabinet Features
  • Removable grille-style top designcompliant with UL 60335-2-40
  • Heavy-gauge galvanized-steel cabinet
  • Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approval
  • Steel louver coil guard
  • Single-panel access to controls with spaceprovided for field-installed accessories
  • When properly anchored, meets the 2023 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)
General Information
Brand Goodman
Series GLXS5B
SKU GLXS5BA3010
Product Category Unitary
Unit Type Outdoor
Manufacturer Goodman
Electrical
Voltage/Phase/Hz 208/230 V / 1 Ph / 60 Hz
Max Breaker Size 25 A
Min. Breaker Size 15.4 A
Capacity & Performance
Tonnage 2.5
Cooling Operating Range 55 °F to 115 °F
Decibel Level (dBA) 72.5 dBA
Compressor & Refrigerant
Compressor Type Scroll
Compressor Stages Single Stage
Refrigerant R-32
Factory Refrigerant Charge 87 oz
Suction Line 3/4 in
Max Line Set Length 79 ft
Liquid Valve Size 3/8 in
Dimensions & Weight
Height 39.5 in
Width 35-1/2 in
Depth 35.5 in
Additional Information
Product Features High-efficiency scroll compressor;Factory-installed filter drier;Fully charged for 15’ of tubing length;Copper tube/enhanced aluminum fincoil -5mm diameter on 1.5-3.0T;Service valves with sweat connectionsand easy-to-access gauge ports;Enclosed contactor with lug connection;Ground lug connection;High-pressure switch;AHRI Certified;ETL Listed
Warranty ALL PARTS - 5 YEARS PARTS
Proposition 65 Warning Yes
Goodman AWST Air Handler 2.5 Ton R-32 (AWST30LU1308)
Goodman AWST Air Handler 2.5 Ton R-32 (AWST30LU1308)
In Stock Estimated delivery: Jun 22nd-6th
Description
Product Specs
Manuals & Guides

The Goodman AMST multi-position air handler is designed for ducted mini-split applications in a 5 Ton capacity. Features flexible installation options with multi-position capability. Provides quiet, efficient air distribution when paired with Goodman mini-split outdoor units. Ideal for applications requiring traditional ducted airflow in a mini-split system.

Features
  • AWST Models: Equipped wit a fully adjustable TXV
  • Direct-drive, multi-speed motors allows air volume variation for heating/cooling
  • Direct-drive, multi-speed motors allows air volume variation for heating/cooling
  • Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
  • Aluminum tubing coils on all models
  • Factory-installed pull-type disconnect
  • Thermoplastic drain pan with bottom primary and secondary drain connections
  • AHRI Certified and ETL Listed
  • Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.
Cabinet Features
  • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
  • Built-in filter rack (filter included)
  • Large chassis (2-1/2 and 3 ton units), front return only
  • Small chassis (1-1/2 and 2 ton units), front or bottom return
  • Wall-hanging bracket provided
General Information
Brand Goodman
Series AWST
SKU AWST30LU1308
Product Category Unitary
Unit Type Indoor
Manufacturer Goodman
Electrical
Voltage/Phase/Hz 208/230 V / 1 Ph / 60 Hz
Max Breaker Size 40/45 A
Min. Breaker Size 37.7/42.8 A
Capacity & Performance
Tonnage 2.5
Compressor & Refrigerant
Refrigerant R-32
Factory Refrigerant Charge 0.5 oz
Liquid Line 3/8 in
Suction Line 3/4 in
Dimensions & Weight
Height 36 in
Width 24 in
Depth 21 in
Weight 109 lb
Additional Information
Product Features AWST Models: Equipped wit a fully adjustable TXV;Direct-drive, multi-speed motors allows air volume variation for heating/cooling;Direct-drive, multi-speed motors allows air volume variation for heating/cooling;Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW;Aluminum tubing coils on all models;Factory-installed pull-type disconnect;Thermoplastic drain pan with bottom primary and secondary drain connections;AHRI Certified and ETL Listed;Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.
Warranty ALL PARTS - 5 YEARS PARTS
Proposition 65 Warning Yes
