Goodman 2.5 Ton 14.3 SEER2 R-32 Heat Pump Condenser & Air Handler with 10kW Heat Kit
Goodman 2.5 Ton 14.3 SEER2 R-32 Heat Pump Condenser & Air Handler with 10kW Heat Kit
Goodman 2.5 Ton 14.3 SEER2 R-32 Heat Pump Condenser & Air Handler with 10kW Heat Kit
Goodman 2.5 Ton 14.3 SEER2 R-32 Heat Pump Condenser & Air Handler with 10kW Heat Kit
Goodman 2.5 Ton 14.3 SEER2 R-32 Heat Pump Condenser & Air Handler with 10kW Heat Kit
Click on image to zoom Click on image to zoom
Goodman 2.5 Ton 14.3 SEER2 R-32 Heat Pump Condenser & Air Handler with 10kW Heat Kit
Goodman 2.5 Ton 14.3 SEER2 R-32 Heat Pump Condenser & Air Handler with 10kW Heat Kit
Goodman 2.5 Ton 14.3 SEER2 R-32 Heat Pump Condenser & Air Handler with 10kW Heat Kit
Goodman 2.5 Ton 14.3 SEER2 R-32 Heat Pump Condenser & Air Handler with 10kW Heat Kit

Goodman 2.5 Ton 14.3 SEER2 R-32 Heat Pump Condenser & Air Handler with 10kW Heat Kit

SKU: GLZS4MA3610AMVT36BP1300
$5,227.00 $6,798.00

In Stock Estimated delivery: Jul 29th-12th
  • Secure Payment
    Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa
    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Free Shipping*
  • 30-Day Return Policy⁺

Package Overview

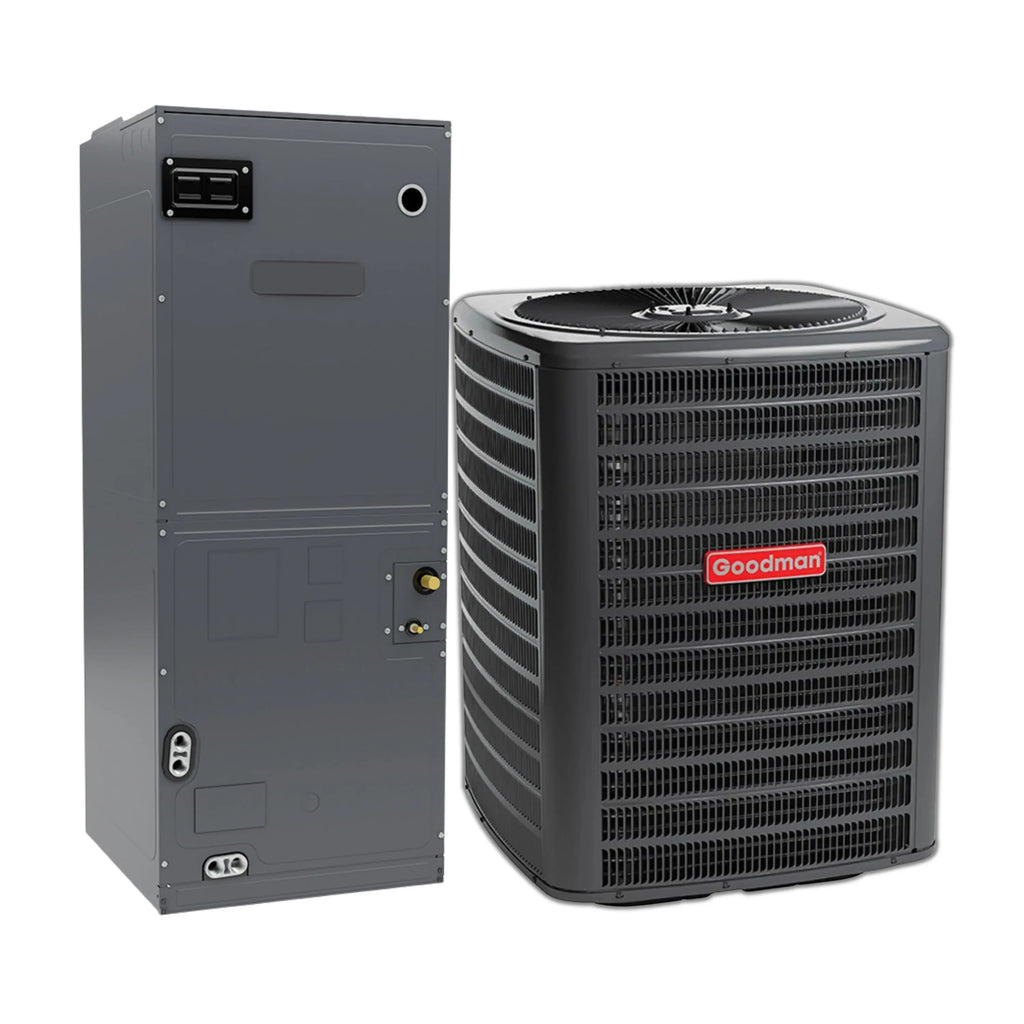

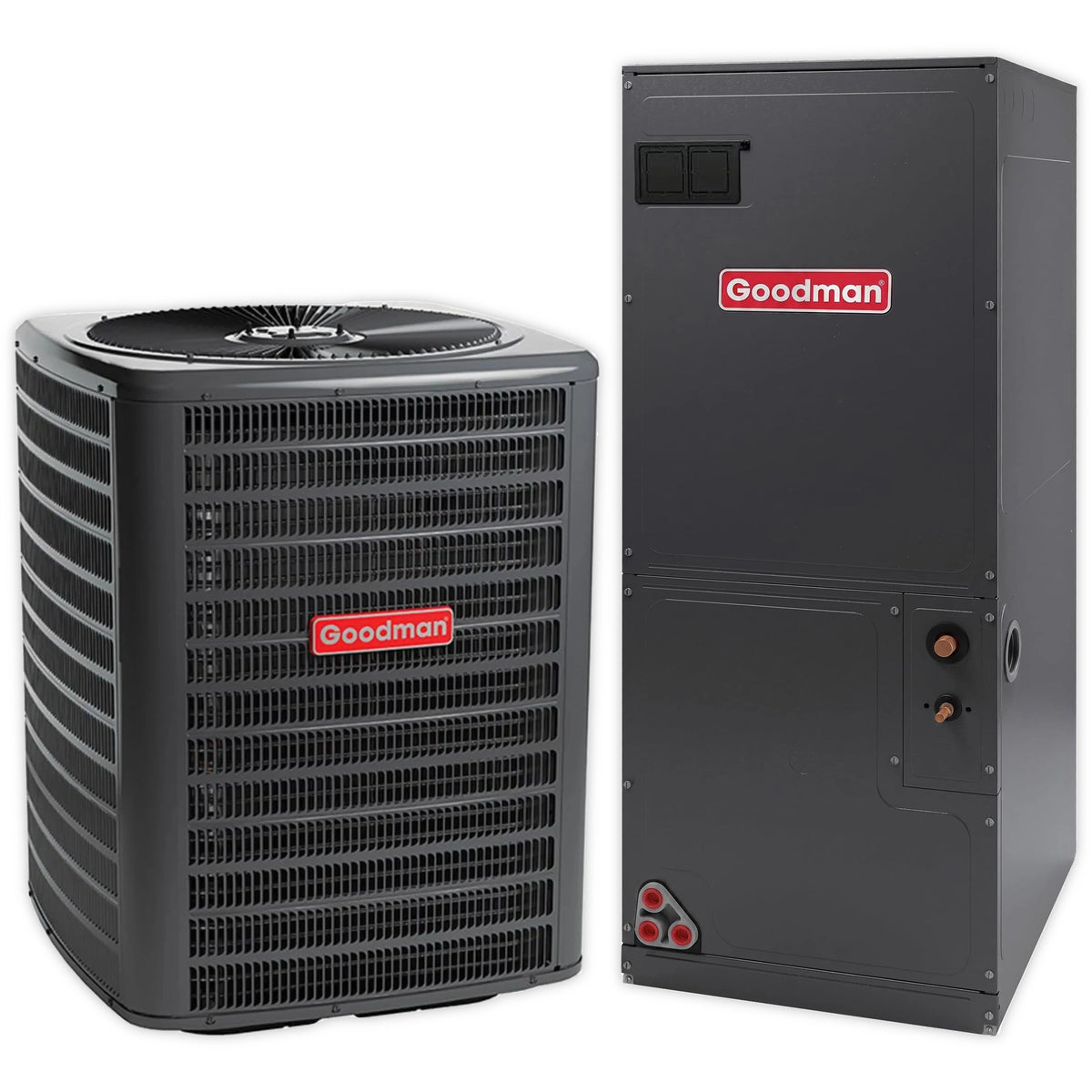

This complete Goodman heat pump system combines a high-efficiency 3-ton outdoor condenser with a multi-position air handler, delivering reliable year-round comfort for homes up to 1,500-1,800 square feet. The outdoor unit features 15.2 SEER2 energy efficiency with R-32 refrigerant, providing approximately 36,000 BTU of heating and cooling capacity. Built with durable galvanized steel construction and AHRI certified for quality assurance.

The matched air handler includes a factory-installed 5kW electric heat kit for supplemental heating, multi-speed ECM blower motor for quiet operation, and a TXV expansion valve for optimal refrigerant flow. This professionally matched system ensures maximum efficiency, proper refrigerant charge, and reliable performance backed by Goodman's industry-leading warranty protection.

Features:

  • 3-Ton Capacity (36,000 BTU) - Ideal for 1,500-1,800 sq. ft.
  • 15.2 SEER2 Energy Efficiency Rating
  • R-32 Eco-Friendly Refrigerant
  • 7.8 HSPF2 Heating Performance
  • Multi-Position Air Handler with 5kW Heat Kit
  • Multi-Speed ECM Blower Motor
  • Factory-Installed TXV Expansion Valve
  • SmartShift® Defrost Technology
  • AHRI Certified Matched System
  • Heavy-Gauge Galvanized Steel Construction
  • 10-Year Parts Limited Warranty

Package Includes:

Goodman GLZSM4 Split Heat Pump 14.3 SEER2 / .8 HSPF2 R-32 Single-Stage (GLZS4MA3610)
Goodman GLZSM4 Split Heat Pump 14.3 SEER2 / .8 HSPF2 R-32 Single-Stage (GLZS4MA3610)
In Stock Estimated delivery: Jul 29th-12th
Description
Product Specs
Manuals & Guides

The Goodman GLZSM4 is a 3 Ton split system heat pump delivering up to 15.2 SEER2 / 14.3 SEER2 / 7.8 HSPF2 efficiency with SmartShift technology for quiet, reliable defrost. Features a high-efficiency compressor, enhanced aluminum fin coils, and single-speed PSC condenser fan motor. Ships fully charged for 15' of tubing length. Built in a heavy-gauge galvanized steel cabinet. AHRI Certified and ETL Listed.

Features
  • High-efficiency compressor
  • SmartShift® technology to ensure quiet reliable defrost
  • Enhanced aluminum fin coil- 5 mm diameter on 1.5T-3.5 Ton
  • Enhanced aluminum fin coil with 7mm diameter copper tubes in 4.0- to 5.0-ton
  • Single-speed PSC condenser fan motor
  • Factory-installed bi-flow liquid-line filter drier
  • Factory-installed suction-line accumulator
  • Factory-installed compressor crankcase heater
  • Factory-installed high-capacity muffler
  • High- and low-pressure switches
  • Service valves with sweat connections and easy access to gauge ports
  • Fully charged for 15’ of tubing length
  • Fully enclosed contractor with lug connection
  • Ground lug connection
  • Capacitors with extended life
  • AHRI Certified
  • ETL Listed
Cabinet Features
  • Removable grille-style top design compliant with UL 60335-2-40
  • Steel louver coil guard
  • Heavy-gauge galvanized-steel cabinet
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Top and side maintenance access
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available).
DIMENSIONS & WEIGHT
Height 35.75 in
Width 35-1/2 in
Depth 35.5 in
Weight 208 lb
GENERAL INFORMATION
Brand Goodman
Series GLZSM4
SKU GLZS4MA3610
Product Category Unitary
Unit Type Outdoor
Manufacturer Goodman
Product Features
  • High-efficiency compressor
  • SmartShift® technology to ensure quiet reliable defrost
  • Enhanced aluminum fin coil- 5 mm diameter on 1.5T-3.5 Ton
  • Enhanced aluminum fin coil with 7mm diameter copper tubes in 4.0- to 5.0-ton
  • Single-speed PSC condenser fan motor
  • Factory-installed bi-flow liquid-line filter drier
  • Factory-installed suction-line accumulator
  • Factory-installed compressor crankcase heater
  • Factory-installed high-capacity muffler
  • High- and low-pressure switches
  • Service valves with sweat connections and easy access to gauge ports
  • Fully charged for 15’ of tubing length
  • Fully enclosed contractor with lug connection
  • Ground lug connection
  • Capacitors with extended life
  • AHRI Certified
  • ETL Listed
CAPACITY & PERFORMANCE
Cooling BTU 35000 Btu/H
Heating BTU 35000 Btu/H
Cooling Operating Range 55 °F to 125 °F
Heating Operating Range -20 °F to 70 °F
SEER2 15.0
HSPF2 7.5
EER2 12.5
COMPRESSOR & MOTORS
Compressor Type Scroll
Compressor Stages Single Stage
NOISE LEVELS
Decibel Level (dBA) 75 dBA
ELECTRICAL REQUIREMENTS
Voltage/Phase/Hz 208/240 V / 1 Ph / 60 Hz
Max Breaker Size 35 A
Min. Breaker Size 21.5 A
REFRIGERANT & PIPING
Refrigerant R-32
Factory Refrigerant Charge 83 oz
Liquid Line 3/8 in
Suction Line 1-1/8 in
Max Line Set Length 200 ft
SAFETY
ENERGY STAR® Certified No
Safety Information R32 Outdoor
Proposition 65 Warning Yes
WARRANTY
Warranty ALL PARTS - 5 YEARS PARTS
Goodman R-32 AMVT Air Handler r Ton R-32 (AMVT36BP1300)
Goodman R-32 AMVT Air Handler r Ton R-32 (AMVT36BP1300)
In Stock Estimated delivery: Jul 29th-12th
Description
Product Specs
Manuals & Guides

The Goodman AMVT Air Handler delivers premium indoor comfort with variable-speed ECM blower motor and integrated ComfortBridge Technology for intelligent system communication. Featuring factory-installed TXVs for both cooling and heat pump applications, this unit provides improved humidity control and constant CFM across varying static pressure conditions.

Optimized for R-32 refrigerant with factory-installed leak detection sensor, the rigid SmartFrame cabinet offers horizontal or vertical installation flexibility with a compact 21" depth for easier attic access. ASHRAE 193 tested for low cabinet air leakage with galvanized, leather grain-embossed finish.

Features

  • Internal factory-installed thermal expansion valves for cooling and heat pump applications
  • Variable-speed ECM blower motor
  • Integrated communicating ComfortBridge Technology
  • Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application.
  • Auto configuration of the airflow and tonnage in communicating mode
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • CFM indicator
  • Fault recall of six most recent faults
  • Provides adjustable low CFM for efficient fan-only operation
  • 10. Improved humidity and comfort control
  • 1Built-in compatibility with multi-stage heat pump and cooling applications
  • 1Optimized for R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.

Cabinet Features

  • Rigid SmartFrame™ cabinet
  • Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
  • Horizontal or vertical configuration capabilities
  • 21" depth for easier attic access
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Screw-less sides and back helps to reduce condensation when installed in humid locations
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • 10 .Glue-less cabinet insulation retention
GENERAL INFORMATION
Brand Goodman
Series R-32 AMVT
SKU AMVT36BP1300
Product Category Unitary
Unit Type Indoor
Manufacturer Goodman
Product Features
  • 1. Internal factory-installed thermal expansion valves for cooling and heat pump applications
  • 2. Variable-speed ECM blower motor
  • 3. Integrated communicating ComfortBridge Technology
  • 4. Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application
  • 5. Auto configuration of the airflow and tonnage in communicating mode
  • 6. Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • 7. CFM indicator
  • 8. Fault recall of six most recent faults
  • 9. Provides adjustable low CFM for efficient fan-only operation
  • 10. Improved humidity and comfort control
  • 11. Built-in compatibility with multi-stage heat pump and cooling applications
  • 12. Optimized for R-32 refrigerant with factory installed leak detection sensor for A2L mitigation
REFRIGERANT & PIPING
Refrigerant R-32
SAFETY
Proposition 65 Warning Yes
WARRANTY
Warranty ALL PARTS - 10 YEARS PARTS
