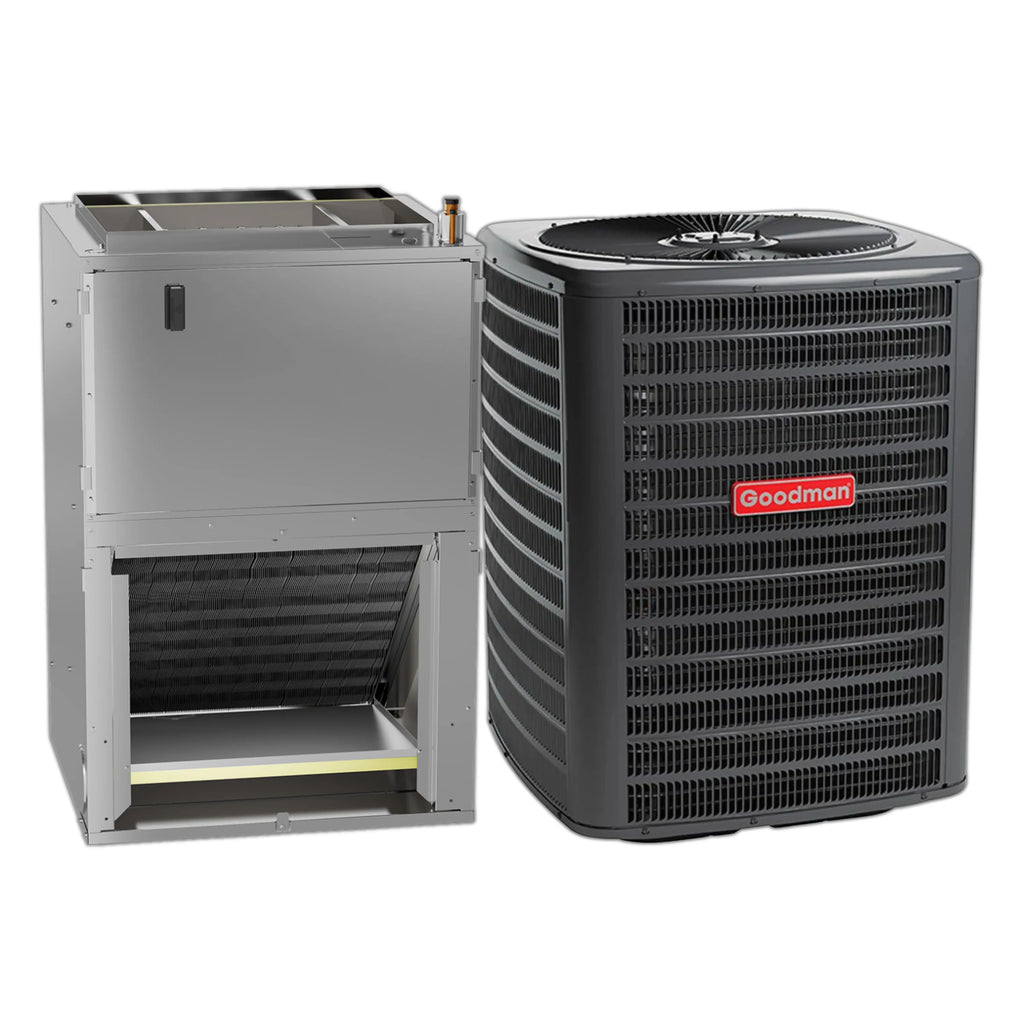

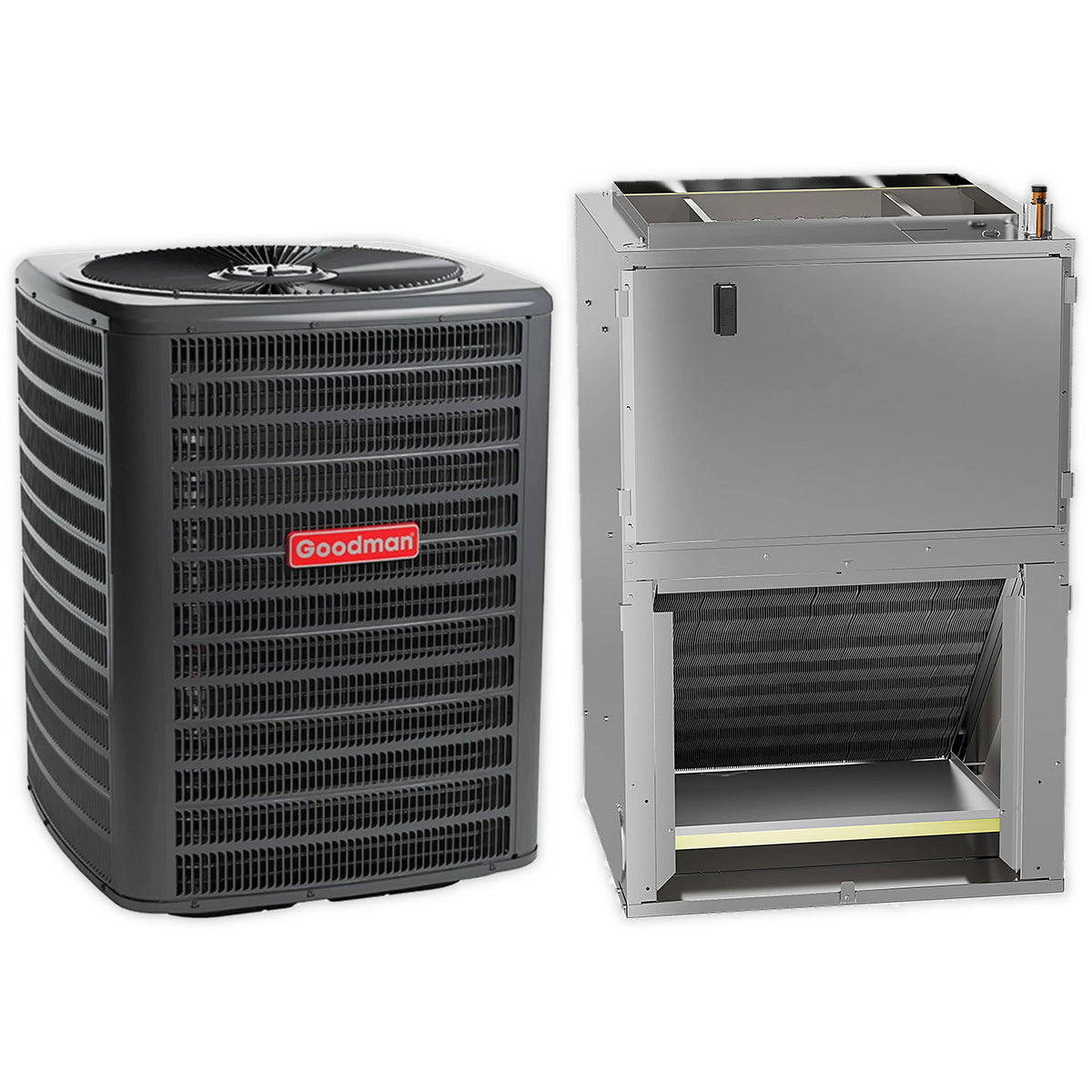

Goodman 1.5 Ton 15.2 SEER2 Central Air Conditioner Condenser with Wall Mounted Air Handler & 8kW Heat Kit
Goodman 1.5 Ton 15.2 SEER2 Central Air Conditioner Condenser with Wall Mounted Air Handler & 8kW Heat Kit
Goodman 1.5 Ton 15.2 SEER2 Central Air Conditioner Condenser with Wall Mounted Air Handler & 8kW Heat Kit
Goodman 1.5 Ton 15.2 SEER2 Central Air Conditioner Condenser with Wall Mounted Air Handler & 8kW Heat Kit
Goodman 1.5 Ton 15.2 SEER2 Central Air Conditioner Condenser with Wall Mounted Air Handler & 8kW Heat Kit
Click on image to zoom Click on image to zoom
Goodman 1.5 Ton 15.2 SEER2 Central Air Conditioner Condenser with Wall Mounted Air Handler & 8kW Heat Kit
Goodman 1.5 Ton 15.2 SEER2 Central Air Conditioner Condenser with Wall Mounted Air Handler & 8kW Heat Kit
Goodman 1.5 Ton 15.2 SEER2 Central Air Conditioner Condenser with Wall Mounted Air Handler & 8kW Heat Kit
Goodman 1.5 Ton 15.2 SEER2 Central Air Conditioner Condenser with Wall Mounted Air Handler & 8kW Heat Kit

Goodman 1.5 Ton 15.2 SEER2 Central Air Conditioner Condenser with Wall Mounted Air Handler & 8kW Heat Kit

SKU: GLXS4MA1810AWST18SU1308
$2,852.00 $3,718.00

KW:
In Stock Estimated delivery: Jun 18th-2nd
  • Secure Payment
    Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa
    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Free Shipping*
  • 30-Day Return Policy⁺

Package Overview

Goodman 1.5 Ton 14.3 SEER2 Central Air Conditioning System | Air Handler | R-32 Refrigerant | Covers 600-1,000 Sq. Ft.

Features:

  • Condenser Cooling Capacity: 18K BTU (1.5 Ton)
  • Energy Efficiency: 14.3 SEER2
  • Recommended Coverage Area: 600-1,000 Sq. Ft.
  • Installation Type: Split System with Air Handler
  • Refrigerant: R-32
  • Voltage: 208/230 V / 1 Ph / 60 Hz
  • Compressor: Single Stage
  • Air Handler: Multi-Speed ECM Motor
  • AHRI Certified & ETL Listed

Package Includes:

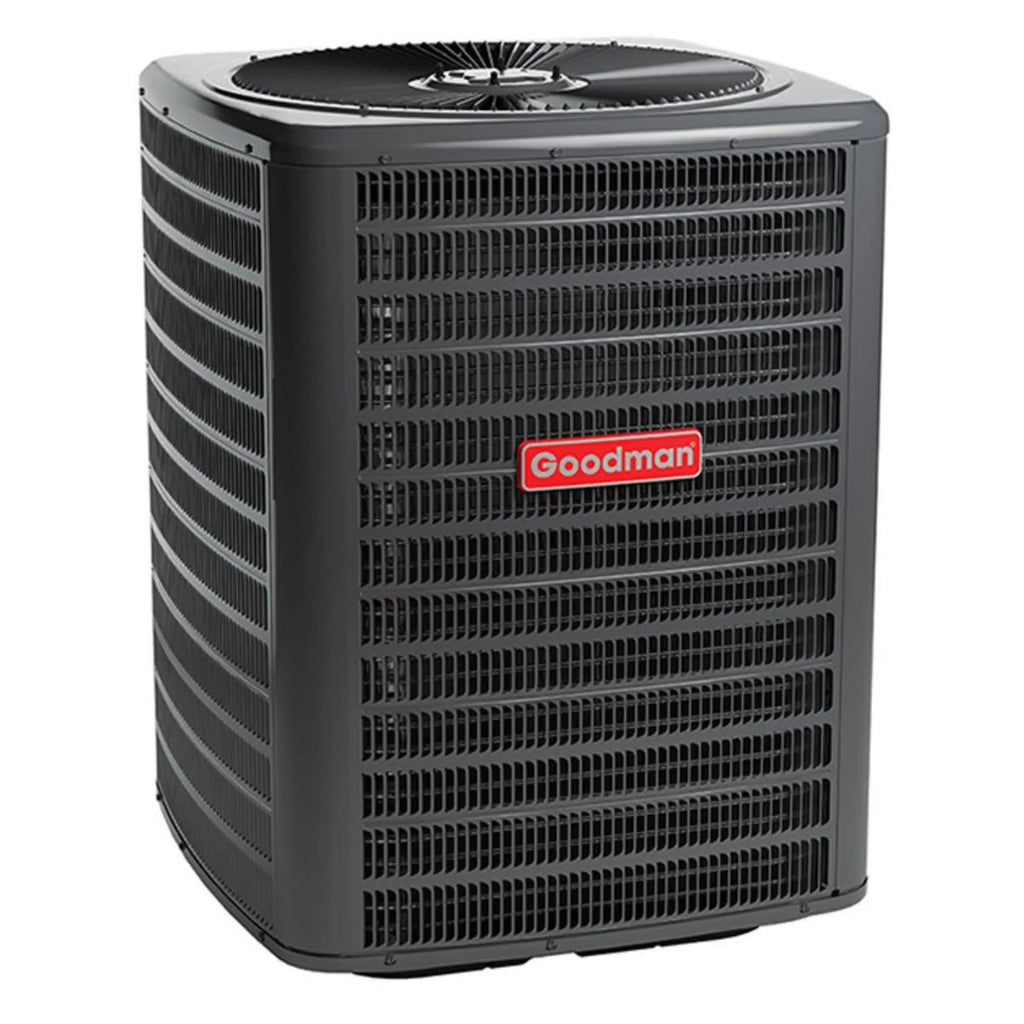

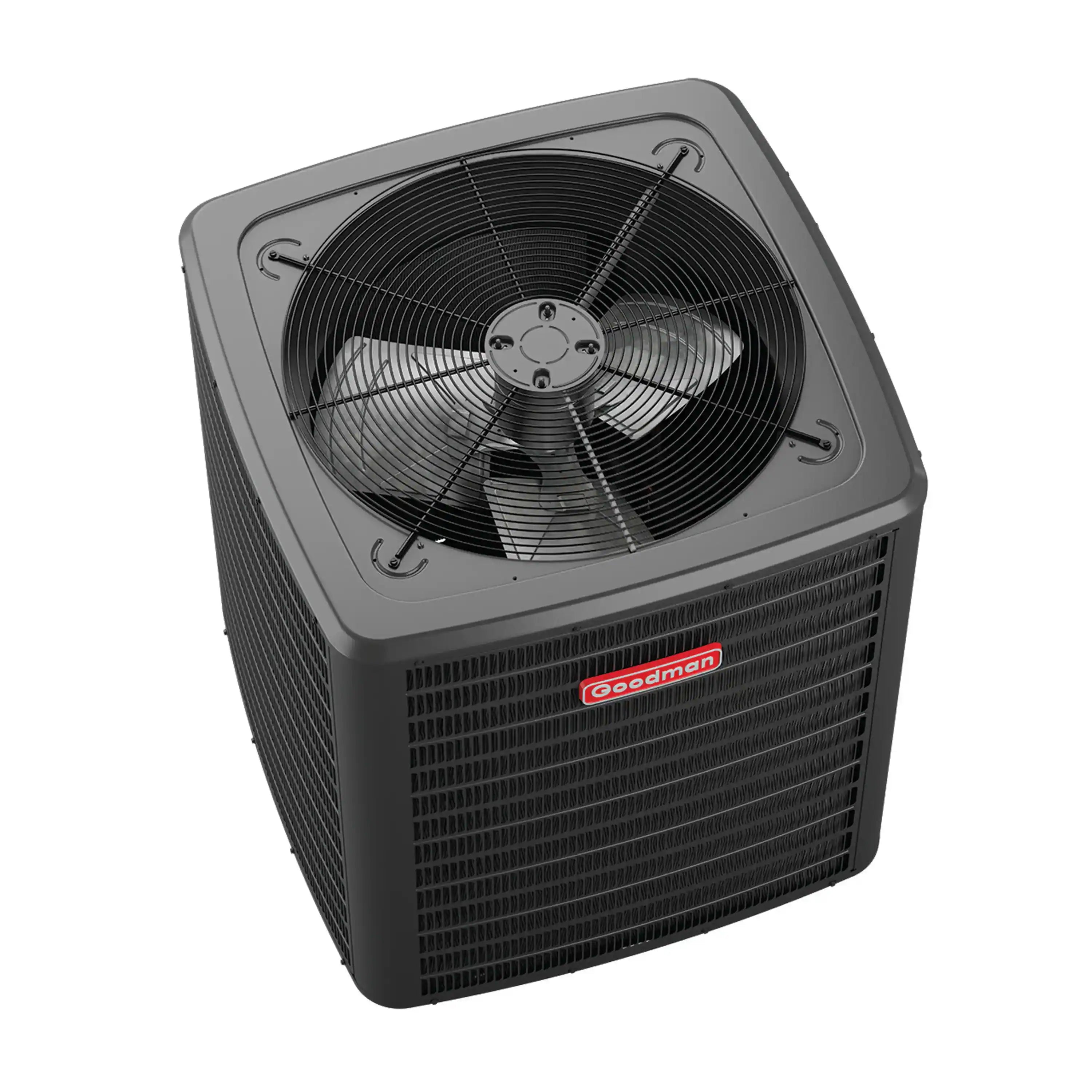

Goodman GLXS4M Split Air Conditioner 14.3 SEER2 R-32 Single-Stage (GLXS4MA1810)
Goodman GLXS4M Split Air Conditioner 14.3 SEER2 R-32 Single-Stage (GLXS4MA1810)
In Stock Estimated delivery: Jun 18th-2nd
Description
Product Specs
Manuals & Guides

The Goodman GLXS4M Split System Air Conditioner delivers 14.3 SEER2 efficiency with R-32 refrigerant at 1.5 Ton capacity. Features single-stage cooling and durable powder-painted cabinet with easy service access. Optimized for next-generation R-32 refrigerant with lower GWP. AHRI Certified and ETL Listed.

Features
  • High-Efficiency Scroll Compressor
  • Factory-installed filter drier
  • Fully charged for 15’ of tubing length
  • 5mm diameter copper tube/enhanced aluminum fin coil
  • Service valves with sweat connectionsand easy-to-access gauge ports
  • Enclosed contactor with lug connection
  • Ground lug connection
  • High-pressure switch
  • AHRI Certified
  • ETL Listed
Cabinet Features
  • Removable grille style top style grilldesign compatible with UL 60335-2-40
  • Heavy-gauge galvanized-steel cabinet
  • Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approva
  • Steel louver coil guard
  • Single-panel access to controls with spaceprovided for field-installed accessories
  • When properly anchored, meets the 2023 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)
General Information
Brand Goodman
Series GLXS4M
SKU GLXS4MA1810
Product Category Unitary
Unit Type Outdoor
Manufacturer Goodman
Electrical
Voltage/Phase/Hz 208/240 V / 1 Ph / 60 Hz
Max Breaker Size 15 A
Min. Breaker Size 11.1 A
Capacity & Performance
Tonnage 1.5
Cooling BTU 17600 Btu/H
Cooling Operating Range 55 °F to 125 °F
Decibel Level (dBA) 73 dBA
Efficiency Ratings
SEER2 14.3
EER2 11.7
ENERGY STAR® Certified No
Compressor & Refrigerant
Compressor Type Scroll
Compressor Stages Single Stage
Refrigerant R-32
Factory Refrigerant Charge 54 oz
Liquid Line 3/8 in
Suction Line 3/4 in
Max Line Set Length 200 ft
Dimensions & Weight
Height 26 in
Width 27 in
Depth 26 in
Weight 73 lb
Additional Information
Product Features High-Efficiency Scroll Compressor;Factory-installed filter drier;Fully charged for 15’ of tubing length;5mm diameter copper tube/enhanced aluminum fin coil;Service valves with sweat connectionsand easy-to-access gauge ports;Enclosed contactor with lug connection;Ground lug connection;High-pressure switch;AHRI Certified;ETL Listed
Warranty ALL PARTS - 5 YEARS PARTS
Proposition 65 Warning Yes

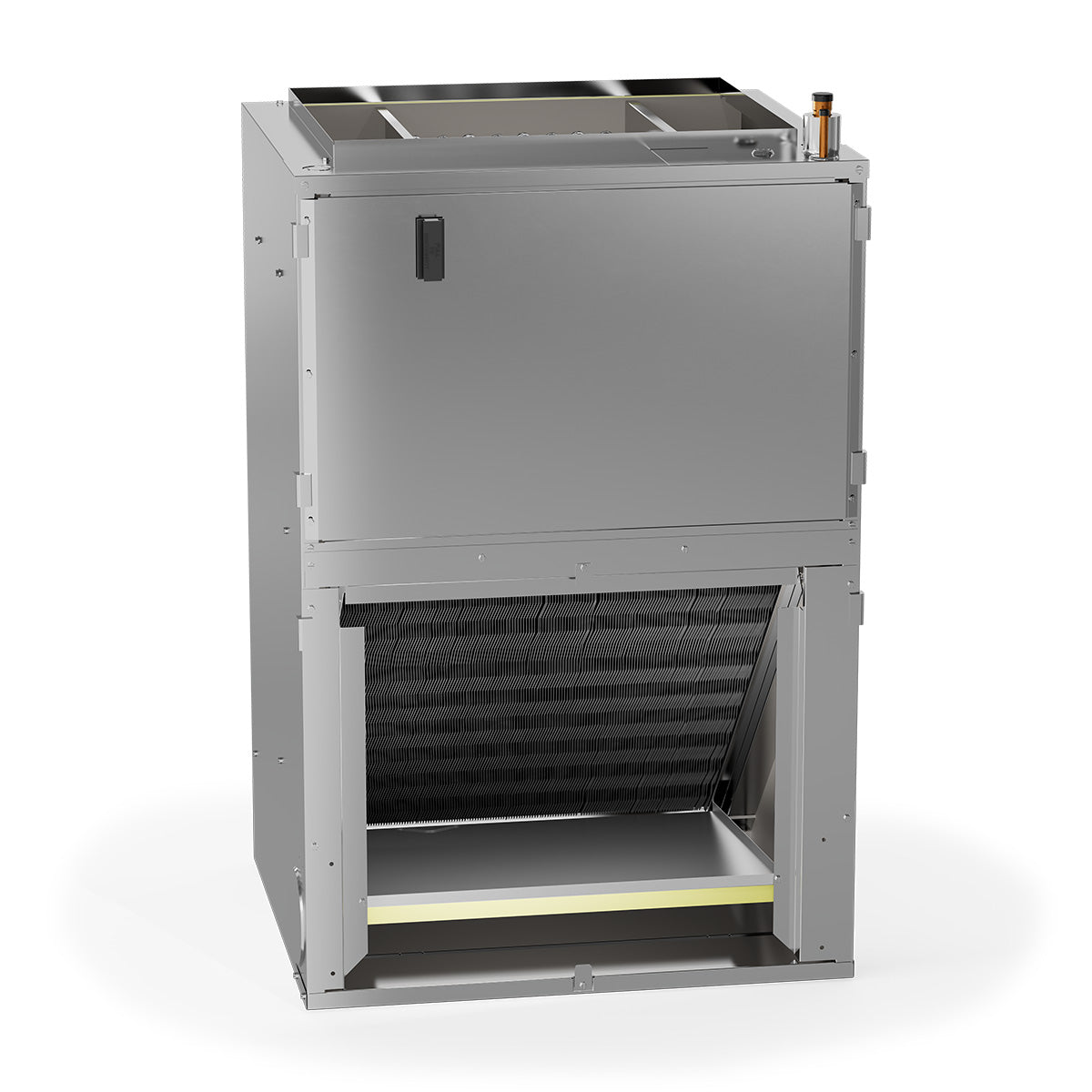

Goodman AWST Air Handler 1.5 Ton R-32 (AWST18SU1308)
Goodman AWST Air Handler 1.5 Ton R-32 (AWST18SU1308)
In Stock Estimated delivery: Jun 18th-2nd
Description
Product Specs
Manuals & Guides

The Goodman AWST wall-mounted mini-split air handler provides quiet, ductless climate control for single-zone applications. Features a sleek, compact design perfect for individual room comfort. Designed for easy installation and operation with a wireless remote control. Compatible with Goodman mini-split outdoor units for efficient heating and cooling.

Features
  • AWST Models: Equipped wit a fully adjustable TXV
  • Direct-drive, multi-speed motors allows air volume variation for heating/cooling
  • Direct-drive, multi-speed motors allows air volume variation for heating/cooling
  • Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
  • Aluminum tubing coils on all models
  • Factory-installed pull-type disconnect
  • Thermoplastic drain pan with bottom primary and secondary drain connections
  • AHRI Certified and ETL Listed
  • Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.
Cabinet Features
  • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
  • Built-in filter rack (filter included)
  • Large chassis (2-1/2 and 3 ton units), front return only
  • Small chassis (1-1/2 and 2 ton units), front or bottom return
  • Wall-hanging bracket provided
General Information
Brand Goodman
Series AWST
SKU AWST18SU1308
Product Category Unitary
Unit Type Indoor
Manufacturer Goodman
Electrical
Voltage/Phase/Hz 208/230 V / 1 Ph / 60 Hz
Max Breaker Size 40/45 A
Min. Breaker Size 36.2/41.3 A
Capacity & Performance
Tonnage 1.5
Compressor & Refrigerant
Refrigerant R-32
Factory Refrigerant Charge 0.5 oz
Liquid Line 3/8 in
Suction Line 3/4 in
Dimensions & Weight
Height 36 in
Width 20-3/13 in
Depth 13-1/8 in
Weight 84 lb
Additional Information
Product Features AWST Models: Equipped wit a fully adjustable TXV;Direct-drive, multi-speed motors allows air volume variation for heating/cooling;Direct-drive, multi-speed motors allows air volume variation for heating/cooling;Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW;Aluminum tubing coils on all models;Factory-installed pull-type disconnect;Thermoplastic drain pan with bottom primary and secondary drain connections;AHRI Certified and ETL Listed;Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.
Warranty ALL PARTS - 5 YEARS PARTS
Proposition 65 Warning Yes
