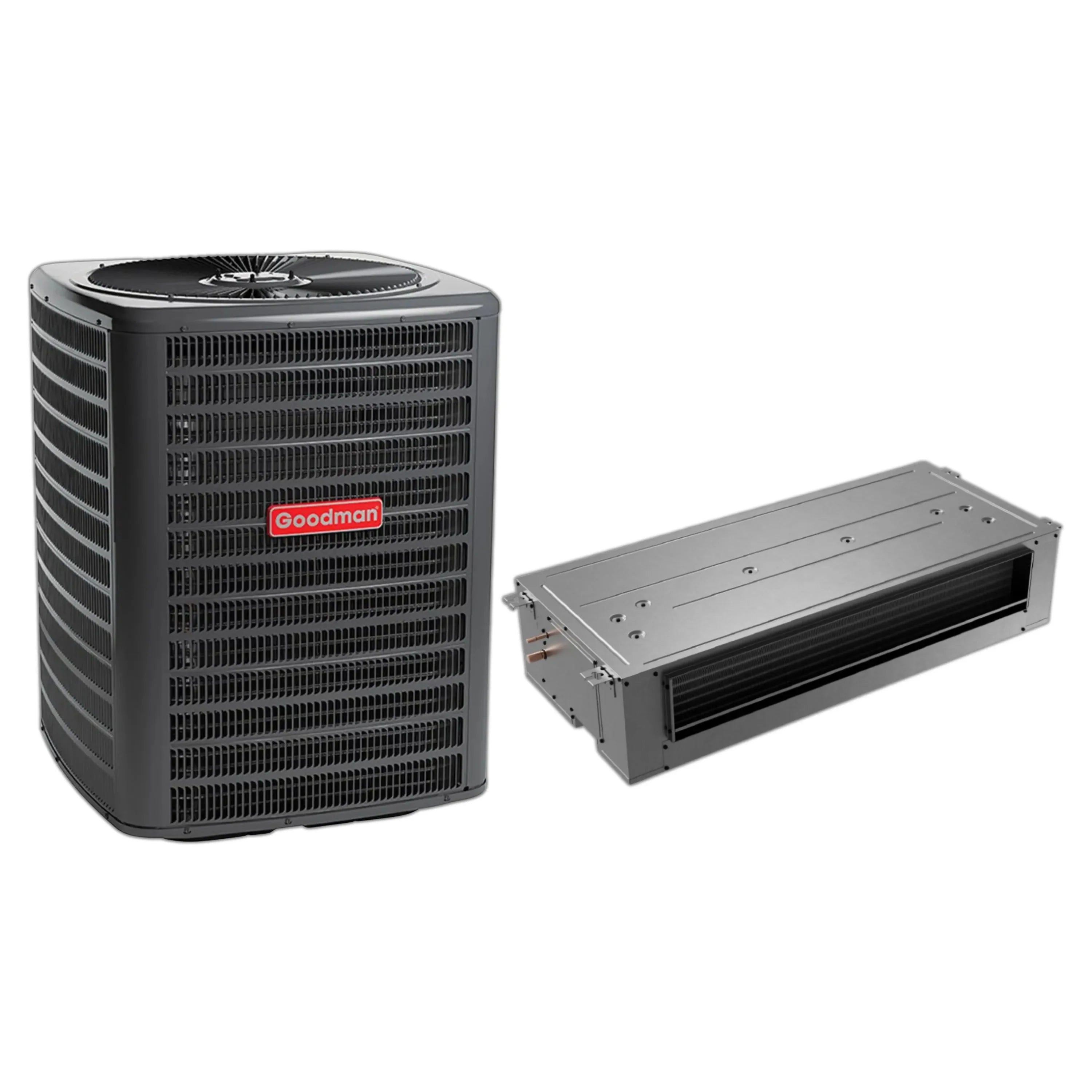

The Goodman GLXS4M Split System Air Conditioner delivers 14.3 SEER2 efficiency with R-32 refrigerant at 1.5 Ton capacity. Features single-stage cooling and durable powder-painted cabinet with easy service access. Optimized for next-generation R-32 refrigerant with lower GWP. AHRI Certified and ETL Listed.
Features| General Information | |
|---|---|
| Brand | Goodman |
| Series | GLXS4M |
| SKU | GLXS4MA1810 |
| Product Category | Unitary |
| Unit Type | Outdoor |
| Manufacturer | Goodman |
| Electrical | |
| Voltage/Phase/Hz | 208/240 V / 1 Ph / 60 Hz |
| Max Breaker Size | 15 A |
| Min. Breaker Size | 11.1 A |
| Capacity & Performance | |
| Tonnage | 1.5 |
| Cooling BTU | 17600 Btu/H |
| Cooling Operating Range | 55 °F to 125 °F |
| Decibel Level (dBA) | 73 dBA |
| Efficiency Ratings | |
| SEER2 | 14.3 |
| EER2 | 11.7 |
| ENERGY STAR® Certified | No |
| Compressor & Refrigerant | |
| Compressor Type | Scroll |
| Compressor Stages | Single Stage |
| Refrigerant | R-32 |
| Factory Refrigerant Charge | 54 oz |
| Liquid Line | 3/8 in |
| Suction Line | 3/4 in |
| Max Line Set Length | 200 ft |
| Dimensions & Weight | |
| Height | 26 in |
| Width | 27 in |
| Depth | 26 in |
| Weight | 73 lb |
| Additional Information | |
| Product Features | High-Efficiency Scroll Compressor;Factory-installed filter drier;Fully charged for 15’ of tubing length;5mm diameter copper tube/enhanced aluminum fin coil;Service valves with sweat connectionsand easy-to-access gauge ports;Enclosed contactor with lug connection;Ground lug connection;High-pressure switch;AHRI Certified;ETL Listed |
| Warranty | ALL PARTS - 5 YEARS PARTS |
| Proposition 65 Warning | Yes |

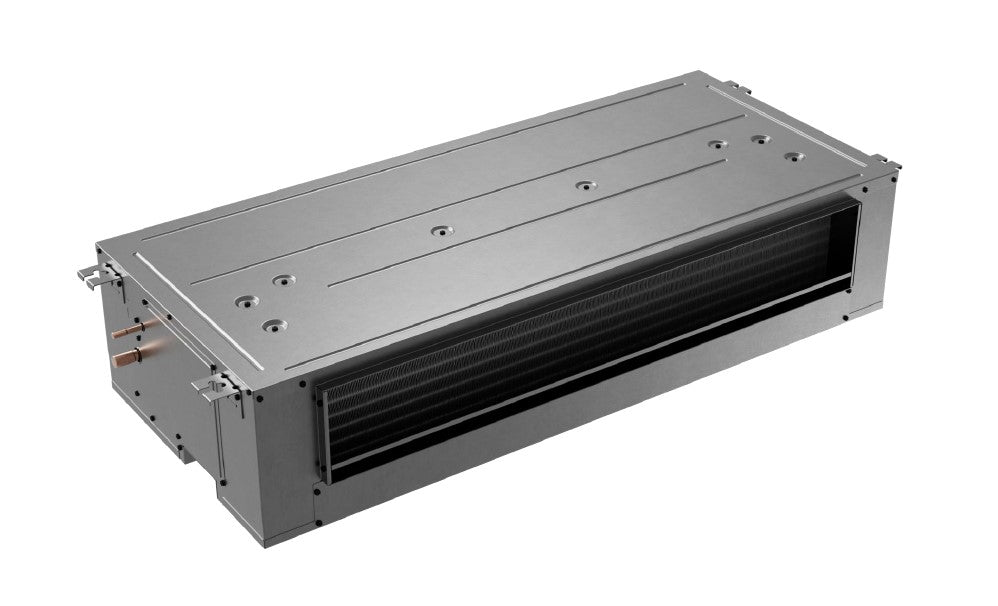

The Goodman ACST Air Handler delivers reliable indoor comfort in a compact 1.5 Ton design with multi-speed ECM motor for efficient, quiet operation. Featuring a factory-installed TXV, all-aluminum evaporator coil, and optional electric heat kits from 5-10 kW, this unit provides flexible heating and cooling solutions. Built with galvanized-steel construction and optimized for R-32 refrigerant with factory-installed leak detection sensor. AHRI Certified and ETL Listed.
Features| General Information | |
|---|---|
| Brand | Goodman |
| Series | ACST |
| SKU | ACST18MU1308 |
| Product Category | Unitary |
| Unit Type | Indoor |
| Manufacturer | Goodman |
| Electrical | |
| Voltage/Phase/Hz | 208/230 V / 1 Ph / 60 Hz |
| Max Breaker Size | 40/45 A |
| Min. Breaker Size | 38.6/44.2 A |
| Capacity & Performance | |
| Tonnage | 1.5 |
| Compressor & Refrigerant | |
| Factory Refrigerant Charge | 0 oz |
| Liquid Line | 3/8 in |
| Suction Line | 3/4 in |
| Dimensions & Weight | |
| Height | 11 in |
| Width | 48-1/5 in |
| Depth | 22.2 in |
| Weight | 85 lb |
| Additional Information | |
| Product Features | 1. Factory installed TXV for heat pump and cooling-only applications;2. All-Aluminum tube/aluminum fin coil;3. Direct-drive, resilient-mount, multi-speed motor;3. Sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 and 10 kW;4. High-efficiency evaporator coil;5. Quiet operation;6. AHRI Certified;7. Suitable for both front and bottom return;8. Factory installed casing;9. UL 2-40 cerified;10. ETL Listed;11. Suitable for free-return installation (non-ducted return air);12. Galvanized-steel construction;13. Factory-installed pull-type disconnect;14. Easy service access;15. Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation. |
| Warranty | ALL PARTS - 5 YEARS PARTS |
| Proposition 65 Warning | Yes |
