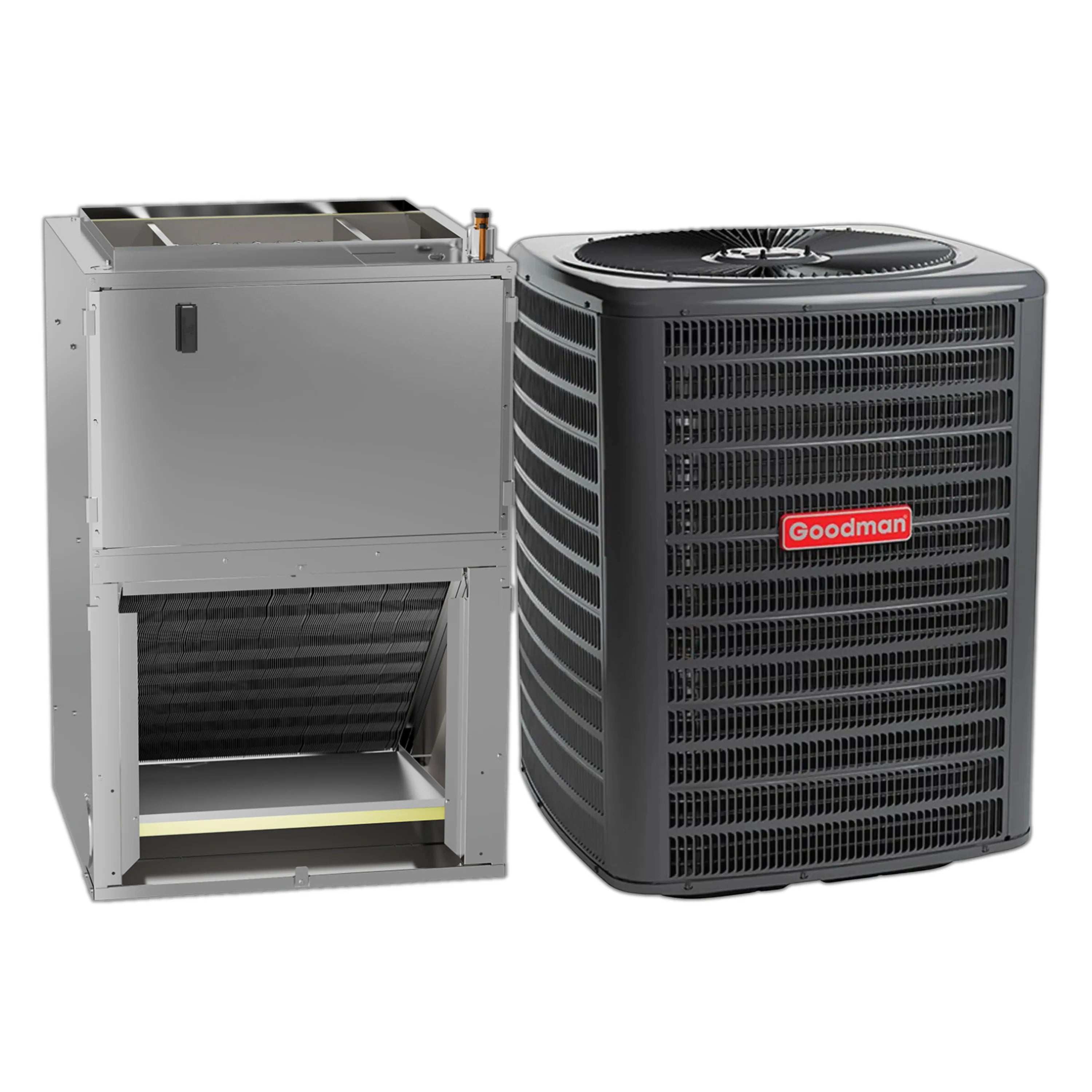

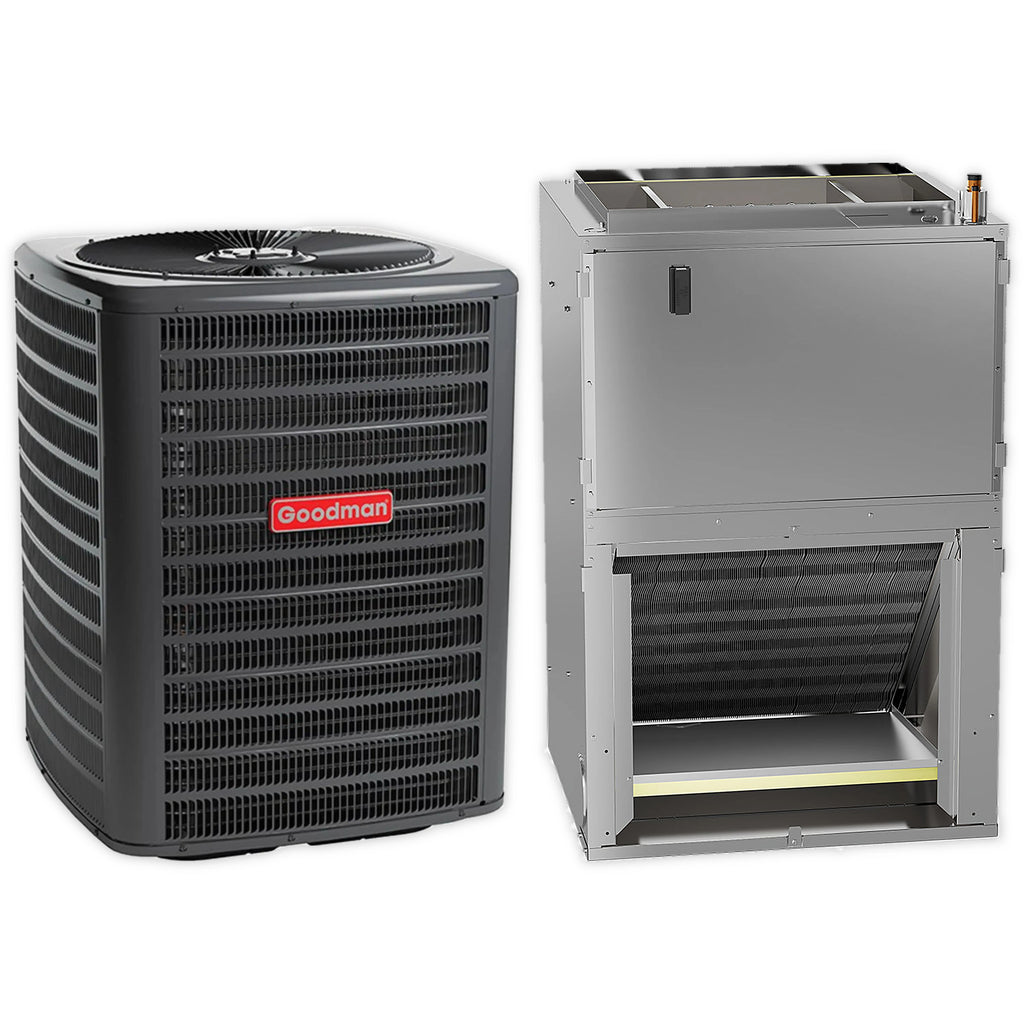

Goodman 1.5 Ton 13.4 SEER2 Central Air Conditioner Condenser with Wall Mounted Air Handler & 3kW Heat Kit
Goodman 1.5 Ton 13.4 SEER2 Central Air Conditioner Condenser with Wall Mounted Air Handler & 3kW Heat Kit
Goodman 1.5 Ton 13.4 SEER2 Central Air Conditioner Condenser with Wall Mounted Air Handler & 3kW Heat Kit
Goodman 1.5 Ton 13.4 SEER2 Central Air Conditioner Condenser with Wall Mounted Air Handler & 3kW Heat Kit
Goodman 1.5 Ton 13.4 SEER2 Central Air Conditioner Condenser with Wall Mounted Air Handler & 3kW Heat Kit
Click on image to zoom Click on image to zoom
Goodman 1.5 Ton 13.4 SEER2 Central Air Conditioner Condenser with Wall Mounted Air Handler & 3kW Heat Kit
Goodman 1.5 Ton 13.4 SEER2 Central Air Conditioner Condenser with Wall Mounted Air Handler & 3kW Heat Kit
Goodman 1.5 Ton 13.4 SEER2 Central Air Conditioner Condenser with Wall Mounted Air Handler & 3kW Heat Kit
Goodman 1.5 Ton 13.4 SEER2 Central Air Conditioner Condenser with Wall Mounted Air Handler & 3kW Heat Kit

Goodman 1.5 Ton 13.4 SEER2 Central Air Conditioner Condenser with Wall Mounted Air Handler & 3kW Heat Kit

SKU: GLXS3BN1810AWST18SU1303
$2,523.00 $3,288.00

KW:
In Stock Estimated delivery: Jun 18th-2nd
  • Secure Payment
    Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa
    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Free Shipping*
  • 30-Day Return Policy⁺

Package Overview

Goodman 1.5 Ton 13.4 SEER2 Central Air Conditioning System | Air Handler | R-32 Refrigerant | Covers 600-1,000 Sq. Ft.

Features:

  • Condenser Cooling Capacity: 18K BTU (1.5 Ton)
  • Energy Efficiency: 13.4 SEER2
  • Recommended Coverage Area: 600-1,000 Sq. Ft.
  • Installation Type: Split System with Air Handler
  • Refrigerant: R-32
  • Voltage: 208/230 V / 1 Ph / 60 Hz
  • Compressor: Single Stage
  • Air Handler: Multi-Speed ECM Motor
  • AHRI Certified & ETL Listed

Package Includes:

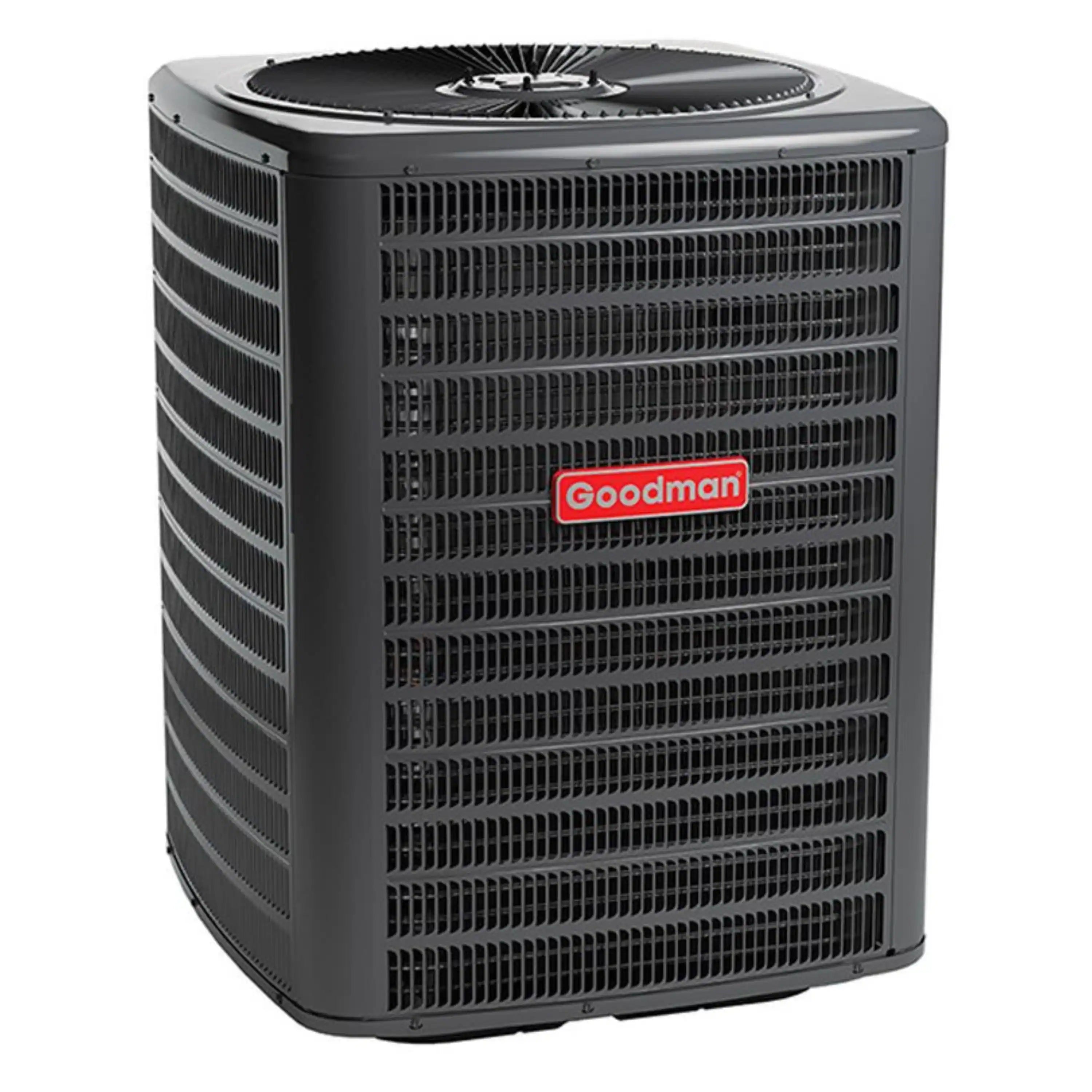

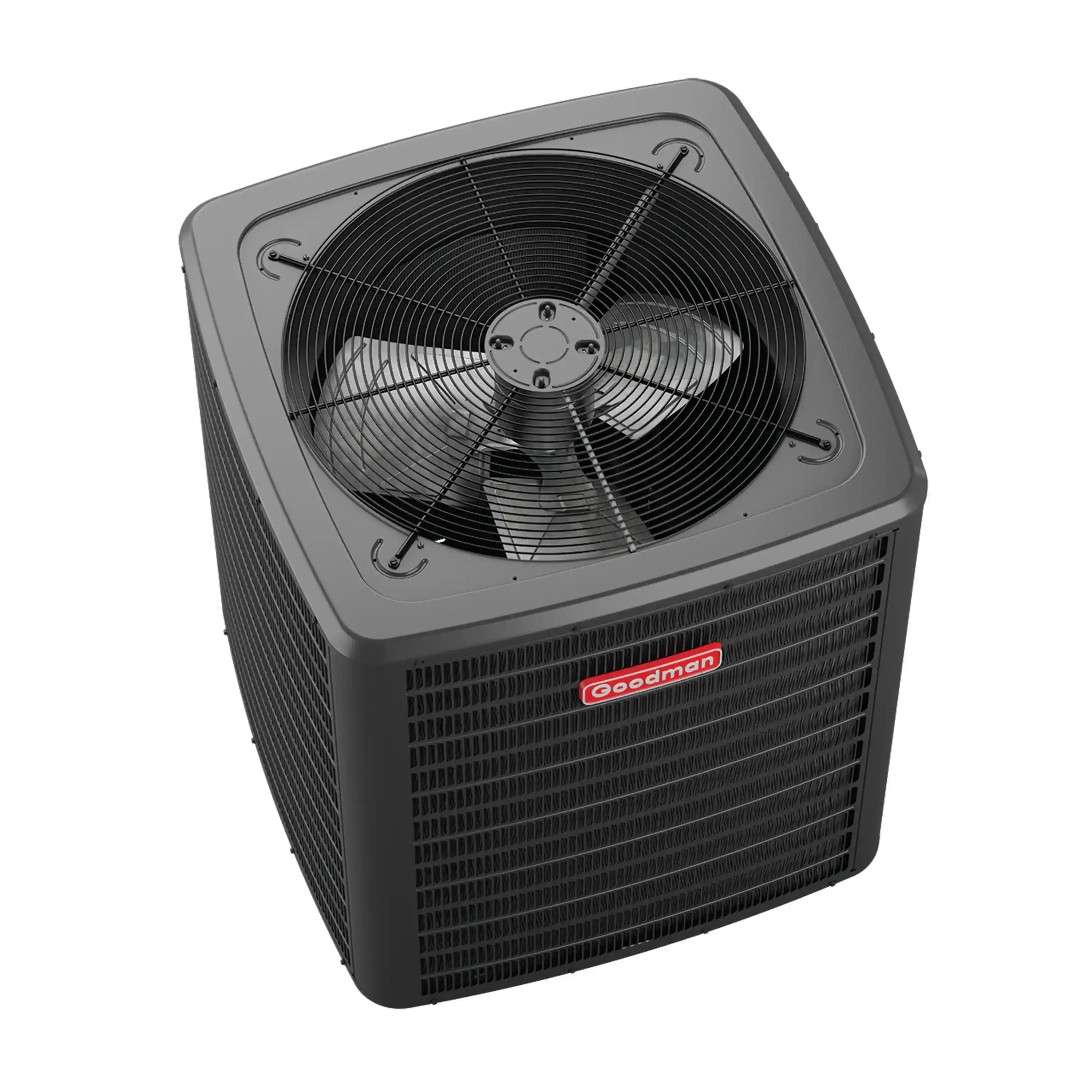

Goodman GLXS3B Split Air Conditioner 13.4 SEER2 R-32 Single-Stage (GLXS3BN1810)
Goodman GLXS3B Split Air Conditioner 13.4 SEER2 R-32 Single-Stage (GLXS3BN1810)
In Stock Estimated delivery: Jun 18th-2nd
Description
Product Specs
Manuals & Guides

The Goodman GLXS3B Split System Air Conditioner delivers 13.4 SEER2 efficiency with R-32 refrigerant at 1.5 Ton capacity. Features single-stage cooling and durable powder-painted cabinet with easy service access. Optimized for next-generation R-32 refrigerant with lower GWP. AHRI Certified and ETL Listed.

Features
  • Energy-Efficienct Compressor
  • Fully charged for 15' of tubing length
  • Copper tube/ enhanced aluminum fin coil-5mm diameter
  • Factory-installed filter drier
  • Sweat connection service valves with easy access to gauge ports
  • Enclosed contactor with lug connection
  • High-pressure switch
  • Capacitors with extended life
  • AHRI Certified
  • ETL Listed
Cabinet Features
  • Removable grille-style top design compliant with UL 60335-2-40
  • Venturi for increased velocity of airflow
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Wire fan discharge grille
  • Steel louver coil guard
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field-installed accessories
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
General Information
Brand Goodman
Series GLXS3B
SKU GLXS3BN1810
Product Category Unitary
Unit Type Outdoor
Manufacturer Goodman
Electrical
Voltage/Phase/Hz 208/230 V / 1 Ph / 60 Hz
Max Breaker Size 15 A
Min. Breaker Size 10.9 A
Capacity & Performance
Tonnage 1.5
Cooling BTU 18000 Btu/H
Cooling Operating Range 55 °F to 115 °F
Decibel Level (dBA) 74 dBA
Efficiency Ratings
SEER2 13.4
EER2 11.2
ENERGY STAR® Certified No
Compressor & Refrigerant
Compressor Type Rotary
Compressor Stages Single Stage
Refrigerant R-32
Factory Refrigerant Charge 53 oz
Liquid Line 3/8 in
Suction Line 3/4 in
Max Line Set Length 150 ft
Dimensions & Weight
Height 27.5 in
Width 26 in
Depth 26 in
Weight 114 lb
Additional Information
Product Features Energy-Efficienct Compressor;Fully charged for 15' of tubing length;Copper tube/ enhanced aluminum fin coil-5mm diameter;Factory-installed filter drier;Sweat connection service valves with easy access to gauge ports;Enclosed contactor with lug connection;High-pressure switch;Capacitors with extended life;AHRI Certified;ETL Listed
Warranty ALL PARTS - 5 YEARS PARTS
Proposition 65 Warning Yes

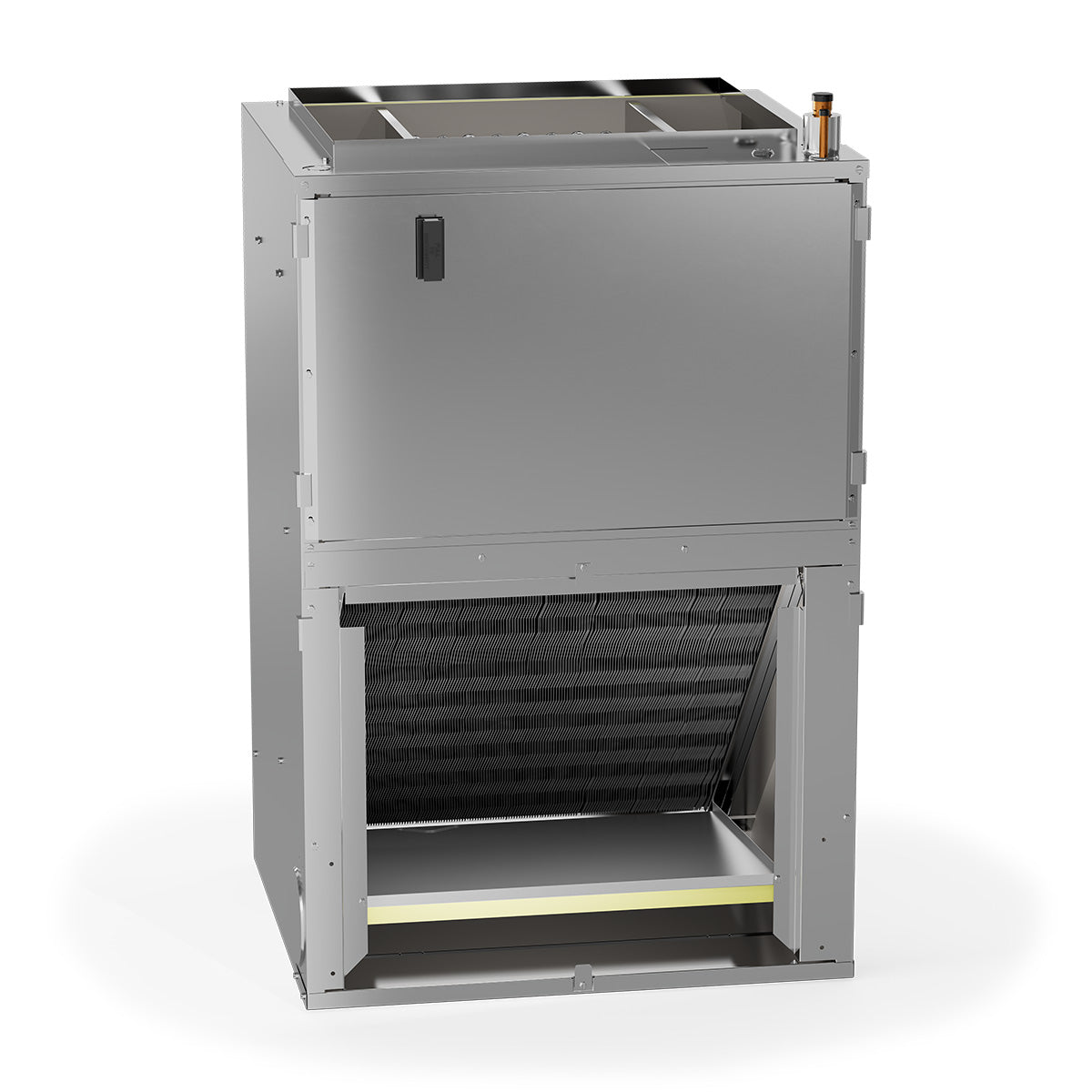

Goodman AWST Air Handler 1.5 Ton R-32 (AWST18SU1303)
Goodman AWST Air Handler 1.5 Ton R-32 (AWST18SU1303)
In Stock Estimated delivery: Jun 18th-2nd
Description
Product Specs
Manuals & Guides

The Goodman AWST wall-mounted mini-split air handler provides quiet, ductless climate control for single-zone applications. Features a sleek, compact design perfect for individual room comfort. Designed for easy installation and operation with a wireless remote control. Compatible with Goodman mini-split outdoor units for efficient heating and cooling.

Features
  • AWST Models: Equipped wit a fully adjustable TXV
  • Direct-drive, multi-speed motors allows air volume variation for heating/cooling
  • Direct-drive, multi-speed motors allows air volume variation for heating/cooling
  • Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
  • Aluminum tubing coils on all models
  • Factory-installed pull-type disconnect
  • Thermoplastic drain pan with bottom primary and secondary drain connections
  • AHRI Certified and ETL Listed
  • Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.
Cabinet Features
  • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
  • Built-in filter rack (filter included)
  • Large chassis (2-1/2 and 3 ton units), front return only
  • Small chassis (1-1/2 and 2 ton units), front or bottom return
  • Wall-hanging bracket provided
General Information
Brand Goodman
Series AWST
SKU AWST18SU1303
Product Category Unitary
Unit Type Indoor
Manufacturer Goodman
Electrical
Voltage/Phase/Hz 208/230 V / 1 Ph / 60 Hz
Max Breaker Size 20/20 A
Min. Breaker Size 16.8/18.9 A
Capacity & Performance
Tonnage 1.5
Compressor & Refrigerant
Refrigerant R-32
Factory Refrigerant Charge 0.5 oz
Liquid Line 3/8 in
Suction Line 3/4 in
Dimensions & Weight
Height 36 in
Width 20-3/13 in
Depth 13-1/8 in
Weight 84 lb
Additional Information
Product Features AWST Models: Equipped wit a fully adjustable TXV;Direct-drive, multi-speed motors allows air volume variation for heating/cooling;Direct-drive, multi-speed motors allows air volume variation for heating/cooling;Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW;Aluminum tubing coils on all models;Factory-installed pull-type disconnect;Thermoplastic drain pan with bottom primary and secondary drain connections;AHRI Certified and ETL Listed;Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.
Warranty ALL PARTS - 5 YEARS PARTS
Proposition 65 Warning Yes
