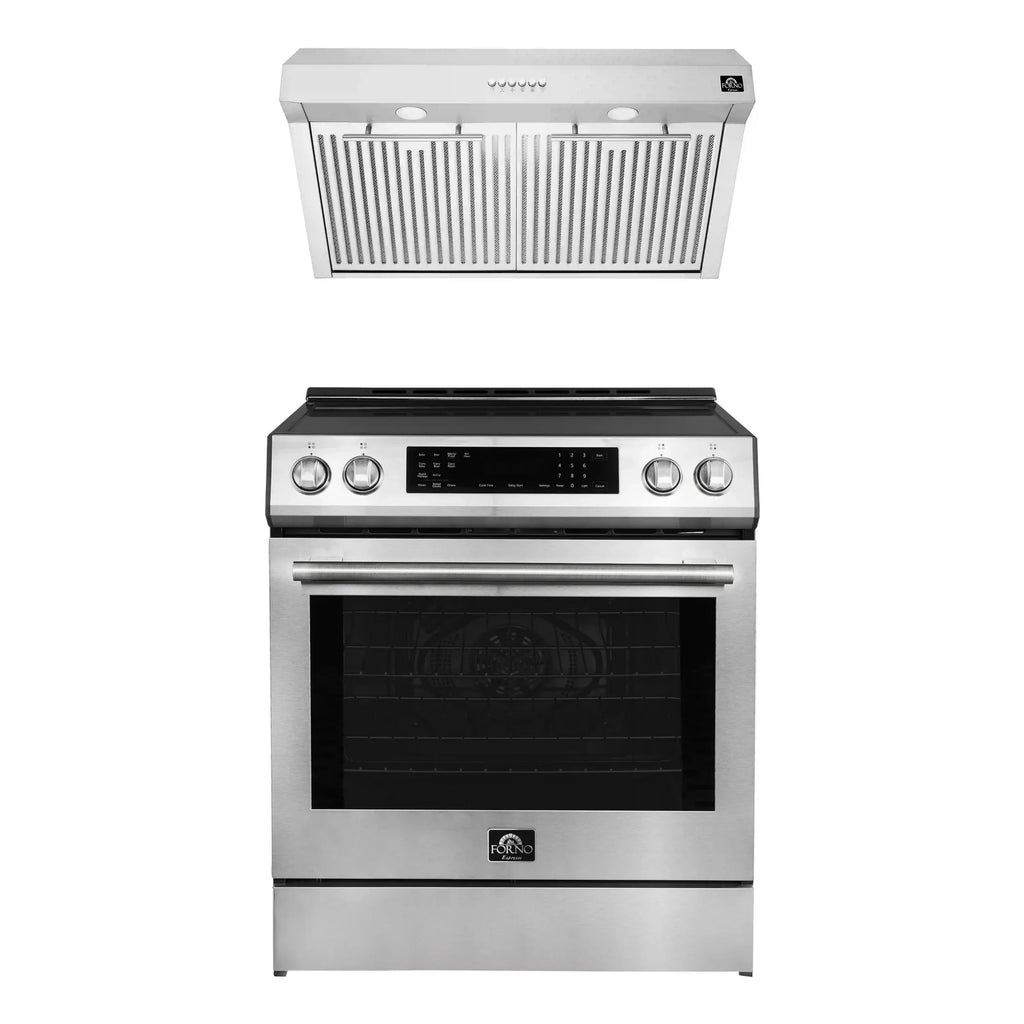

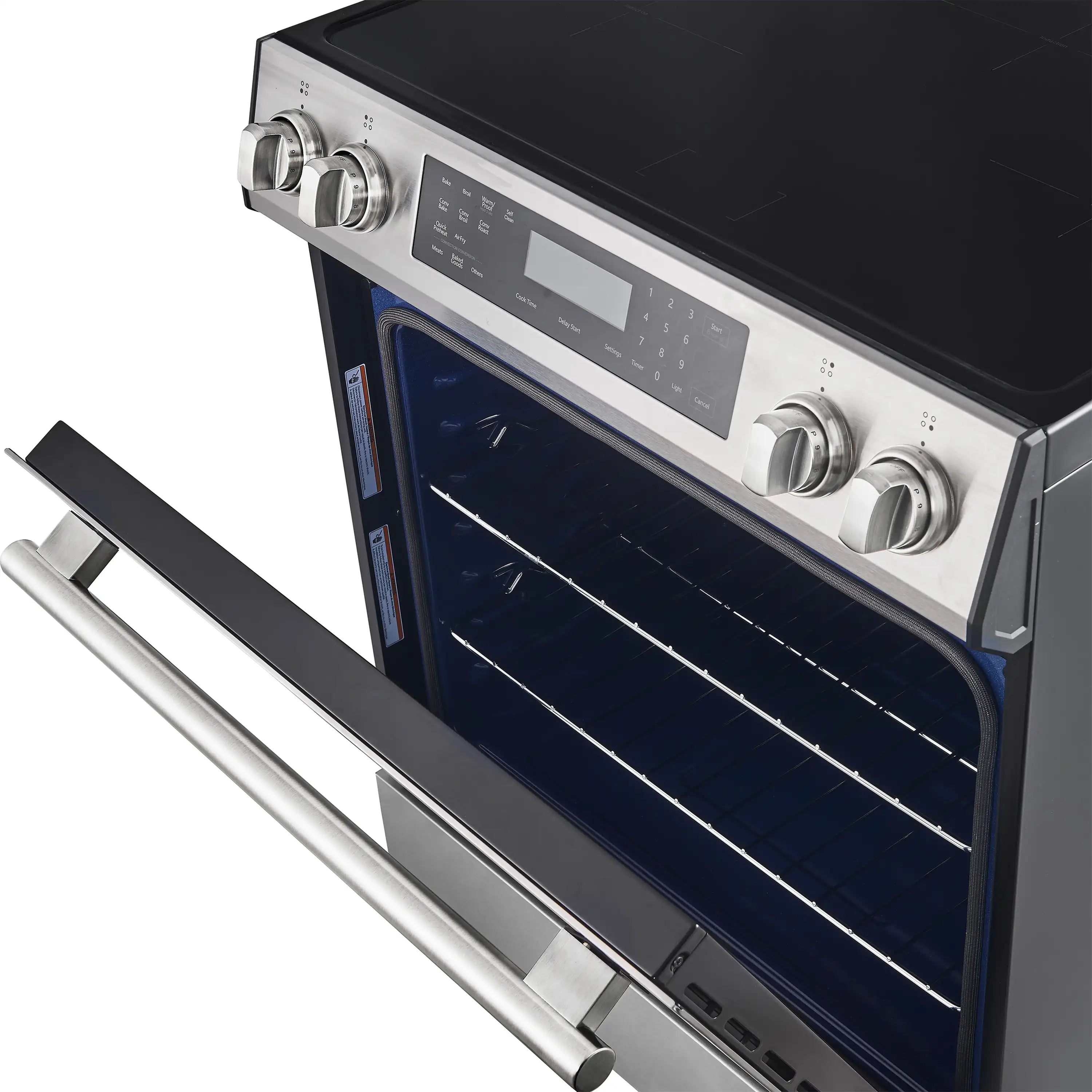

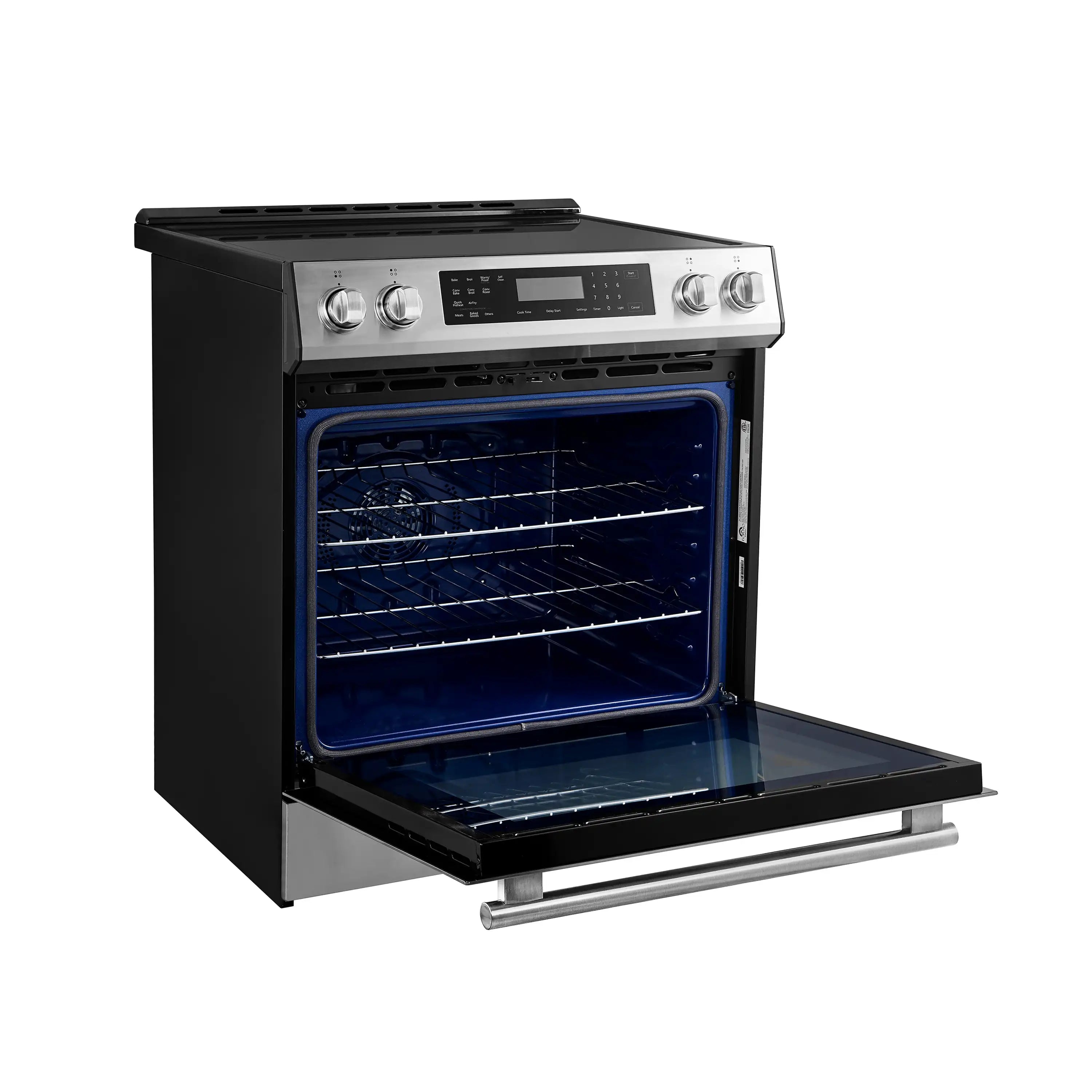

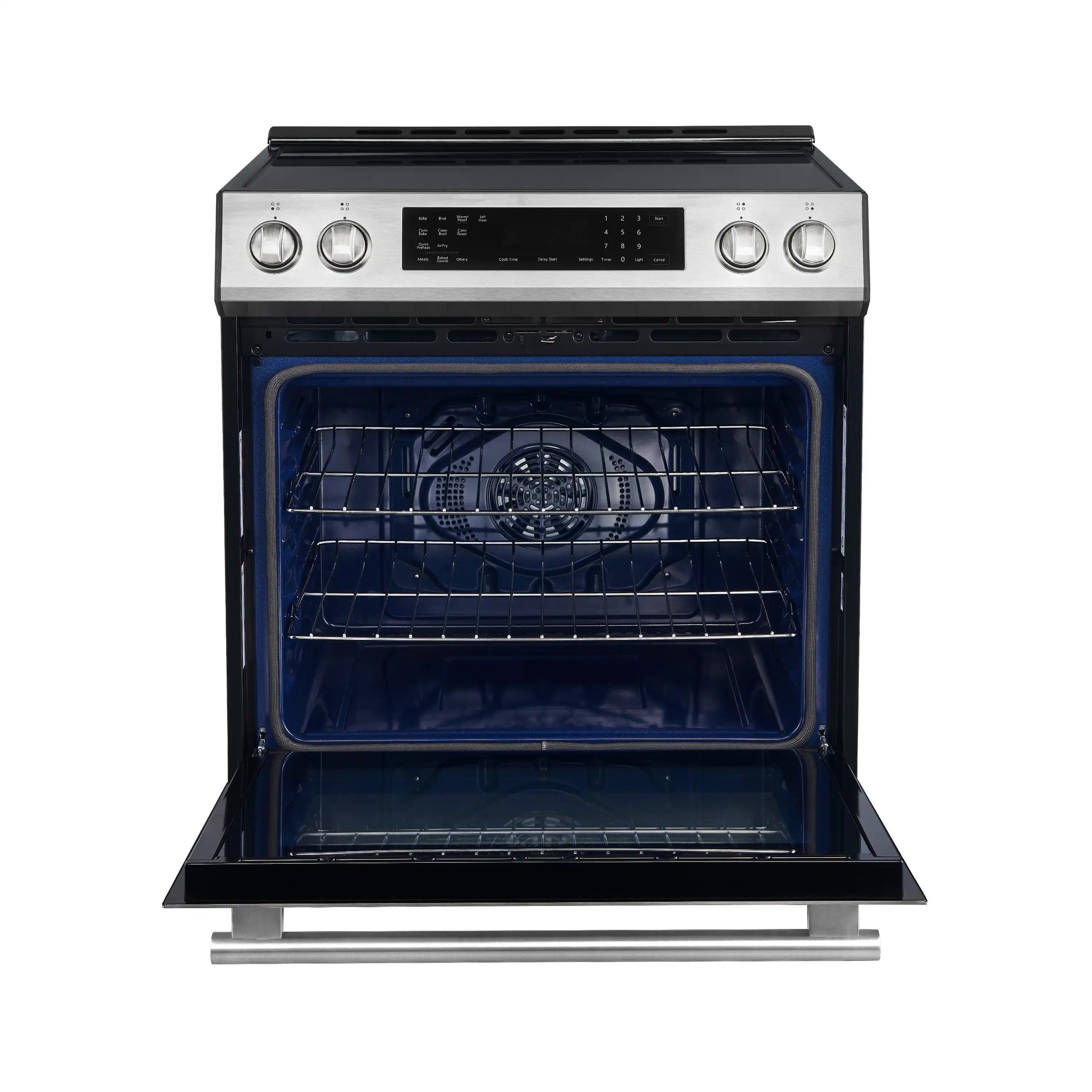

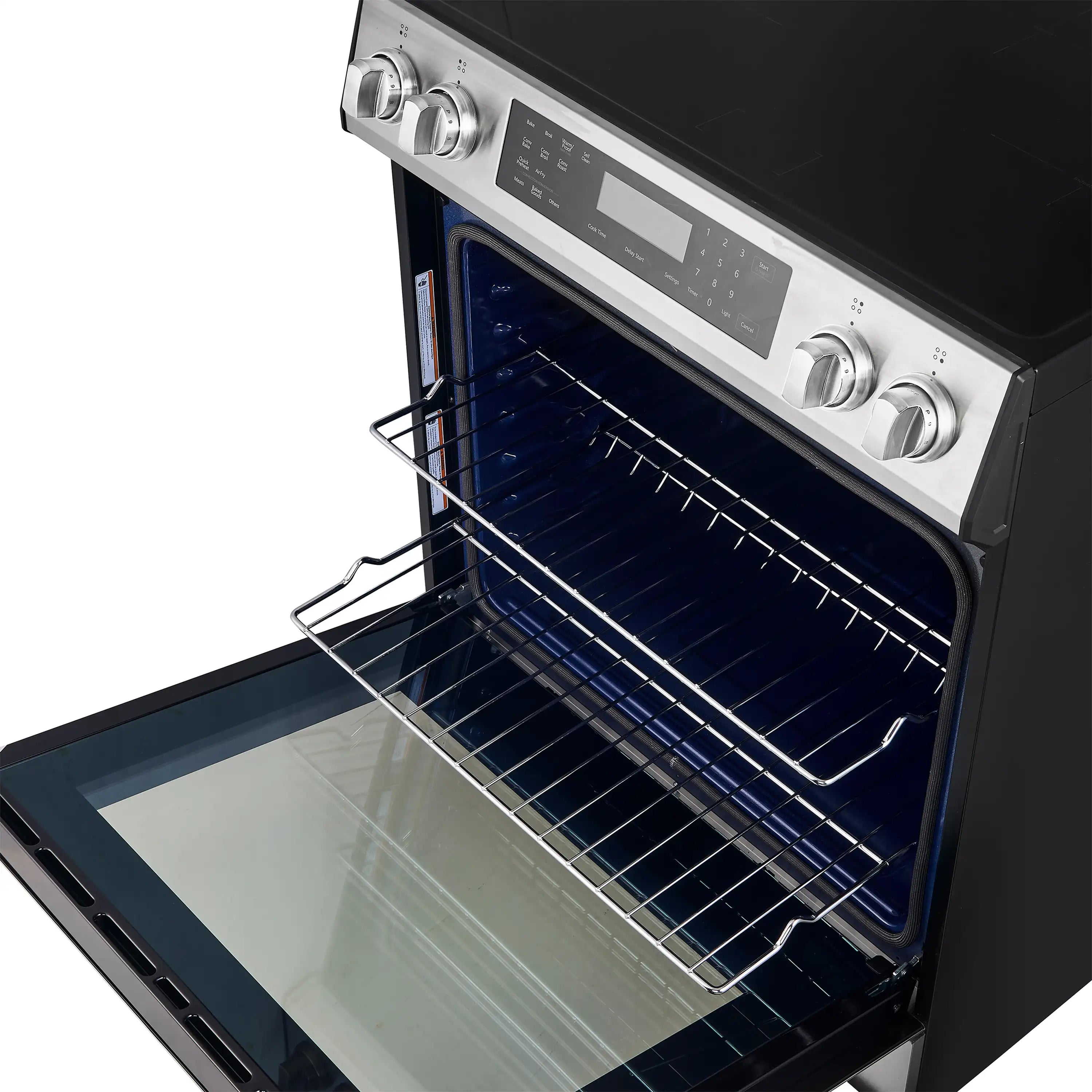

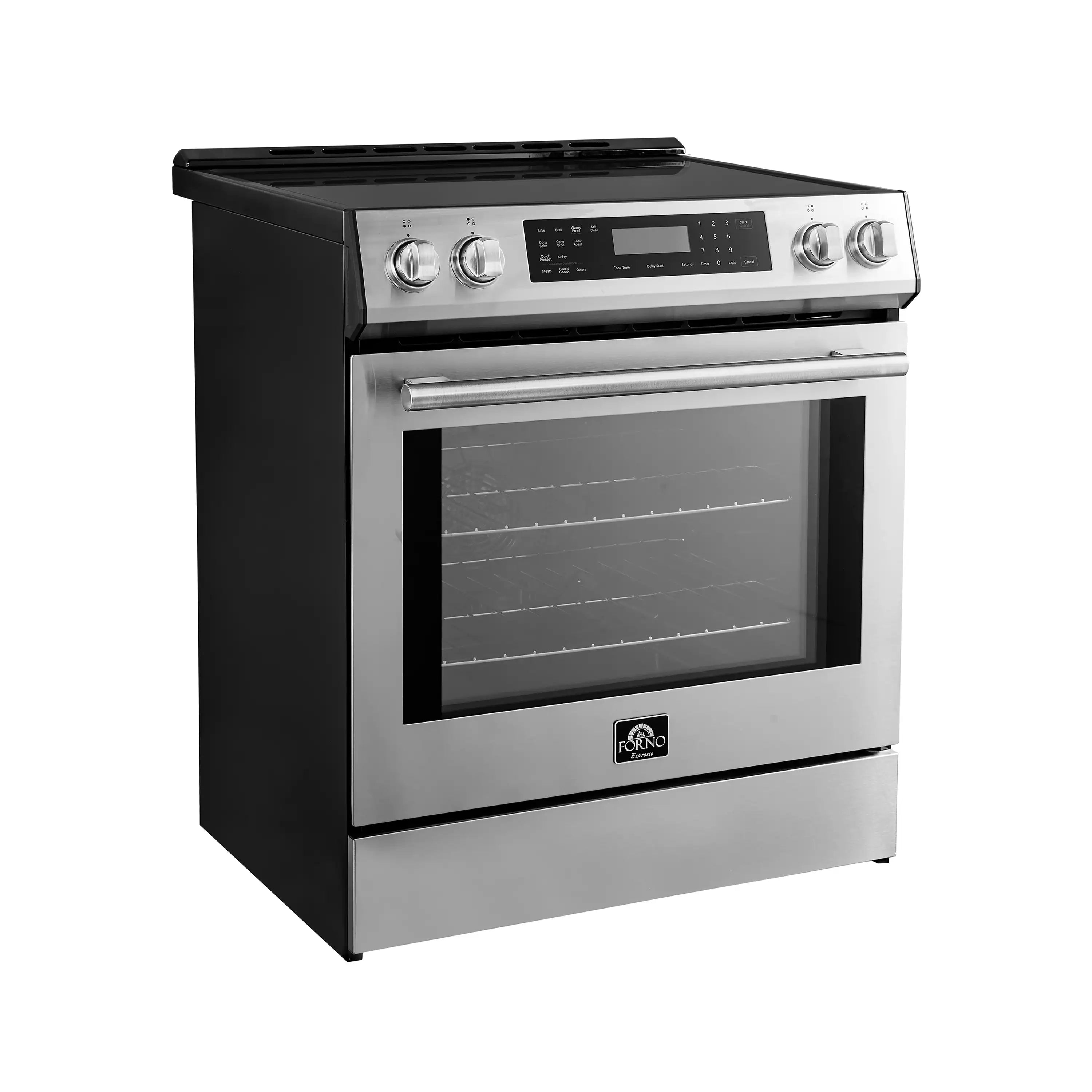

The Forno Donatello 30-inch stainless-steel induction range harmonizes functionality with the precision of induction cooking. The cooktop boasts four powerful induction elements totaling 8,100 watts, ensuring fast and precise cooking. The 5.0 cu.ft. speckled blue enamel oven features two racks with six adjustable levels, enabling versatile cooking for multiple dishes simultaneously. With Air Fry functionality, achieve crispy and delicious results effortlessly for healthier cooking options. This range caters to all cooking needs with its powerful cooktop and versatile oven, delivering quality and performance without the high price tags. Lower your cost of living with Forno.
| DIMENSIONS | |
|---|---|
| Cutout Dimensions W x D x H (inches) | 30''W x 25''D x 36''H |
| Depth with Oven Door Open 90º (IN) | 46.25" |
| Depth without Oven Door Handle (IN) | 26.25" |
| Overall Weight (LBS) | 166.45 lbs |
| Power Cord Length Without Plug (FT) | 5.55 ft |
| Power Cord Length With Plug (FT) | 5.87 ft |
| Main Oven Interior (W x D x H) (IN) | 24.6"W x 19"D x 18.5"H |
| Usable Main Oven Interior Dimensions W x D x H (inches) | 24"W x 15.75"D x 16"H |
| Air Fry Basket Dimensions W x D x H (inches) | 16.14"W x 13.98"D x 1.34"H |
| GENERAL INFORMATION | |
| Product Type | Slide-In |
| Metal | Metal |
| Supplier Intended and Approved Use | Residential Use |
| ISTA 6A | Yes |
| DESIGN & FINISH | |
| Color | Silver |
| Finish | Stainless Steel |
| Overall WxDxH (IN) Biggest Dims Possible (with Handle, Backsplash, etc) | 29.92"W x 27.56"D x 37.13"H |
| Color/Finish | Stainless Steel |
| Handle Finish | Stainless Steel |
| Clock | Yes |
| Interior Light | Yes |
| Number Of Lights | 2 |
| Control Type | 4 |

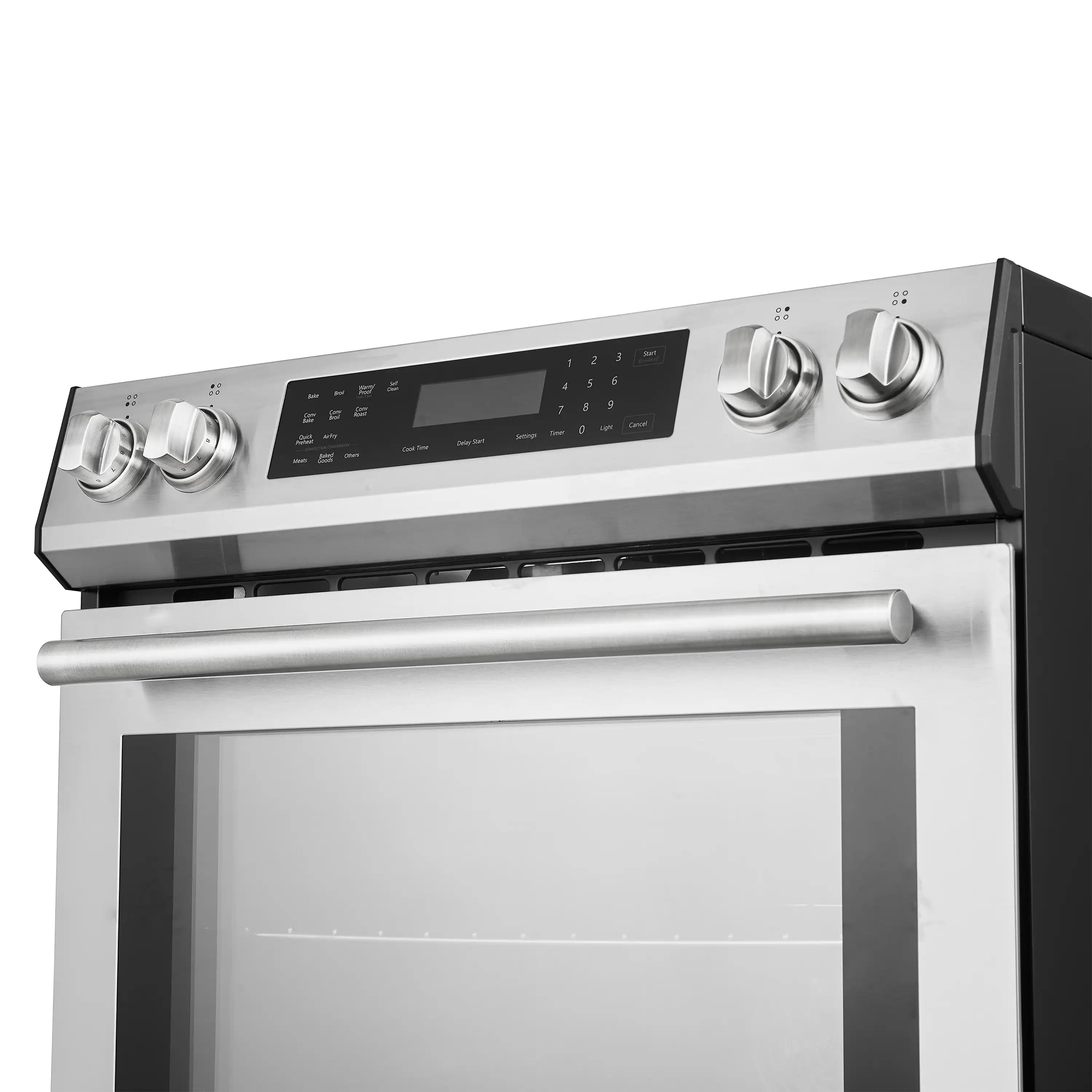

| Number of Knobs | 4 |
| Knobs Color/Finish | Stainless Steel |
| Control Location | Front |
| Control Lock | Yes |
| Primary Material | Steel |
| Control Panel Material | Steel |
| Kick Plate Material | Steel |
| TECHNICAL DETAILS | |
| Dedicated Circuit Breaker Amperage | 50 Amp |
| Total Amps Use | 49.58 Amp |
| Volts | 240 V |
| Stand By Power (AMP) | 1.94 AMP |
| Rated Power (W) | 11,900 Watts |
| Power Cord Included | Yes |
| Plug Type | NEMA 14-50P |
| Fuel Type | Electric |
| Plug-In | Yes |
| Power Cord | Yes |
| COOKTOP FEATURES | |
| Cooktop Max Power (W) | 7,200 Watts |
| Burner Fuel | Electric |
| Electric Heat Configuration (Cooktop) | Induction |
| Total cooktop Wattage output | 8,100 Watts |
| Number of Burners | 4 |
| Double Ring Burner | No |
| Warmer Burner | No |
| Bridge Element/Flex Zone | No |
| Cooktop Surface Color | Black |
| Cooktop Surface Materiel | Ceramic Glass |
| Cooktop Surface Structure | Smoothtop |
| Cooking Surface Control Type | Knobs |
| Broiler Element Type | Single Element |
| Overall Broiler Element Wattage | 3,600 Watts |
| Bake Element | Yes |
| Overall Bake Element Wattage | 2,200 Watts |
| Hidden Bake Element | Hidden |
| Cooktop Hot Surface Indicator | Yes |
| Griddle | No |
| Front Right Burner Watts | 1,500 Watts |
| Front Right Burner Size (IN) | 7 |
| Front Left Burner Watts | 2,100 Watts |
| Front Left Burner Size (IN) | 9 |
| Rear Right Burner Watts | 3,000 Watts |
| Rear Right Burner Size (IN) | 9 |
| Rear Left Burner Watts | 1,500 Watts |
| Rear Left Burner Size (IN) | 7 |
| OVEN FEATURES | |
| Oven Max Power | 4,700 Watts |
| Oven Fuel | Electric |
| Number of Ovens | 1 |
| Oven Interior Finish | Speckled Blue |
| Telescopic Racks | No |
| Oven Racks Type | Standard |
| Number of Racks | 2 |
| Racks Material | Chrome-Plated |
| Number of Rack Positions | 6 |
| Broiler | Yes |
| Broiler Location | Oven |
| Convection Oven | Yes |
| Convection Type | True Convection |
| Automatic Convection Conversion | Yes |
| Cook time Option | Yes |
| Delay Start | Yes |
| Temperature Gauge | No |
| Timer | Yes |
| Sabbath Mode | Yes |
| Cleaning type |
|
| Oven Preheating Indicator | Yes |
| Door Lock Option | Yes |
| Storage Drawer | No |
| Door Panel Material | Steel |
| Air Fryer Kit (Basket + Support & Drip Pan) | Yes |
| Rotisserie Kit | No |
| Main Oven Capacity (cubic feet) | 5 cu.ft. |
| Main Oven Function |
|
| Main Oven Rack Size | 24"W x 15.75"D |
| Main Oven Total Broil Wattage | 3,600 Watts |
| Main Oven Bake Wattage | 2,200 Watts |
| Main Convection Fan | Yes |
| Main Oven Convection Fan Wattage | 50 Watts |
| Main Oven True Convection Wattage | 2,500 Watts |
| WARRANTY & CERTIFICATIONS | |
| Safety Listing | cETLus |
| File/Certification Number | 3100243 |
| ADA Compliant | No |
| Star-K Certified | Not Certified |
| Commercial Warranty | No |
| Warranty Type | Limited |
| Warranty Length | 2 Years |
| Warranty on Parts | 2 Years |
| Warranty on Labor | 2 Years |

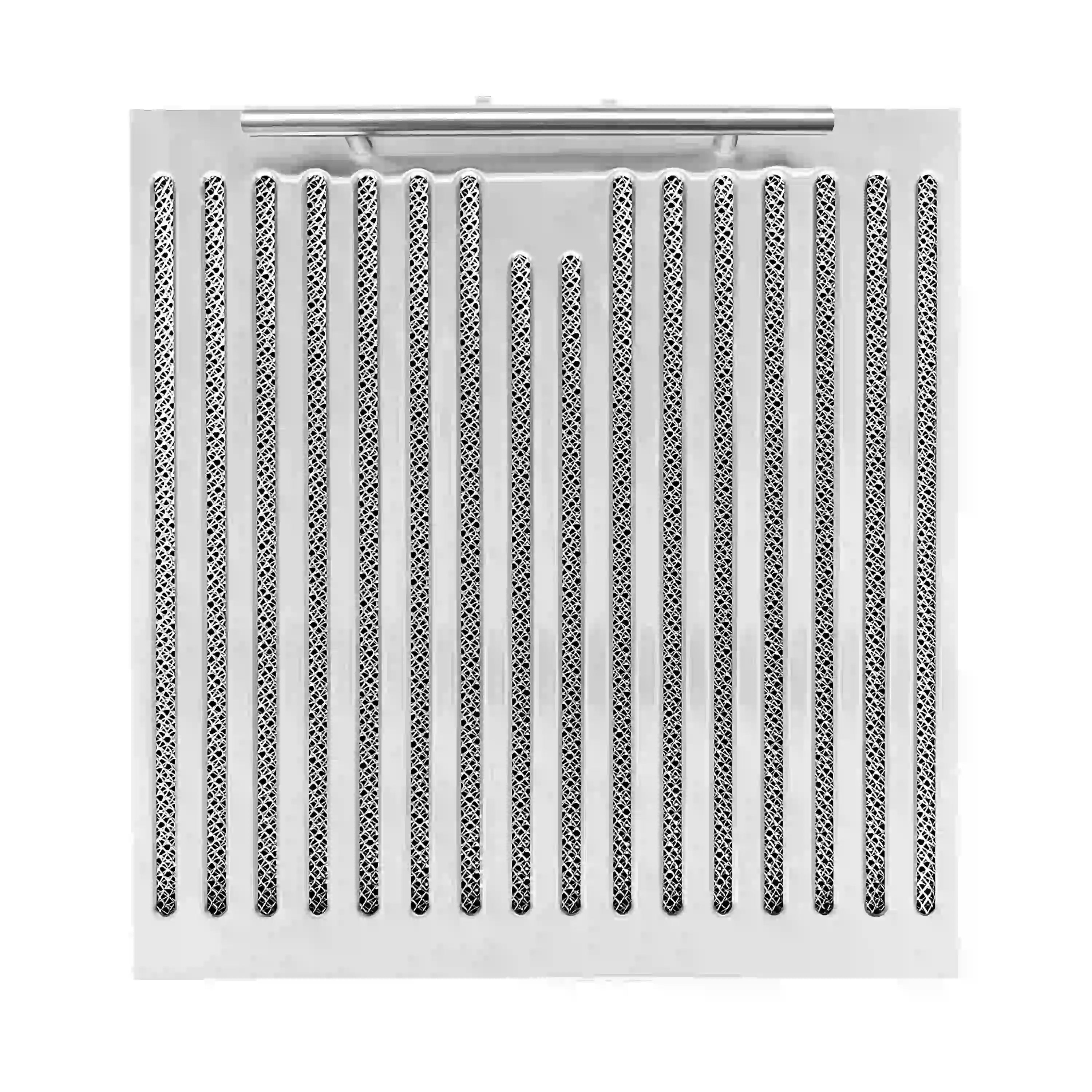

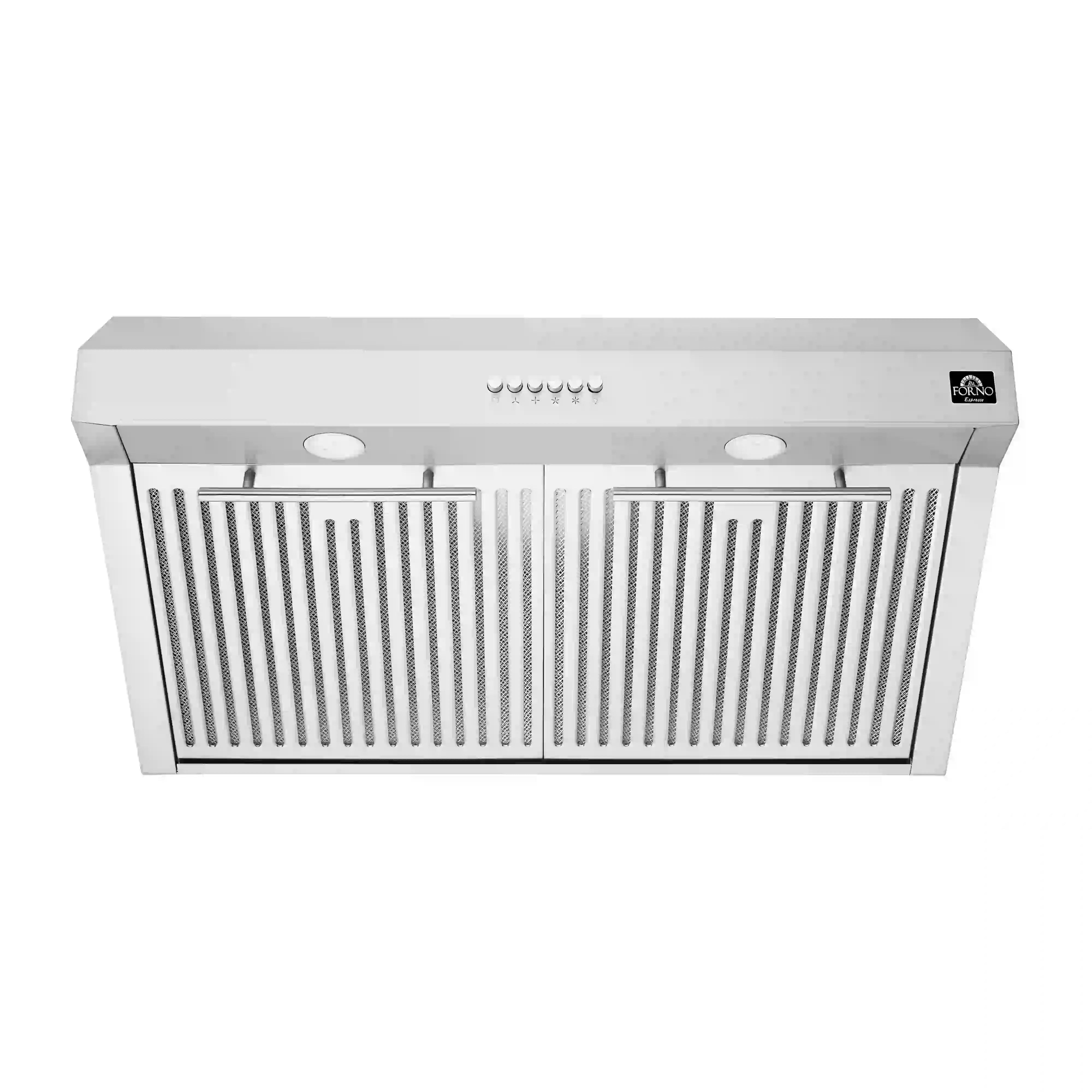

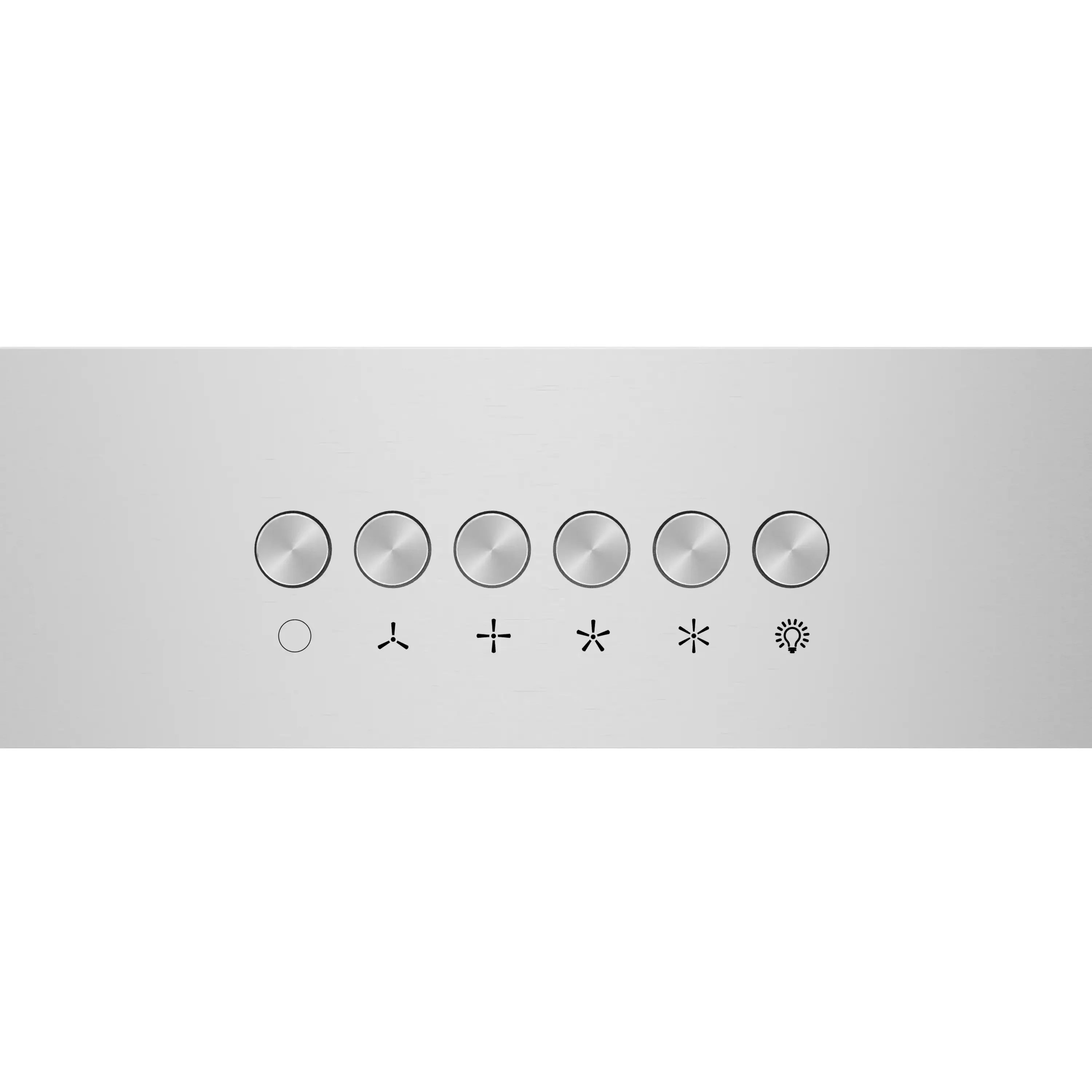

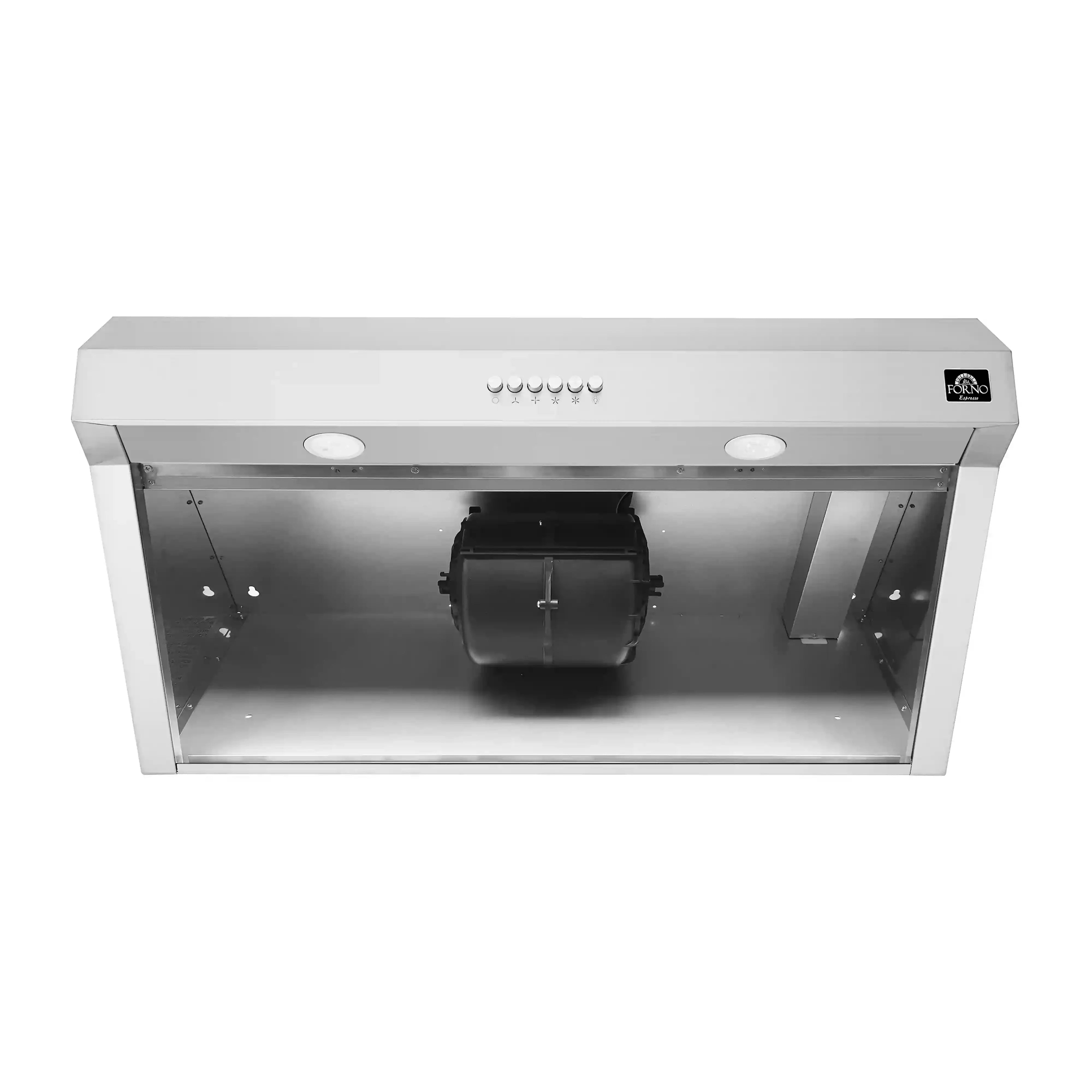

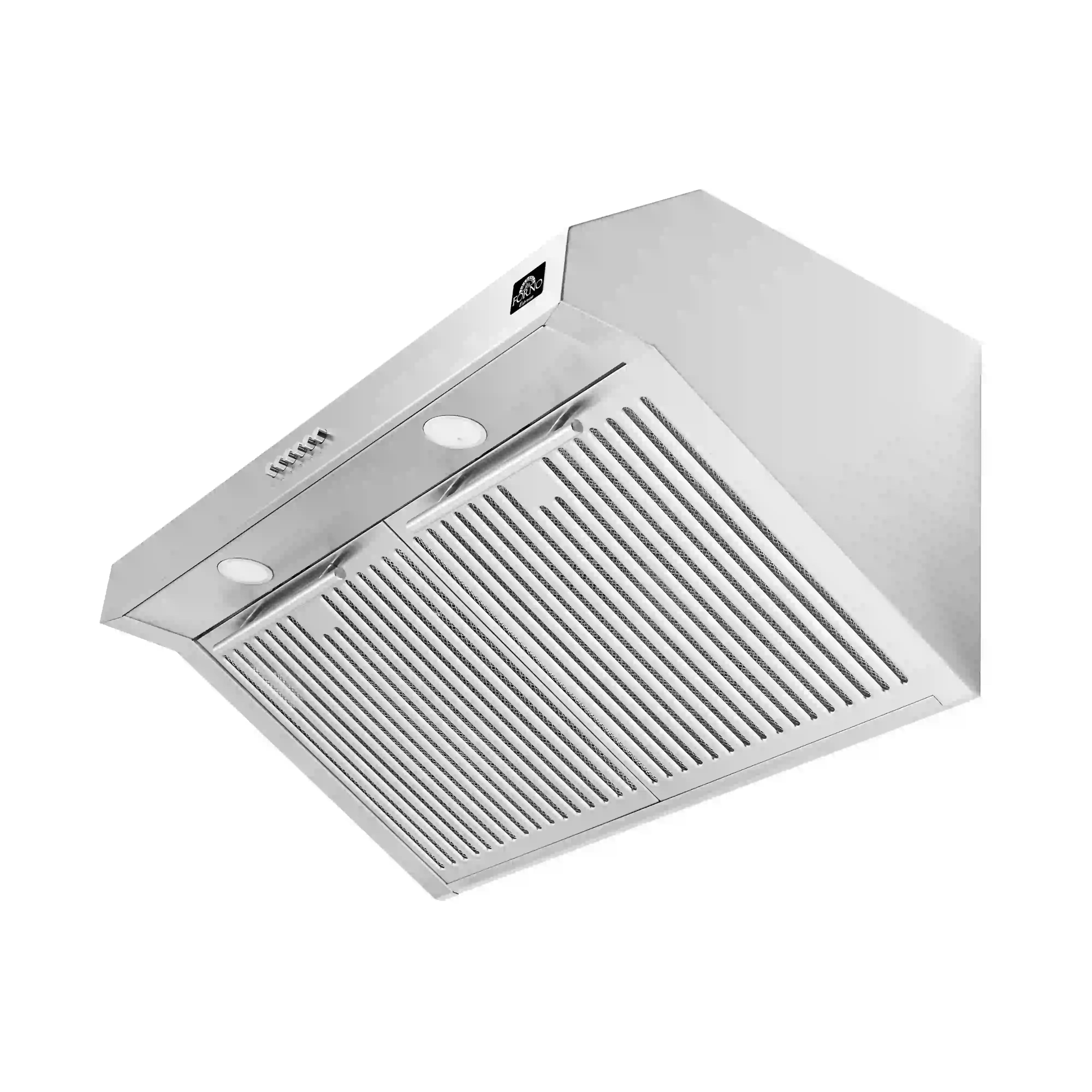

Forno presents the Bari 30” Espresso Range Hood, an exceptional under cabinet range hood that boasts an elegant stainless steel finish, adding a touch of sophistication to your kitchen space. With its powerful 400 CFM airflow, this range hood efficiently eliminates cooking odours, smoke, and airborne grease, ensuring a fresh and clean environment. The user-friendly 4 speed push button control allows you to adjust the ventilation settings effortlessly, providing optimal performance tailored to your needs. Illuminate your cooking area with two built-in LED surface lights, offering bright and even lighting for a delightful culinary experience. Equipped with a durable baffle and mesh filter, this range hood effectively traps grease and debris, ensuring easy maintenance and prolonging the lifespan of the appliance. Upgrade your kitchen with the versatile and high-performing under cabinet range hood from Forno, where style meets functionality.

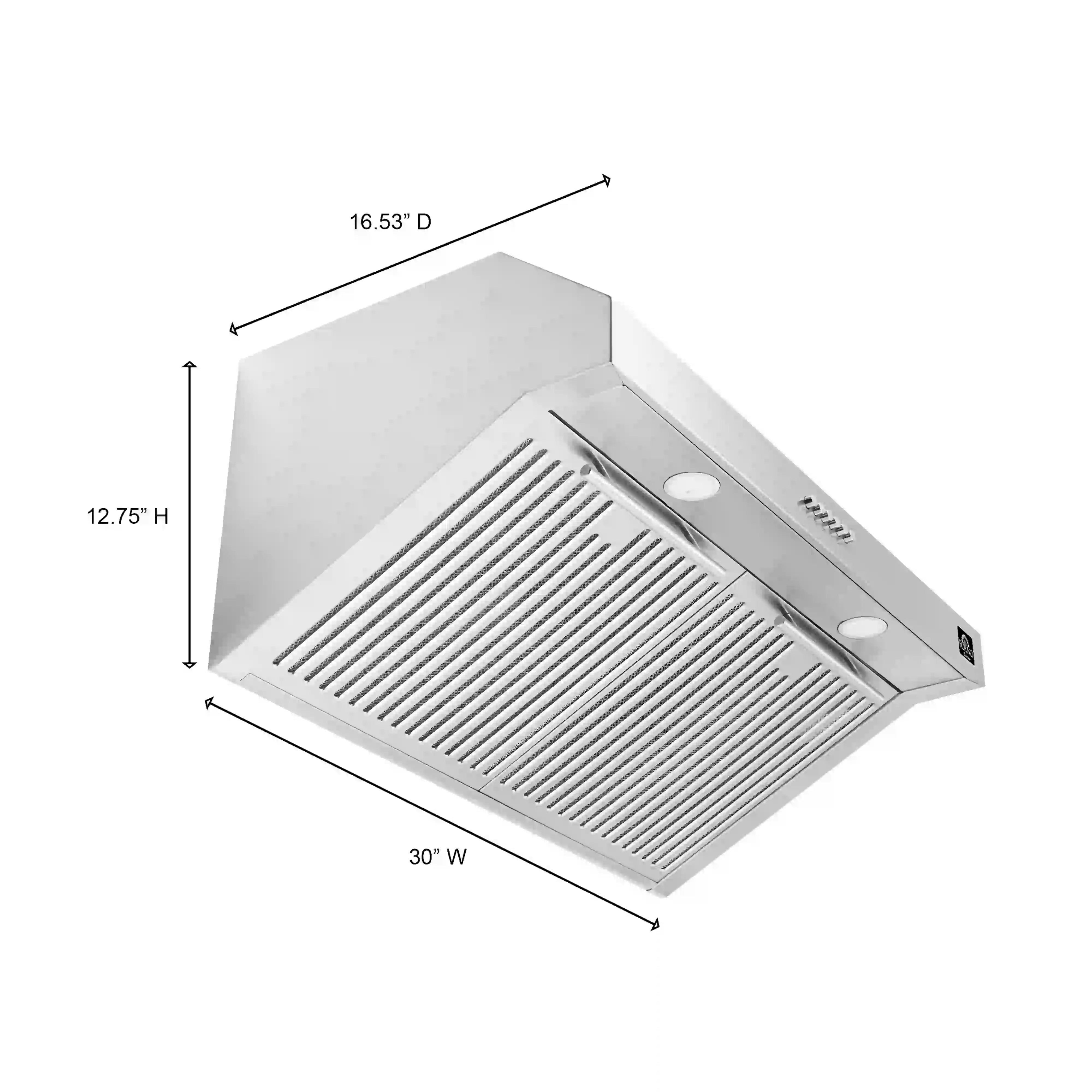

| Dimensions | 30" W x 16.5" D x 12.75" H |
| # Speed levels | 4 |

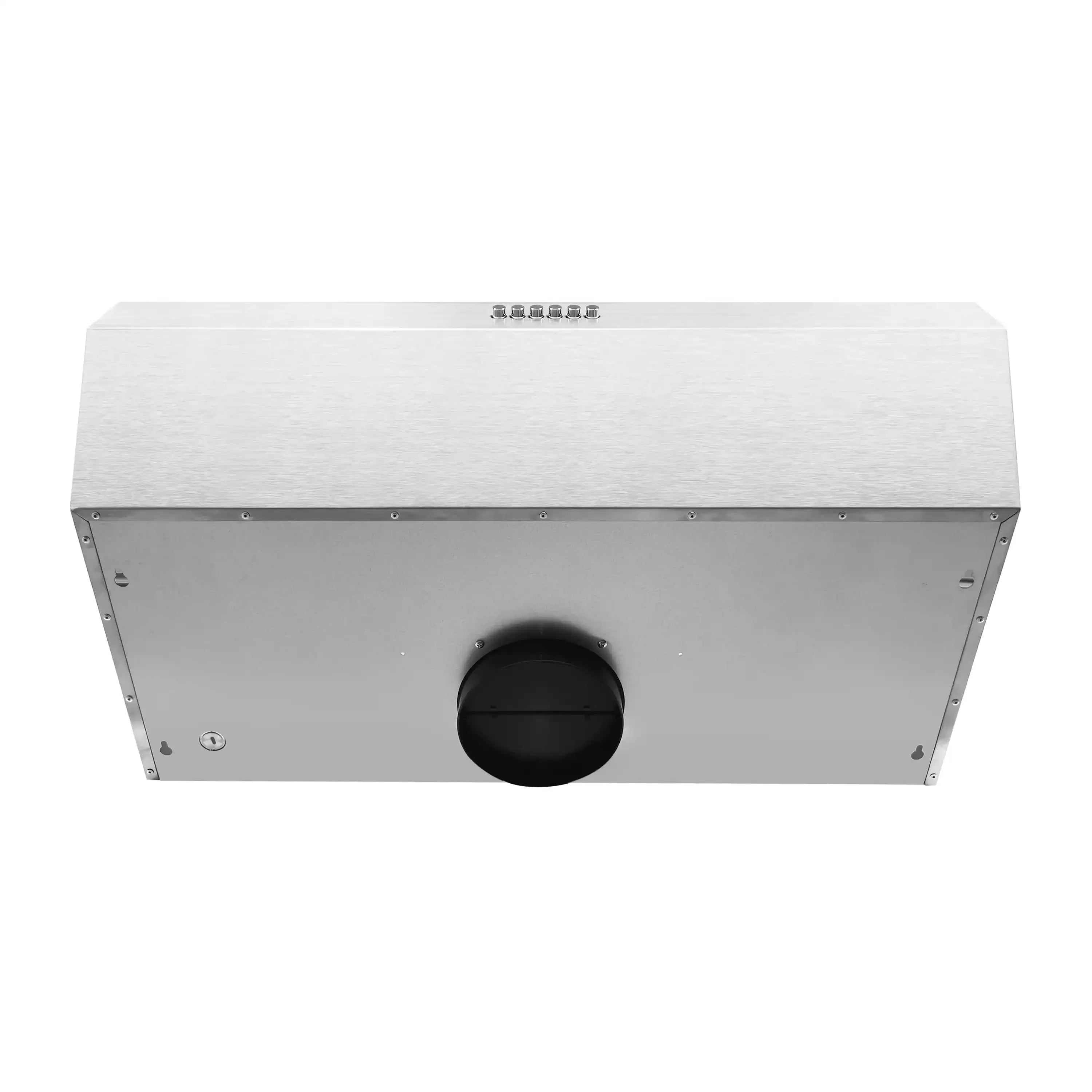

| Duct Shape | Circular |
| Duct Size | 6” |
| Size | 30" |
|
Style design |
Under cabinet hoods |
|
Unit Color |
Stainless steel |
|
Ventilation Type |
Roof vent |
|
Electrical supply |
110~120V/60Hz |
|
Power connection |
no plug |
|
Power rating |
310 W |
|
Certification |
ETL |
|
Warranty |
2 Year Limited |
|
Weight (lbs) |
24.4/31.2 |
|
Control type |
Push buttons |
|
Number of Hood filters |
2 |
|
Hood Filter type |
Commercial hybrid filter (Baffle & Mesh filter)) |
|
Light Type |
LED Bulb (gu10) |
|
Number of Lights |
2 |
|
Damper |
1 |
|
Number of Ducts |
1 |
|
Handles |
Yes |
|
Handle Color |
Choice of Stainless steel or Antique Brass |
