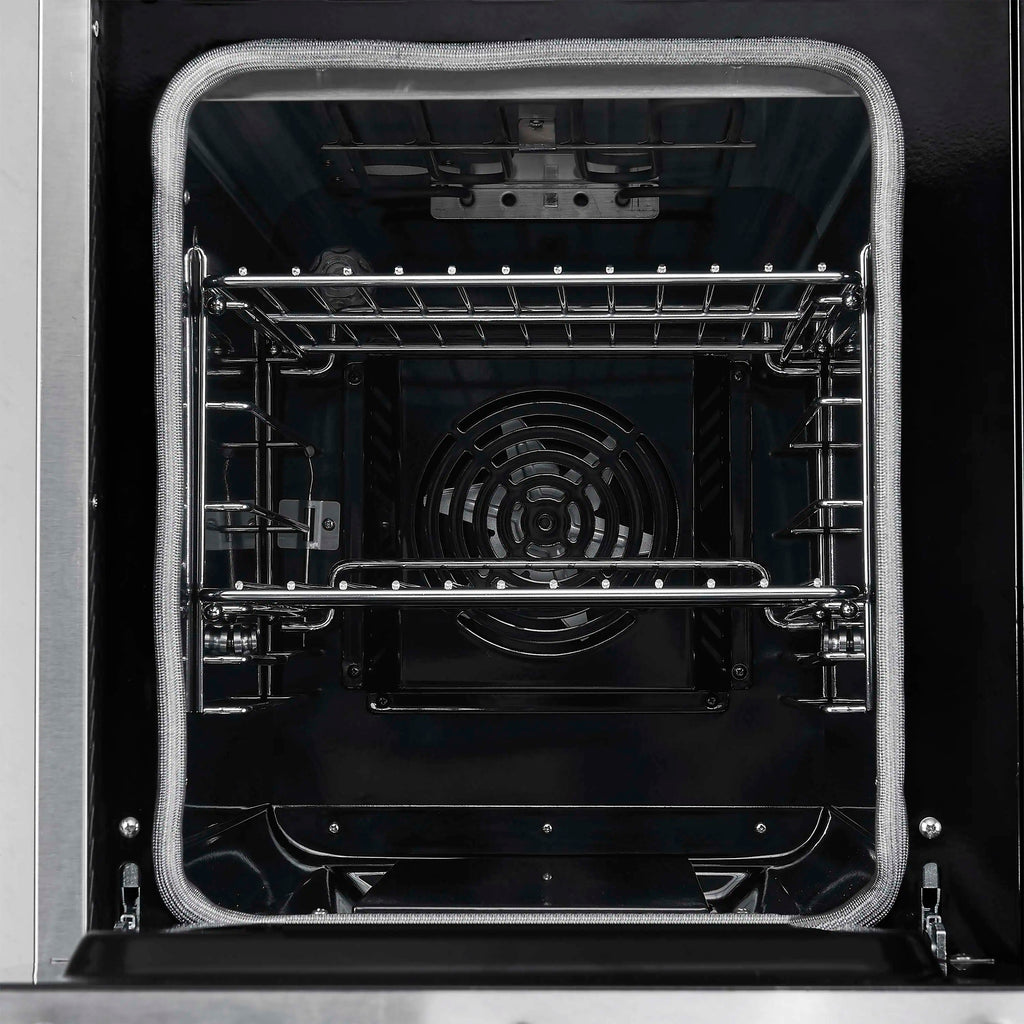

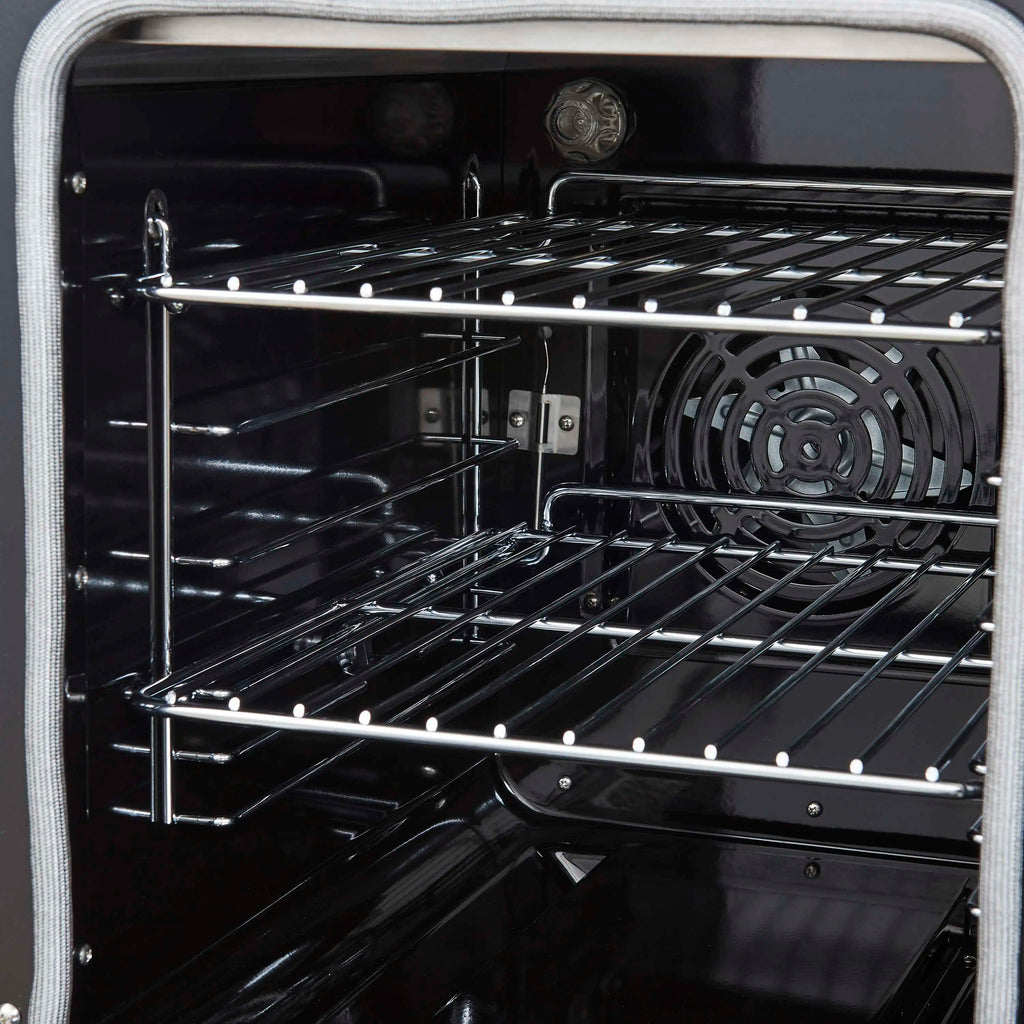

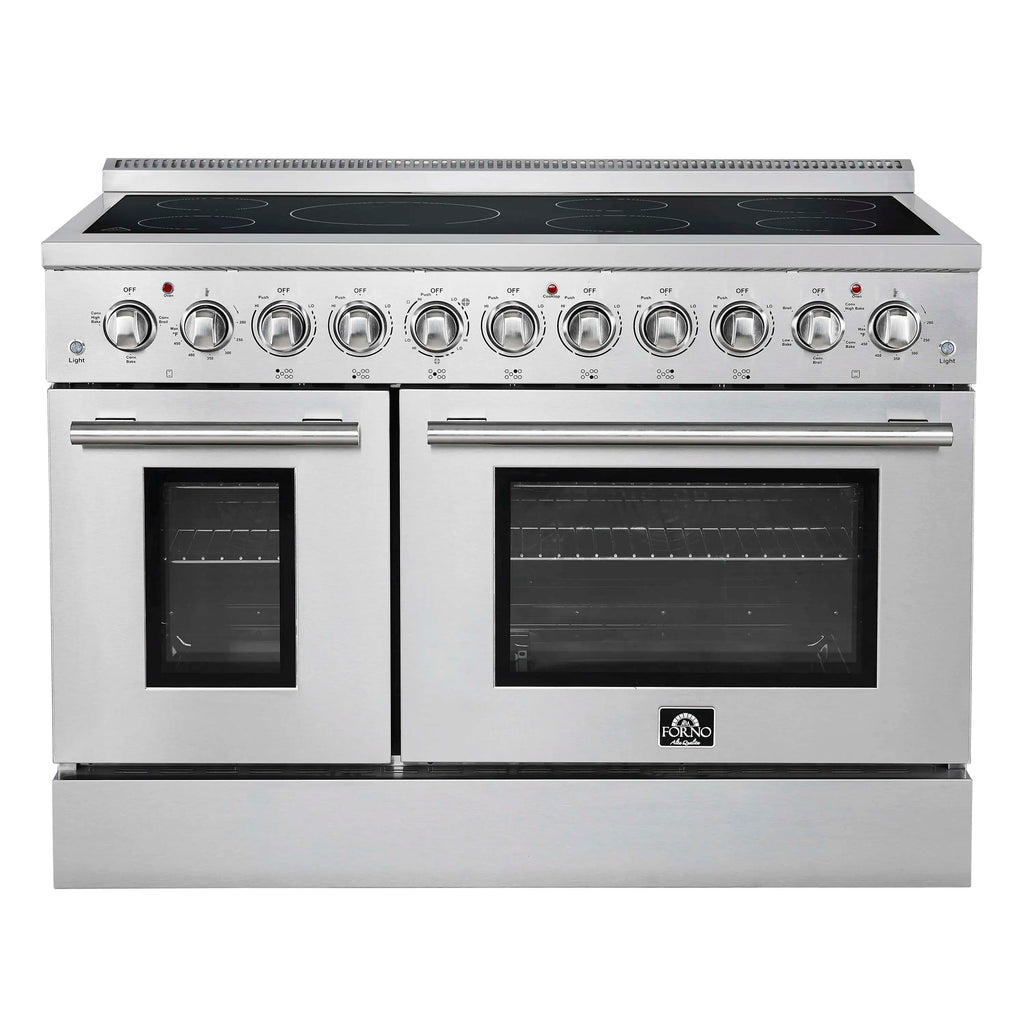

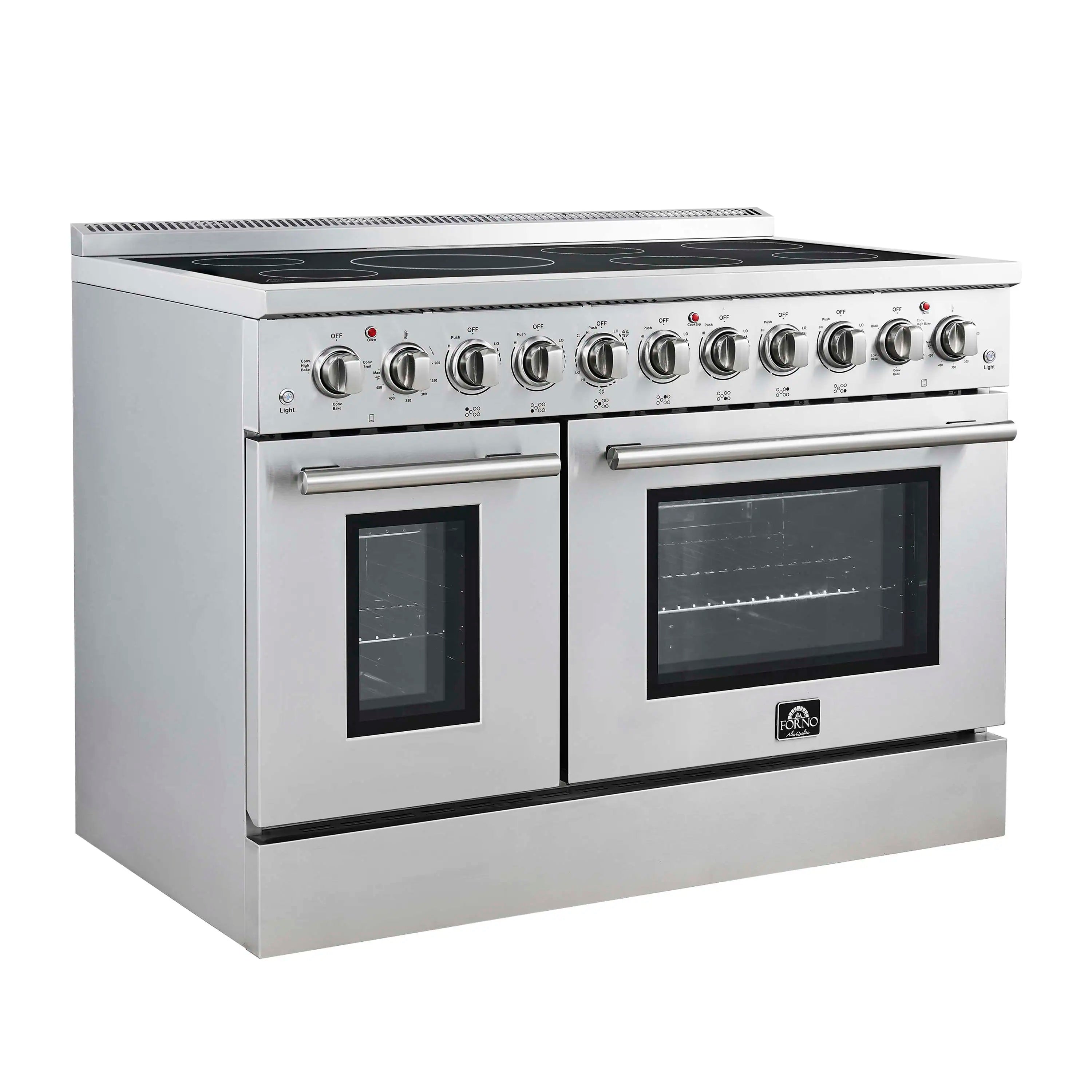

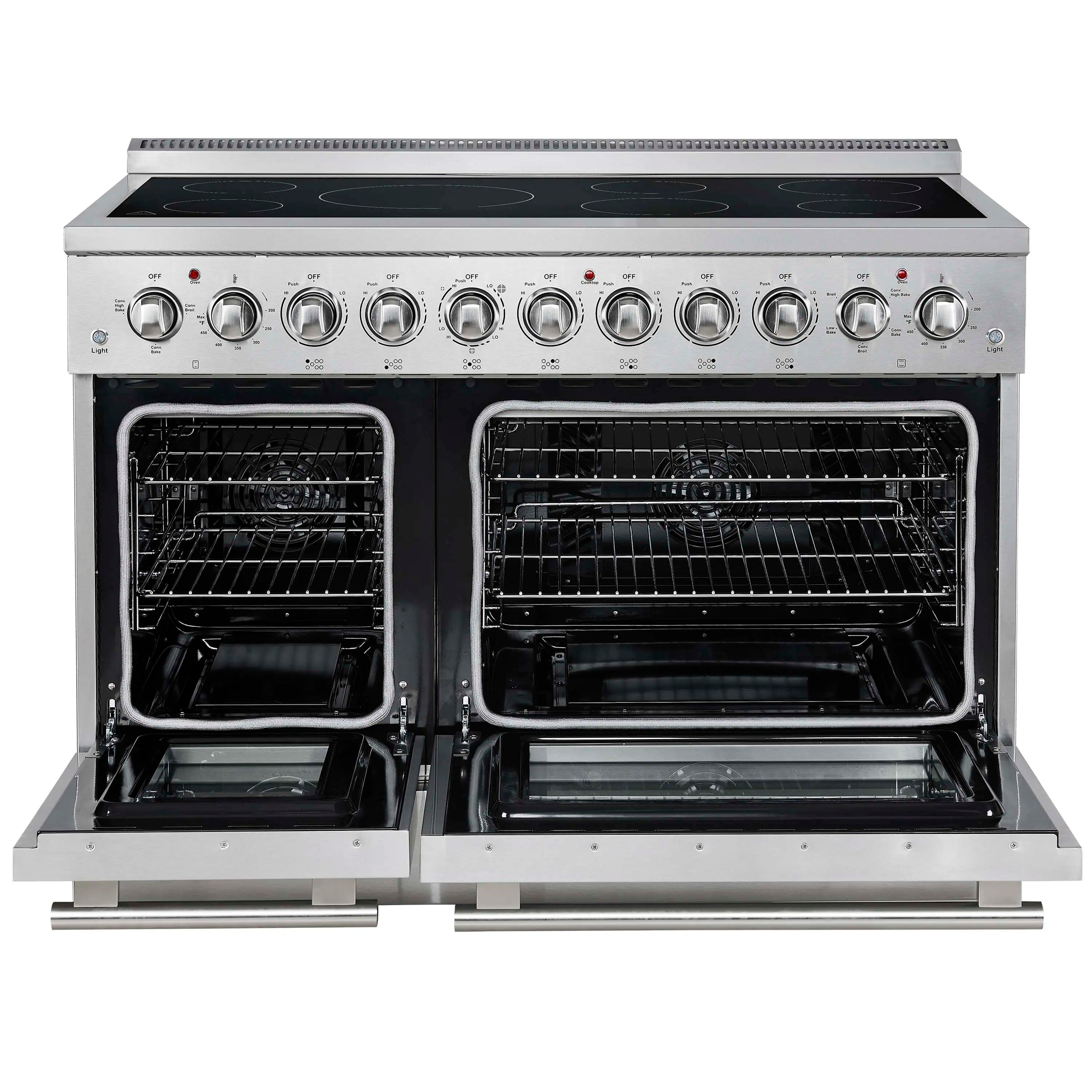

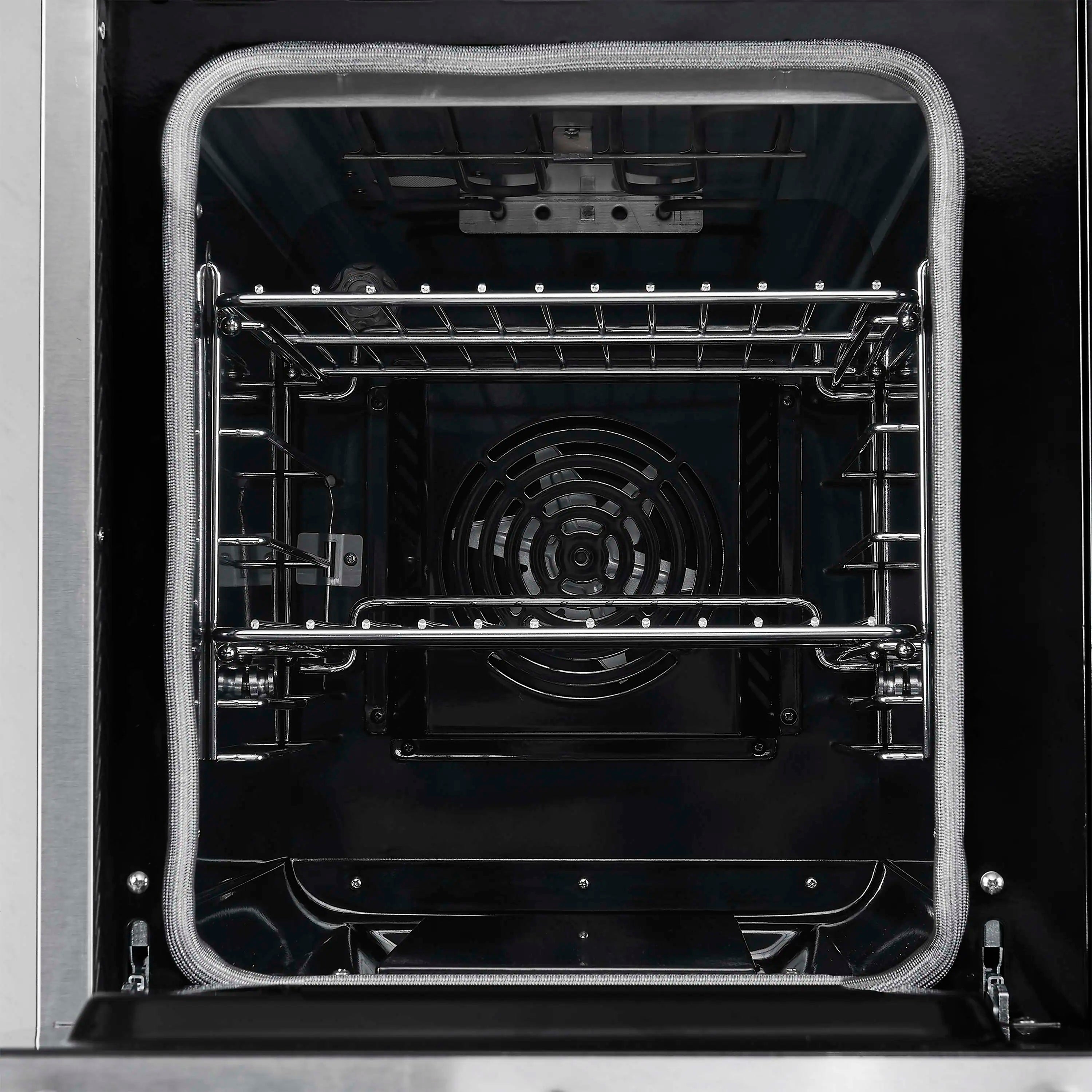

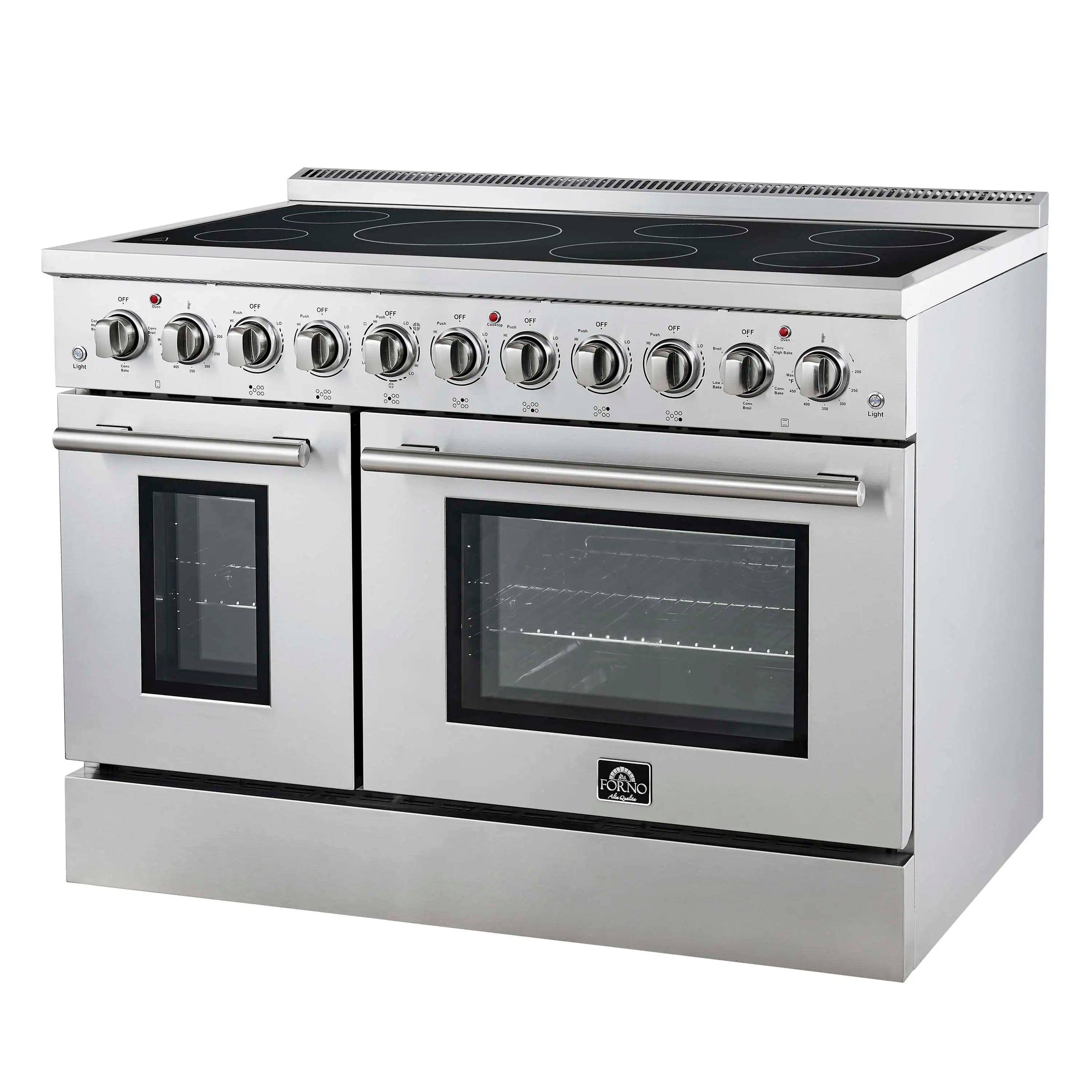

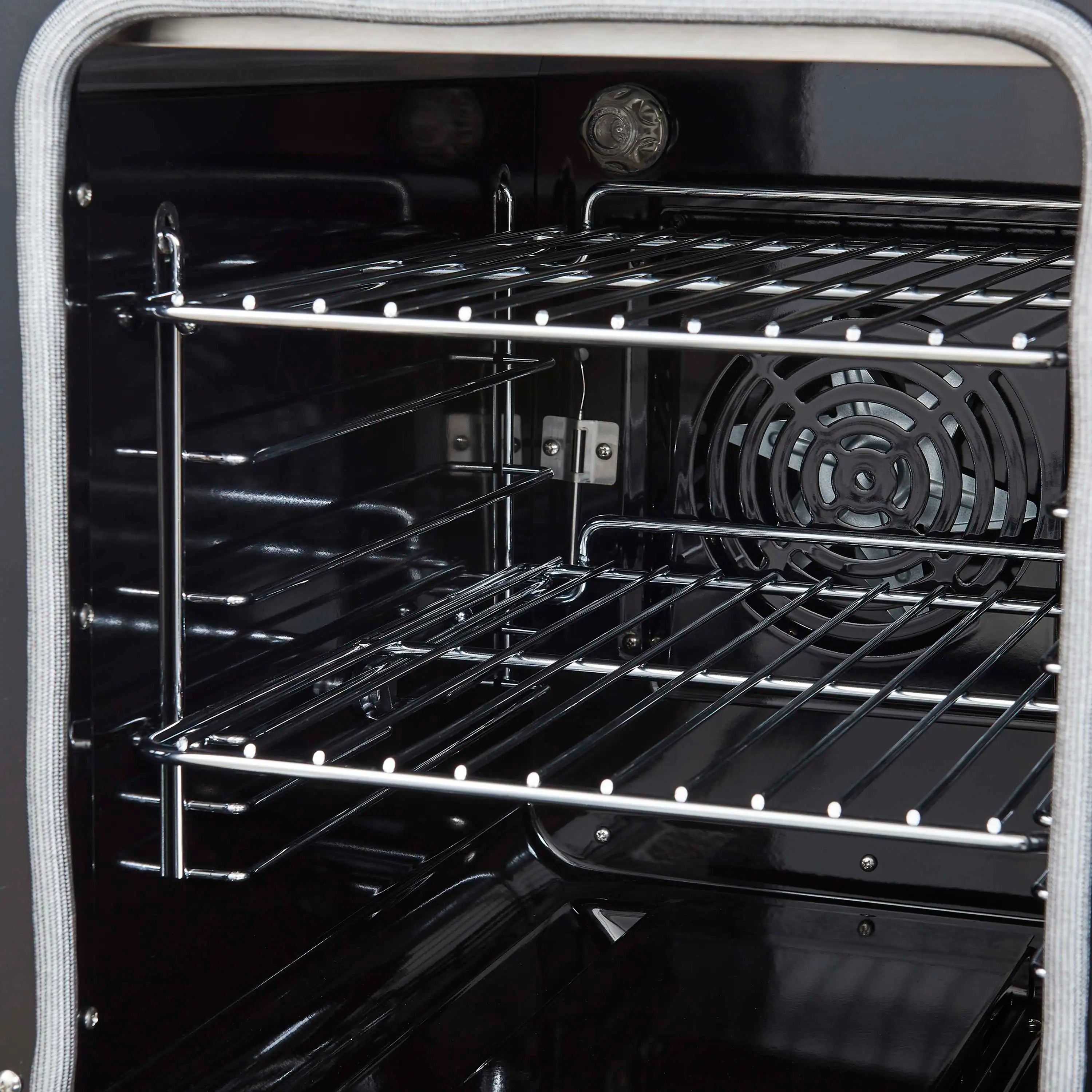

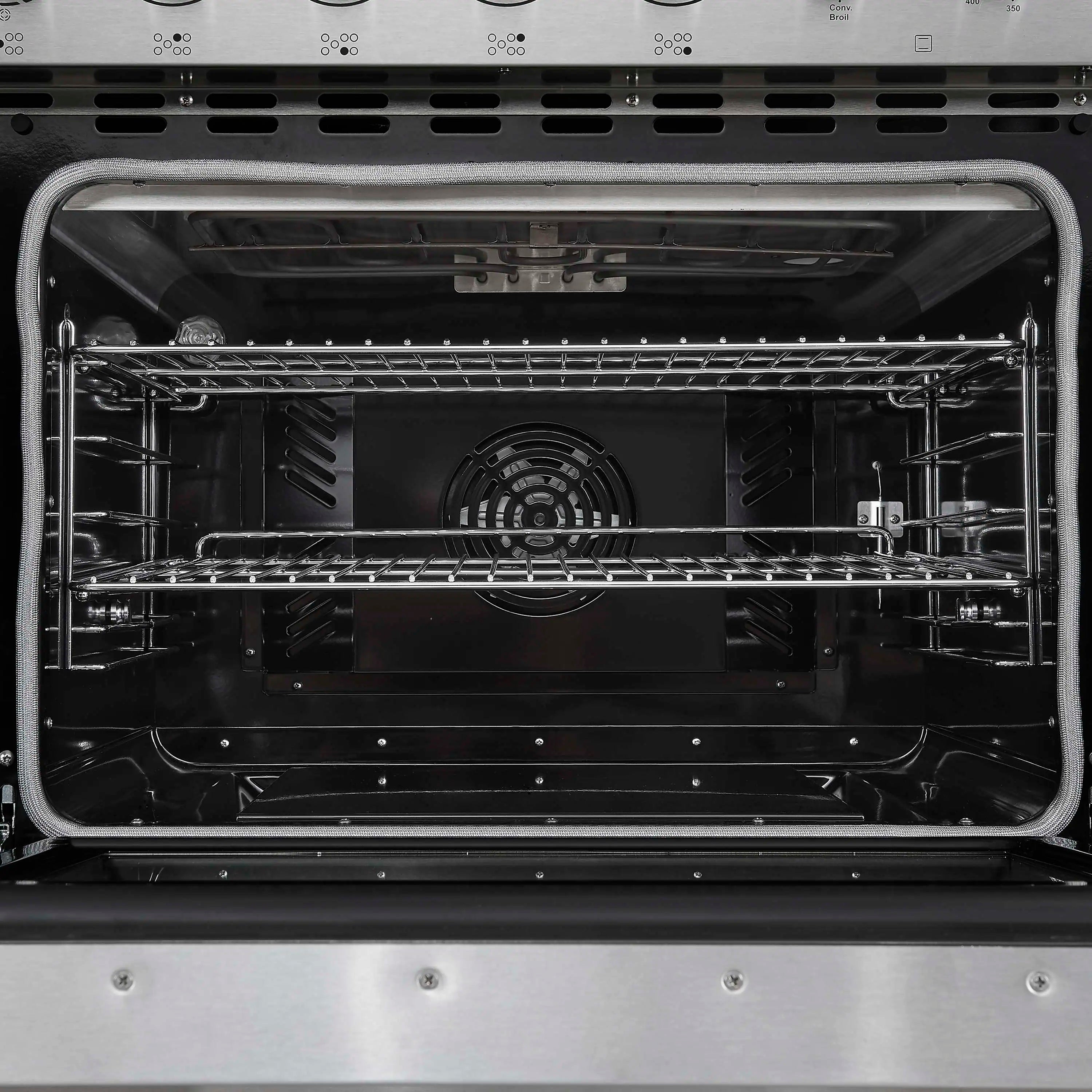

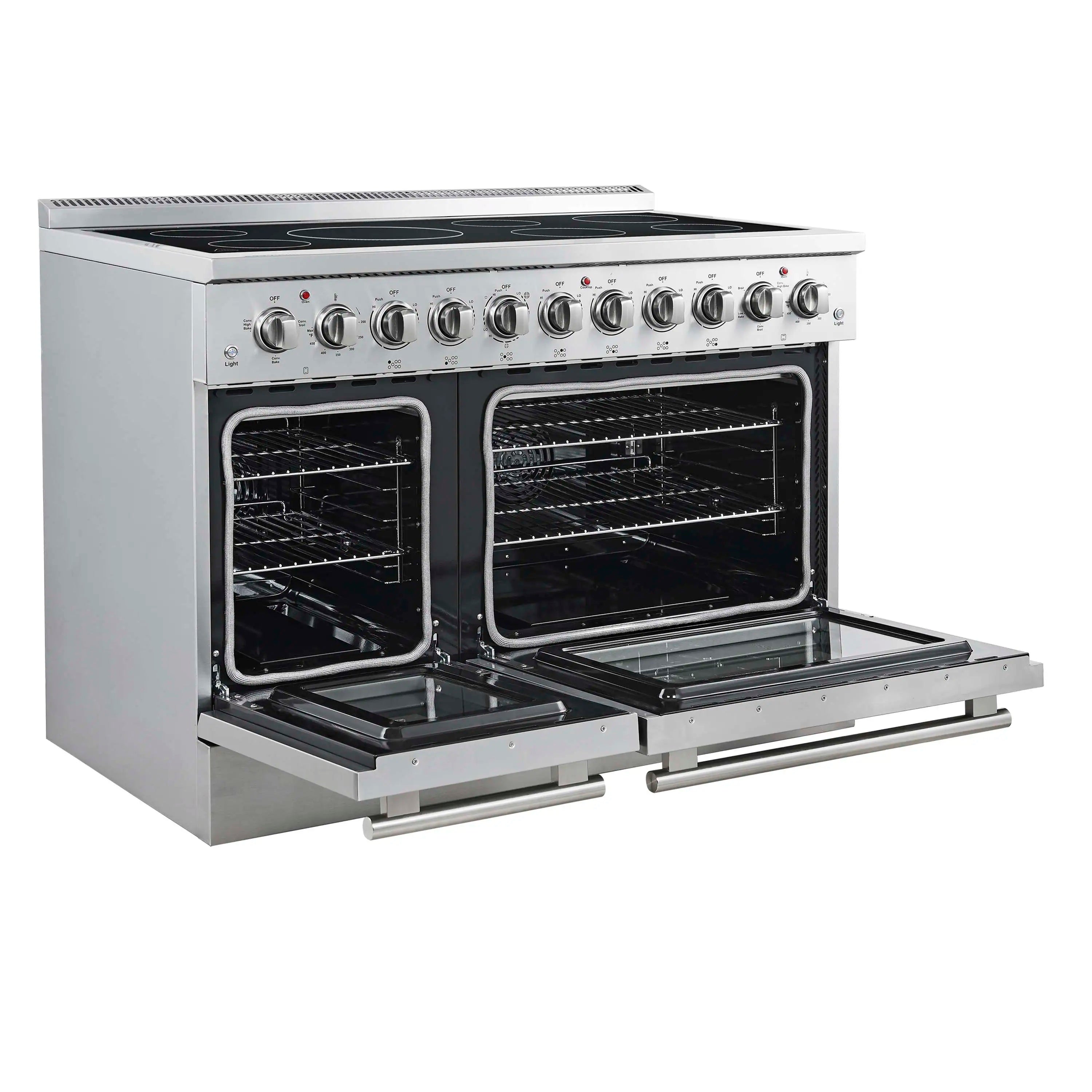

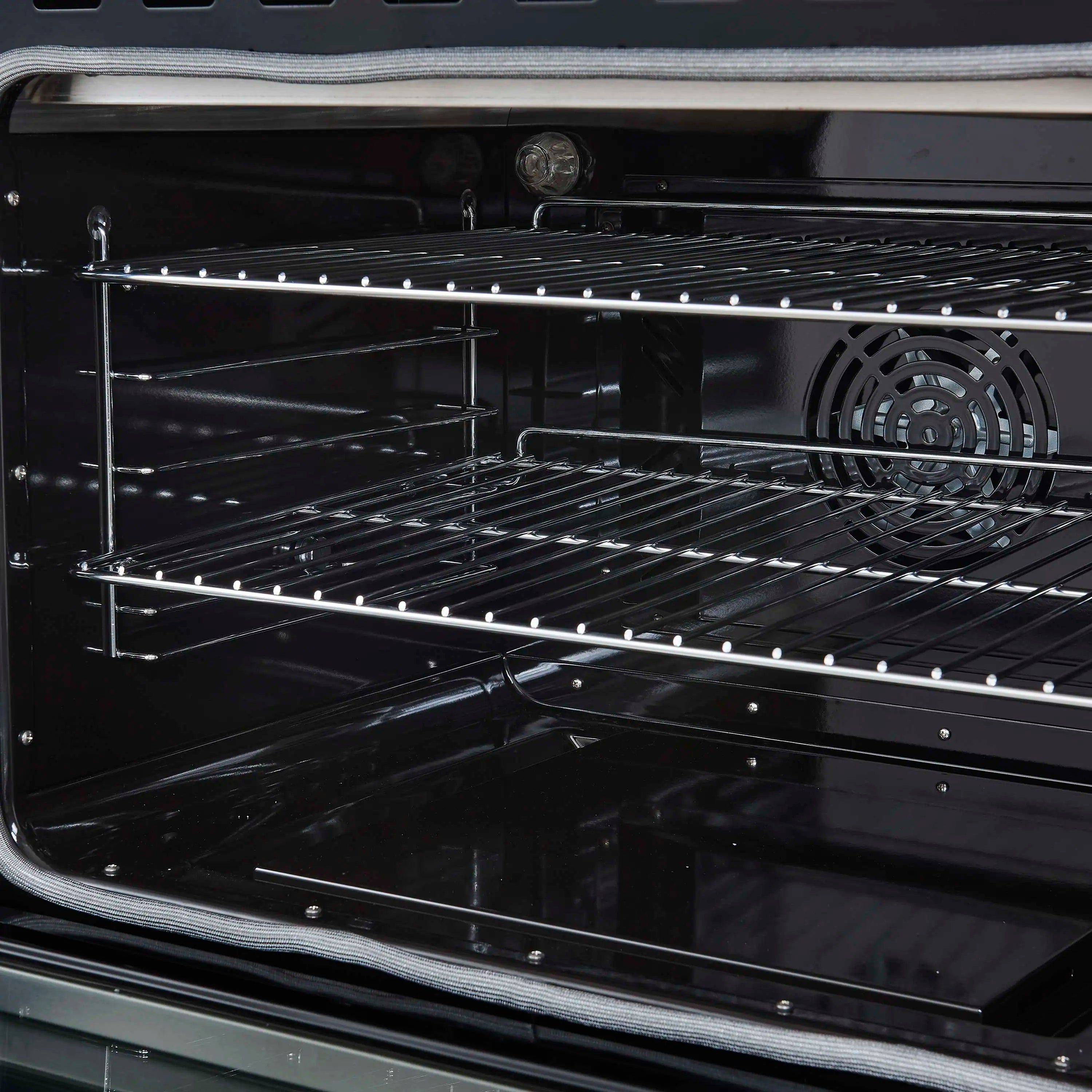

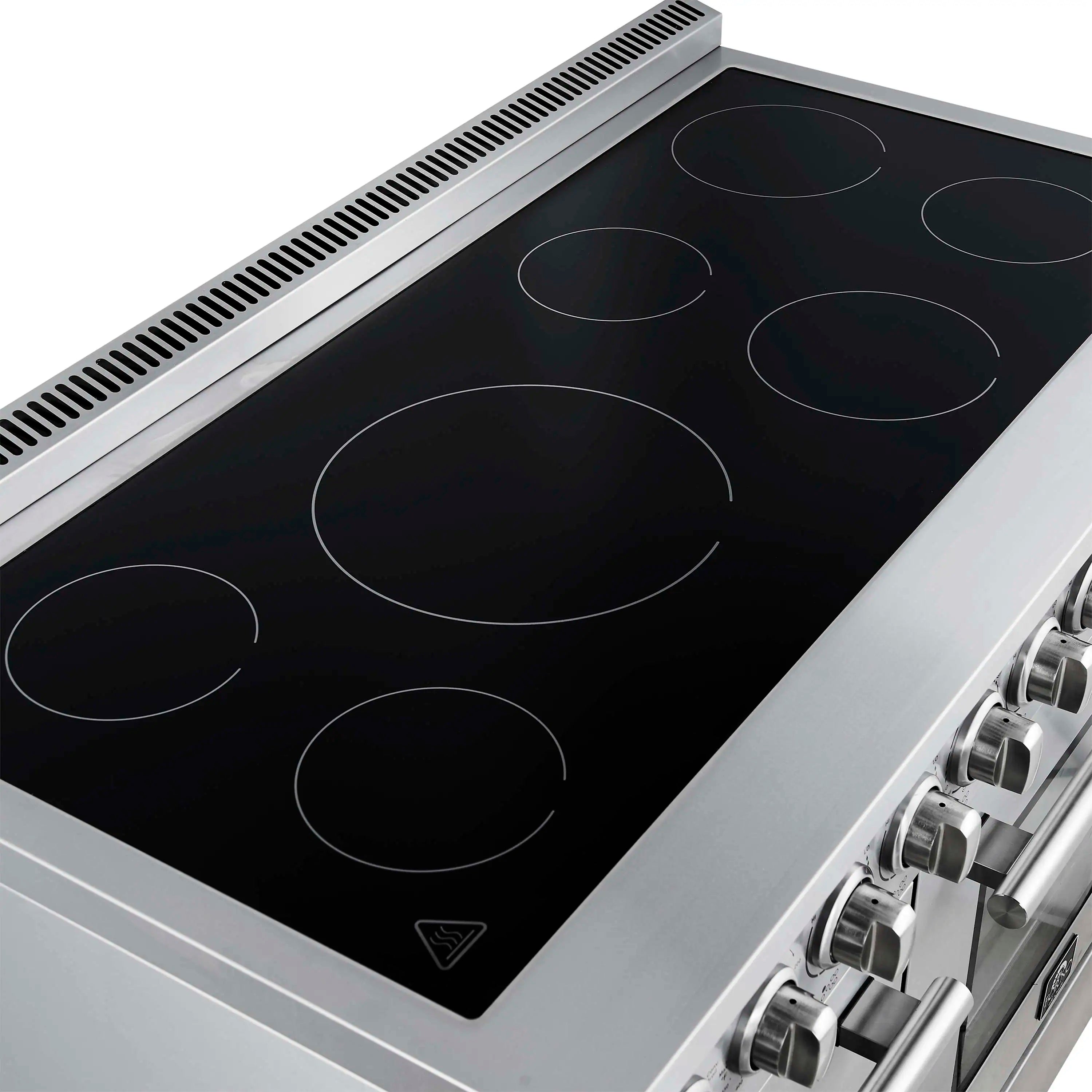

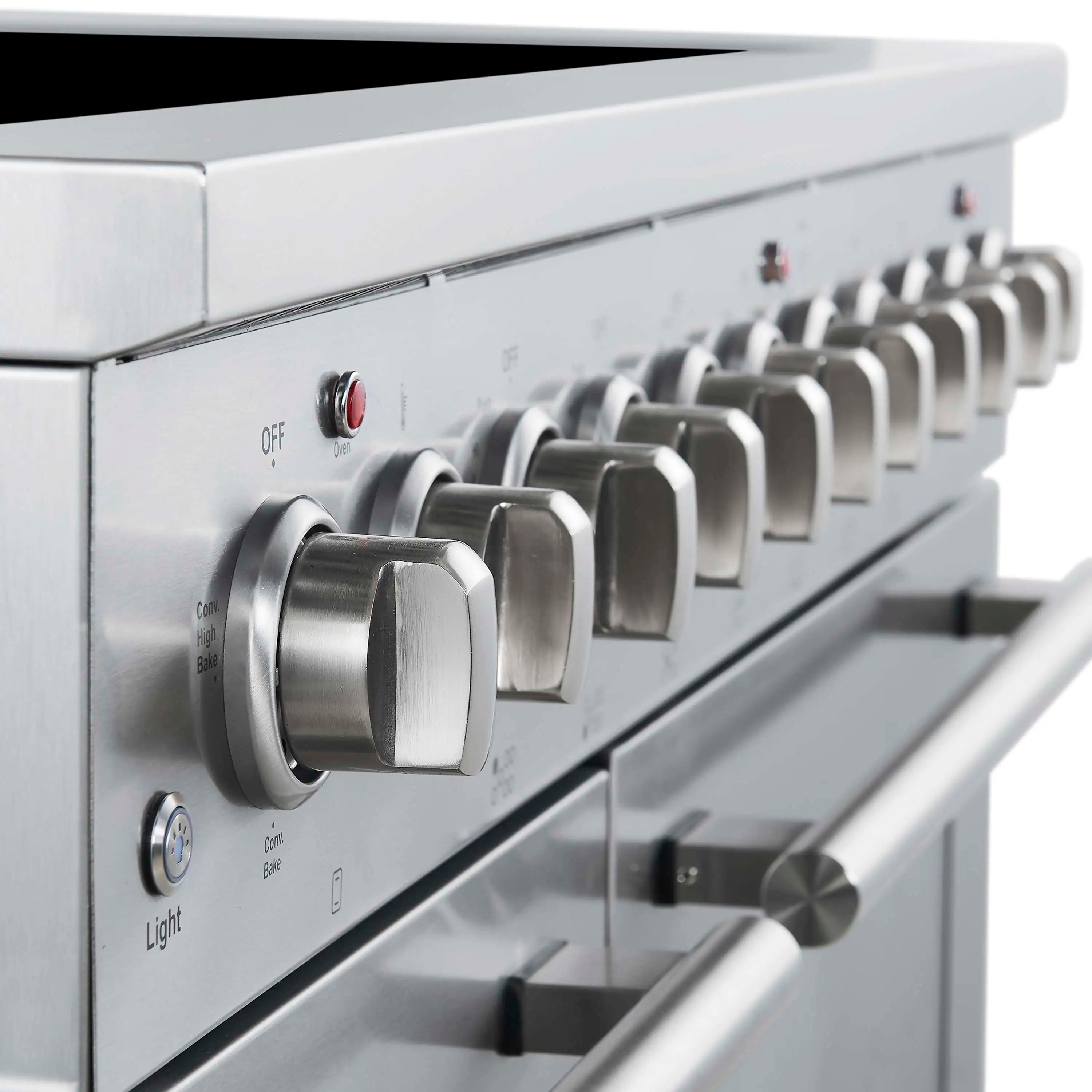

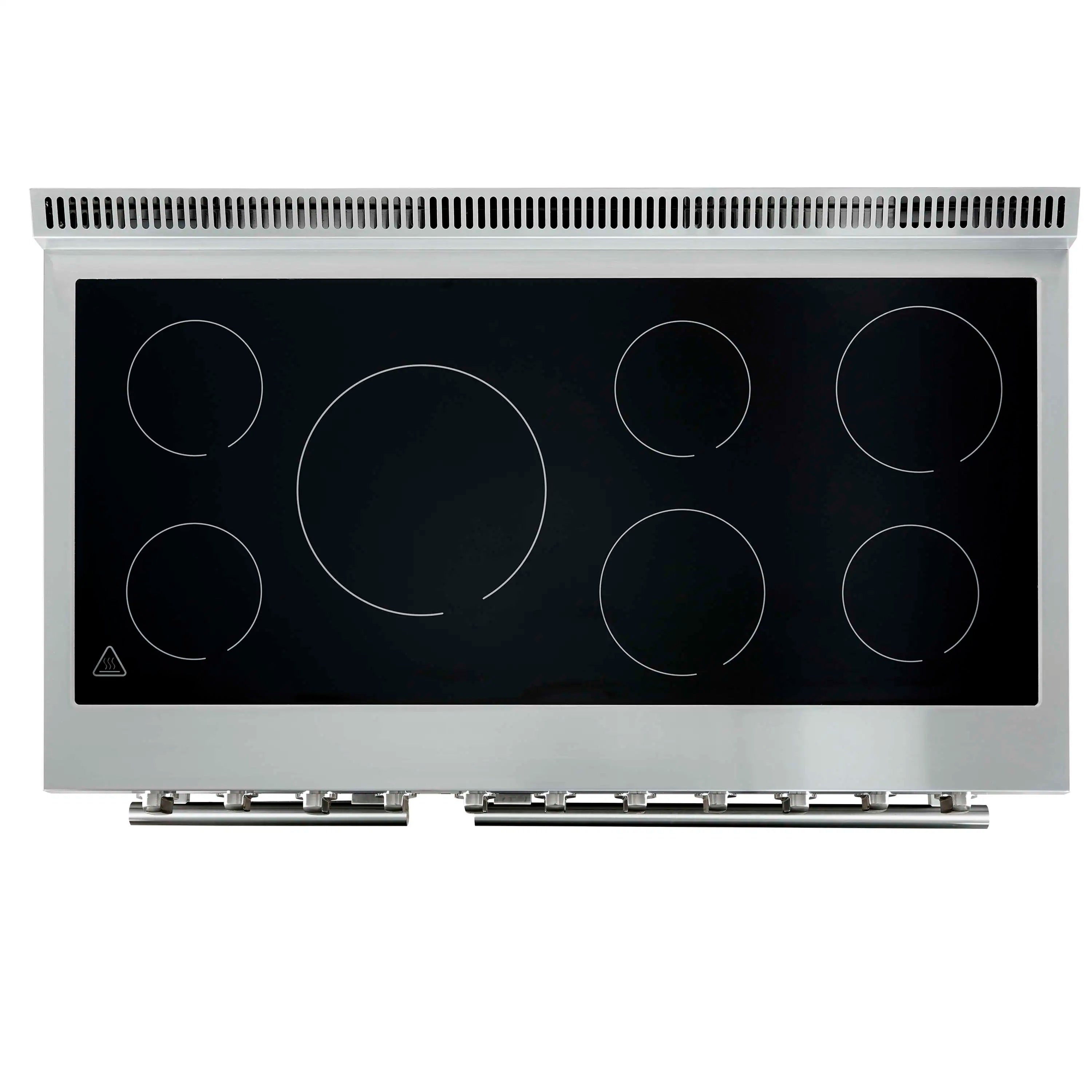

The Forno Paolo 48 Inch Electric Range in Stainless Steel combines power and style for the modern kitchen. Its smooth ceramic glass cooktop features seven radiant elements with 11,000 watts of total output. The total 6.70 cu. ft. true convection ovens deliver fast, even results with a 1,200 watt fan and 3,000 watt high-powered baking and broiling elements. A hidden bake element, bright halogen lights, and a large viewing window add convenience. This freestanding electric range also includes a 100 watt warming zone and dual-element broiler for precise, high-heat cooking.
| DIMENSIONS | |
|---|---|
| Product Dimensions W x D x H (inches) | 48 x 29 x 38 |
| Cutout dimensions W x D x H (inch) | 48.5 x 30 x 38 |
| Main Oven Usable Interior (W x H x D) | 24.4 x 15.35 x 11 |
| Product Weight (Lbs) | 395 |
| Second Oven Interior (W x D) (IN) | 12.6 x 15.35 |
| Second Usable Oven Interior (W x D x H) | 12.6 x 15.35 x 11 |
| Cabinet Material | Steel |
| DESIGN & FINISH | |
| Color | Silver |
| Finish | Stainless Steel |
| Color/Finish | Stainless Steel |
| Control Location | Front |
| Primary Material | Powder-coated Stainless Steel 430 |
| Control Panel Material | Stainless steel |
| Illuminated knob | No |
| Handle Color/Finish | Stainless Steel |
| TECHNICAL DETAILS | |
| Automatic Shut-Off | No |
| Power Cord Plug Type | NEMA 14-50P |

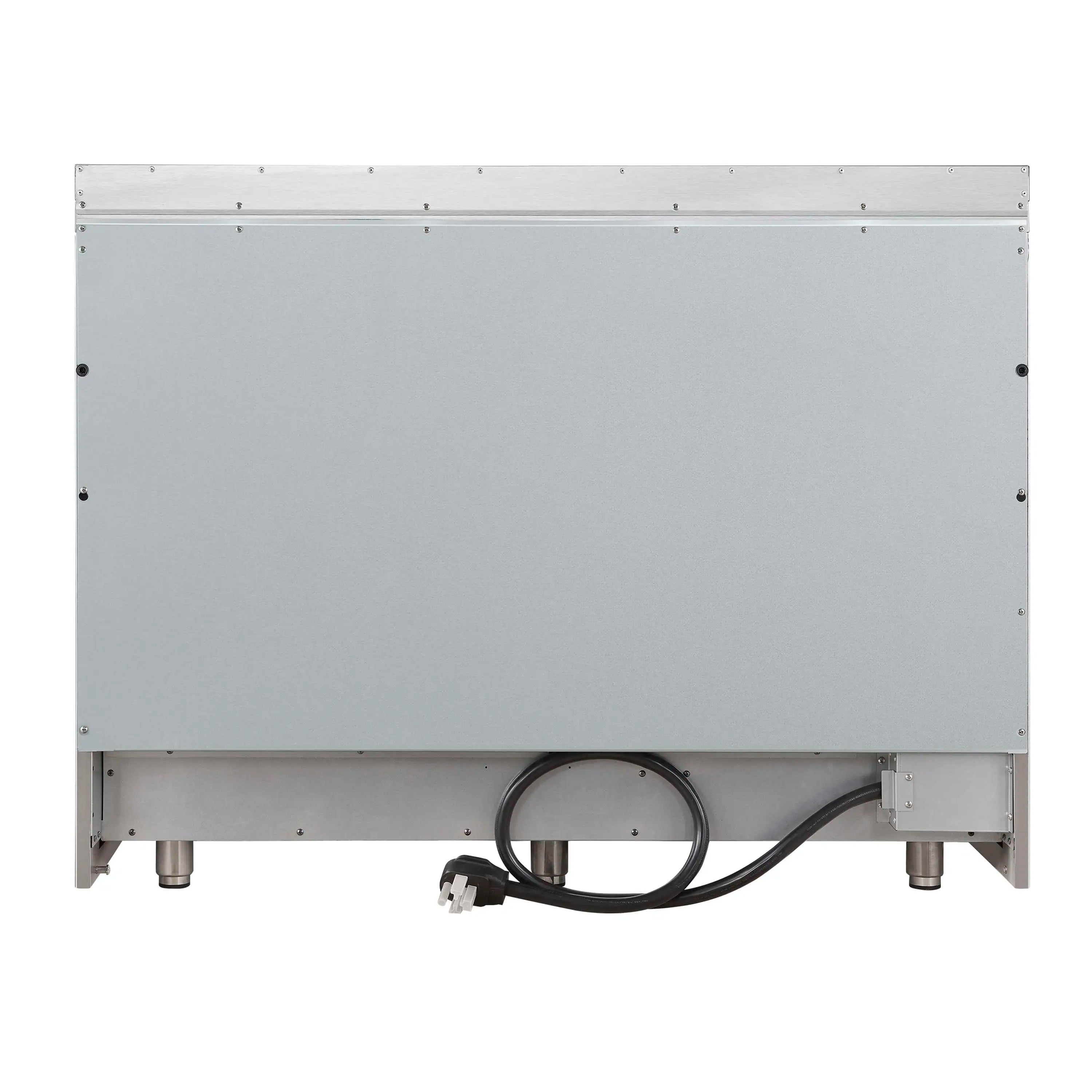

| Power Cord Location | Lower Back |
| COOKTOP FEATURES | |
| Burner Fuel | Electric |
| Cooking Surface Control Type | Knobs |
| Bake Element | Yes |
| Cooktop Hot Surface Indicator | Yes |
| OVEN FEATURES | |
| Double Oven Structure | Side-by-Side |
| Overall Capacity Cu. Ft. | 6.7 |
| Second Oven Capacity | 2.32 |
| Glide/Rollout Racks | No |
| Racks Material |
|
| Broiler | Yes |
| Automatic Convection Conversion | No |
| Second Oven Convection Fan | Yes |
| Second Oven Function | Convection Broil,Convection Bake,Convection High Bake |
| Second Oven Overall Wattage | 3000 |
| Second Oven Broil Wattage | 1500 |
| Second Oven Bake Wattage | 1500 |
| Warmer Drawer | No |
| Timer | No |
| Overall Oven Wattage | 9000 |
| Convection Oven | Yes |
| Overall True Convection Wattage | 1200 |
| Cook time Option | No |

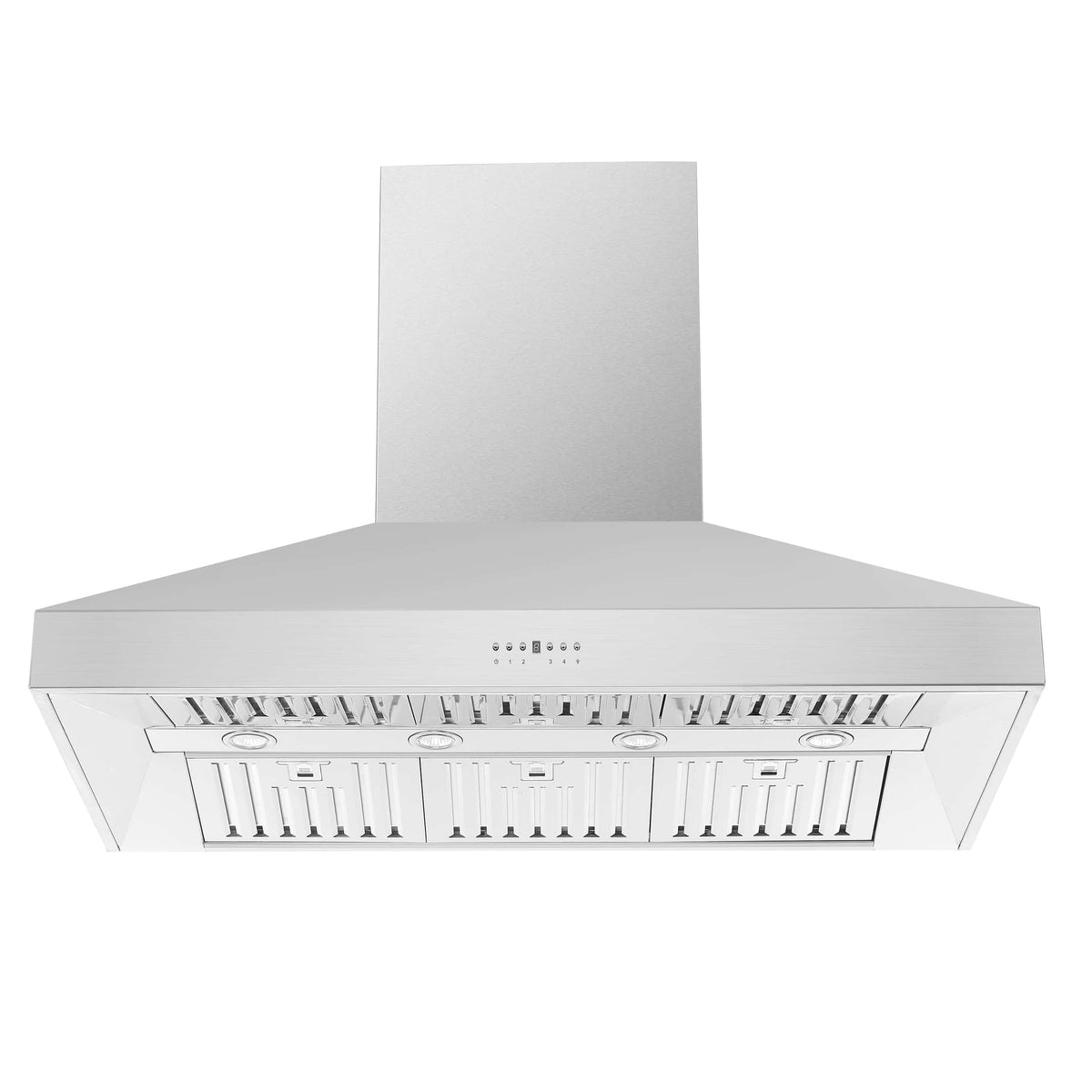

This 48 Inch Wall-Mounted Range Hood in stainless steel is designed for high-performance kitchen ventilation. With a powerful 1200 CFM motor and 4-speed fan control, it removes smoke, grease, and cooking odors. Designed for ducted installation, the vertical upward air discharge ensures efficient airflow, while features like automatic shut-off, a built-in timer, and removable charcoal filters make it convenient to use and maintain. The included chimney extension kit and decorative crown molding allow for a custom, built-in look. Quiet operation at just 68 dB with built-in lighting for better visibility while cooking.
| DIMENSIONS | |
|---|---|
| Product Dimensions W x D x H (inches) | 47.2 x 23.6 x 44.5 |
| Cutout dimensions W x D x H (inch) | 48 x 11.6 x 44.5 |
| Minimum Height from Cooktop | 30 |
| GENERAL INFORMATION | |
| Bulb Type | LED GU10 |
| Exhaust Vent Location | Roof / Wall |
| DESIGN & FINISH | |
| Color/Finish | Stainless Steel |
| Control Location | Under |
| Primary Material | Stainless Steel |
| Remote Control | No |

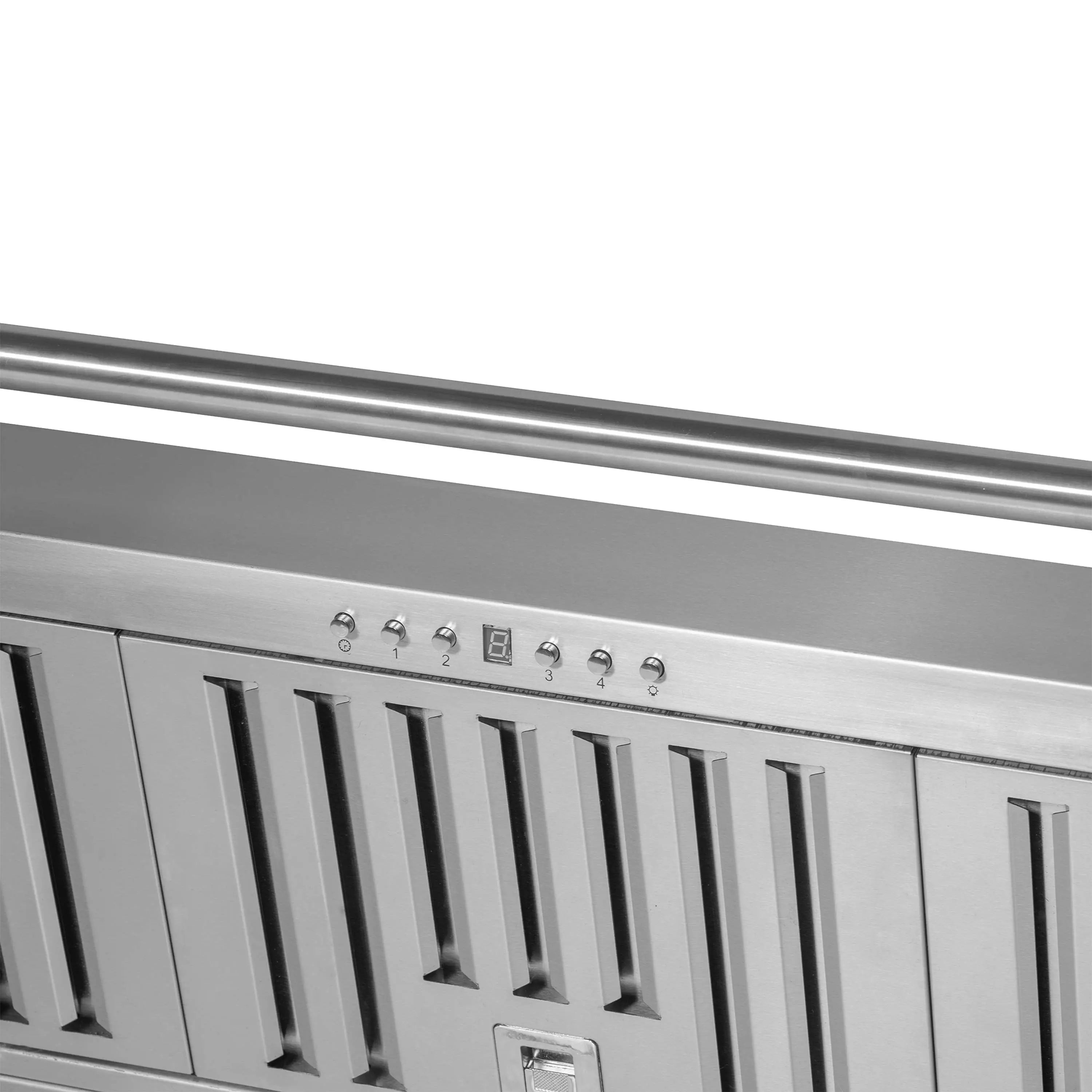

| Speed Control Type | Push Button Control |

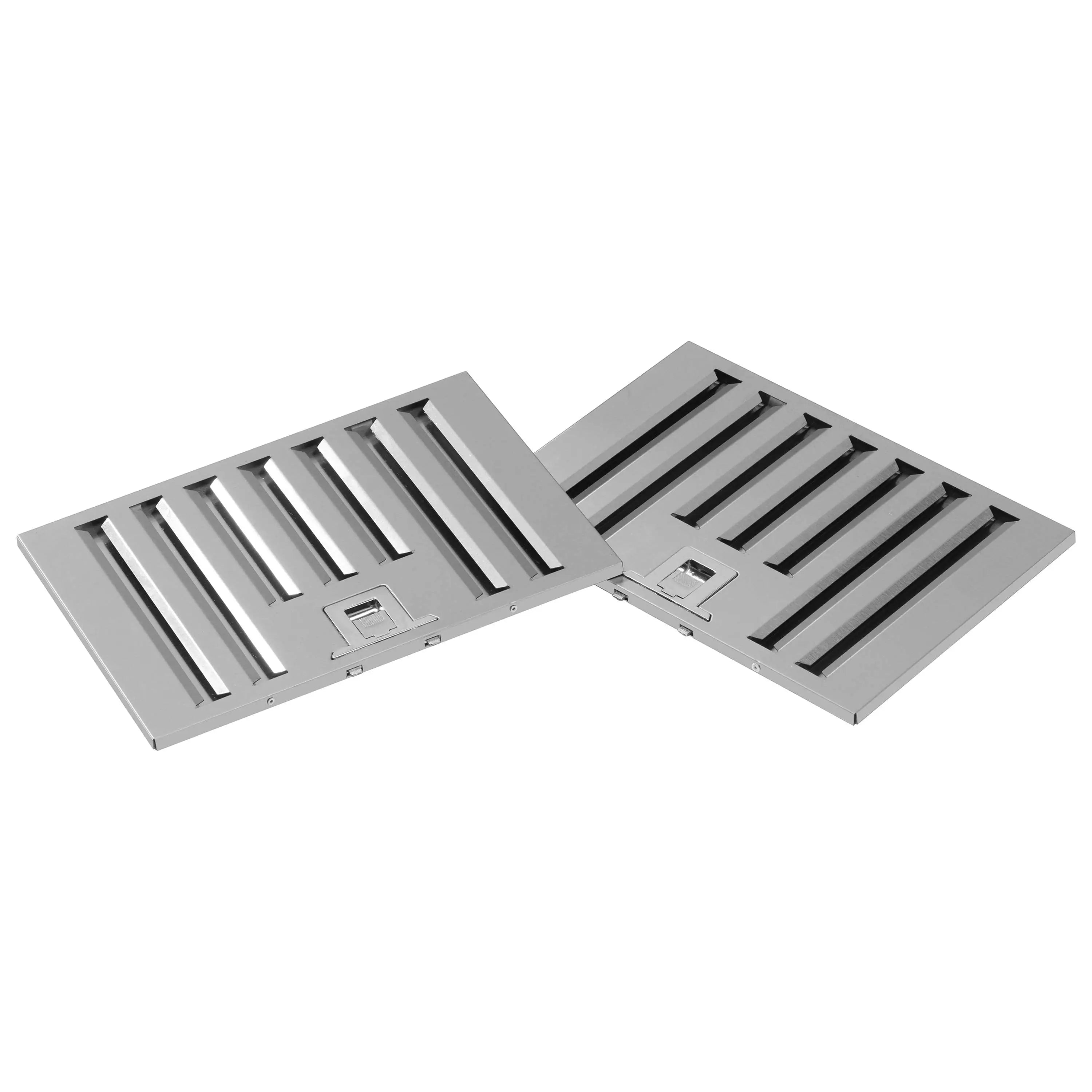

| Filter Material | Stainless Steel |
| TECHNICAL DETAILS | |
| Decibel Speed 3 (dB) | 60 |
| Decibel Speed 1 (dB) | 48 |
| Motor(s) Power (Watts) | 60 |
| Sones Speed 4 | 16 |
| Sones Speed 2 | 6 |
| Minimum Sones | 2 |
| RPM Speed 4 | 1510 |
| RPM Speed 2 | 1050 |
| Air Flow Speed 4 | 2038 |
| Air Flow Speed 2 | 1274 |
| CFM speed 4 | 1200 |
| CFM speed 2 | 750 |
| Power off Function | Yes |
| Duct Type | 10-in Round |
| Damper | Yes |
| Blower Material | Metal |
| Power Cord Location | Top |
| Decibel Speed 4 (dB) | 68 |
| Decibel Speed 2 (dB) | 53 |
| Bulb Wattage | 2 |
| Duct length (inch) | 59 |
| Maximum Decibel (dB) | 68 |
| Sones Speed 3 | 11 |
| Sones Speed 1 | 2 |
| Maximum Sones | 16 |
| RPM Speed 3 | 1350 |
| RPM Speed 1 | 880 |
| Air Flow Speed 3 | 1614 |
| Air Flow Speed 1 | 935 |
| CFM speed 3 | 950 |
| CFM speed 1 | 550 |
| Maximum CFM | 1200 |
| FEATURES | |
| Range Hood Shape | Pyramid |
| Number of Lights | 4 |
| Chimney Short Kit | Yes |
| Rangehood Chimney | Yes |
| Backsplash Included | No |
| Air Discharge Direction | Vertically Upward |
| Charcoal Filters | Yes |
| Fingerprint-Resistant | No |
| Dishwasher Safe Filters | Yes |
| Clock | No |
| Clean Filter Alert | No |
| Number of light settings | 1 |

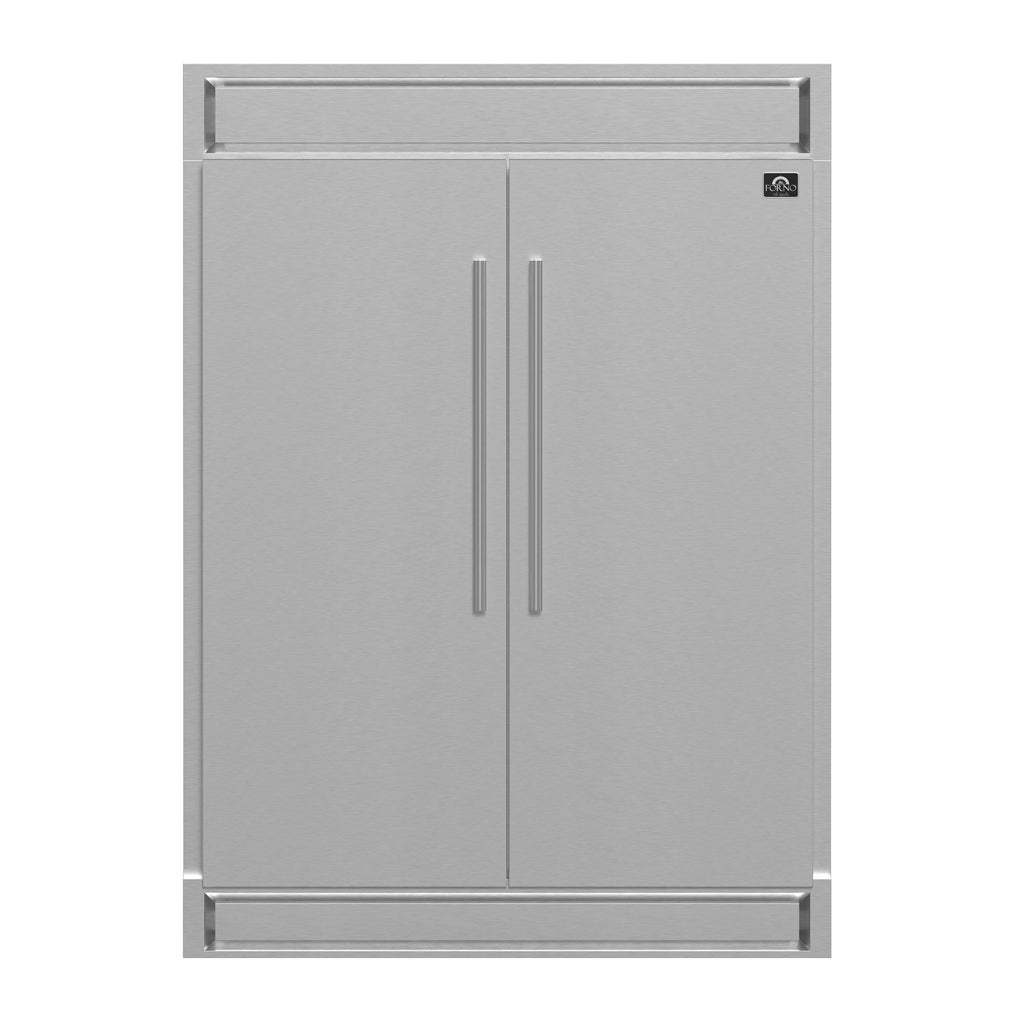

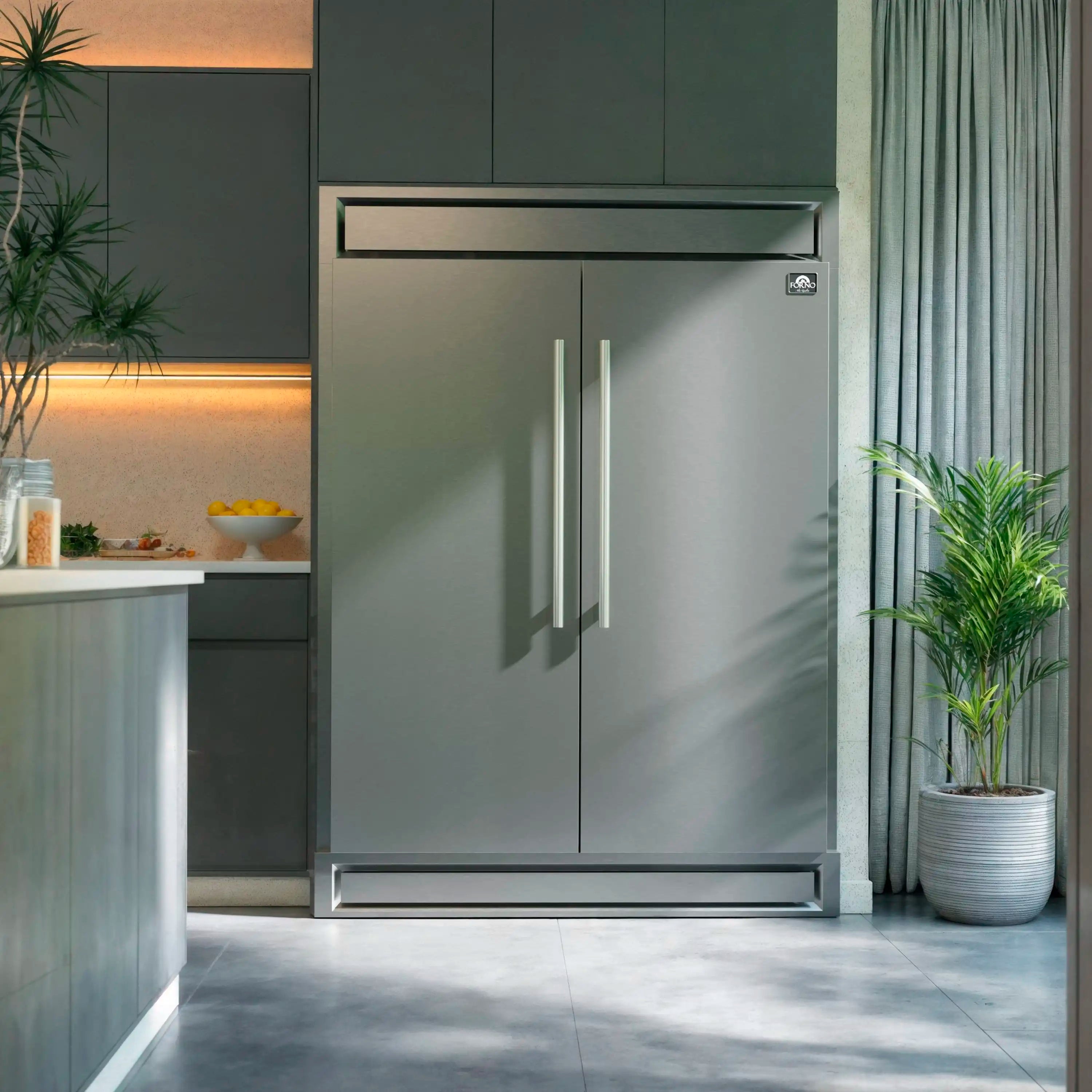

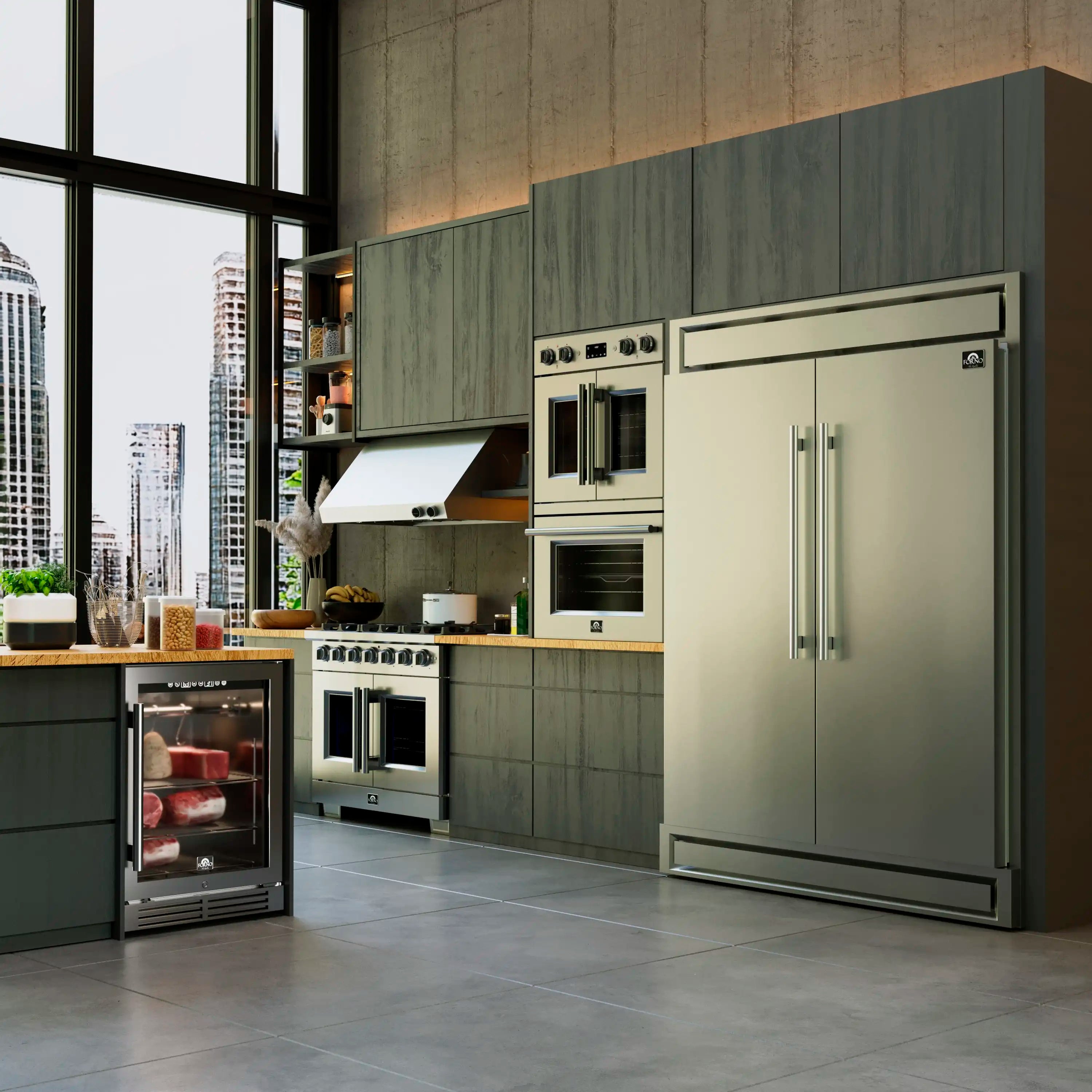

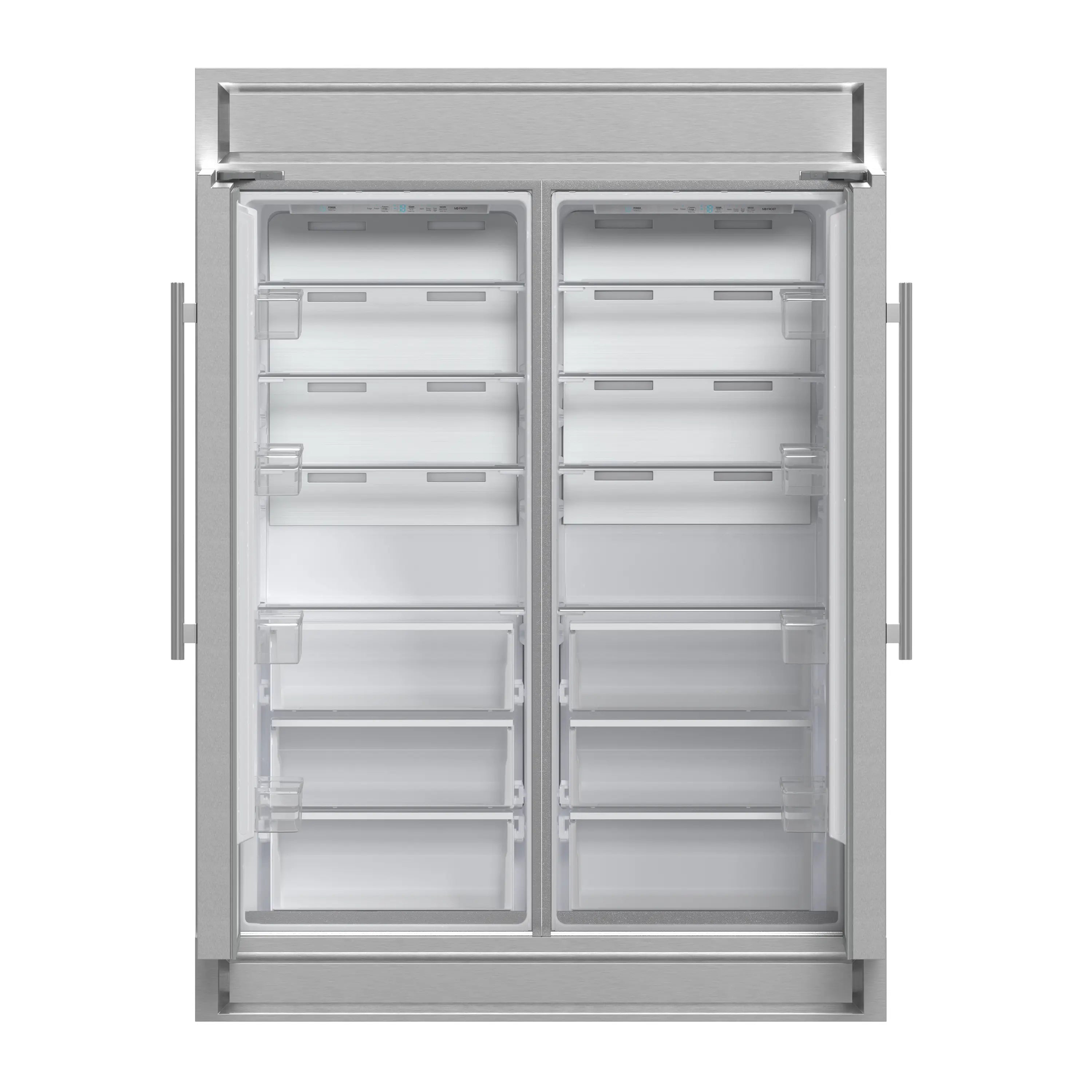

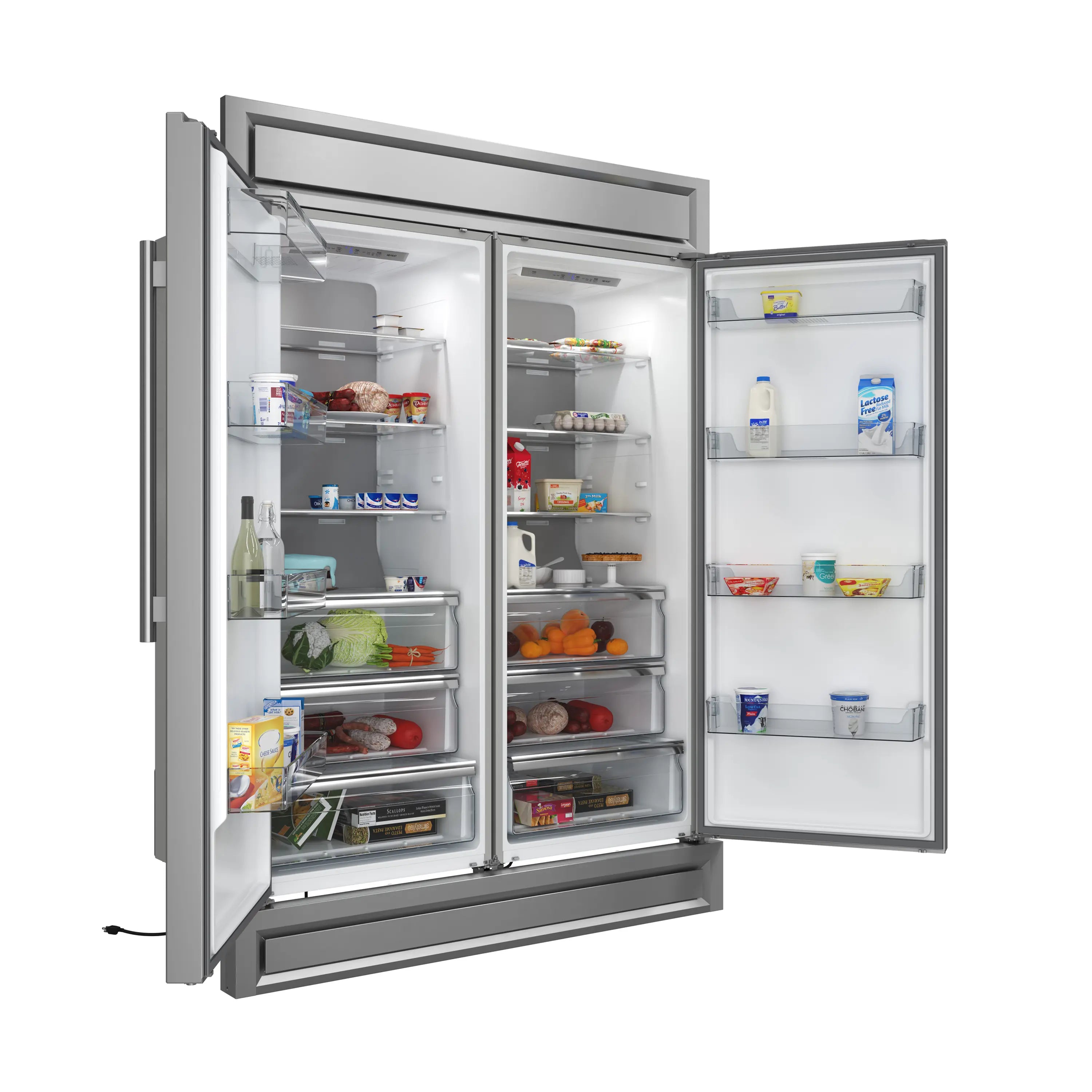

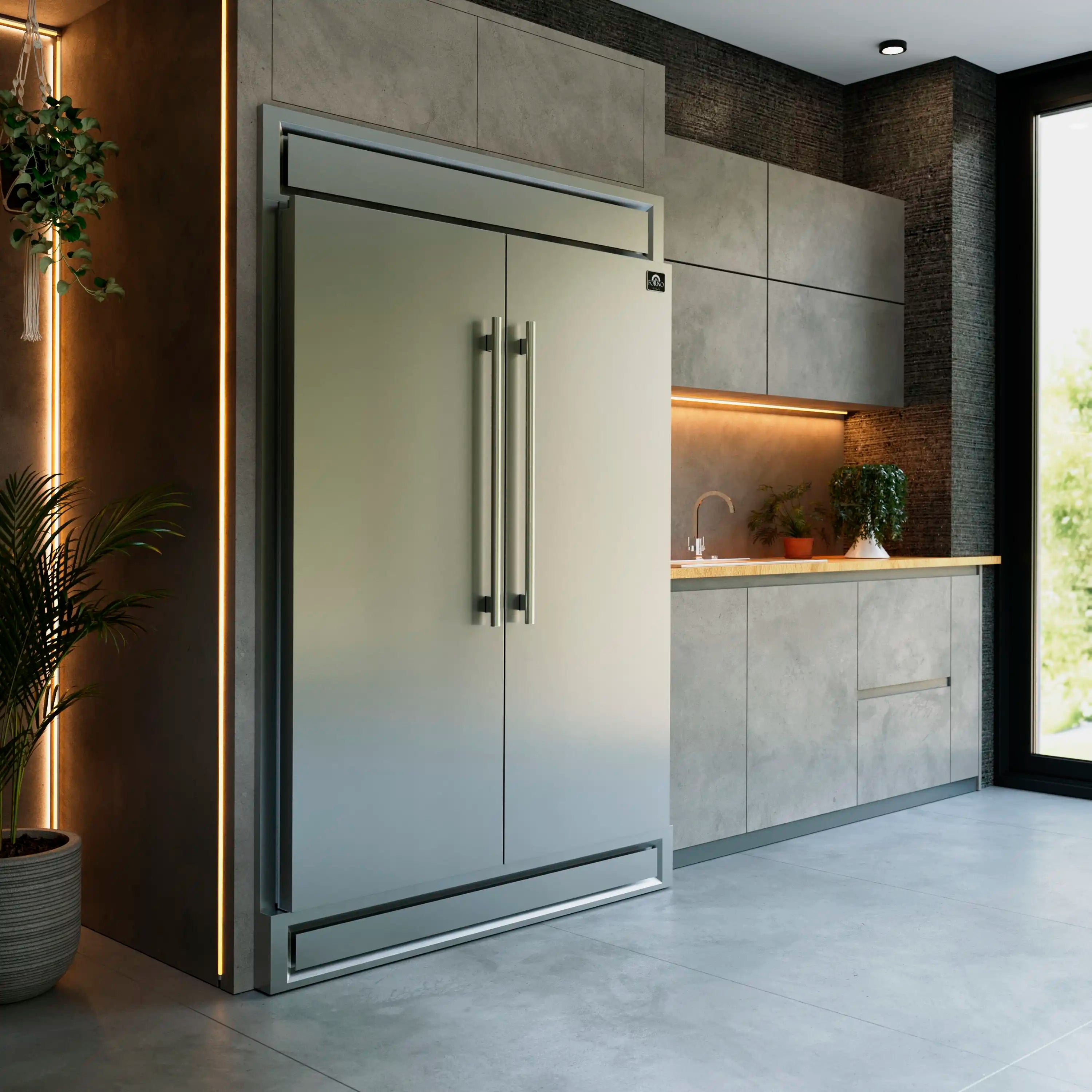

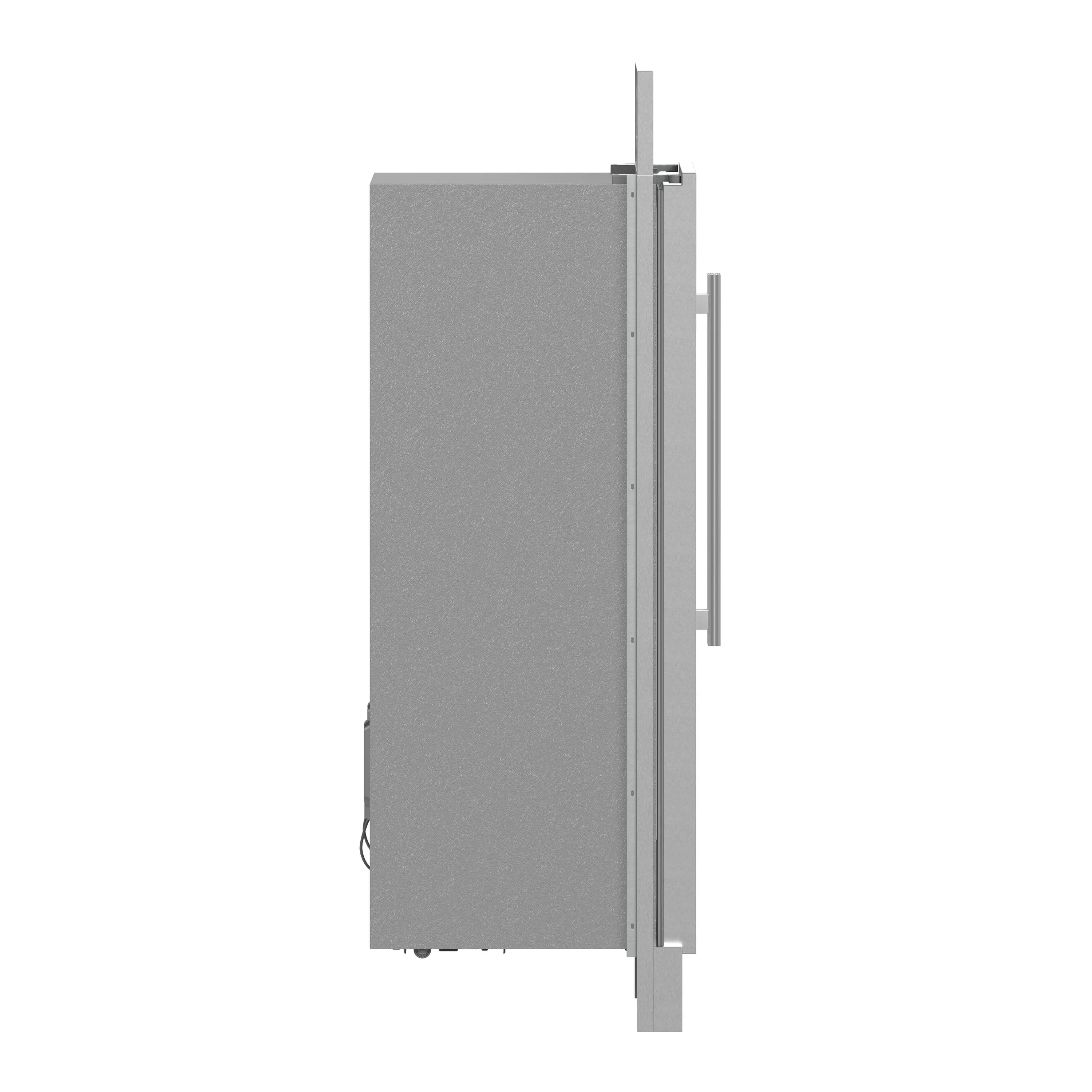

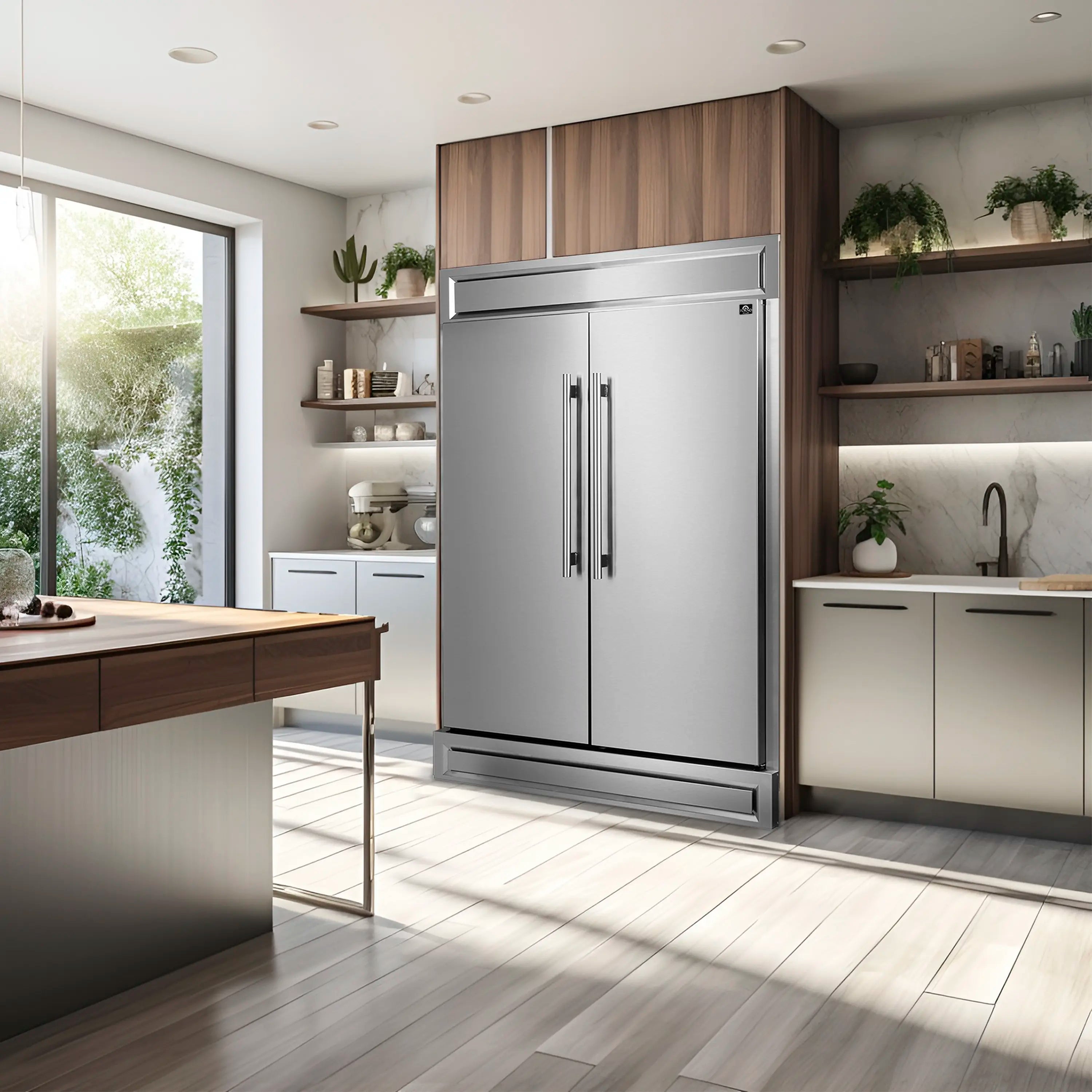

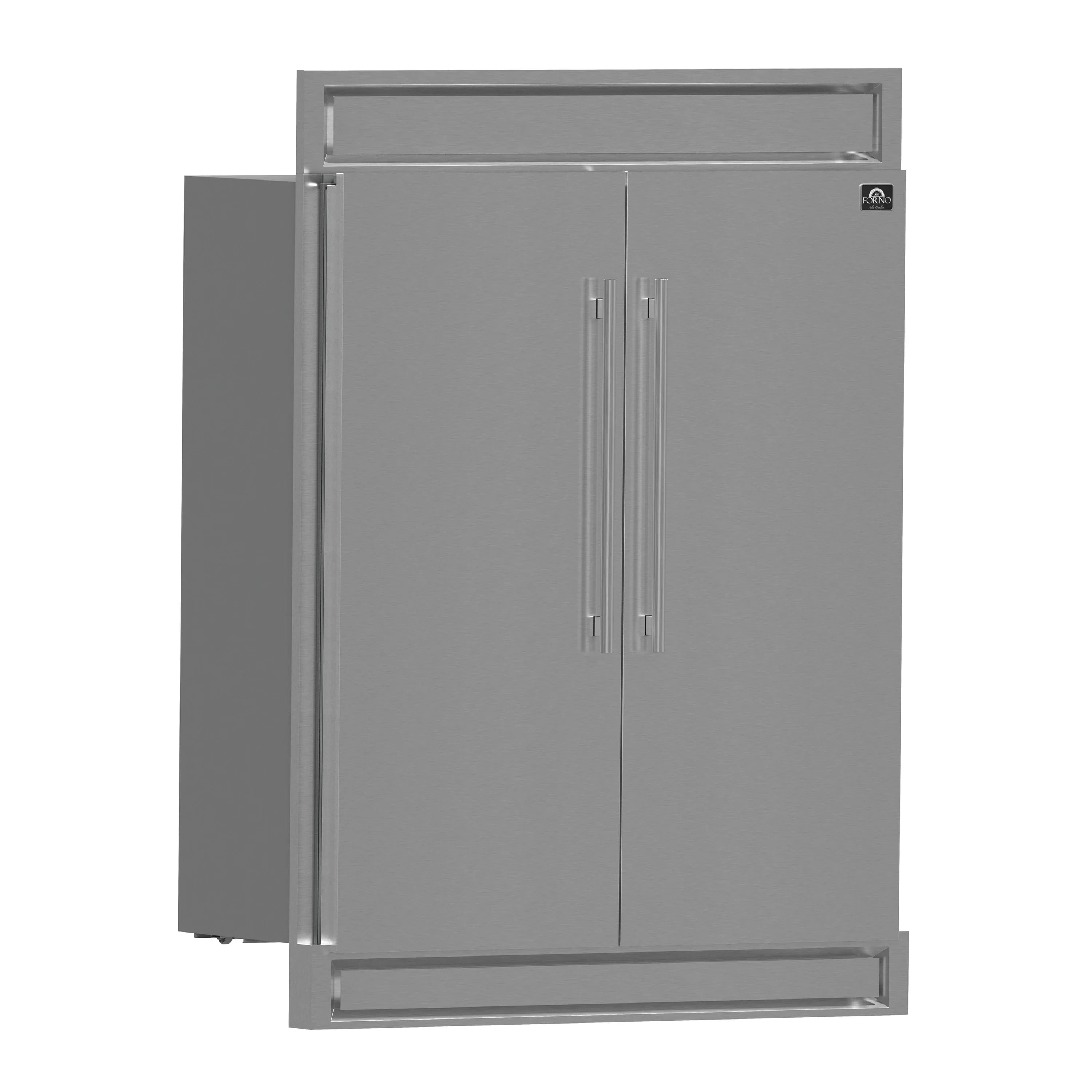

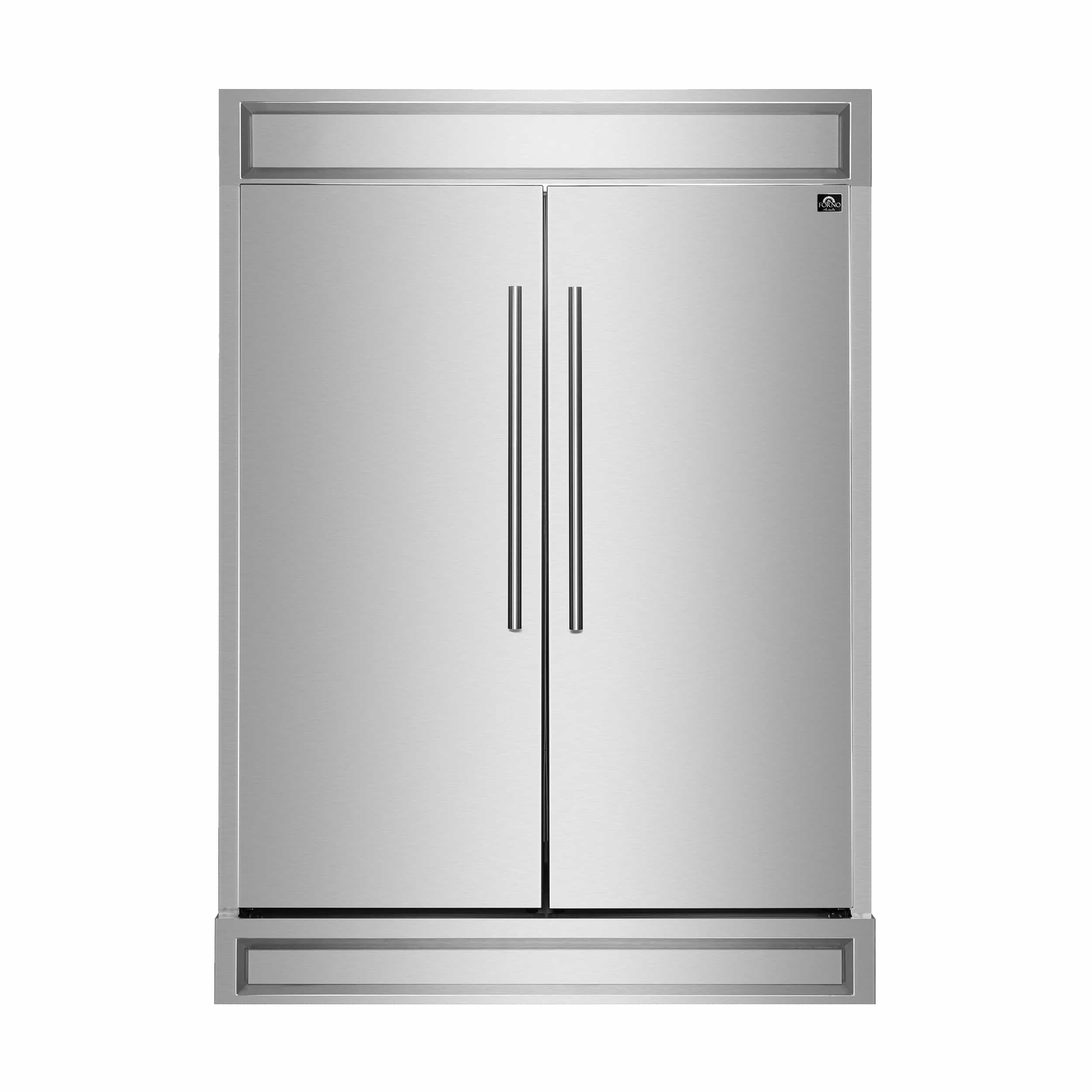

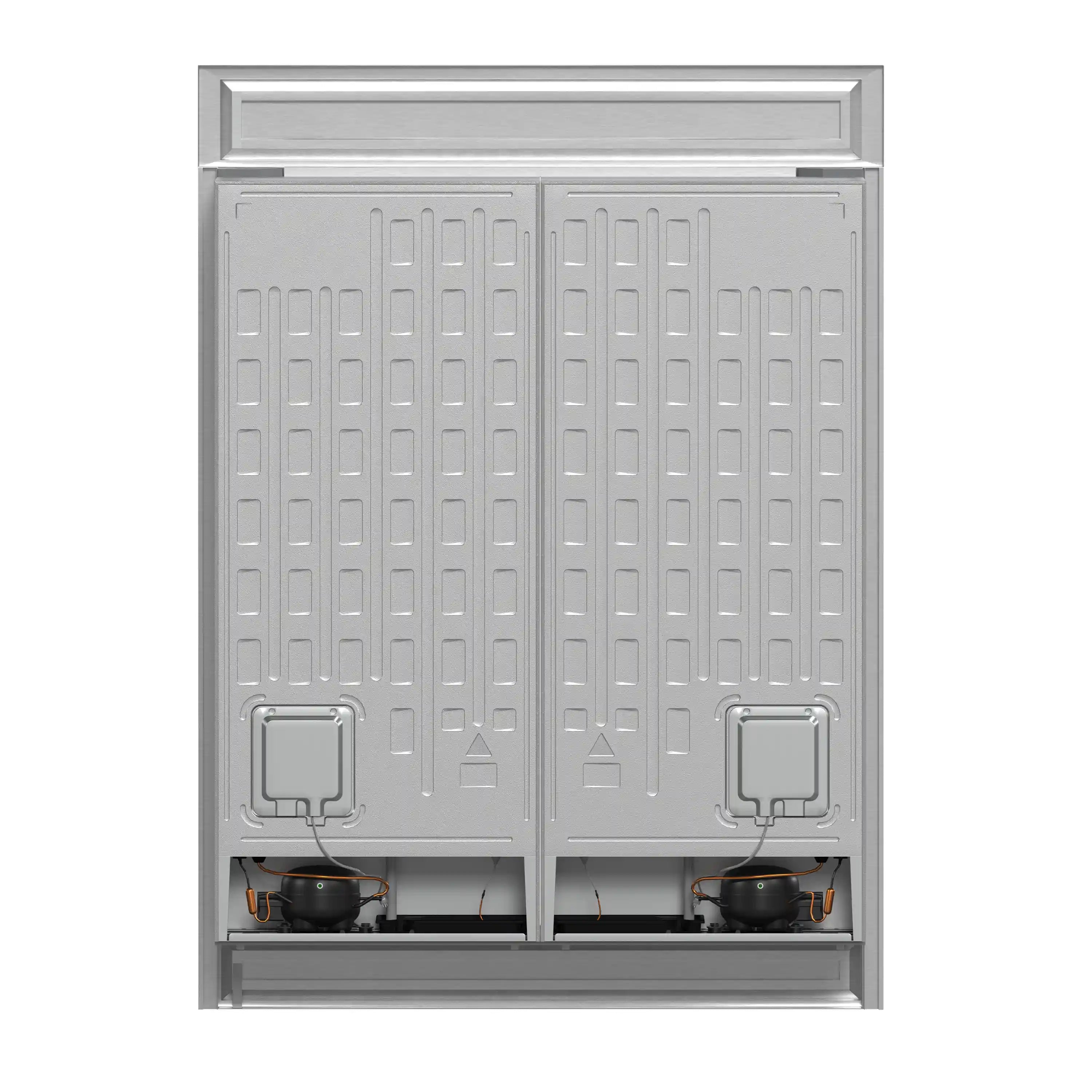

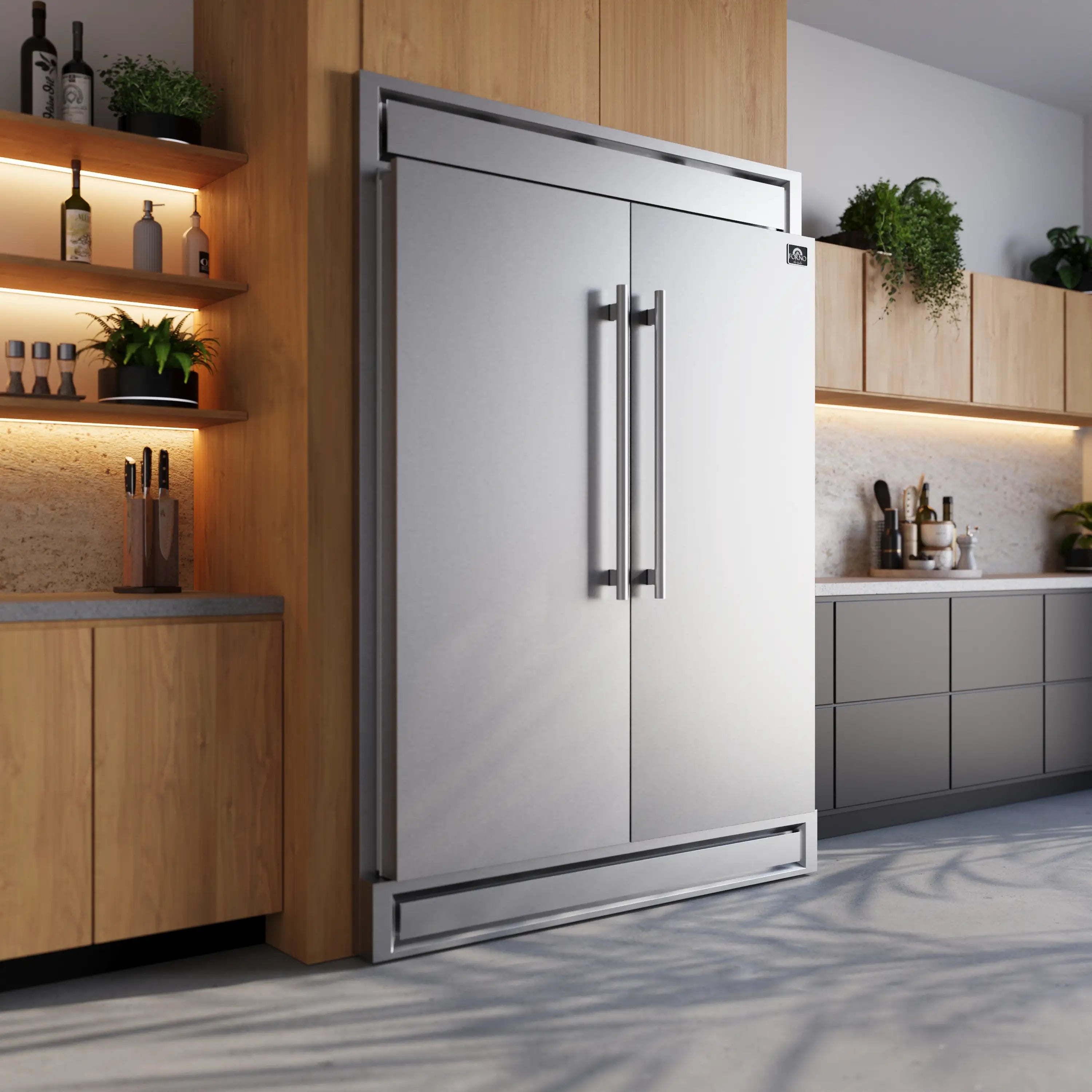

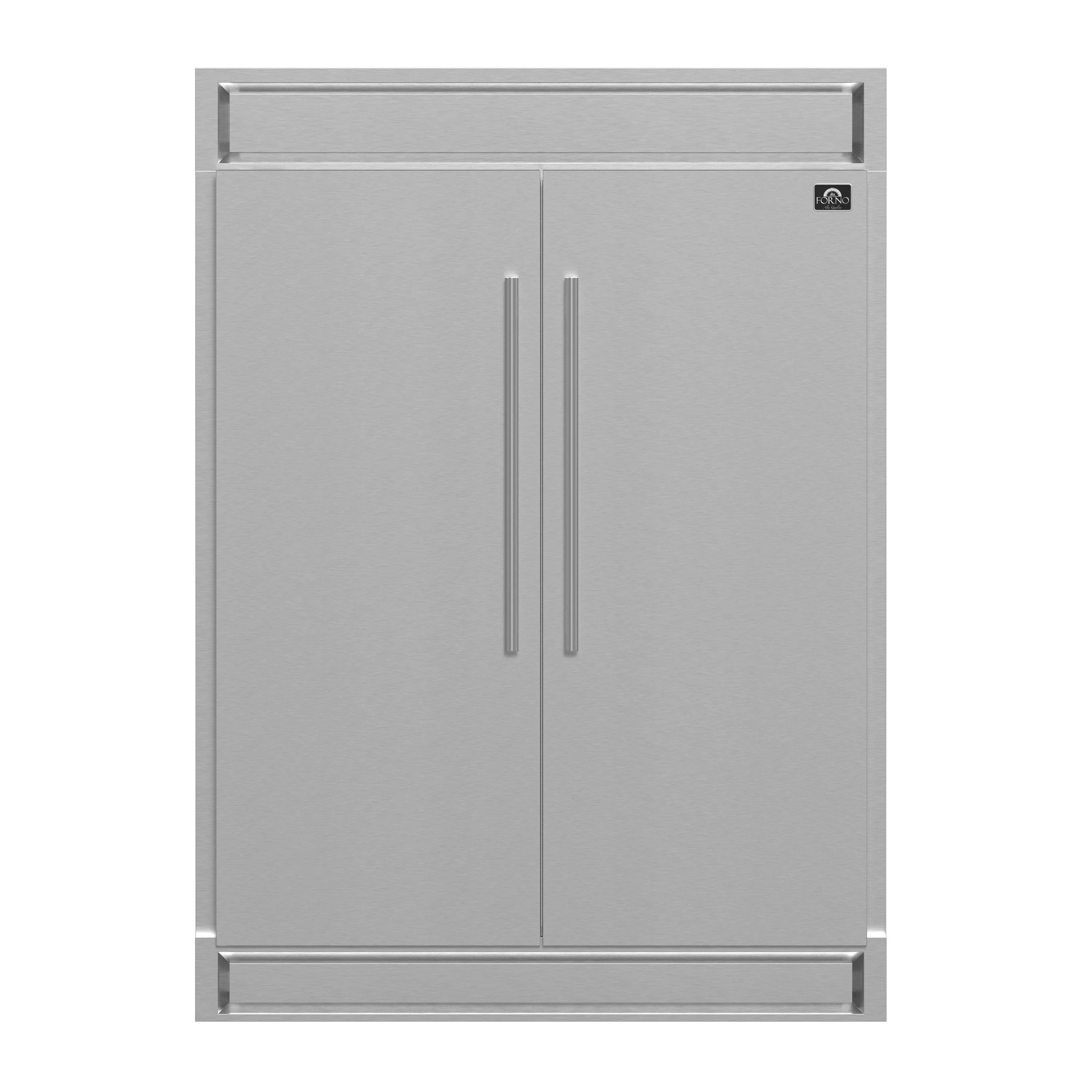

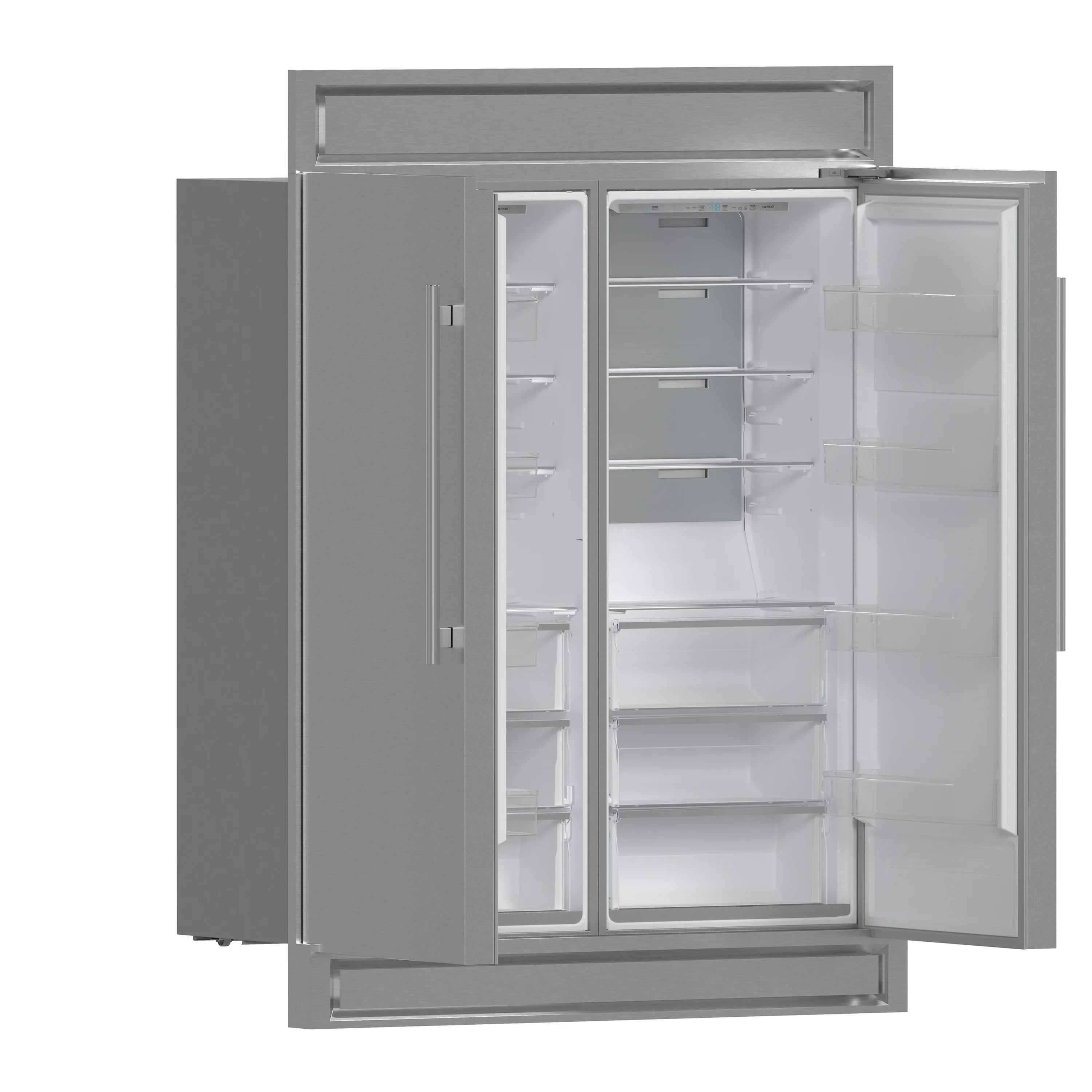

The Forno Maderno combines two 28 Inch refrigerators with decorative trim grille, extending to a 60 Inch width for a built-in appearance, harmoniously blending style with convenience. This combo offers ample storage space totaling 27.2 cu.ft. They feature customizable cooling with convertible function and total no frost technology, eliminating tedious defrosting.

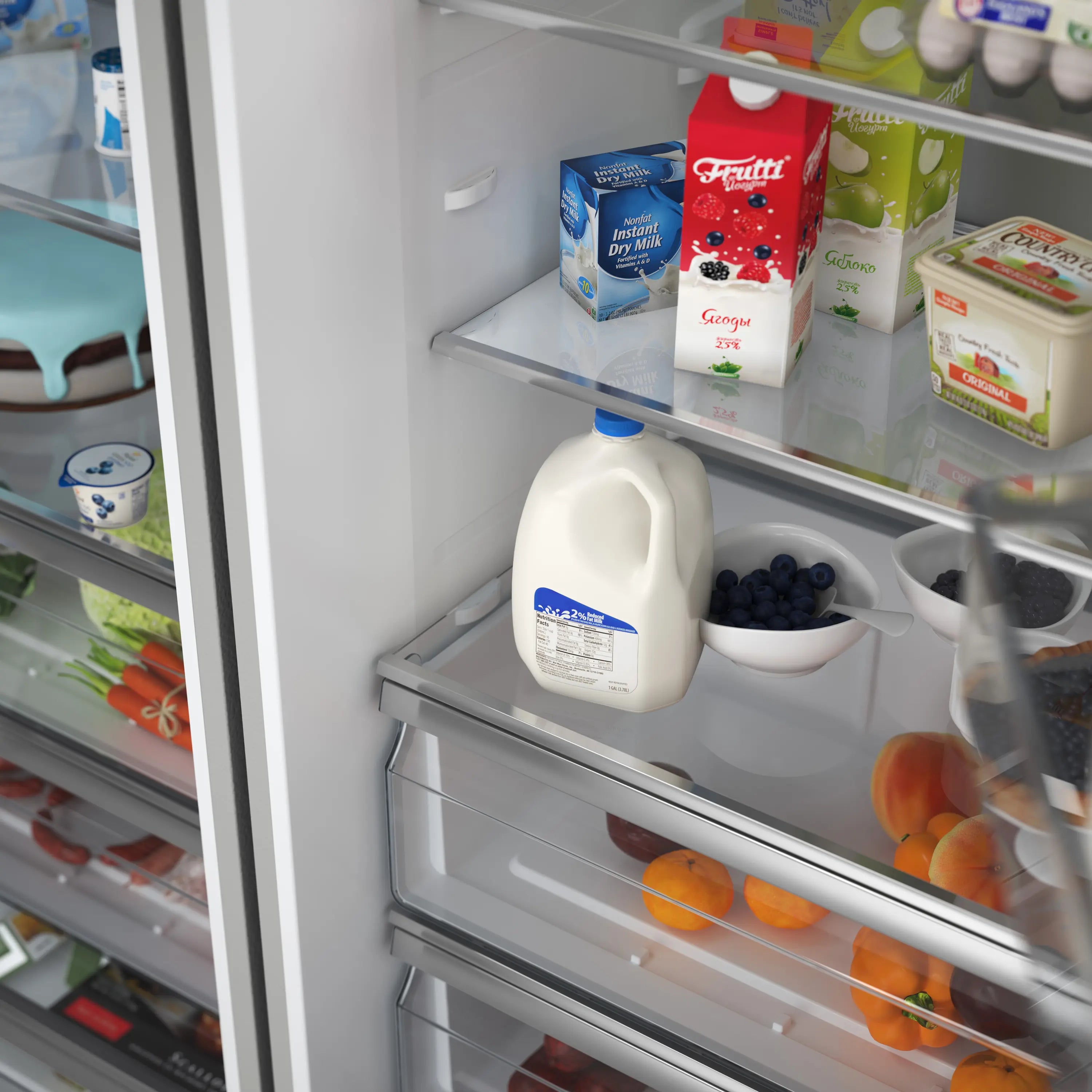

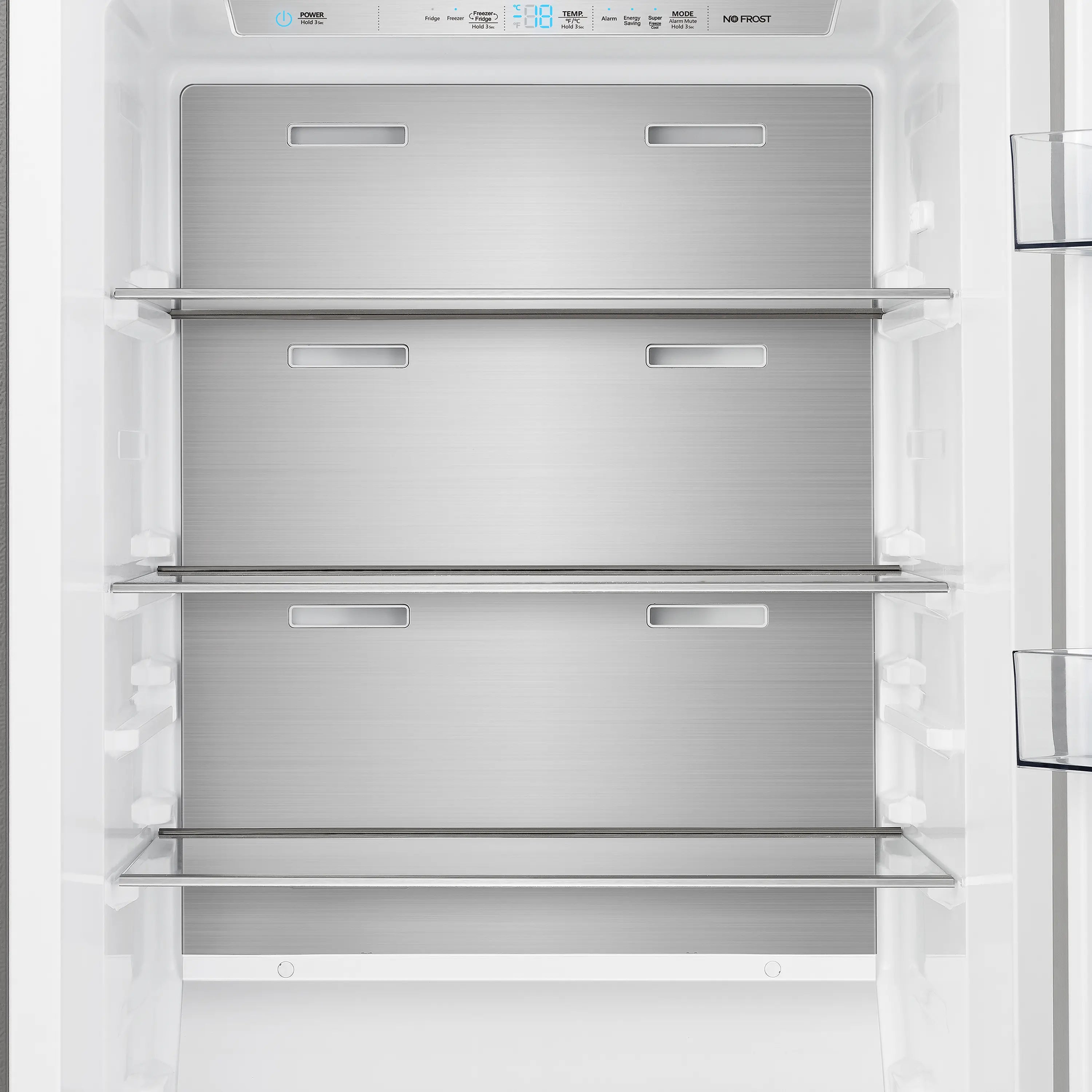

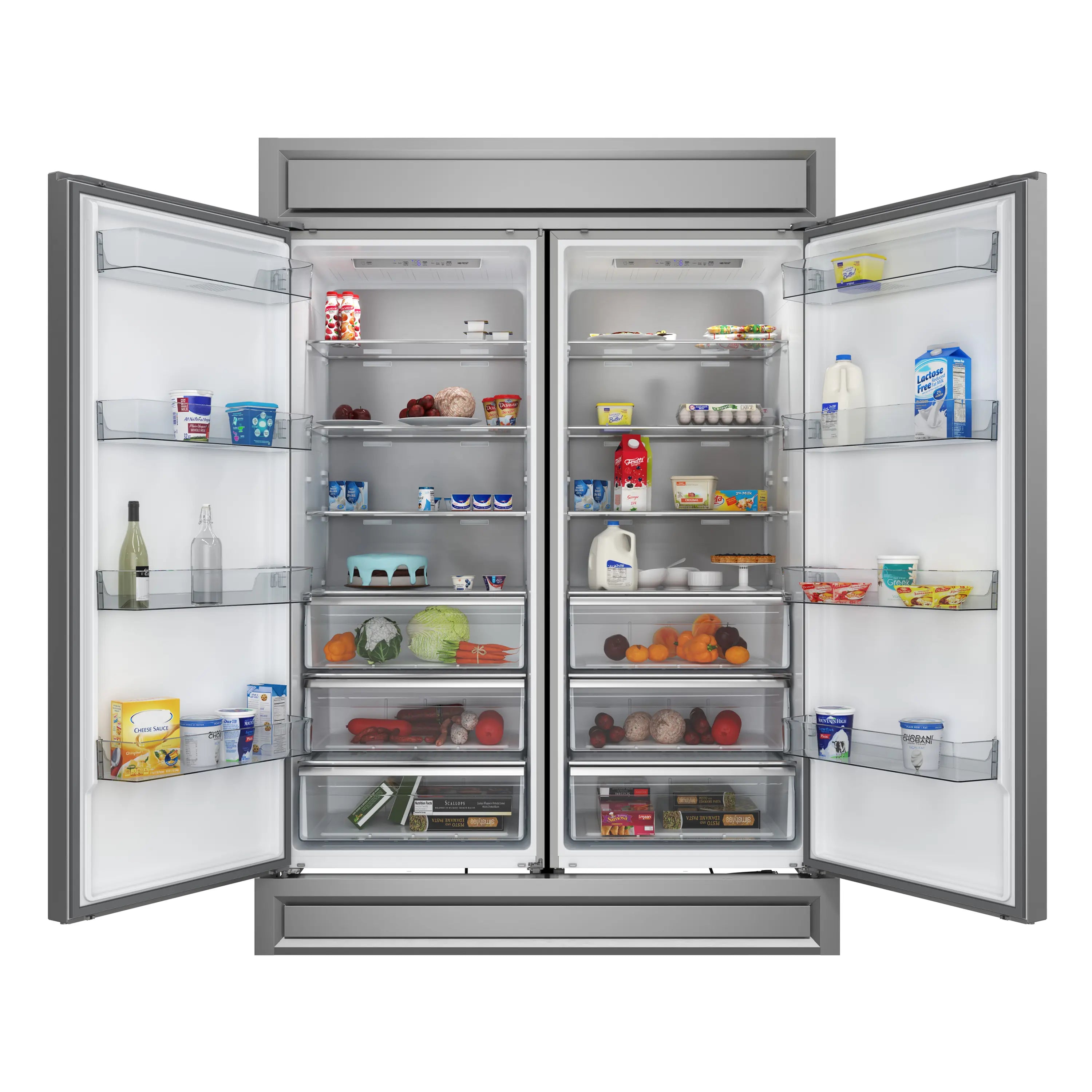

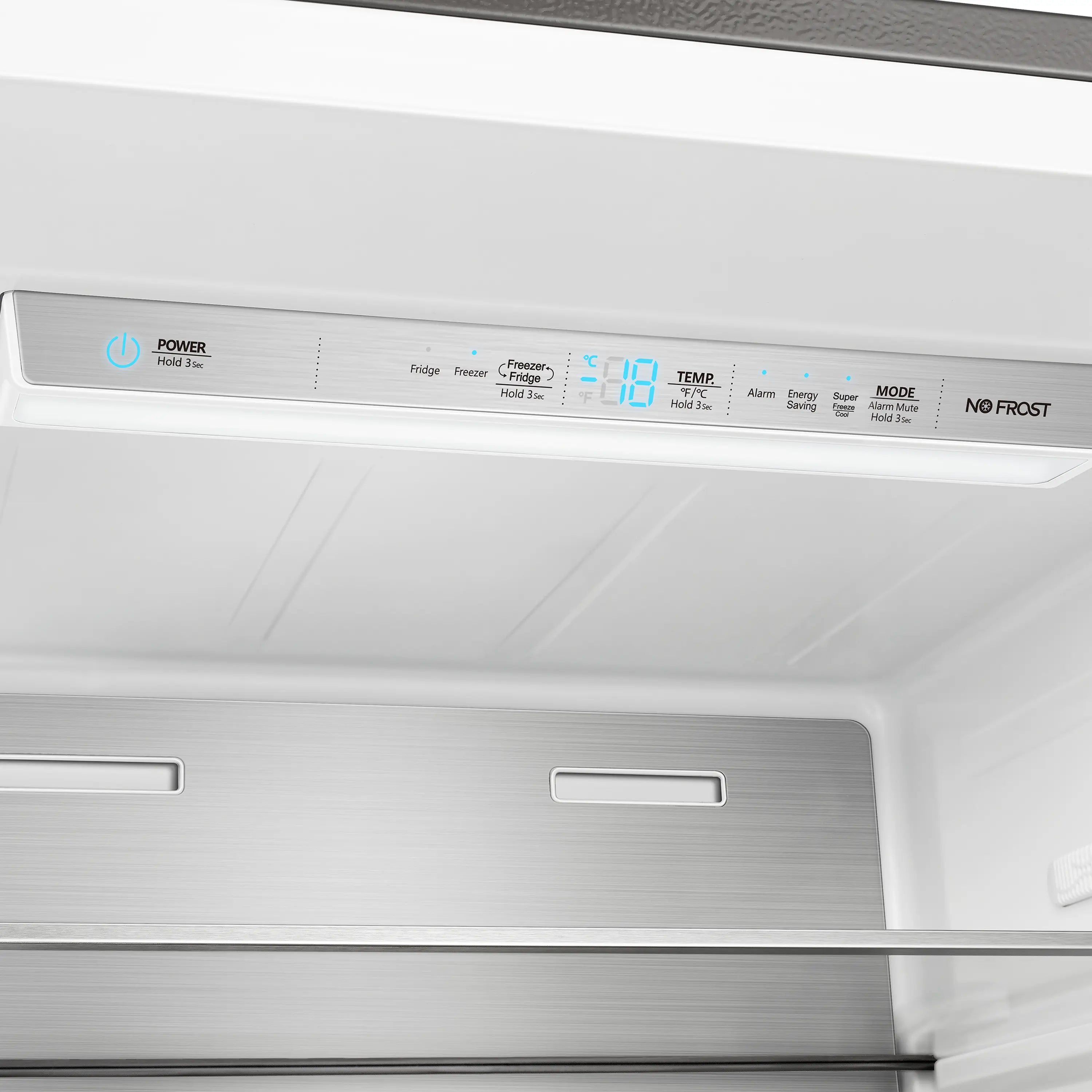

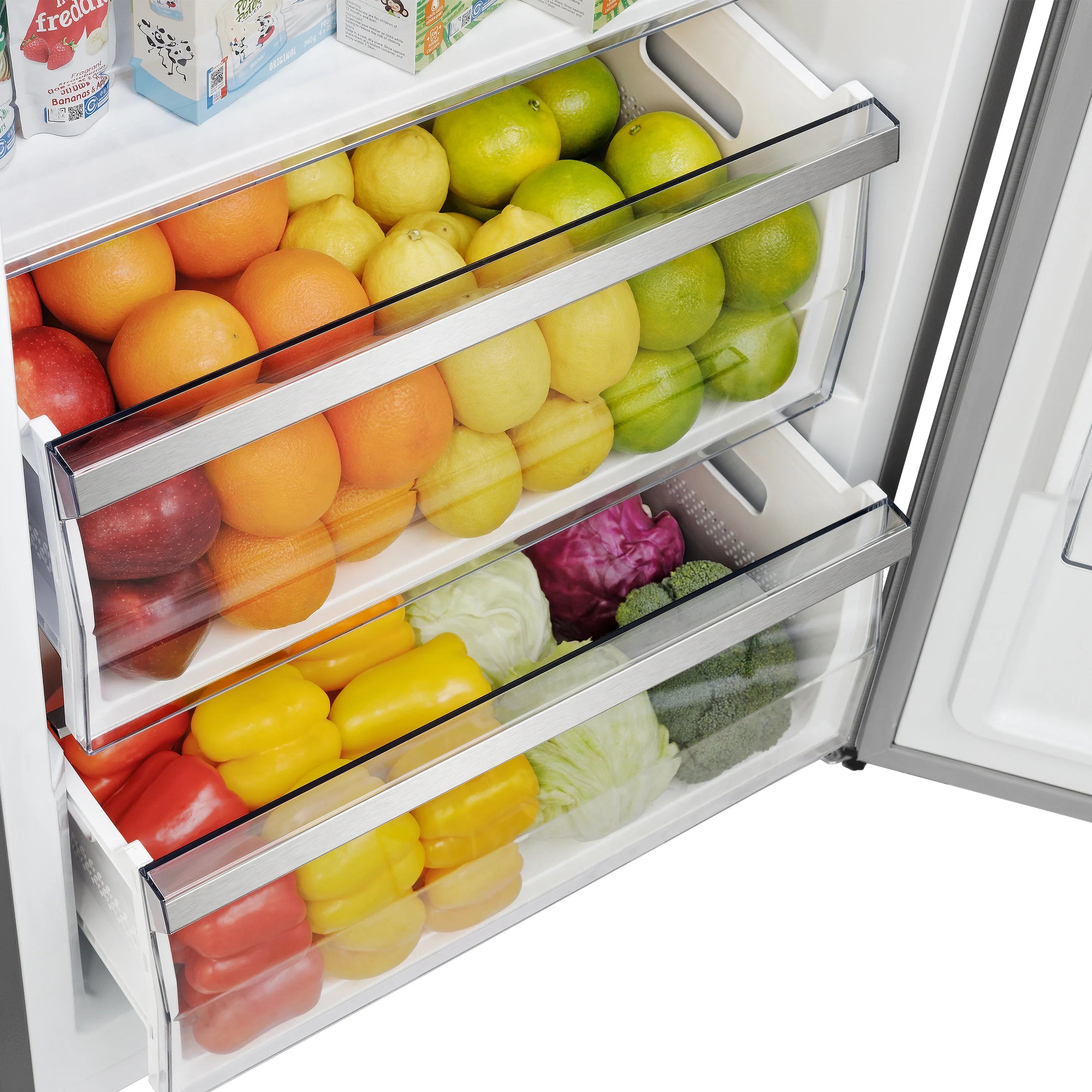

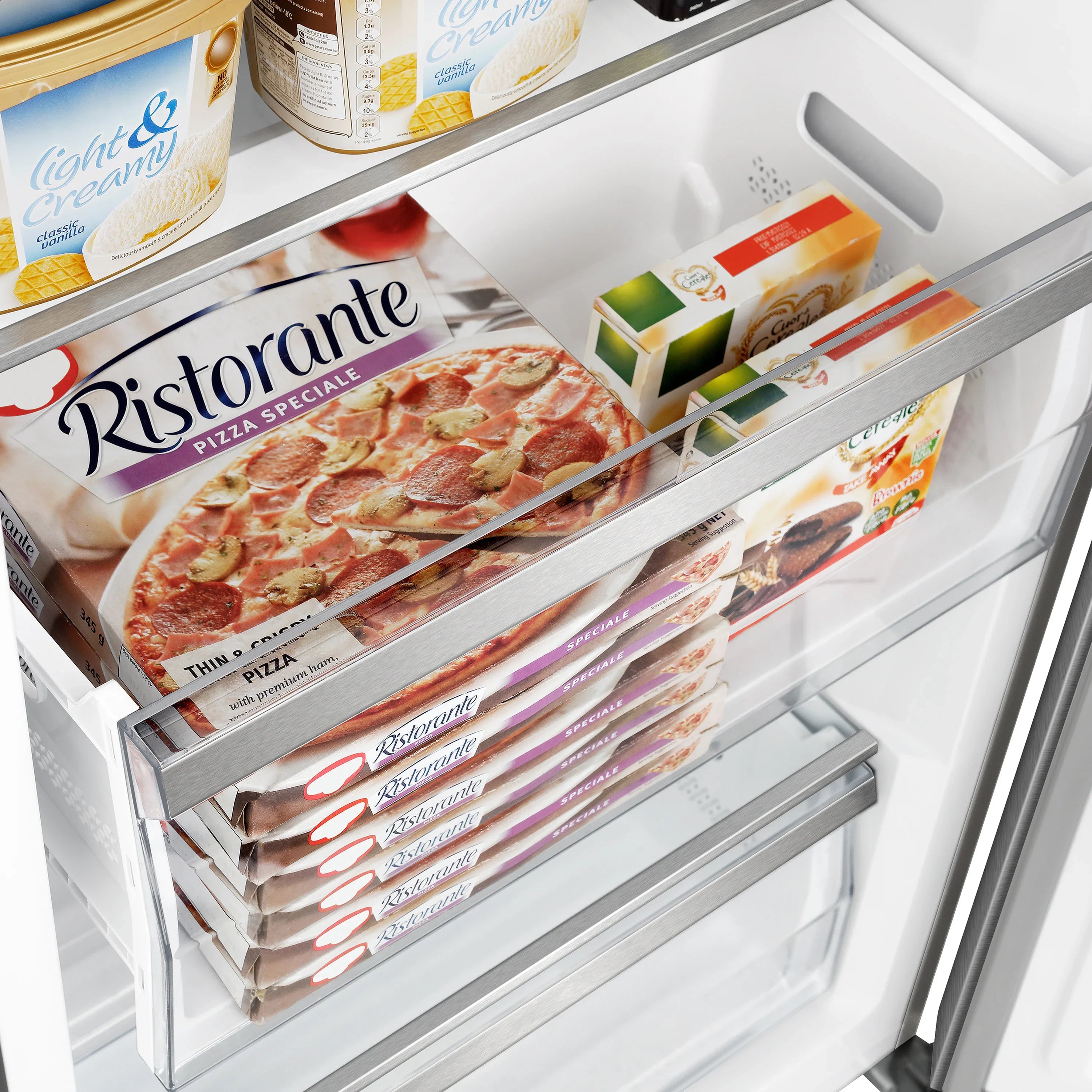

The side-by-side door design integrates seamlessly, while elegant glass shelves with silver trim and practical plastic door balconies enhance appeal and storage. Effortlessly switch between Fahrenheit and Celsius, aided by LED lighting for easy item location. Six glass shelves and six plastic drawers with silver trim provide flexible storage, and temperature settings are easily managed with the electronic touch control panel. The VCM door panel and metal back ensure durability, and the combo is T Climate Class certified with an E-star energy rating for sustainability.
This refrigerator comes in three pieces:
*Installation requires a base to be built for the refrigerator - please see cut-out sheet for more details
| DIMENSIONS | |
|---|---|

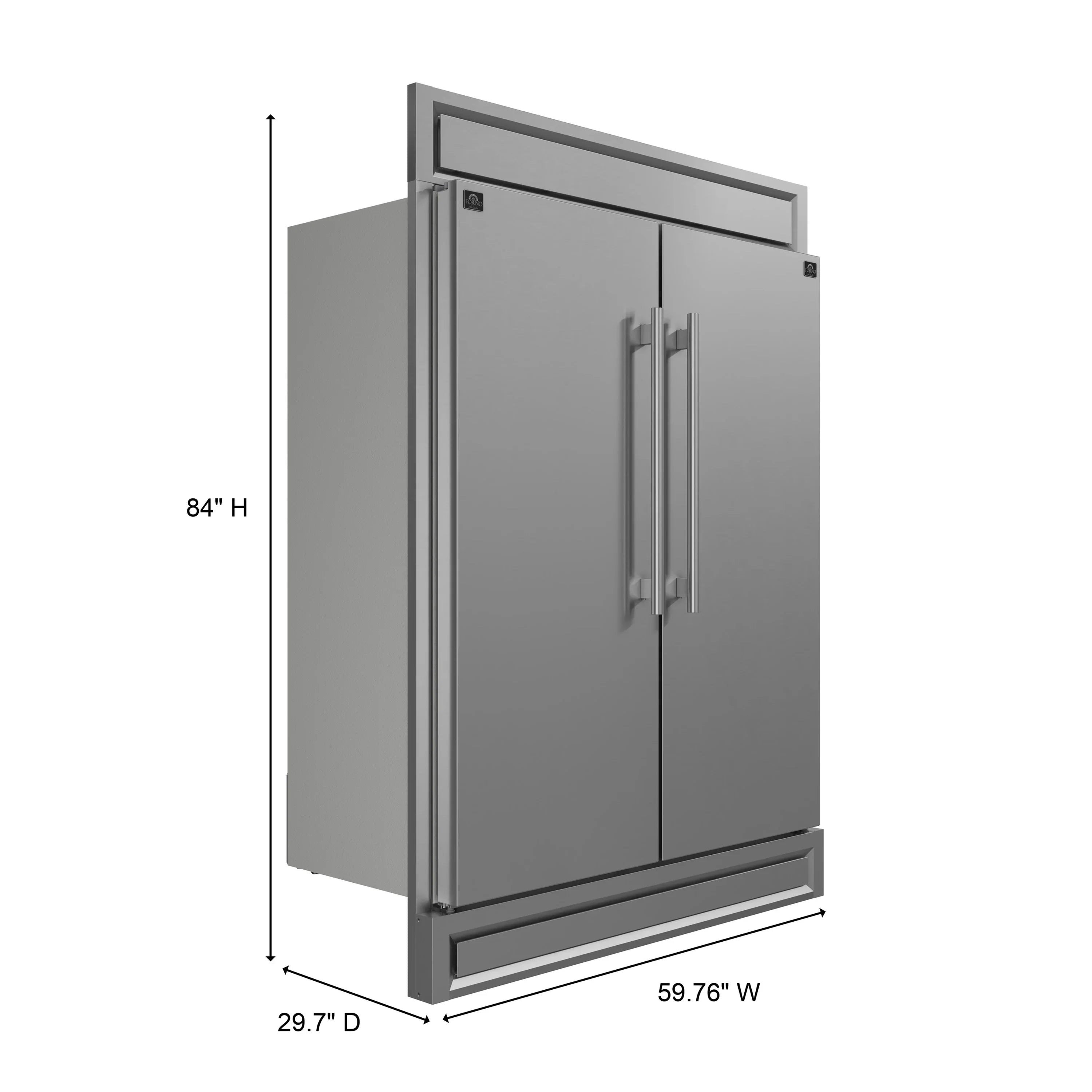

| Overall Dimensions | 59.76" W X 29.7" D X 84" H |
| Cutout Dimensions | 55.9" W X 28.94" D X 69.06" H |
| Product Overall Weight (lbs) | 330.00 |
| Advertised Unit Width | 60” |
| Counter-Depth | Yes |
| GENERAL INFORMATION | |
| Build Type | Built-In |
| Finger Print Resistant | Yes |
| Air Flow | Multi Air Flow |
| Vacation Mode / E-Saver | Yes |
| Super Cool | Yes |
| Super Freeze | Yes |
| Leveling Legs | Yes |
| DESIGN & FINISH | |
| Unit Style | Side-By-Side |
| Door Color | Stainless-Steel |
| Door Material | VCM Door Panel |
| Reversible Doors | No |
| Handle Color | Stainless steel |
| Case Material | Metal |
| Case Color | Light Gray |
| Primary Material | White HIPS |
| Control Type | Internal Touch Control |
| Lighting Type | LED |
| Shelf Material | Glass with Silver Trim |
| Drawers Material | Plastic with Silver Trim |
| Door Bins Material | Plastic |
| TECHNICAL DETAILS | |
| Defrost Type | Automatic |
| REFRIGERATOR FEATURES | |
| Sabbath Mode | No |
| Door Alarm | No |
| Leak Proof Shelves | No |
| Door Bins Color | Clear |
| Ice Maker | No |
| FREEZER FEATURES | |
| Converting Fridge/Freezer | Yes |

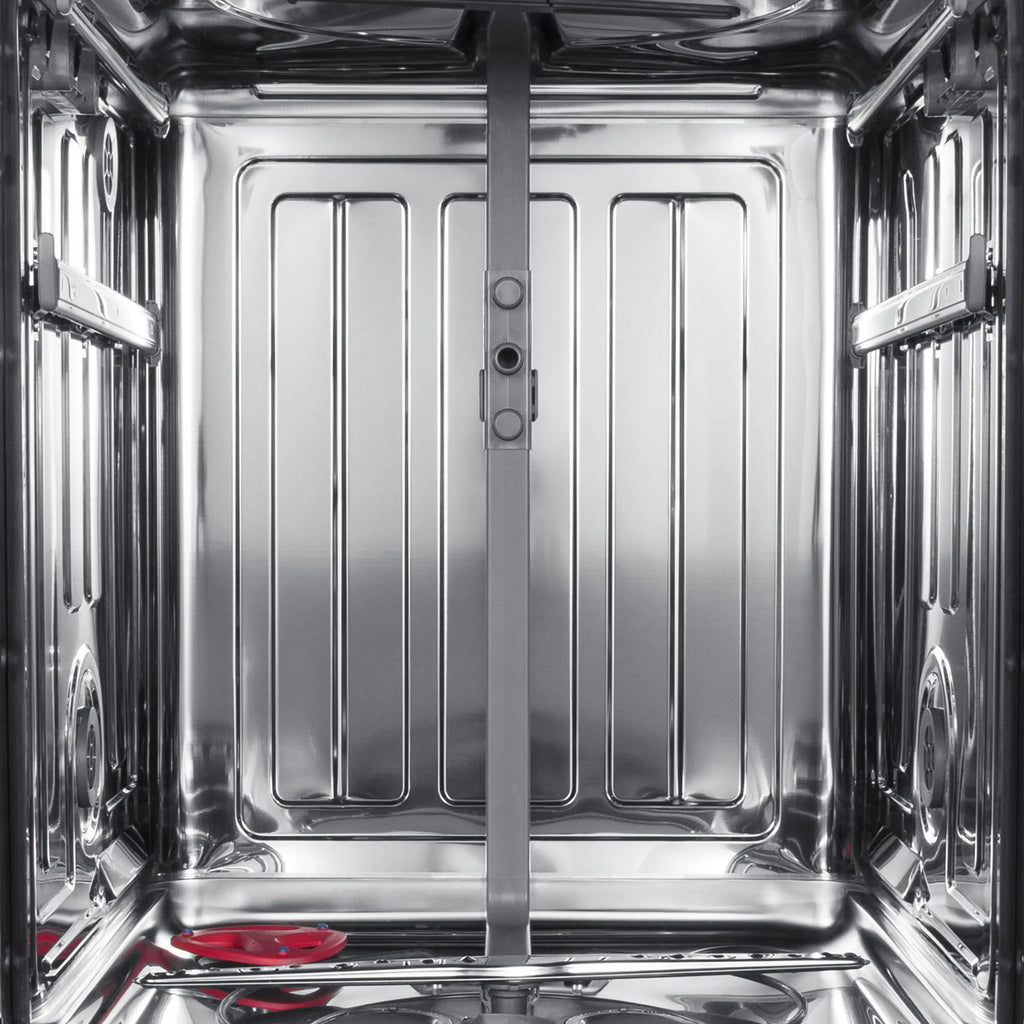

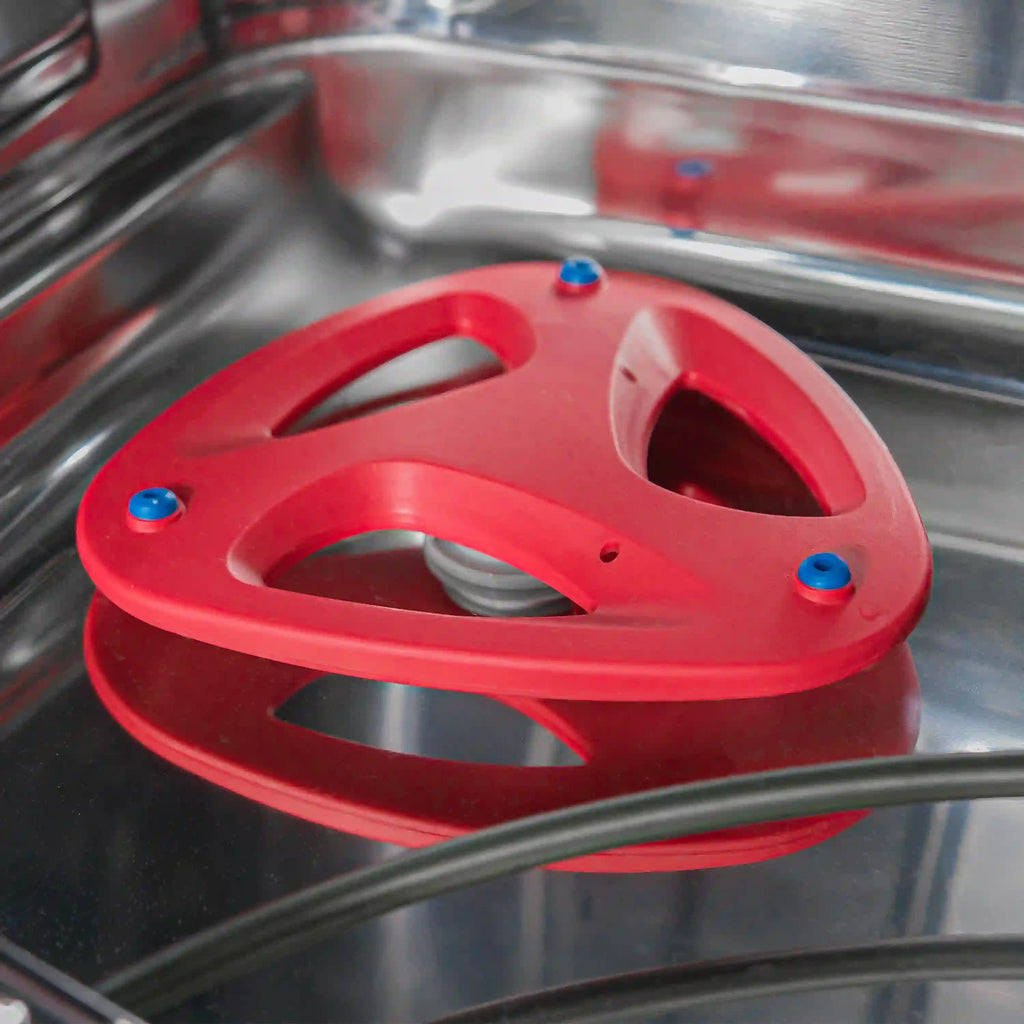

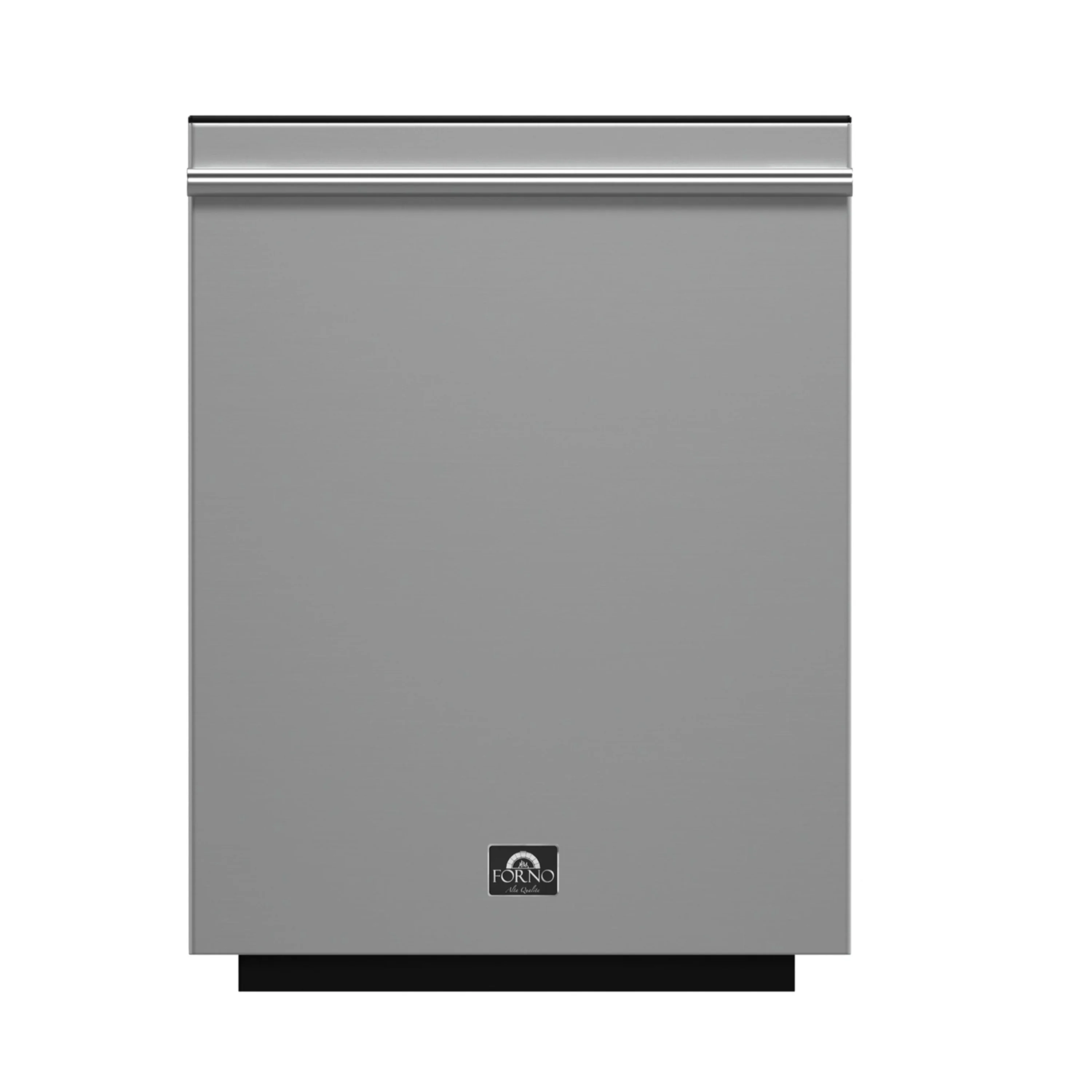

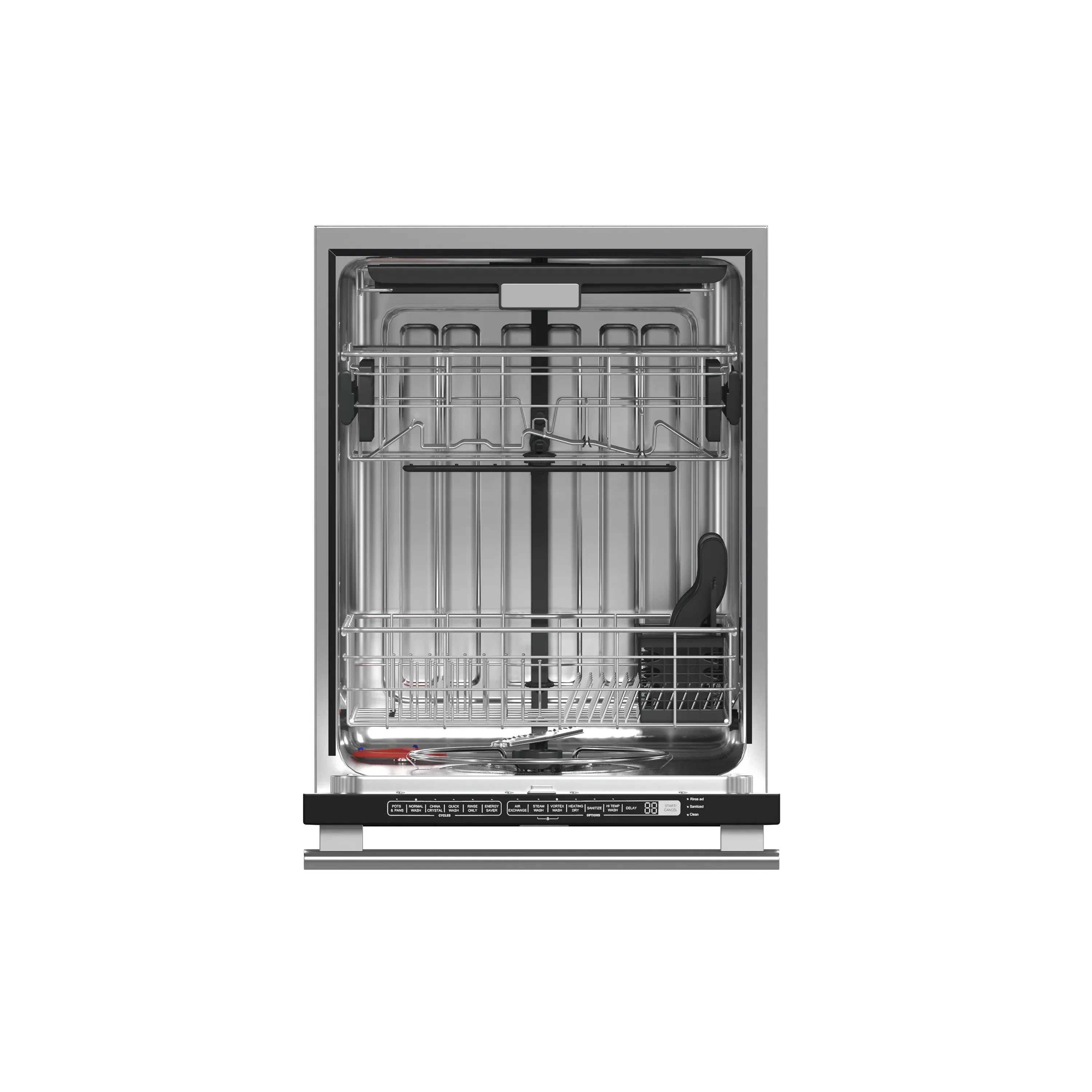

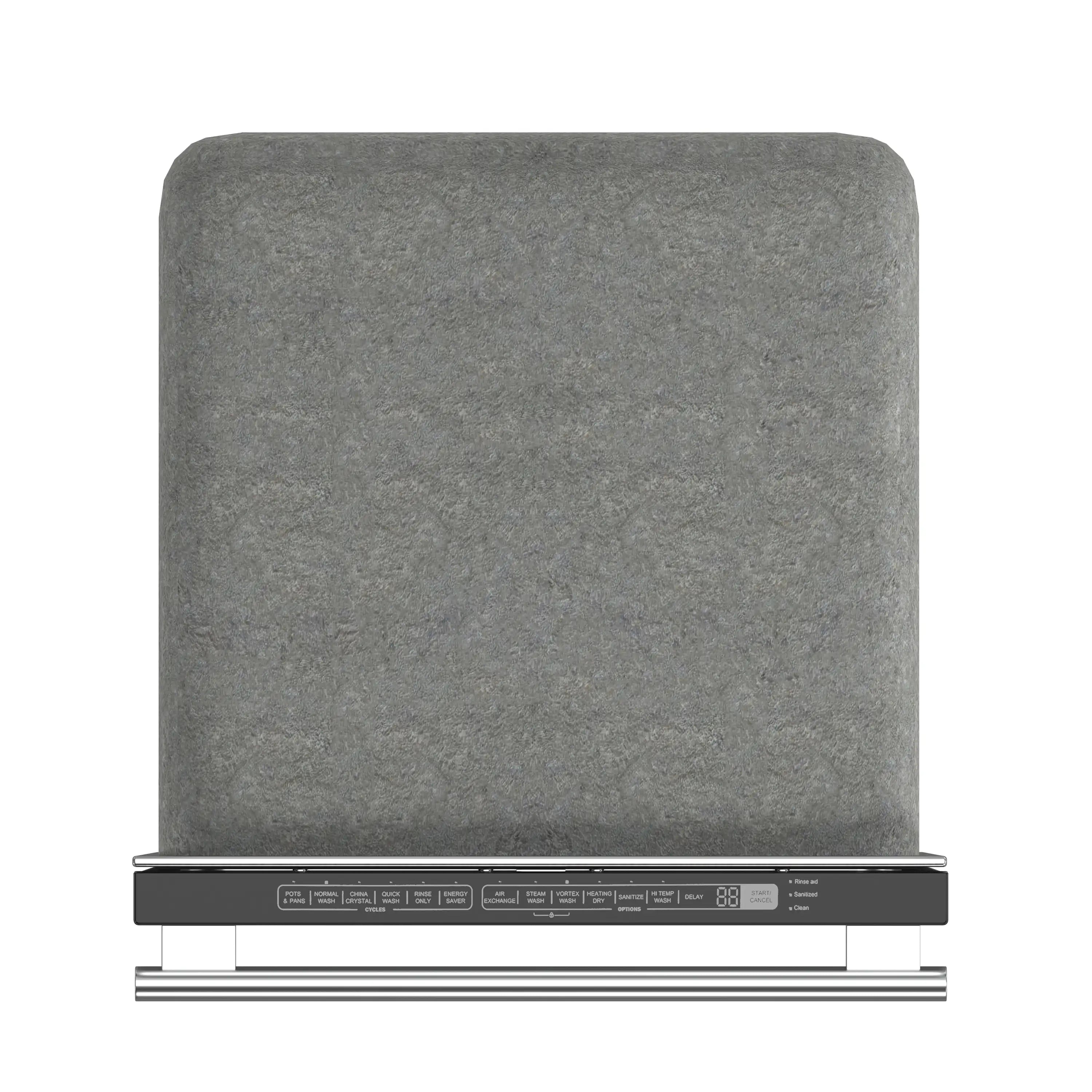

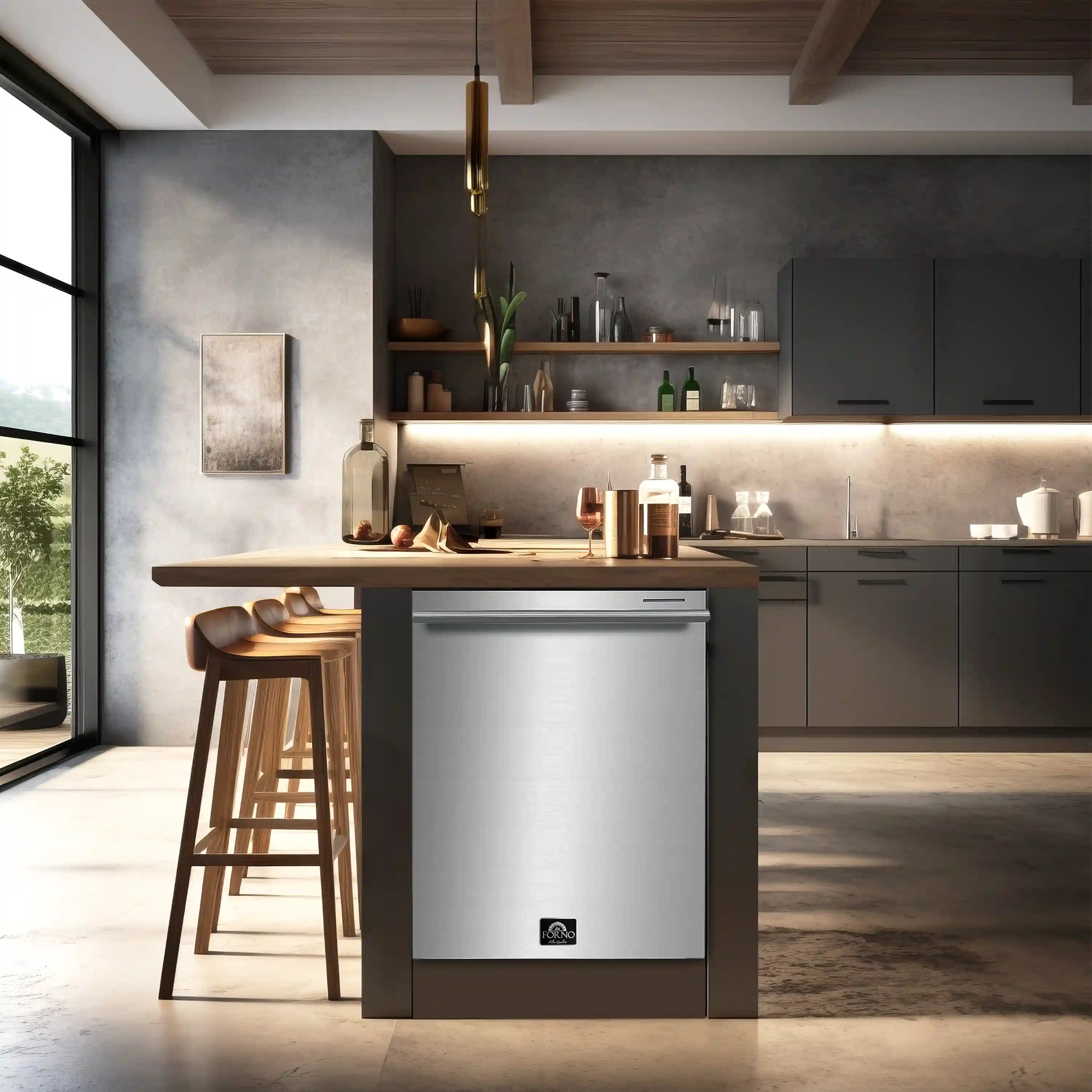

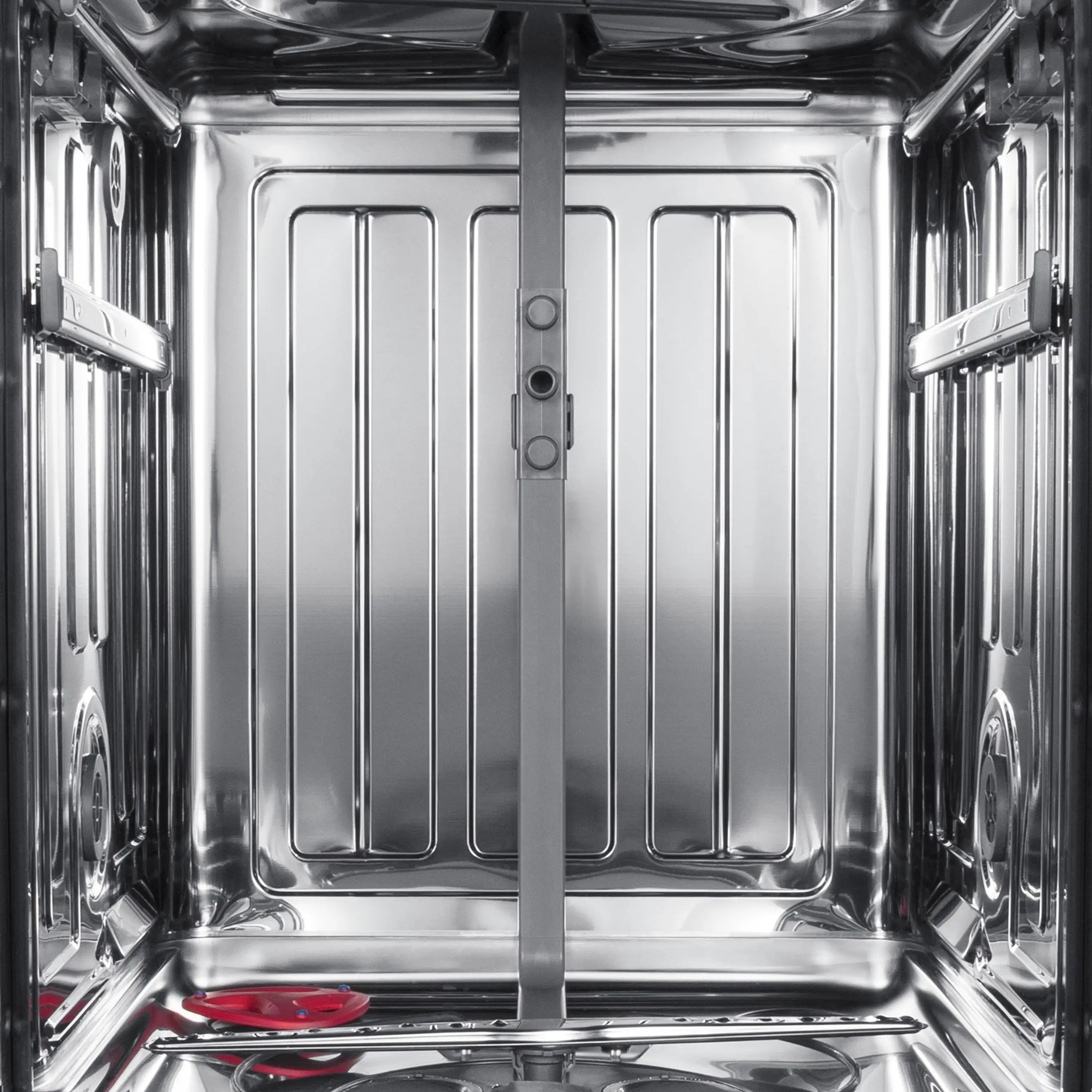

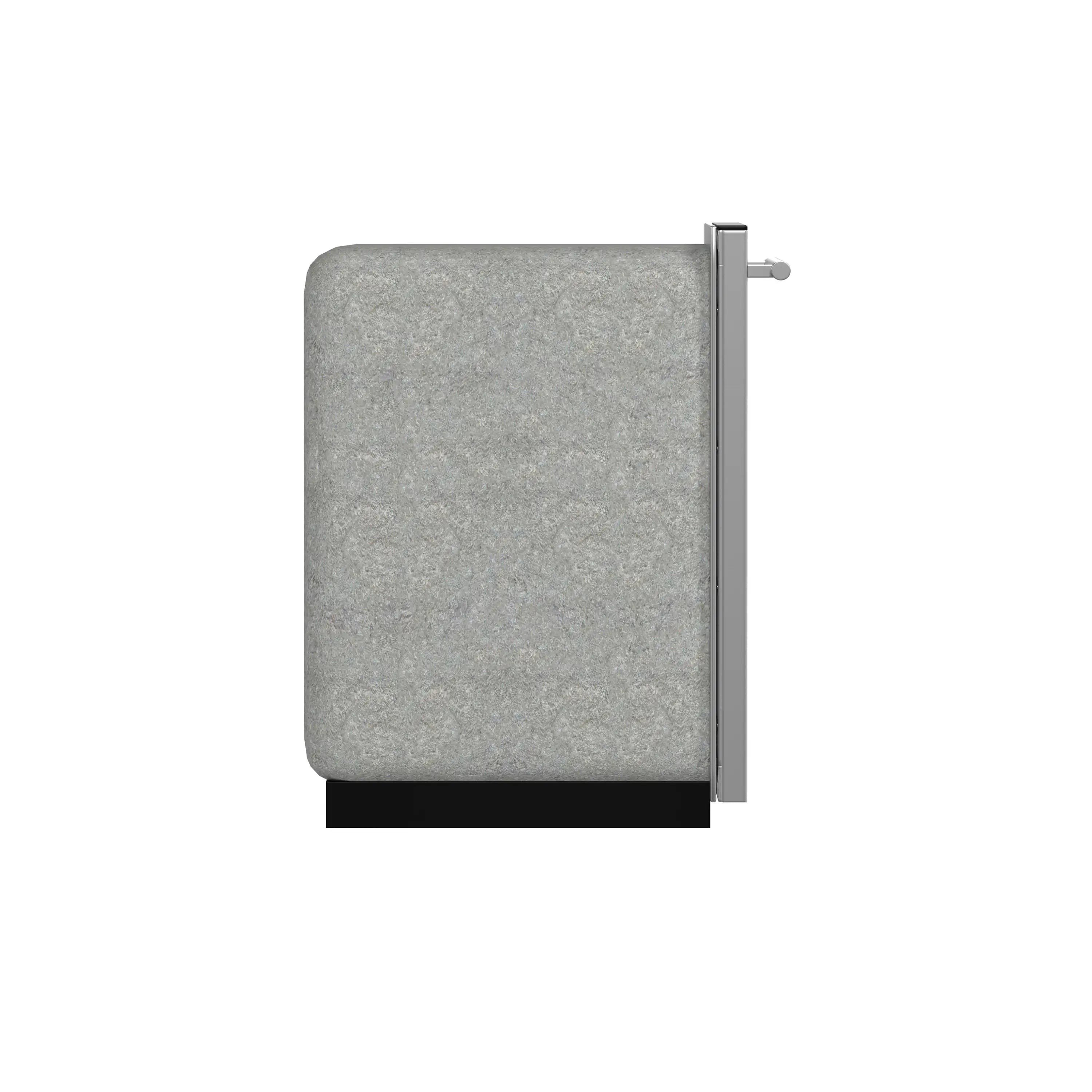

The Forno Pozzo 24-Inch tall-tub dishwasher, operating at a low noise level of 49 decibels for peaceful cleaning. Its stainless-steel front and pro-style handle offer durability and style. The dishwasher features a spacious stainless-steel tub with 3 baskets, providing ample loading flexibility for large dish capacity and utensils, with 3 racks and an additionnal silverware basket. With six wash programs and electronic controls featuring a sleek LED display, it offers efficient and customizable cleaning options. Energy Star certified for eco-friendly operation.
| DIMENSIONS | |
|---|---|
| Product Dimensions W x D x H (inches) | 23.85x26.54x33.74 |
| Cutout dimensions W x D x H (inch) | 24 x 24 x 34 |
| Product Overall Weight (lbs) | 93.20 |
| Minimum Product Height (IN) | 33.74 |
| DESIGN & FINISH | |
| Color/Finish | Stainless Steel |
| Racks Material | Nylon Coated Steel |
| Control Location | Top |
| Primary Material | Steel |

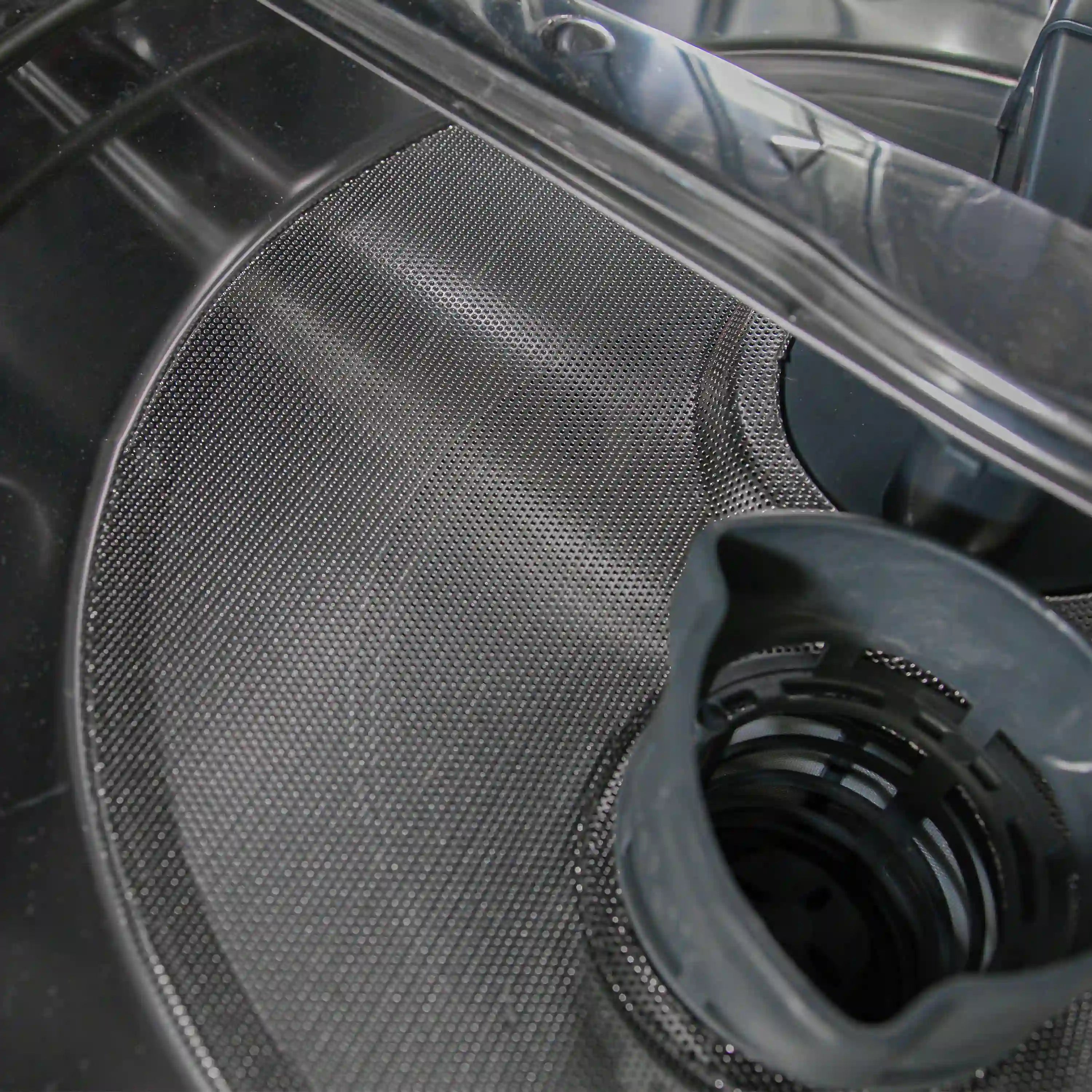

| Filter Material | Stainless Steel |
| TECHNICAL DETAILS | |
| Plug-in | No |
| FEATURES | |
| Number of Racks | 3 |
| Interior Light | No |
| Estimated Annual Operating Cost (USD) | 24 |
| Fingerprint-Resistant | No |
| WARRANTY & CERTIFICATIONS | |
| CEE Tier Qualified | Not Rated |
| Energy Star Most Efficient | No |
| Commercial Warranty | No |
| Warranty Type | Limited |
| Warranty on Parts | 2 Years |
| Warranty on Labor | 2 Years |

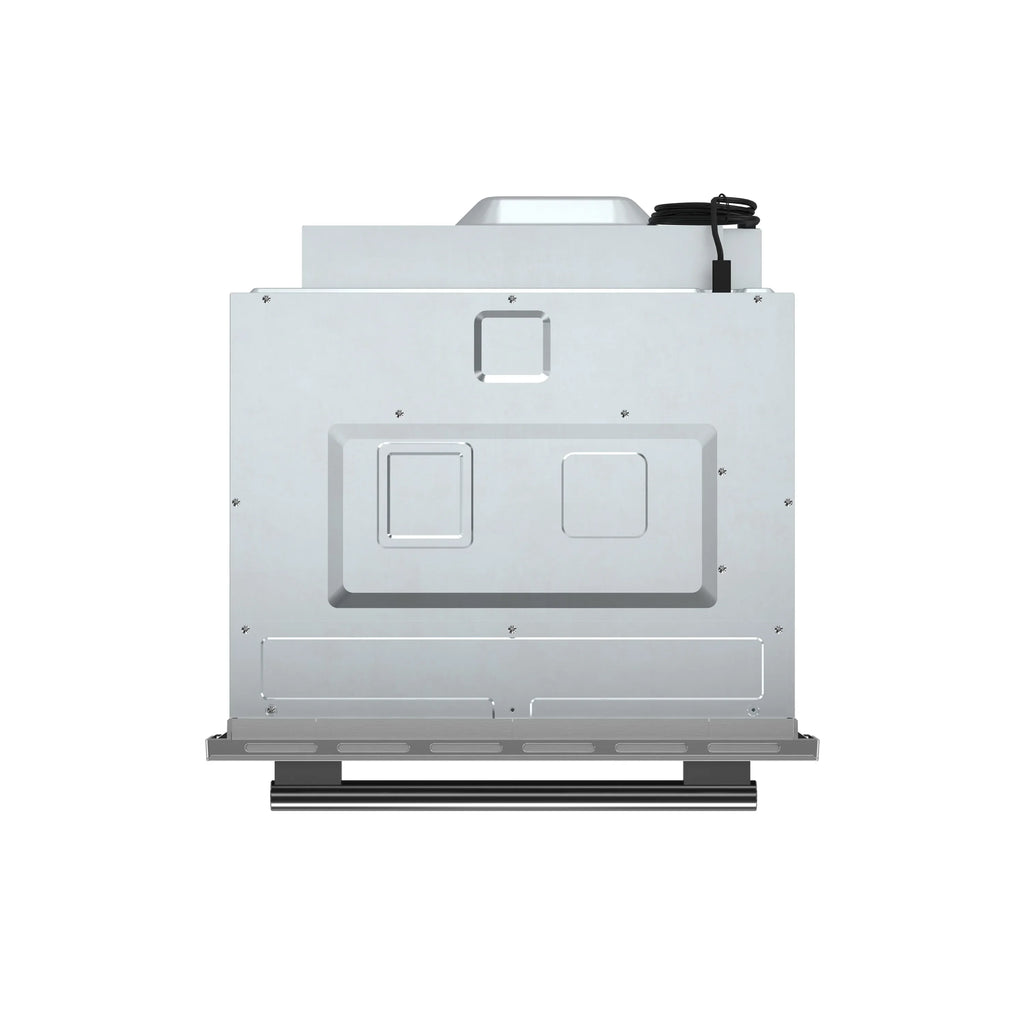

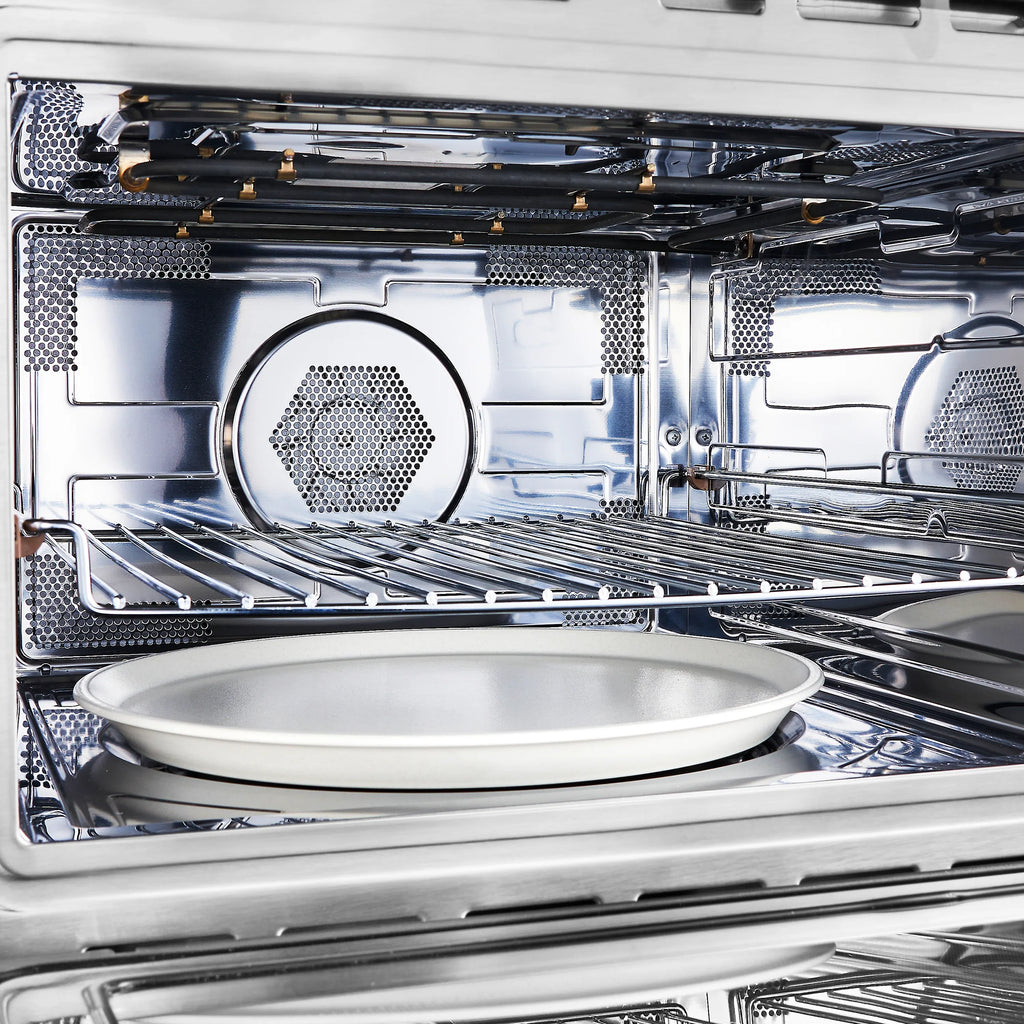

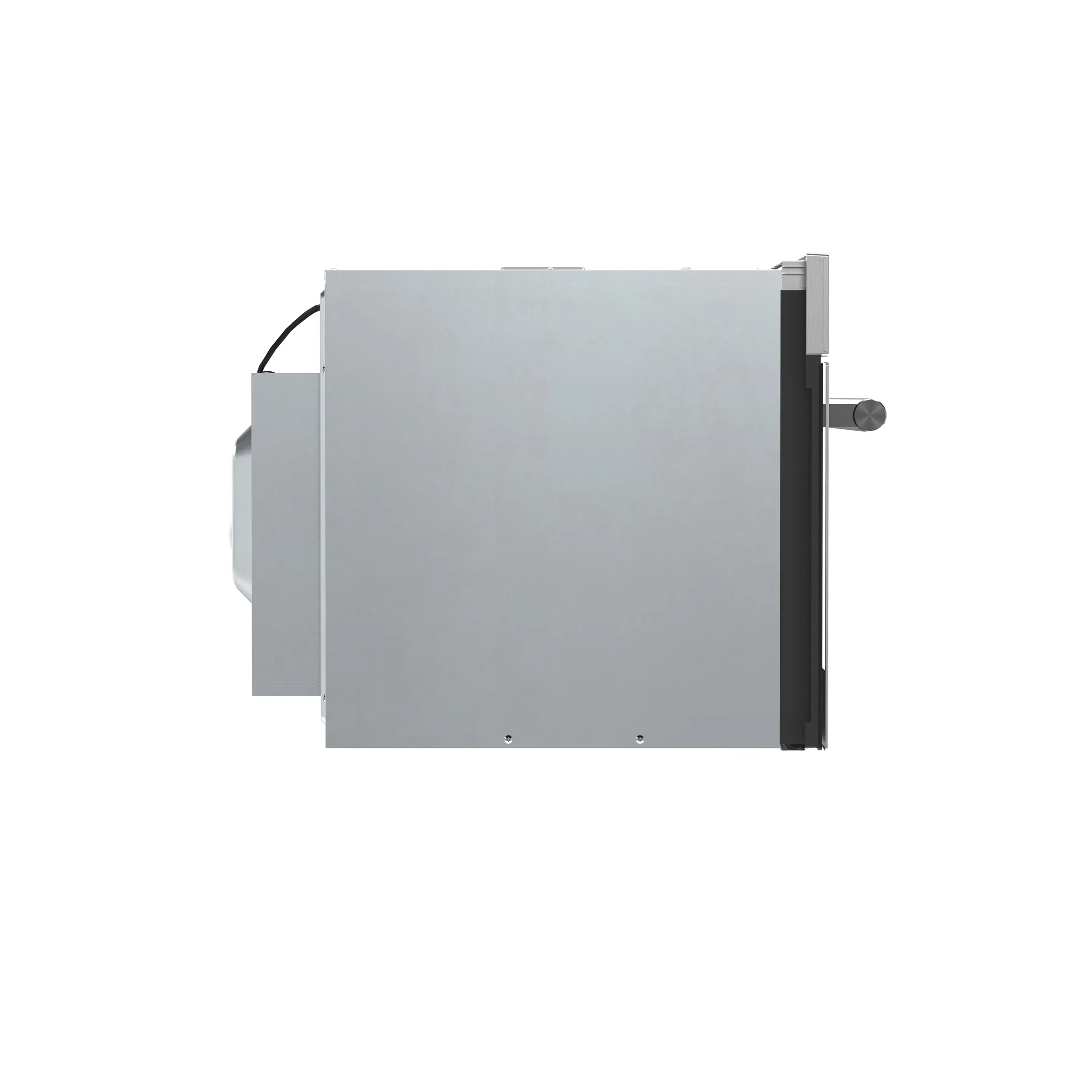

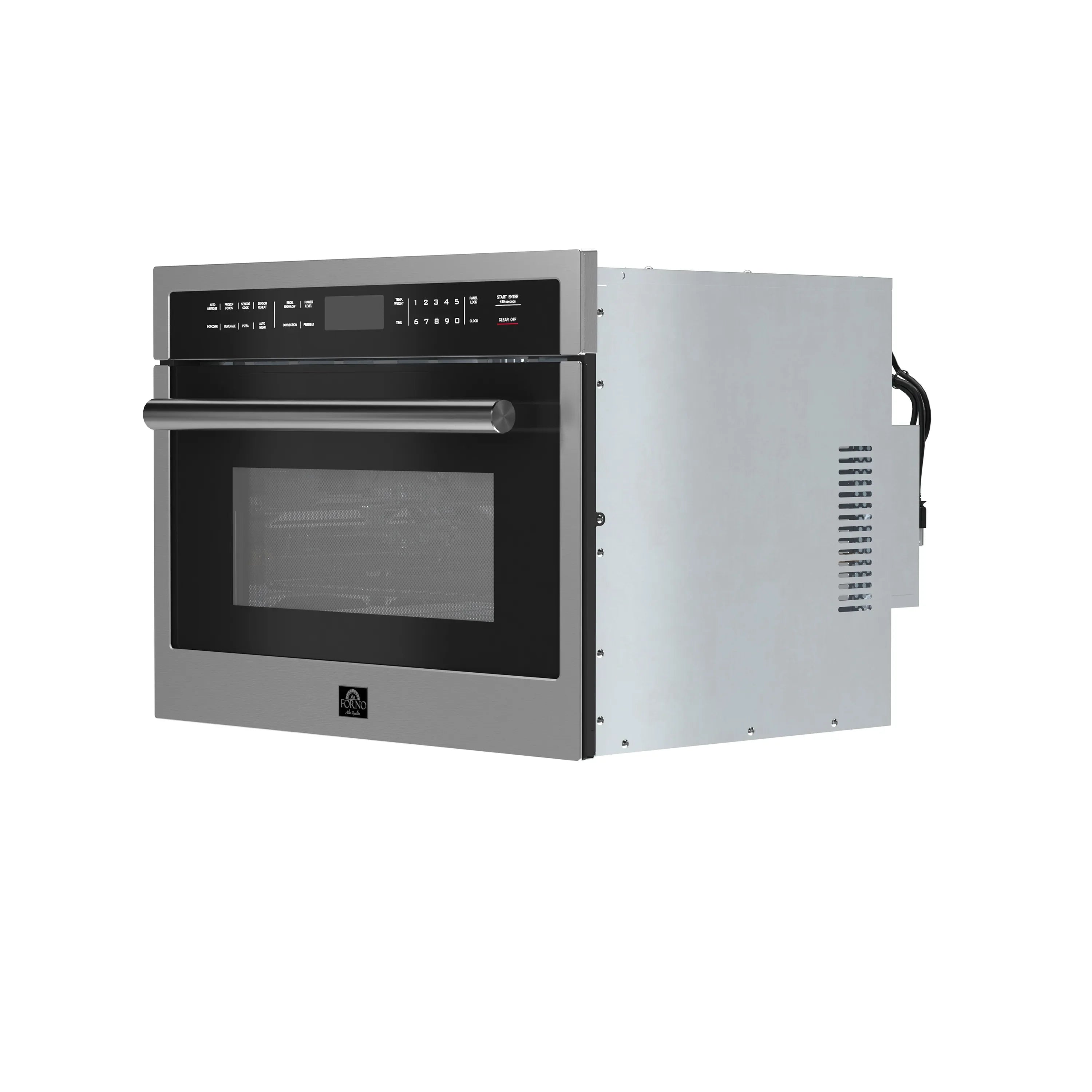

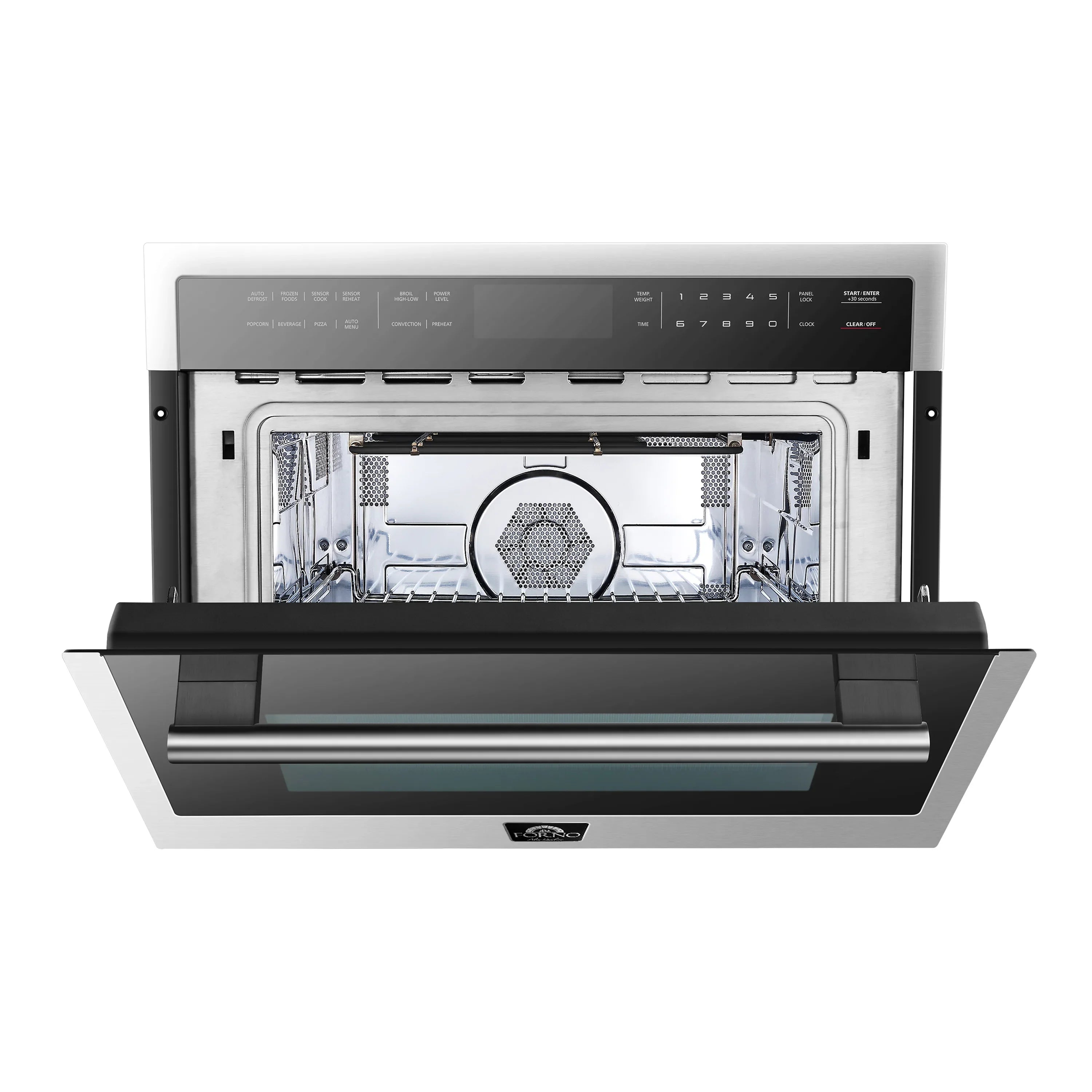

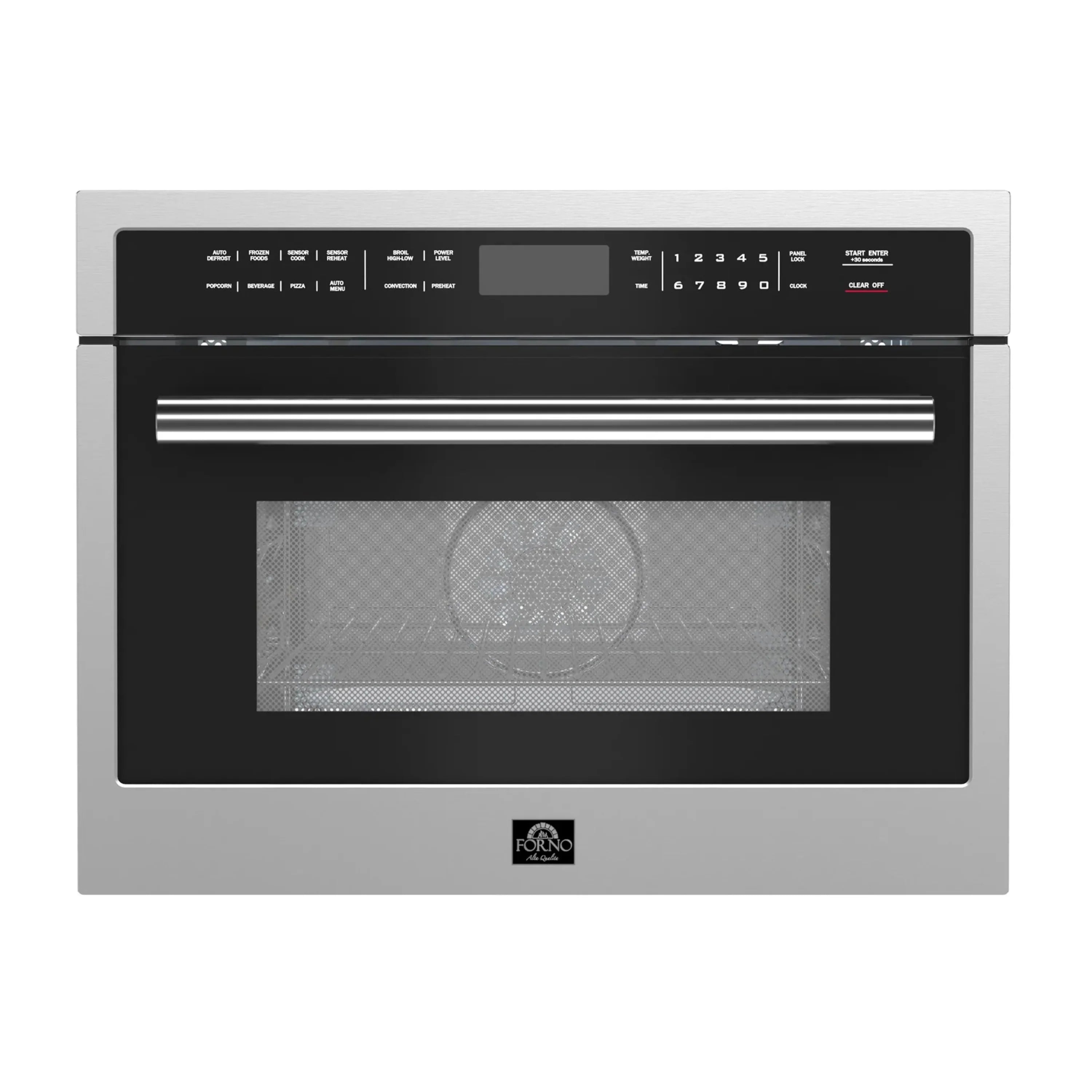

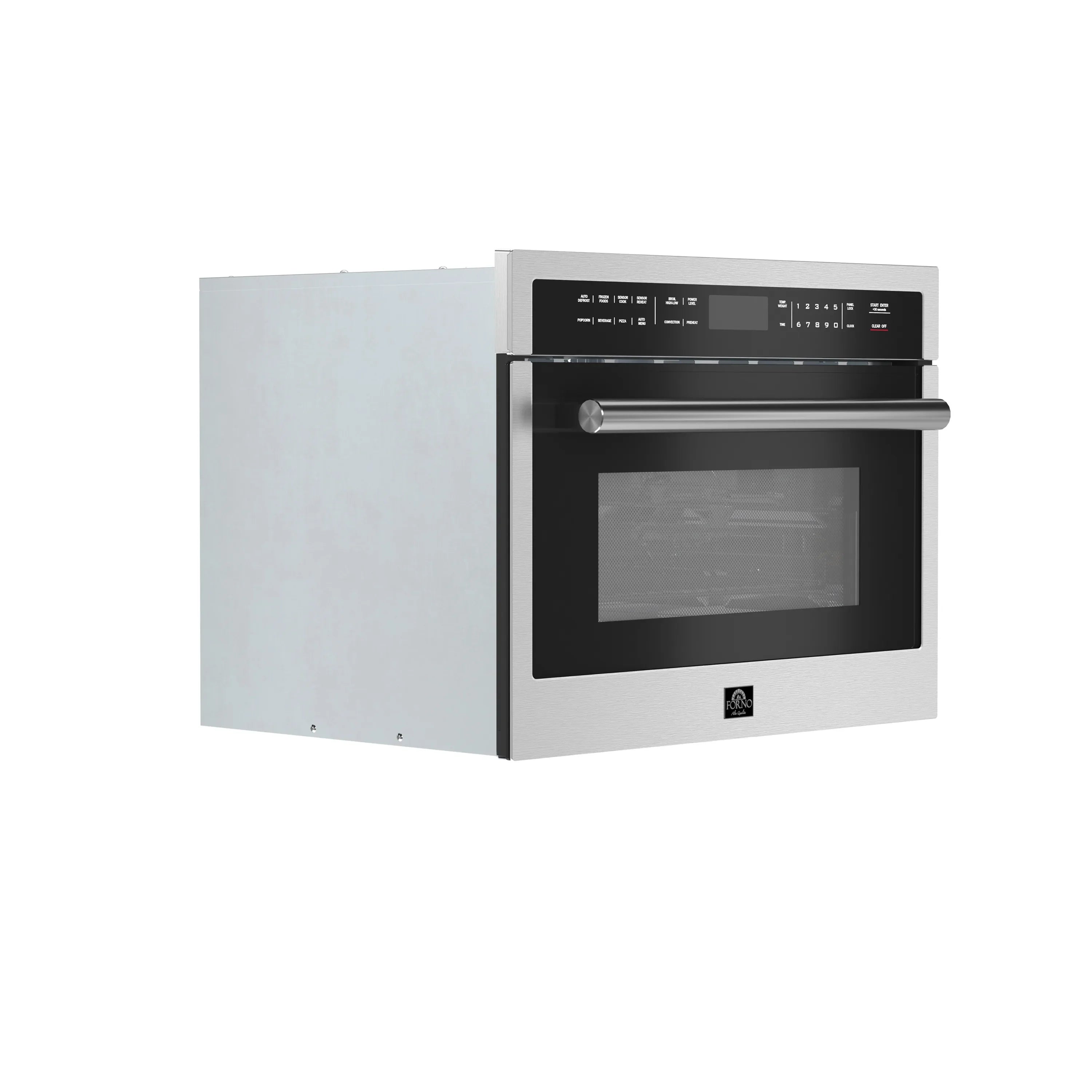

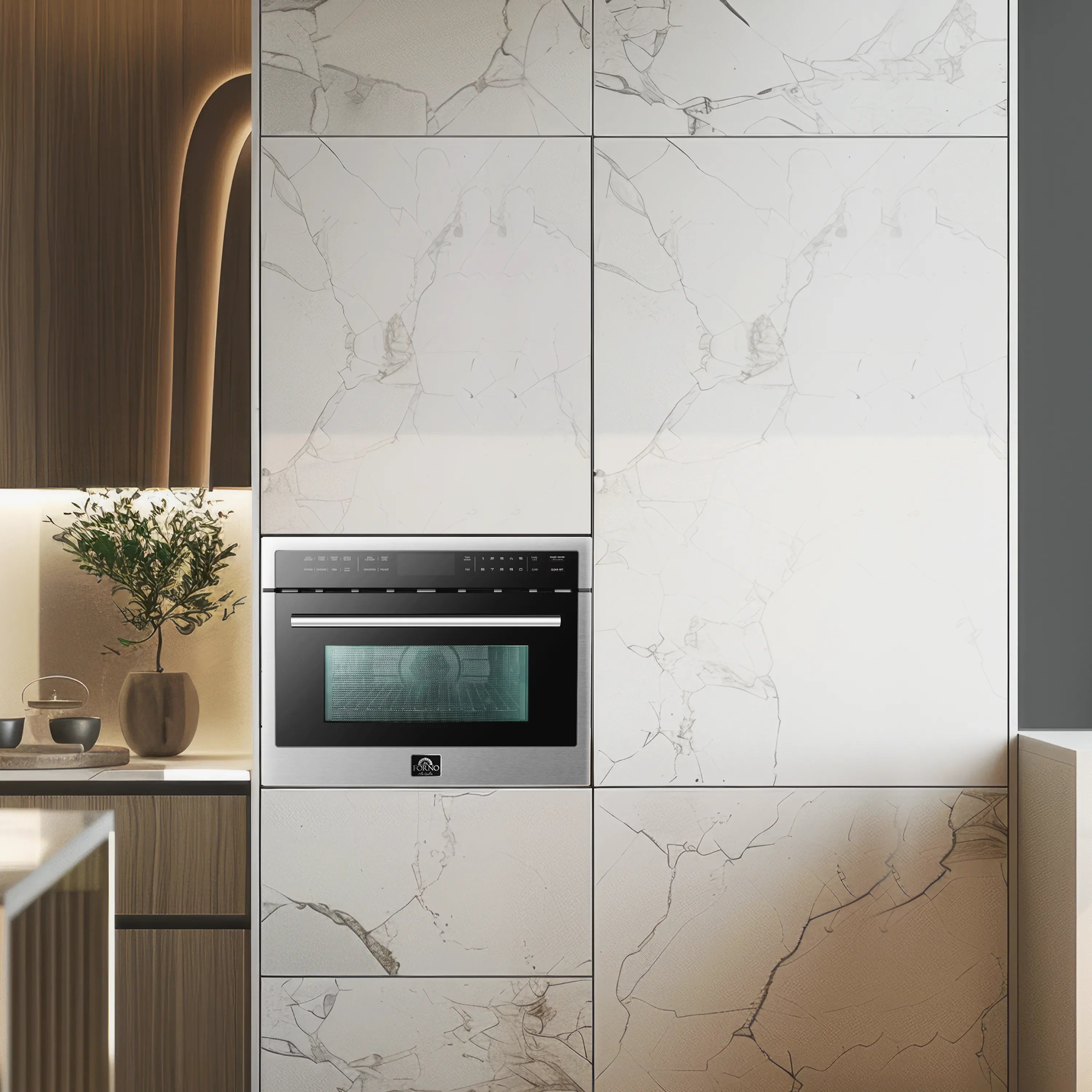

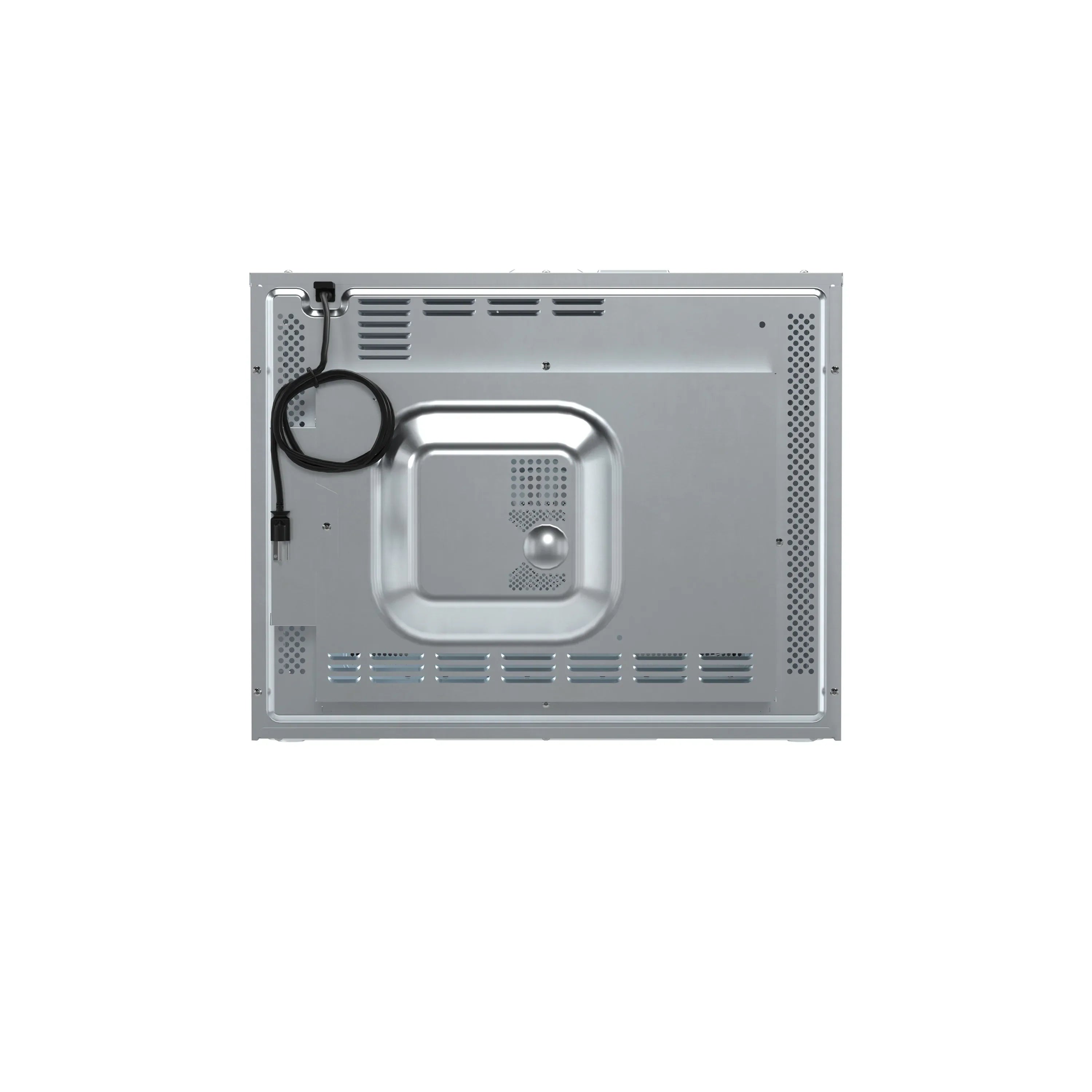

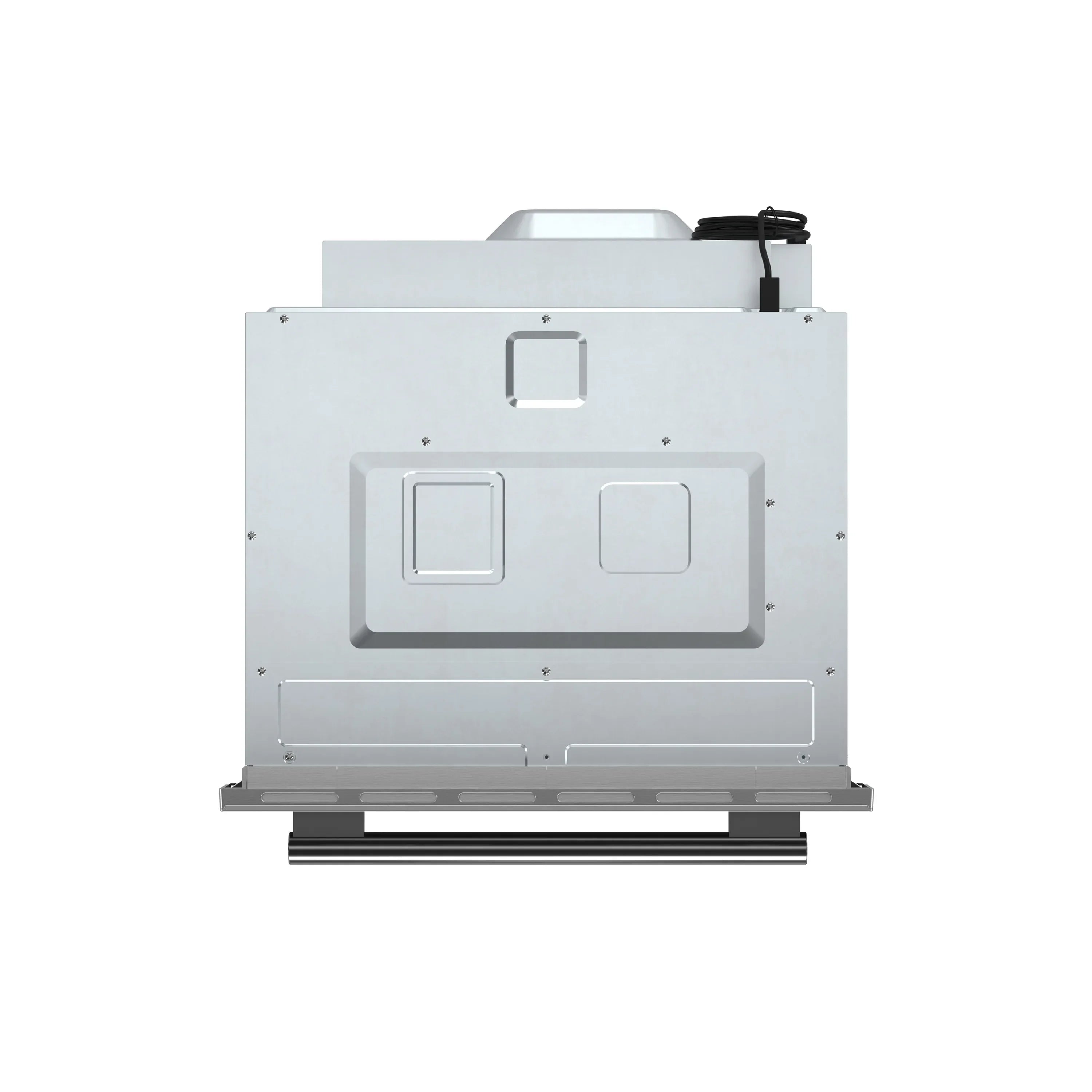

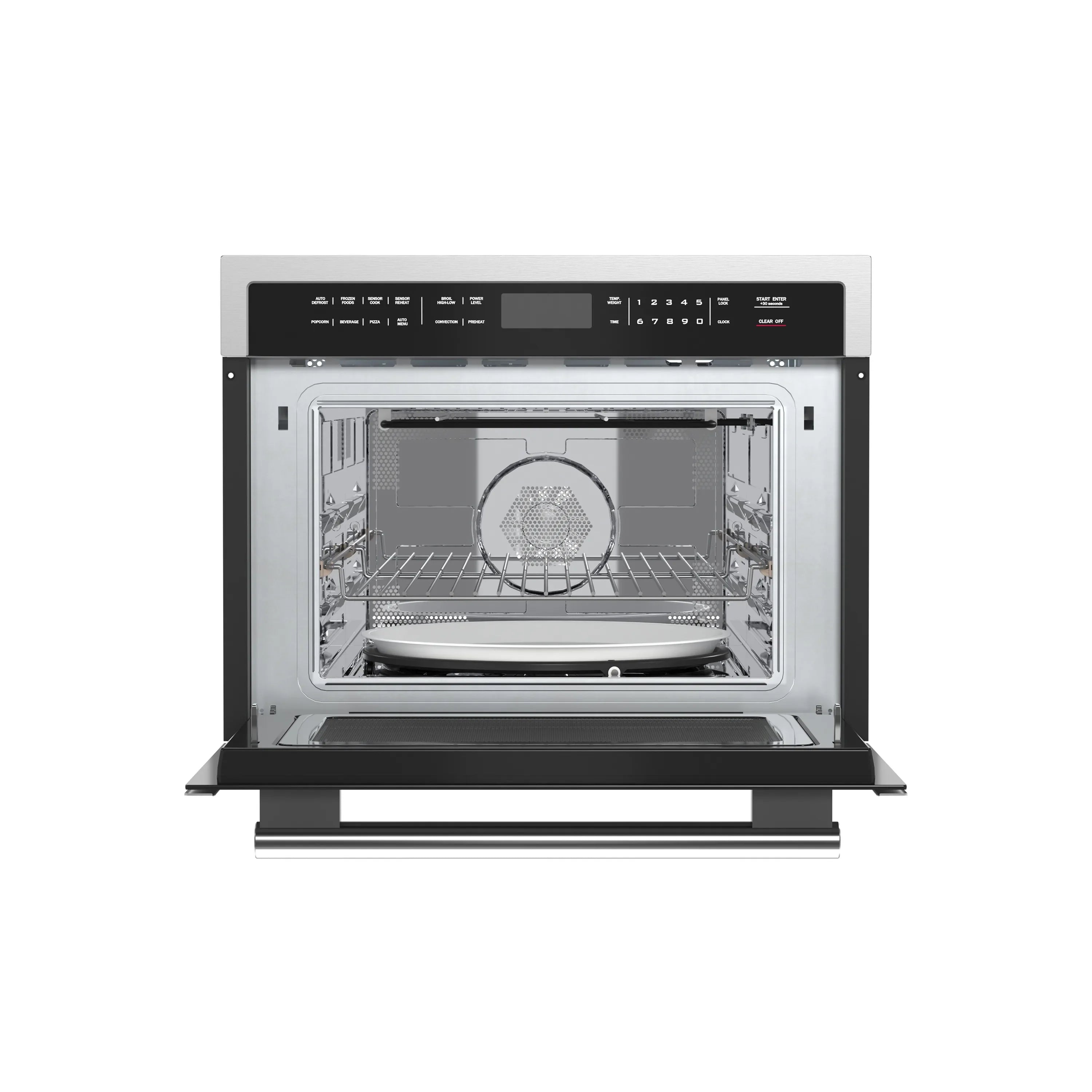

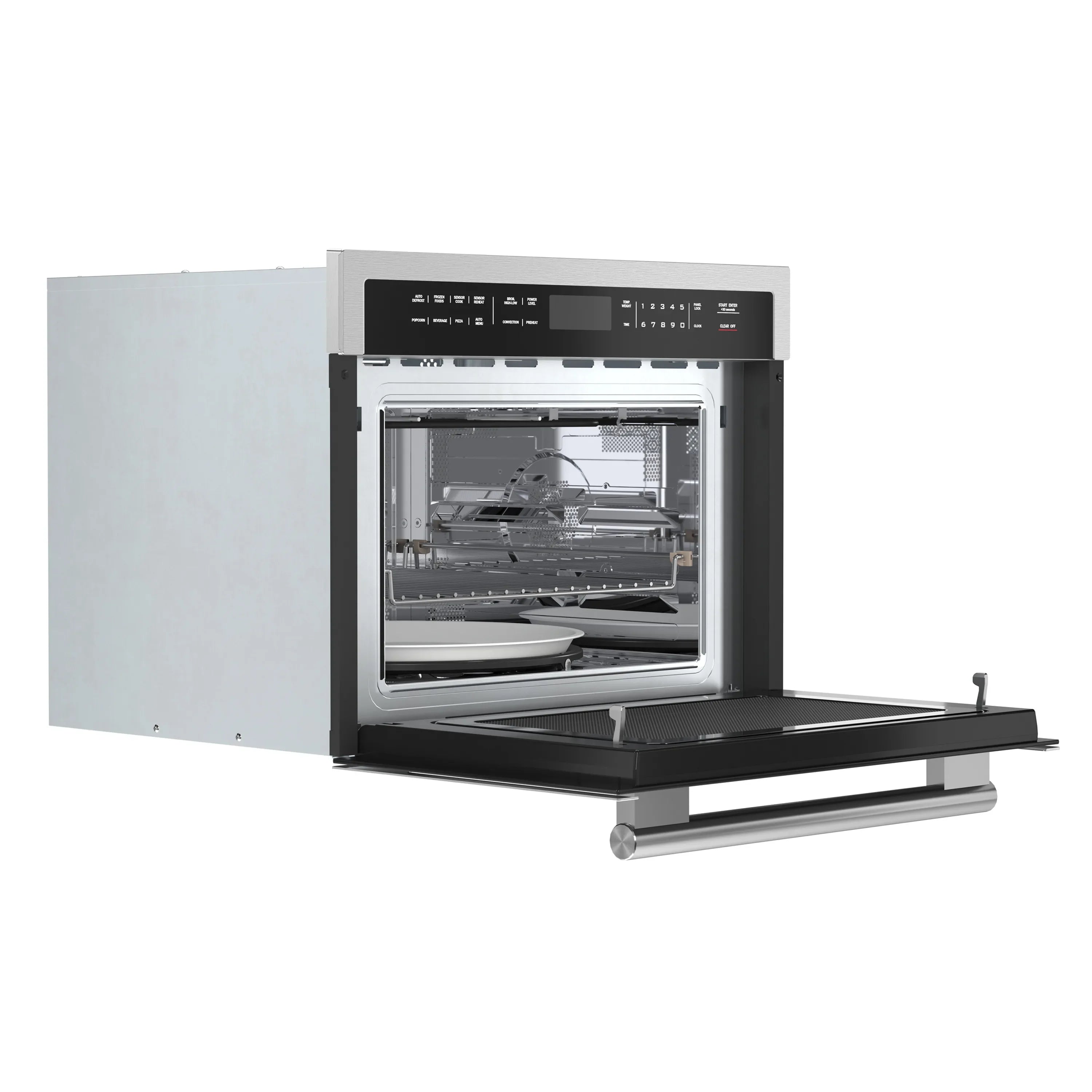

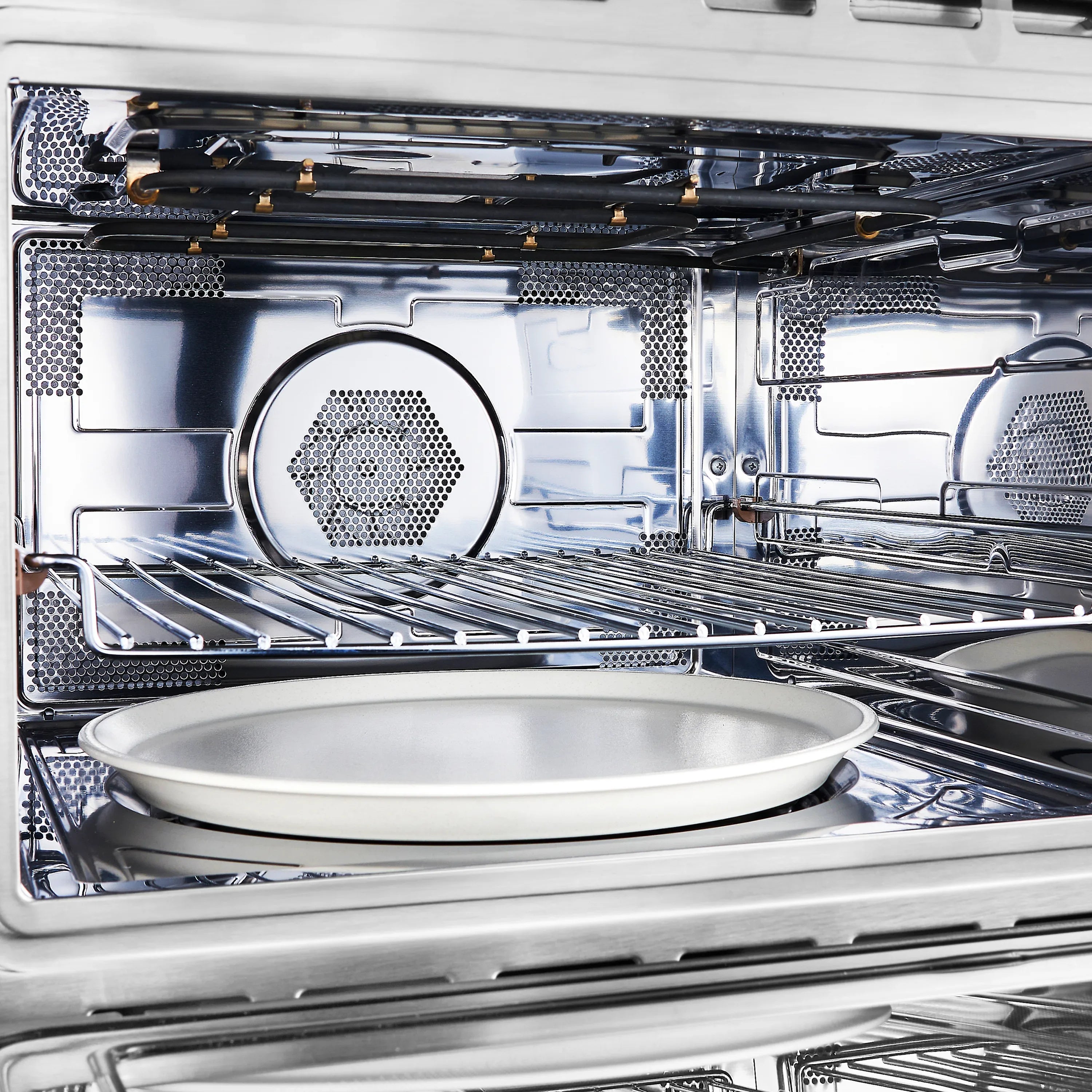

The Forno Oliena a stylish and practical 24-Inch 1.6 cu.ft. Microwave & Convection Oven. Its stainless-steel interior makes cleaning a breeze, while the easy-to-use controls let you seamlessly switch between microwave and oven functions. With 1,000 watts of cooking power, you can boil water in just 1 minute and 50 seconds using standard microwave settings. The glass touch controls and LCD display make it simple to navigate through various microwave modes like defrost, popcorn, beverage, sensor cooking, or auto menu. In oven mode, enjoy the versatility of true convection at 1,700 watts, along with a broil function of 1,750 watts and a bake element of 600 watts perfect for cooking individual dishes without having to use the main oven. Plus, the Rapid Preheat mode reduces waiting times, ensuring your meals are ready faster. Experience convenience and efficiency with our multi-functional microwave and convection oven combo.
| DIMENSIONS | |
|---|---|
| Product dimensions (WxDxH)(in) | 23.4 x 24.2 x 17.9 |
| Cutout dimensions W x D x H (inch) | 22.32 x 23.25 x 17.75 |
| Overall Capacity Cu. Ft. | 1.60 |
| DESIGN & FINISH | |
| Color/Finish | Stainless Steel |
| Control Location | Top |
| Primary Material | Steel |
| TECHNICAL DETAILS | |
| Overall Broil Wattage | 1750 |
| Power Cord Location | Back |
| Bulb Wattage | 1.50 |
| Overall Bake Wattage | 600 |
| Overall True Convection Wattage | 1700 |
| FEATURES | |
| Bake Element | Yes |
| Timer | Yes |
| Convection Oven | Yes |
| Delay Start | No |
| Fingerprint-Resistant | No |
| Number of Racks | 1 |
| Interior Light | Yes |
| Temperature Gauge | No |
| Clock | Yes |
| Interior Light(s) Type | LED |
| Bulb Type | LED |
| Number of Lights | 1 |
