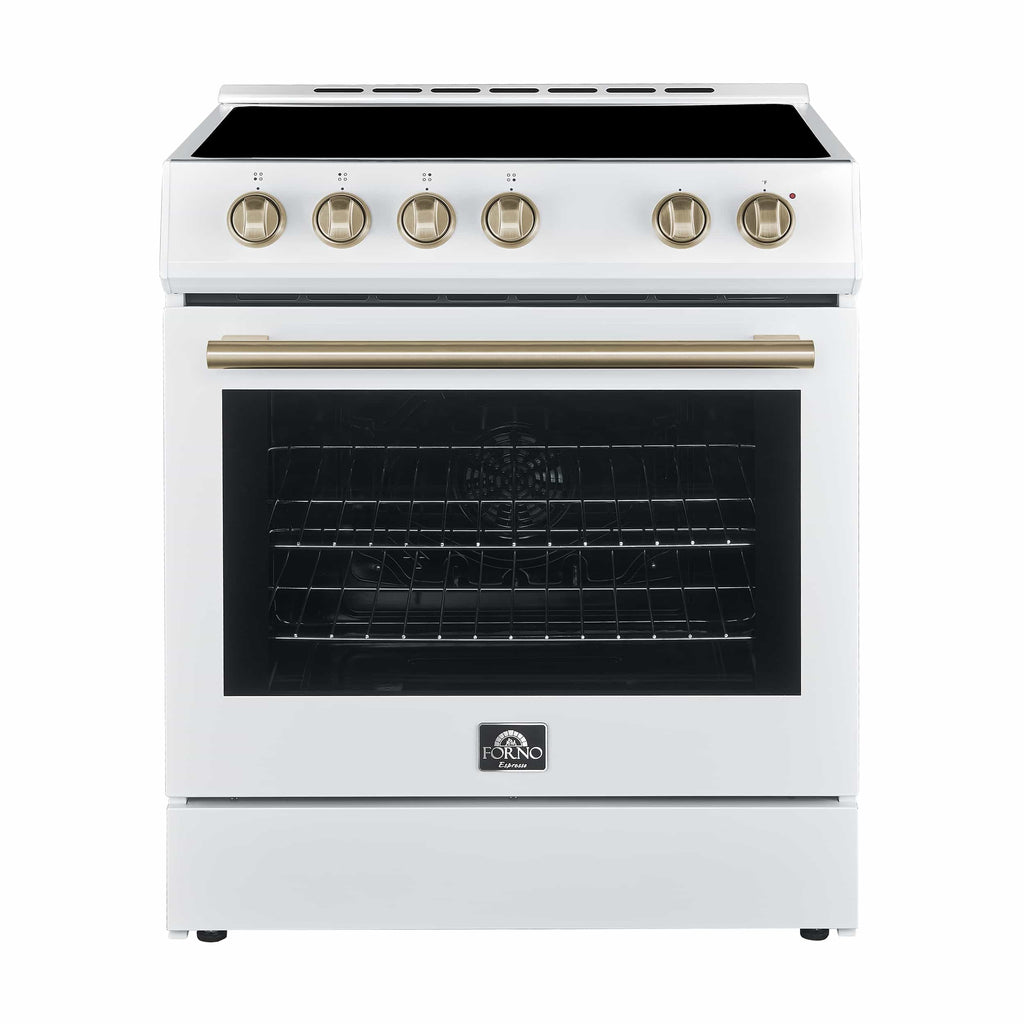

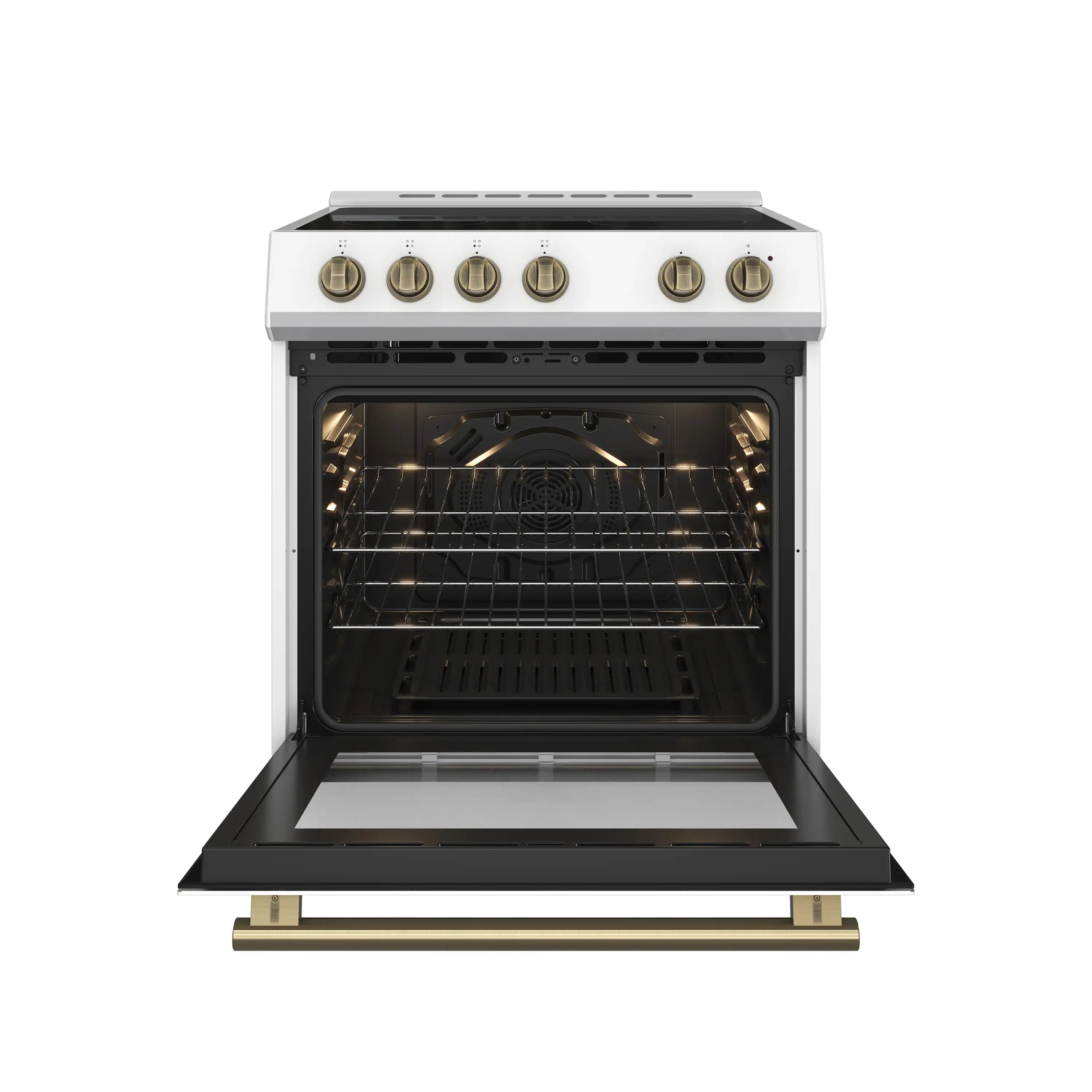

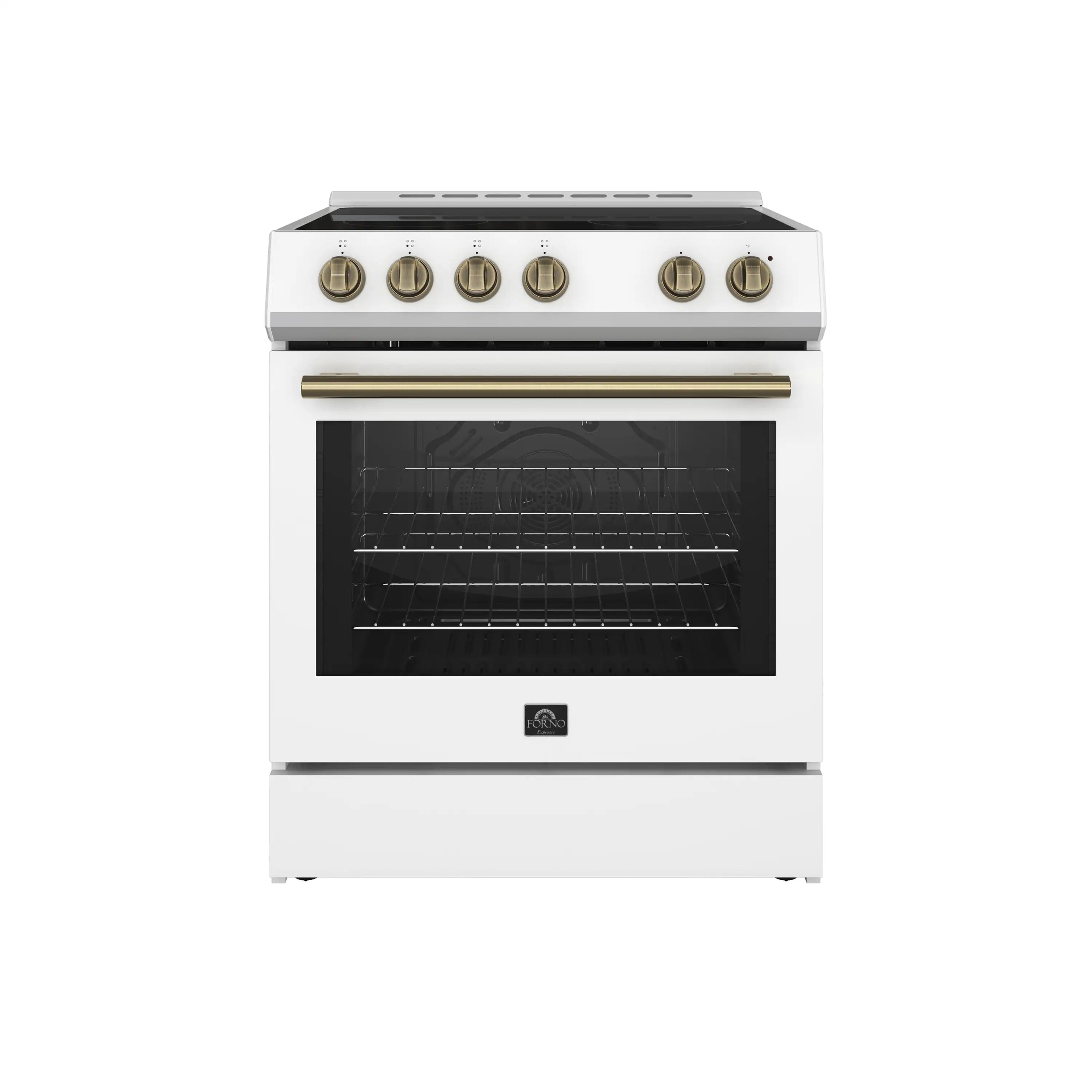

Introducing the Forno Leonardo Espresso 30" 5.0 cu. Ft. White Electric Range, a kitchen game-changer. With Antique Brass accents, 4 Radiant Elements, and a 5,500-watt Convection Oven, it combines style with top-notch performance. Antique Brass Knobs and Handles add a touch of elegance, while Ceramic Glass ensures even heat distribution. The Hidden Bake Element simplifies maintenance by preventing spills and odors. Elevate your kitchen with this timeless, user-friendly range, marrying durability with sophistication. Cook with confidence, and embrace efficiency and style with every use.
Experience peace of mind with FORNO products, each backed by a comprehensive 2-year warranty covering both labor and parts. Our commitment ensures your satisfaction and confidence in the reliability of our appliances.
Note: This range includes brass and stainless steel knobs/handle in the box. Some assembly is required to switch to your desired trim finish.

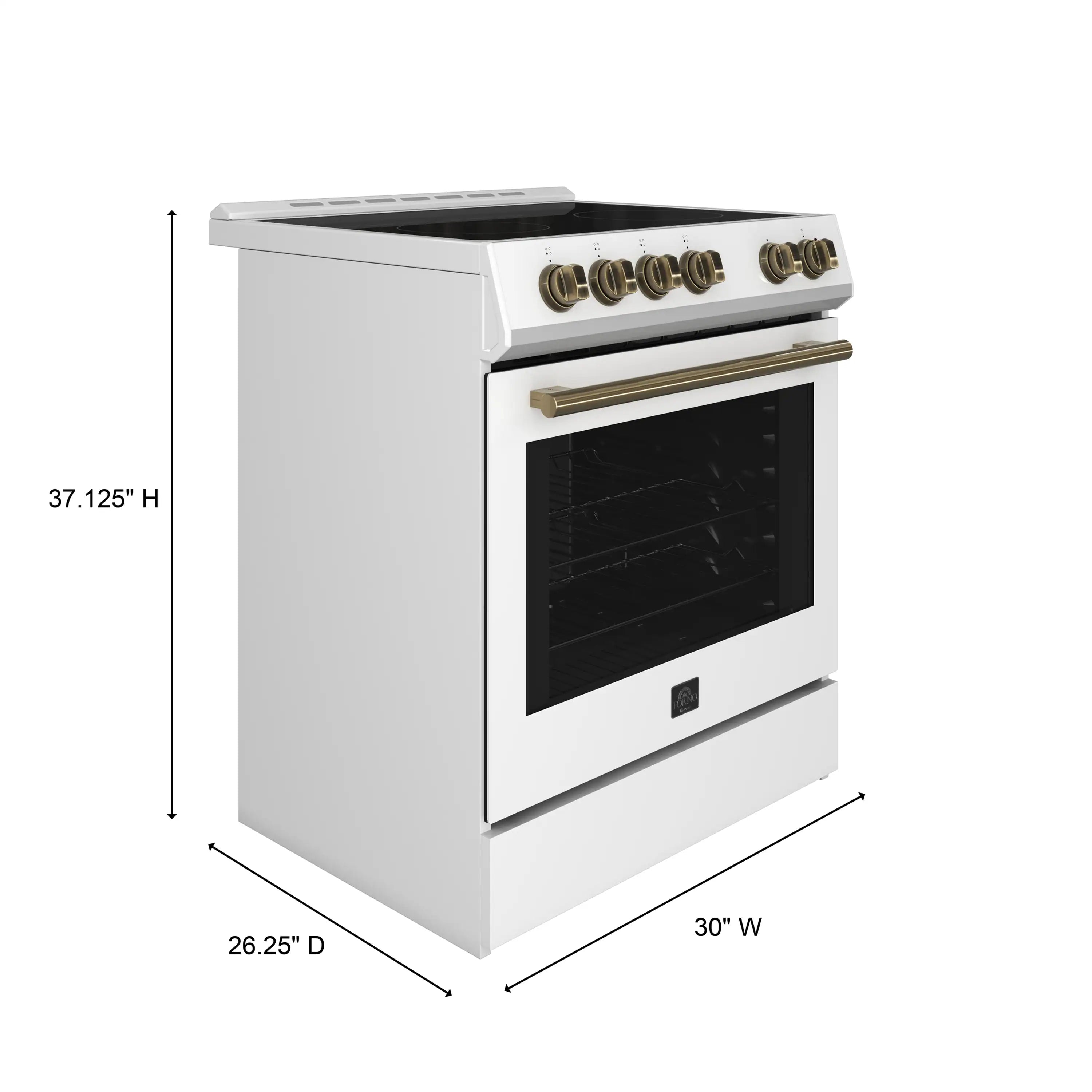

| Weight and Dimensions - Imperial Units | |
| Overall - Biggest Dims Possible (with Handle, Backsplash, etc) |
30" W X 27.95" D X 38" H |
| Minimum Counter Height | 36" |
| Maximum Counter Height | 38" |

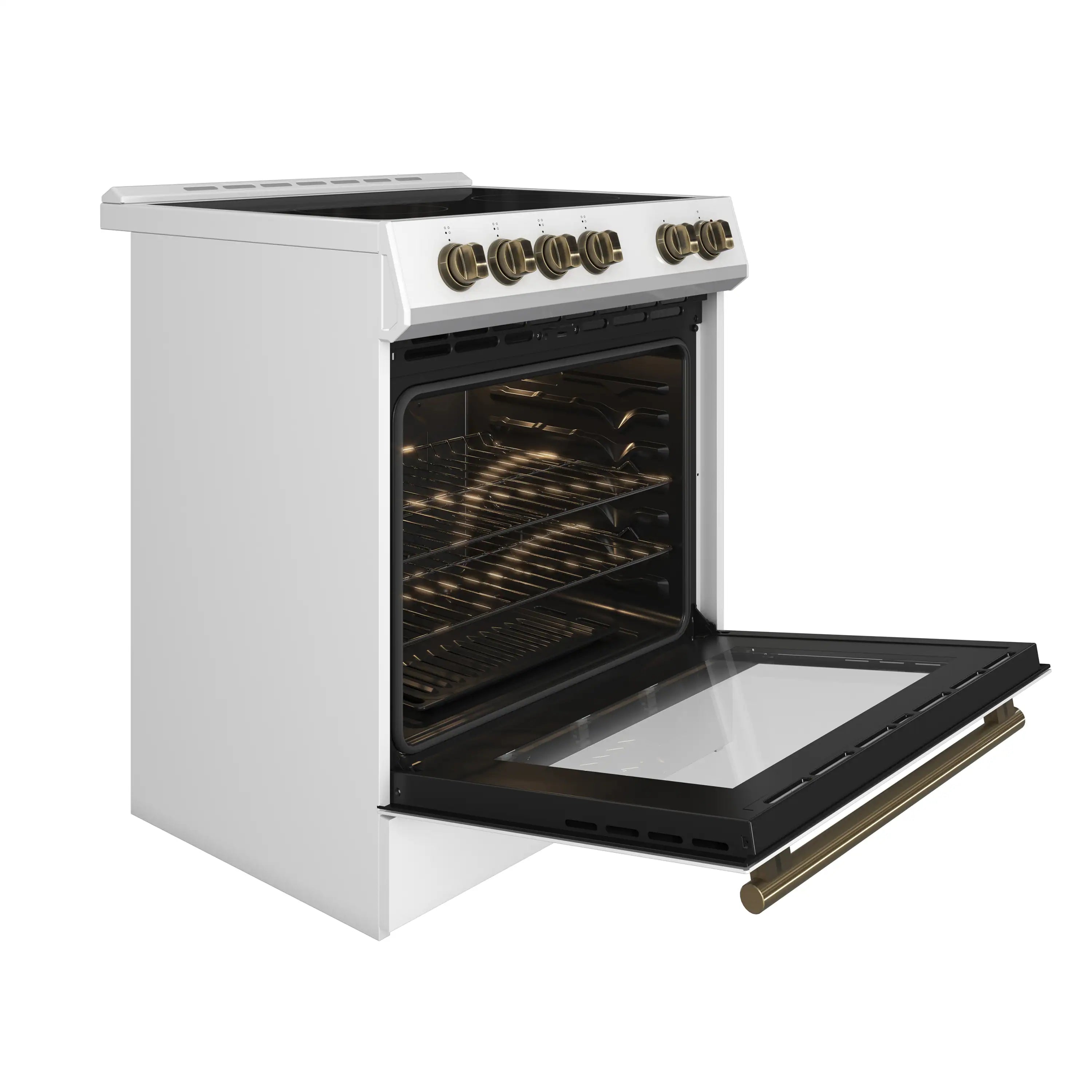

| Depth with Oven Door Open 90º | 46.25" |
| Depth without Oven Door Handle | 27.8" |
| Overall Weight | 145.5 lbs |
| Details | |
| Product Type | Slide-In |
| Color/Finish |
White |
| Handle Finish |
Brass |
| Fuel Type |
Electric |
| Burner Fuel |
Electric |
| Oven Fuel |
Electric |

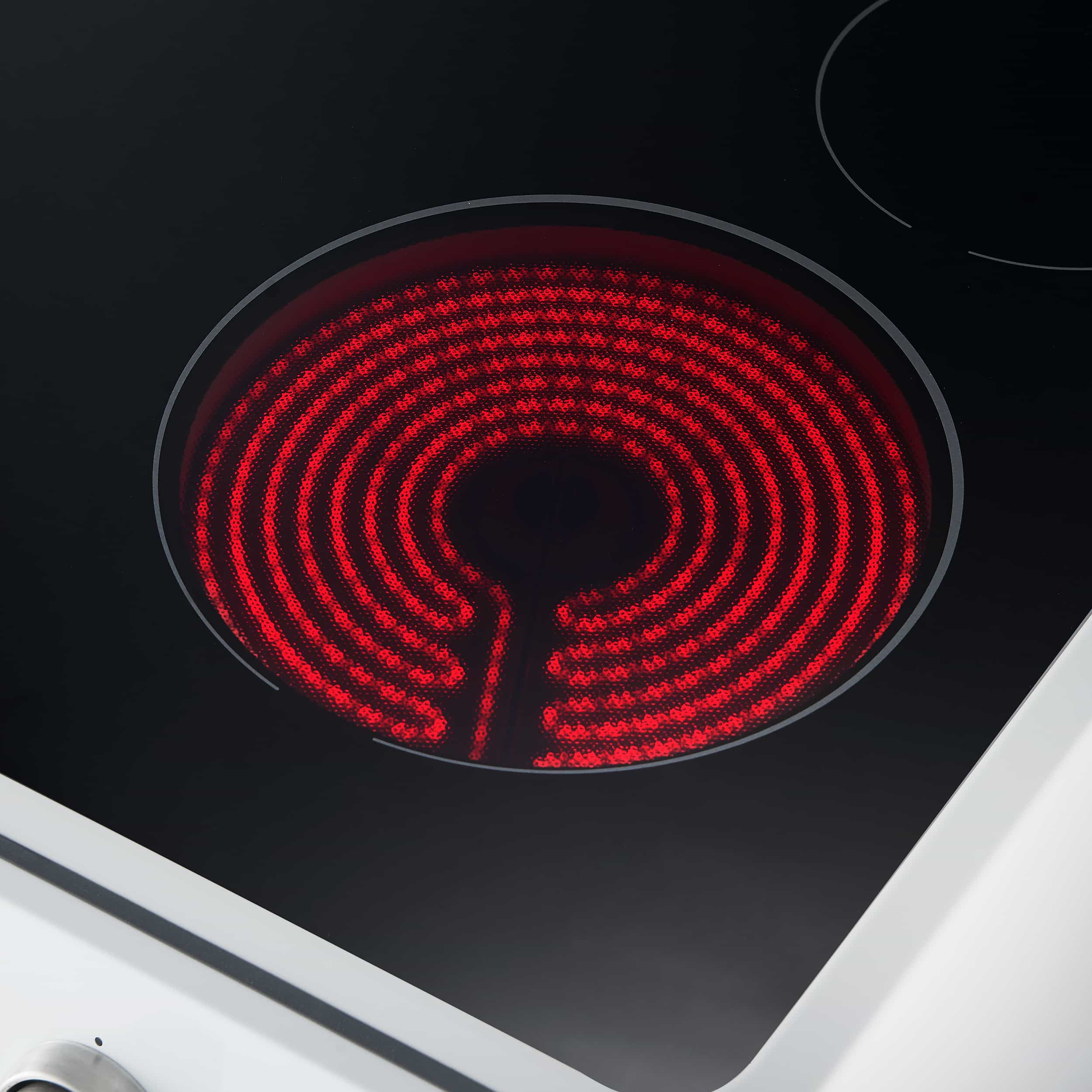

| Electric Heat Configuration (Cooktop) |
Radiant |
| Total cooktop Wattage output |
7100 |

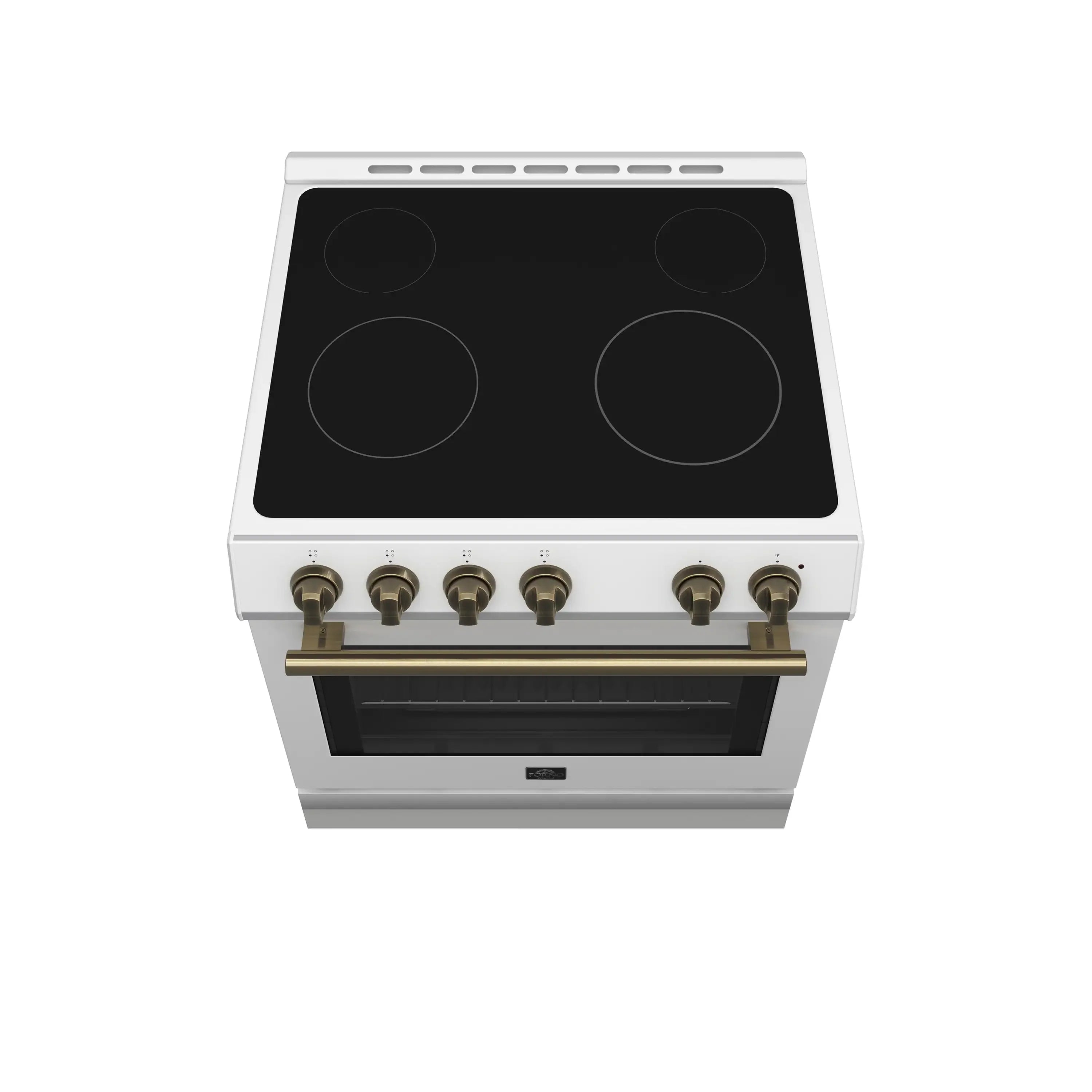

| Number of Burners |
4 |
| Double Ring Burner |
No |
| Warmer Burner |
No |
| Bridge Element |
No |
| Cooktop Surface Color |
Black |
| Cooktop Surface Materiel |
Ceramic Glass |
| Cooktop Surface Structure |
Smoothtop |
| Number of Ovens |
1 |
| Overall Oven Capacity (cubic feet) |
5 |
| Oven Interior Finish |
Black Enamel |
| Oven Racks Type |
Standard |
| Number of Racks |
2 |
| Racks Material |
Chrome-Plated |
| Number of Rack Positions |
6 |
| Cooking Surface Control Type |
Push & Turn |
| Broiler |
Yes |
| Broiler Element Type |
Single Element |
| Overall Broiler Wattage |
2000 |
| Broiler Location |
Oven |
| Bake Element |
Yes |
| Overall Bake Wattage |
1500 |
| Hidden Bake Element |
Hidden |
| Convection Oven |
Yes |
| Convection Type |
Standard Convection |
| Cooking Process |
Bake Convection Bake Broil Convection Broil Convection Roast Defrost |
| Cleaning Type |
Standard |
| Rack position |
Yes |

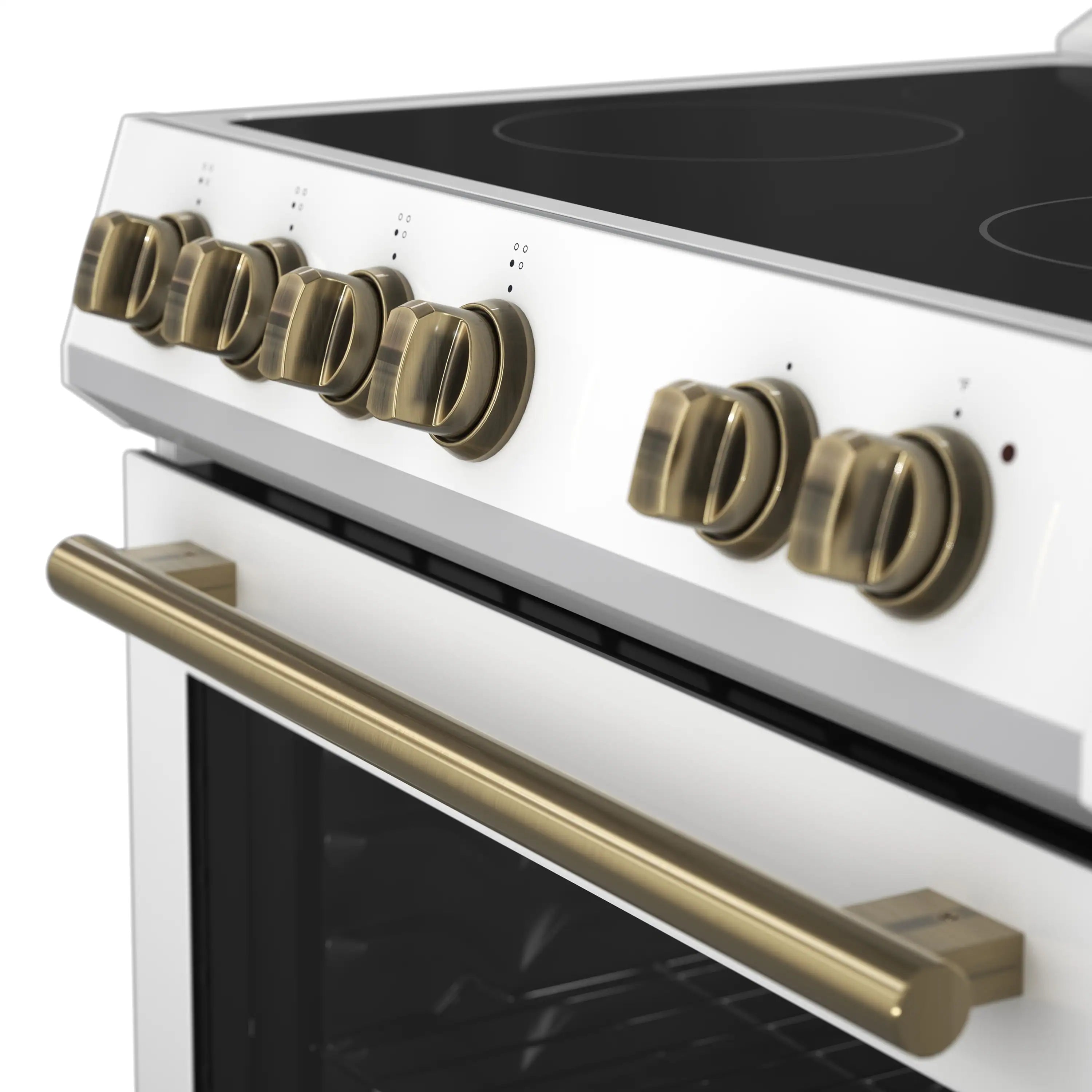

| Control Type |
Knob |
| Number of Knobs |
6 |
| Knobs Color/Finish |
Brass |
| Control Location |
Front |
| Oven Preheating Indicator |
Yes |
| Cooktop Hot Surface Indicator |
Yes |
| Safety Lock |
No |
| Temperature Gauge |
No |
| Timer |
No |
| Clock |
No |
| Storage Drawer |
No |
| Plug-In |
No |
| Primary Material |
Steel |
| Door Panel Material |
Stainless Steel |
| Control Panel Material | Stainless Steel |
| Kick Plate Material | Stainless Steel |
| Side Panel Material | Stainless Steel |
| Supplier Intended and Approved Use | Residential Use |
| Country of Origin | China |
| Included | Antique Brass Kit (Handle+Knobs+Knob Rings) |
| Cooktop Specs |
|
| Front Right Burner Watts | 2500 |
| Front Left Burner Watts | 2200 |
| Rear Right Burner Watts | 1200 |
| Rear Left Burner Watts | 1200 |

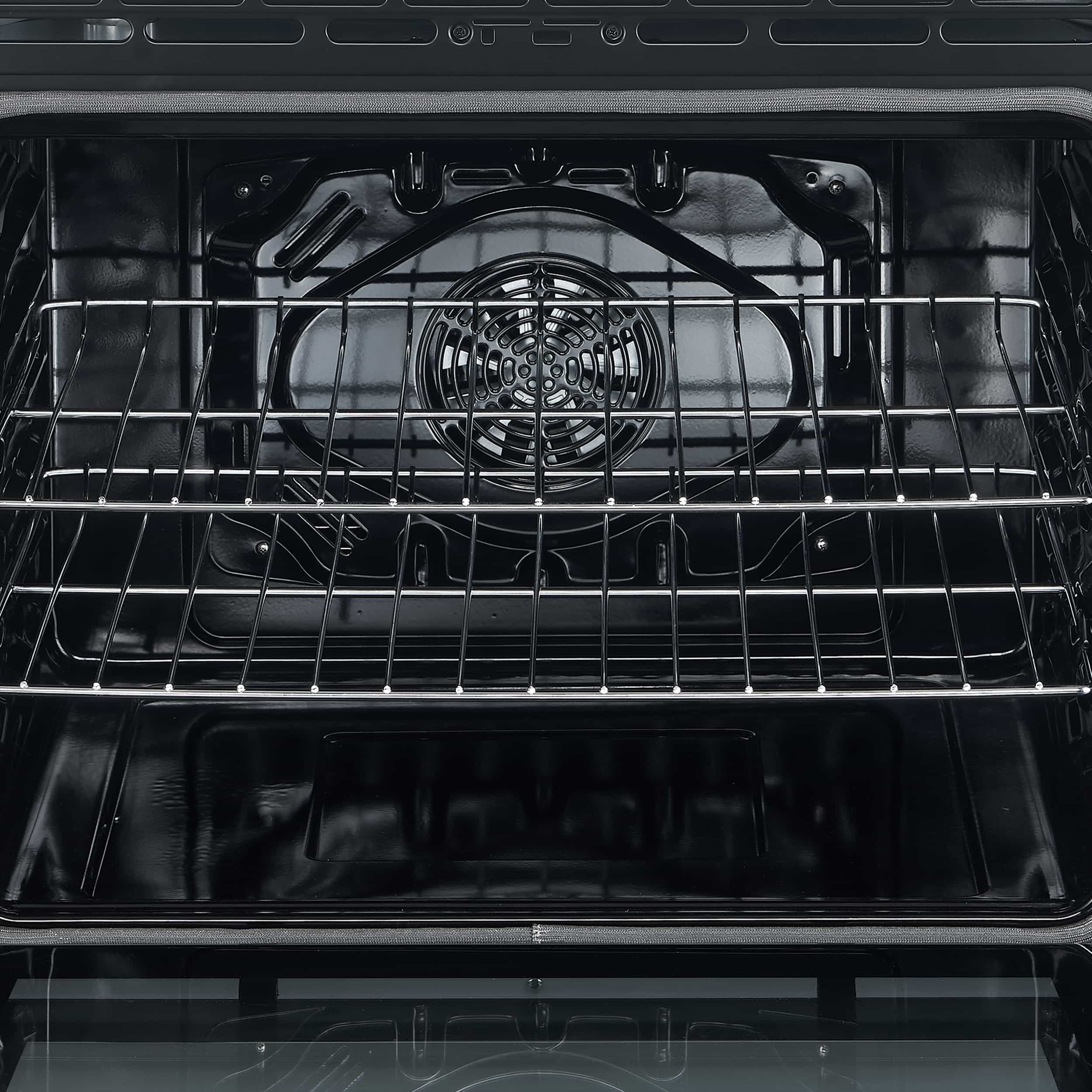

| Main Oven Specs | |
| Main Oven Capacity (cubic feet) |
5 |
| Main Oven Interior | 24.6" W x 17.7" D x 19.6" H |
| Main Oven Rack Size W x D (in) |
24.6 x 15.9 |
| Main Oven Broil Wattage |
2000 |
| Main Oven Bake Wattage |
1500 |
| Main Convection Fan |
Yes |
| Main Oven Convection Fan Wattage |
50 |
|
Electrical Specs |
|
| Dedicated Circuit Breaker Amperage |
50 |
| Total Amps Use |
44.25 |
| Volts |
240 |
| Overall Max Power (W) |
10650 |
| Cooktop Max Power (W) |
7100 |
| Oven Max Power |
3550 |
| Power Cord Included | No |
| Certification | ETL Listed |
| Warranty | |
| Commercial Warranty |
No |
| Warranty Type | Limited |
| Warranty Length | 2 Years |
| Warranty on Parts | 2 Years |
| Warranty on Labor | 2 Years |

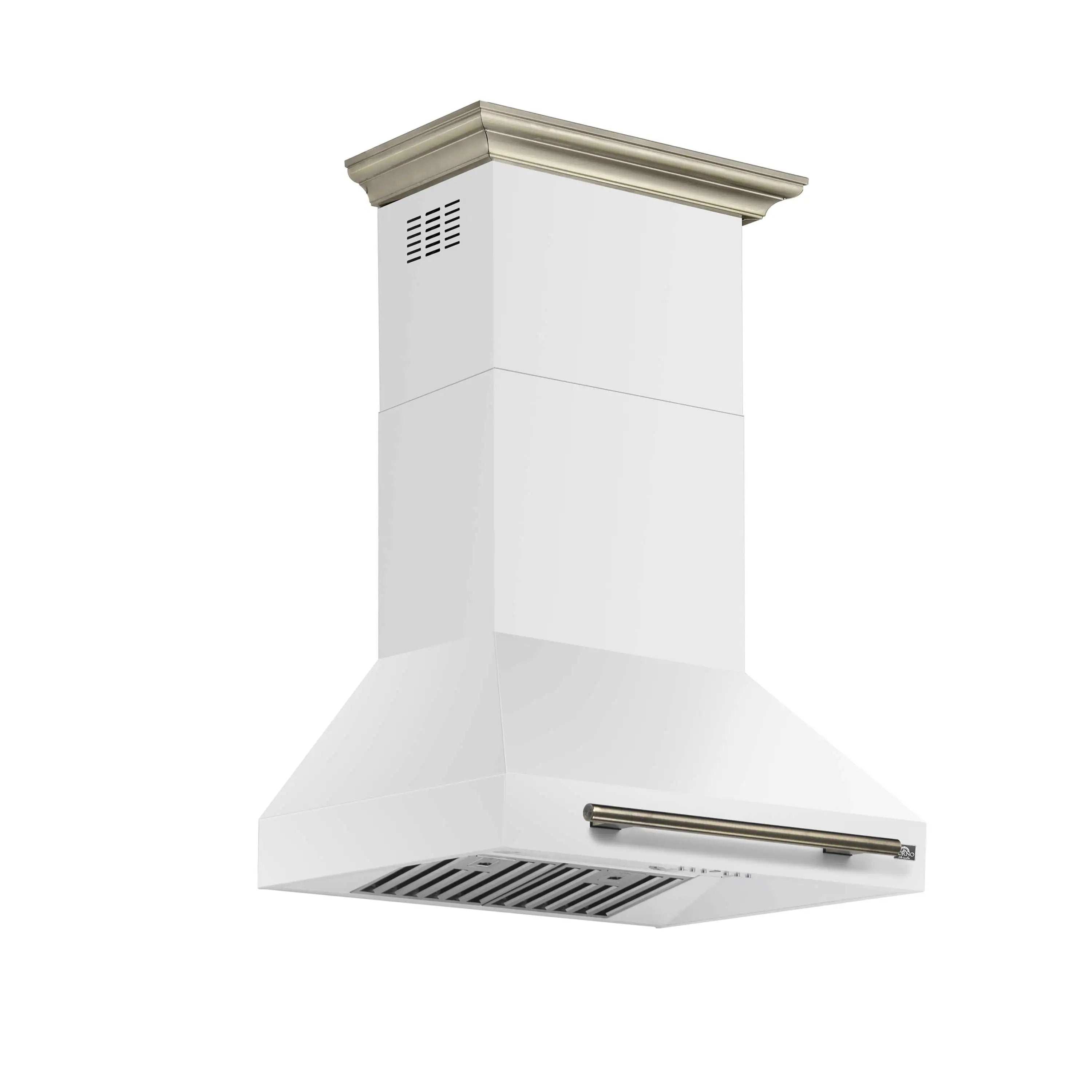

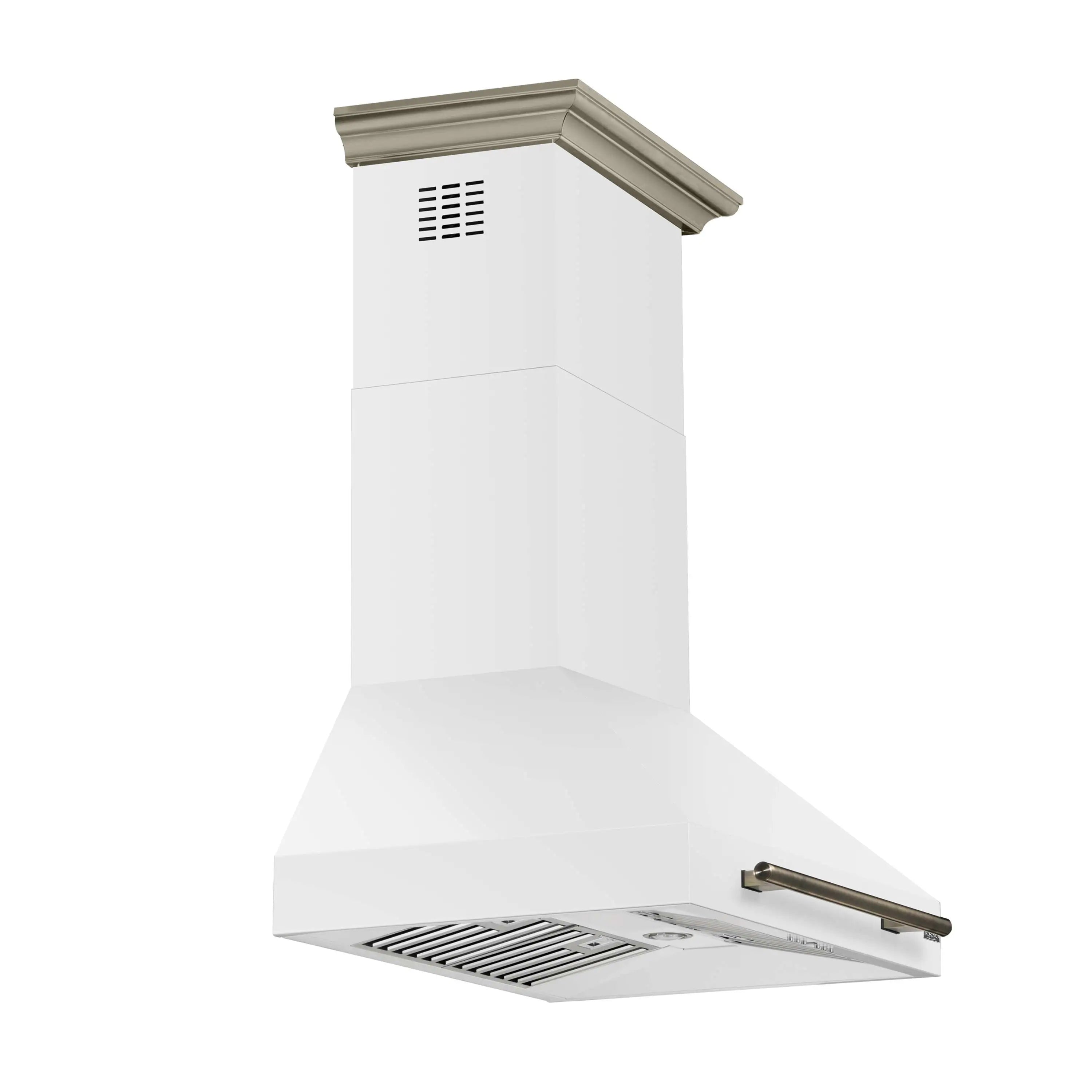

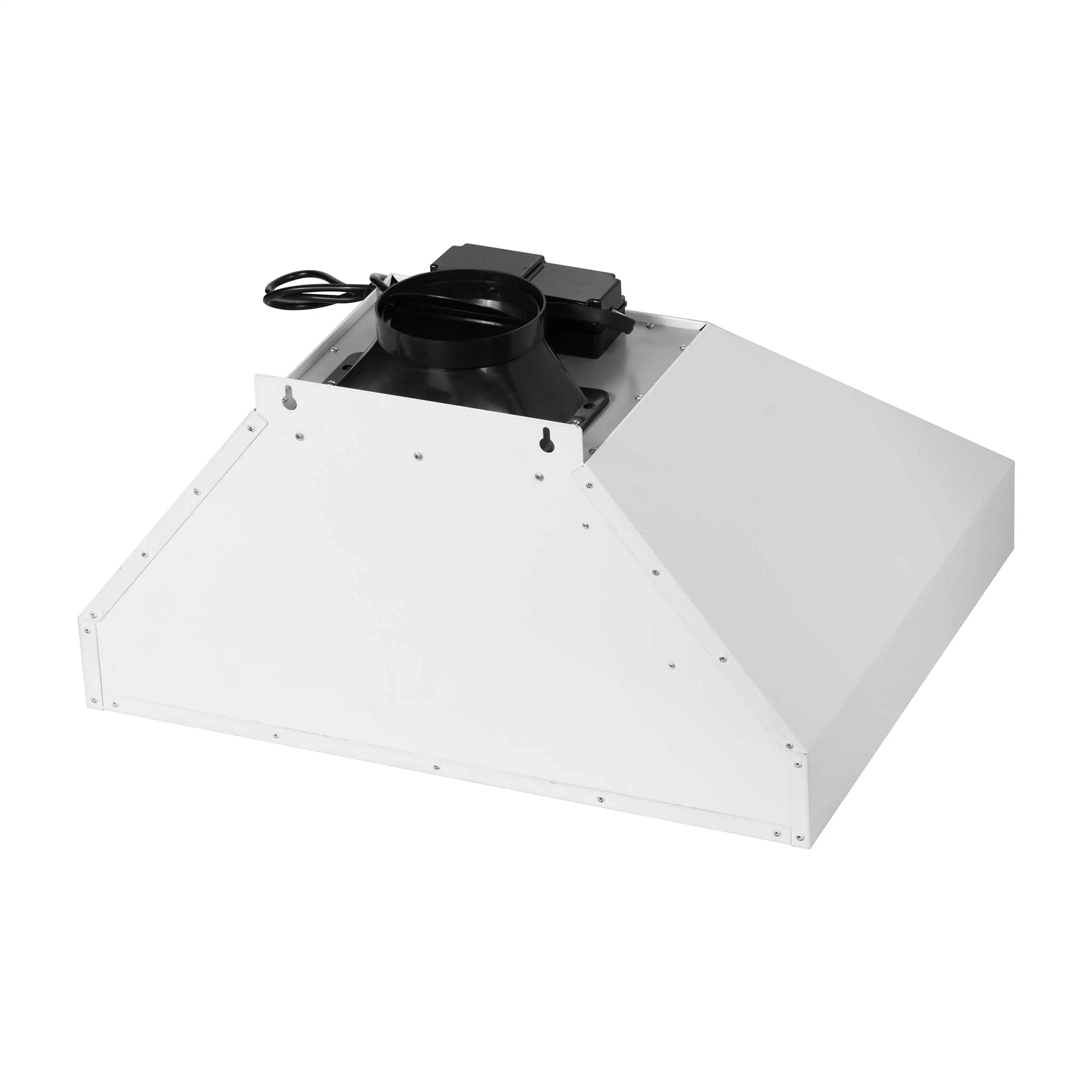

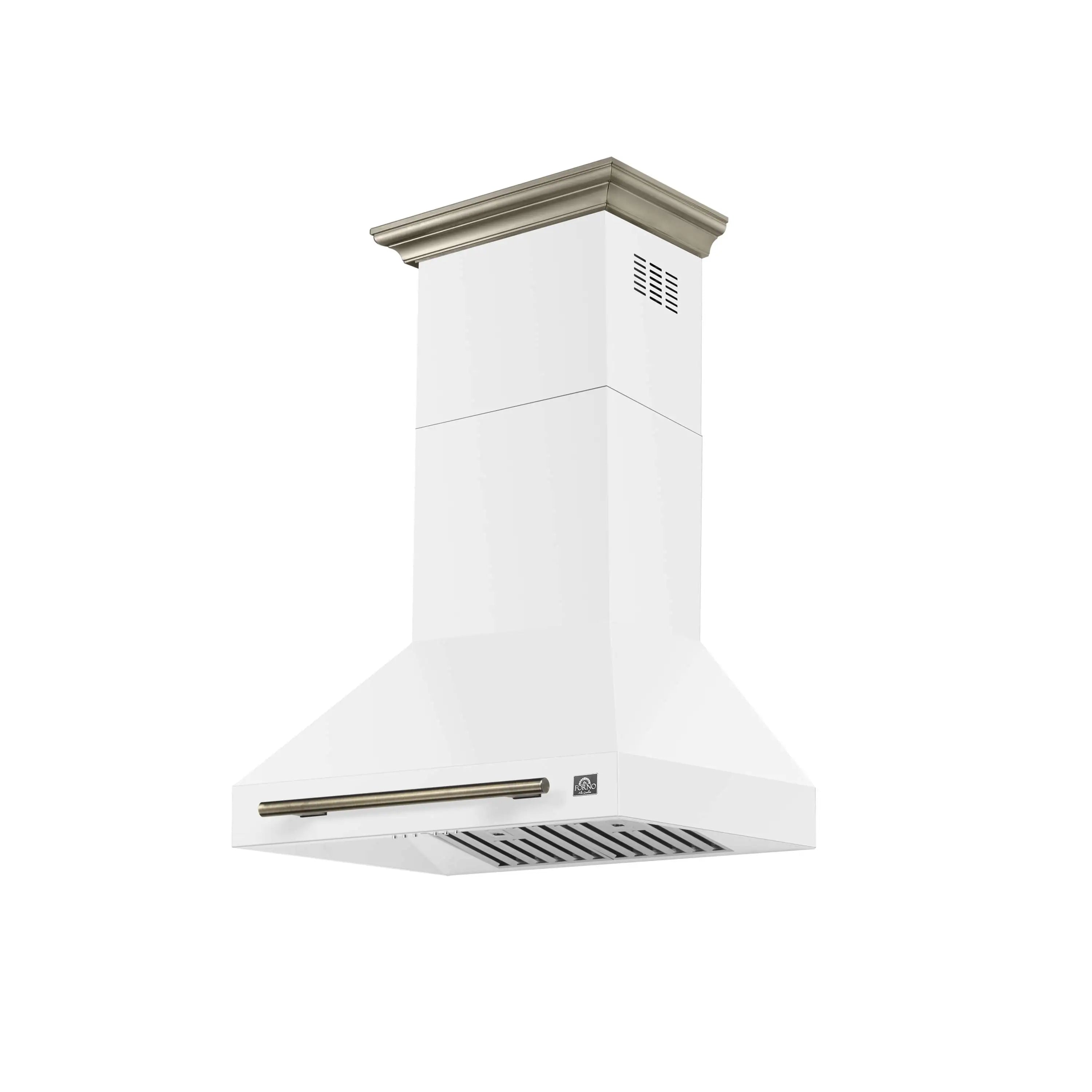

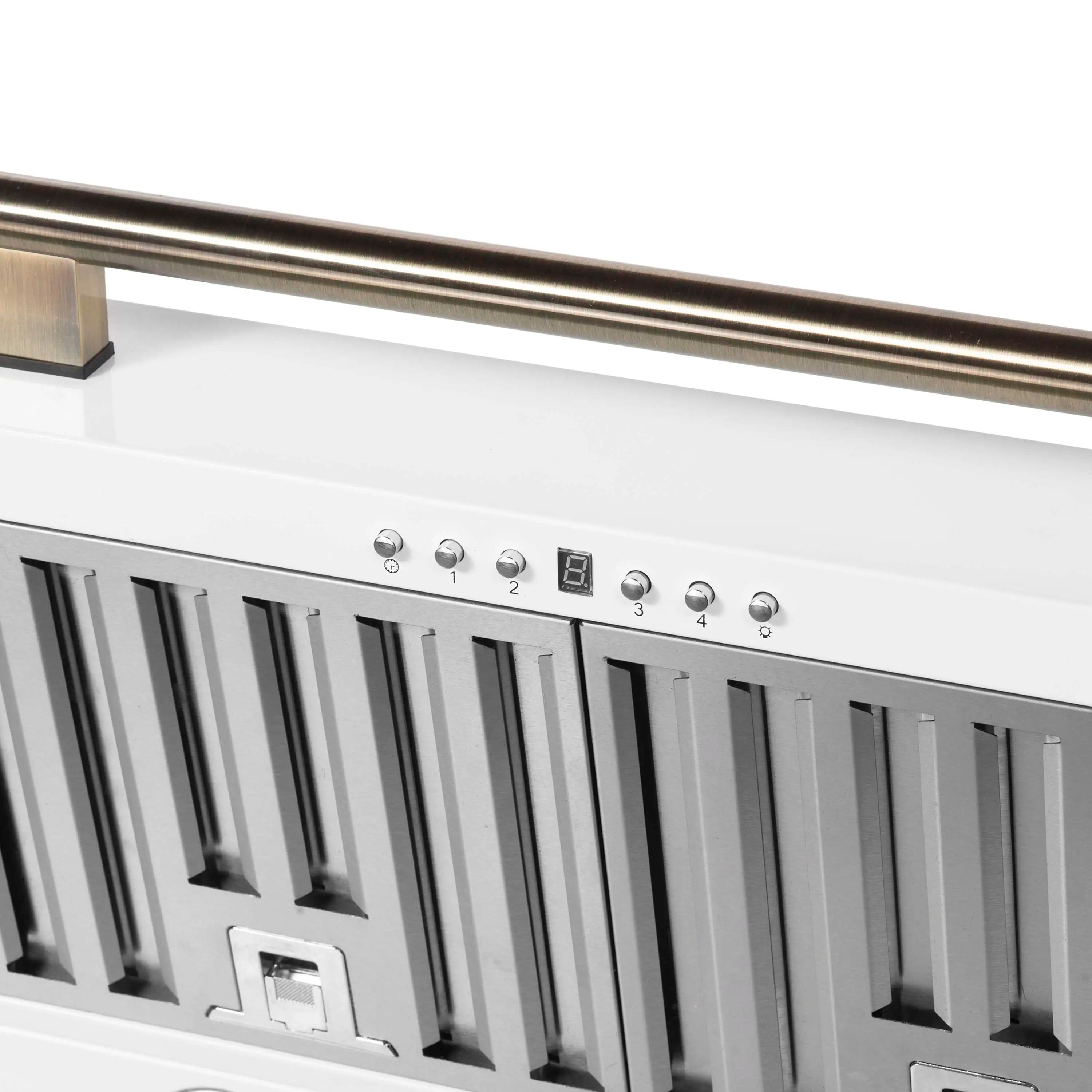

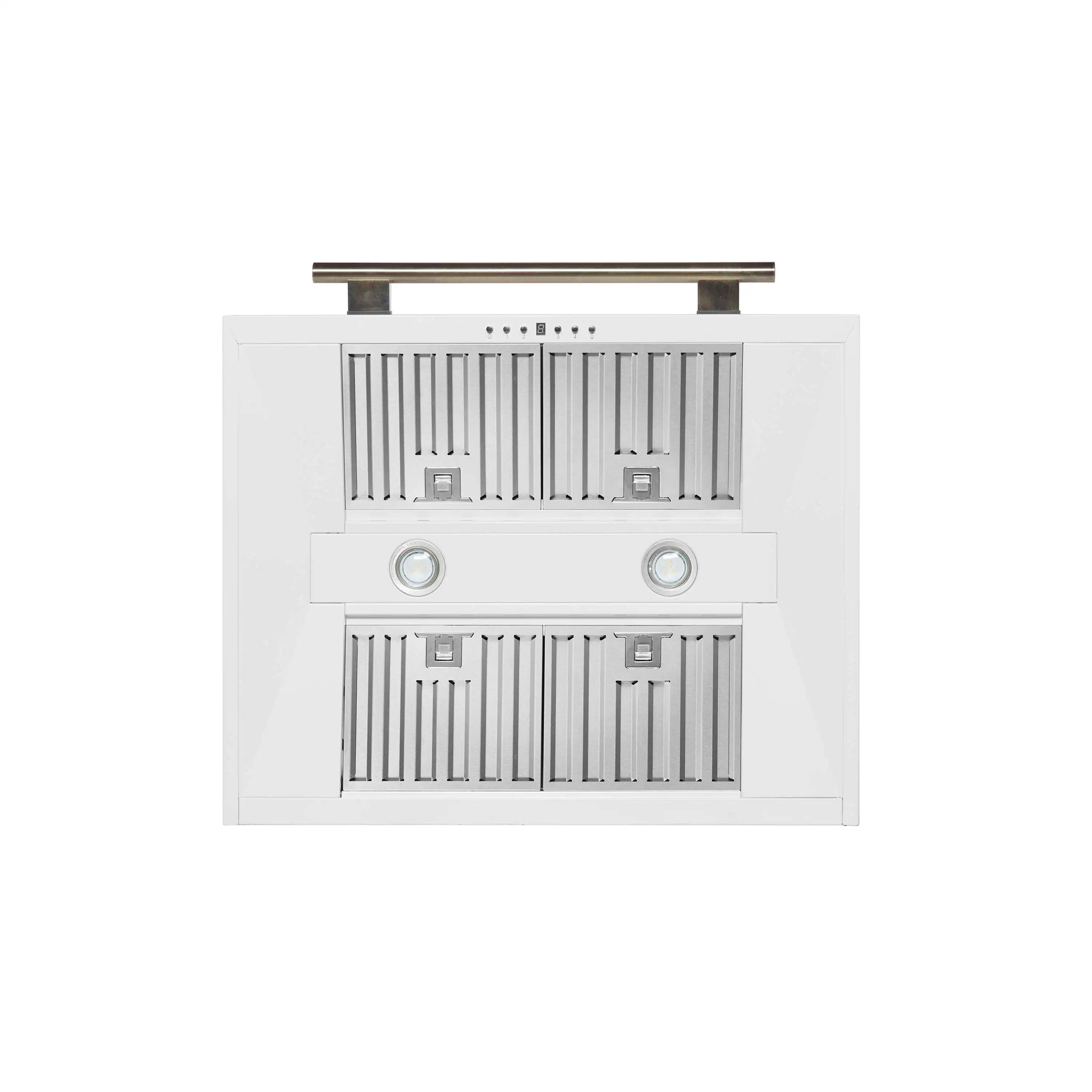

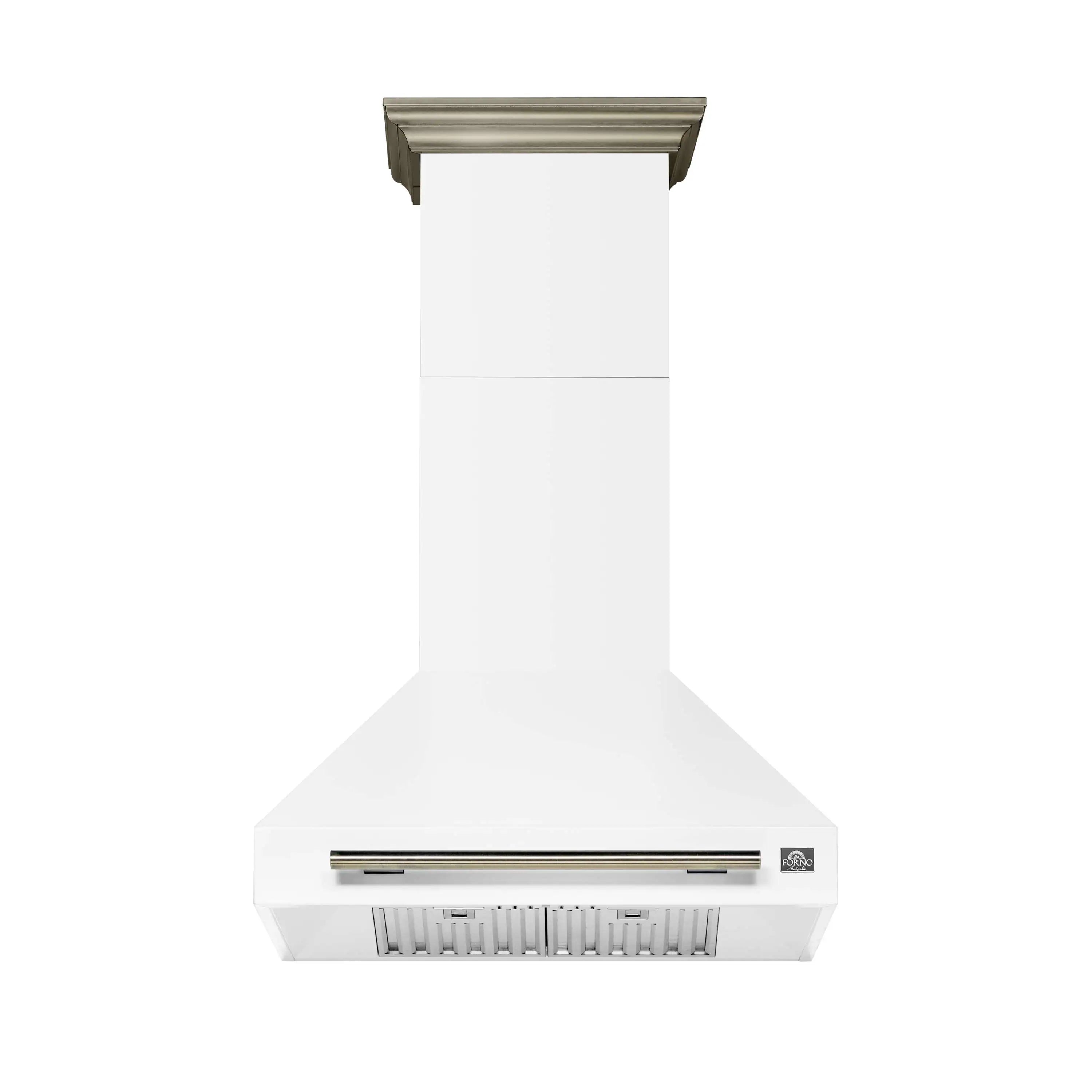

This 30 Inch Wall-Mounted Range Hood in white is designed for high-performance kitchen ventilation. With a powerful 600 CFM motor and 4-speed fan control, it removes smoke, grease, and cooking odors. Designed for ducted installation, the vertical upward air discharge ensures efficient airflow, while features like automatic shut-off, a built-in timer, and removable charcoal filters make it convenient to use and maintain. The included chimney extension kit and decorative crown molding allow for a custom, built-in look. Quiet operation at just 65 dB with built-in lighting for better visibility while cooking.
| Dimensions | |
|
|
29.5 x 23.6 x 44.5
|
|
|
30 x 11.6 x 44.5
|
| Technical Information | |
|
|
White
|
|
|
Under
|
|
|
Stainless Steel
|
|
|
58
|
|
|
44
|
|
|

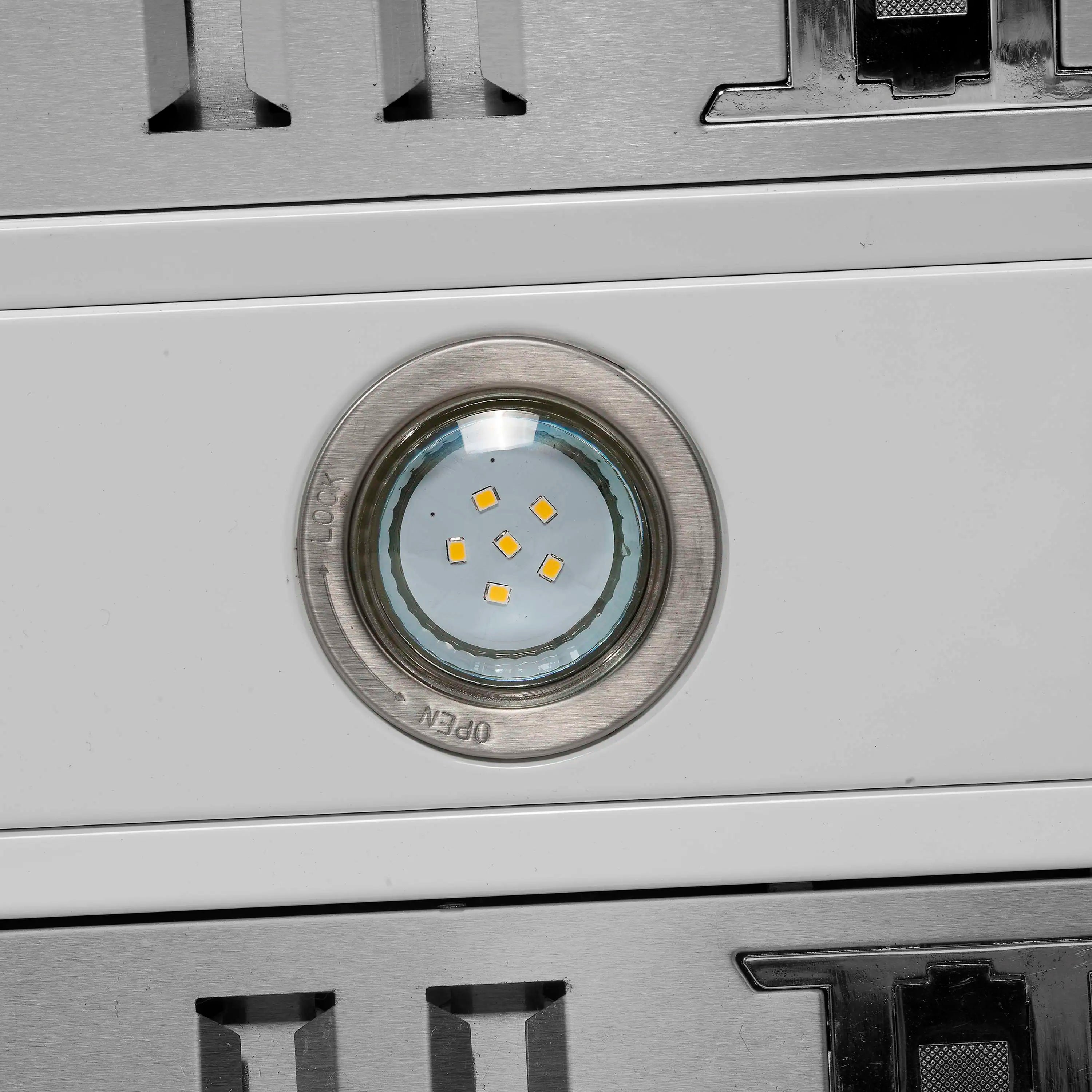

LED GU10
|
|
|
60
|
|
|
30
|
|
|
44
|
|
|
13
|
|
|
5
|
|
|
2
|
|
|
1510
|
|
|
1050
|
|
|
1020
|
|
|
637
|
|
|
600
|
|
|
375
|
|
|
275
|
|
|
Pyramid
|
|
|
2
|
|
|
No
|
|
|
Yes
|
|
|
Yes
|
|
|
Yes
|
|
|
No
|
|
|
Push Button Control
|
|
|
6-in Round
|
|
|
Yes
|
|
|
Stainless Steel
|
|
|
Vertically Upward
|
|
|
Yes
|
|
|
Roof / Wall
|
|
|
Metal
|
|
|
No
|
|
|
Yes
|
|
|
No |
|
|
Top
|
|
|
65
|
|
|
51
|
|
|
2
|
|
|
59
|
|
|
65
|
|
|
8
|
|
|
2
|
|
|
13
|
|
|
1350
|
|
|
880
|
|
|
807
|
|
|
467
|
|
|
475
|
|
|
275
|
|
|
600
|
|
|
No |
|
|
1 |
|
|
No
|
|
|
Yes
|
|
|
Yes
|
|
|
White
|
|
|
No
|
|
|
No
|
|
|
4
|
|
|
6-in Round
|
|
|
Yes
|
|
|
Baffle
|
|
|
External
|
|
|
Ducted
|
|
|
1 |
|
|
1 |
|
Certification
|
|
|
|
cETLus
|
|
|
5014042
|
|
Warranty
|
|
|
|
No |
|
|
2 Years
|
|
|
Limited
|
|
|
2 Years |
|
|
2 Years |

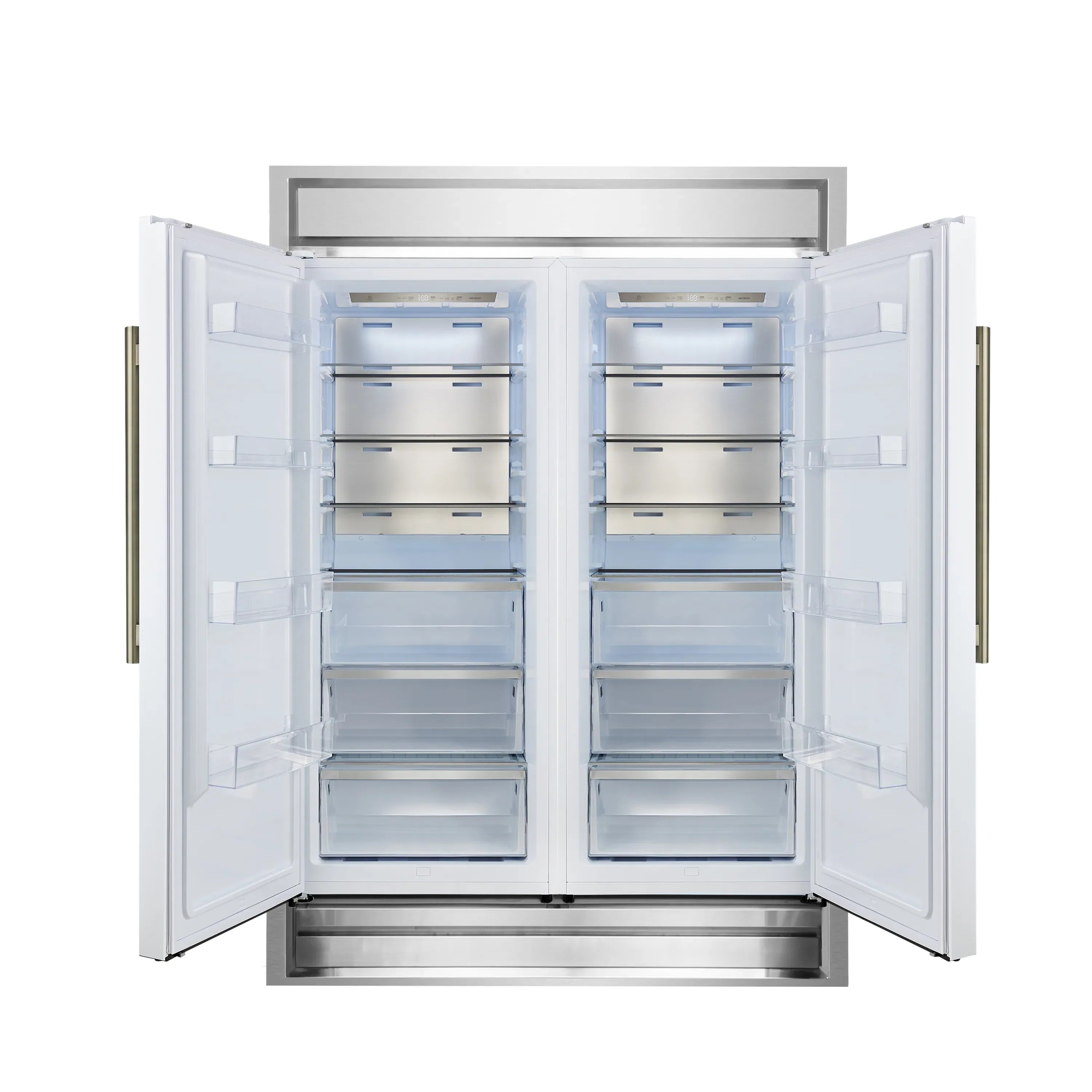

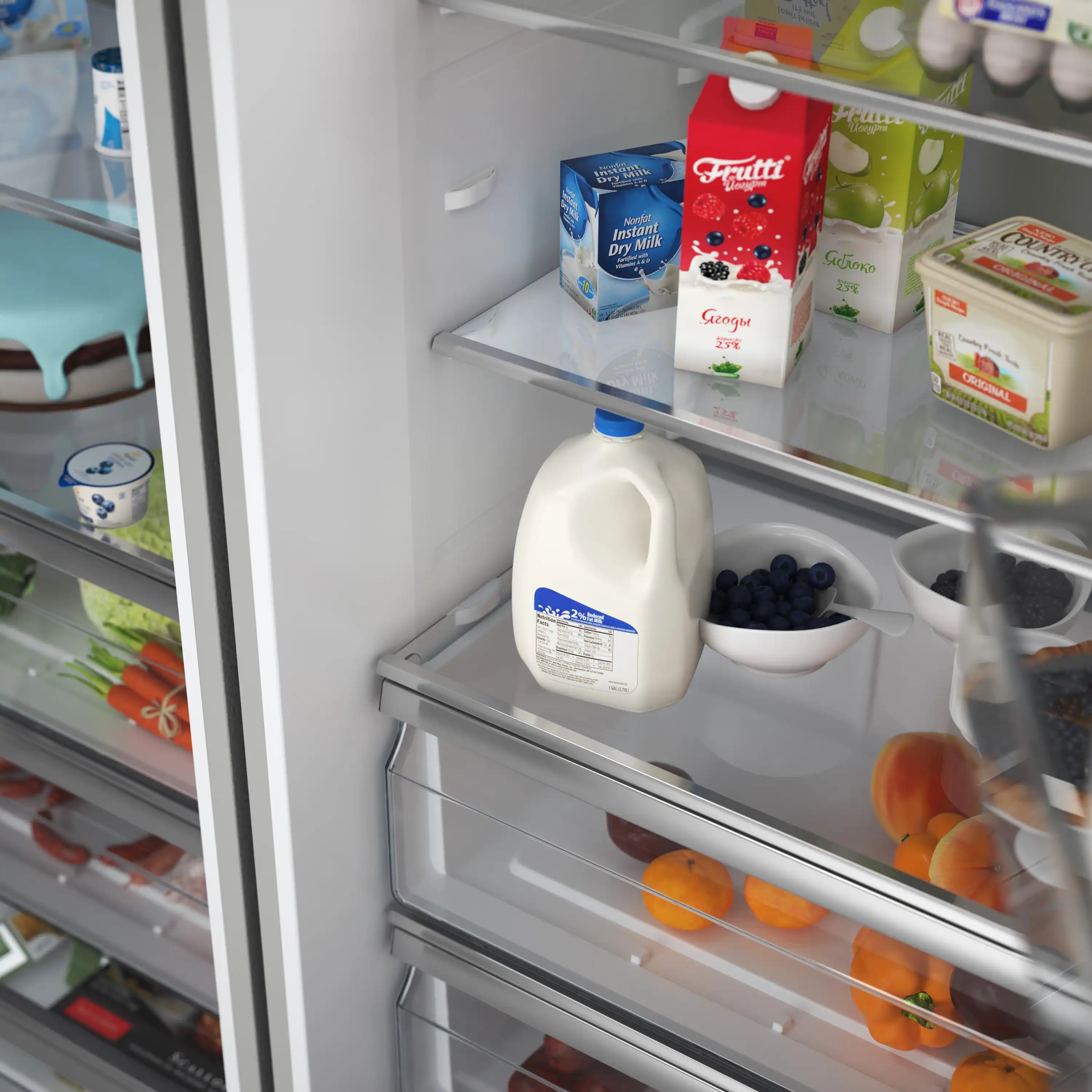

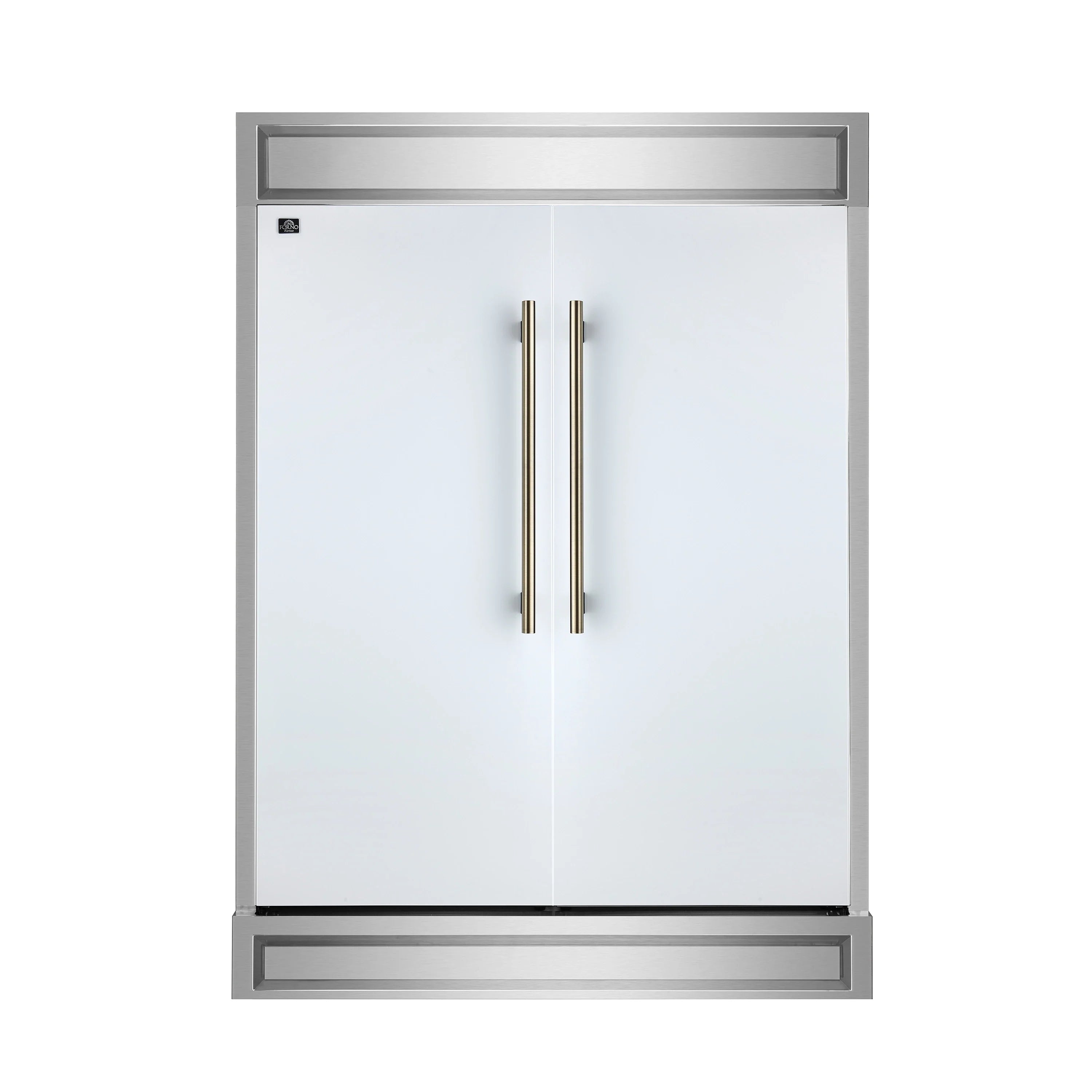

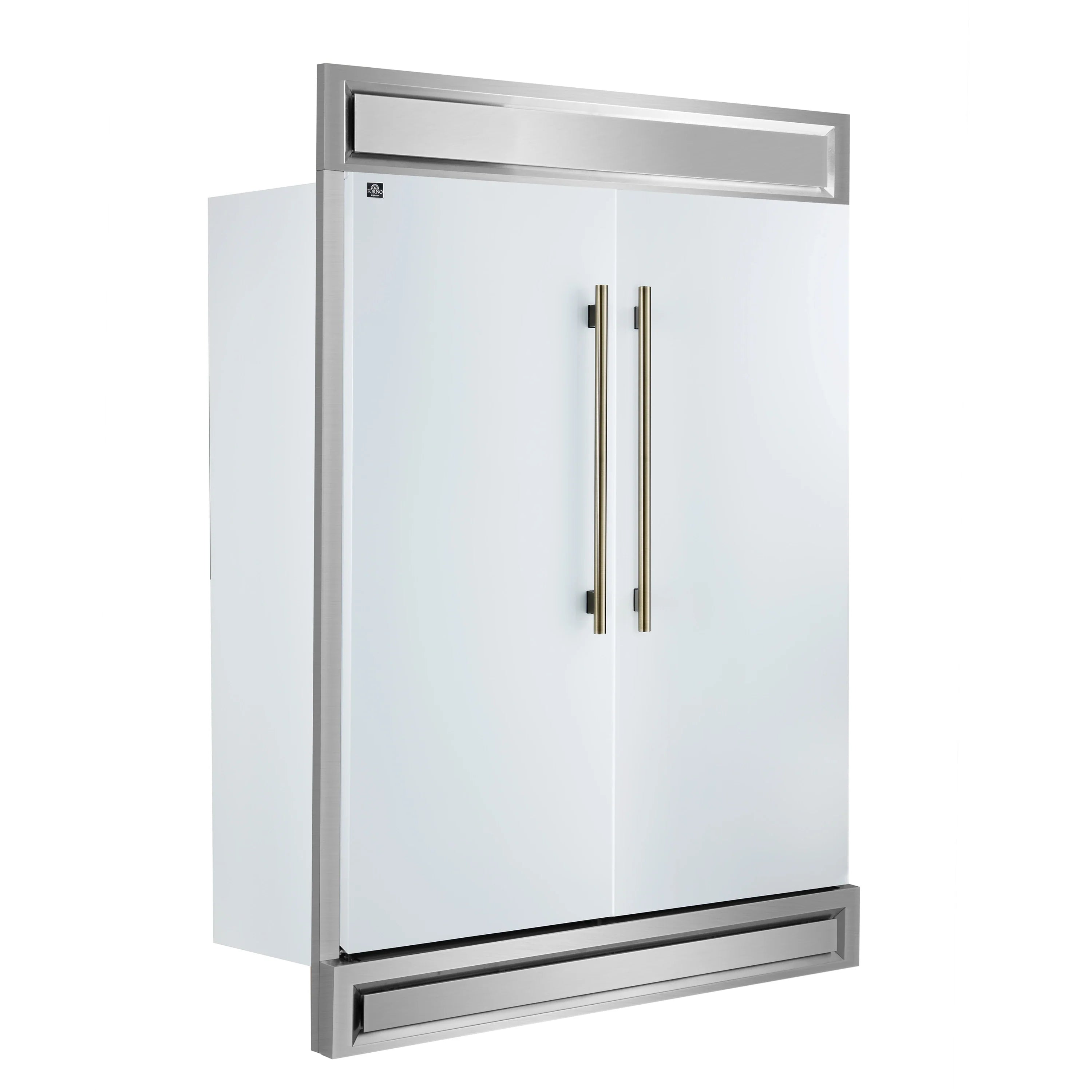

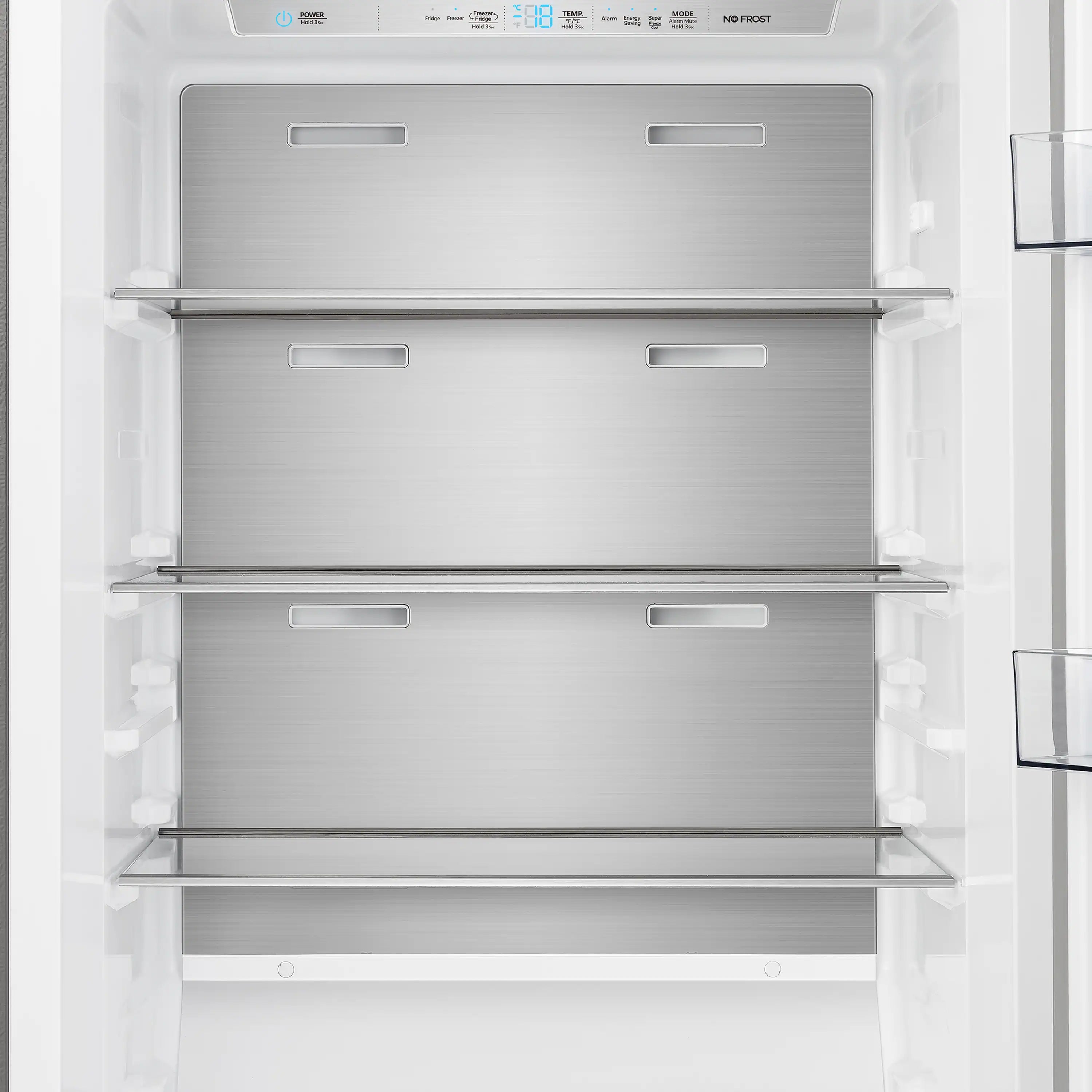

The Forno Maderno offers a premium 60-inch built-in refrigerator look by combining two 28-inch refrigerators with a trim kit for seamless integration. Available in white and featuring antique brass handles, it’s part of our elegant Espresso line. With 27.2 cu.ft. of total capacity, it delivers generous storage and features Convertible Cooling Zones, Total No-Frost Technology, and a refined control panel. Six glass shelves with silver trims, 6 drawers, and LED lighting enhance both organization and visibility. The VCM doors and metal back panel ensure long-lasting durability, while the Energy Star Certification guarantees sustainability.
|
Product Dimensions W x D x H (inches) |
55.2 x 29.7 x 67.7 |
|
Cutout dimensions W x D x H (inch) |
55.9 x 28.94 x 69.06 |
|
Interior Freezer Dimensions W x D x H (in) |
21.58 X 19.96 X 59.84 |
|
|
27.70 |
| Product Overall Weight (lbs) | 330 |
| Control Location | Internal |
| Primary Material | Steel |
| Number of pallet | 2 |
| Energy Star Most Efficient | No |
| Height Top of Door Hinge (inches) | 75.9 |
| Number of Power Cord | 2 |
| Estimated Annual Operating Cost (USD) | 110 |
| Number of Freezer Door Bins | 4 |
| Interior Light | Yes |
| Clock | No |
| Interior Light(s) Type | LED |
| CEE Tier Qualified | Not Rated |
| Height Top of the Cabinet/Case (inches) | 75.3 |
| Height Top of the Door (inches) | 75.9 |
| Power Cord Location | Lower Back |
| Energy Consumption (kWh/yr) | 647 |
| Temperature Range Freezer (°F) | 11°F to 7°F |
| Freezer Shelf Material | Glass With Silver Trim |
| Adjustable Freezer Shelves | Yes |
| Number of Freezer Shelves | 4 |
| Number of Freezer Drawers | 3 |
| Interior Freezer Dimensions Depth | 19.96 |
| Interior Freezer Dimensions W x D x H (in) | 21.58 X 19.96 X 59.84 |
| Freezer Door Style | Swing Door |
| Temperature Range Refrigerator (°C) | 2°C to 8°C |
| Freezer Door Storage | Yes |
| Number of Freezer Adjustable Shelves | 3 |
| Freezer Section Layout | Adjustable Racks, In-Door Storage, Freezer Drawers, Full Width |
| Interior Freezer Dimensions Height | 59.84 |
| Interior Freezer Dimensions Width | 21.58 |
| Freezer Light | Yes |
| Freezer Capacity | 13.6 |
| Door Bins Material | Plastic |
| Adjustable Door Storage | No |
| Fresh Food Door Type | Swing Door |
| Number of Adjustable Shelves | 3 |
| Fresh Food Shelves Material | Glass With Silver Trim |
| Temperature Controlled Drawer(s) | No |
| Interior Fresh Food Dimensions Height | 59.84 |
| Interior Fresh Food Dimensions Width | 21.58 |
| Temperature Range Refrigerator (°F) | 36°F to 46°F |
| Door Bins Color | Transparent |
| Number of Standard Door Bins | 4 |
| Door Storage | Yes |
| Adjustable Fresh Food Shelves | Yes |
| Number of Fresh Food Shelves | 4 |
| Humidity Controlled Drawer(s) | Yes |
| Number of Fresh Food drawers | 3 |
| Fresh Food Capacity Cu. Ft. | 13.6 |
| Cooling Type | Multi Air Flow |
| Fast Cool Function | Yes |
| Energy Saver Mode | Yes |
| Cabinet Color | White |
| Door Liner Color | White |
| Interior Fresh Food Dimensions Depth | 19.96 |
| Interior Fresh Food Dimensions W x D x H (inches) | 21.58x19.96x59.84 |
| Dual Evaporator Cooling System | Yes |
| Toe Grille Color | Stainless Steel |
| Door Texture | Smooth |
| Electronic Temperature Control | Yes |
| Flat back design | Yes |
| Cabinet Material | Embossed Galvanized Steel |
| Door Liner Material | High Impact Polystyrene |
| Door Style | Contoured |
| Temperature Memory Function | Yes |
| Overall Capacity Cu. Ft. | 27.20 |
| Handle Color/Finish | Stainless Steel |
| Number of Lights | 2 |
| Warranty Type | Limited |
| Warranty On Parts | 2 Years |
| Warranty on Labor | 2 Years |

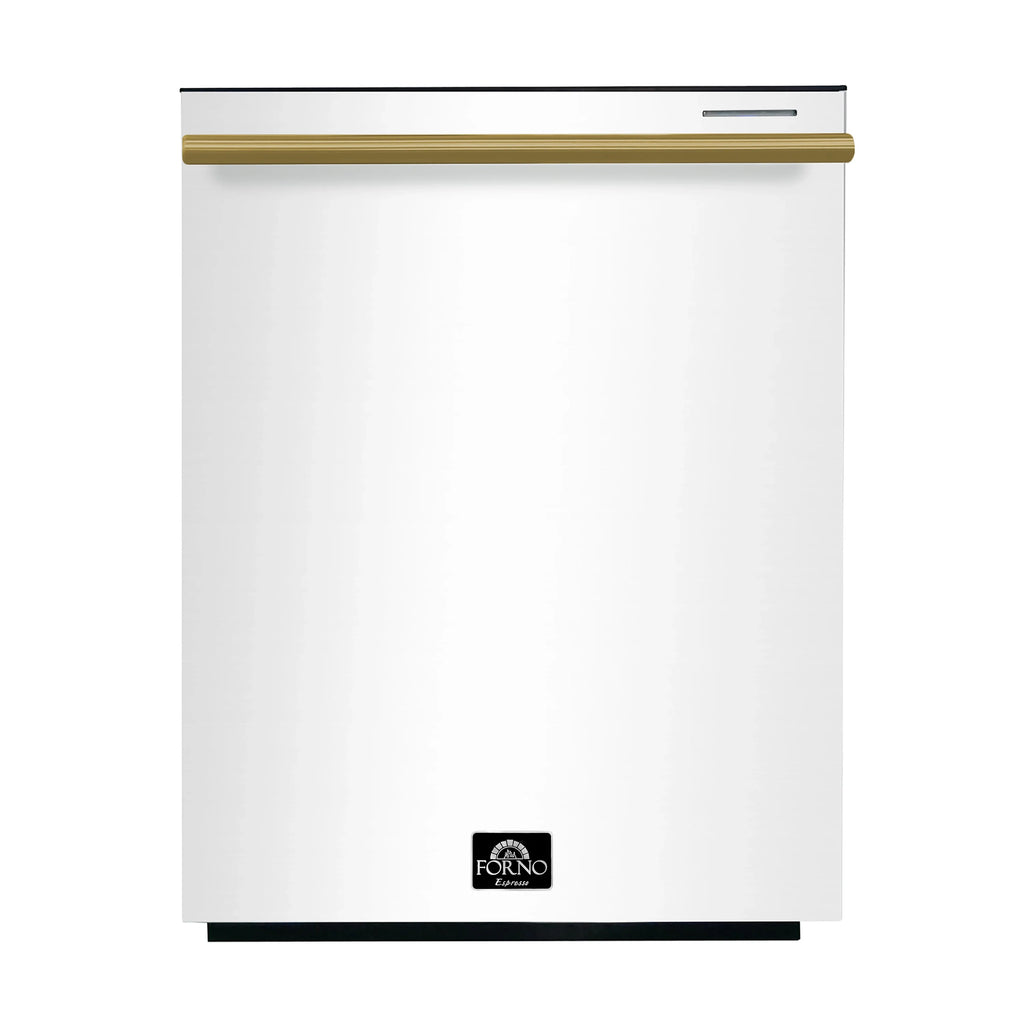

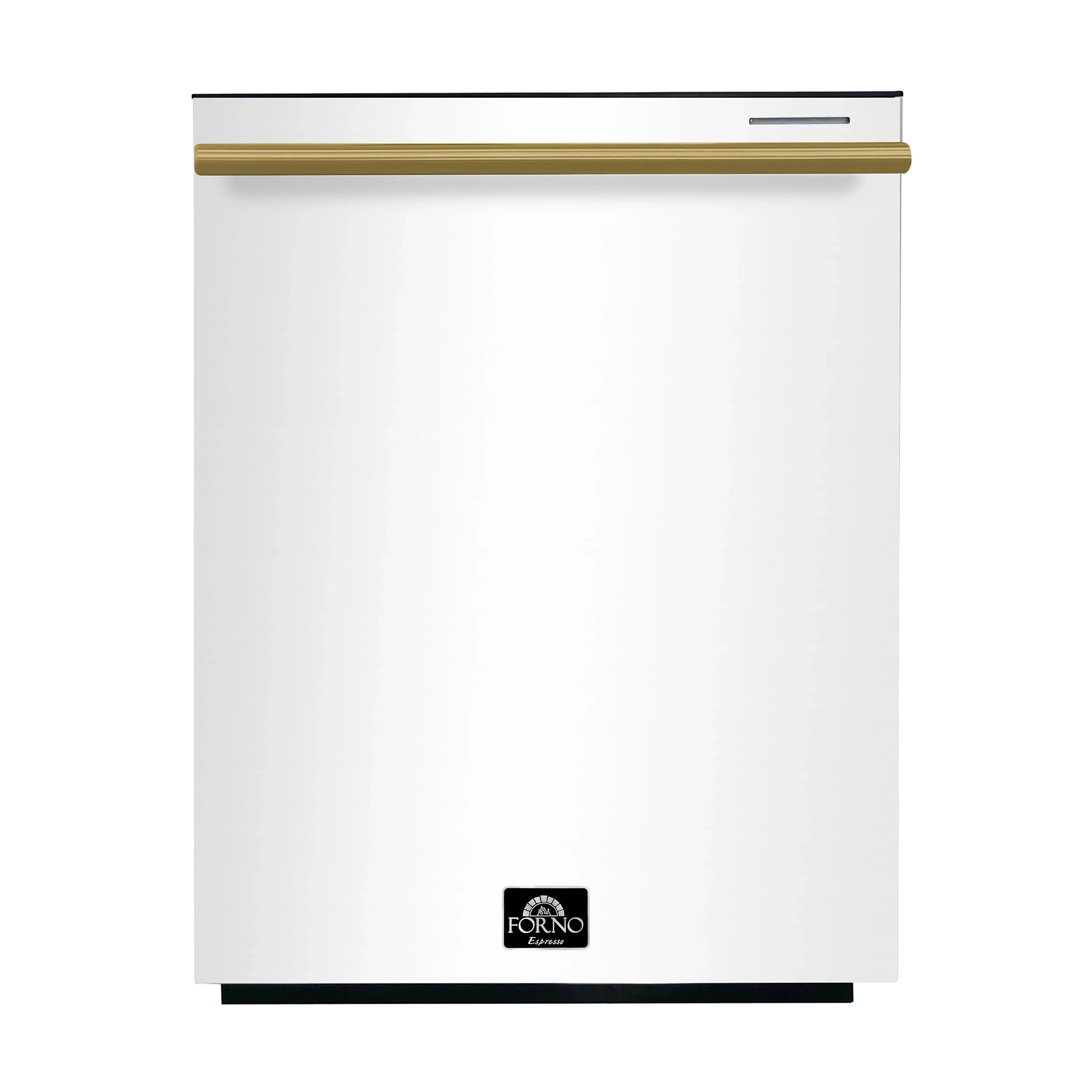

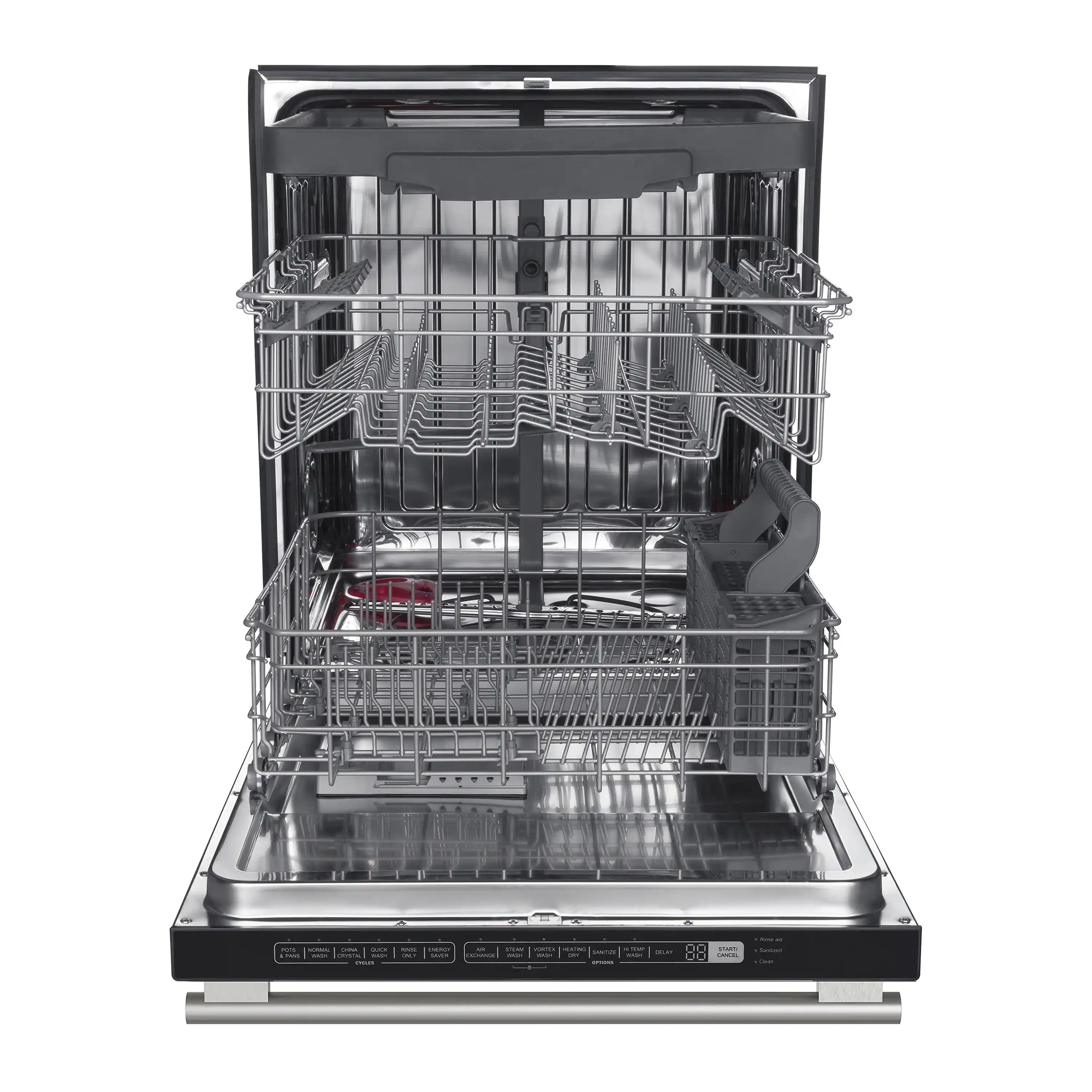

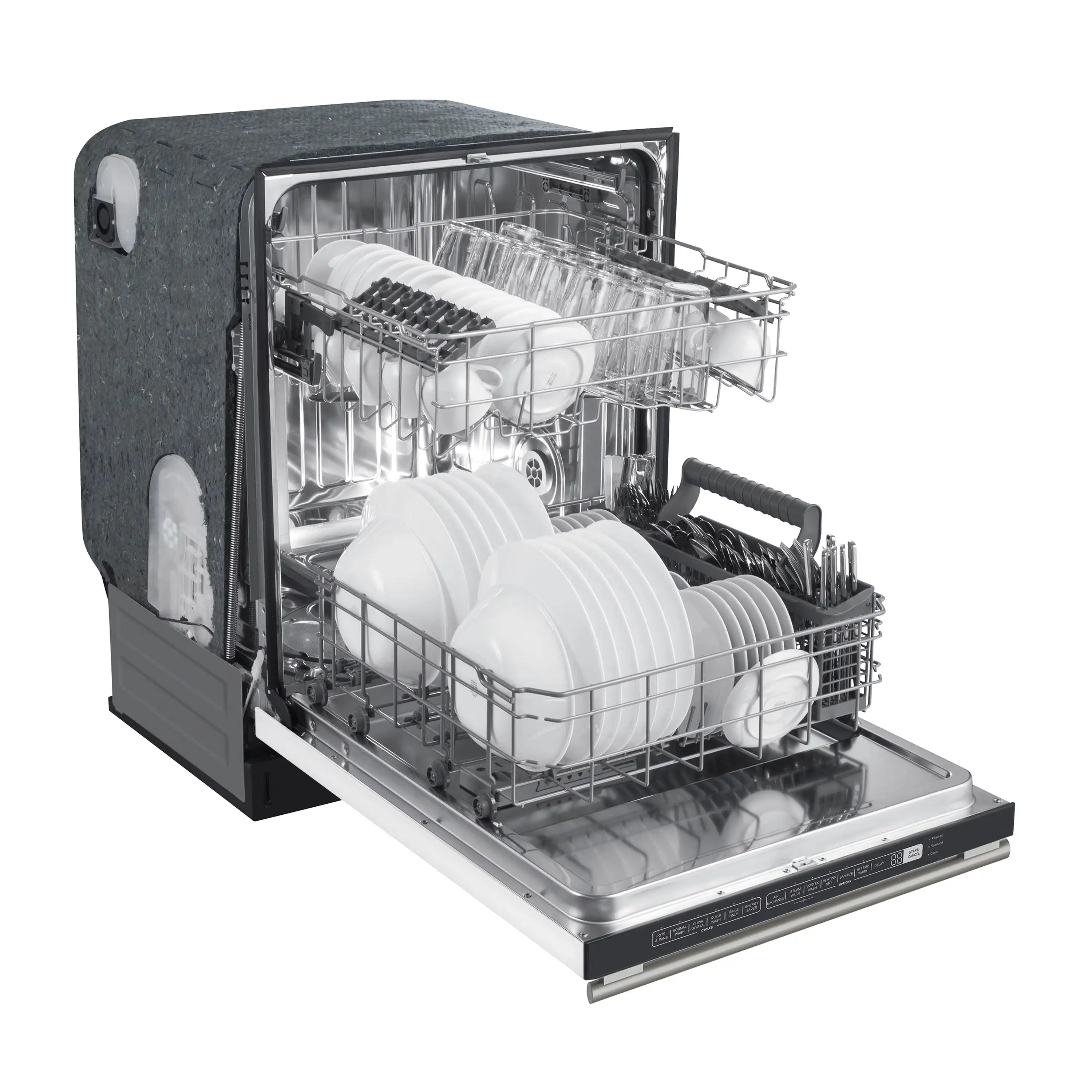

Pozzo 24 in. Built-In Tall Tub, Top Control, White Dishwasher, 49 dBA, Soil-Sensing Capable, ENERGY STAR Certified

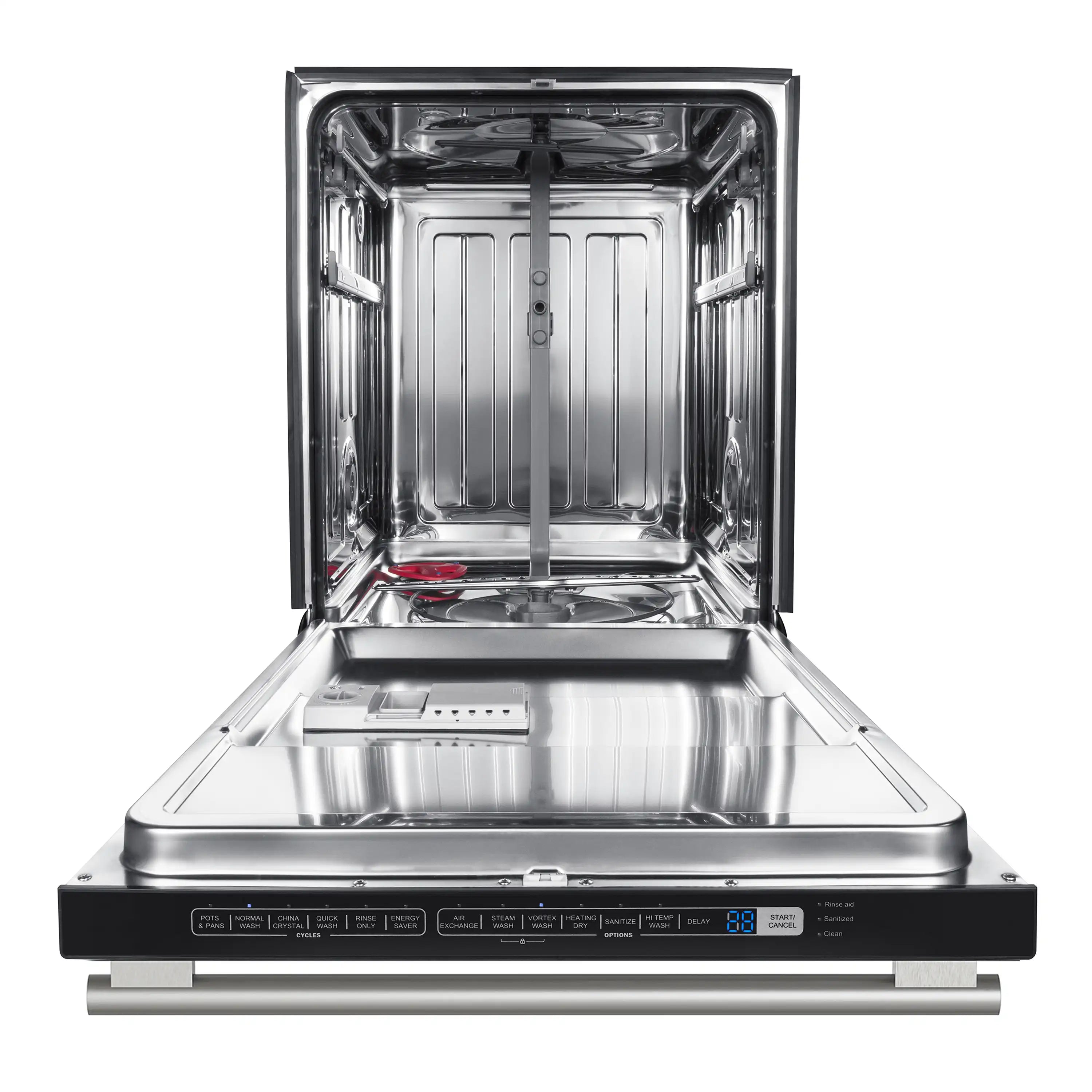

The Forno Pozzo 24-Inch tall-tub dishwasher, operating at a low noise level of 49 decibels for peaceful cleaning. Its white front and pro-style handle offer durability and style. Customize your look effortlessly with two sets of interchangeable handles, switching between antique brass for a traditional touch or stainless steel for modern flair. The dishwasher features a spacious stainless-steel tub with 3 baskets, providing ample loading flexibility for large dish capacity and utensils, with 3 racks and an additional silverware basket. With six wash programs and electronic controls featuring a sleek LED display, it offers efficient and customizable cleaning options. Energy Star certified for eco-friendly operation.
Please Note: This appliance includes both brass and stainless steel handles. Some assembly is required to install your desired finish.
| Weight and Dimensions | |
| Product Dimensions |
23.85" W x 26" D x 33.74" H |
| Depth Excluding Handle (in) | 24" |
| Depth Including Handle (in) |
26" |
| Product Height Maximum |
35" |
| Depth Door Open 90º (back to front door open) |
50" |
| Cutout W x D X H |
24''W x 24''D x 34''H to 35''H |
| Overall Weight | 93.2 lbs |
| Certifications & Safety | |
| Safety Listing | cULus |
| File/Control Number Number |
E219644 |
| Energy Star Certified |
Yes |
| ENERGY STAR Unique ID |
2485657 |
| Energy Policy Act 1992 Compliant |
Yes |
| ADA Compliant |
No |
| ISTA 1A Certified |
Yes |
| ISTA 6A Certified |
Yes |
| Details | |
|
Sound Rating (dB) |
49 |
|
Water Inlet Location |
Left Bottom Front |
|
Water Inlet Connection Size (inches) |
8-Mar |
|
Water use (gallons/cycle) |
3.2 |
|
Water Pressure (PSI) |
20 - 120 |
|
Estimated Yearly Electricity Use (kWh) |
240 |
|
Estimated Yearly Operating Cost (USD) |
USD 24.00 |
|
Dedicated Circuit Breaker |
15 |
|
Power Supply Connection Location |
Right Bottom Front |
|
Total AMPS Usage |
8.4 |
|
Volts |
120 |
|
Frequency (Hz) |
60 |
|
Total Power Consumption (Wattage) |
1008 |
|
Motor Power Consumption (Wattage) |
120 |
|
Heater Power consumption (wattage) |
888 |
|
Standby Power (wattage) |
0.39 |
|
Power cord Included |
No |
| Product Type | Built-In |
| Panel Ready | No |
| Color/Finish | White |
| Handle Type | Bar Handle |
| Handle Color/Finish | Antique Brass |
| Primary Material | Steel |
| Leveling Legs | Yes |
| Number of Leveling legs | 4 |

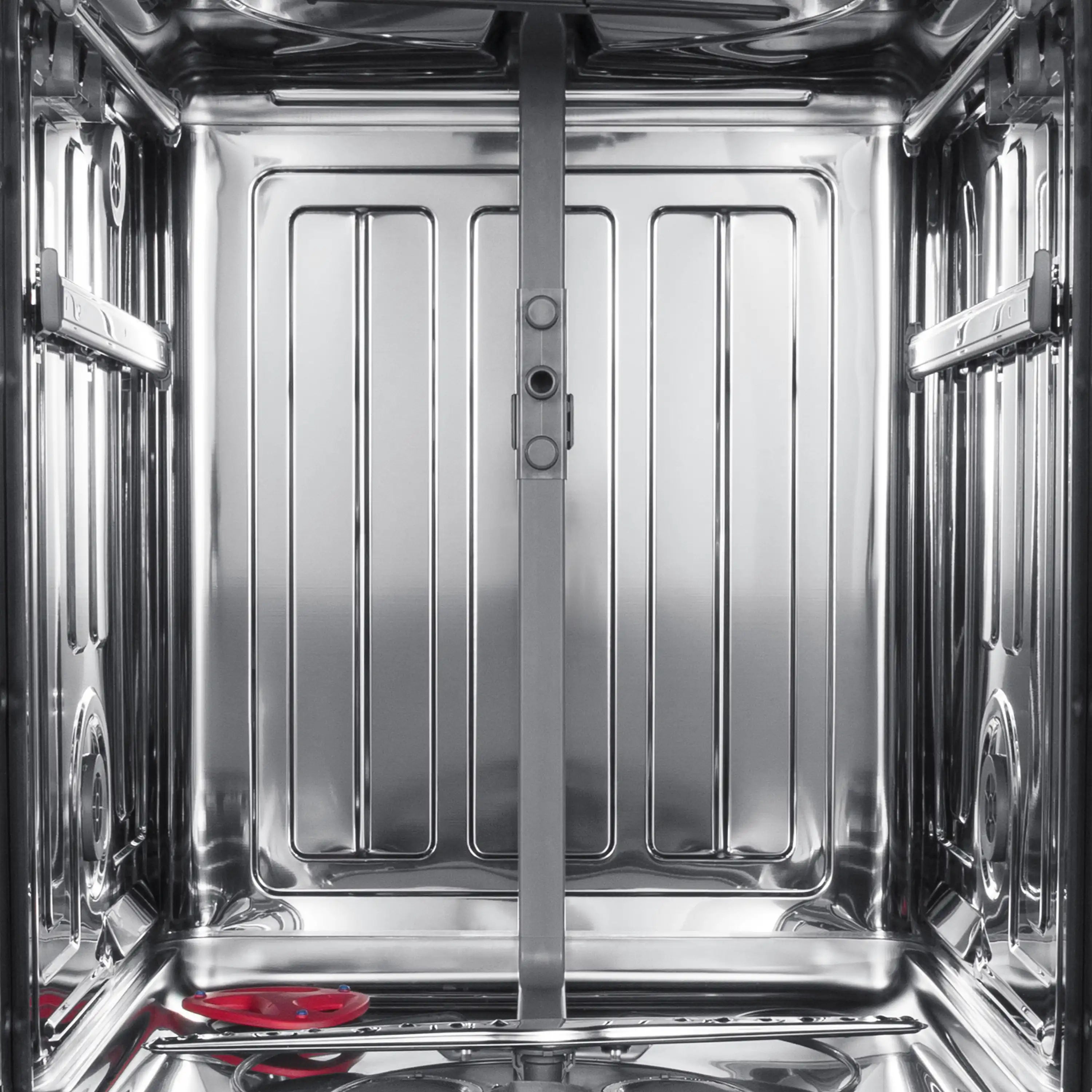

| Tub Material | Stainless Steel |
| Tub Height | Tall |
| Number of Cycles | 6 |
| Type of Cycles |
Pots & Pans; China & Crystal; Quick Wash; Energy Saver; Normal Wash; Rinse Only |
| Types of Options | Air Exchanged; Steam Wash: Vortex Wash; Heating Dry; Sanitize; High Temp Wash; Delay |
| Number of Wash Level(s) | 3 |
| Number of Drying Cycles | 2 |
| Fan Assisted Dry | Yes |
| Heated Dry Option | Yes |
| Concealed heating element | No |
| 1/2-Rack Wash Option | No |
| Delay Wash | Yes |
| Delay Start Information | 1-24 Hours |
| Steam Wash | Yes |
| Sensor Wash Cycle | No |
| Pre-Soak Cycle | No |
|
Quick Rinse Cycle |
Yes |
|
Rinse & Hold Cycle |
No |
| NSF Certified Sanitization Option |
Yes |
|
Mineral Assisted Dry |
No |
| Soil-Sensing Capability |
Yes |
|
Cycle Status Indicator Light |
Yes |
| Low Rinse Aid Indicator |
Yes |
| Number of Place Settings |
14 |
| Number of Racks | 3 |
| Folded-Down Tines | Upper & Lower Racks |
| Rack Material |
Nylon Coated Steel |
|
Adjustable Rack |
Yes |
|
Silverware Basket |
Yes |
| Splittable Silverware Basket |
3 Piece Splittable |
|
Silverware Basket Location |
Bottom |
|
Removable Silverware Basket |
Yes |
|
Stemware Glass Holder |
Yes |
|
Third Rack |
Yes |
|
Number of Wash Arms |
3 |
|
Child Control Safety Lock |
Yes |
|
Filter Material |
Stainless-Steel |
|
Filter Trap |
Removable |
|
Self-Cleaning Filter |
Yes |
|
Hard Food Dispenser |
No |
|
Water Filtration |
No |
|
Wash System |
Smart Wash System |
|
Wash System Type |
Direct Feed |
|
Automatic Temperature Control |
No |
|
Plug-in |
No |
|
Custom Door Panel Included |
No |
|
Supplier Intended and Approved Use |
Residential Use |
| Warranty | |
| Commercial Warranty |
No |
| Warranty Type |
Limited |
|
Warranty Length |
2 Years |
| Warranty on Parts | 2 Years |
|
Warranty on Labor |
2 Years |
