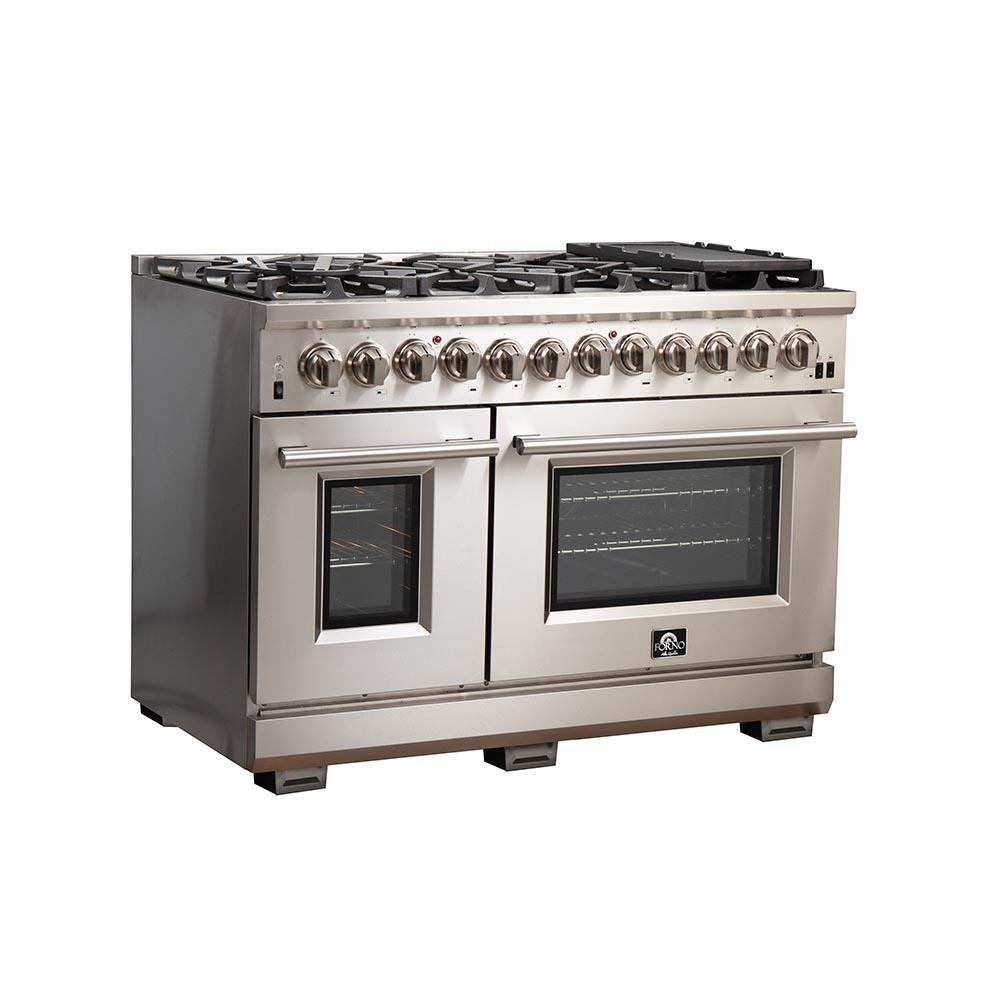

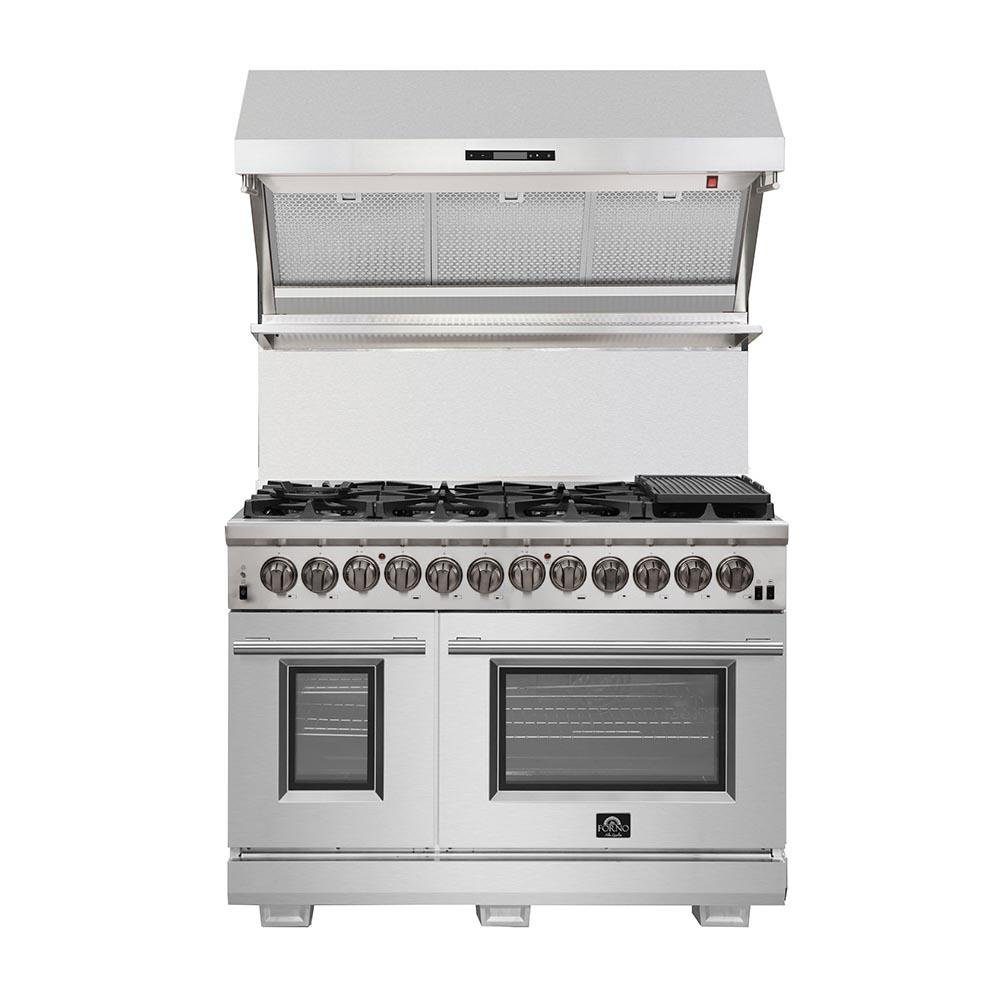

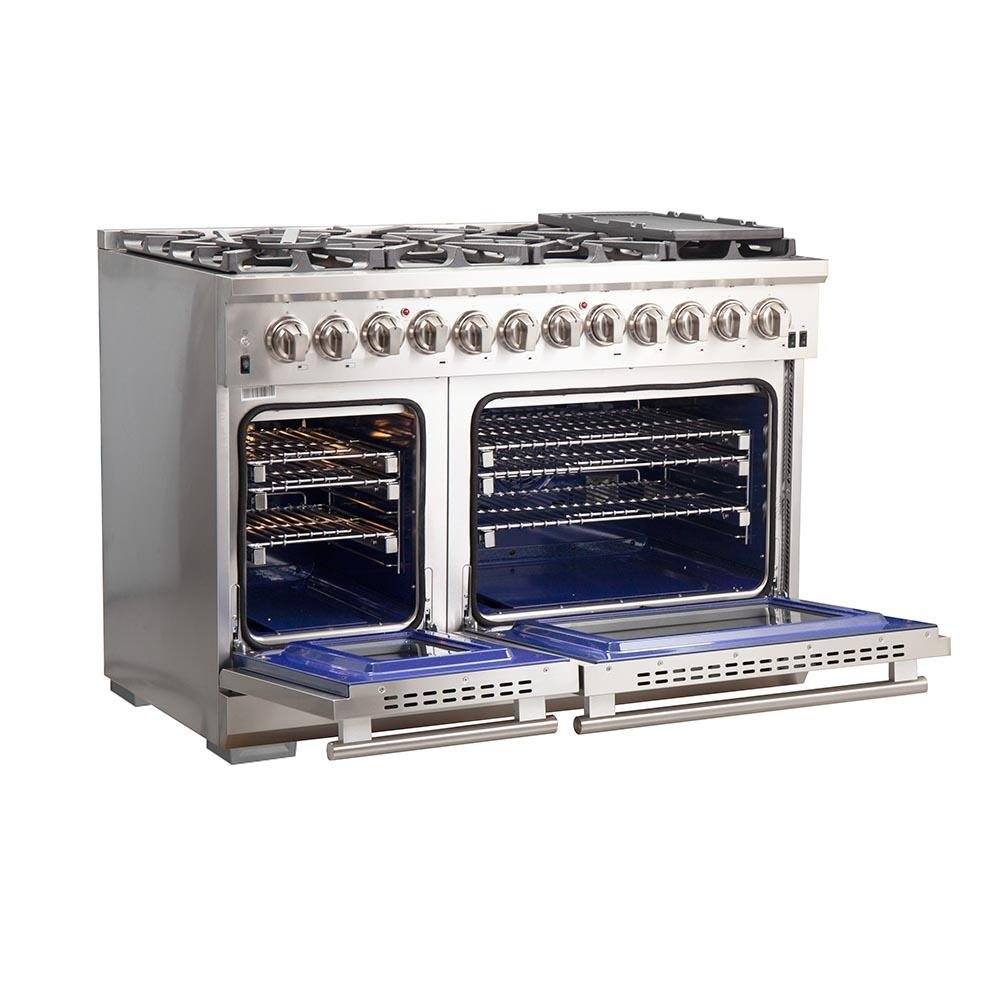

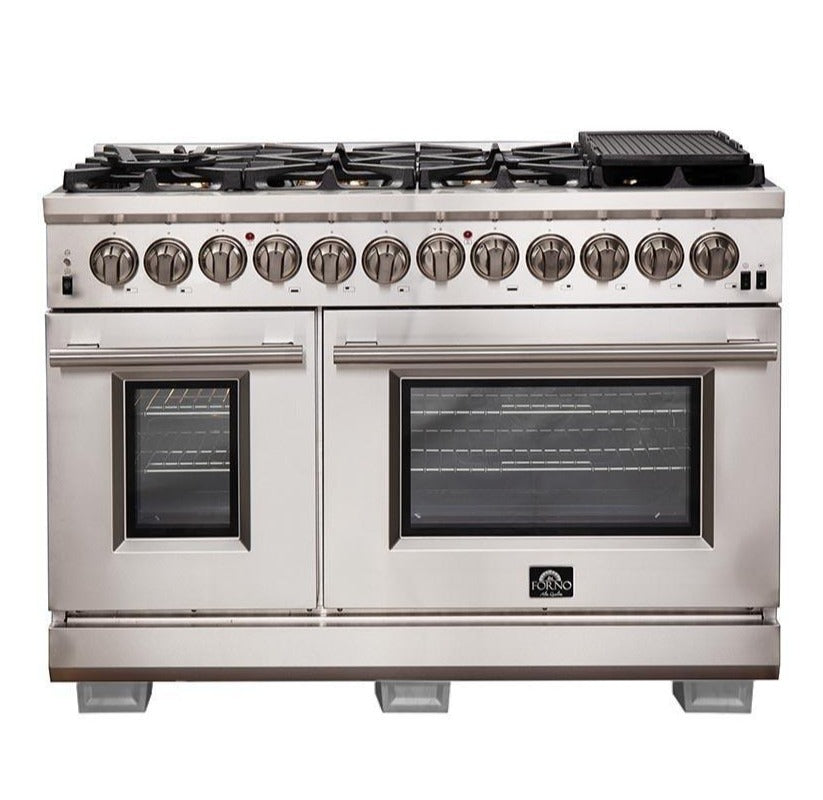

This 48" Pro-Style Dual Fuel Range by Forno offers a 8 Defendi Italian Brass Burner cooktop and 6.58 cu. ft. of total oven capacity. The range also features cast-iron grates, convection fan, and halogen lighting. Available at Home Outlet Direct.
Features:
Brass Burners - Elegant brass burners effectively channel heat for desired cooking results.

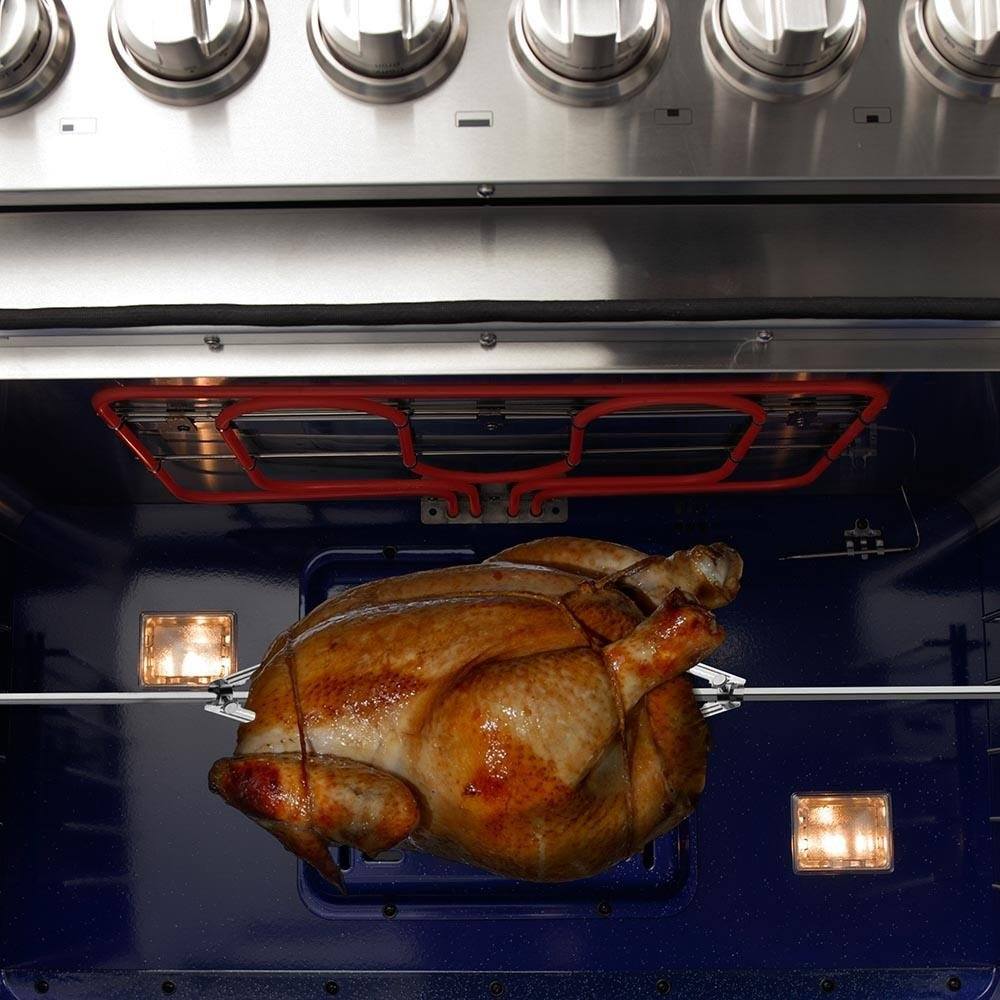

Halogen Lighting - Makes the cooking process completely monitorable without the need to open the door.

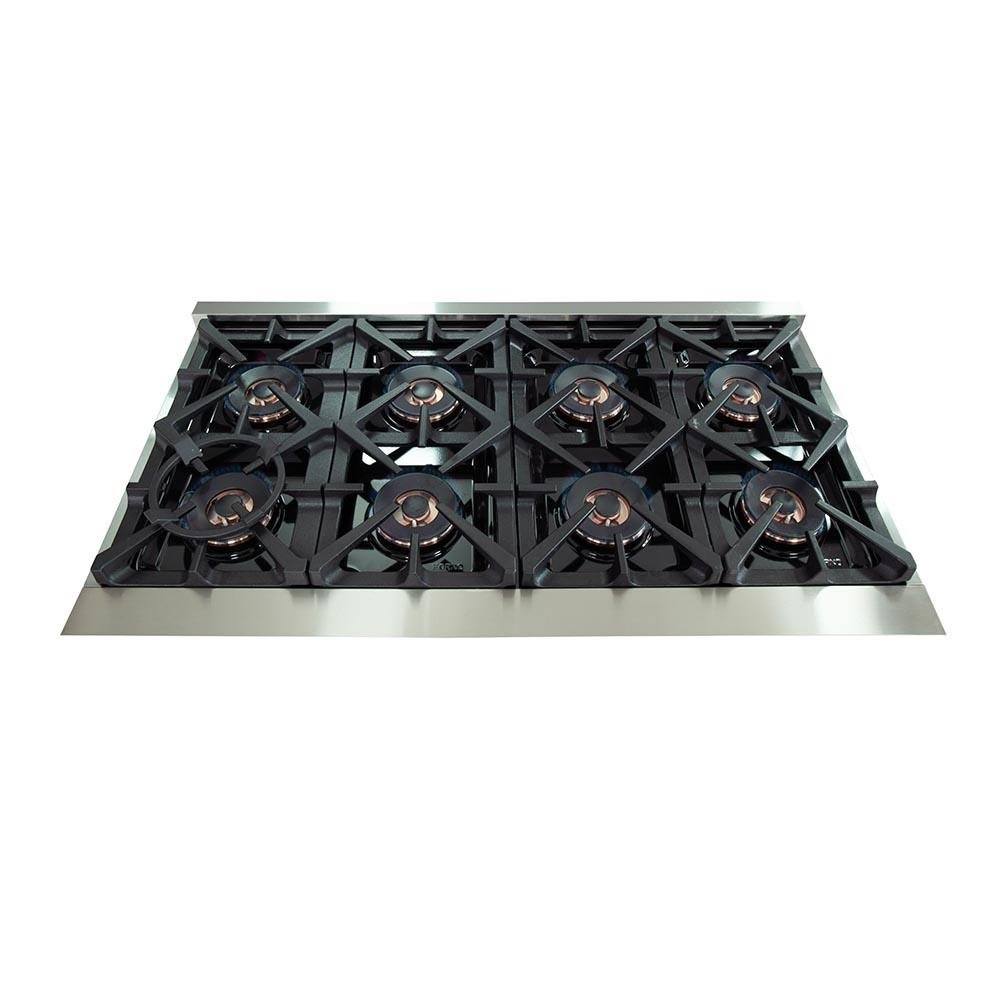

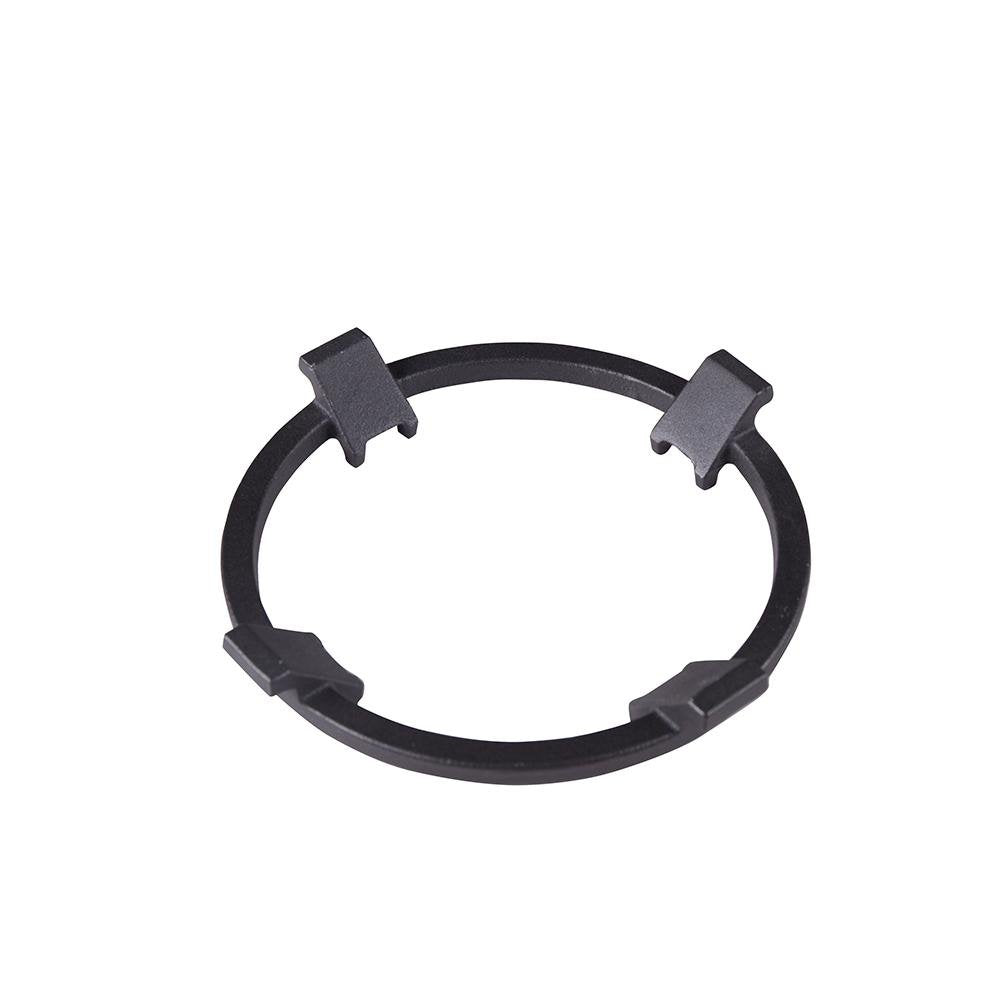

Continuous Cast Iron Grates - Heavy-duty cast iron grates make transferring heavy pots and pans over your burners easy.
Sealed Burners - Completely sealed burners Contain spills and allow for easy cleaning and maintenance.
cETLus - A cETLus certification that complies with the safety standards for the United States and Canada.

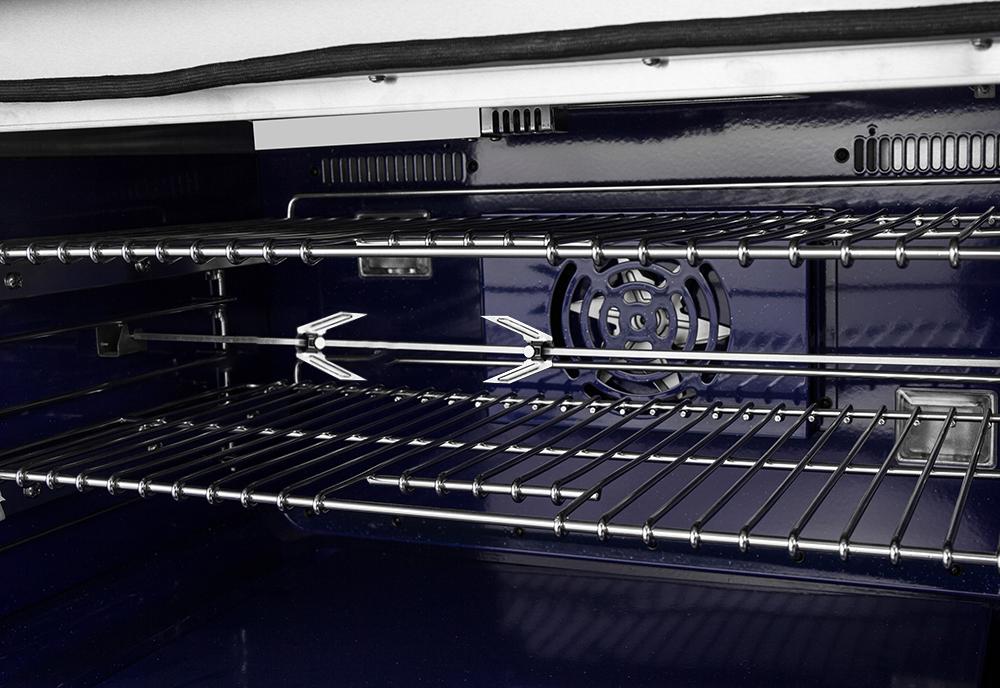

Convection Cooking - A convection oven circulates hot air with a fan. Unlike conventional radiant (also called thermal) ovens, convection ovens have a fan that continuously circulates air through the oven cavity. This allows food to cook faster and more evenly.
Additional Features:
Cooktop Features:

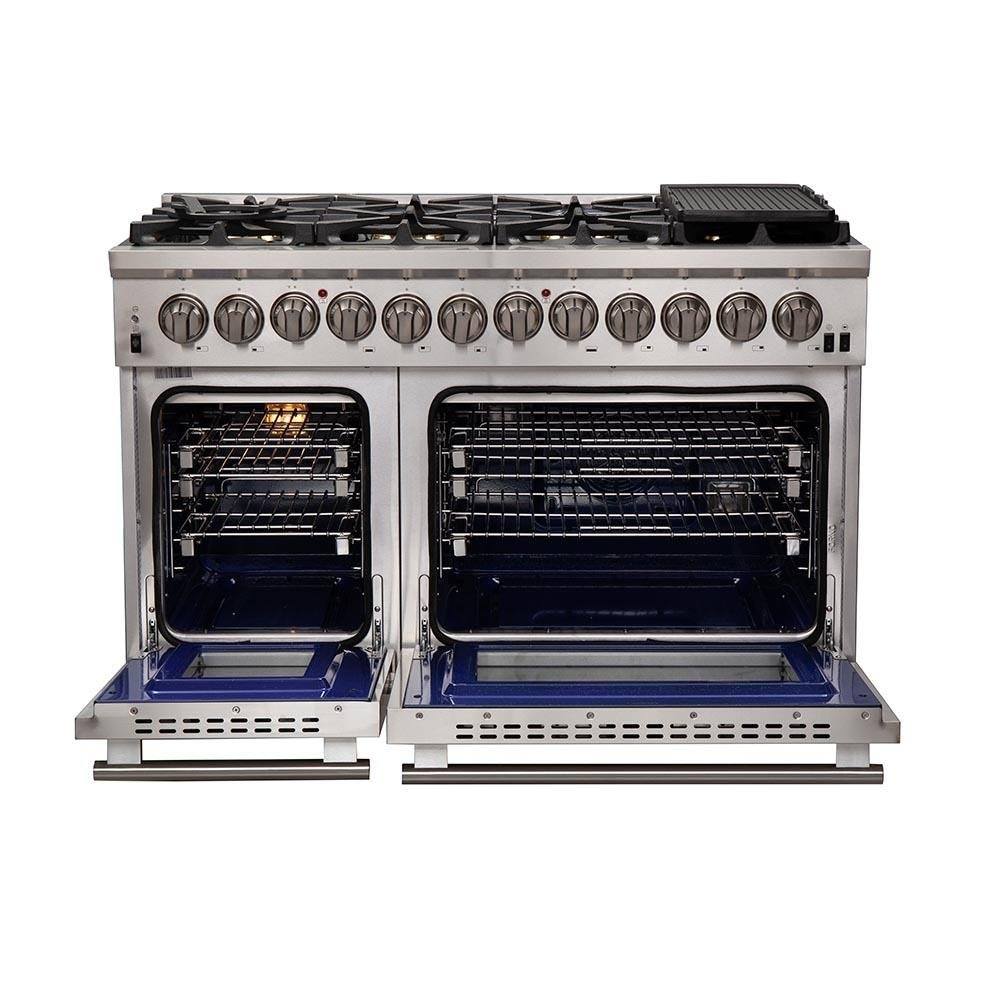

Oven Features:
| DIMENSIONS | |
|---|---|
| Dimensions | 48" W x 37.4" H x 28" D |
| Weight | 413.36 lbs |
| GENERAL INFORMATION | |
| Brand | Forno |
| SKU | FFSGS618748 |
| Product Number | FFSGS618748 |
| DESIGN & FINISH | |
| Color | Silver |
| Finish | Stainless Steel |
| Style | Freestanding |
| Drawer | None |
| Digital Clock | No |
| Pro-Style | Yes |
| Digital Temperature Display | No |
| TECHNICAL DETAILS | |
| Fuel Type | Dual Fuel |
| Gas Type | Natural Gas |
| Downdraft Ventilation | No |

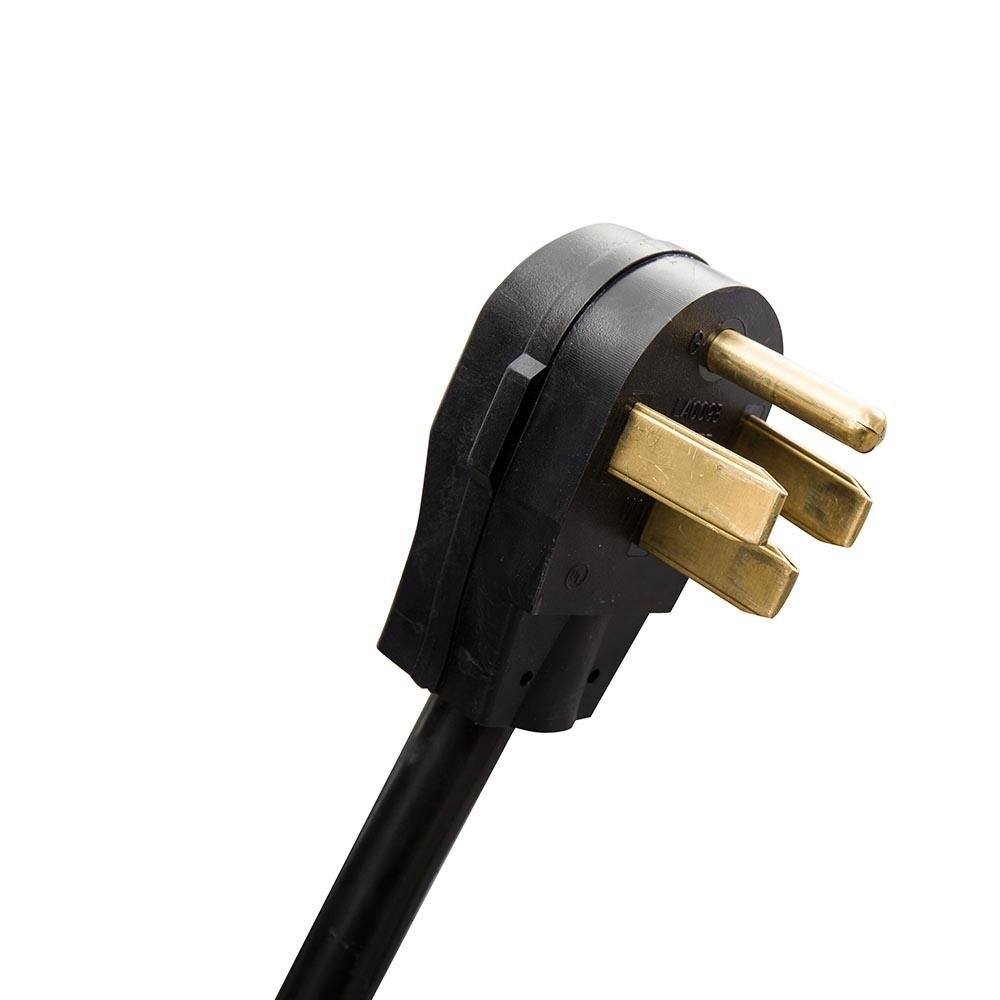

| Volts | 240 Volts |
| Amps | 40 Amps |

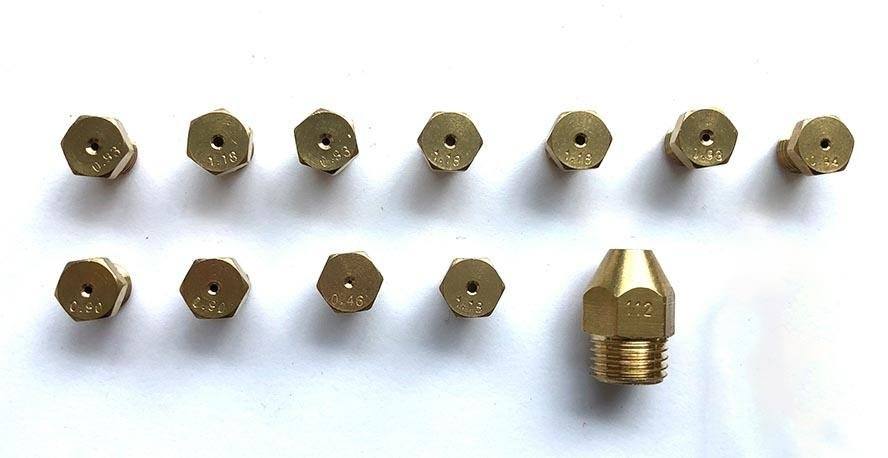

| LP Conversion | Yes |
| Frequency | 60 Hz. |
| COOKTOP FEATURES | |
| Cooktop | Sealed Burner |
| Continuous Grates | Yes |
| Sealed Burners | Yes |
| Burners / Elements | 8 |
| Burners | 8 |
| Brass Burners | Yes |
| Cooktop Control Type | Knobs |
| Hot Surface Indicator Light | No |
| Griddle | No |
| Grill | Yes |
| Cast Iron Grates | Yes |
| French Top | No |
| Highest Burner Output | 20000 BTU |
| Front Left Output | 20000 |
| Back Left Output | 20000 |
| Back Right Output | 20000 |
| Front Right Output | 20000 |
| Middle Front Left Output | 20000 |
| Middle Back Left Output | 20000 |
| Middle Front Right Output | 20000 |
| Middle Back Right Output | 20000 |
| OVEN FEATURES | |

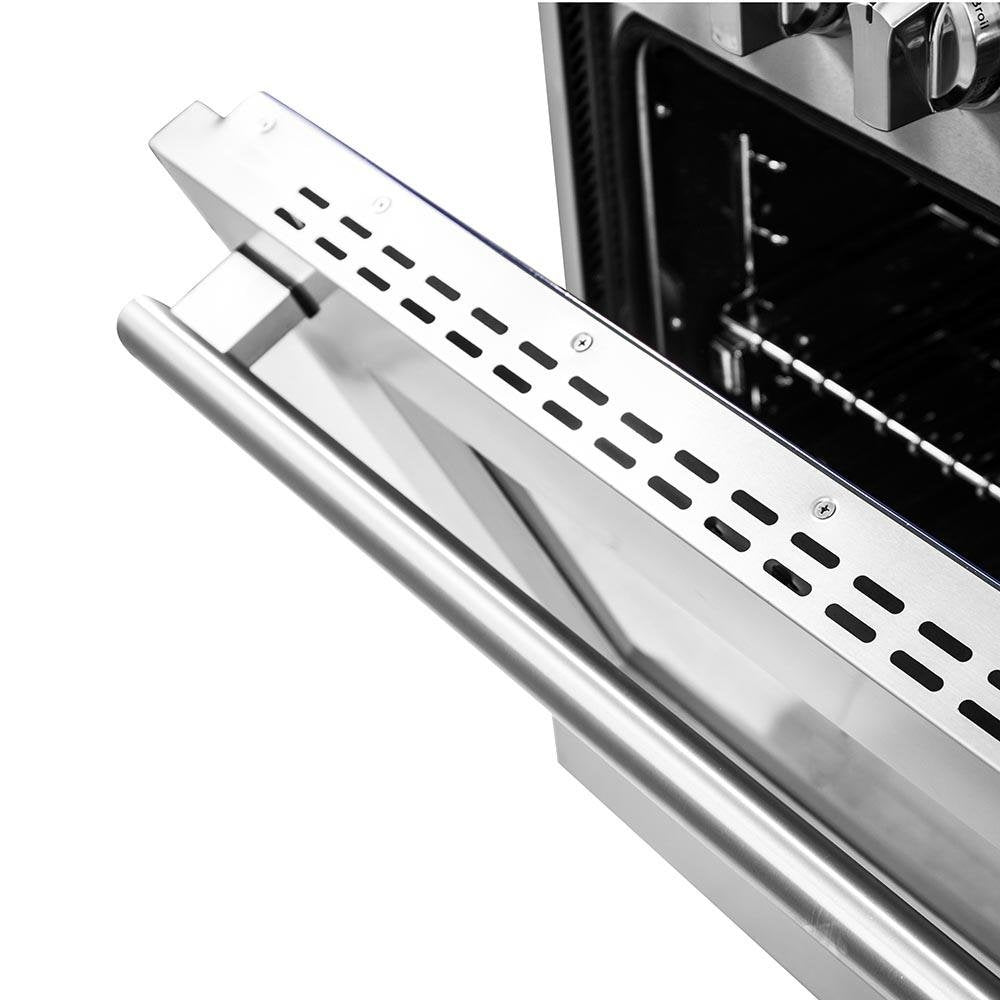

| Viewing Window | Yes |
| Convection Cooking | Yes |

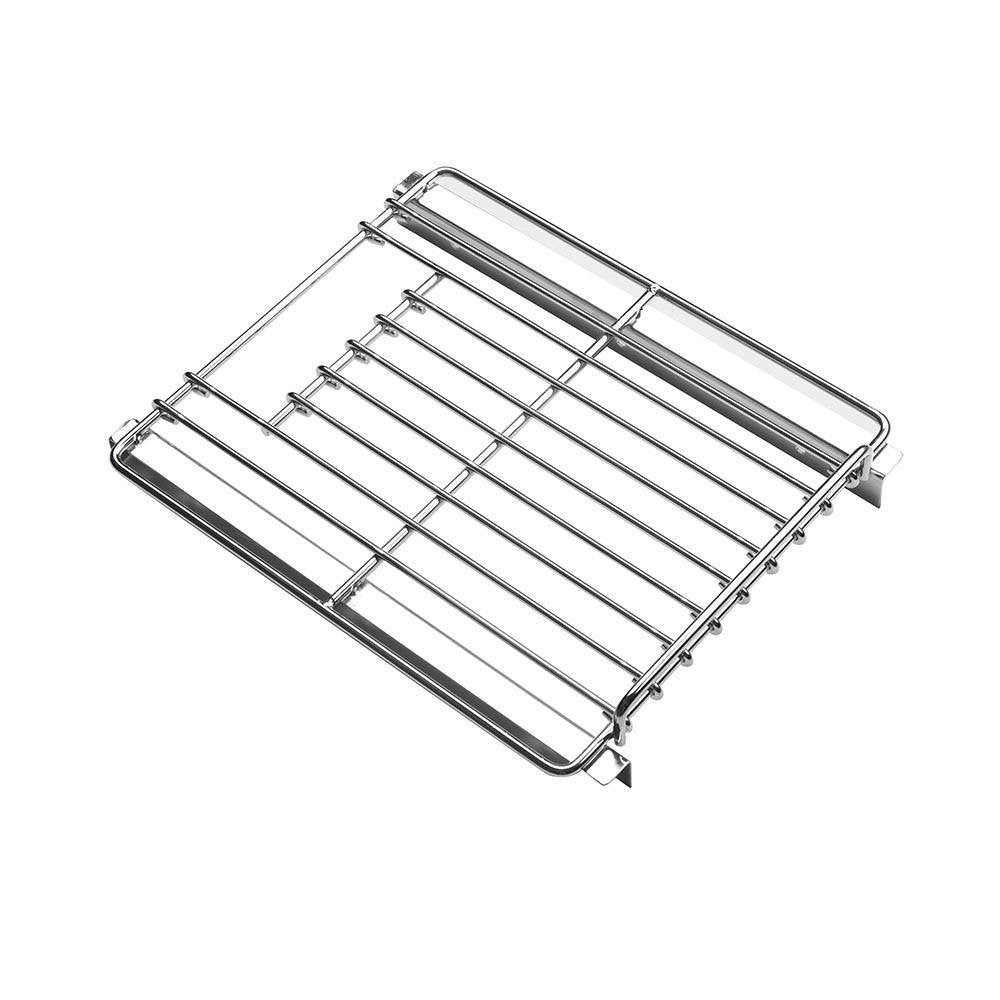

| Gliding Rack System | Yes |
| Total Capacity | 6.58 cu. ft. |
| Primary Oven Capacity | 4.32 cu. ft. |
| Secondary Oven Capacity | 2.26 cu. ft. |
| Dual Door | Yes |

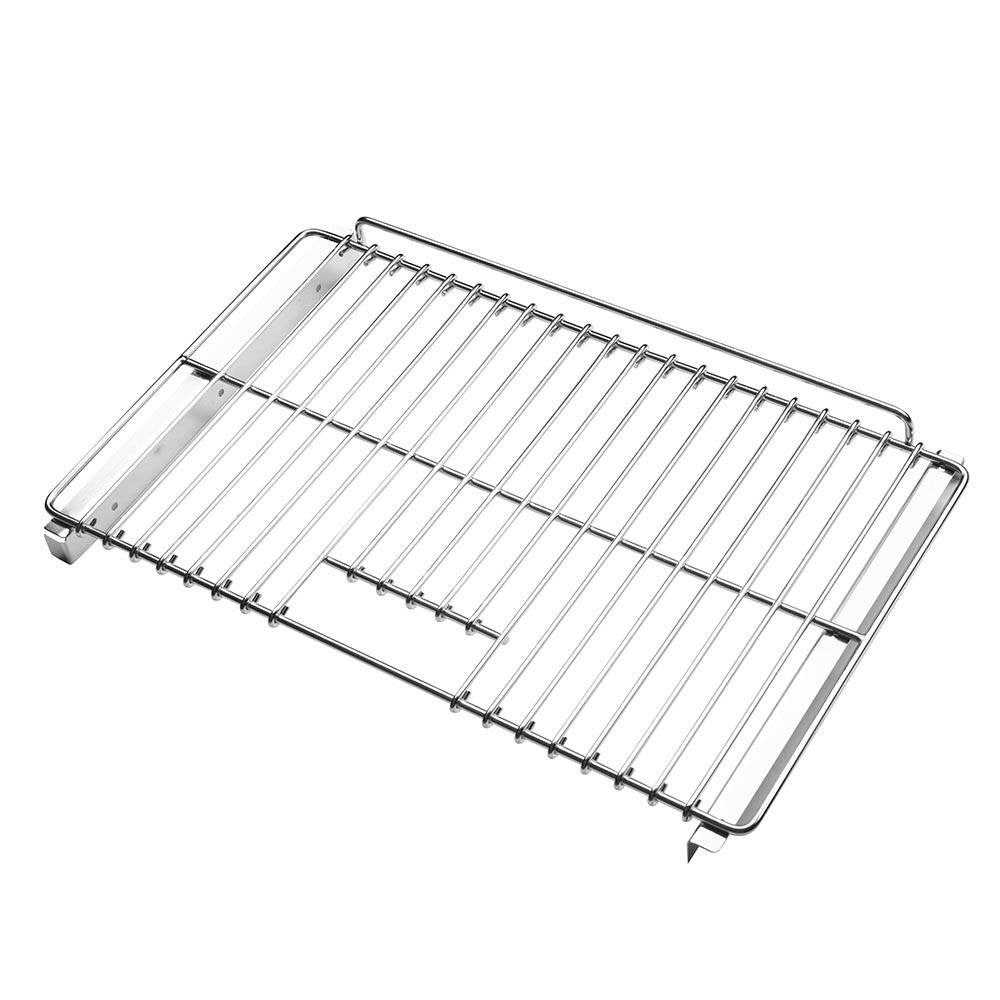

| Oven Racks | 6 |
| Steam-Clean | No |
| Broiler | Yes |
| Sabbath Mode | No |
| Self-Cleaning | No |
| Convection | Yes |
| Delay Bake | No |
| Oven Control Type | Knobs |
| Steam Oven | No |
| Double Oven | Yes |
| Timer | No |
| Proofing | No |
| Temperature Probe | No |
| Interior Oven Light | Yes |
| Oven Watts | 2000 Watts |
| WARRANTY & CERTIFICATIONS | |
| Warranty Info | 2 Year Warranty |
| ADA Compliant | No |

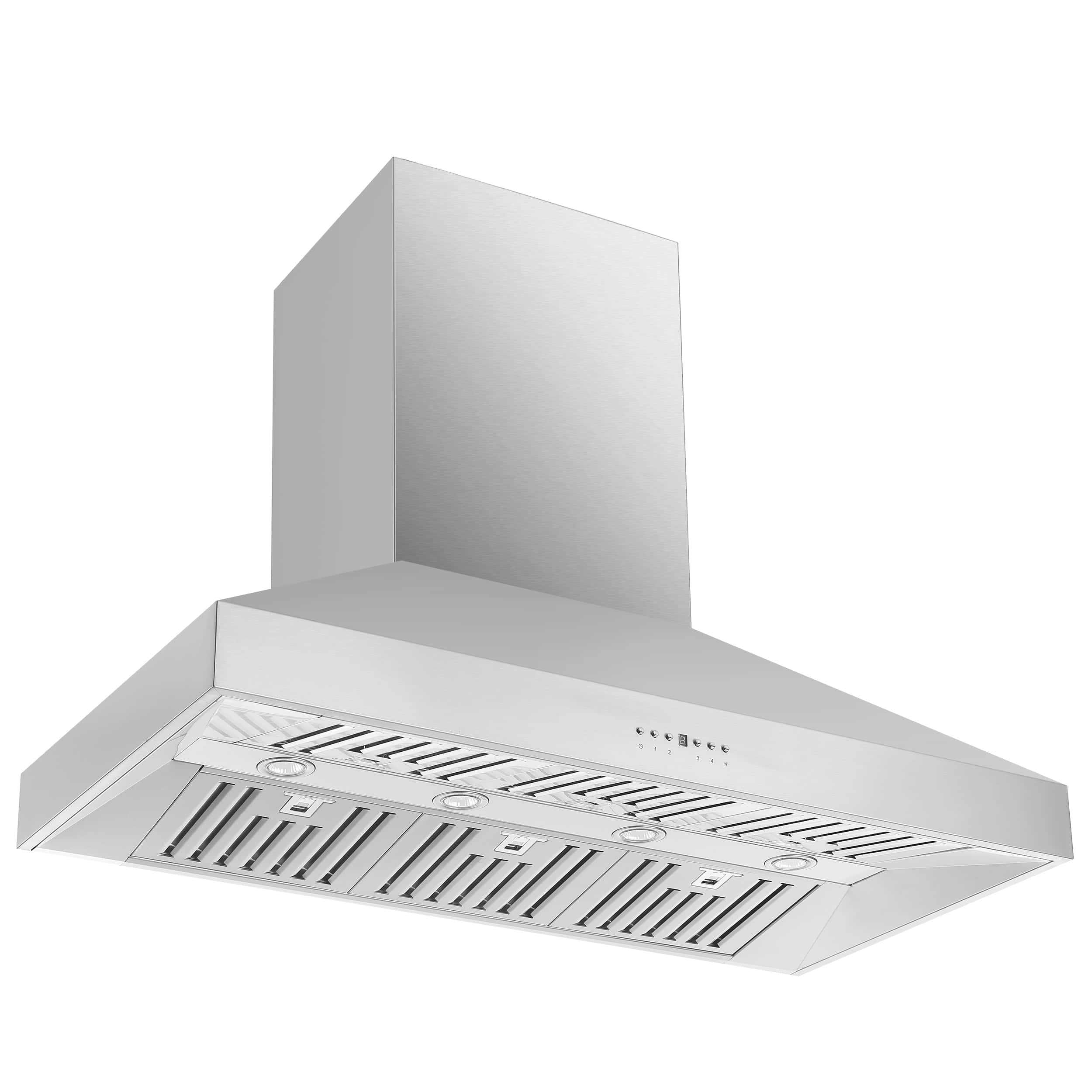

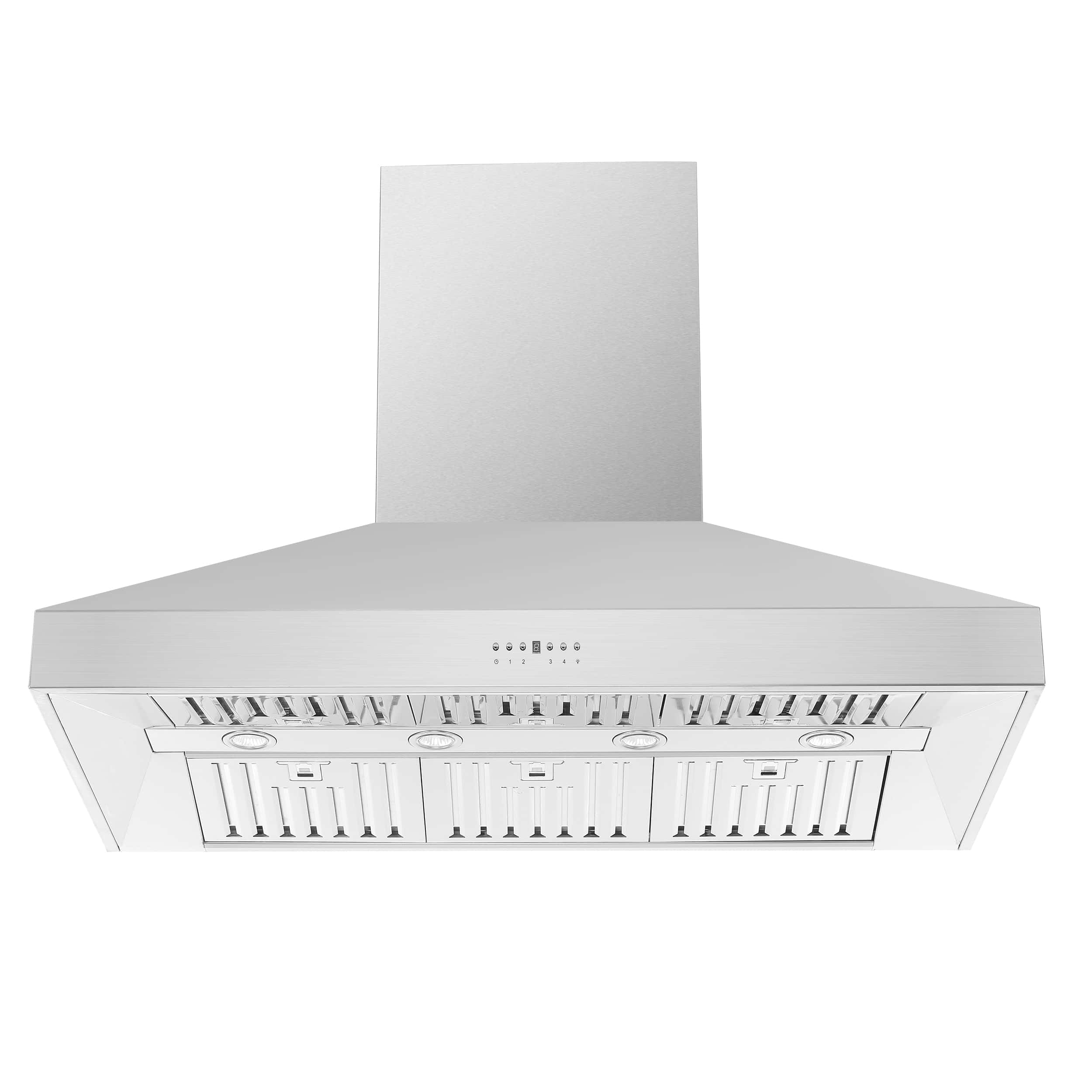

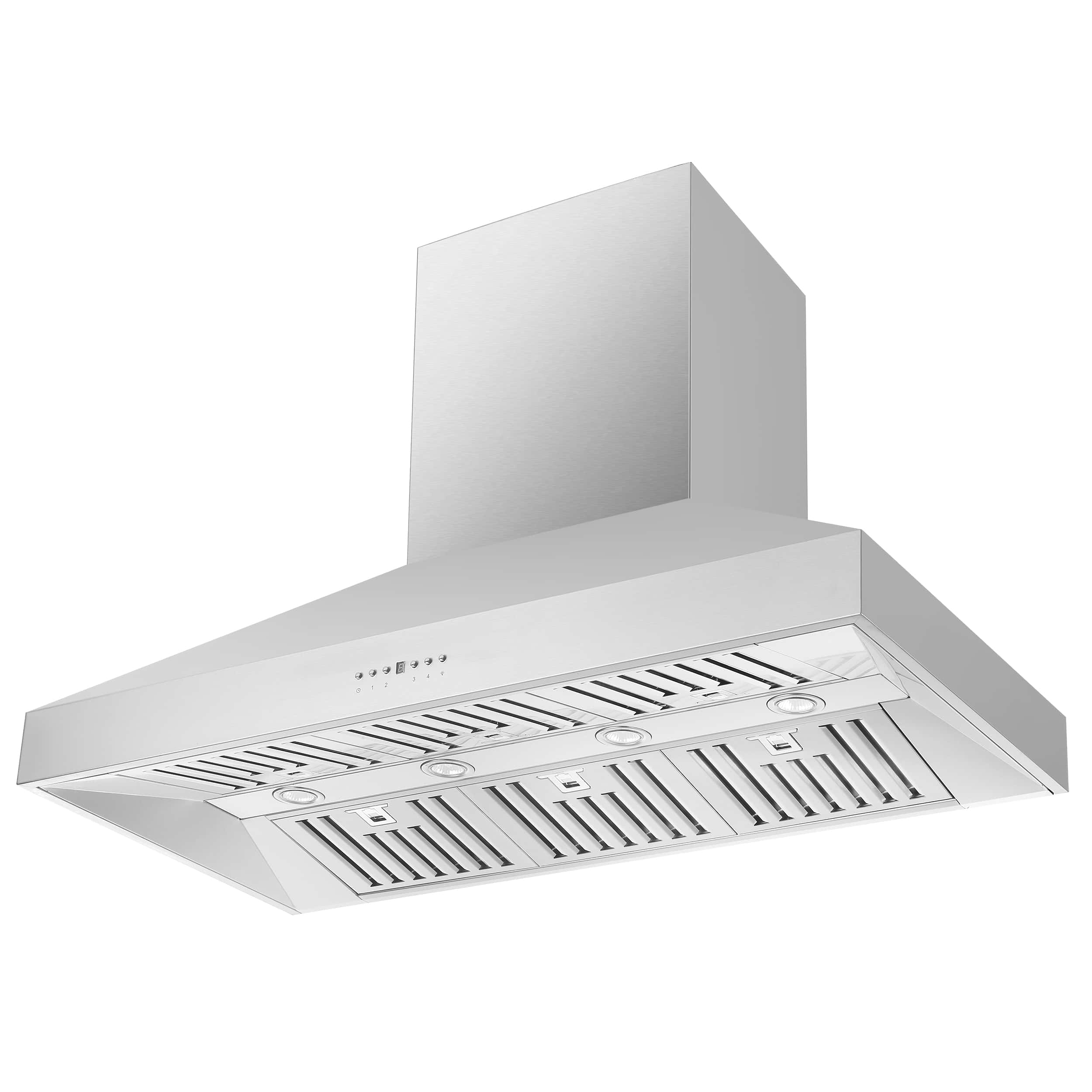

The Orvieto 48" STAINLESS STEEL Wall Mount RANGE HOOD helps create superior air quality with its powerful 1200 CFM motor and four-speed touch control. The decorative stainless-steel crown molding adds an attractive finish to your kitchen design. The hood is made from high-grade stainless steel for durability, and boasts noise reduction technology for a quieter sound while in use. The included surface lights provide superior illumination and energy efficiency. Baffle filters capture heat, odors, gases and are dishwasher-safe making cleanup a breeze. This range hood is sure to be an asset in any kitchen.
This wall mount rangehood is equipped with a powerful energy-efficient 1200 CFM, designed to capture smoke, gases, steam and grease to keep your cooking area free of unwanted odors.

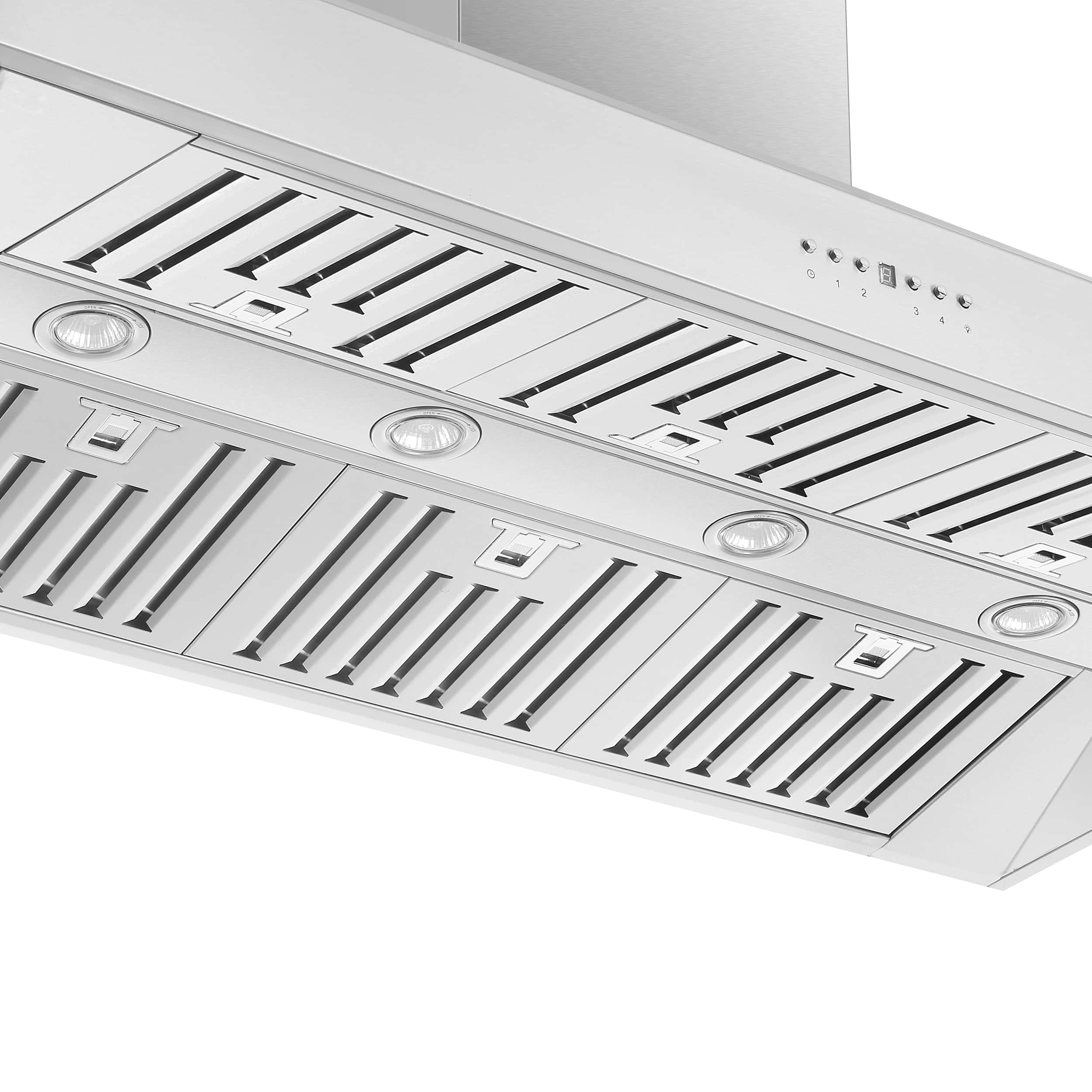

Filters are made of washable Stainless-Steel with a baffle design and designed to capture grease, smoke, odors and grease from the air.

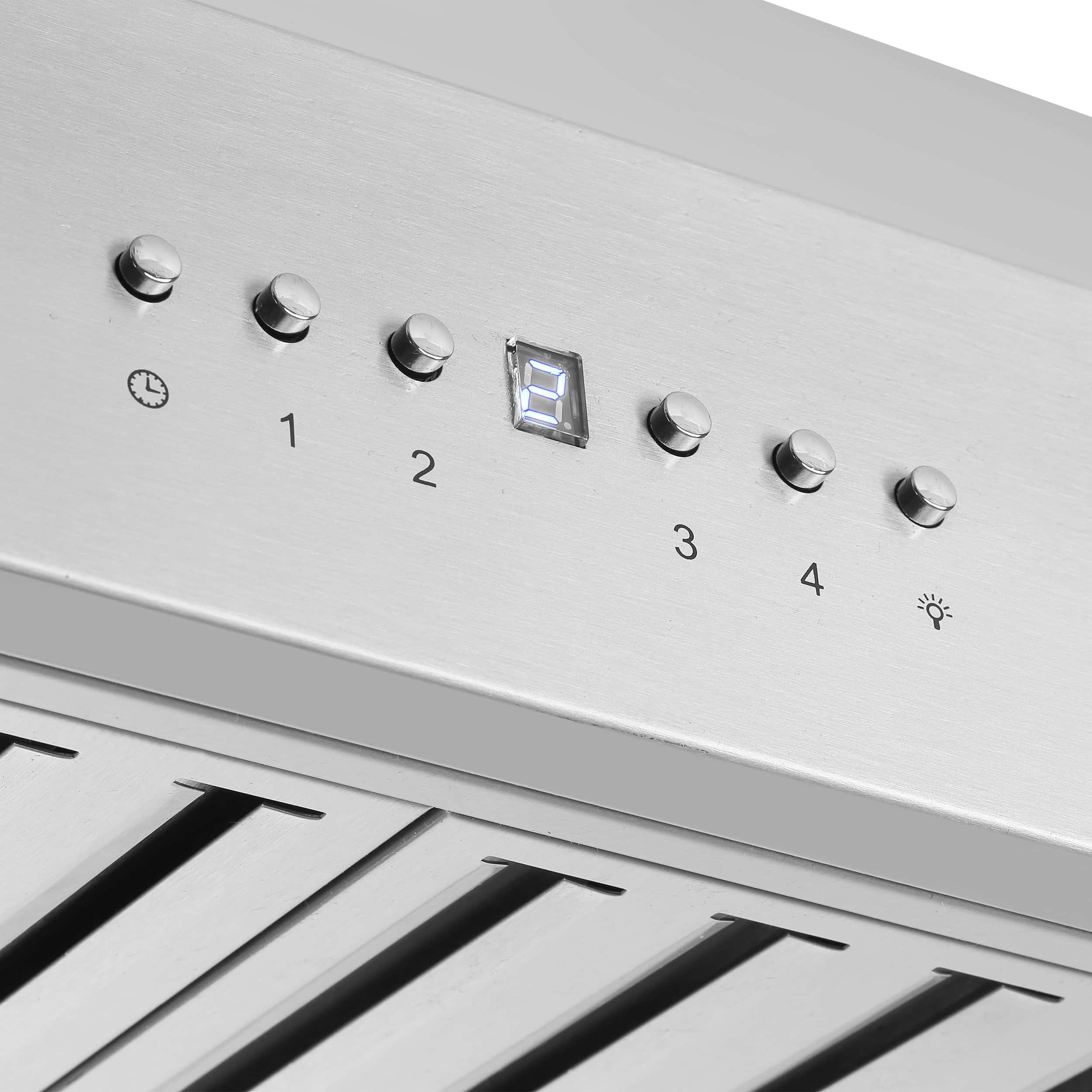

4 speed touch control for easy operation makes it simple to adjust the fan speed settings for air flow and ventilation levels according to your needs.
Four Surface lights offer bright illumination for cooktop surface.
The chimney includes a stainless steel decorative molding trim which adds an elegant, modern feel and a beautiful finishing touch.
Maximum power ventilation at a low noise level of 68dB allows you to enjoy an effective ventilation system without obtrusive noise disruption. Low setting delivers sound level of 25dB.
| DIMENSIONS | |
|---|---|
| Overall Dimensions | 47.24" W X 23.62" D X 29.14" to 44.29" H |
| Minimum Height from Cooktop | 25" for Electric Range 30" for Gas Range |
| Maximum Height from Cooktop | 30" |
| Adjustable Height | 29.14" H to 44.29" H |
| GENERAL INFORMATION | |
| Bulb Type | GU10 |
| Mount Type | Wall Mount |
| Exhaust Vent Location | Roof / Wall |
| DESIGN & FINISH | |
| Color/Finish | Stainless Steel |
| Filter Material | Stainless Steel |
| Speed Control | 4 speed |
| Speed Control Type | Touch Control |
| Hardware Finish | Stainless Steel |
| Primary Material | Stainless Steel |
| Remote Control | No |
| TECHNICAL DETAILS | |
| Maximum CFM | 1200 CFM |
| Maximum Sones | 16 sones |
| Minimum Sones | 2 |
| Noise Level | 68dB(A) |
| Amperage | 3.7A |
| Volts | 120 |
| Wattage | 440 |
| Power Source | AC |
| Duct Shape | 10" Round |
| Blower Type | Metal |
| Damper | Yes |
| Reversible Blower | No |
| FEATURES | |
| Lighting Type | Halogen |
| Air Discharge Direction | Vertically Upward |
| Filter Type | Baffle |
| Washable Filter | Yes |
| Rangehood Chimney | Yes |
| Chimney Short Kit | No |
| Glass Component | No |
| Crown Molding | Yes |
| Smudge Resistant | No |
| Heat Sensors | No |
| Delay Shut Off | 3 Minutes |
| Timer | No |
| Clean Filter Alert | No |
| Supplier Intended and Approved Use | Residential Use |
| Country of Origin | China |
| WARRANTY & CERTIFICATIONS | |
| ETL Listed | Yes |
| Warranty Type | Limited |
| Warranty Length | 2 Years |
| Warranty on Parts | 2 Years |
| Warranty on Labor | 2 Years |

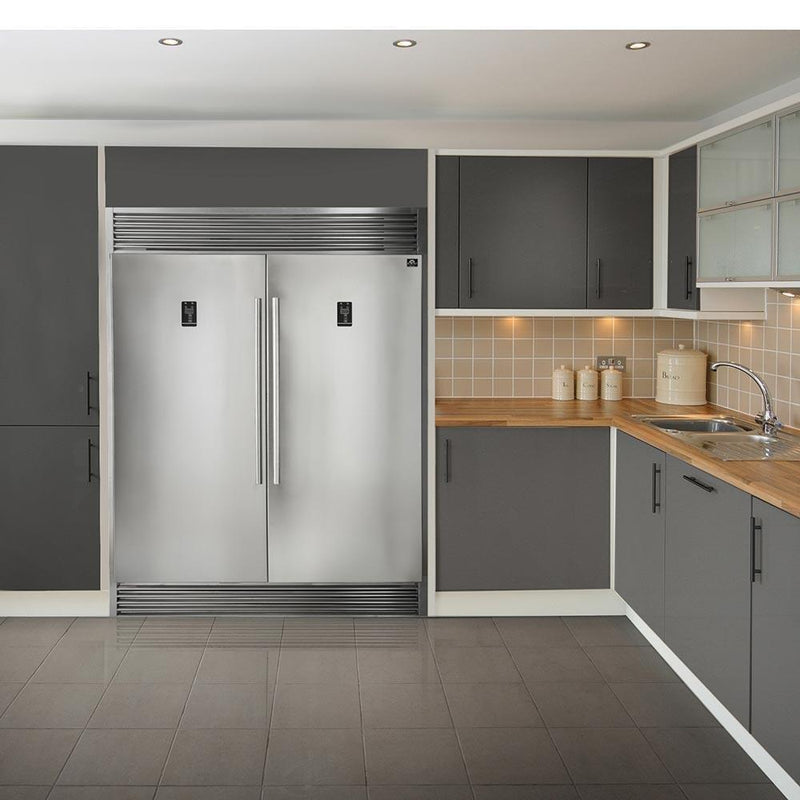

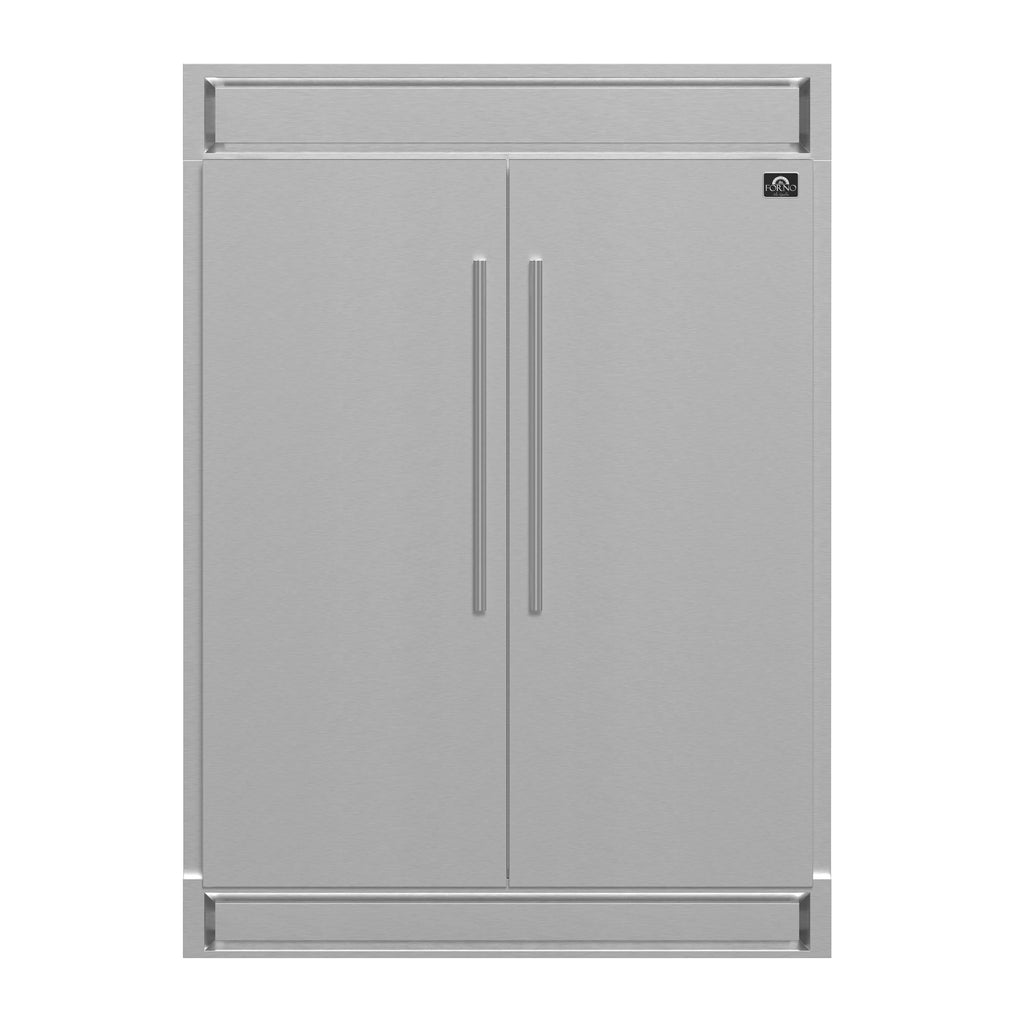

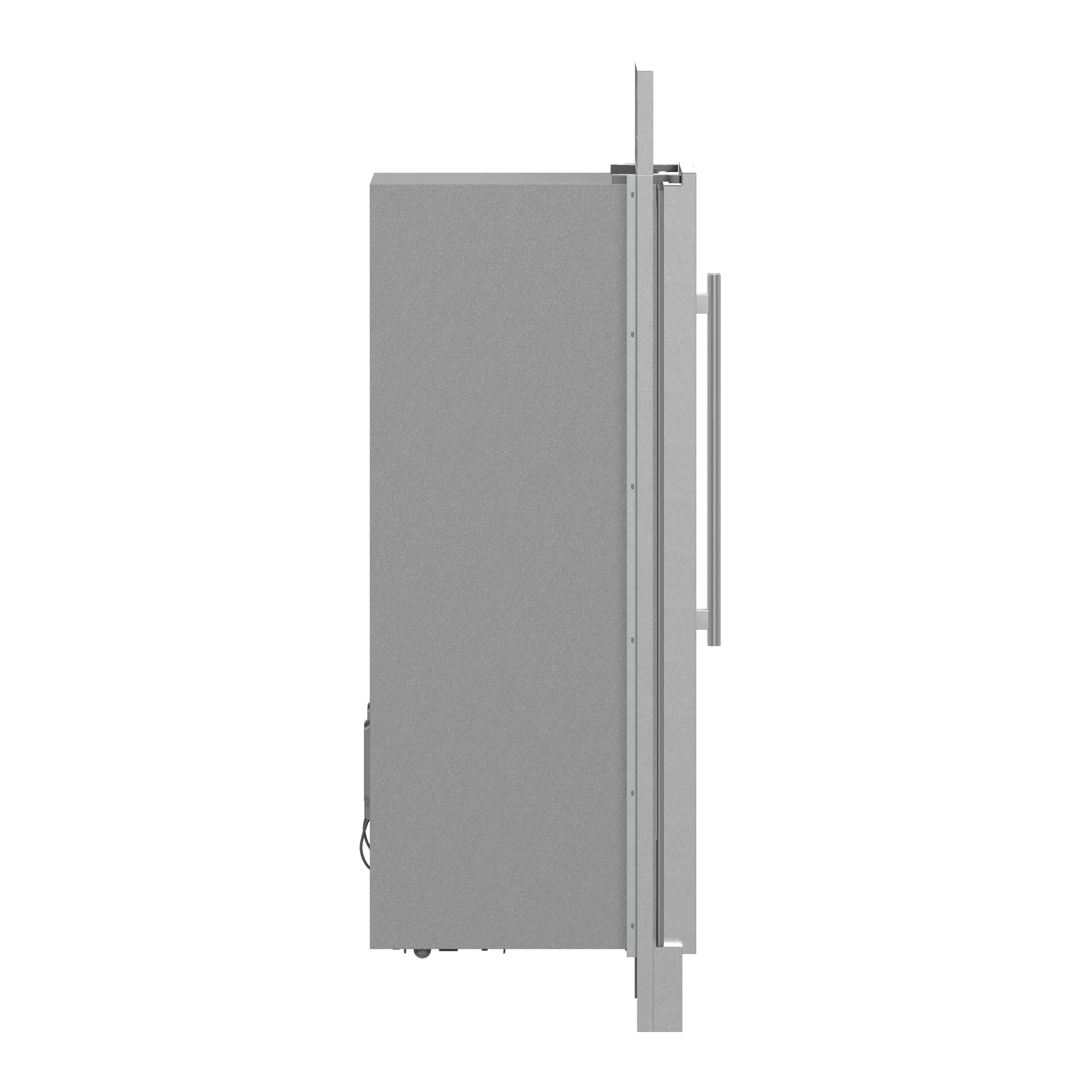

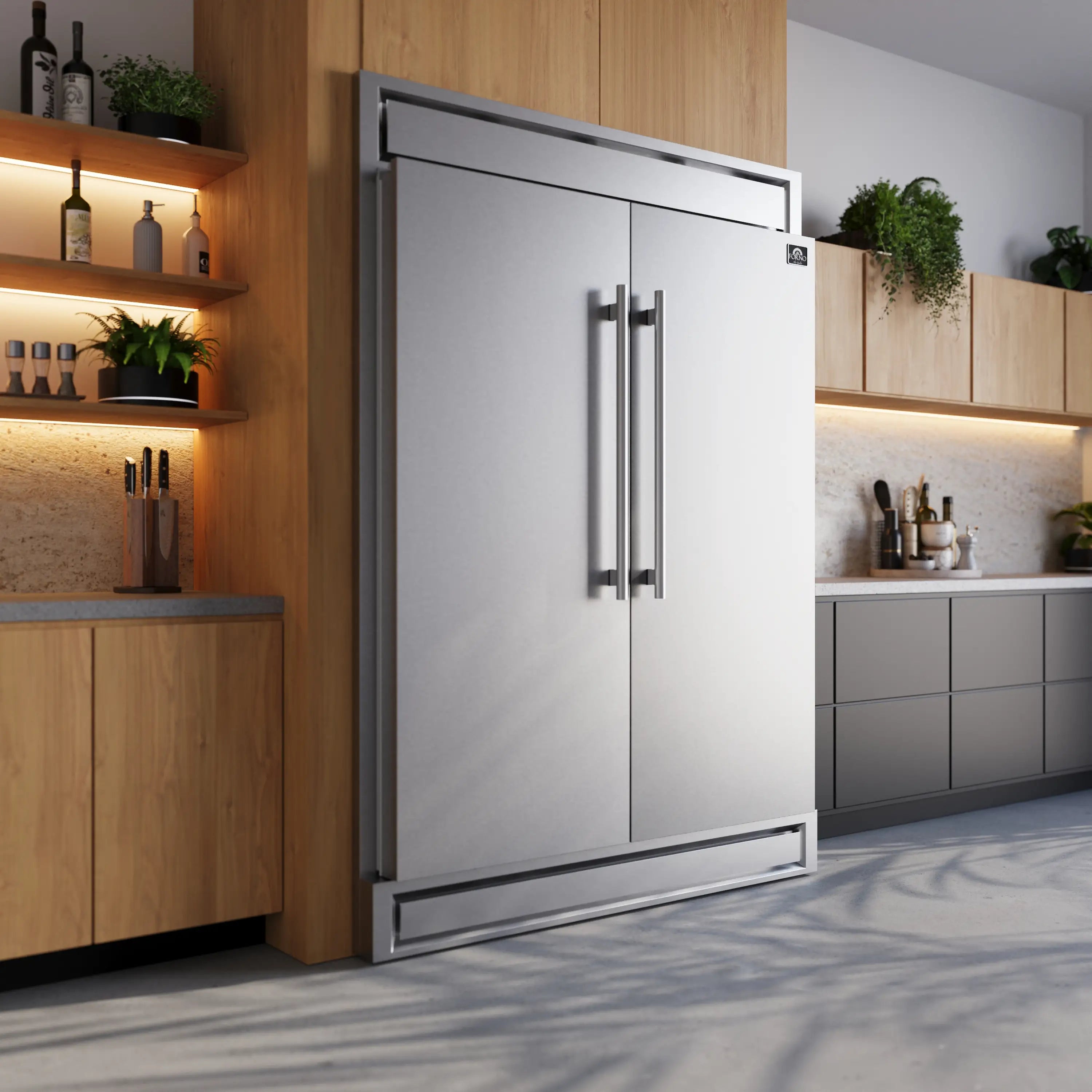

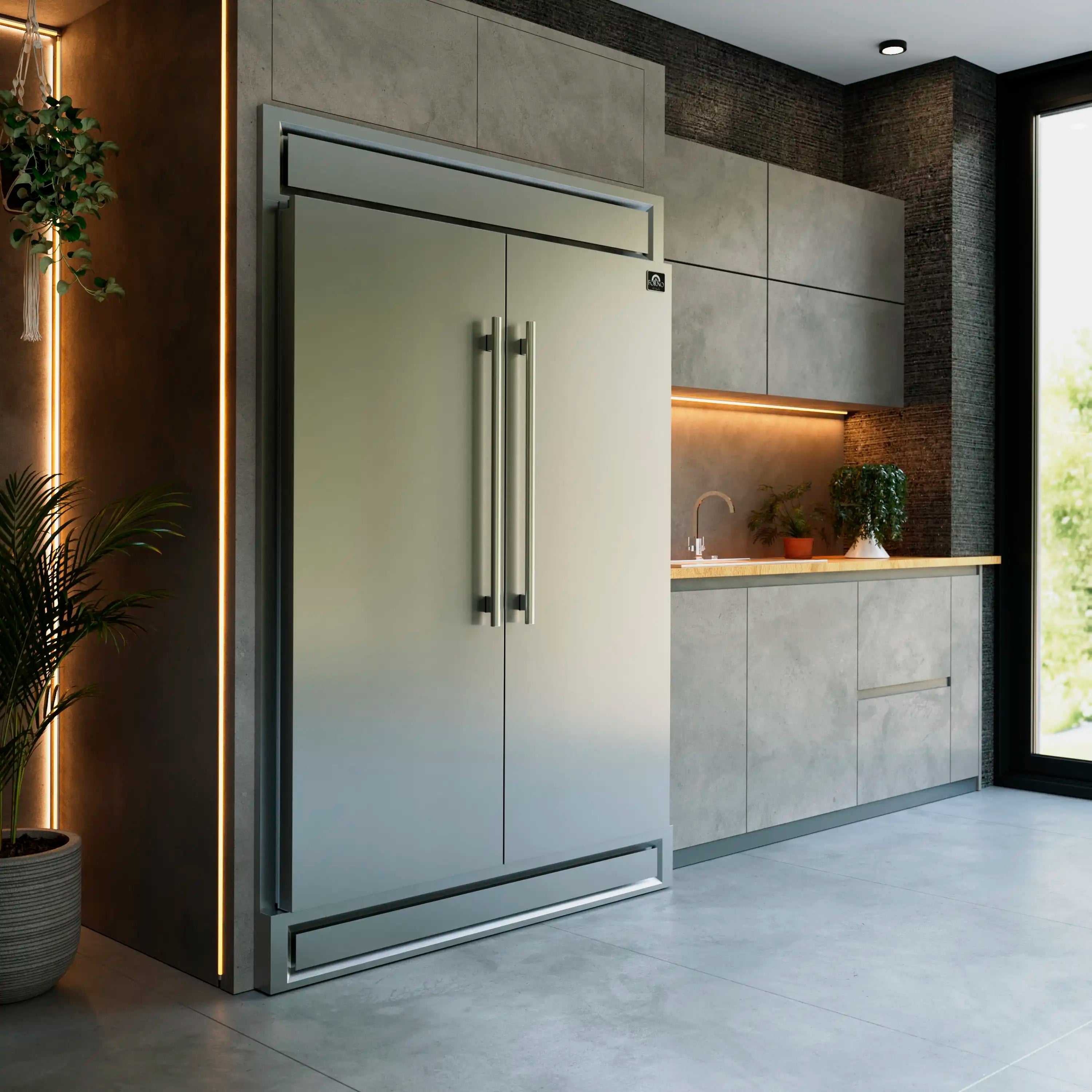

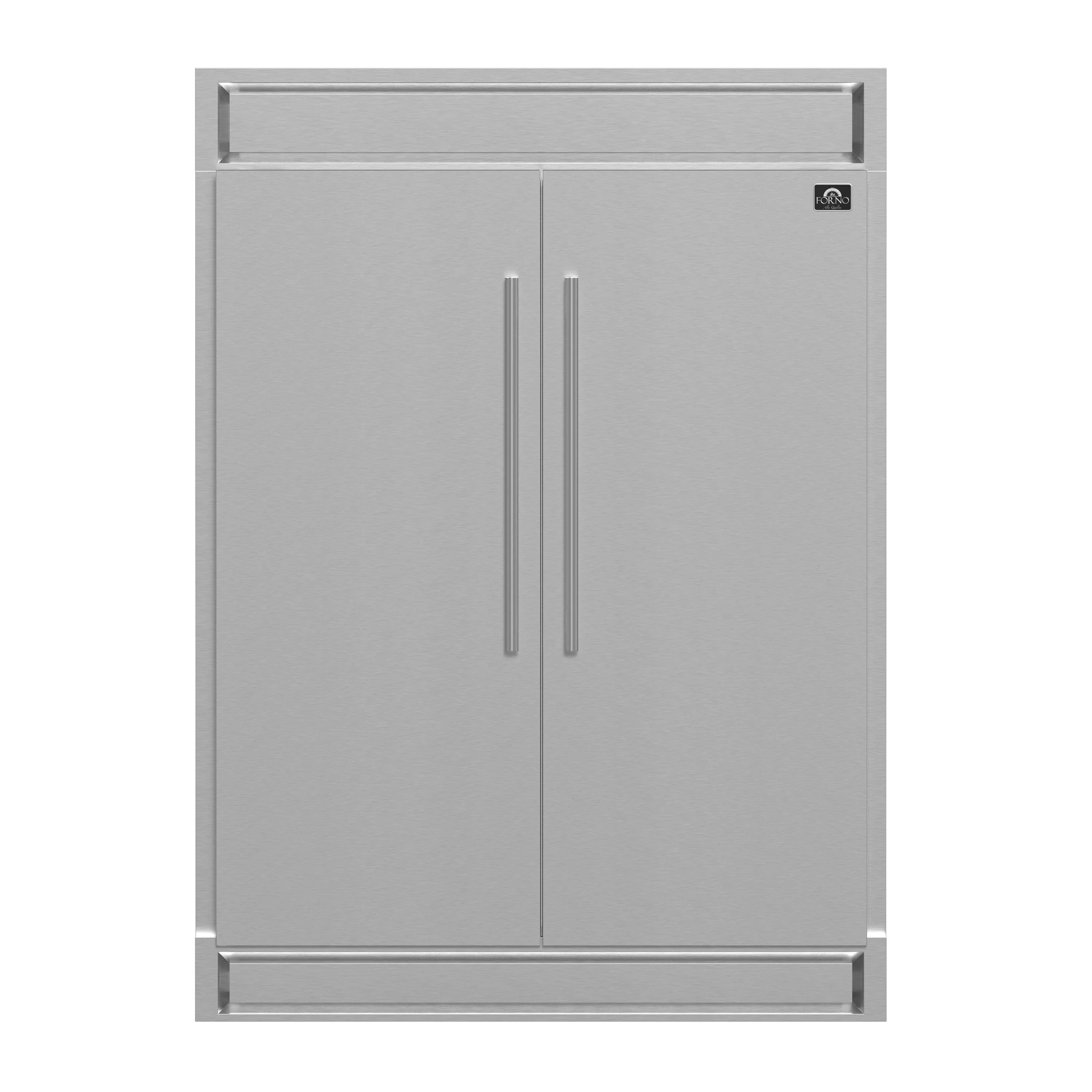

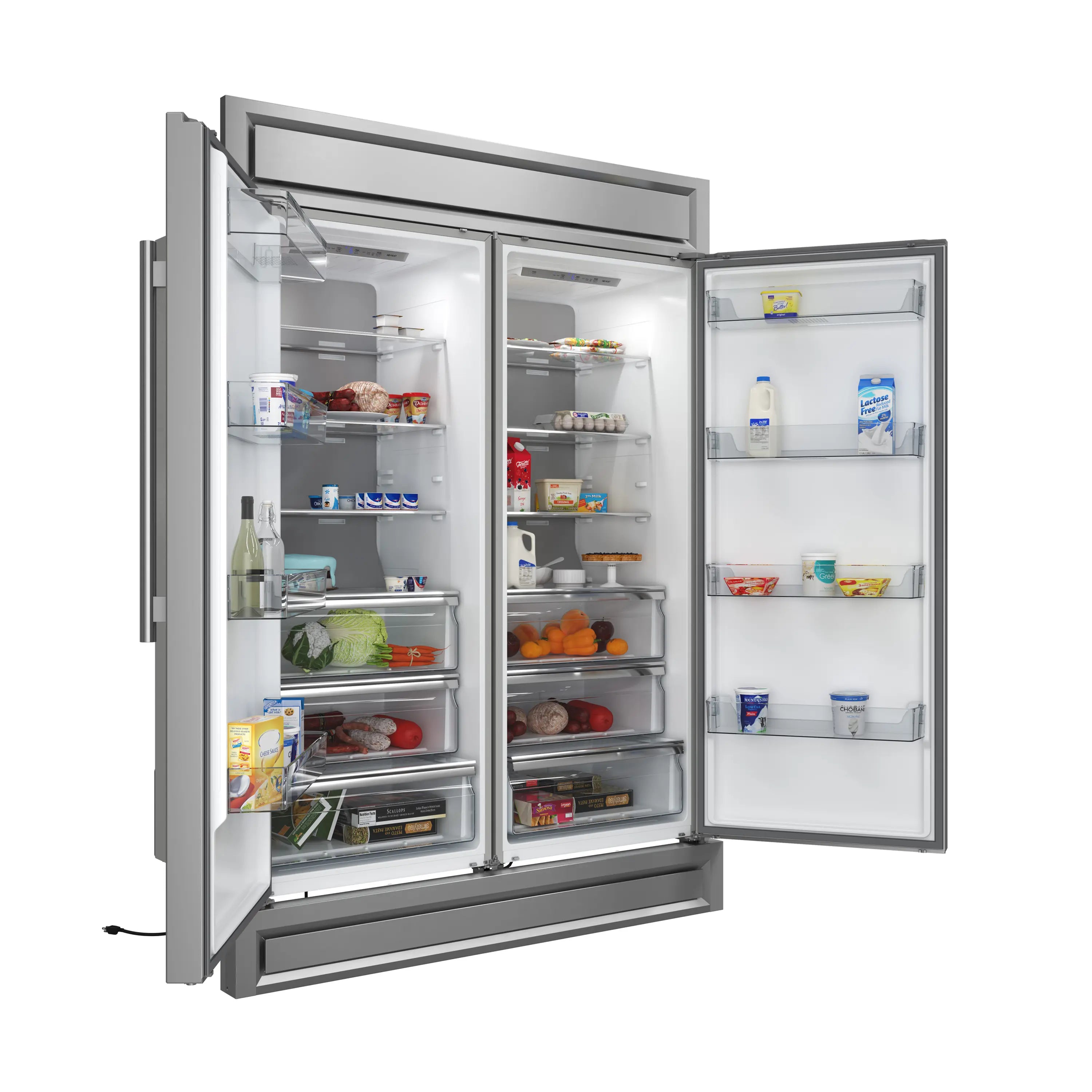

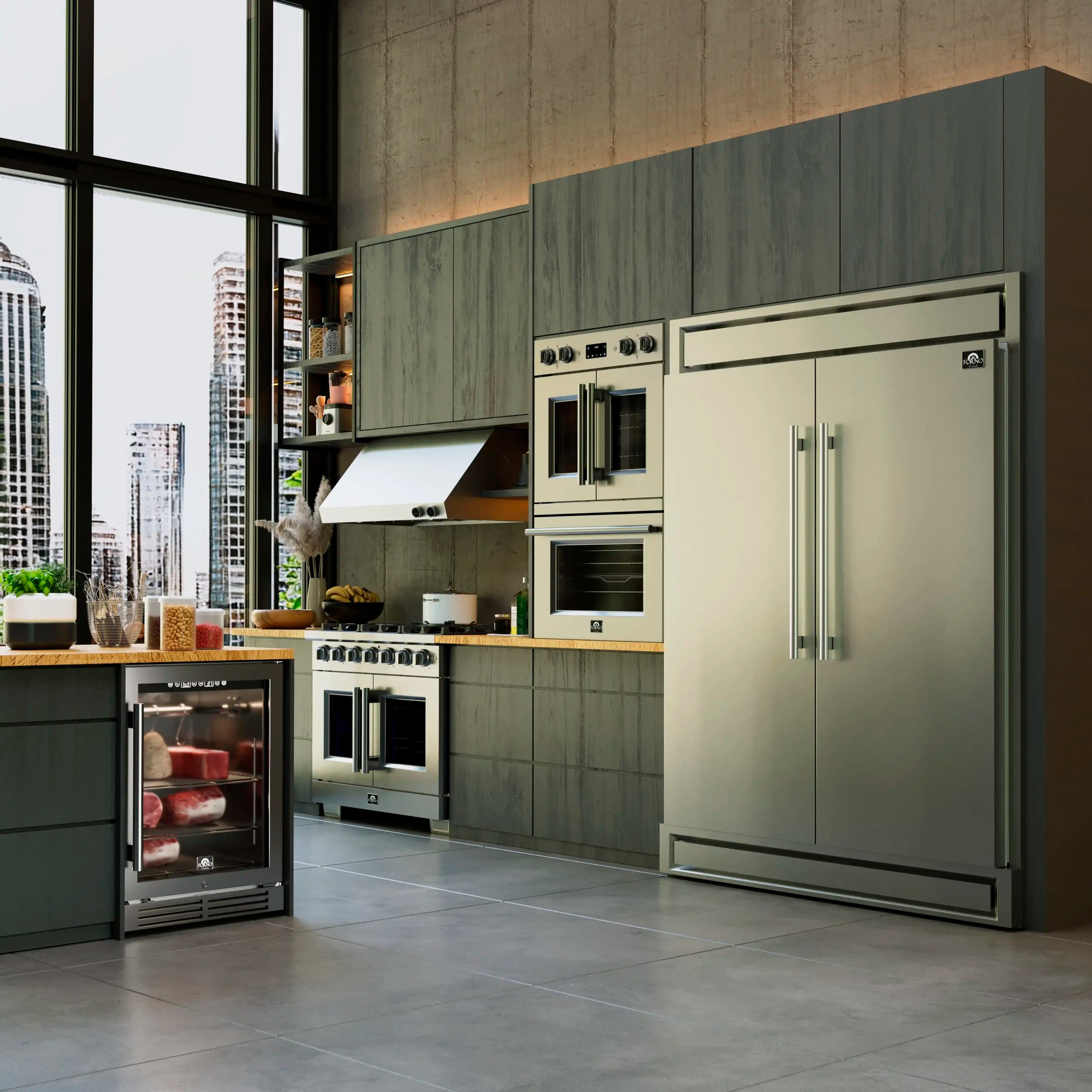

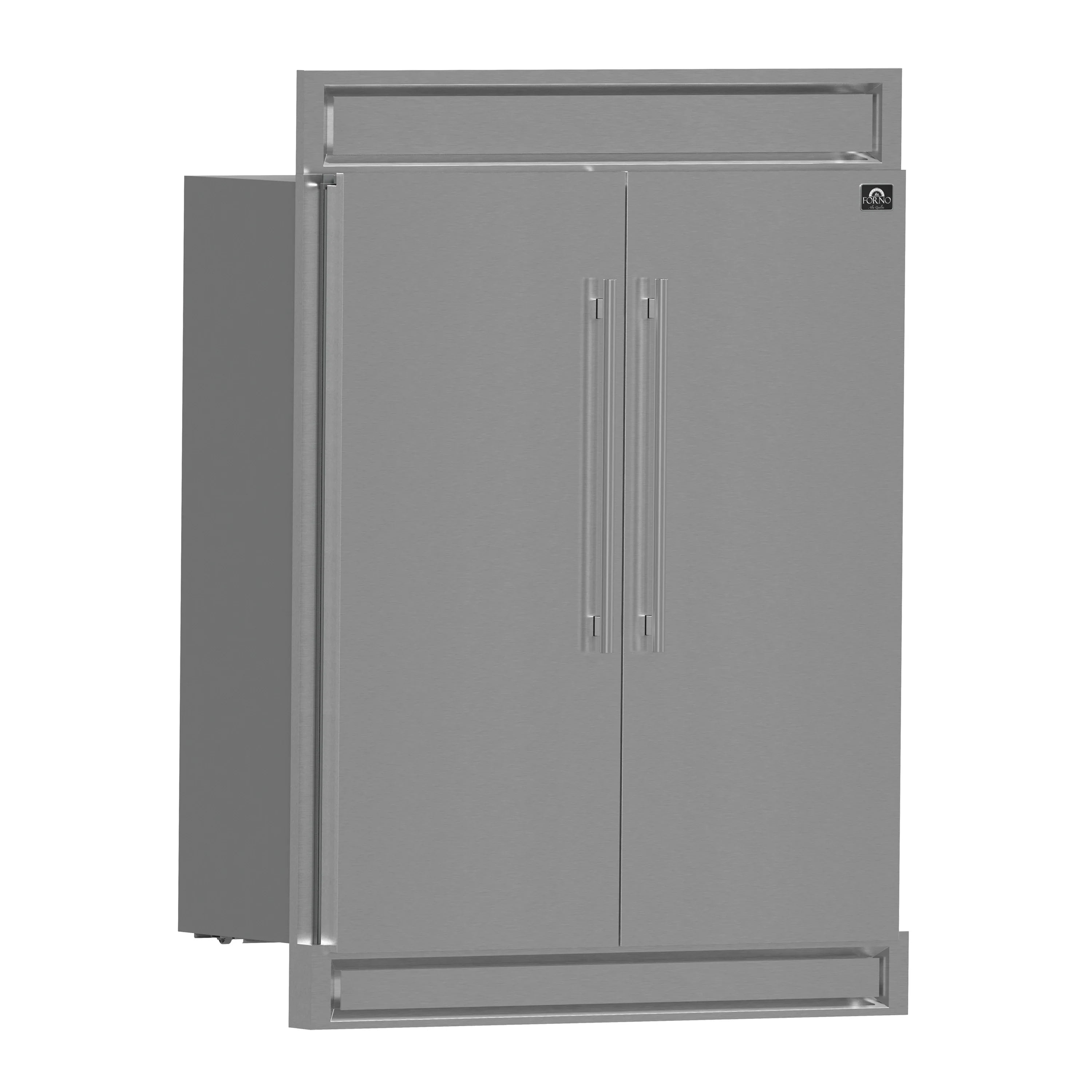

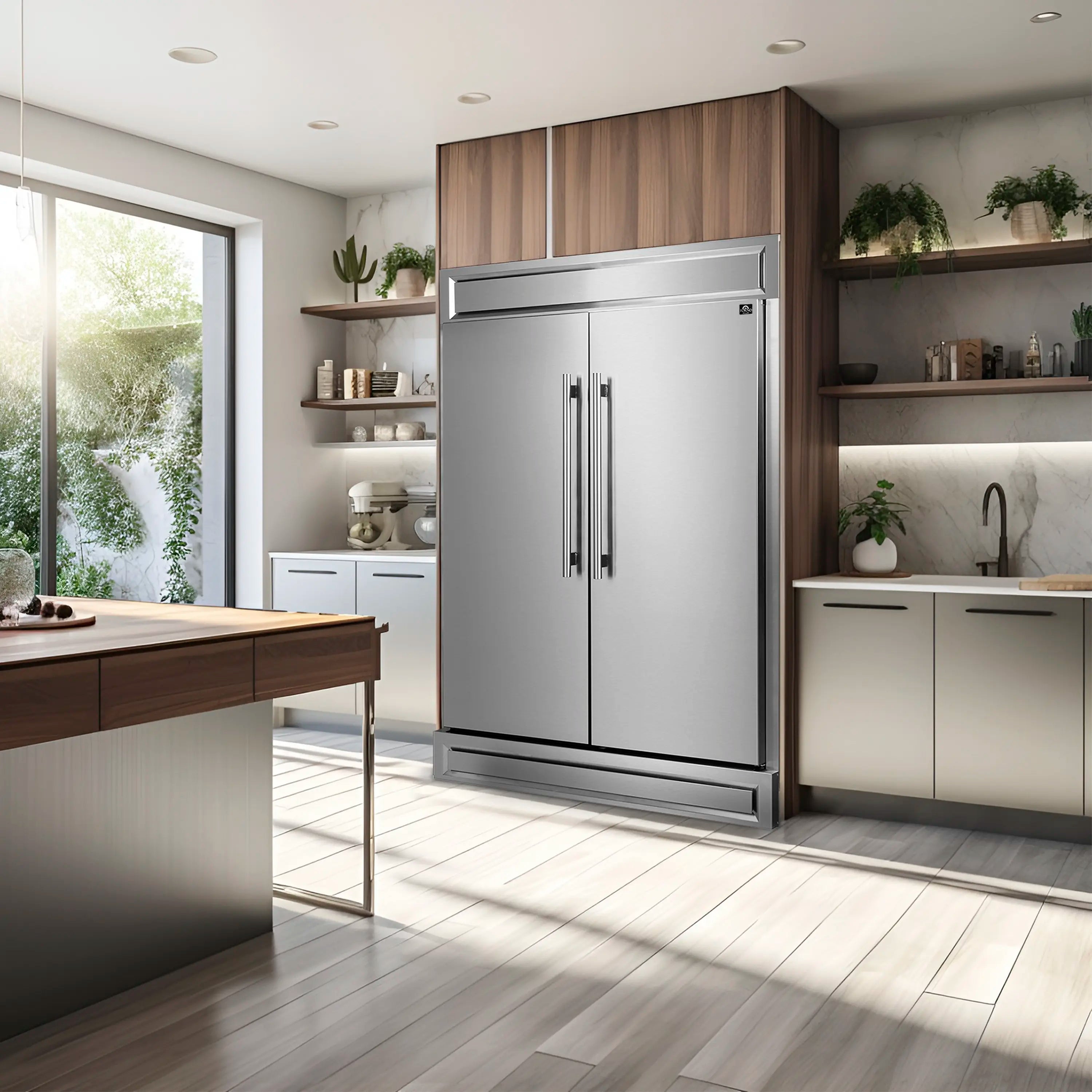

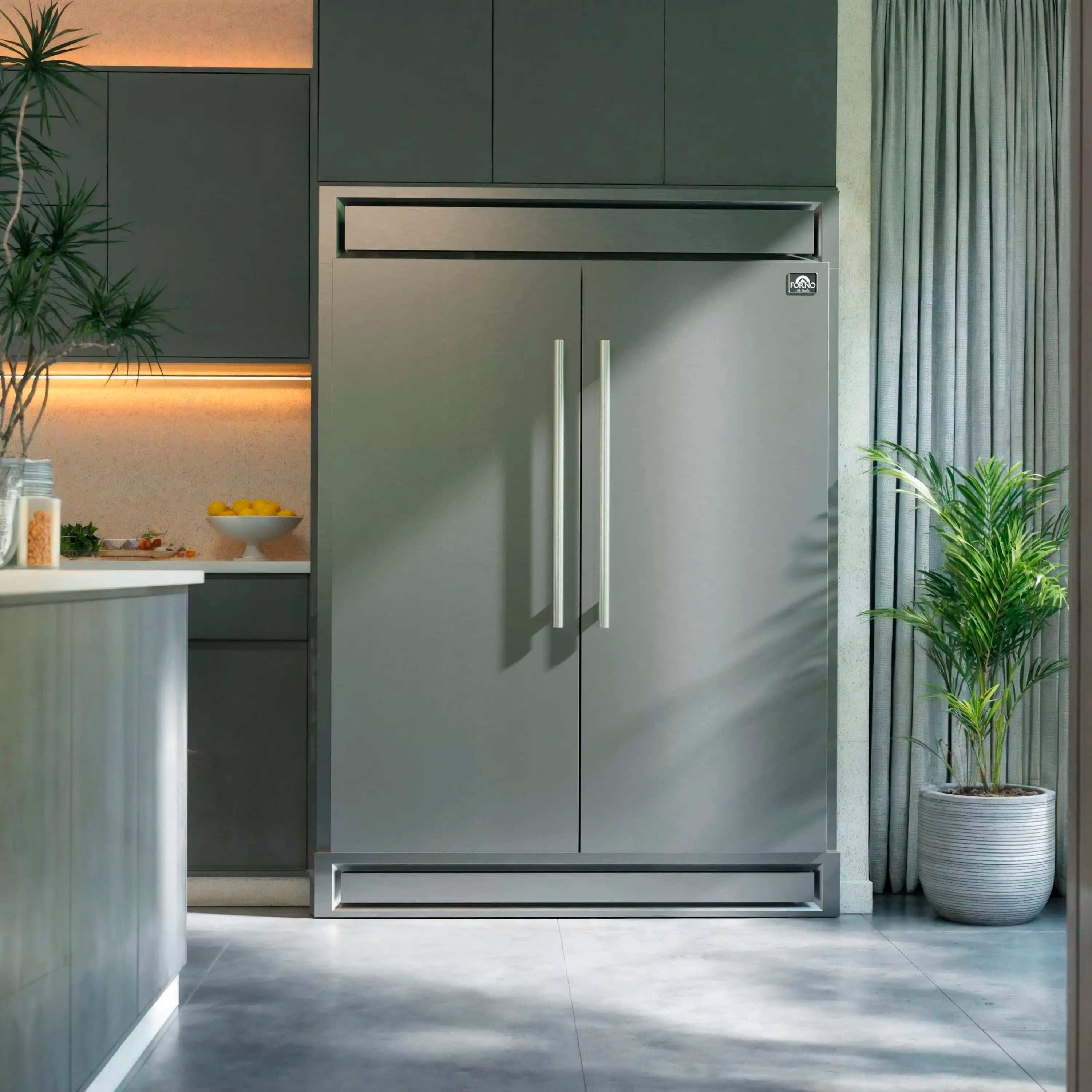

The Forno Maderno combines two 28 Inch refrigerators with decorative trim grille, extending to a 60 Inch width for a built-in appearance, harmoniously blending style with convenience. This combo offers ample storage space totaling 27.2 cu.ft. They feature customizable cooling with convertible function and total no frost technology, eliminating tedious defrosting.

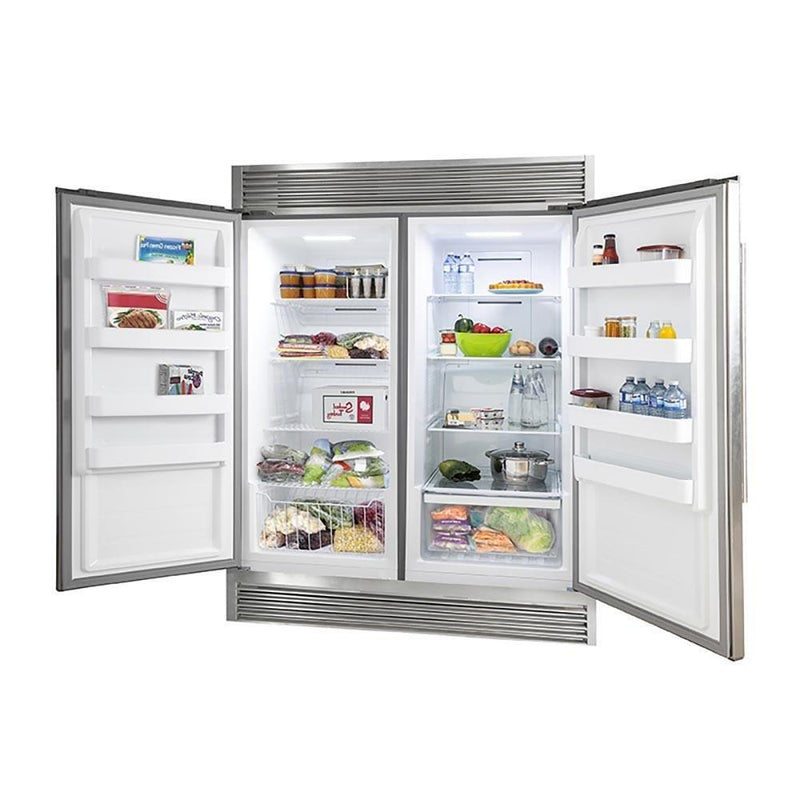

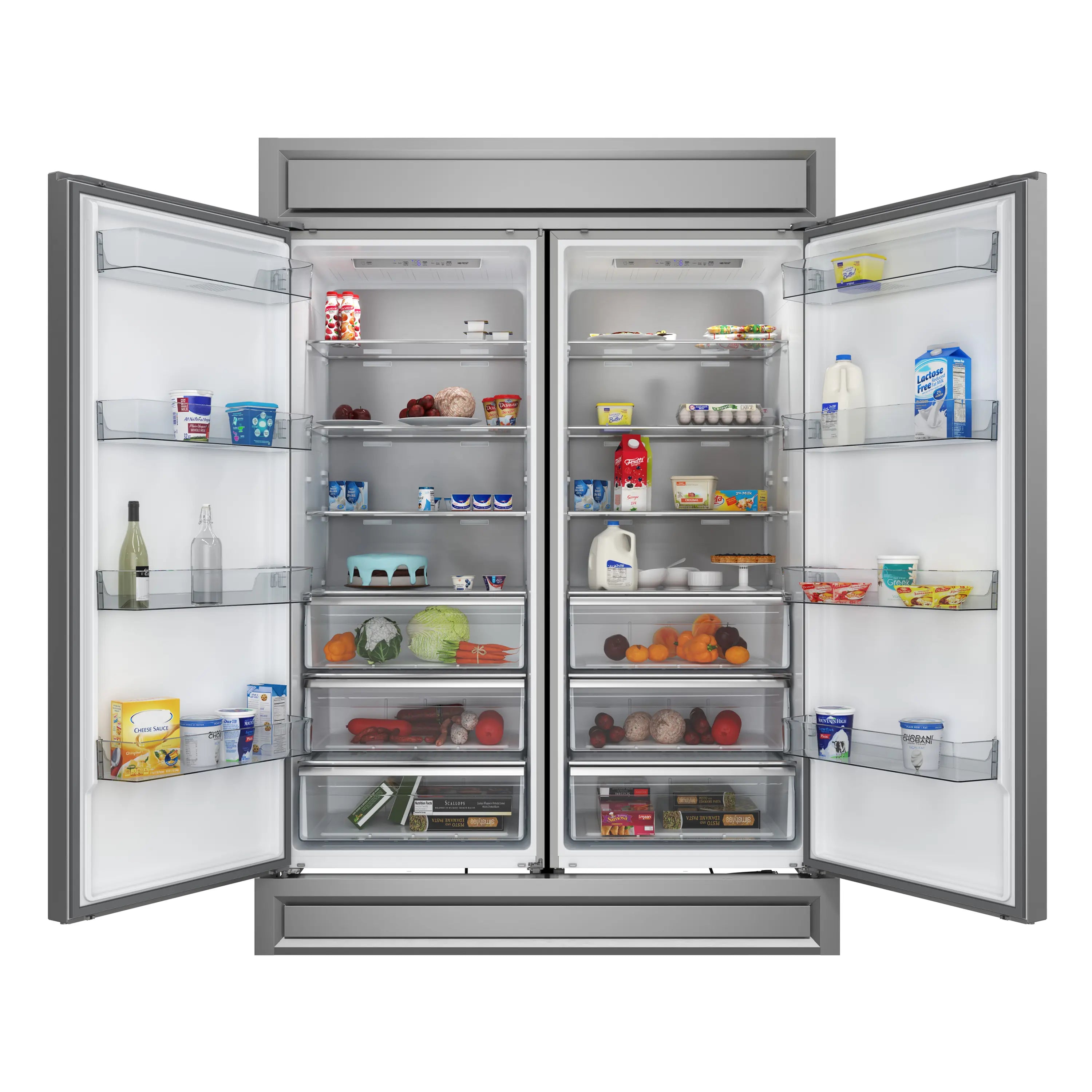

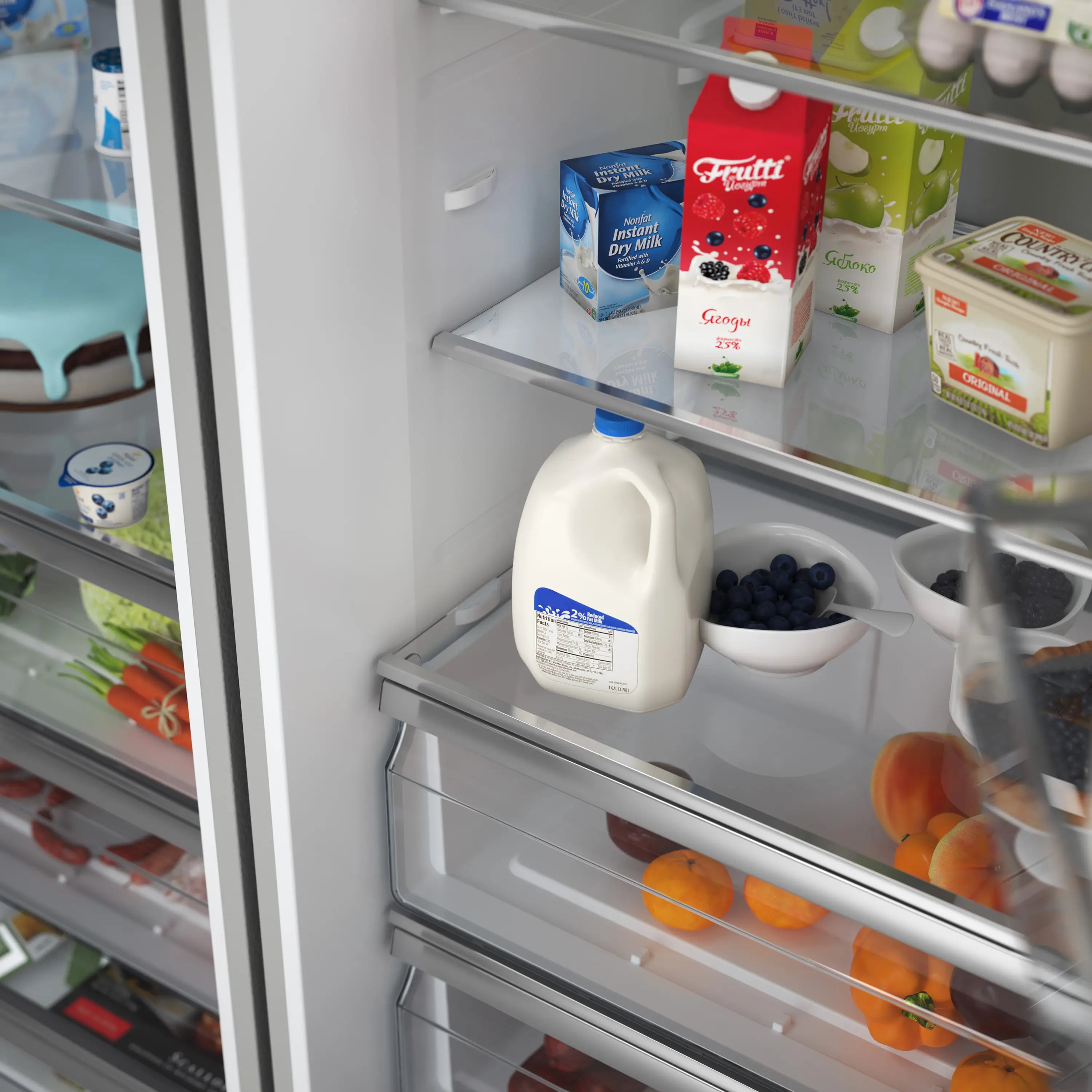

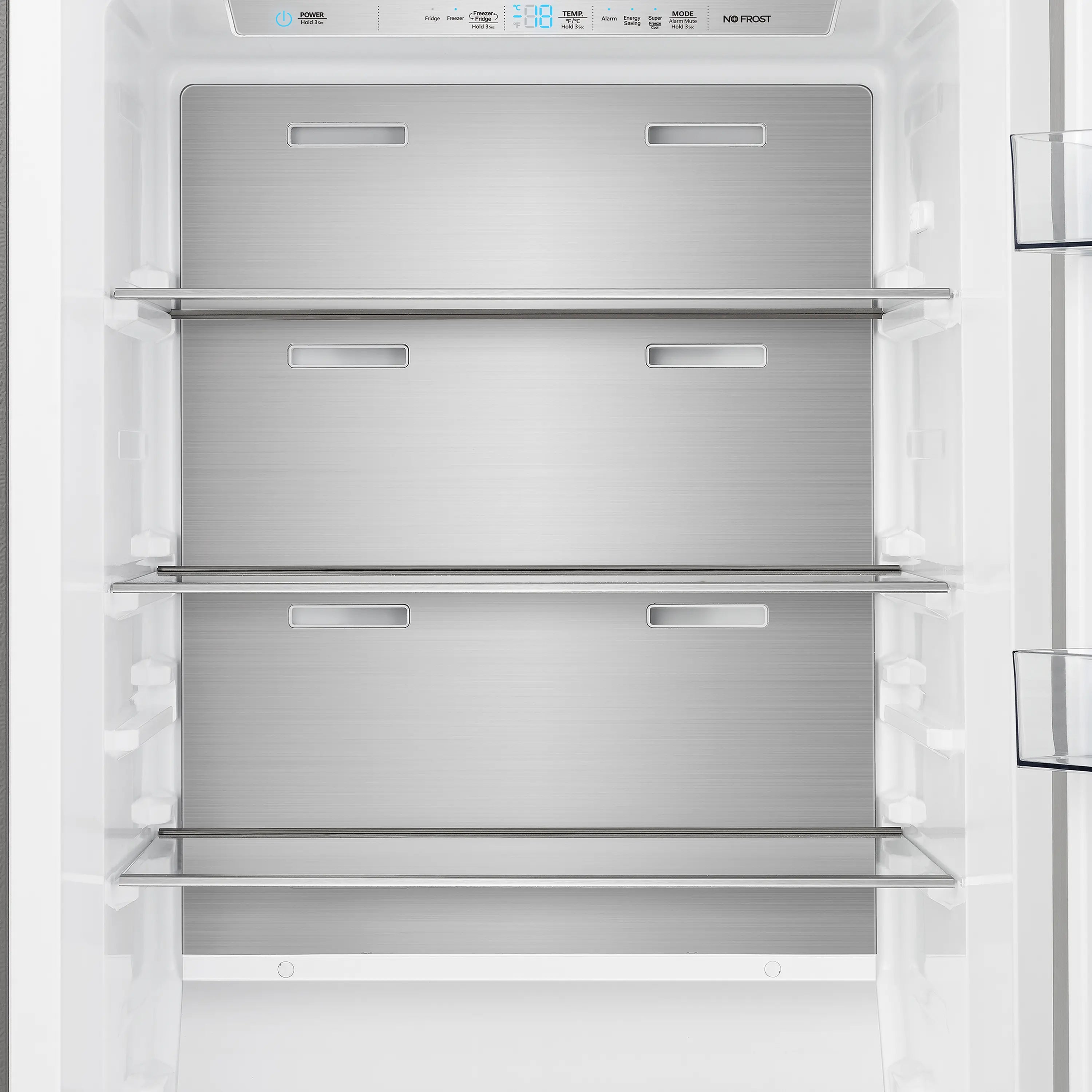

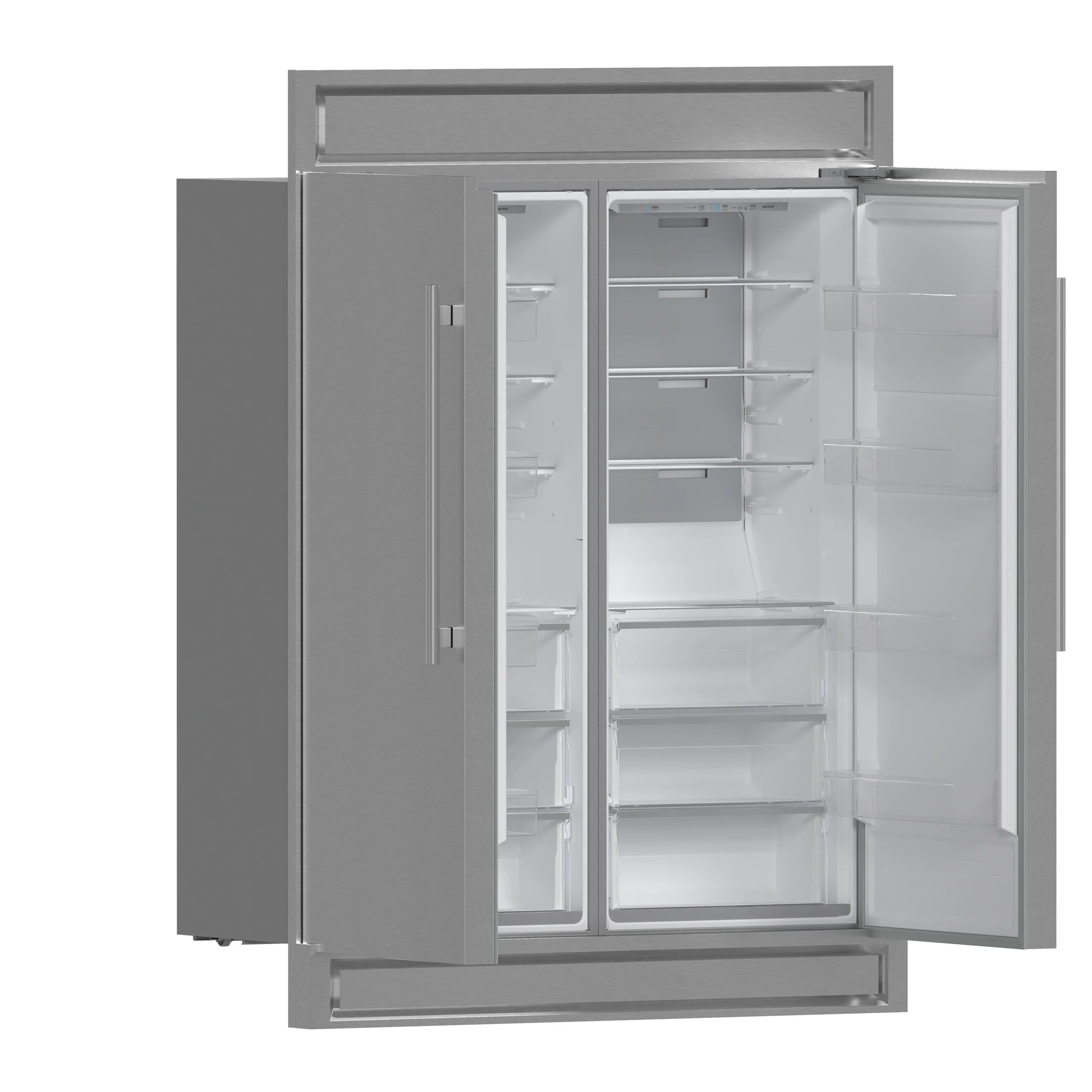

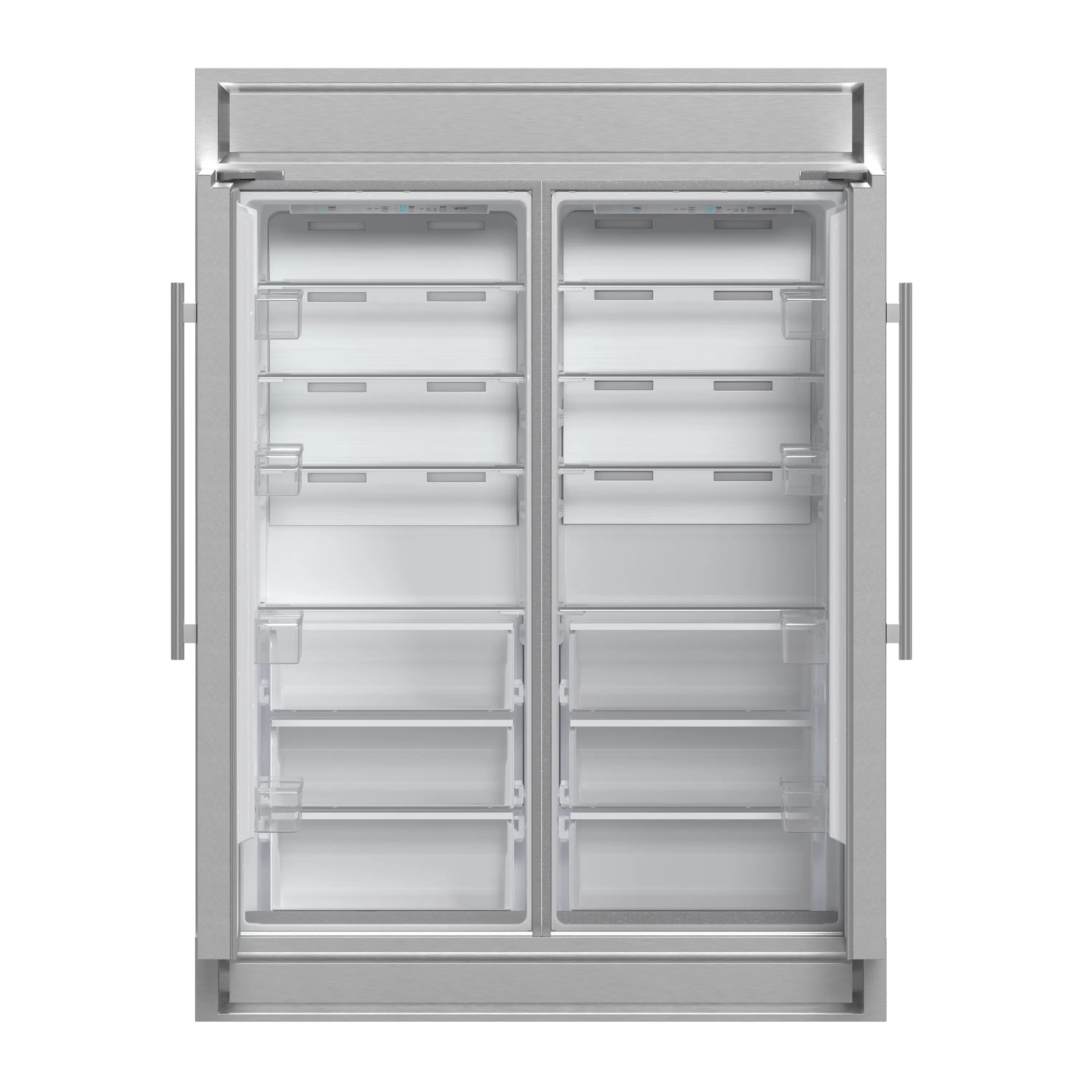

The side-by-side door design integrates seamlessly, while elegant glass shelves with silver trim and practical plastic door balconies enhance appeal and storage. Effortlessly switch between Fahrenheit and Celsius, aided by LED lighting for easy item location. Six glass shelves and six plastic drawers with silver trim provide flexible storage, and temperature settings are easily managed with the electronic touch control panel. The VCM door panel and metal back ensure durability, and the combo is T Climate Class certified with an E-star energy rating for sustainability.
This refrigerator comes in three pieces:
*Installation requires a base to be built for the refrigerator - please see cut-out sheet for more details
| DIMENSIONS | |
|---|---|

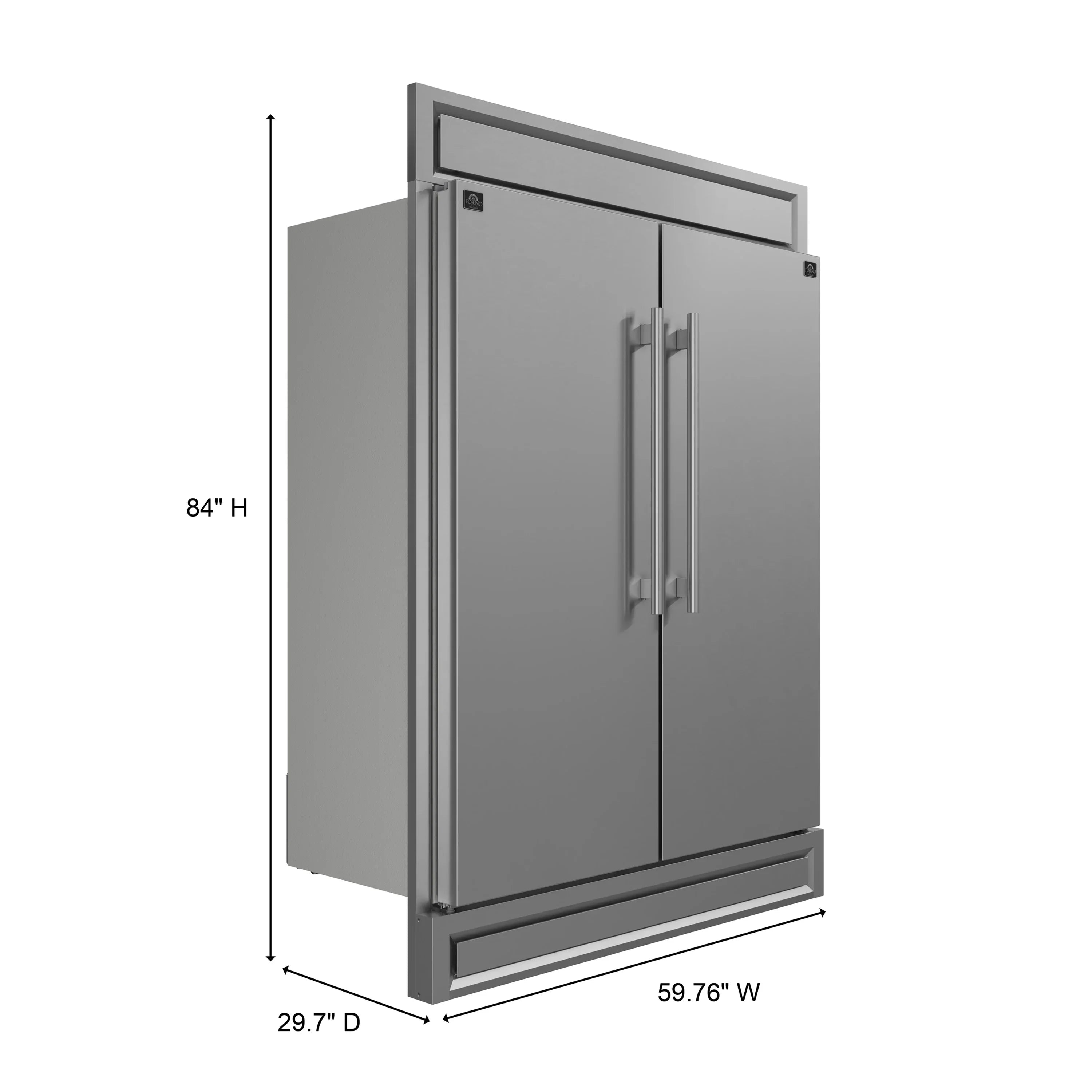

| Overall Dimensions | 59.76" W X 29.7" D X 84" H |
| Cutout Dimensions | 55.9" W X 28.94" D X 69.06" H |
| Product Overall Weight (lbs) | 330.00 |
| Advertised Unit Width | 60” |
| Counter-Depth | Yes |
| GENERAL INFORMATION | |
| Build Type | Built-In |
| Finger Print Resistant | Yes |
| Air Flow | Multi Air Flow |
| Vacation Mode / E-Saver | Yes |
| Super Cool | Yes |
| Super Freeze | Yes |
| Leveling Legs | Yes |
| DESIGN & FINISH | |
| Unit Style | Side-By-Side |
| Door Color | Stainless-Steel |
| Door Material | VCM Door Panel |
| Reversible Doors | No |
| Handle Color | Stainless steel |
| Case Material | Metal |
| Case Color | Light Gray |
| Primary Material | White HIPS |
| Control Type | Internal Touch Control |
| Lighting Type | LED |
| Shelf Material | Glass with Silver Trim |
| Drawers Material | Plastic with Silver Trim |
| Door Bins Material | Plastic |
| TECHNICAL DETAILS | |
| Defrost Type | Automatic |
| REFRIGERATOR FEATURES | |
| Sabbath Mode | No |
| Door Alarm | No |
| Leak Proof Shelves | No |
| Door Bins Color | Clear |
| Ice Maker | No |
| FREEZER FEATURES | |
| Converting Fridge/Freezer | Yes |
