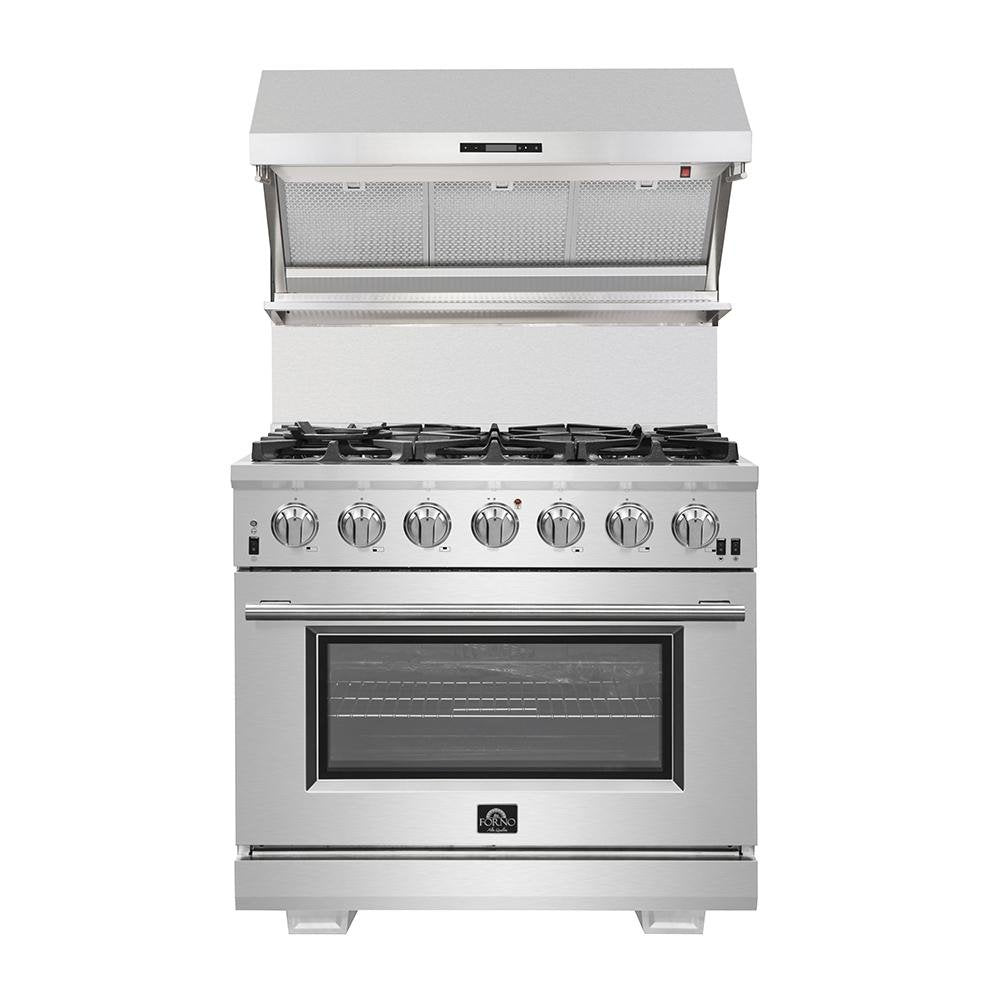

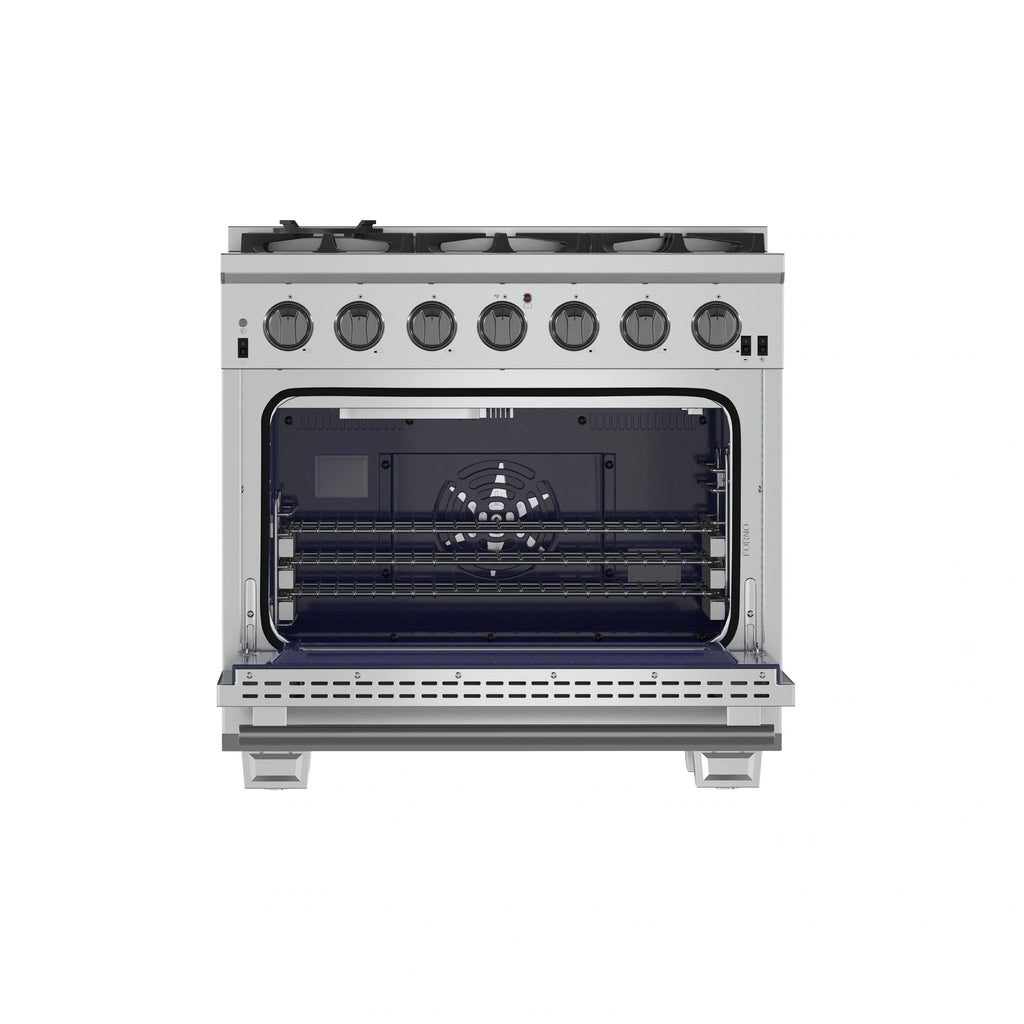

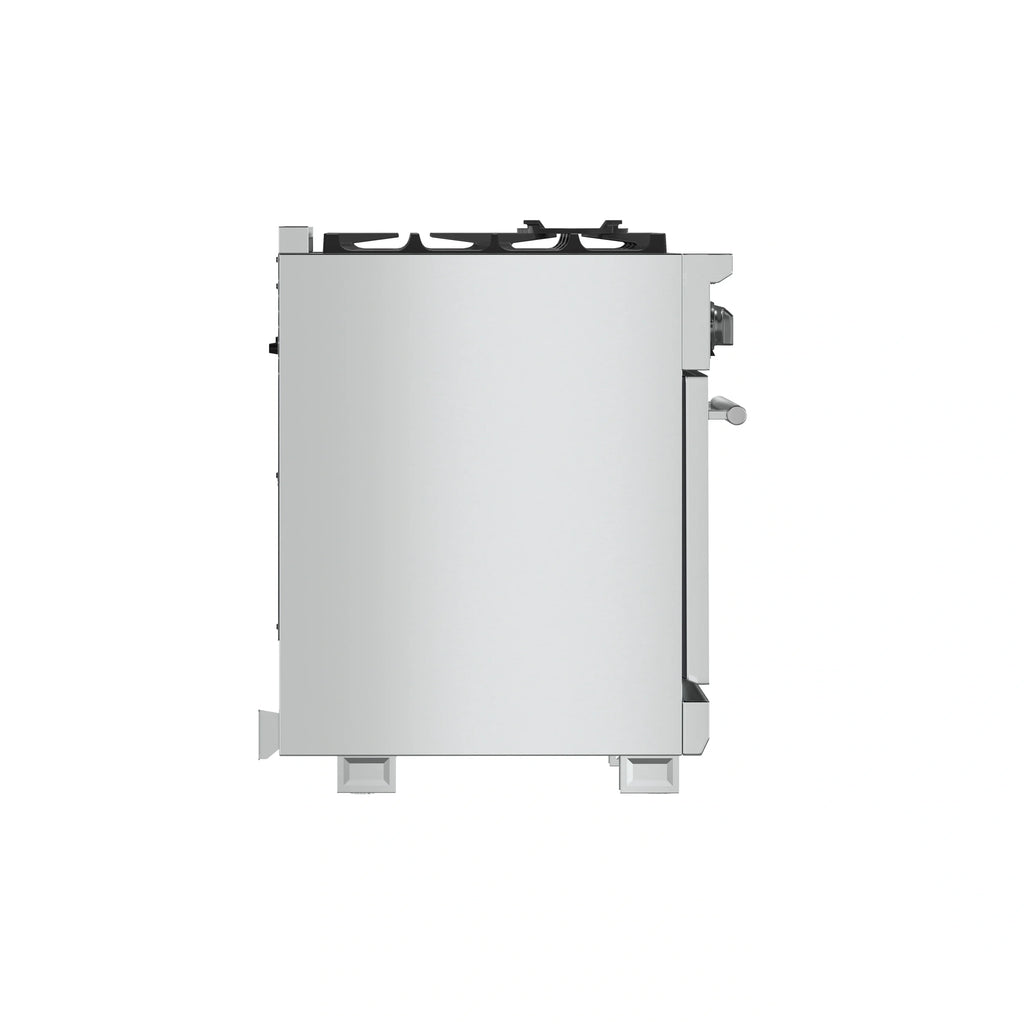

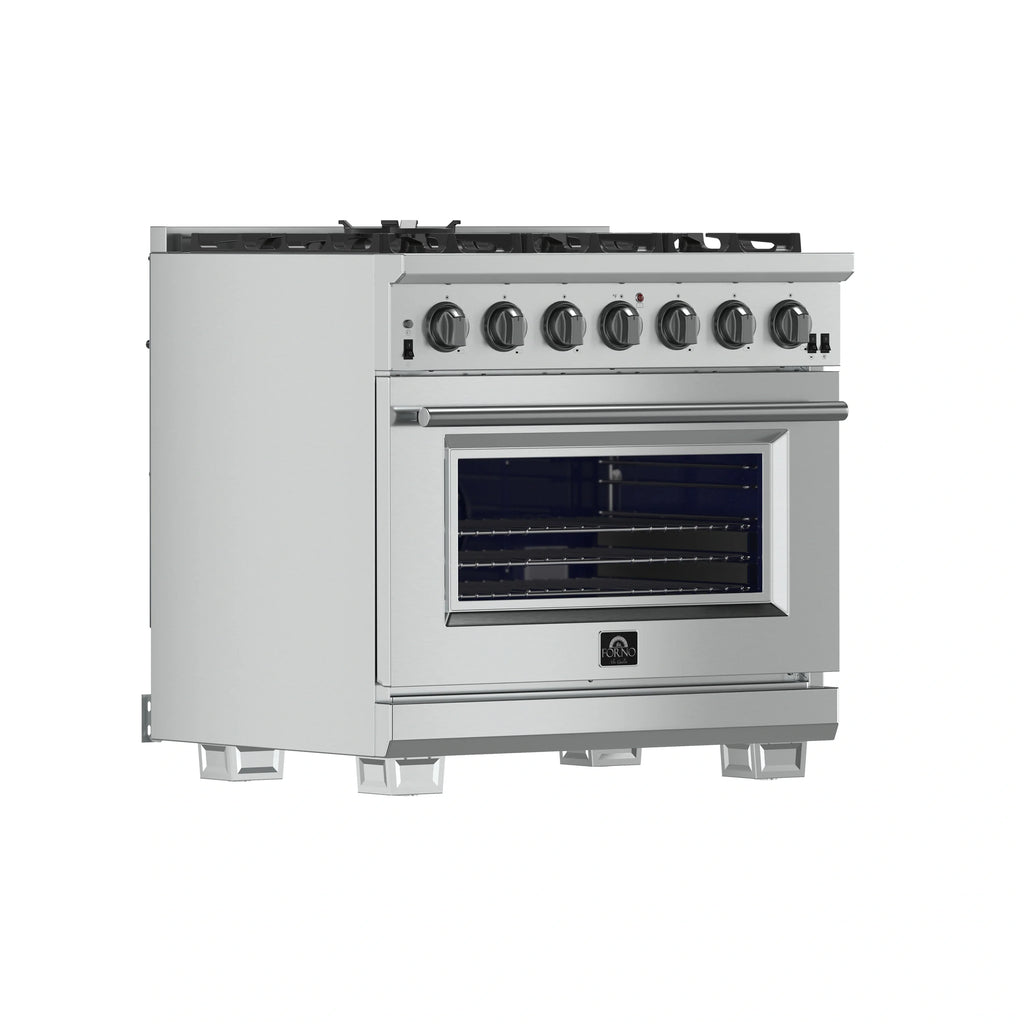

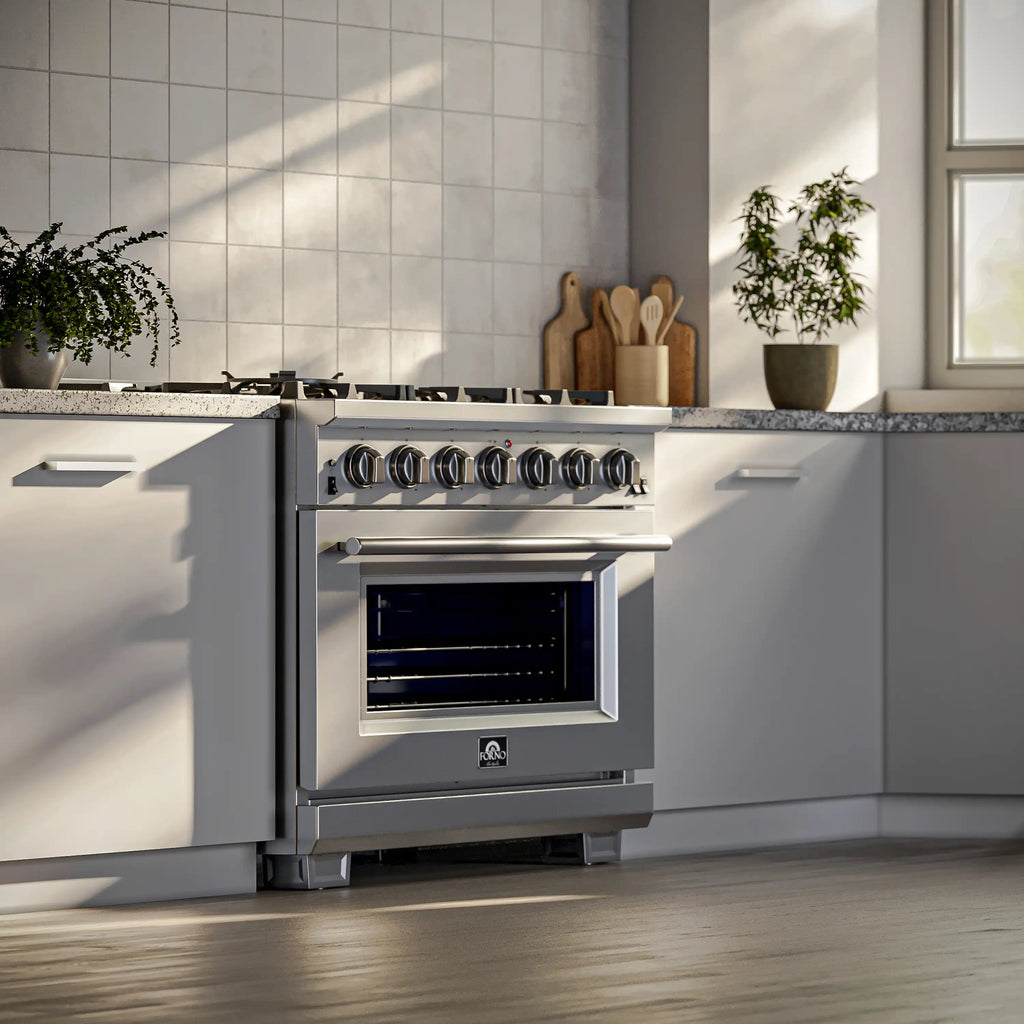

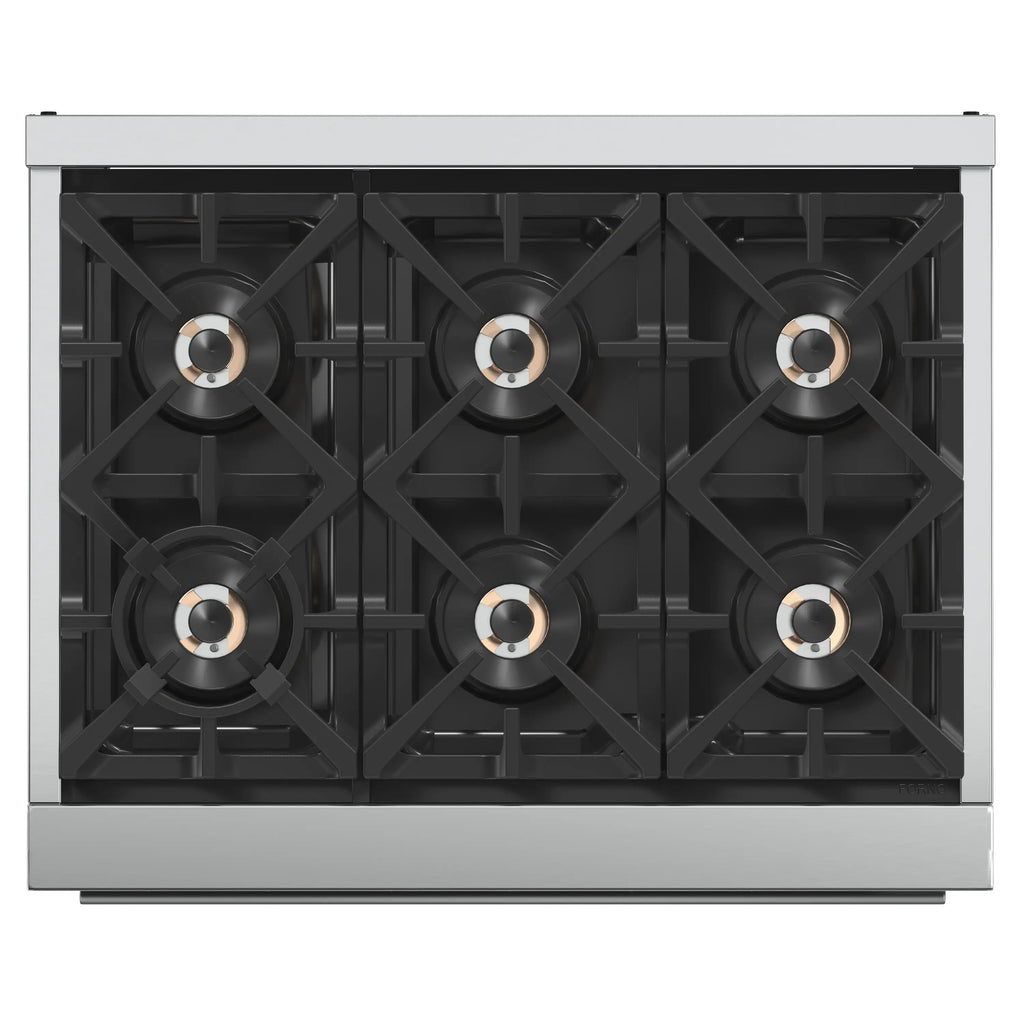

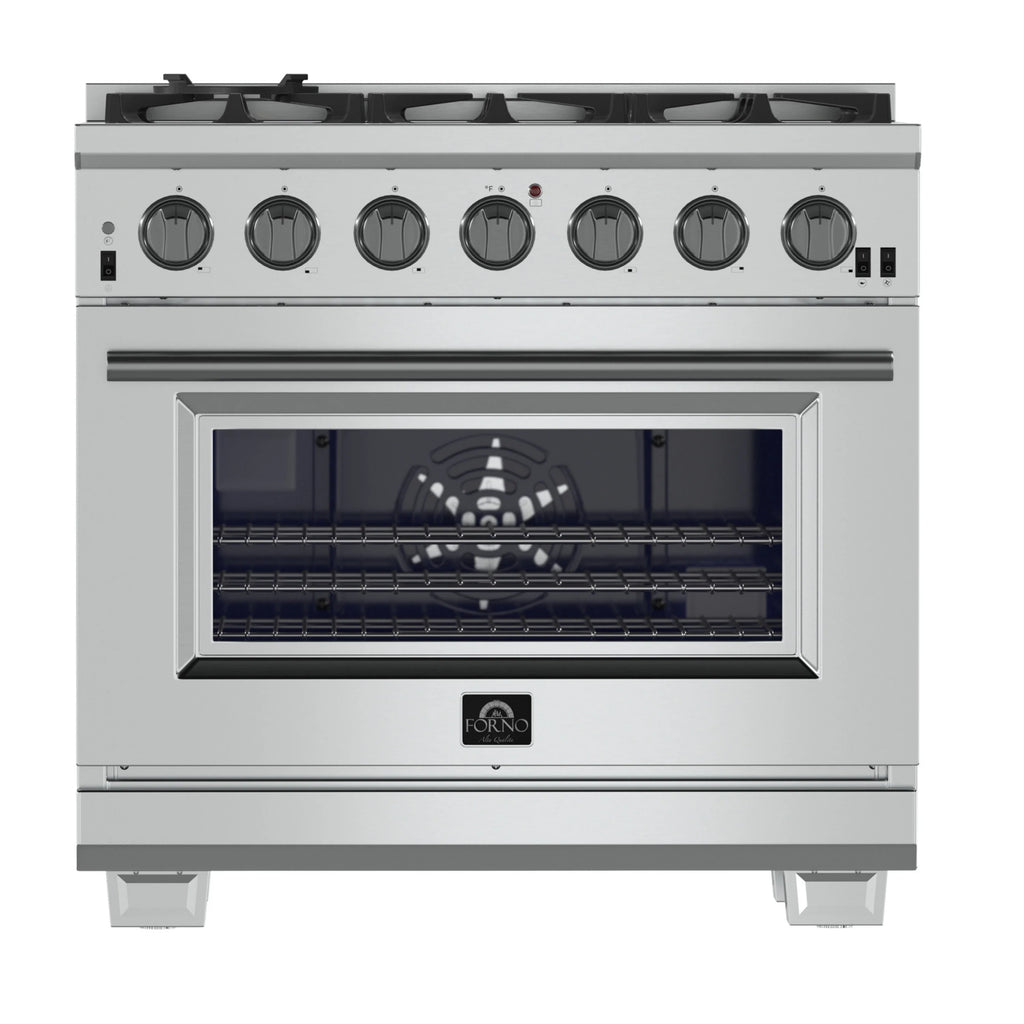

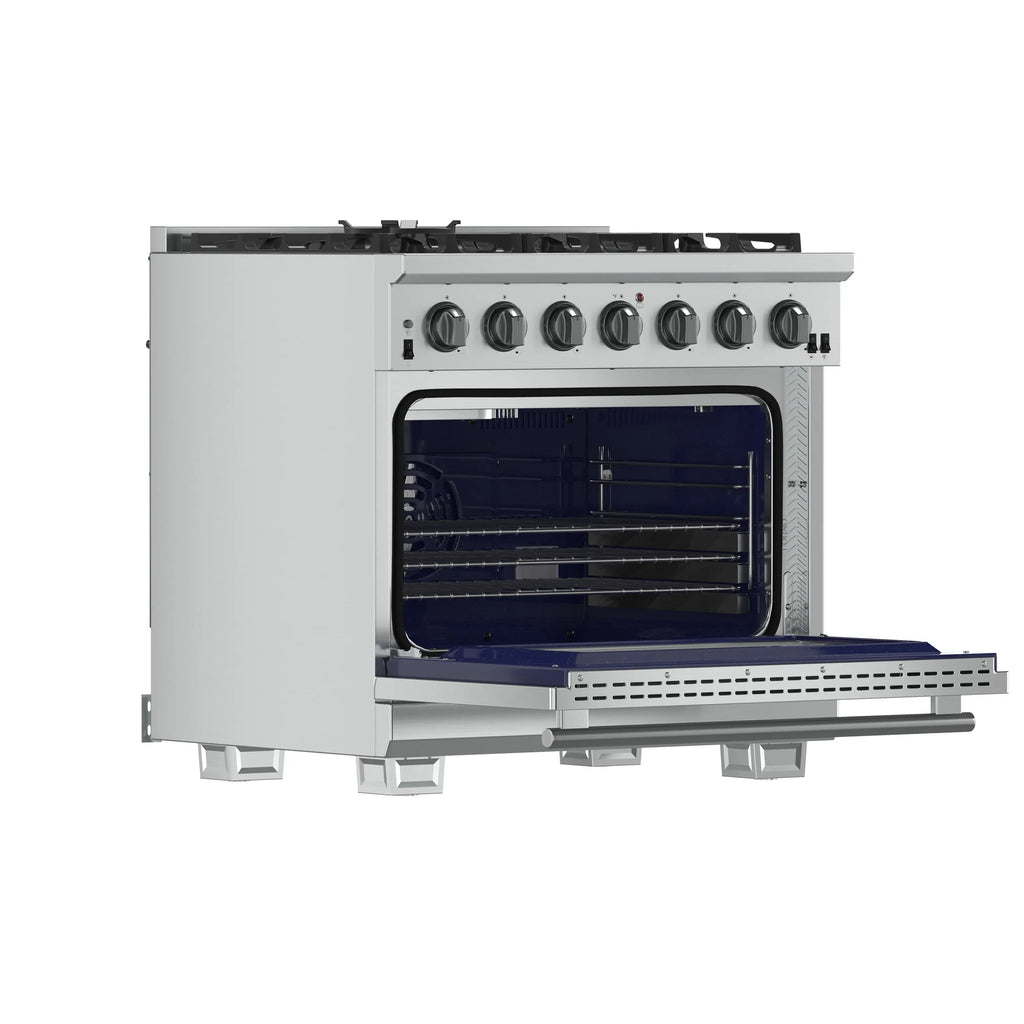

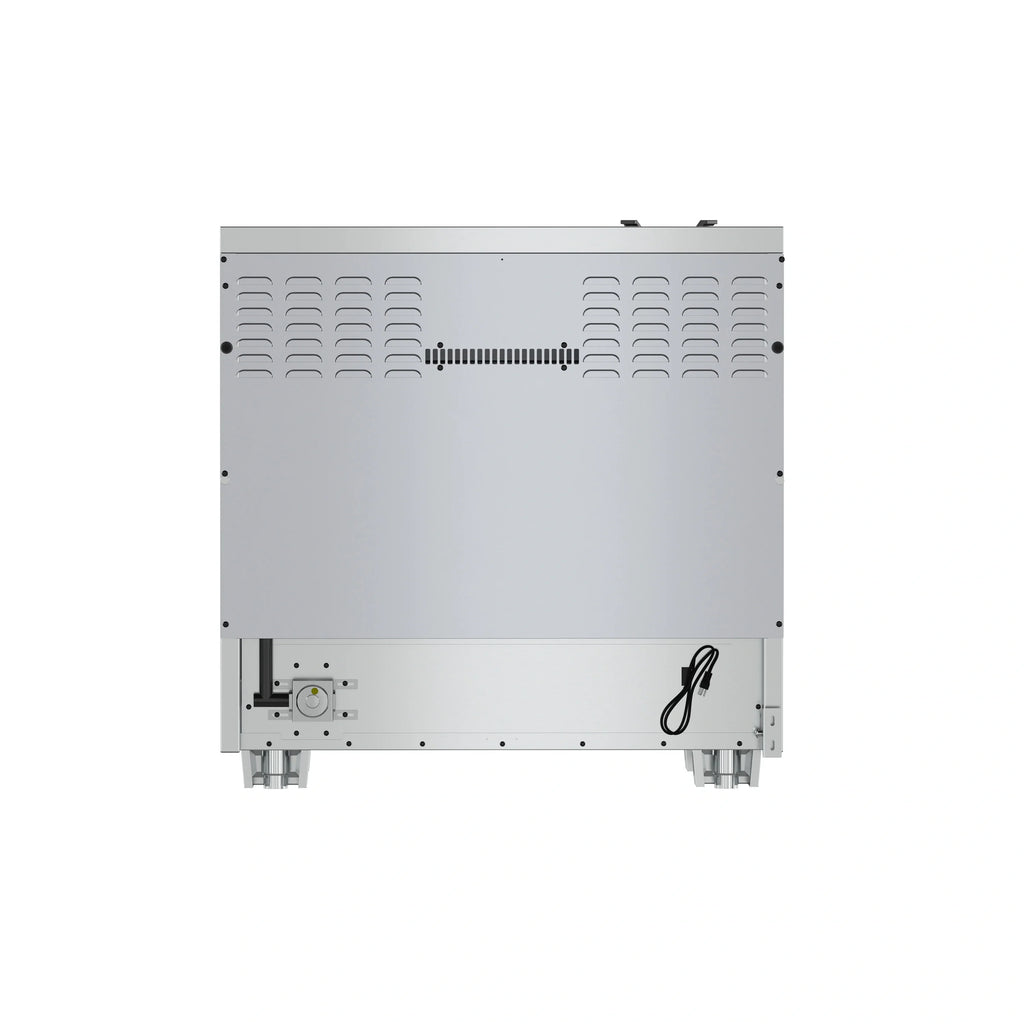

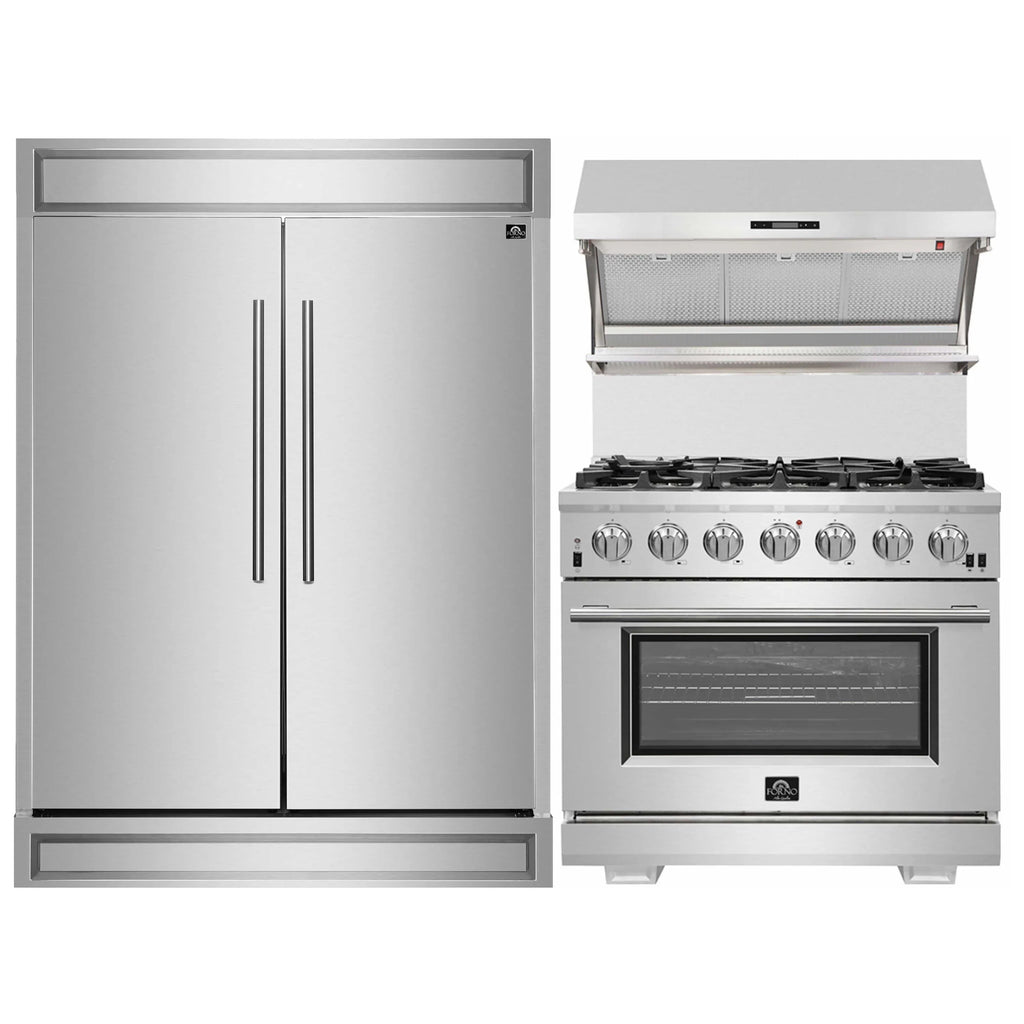

The Forno Capriasca 36 Inch Gas Range enhances your home kitchen with professional styling and performance through its durable and beautiful 304-grade stainless-steel design. The cooking surface features 6 sealed dual-ring brass burners, totaling 120,000 BTU. All burners, each at 20,000 BTU, can simmer precisely at 1,000 BTU. Continuous heavy-duty cast-iron grates facilitate easy sliding of pots or pans off heat over the enamel cooktop cavity, simplifying spill cleanup. The 5.36 cu. ft. gas oven, with a 30,000 BTU output and infrared red mesh broiler, enclosed in a blue enamel interior, offers optional convection for precise, and consistent cooking on multiple levels. For convenient viewing, a 3-layer glass oven door window is included. The package includes 3 telescopic stainless-steel oven racks, wok support, and an LP conversion kit. Additionally, zinc-coated illuminated metal knobs with bezel rings ensure enduring beauty.
| DIMENSIONS | |
|---|---|
| Product Dimensions W x D x H (inches) | 36 x 28 x 38 |
| Cutout dimensions W x D x H (inch) | 36 x 25 x 36 |
| Product Overall Weight (lbs) | 260.14 |
| Main Oven Usable Interior (W x D x H) | 30 X 14 X 10.38 |
| DESIGN & FINISH | |
| Color | Silver |
| Finish | Stainless Steel |
| Color/Finish | Stainless Steel |
| Number of Knobs | 7 |
| Interior Light | 2 |
| Knobs Color/Finish | Zinc Coated |
| TECHNICAL DETAILS | |
| Fuel Type | Gas |
| Gas Type | Natural Gas |
| LP gas convertible | Yes |
| COOKTOP FEATURES | |
| Burner Fuel | Gas |
| Gas Heat Configuration (cooktop) | Sealed Burner |
| Total Cooktop BTU Output | 120,000 |
| Number of Burners/Cooking Zones | 6 |
| Cooking Surface Control Type | Push & Turn/Knobs |
| Cooking Surface Ignition Type | Electronic |
| Simmer Burner | Yes |
| Number of Simmer Burner | 6 |
| Cooktop Surface Structure |
|
| Grate Type | Heavy-Duty Continuous Cast Iron Grates |
| Auto Re-Ignition | Yes |
| Dual-Ring Burner | Yes |
| OVEN FEATURES | |
| Number of Ovens | 30000 |
| Overall Oven Capacity (Cubic Feet) | 5.36 |
| Oven Control Type | Manual/Knob |
| Glide/Rollout Racks | Yes |
| Racks Material | Stainless Steel |
| Number of Rack Positions | 5 |
| Broiler Location | Oven |
| Broiler | Gas |
| Overall Bake Element BTU | 20000 |
| Overall Broil BTU | 10000 |
| Convection Oven | Yes |
| Overall Capacity Cu. Ft. | 5.36 |

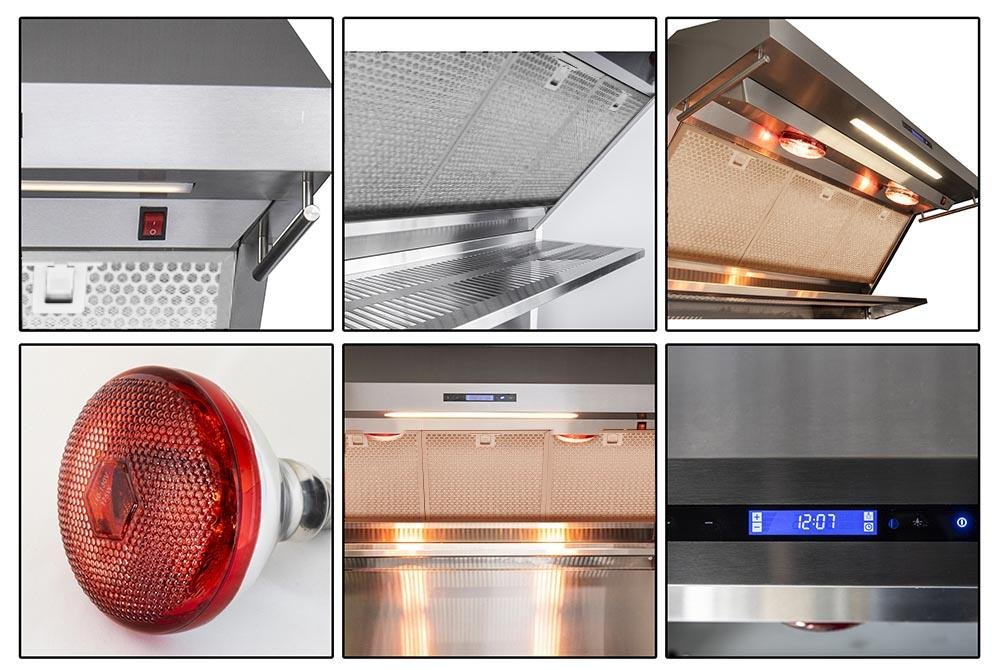

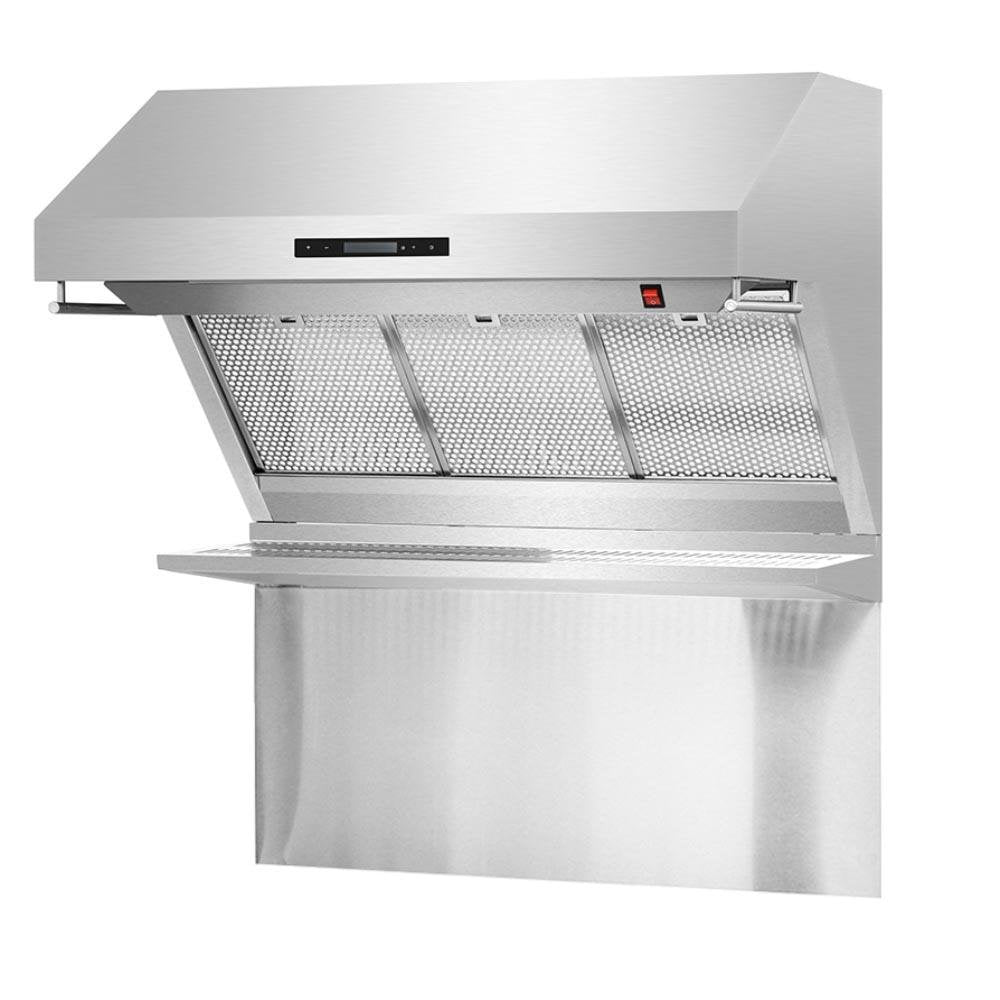

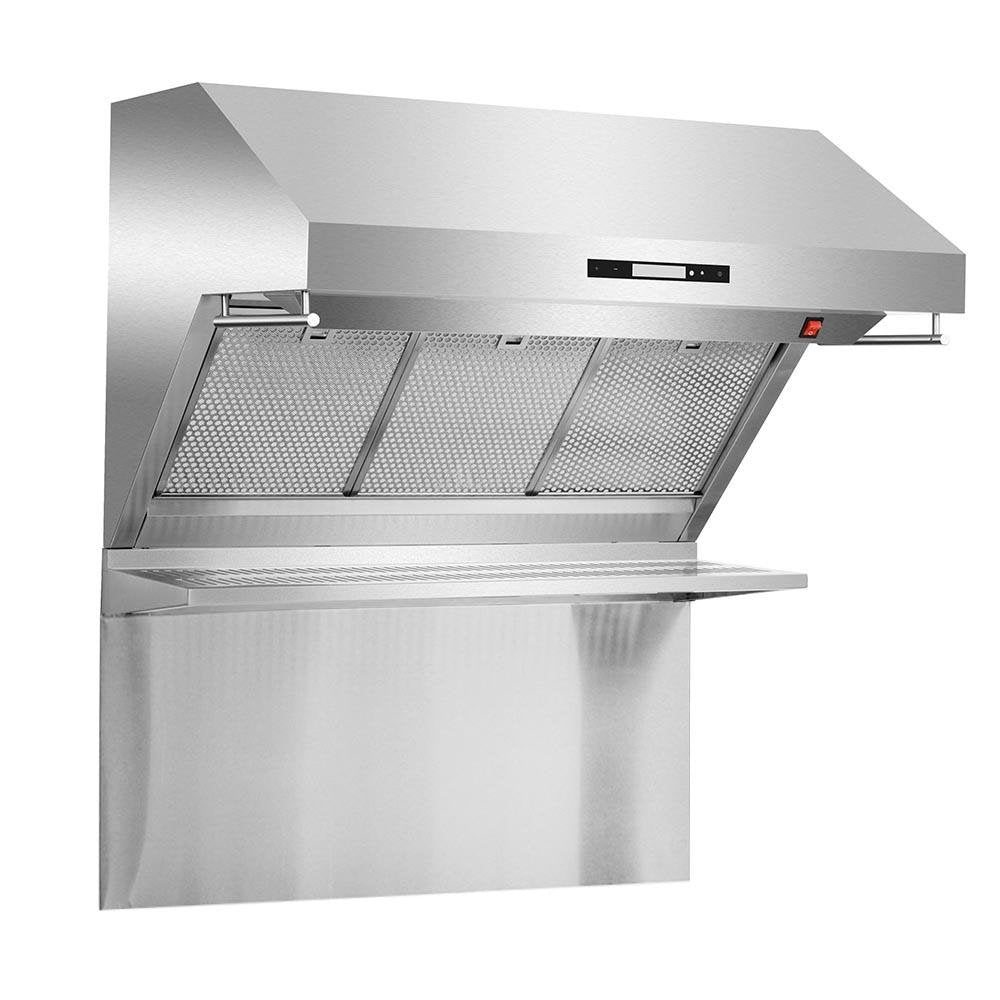

This 36" Wall Mount Range Hood by Forno comes with powerful dual motors with up to 1200 CFM of ventilation. The hood also features stainless steel hybrid filters, LED lighting, Red Light Warmers, and electronic display control. Available at Home Outlet Direct
Features:
All Stainless Steel Construction - Made from durable and easy to clean stainless steel.
Electronic Display Control - Allows you to effortlessly adjust the lighting and fan speeds of your hood.
LED Stripe Light - Bright and energy-efficient LED lights to illuminate your cooktop.
2 Blower 600 CFM Total 1200 CFM - Powerful ventilation to clear smoke and grease from your kitchen.

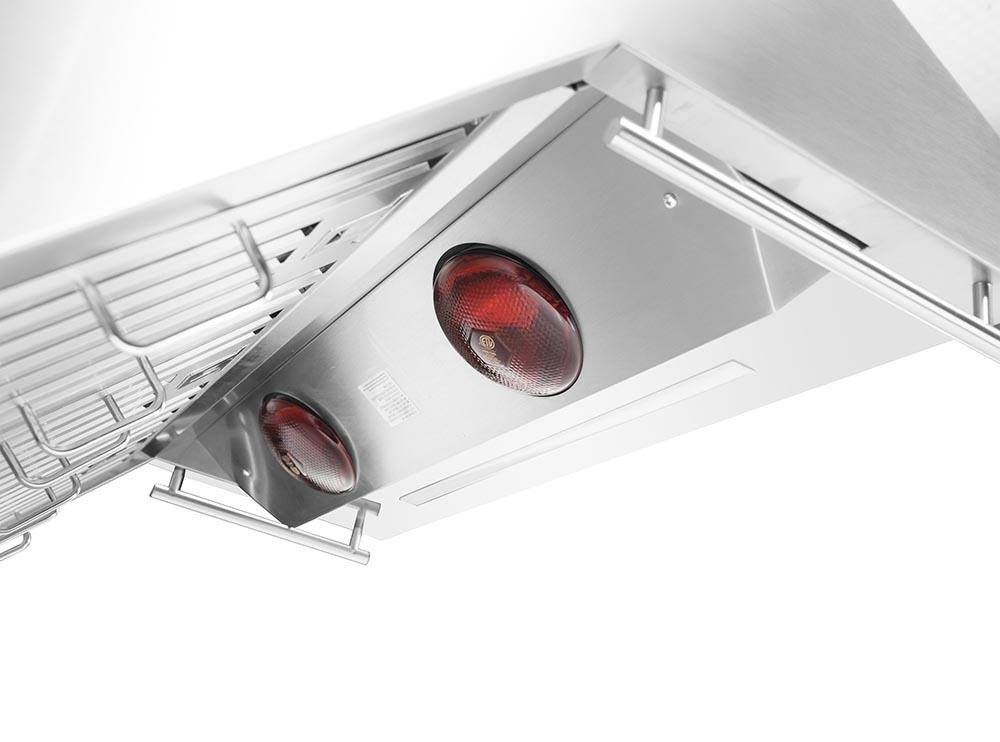

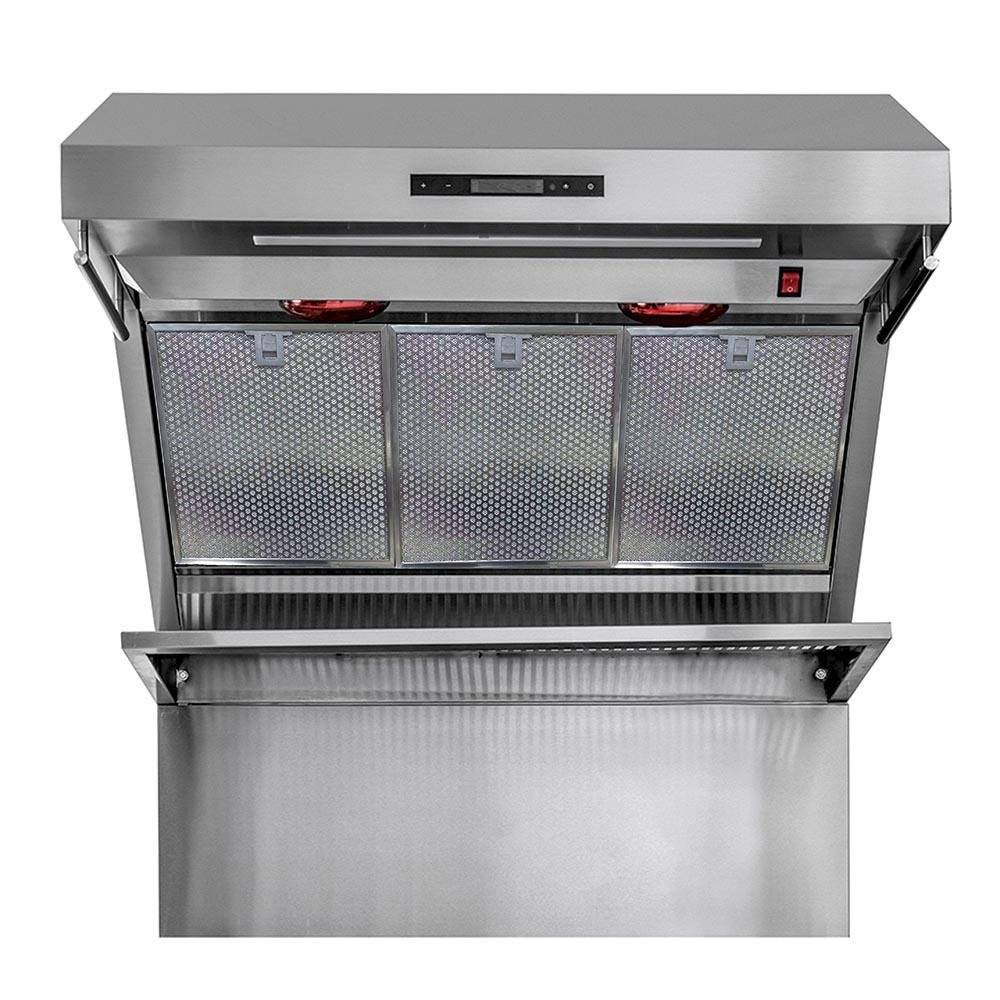

Red Light Warmer - Red infrared lights keep your dishes warm.
Stainless Steel Hybrid Filters - Efficiently filters out grease from cooking and is dishwasher safe for easy cleaning.
Additional Features:
2 Year Warranty
| DIMENSIONS | |
|---|---|

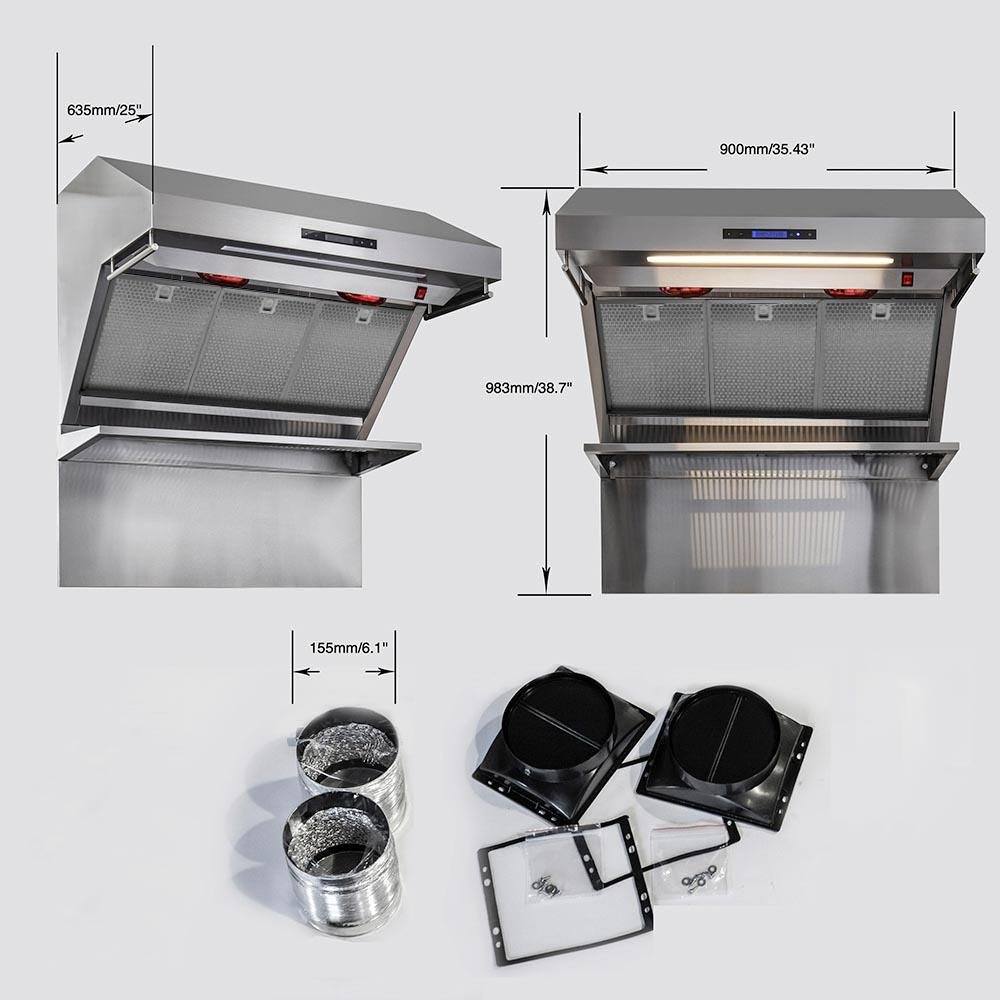

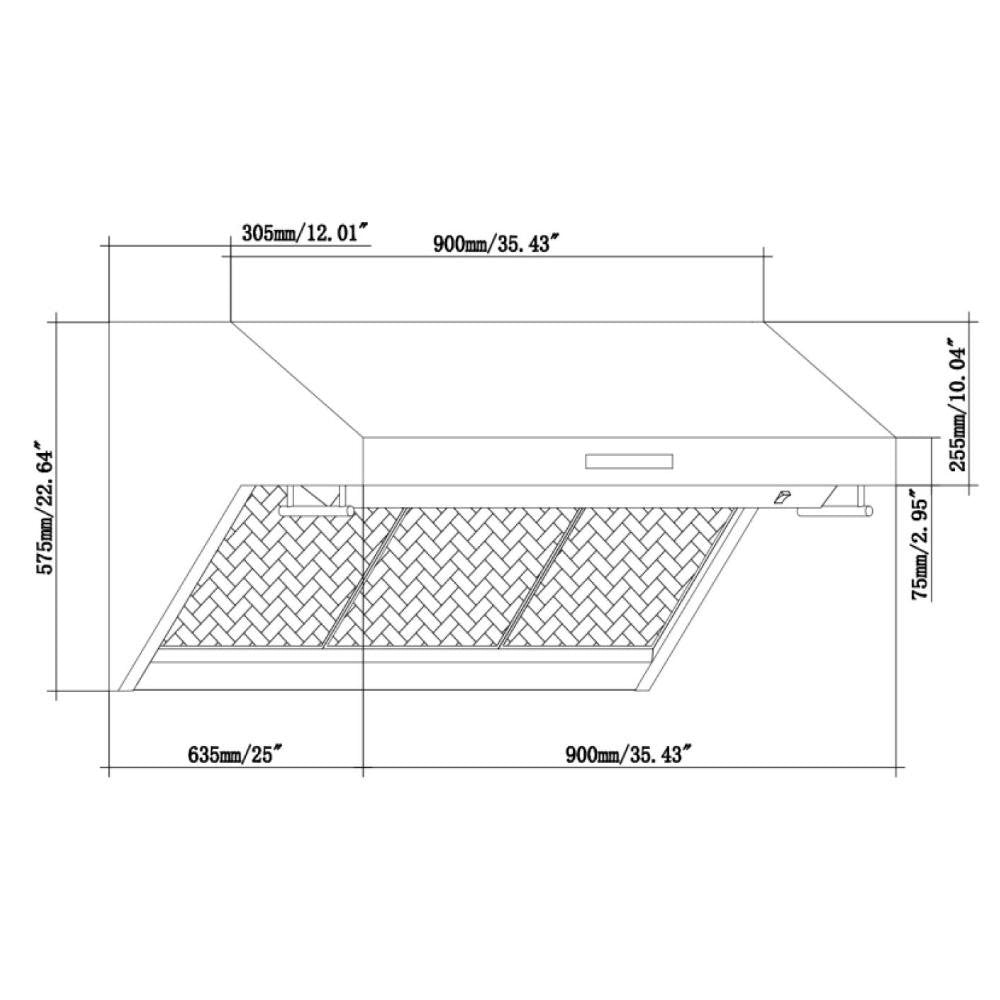

| Dimensions | 35.43" W x 22.6" H x 25" D |
| Weight | 131.20 lbs |
| GENERAL INFORMATION | |
| Brand | Forno |
| SKU | FRHWM502936HB |
| Type | Hood |
| Style | Canopy Pro Style |
| Venting Type | Ducted |
| Mounting Type | Wall Mount |
| Vent Location | Top or Rear |
| Approved for Outdoor Use | No |
| Recirculating Kit | No |
| DESIGN & FINISH | |
| Color | Stainless Steel |
| TECHNICAL DETAILS | |
| Product Number | FRHWM502936HB |
| Duct Type | Both |
| Blower Type | Internal |
| CFM | 1200 CFM |
| Number of Fan Speeds | 3 or More |
| Volts | 120 Volts |
| Amps | 15 Amps |
| Frequency | 60 Hz. |
| Product Manual | Download Product Manual PDF Here |
| FEATURES | |
| Glass Canopy | No |
| Commercial | No |
| Number of Light Bulbs | 1 |
| Light Bulb Type | LED |
| Filter Type | Mesh |
| Fan | Yes |
| Light | Yes |
| Cutout Manual | Download Cutout PDF Here |
| WARRANTY & CERTIFICATIONS | |
| Warranty Info | 2 Year Warranty |
| Energy Star | No |

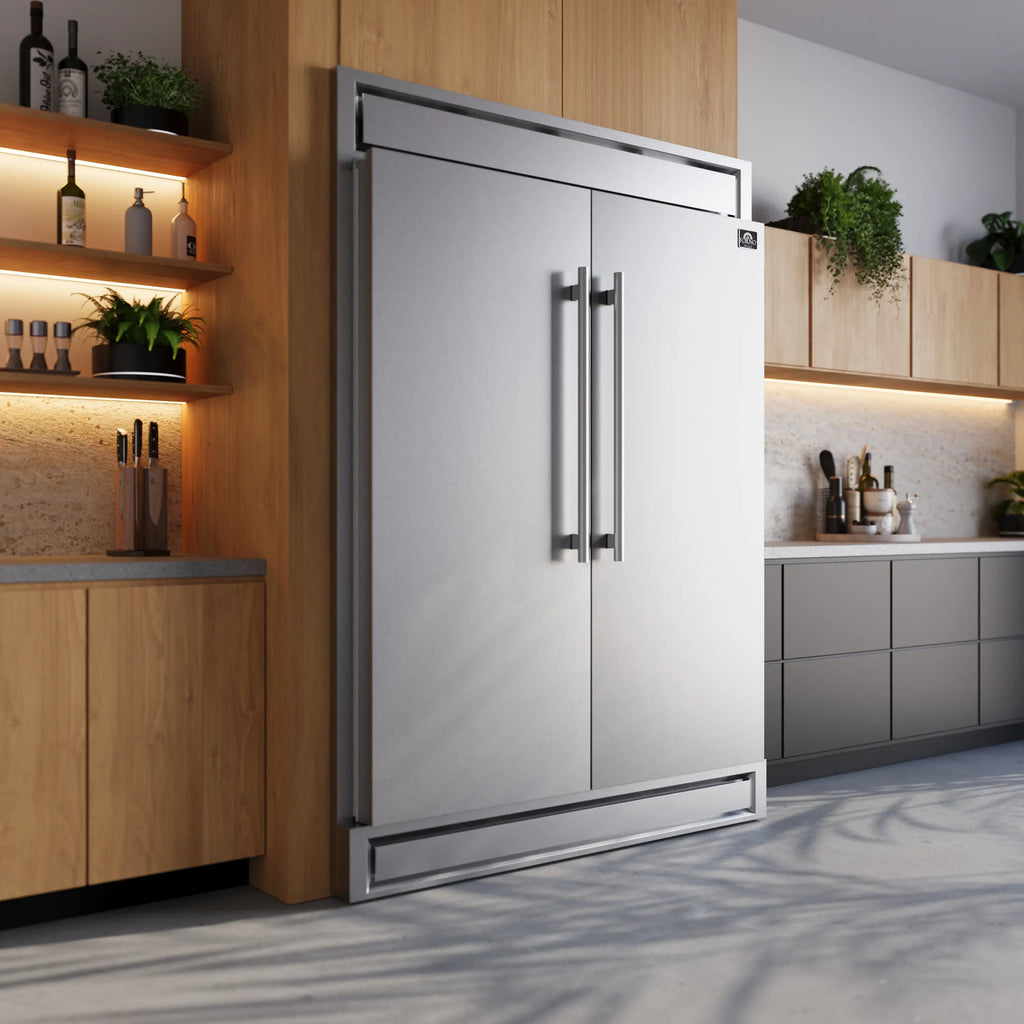

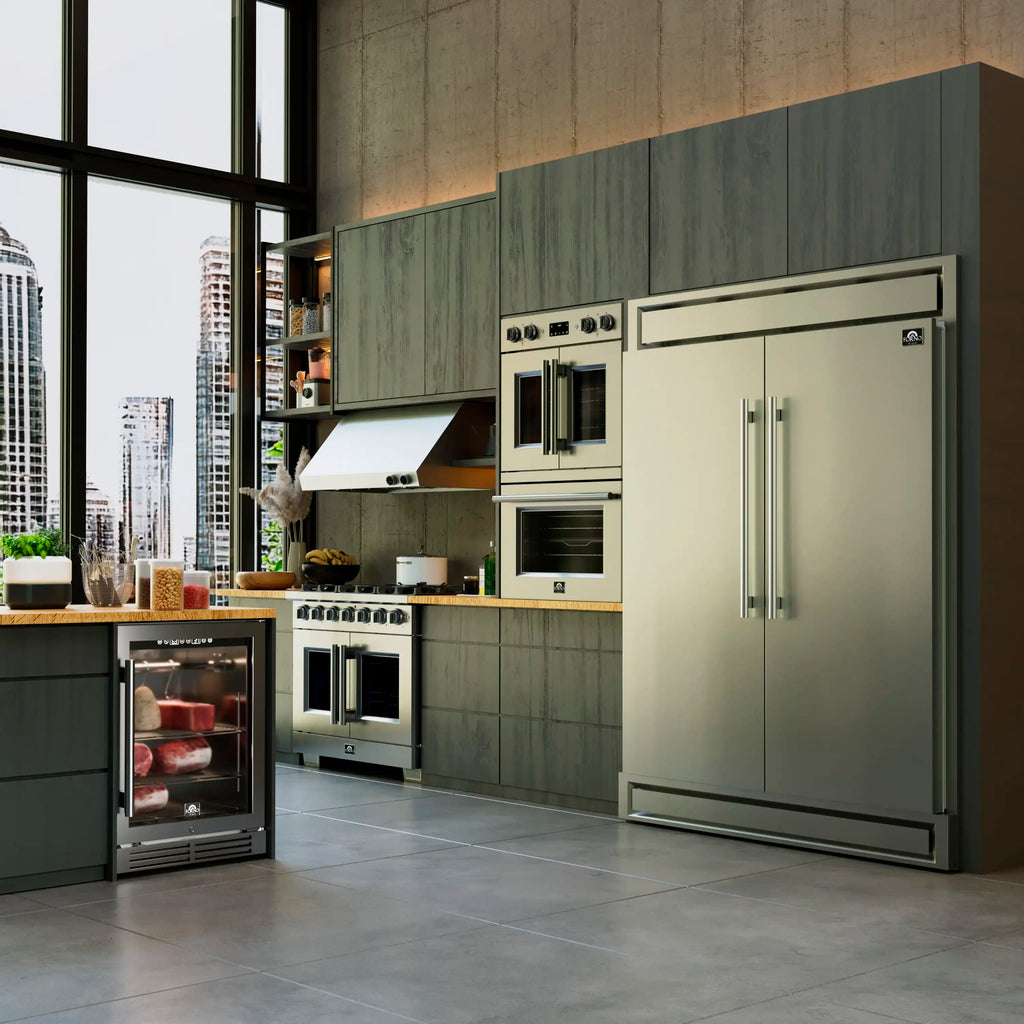

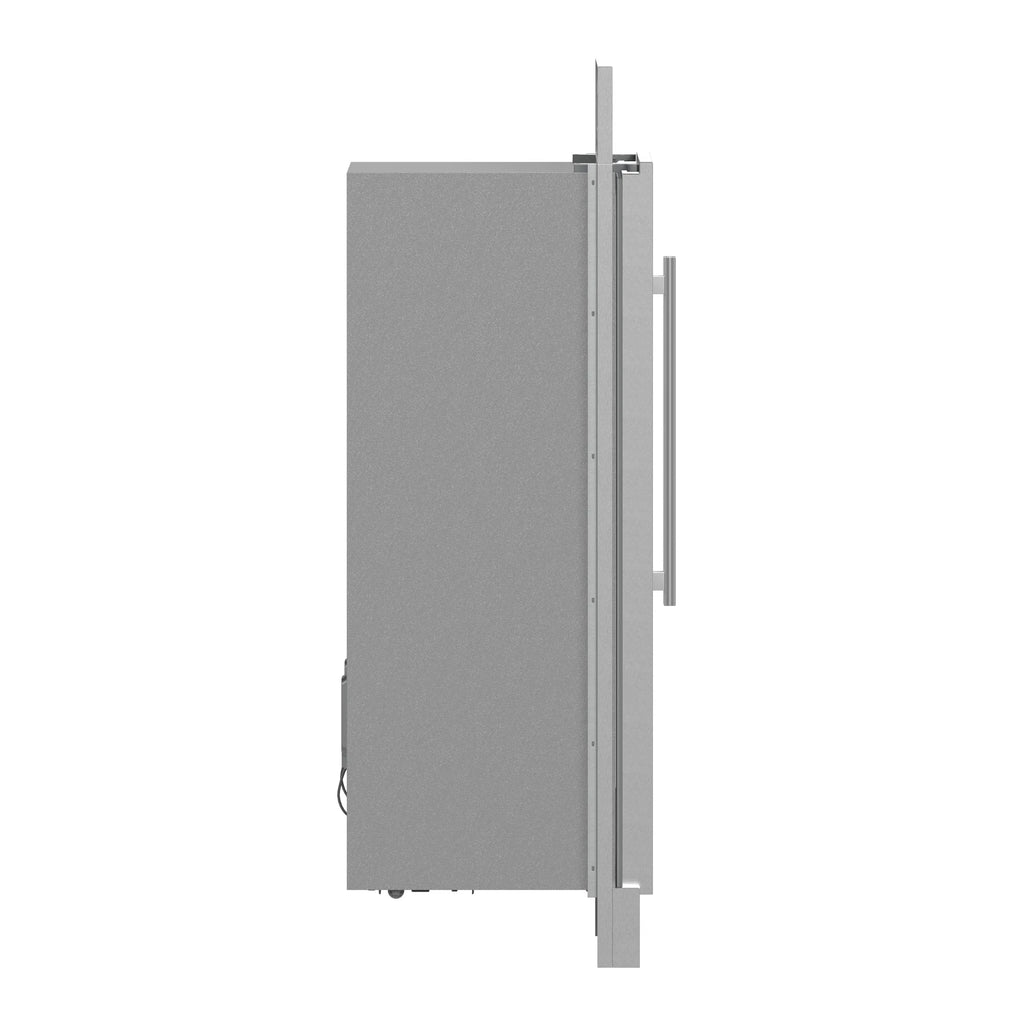

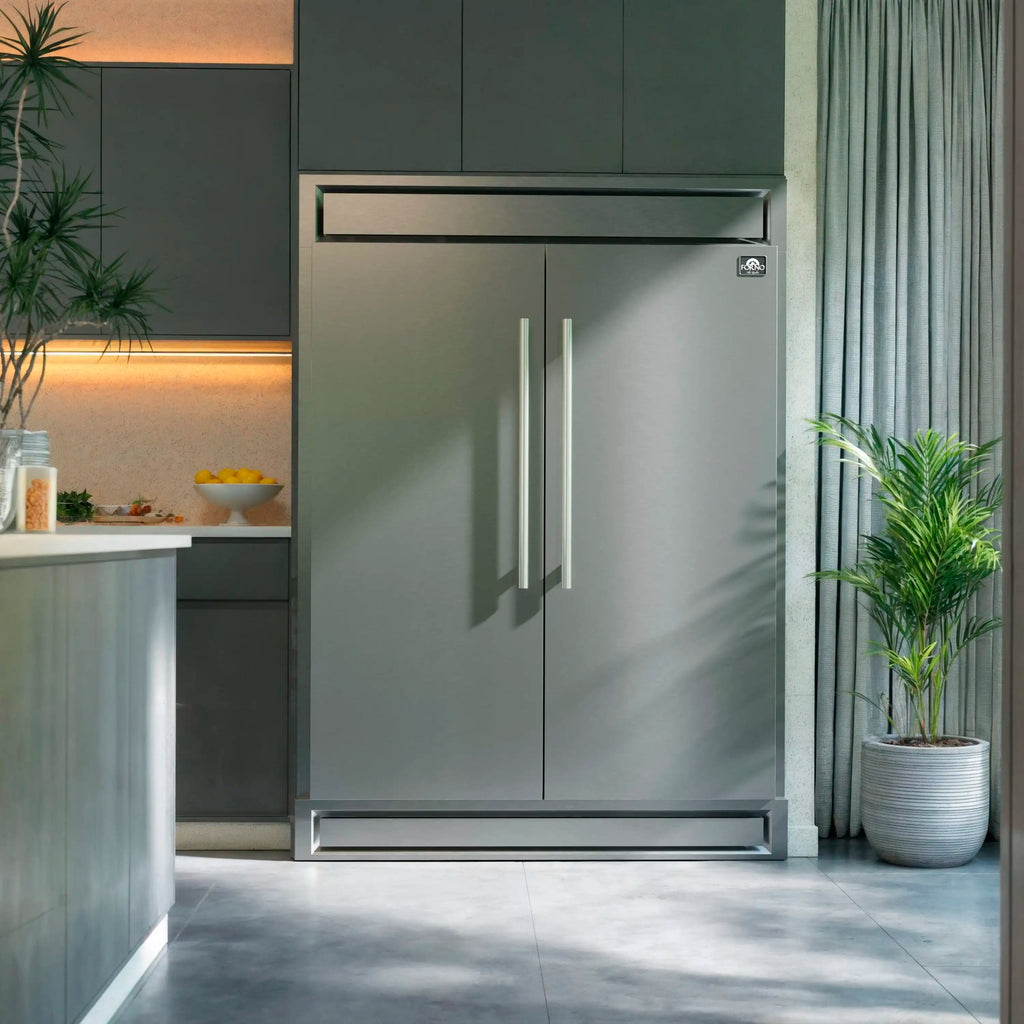

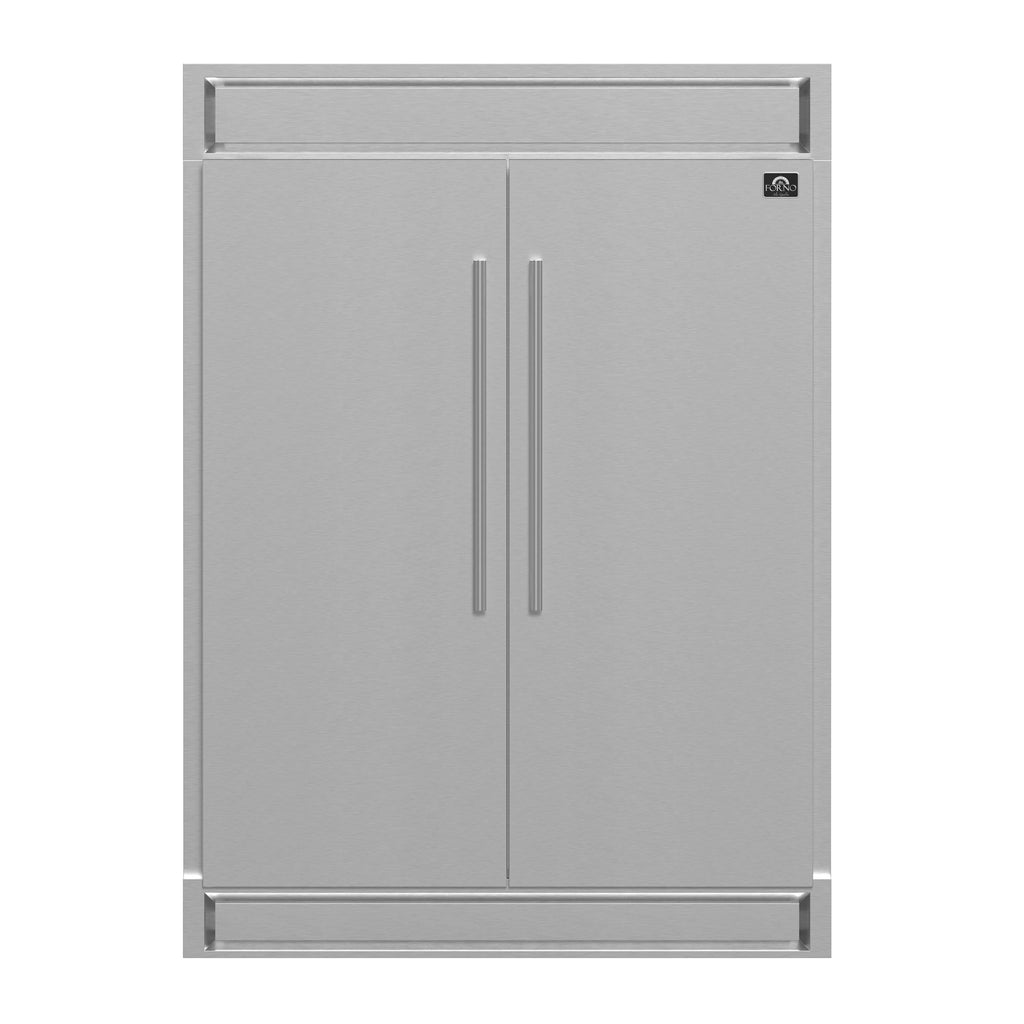

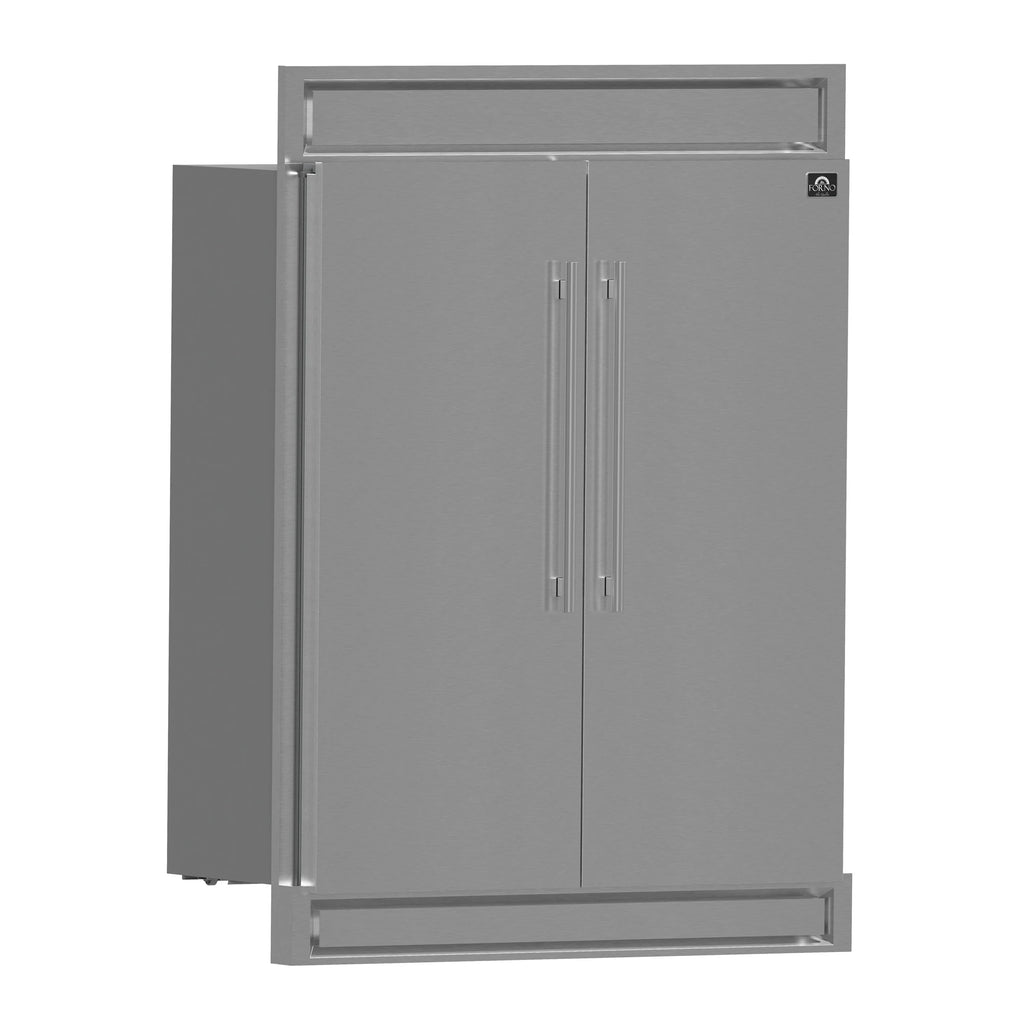

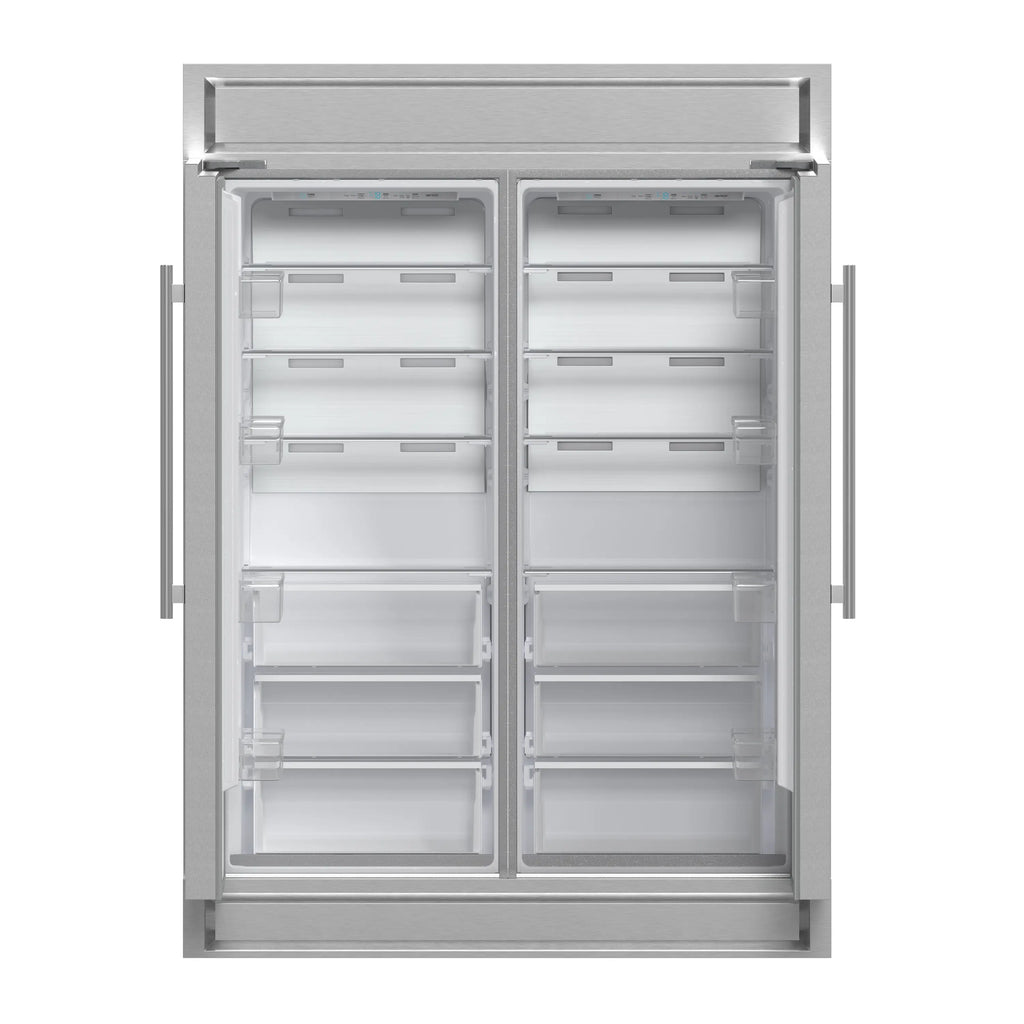

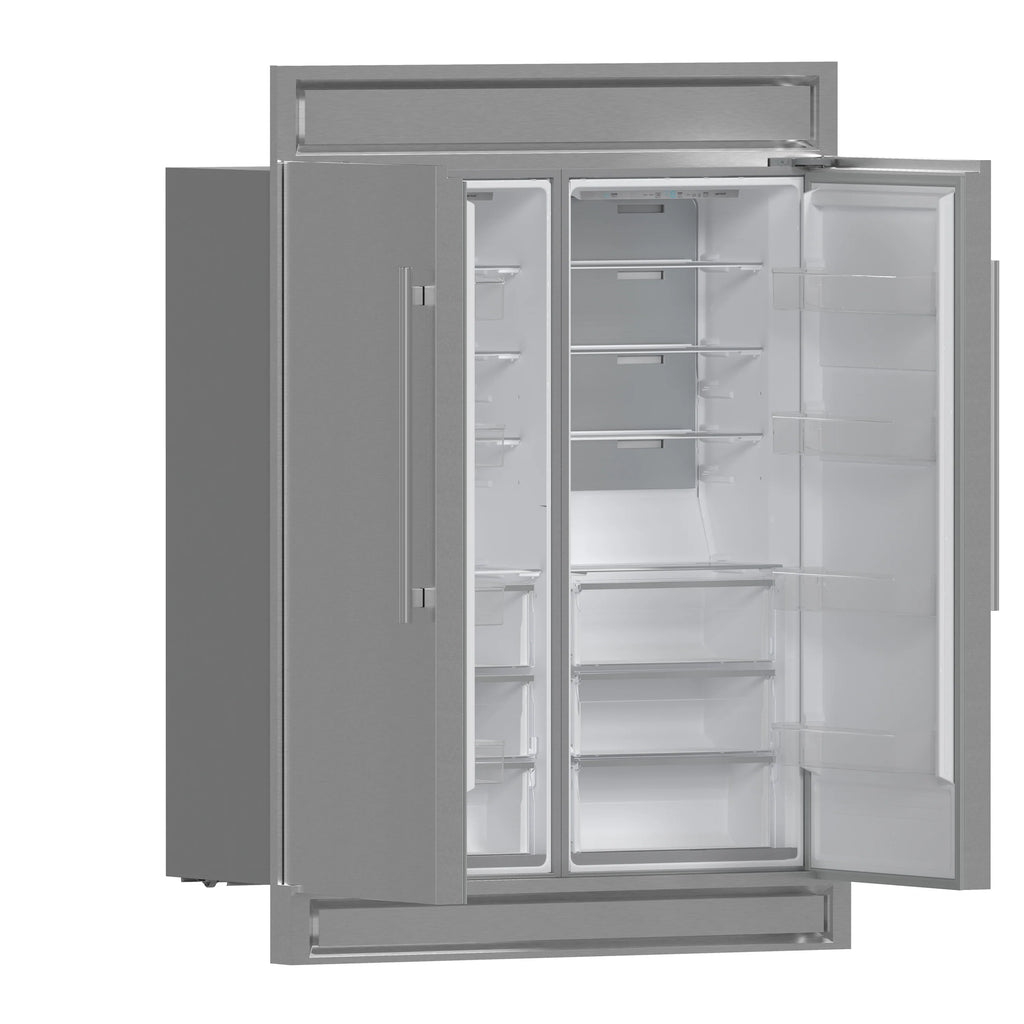

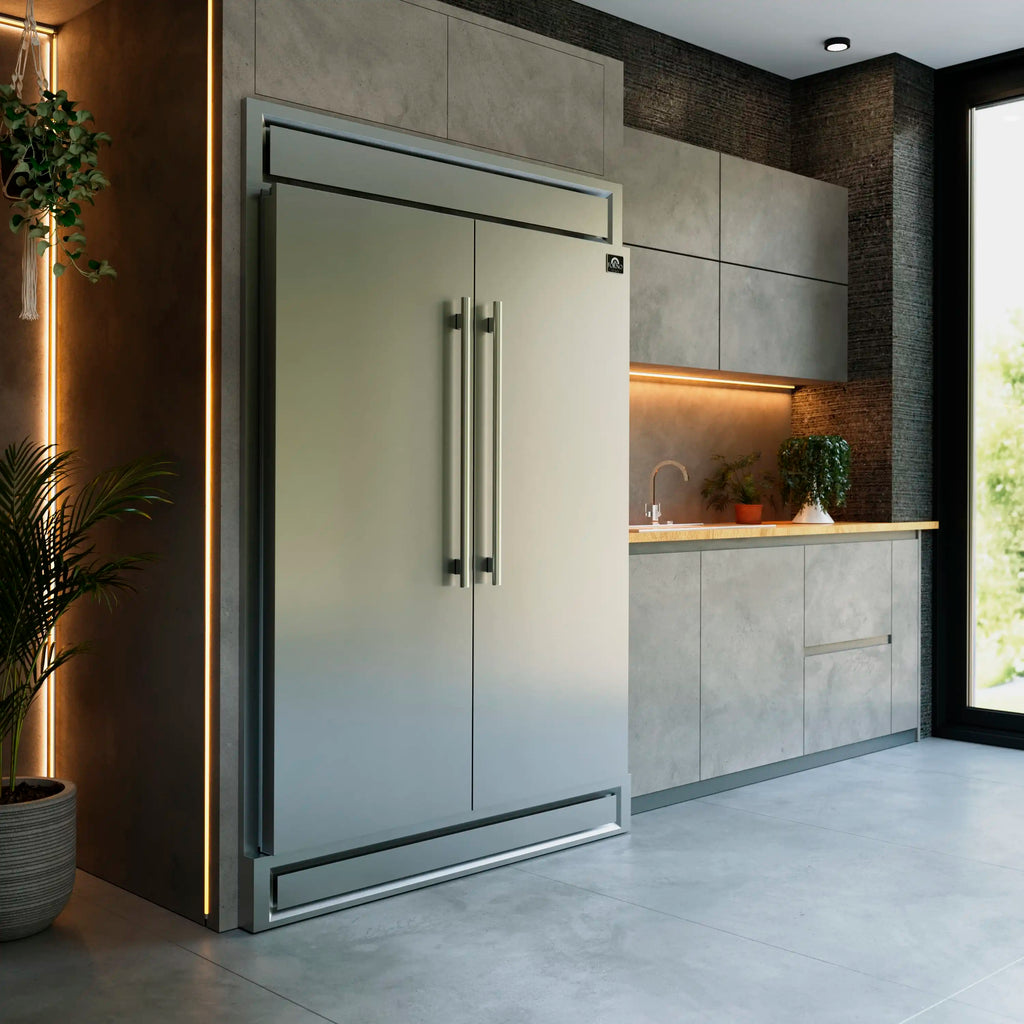

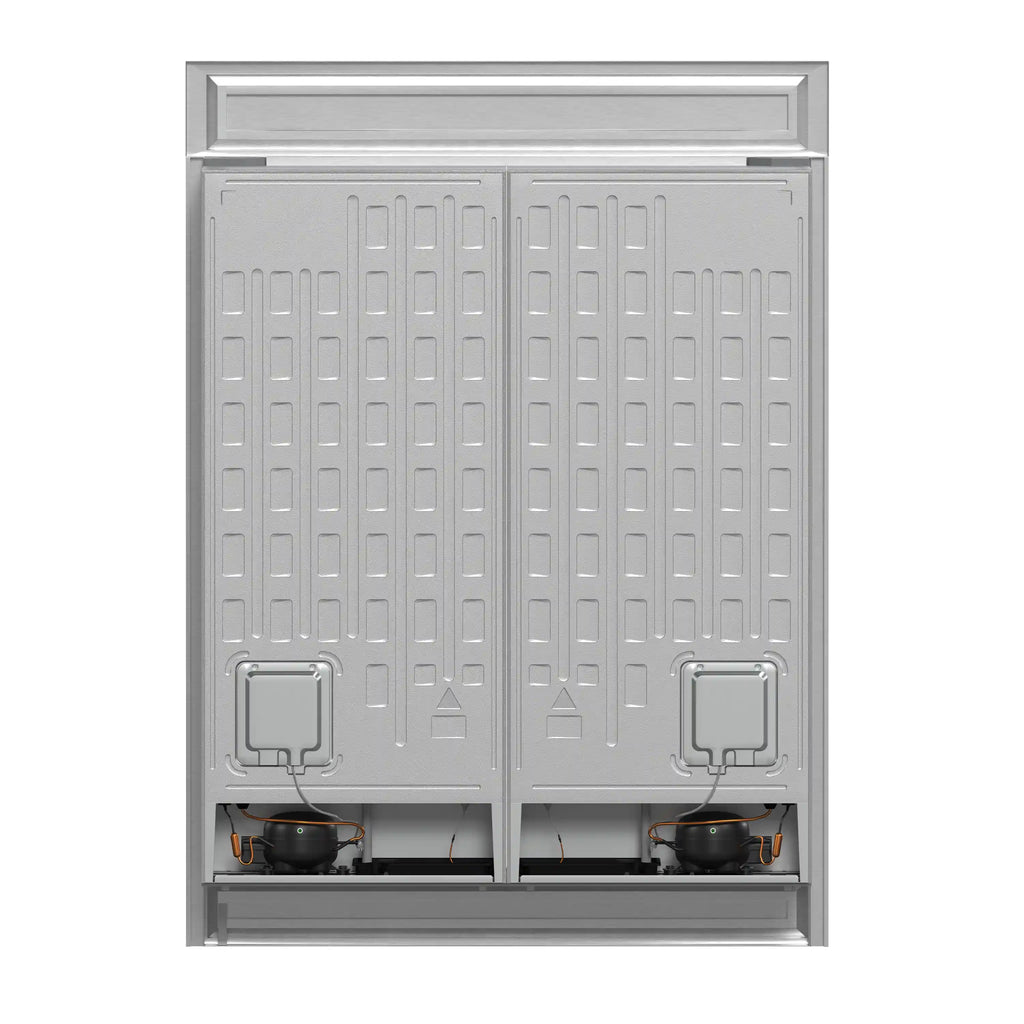

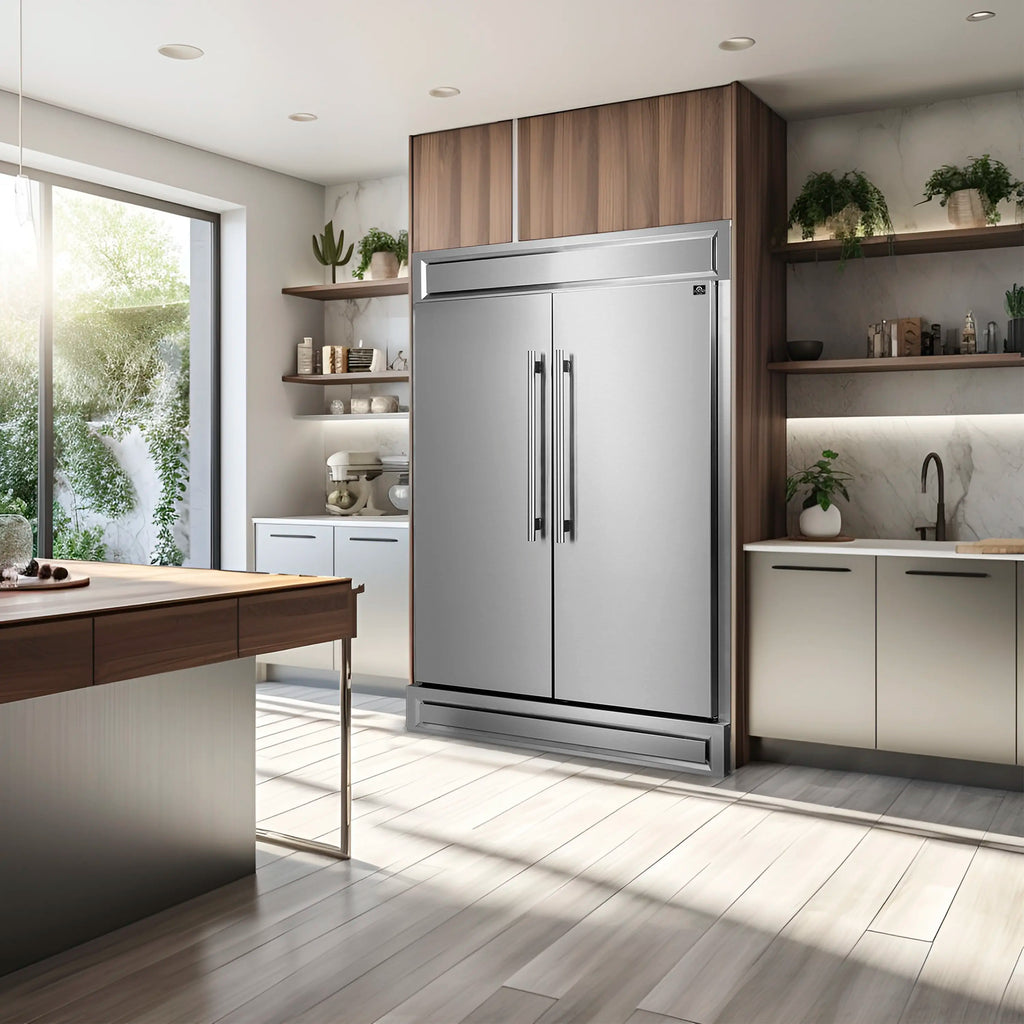

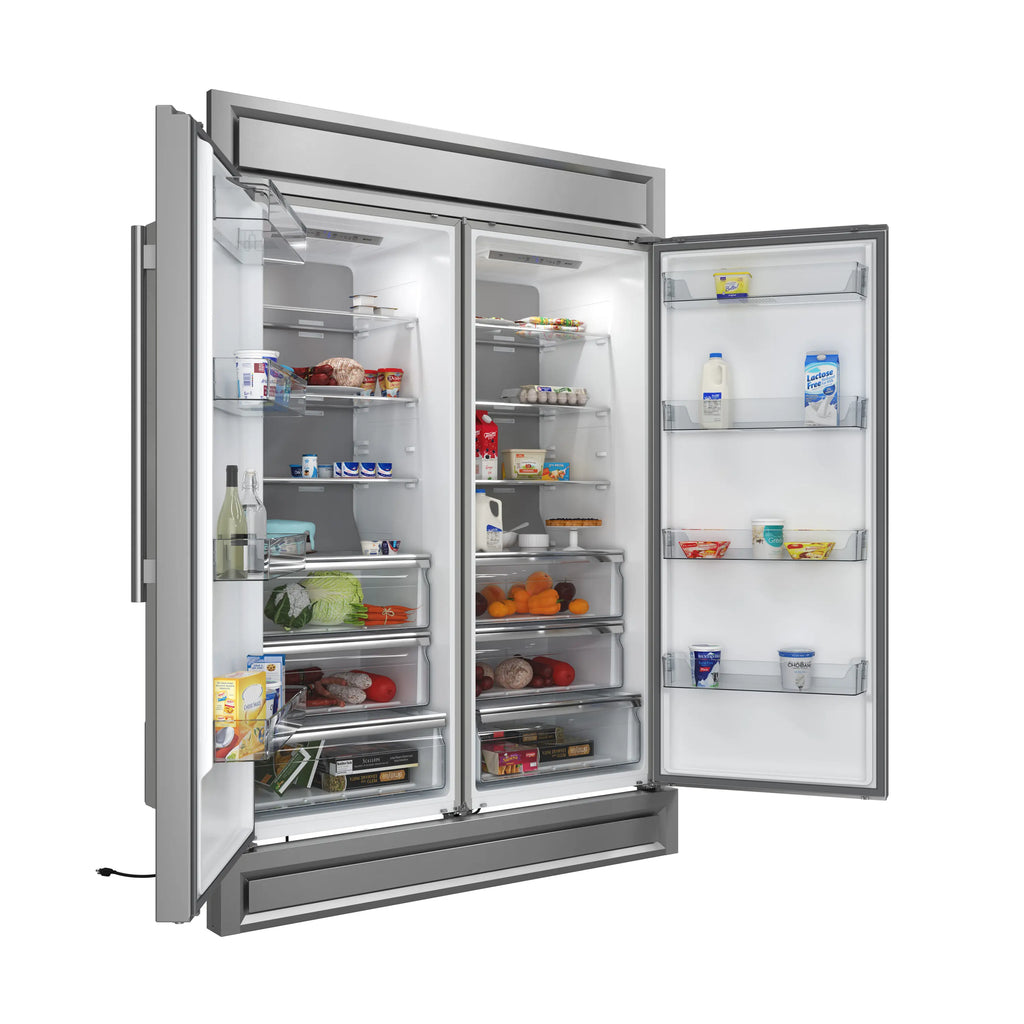

The Forno Maderno combines two 28 Inch refrigerators with decorative trim grille, extending to a 60 Inch width for a built-in appearance, harmoniously blending style with convenience. This combo offers ample storage space totaling 27.2 cu.ft. They feature customizable cooling with convertible function and total no frost technology, eliminating tedious defrosting.

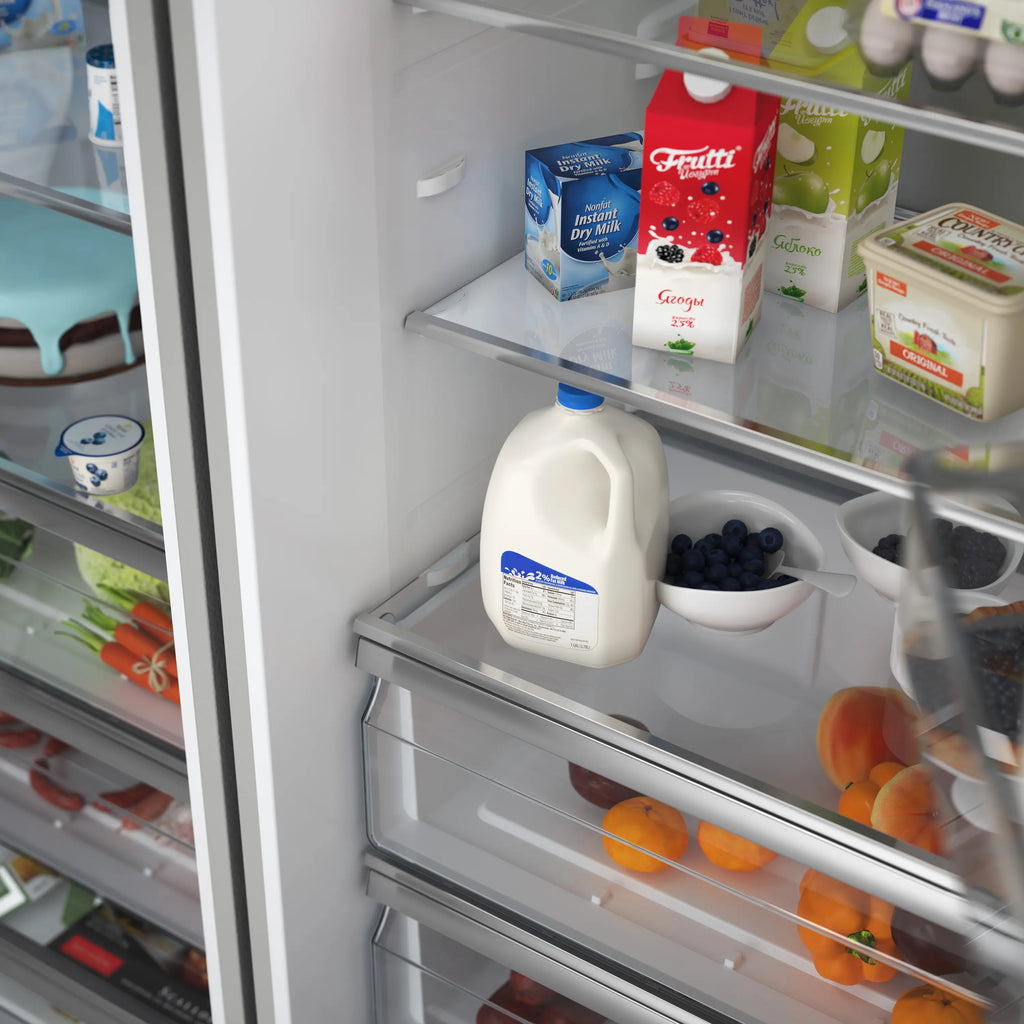

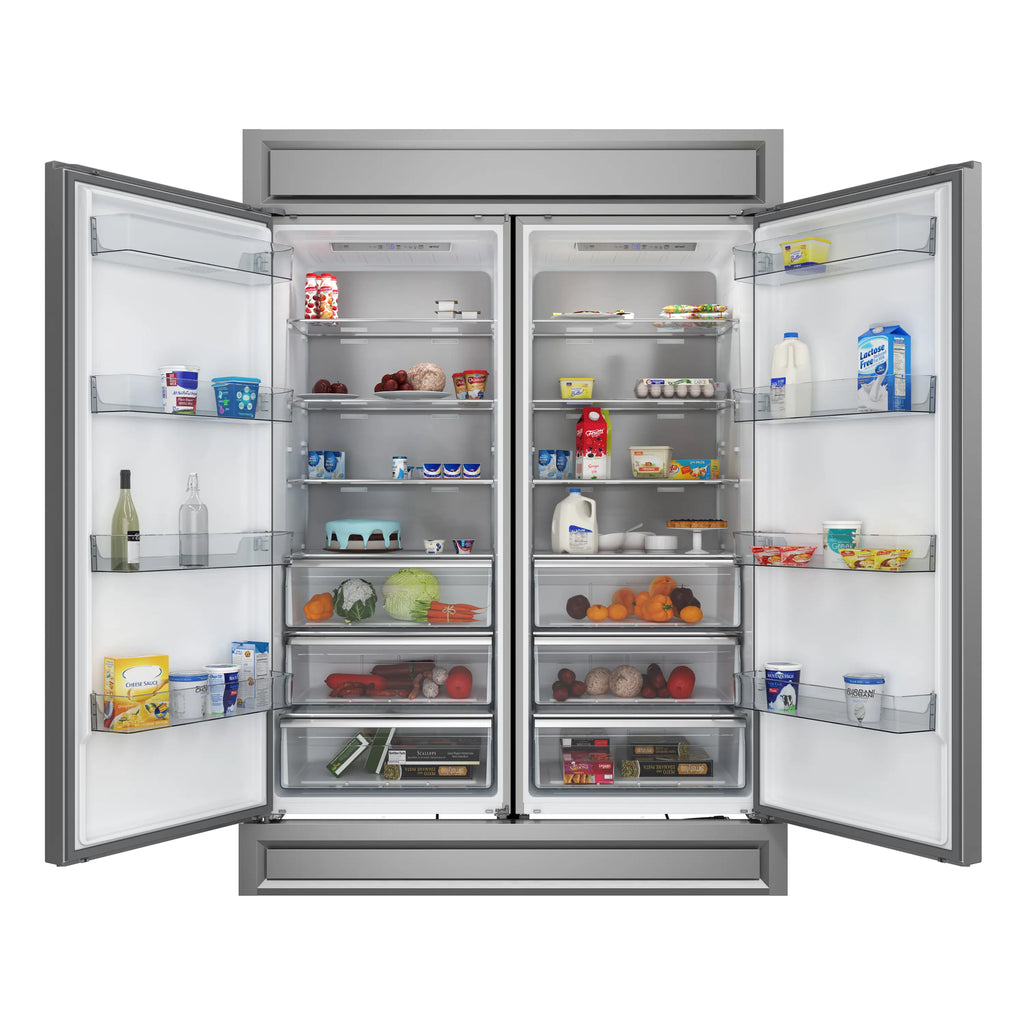

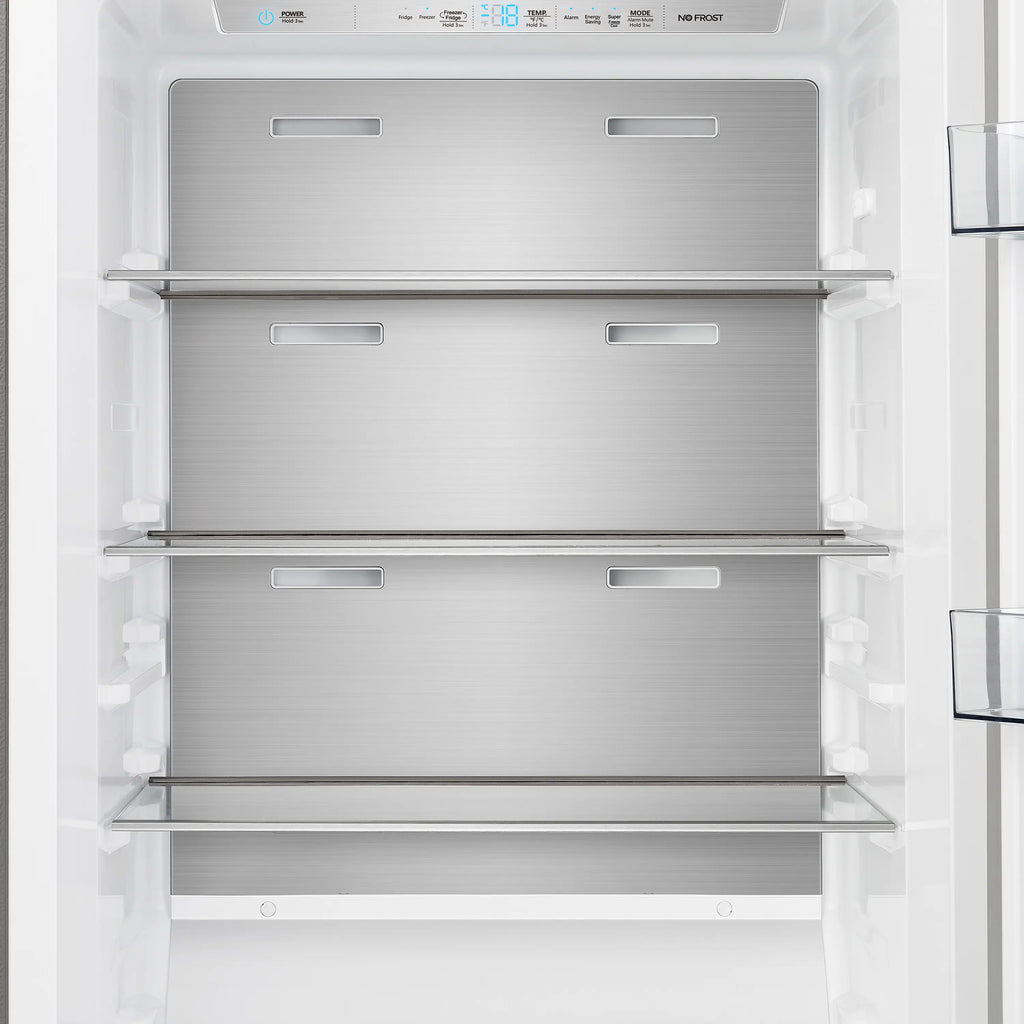

The side-by-side door design integrates seamlessly, while elegant glass shelves with silver trim and practical plastic door balconies enhance appeal and storage. Effortlessly switch between Fahrenheit and Celsius, aided by LED lighting for easy item location. Six glass shelves and six plastic drawers with silver trim provide flexible storage, and temperature settings are easily managed with the electronic touch control panel. The VCM door panel and metal back ensure durability, and the combo is T Climate Class certified with an E-star energy rating for sustainability.
This refrigerator comes in three pieces:
*Installation requires a base to be built for the refrigerator - please see cut-out sheet for more details
| DIMENSIONS | |
|---|---|

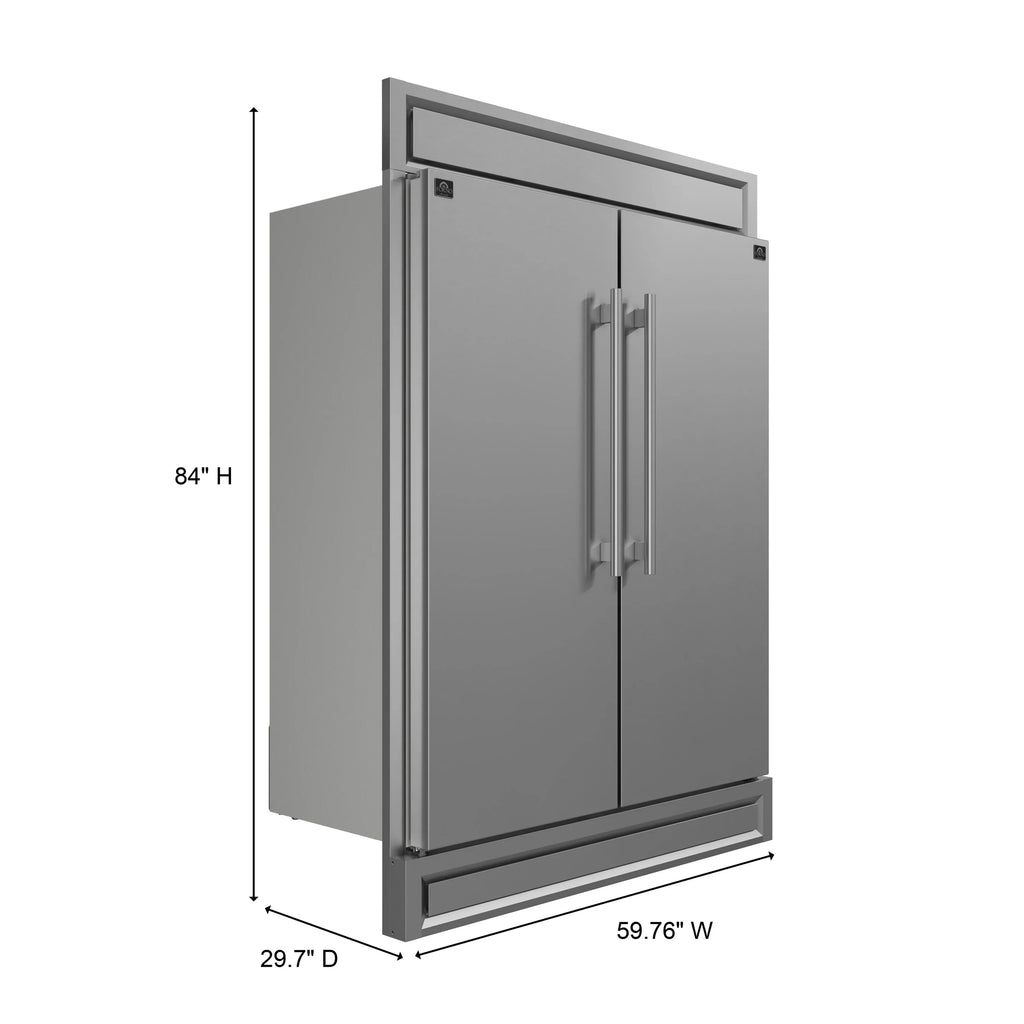

| Overall Dimensions | 59.76" W X 29.7" D X 84" H |
| Cutout Dimensions | 55.9" W X 28.94" D X 69.06" H |
| Product Overall Weight (lbs) | 330.00 |
| Advertised Unit Width | 60” |
| Counter-Depth | Yes |
| GENERAL INFORMATION | |
| Build Type | Built-In |
| Finger Print Resistant | Yes |
| Air Flow | Multi Air Flow |
| Vacation Mode / E-Saver | Yes |
| Super Cool | Yes |
| Super Freeze | Yes |
| Leveling Legs | Yes |
| DESIGN & FINISH | |
| Unit Style | Side-By-Side |
| Door Color | Stainless-Steel |
| Door Material | VCM Door Panel |
| Reversible Doors | No |
| Handle Color | Stainless steel |
| Case Material | Metal |
| Case Color | Light Gray |
| Primary Material | White HIPS |
| Control Type | Internal Touch Control |
| Lighting Type | LED |
| Shelf Material | Glass with Silver Trim |
| Drawers Material | Plastic with Silver Trim |
| Door Bins Material | Plastic |
| TECHNICAL DETAILS | |
| Defrost Type | Automatic |
| REFRIGERATOR FEATURES | |
| Sabbath Mode | No |
| Door Alarm | No |
| Leak Proof Shelves | No |
| Door Bins Color | Clear |
| Ice Maker | No |
| FREEZER FEATURES | |
| Converting Fridge/Freezer | Yes |
