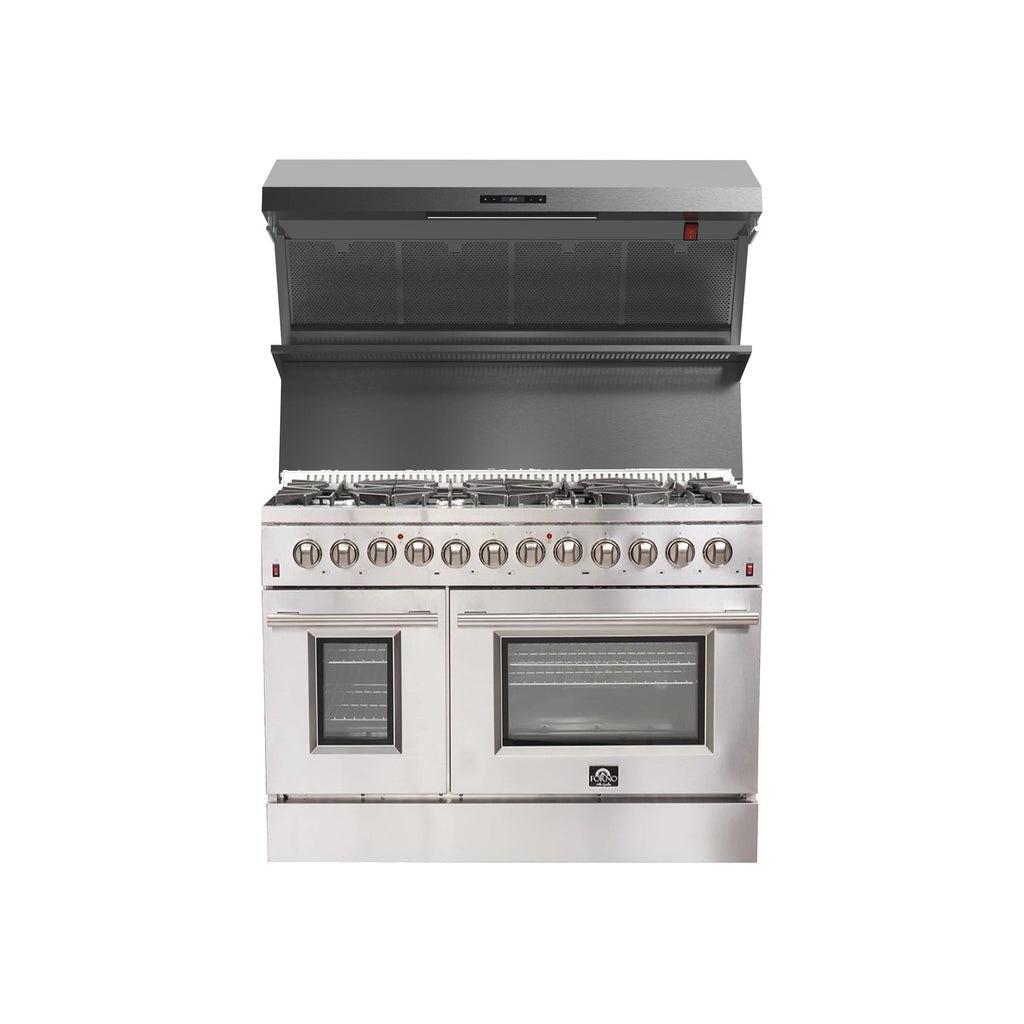

The 48” Galiano Dual Fuel Range brings professional styling and quality into your home kitchen with its durable stainless-steel design. Cooktop has 8 sealed burners with a total stove top output of 107,000 BTU. This unit is ready to handle all your pots and pans with ease over it’s continuous cast-iron grate design. The cumulative capacity 6.58 cu. ft. double ovens with a total output of 9,800 Watts are encased in a black enameled interiors. Right oven is fitted with a true convection fan. Thermostat and regulator ensures to achieve fast, precision and consistent oven cooking along for easy viewing are 3-layer glass oven door windows on both ovens, Included are 4 electroplated oven racks, reversible griddle, and LP conversion kit. Housed in a high-grade stainless steel body and zinc coated metal knobs and bezels, this unit sports a stylish look that is built to last. All Forno products are backed by an iron clad 2-year warranty for your satisfaction. Skip the high price tags without sacrificing quality and performance. Lower the cost of living with Forno.
| DIMENSIONS | |
|---|---|
| Overall Dimensions | 48” W x 28” D x 38” H |
| Right Oven Interior Dimensions | 24.92'' W x 18.7" D x16'' H |
| Left Oven Interior Dimensions | 13.03” W x 18.7” D x 16” H |
| Overall Weight | 388 lbs |
| Depth with Oven Door Open 90º | 44.25" |
| Power Cord Length | 5' |
| GENERAL INFORMATION | |
| Switches | 1 + 1 |
| Product Type | Freestanding |
| Supplier Intended and Approved Use | Residential Use |
| Country of Origin | China |
| DESIGN & FINISH | |
| Color | Silver |
| Finish | Stainless Steel |
| Number of Knob | 12 |
| Color/Finish | Stainless Steel |
| Gas Heat Configuration | Sealed Burner |
| Interior Light | 2 |
| Control Type | Knob |
| Control Location | Front |
| Clock | No |
| Primary Material | Metal |
| Control Panel Material | Stainless Steel |
| Kick Plate Material | Stainless Steel |
| Side Panel Material | Stainless Steel |
| TECHNICAL DETAILS | |
| Amperage | 30 A |
| Volts | 240 V |
| Wattage | 9700 W |
| Receptacle Type | 4-Prong Grounded |
| Fuel Type | Gas & Electric |
| Gas Type | Natural Gas |
| LP Gas Convertible | Yes |
| COOKTOP FEATURES | |
| Overall Burners BTU | 107,000 |
| Front Right Burner BTU | 1000 to 20,000 |
| Front Right Center Burner BTU | 15,000 |
| Front Left Center BTU | 15,000 |
| Front Left Burner BTU | 15,000 |
| Rear Right Burner BTU | 15,000 |
| Rear Right Center Burner BTU | 9,000 |
| Rear Left Center Burner BTU | 9,000 |
| Rear Left Burner BTU | 9,000 |
| Number of Burners | 8 |
| Cooktop Surface | Continuous Cast Iron Grates |
| Cooktop Cavity | Recessed Enamel |
| Bake Element | Electric |
| OVEN FEATURES | |
| Oven 1 inside Broil Wattage | 1,000 W |
| Oven 1 Outside Broil Wattage | 1800 W |
| Oven 1 Bake Wattage | 2000 W |
| Oven 1 True Convection Wattage | 1500 W |
| Oven 2 Outside Broil Wattage | 1700 W |
| Oven 2 Bake Wattage | 1700 W |
| Overall Oven Capacity | 6.58 Cubic Feet |
| Right Oven Capacity | 4.32 Cubic Feet |
| Left Oven Capacity | Left Oven Capacity |
| Convection Fan | Yes |
| Number of Ovens | 2 |
| Number of Racks | 2 |
| Number of Rack Positions | 2 x 6 |
| Broiler | Electric |
| Cleaning Type | Manual |
| Cooking Process | True Convection |
| Black Enamel Oven Interior | Yes |
| Temperature Gauge | No |
| Timer | No |
| Door Panel Material | Stainless Steel |
| WARRANTY & CERTIFICATIONS | |
| ETL Listed | Yes |
| Warranty Type | 2 Years |
| Warranty Length | 2 Years |
| Warranty on Parts | 2 Years |
| Warranty on Labor | 2 Years |
This 48 Inch Savona wall mount range hood by Forno helps create a durable, all stainless steel design. A quiet high-efficiency 1200 CFM of ventilation power. The hybrid mesh filtration system reduces odors and maximizes filtration effectiveness. Designed to be user-friendly to remove, and totally submersible, these filters go right into the dishwasher for the ultimate in easy clean. With versatile fan settings, you can adjust the capture speed based on your cooking needs. Includes upper level warming rack, heated via an Infra-red bulb to keep your food and dishes warm. Dual utensil hangers are perfect for keeping your most frequently used tools at hand or to display your pans. Lower the cost of living with Forno.
|
Product Dimensions W x D x H (inches)
|
47.24x25x39.49
|
|
Product Overall Weight (lbs) |
129.80 |
|
Color/Finish |
Stainless Steel |
|
Dishwasher Safe Filters |
Yes |
|
Control Location |
Front |
| Clock | Yes |
|
Primary Material |
Stainless Steel |
|
Bulb Type |
LED Light Strip |
|
Heating Lamp Type |
Tungsten-Halogen E26 |
|
Backsplash Dimensions W x H (inch) |
47.24 x 12.6 |
|
Warming Shelves Dimensions W x D x H (inch) |
47.24 x 12.01 x 3.43 |
|
Maximum CFM |
1200 |
|
Minimum CFM |
550 |
|
Range Hood Shape |
Square |
|
Number of light settings |
1 |
|
Number of Lights |
1 |
| Power off Function | Yes |
| Hardware Finish | Stainless Steel |
|
Filter Material |
Stainless Steel and Aluminum Mesh |
|
Air Discharge Direction |
Vertically Upward |
| Vent Type | Ducted |
| Charcoal Filters | No |
| Number of exhaust Vent | 2 |
| Blower Material | Metal |
| Fingerprint-Resistant | No |
| Cutout |
| DIMENSIONS | |
|---|---|
| Product Dimensions W x D x H (inches) | 47.24x25x39.49 |
| Product Overall Weight (lbs) | 129.80 |
| Backsplash Dimensions W x H (inch) | 47.24 x 12.6 |
| Warming Shelves Dimensions W x D x H (inch) | 47.24 x 12.01 x 3.43 |
| GENERAL INFORMATION | |
| Bulb Type | LED Light Strip |
| Vent Type | Ducted |
| Number of exhaust Vent | 2 |
| DESIGN & FINISH | |
| Color/Finish | Stainless Steel |
| Control Location | Front |
| Primary Material | Stainless Steel |
| Hardware Finish | Stainless Steel |
| Filter Material | Stainless Steel and Aluminum Mesh |
| TECHNICAL DETAILS | |
| Heating Lamp Type | Tungsten-Halogen E26 |
| Maximum CFM | 1200 |
| Minimum CFM | 550 |
| Power off Function | Yes |
| Blower Material | Metal |
| FEATURES | |
| Dishwasher Safe Filters | Yes |
| Clock | Yes |
| Range Hood Shape | Square |
| Number of light settings | 1 |
| Number of Lights | 1 |
| Air Discharge Direction | Vertically Upward |
| Charcoal Filters | No |
| Fingerprint-Resistant | No |
