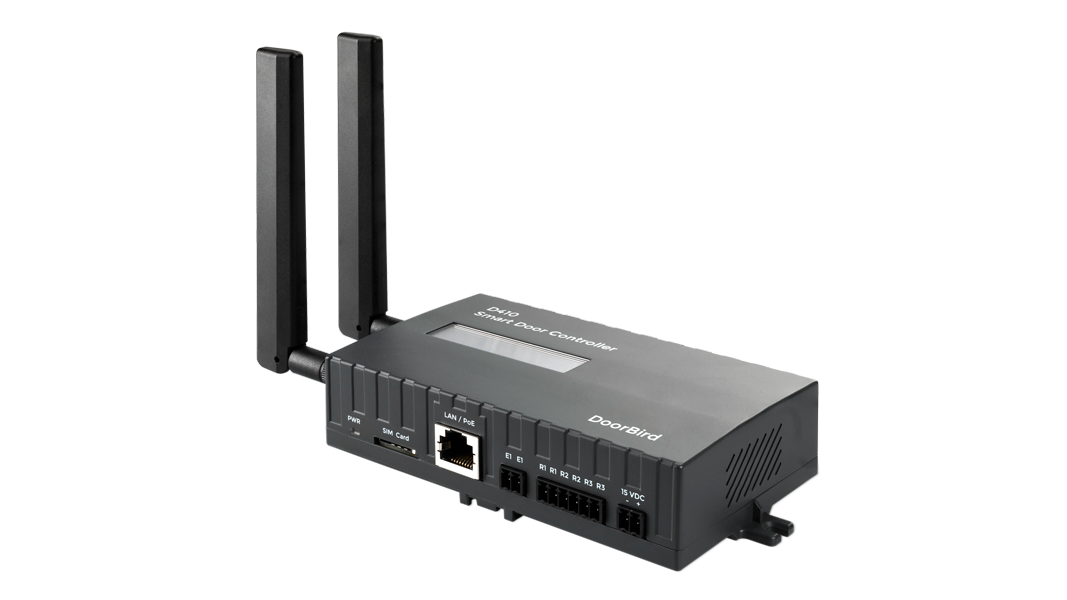

DoorBird Smart Door Controller LTE/4G I/O device with two antennas and front ports

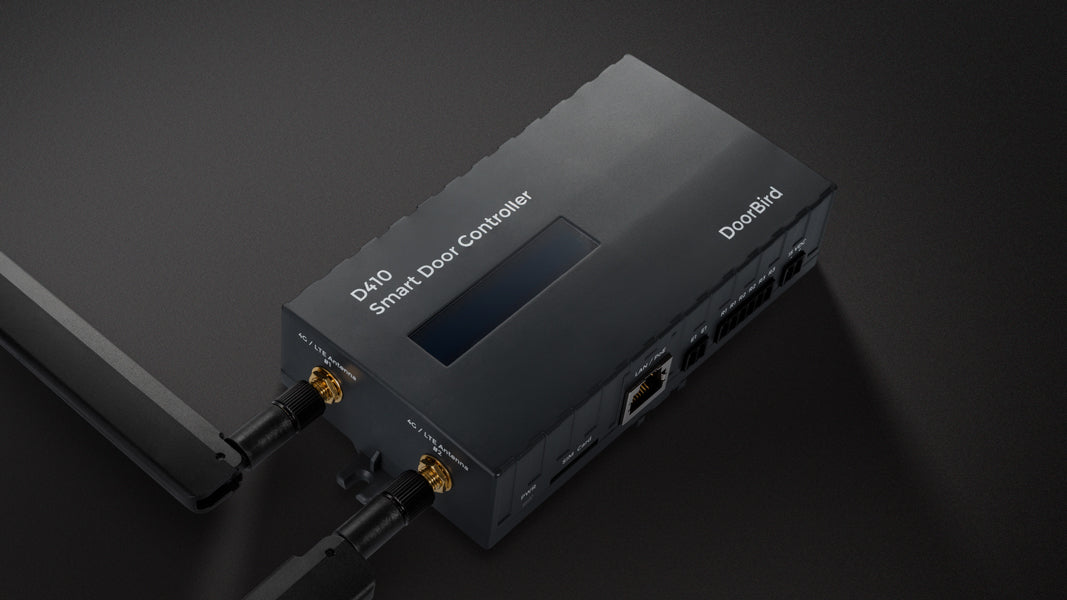

DoorBird Smart Door Controller LTE/4G I/O device with side cable connectors

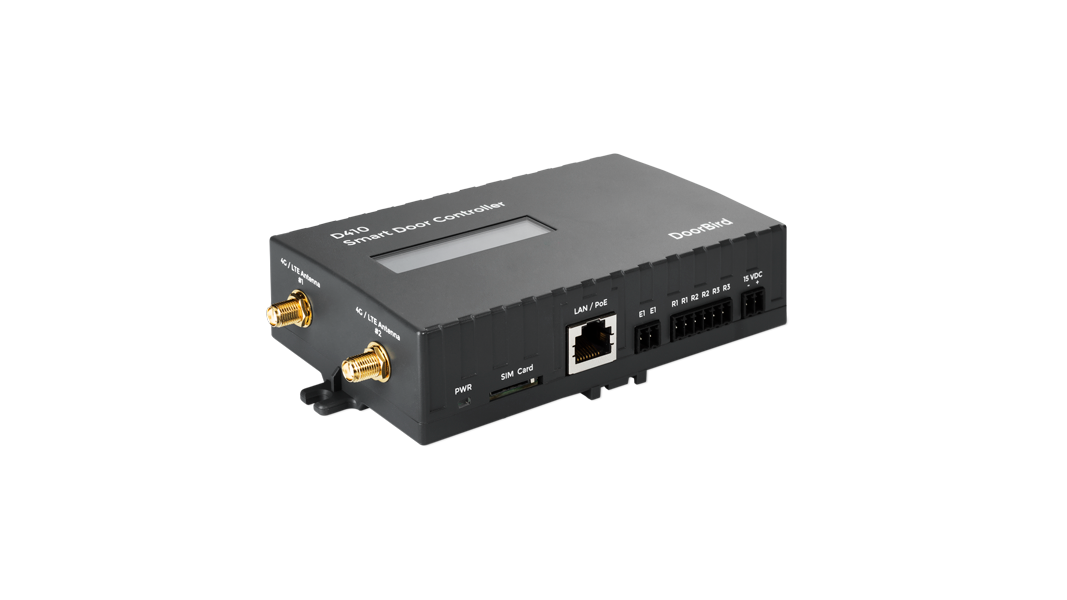

DoorBird Smart Door Controller LTE/4G I/O box with network and port labels

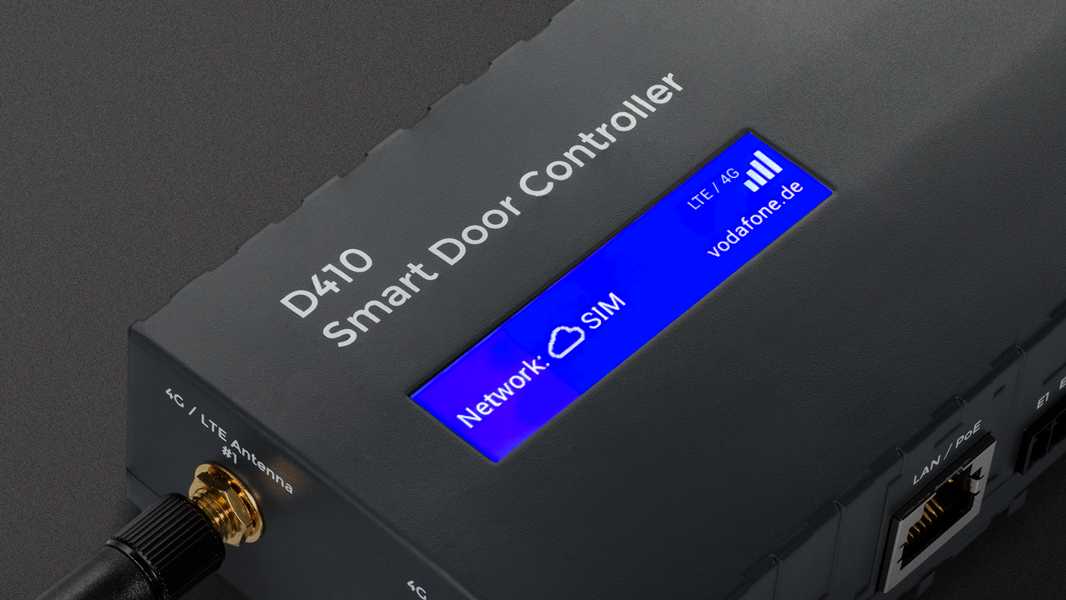

DoorBird D410 Smart Door Controller LTE/4G with blue SIM-ready panel
Roll over image to zoom in Click on image to zoom
DoorBird Smart Door Controller LTE/4G I/O device with two antennas and front portsDoorBird Smart Door Controller LTE/4G I/O device with side cable connectorsDoorBird Smart Door Controller LTE/4G I/O box with network and port labelsDoorBird D410 Smart Door Controller LTE/4G with blue SIM-ready panel
Click on image to zoom

DoorBird Smart Door Controller LTE/4G I/O Control Device

DoorBirdSKU: 423898257
2 reviews
Price:
$924.86 $1,229.00SAVE 24%
Out of Stock
No restock estimate
Free shipping — delivered to your door by parcel carrier
Final sale. This product is non-returnable and can’t be exchanged or refunded.

Description

DoorBird Smart Door Controller D410 LTE/4G I/O Control Device

LTE/4G I/O Control Device
(GTIN/EAN: 4260423898257, P/N: 423898257)

Features

  • Upgrade of existing doorbell and intercom systems
  • Access Control via DoorBird App and A8007 Bluetooth Keyfob remote
  • Easy installation and setup for existing properties and new construction
  • Increased security through encrypted communication
  • Quick and easy management via mobile device and/or web browser
  • Management of permissions and authorizations in real time
  • Full key control and maximum flexibility
  • Tested for EU countries, United Kingdom, Norway, Switzerland, North America (AT&T and T-Mobile with data only SIM plan)
  • Access Control and much more - via DoorBird App and A8007 Bluetooth Keyfob Remote
  • Upgrade of existing doorbell and intercom systems - Easy installation and setup via app
  • LTE/4G Internet - No additional network cabling necessary
    Micro SIM with 1GB data rate monthly recommended
  • High level of security through encrypted communication - Encryption according to banking standard
  • Quick and easy remote management via app and web - Permissions and authorization individually configurable
    Full key control and maximum flexibility
    No written records necessary
    Conventional keys can continue to be used
  • 3x relays / 1x input - Programming of individual actions and follow-up actions
    Opening of doors, gates, and barriers
    Control of light and elevator and much more
  • Compatible with Bluetooth Keyfob Remote control A8007, I/O door controller A1081
DIMENSIONS
Dimensions
130 x 71,40 x 34,20 mm (H x W x D) 5.12 x 2.81 x 1.35 in (H x W x D)
Weight
222 g
GENERAL INFORMATION
Mounting
  • Top-hat rail / DIN rail
  • Wall mounting
LTE/4G
  • FDD band B1/B2/B3/B4/B5/B7/B8/ B12/B13/B14/ B18/B19/B20/B25/ B26/B28/B66/B71
  • TDD band B38/B39/B40/B41
  • WCDMA band B1/B2/B4/B5/B6/B8/B19
  • Micro SIM, which is at least enabled for LTE/4G and Internet use Tested for EU countries, United Kingdom, Norway, Switzerland, North America (AT&T and T-Mobile with data only SIM plan
System requirement
  • Mobile end device: latest iOS on iPhone/iPad
  • latest Android on smartphone/tablet Internet LTE/4G: Micro SIM Card for LTE/4G or WCDMA/3G and Internet use. Sufficient credit/ data rate (1 GB per month recommended). Your Provider supports IoT devices. Data only SIM plan recommended.
  • USA: AT&T and T-Mobile with data only SIM plan. Device is within the coverage area of your mobile operator
Power supply
15 V DC or Power over Ethernet (PoE IEEE 802.3 af or higher)
Power consumption
2 W
Connectors & interface
  • 2x SMA connectors for antennas
  • Micro SD slot for SIM card (SIM Card not included)
  • RJ45 port LAN/PoE (10/100 Base-T)
  • 3x screw terminal connection sockets ̵Input E1 ̵Relay R1, R2, R3 (bistable switching relay, max. 24V DC/AC, 1A) ̵15 V DC input (-/+)
Bluetooth
Bluetooth 5.0 2.4 GHz (compatible with Bluetooth Keyfob Remote Control A8007)
Display
  • Backlight (blue)
  • Network status indicator PWR LED
Operating conditions
0°C to +55°C / 32°F to 131°F Relative air humidity 0% to 85% (non-condensing)
Protection class
IP 30
Approvals
CE, FCC, IC, RoHS, WEEE, UKCA
FEATURES
Scope of delivery
  • 1x Smart Door Controller
  • 2x 4G/LTE antenna
  • 1x installation manual
  • 1x Quickstart Guide with Digital Passport
  • 1x Small Parts
  • 1x Power supply unit (mains adapter) with up to four country-specific adapters (110 - 240 V AC to 15 V DC)
