DoorBird A1121 Retrofit IP Access Control Device in Stainless Steel V2A

DoorBird A1121 Retrofit IP Access Control Device in Stainless Steel V2A

SKU: 423872080

Sale price$656.12 Regular price$759.99
Save 14%

Estimated delivery:
  • Secure Payment
    Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa
    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Free Shipping*
  • 30-Day Return Policy⁺


DoorBird A1121 Retrofit IP Access Control Device in Stainless Steel V2A

Multi-technology access control system and stand-alone solution for back and side doors, garages, storage and packing rooms, bicycle and machine rooms

Stainless steel V2A, brushed
(GTIN/EAN: 4260423872080, P/N: 423872080)

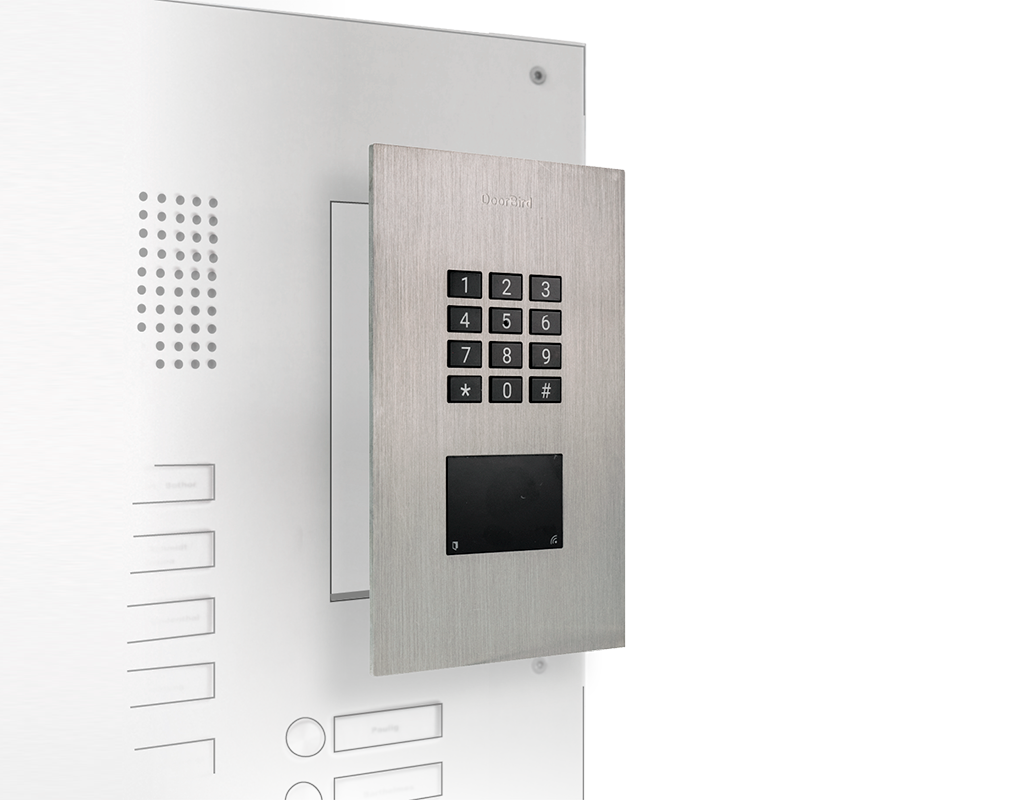

  • For retrofit installations with existing front panel
  • WiFi / LAN connection (PoE capable)
  • Keypad
  • 125 KHz and 13.56 MHz RFID reader
  • Tamper sensor
  • Wiegand interface
  • 2 freely configurable bistable switching relays


  • Three separate access control devices combined:
    RFID Reader
    Bluetooth low Energy (BLE)
  • Keypad Module
    Configurable via App
    Up to 500 individual PIN codes
    Individual events (e.g. trigger a relay, HTTP(s) request)
  • RFID sensor
    125 KHz
    13.56 MHZ
  • Bluetooth low Energy (BLE) - For access control, compatible external sensors and smart locks
  • WiFi-capable
  • Two freely configurable bistable switching relay
  • Wiegand interface
  • Manipulation sensor


DoorBird D2101V Flush-Mounting Housing (Backbox) in Stainless Steel V2A
 Front panel 3 mm (0.12 in)
For further materials and colours see material
board and Online Shop.
Mounting type Retrofit Version. Surface-mounted and flush-mounted version sold separately
Power supply 15 - 48 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
Keypad module

12 keys, illuminated, configurable via App, e.g.

  • Individual PIN codes
  • Individual events (e.g. switch a relay, HTTP(s) request)
  • Individual schedules
  • Up to 500 PIN codes manageable
Tamper Sensor Integrated
Weight 515 g
  •  LAN/PoE (T+, T-, R+, R-)
  • 2 x Bistable latching relay (potential-free), max. 1-24 V DC/AC, 1 A, e.g. for electric door opener
  • 15 – 48 V DC input (+, -), max. 15 W
  • Wiegand
Weatherproof Yes, IP65
Approvals IP65, CE, FCC, IC, RoHS, REACH, IEC/EN 62368

168 x 102 x 28 mm (H x W x D)

6.61 x 4.01 x 1.10 in (H x W x D

Operating conditions -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)
Scope of delivery

1x Main Electrical Unit

1x Front panel

1x Power supply unit (mains adaptor) with up to 4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC)

1x RJ45 adapter

1x Screwdriver

1x Quickstart guide with Digital Passport

1x Installation manual

1x Small parts
