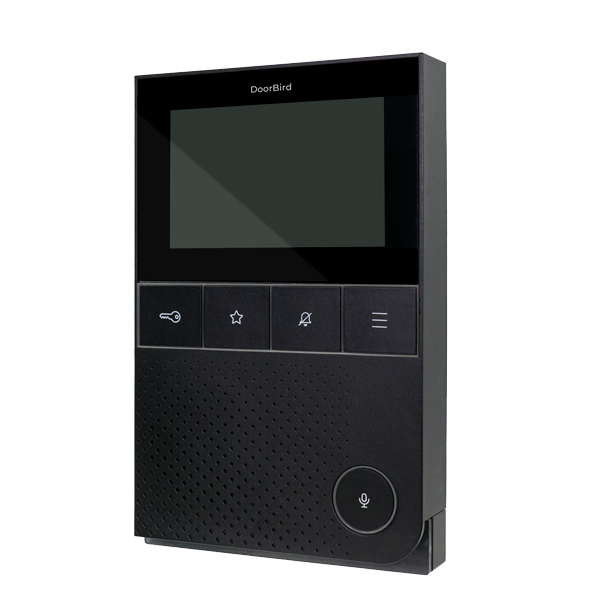

Black indoor video door station with touchscreen and call control buttons

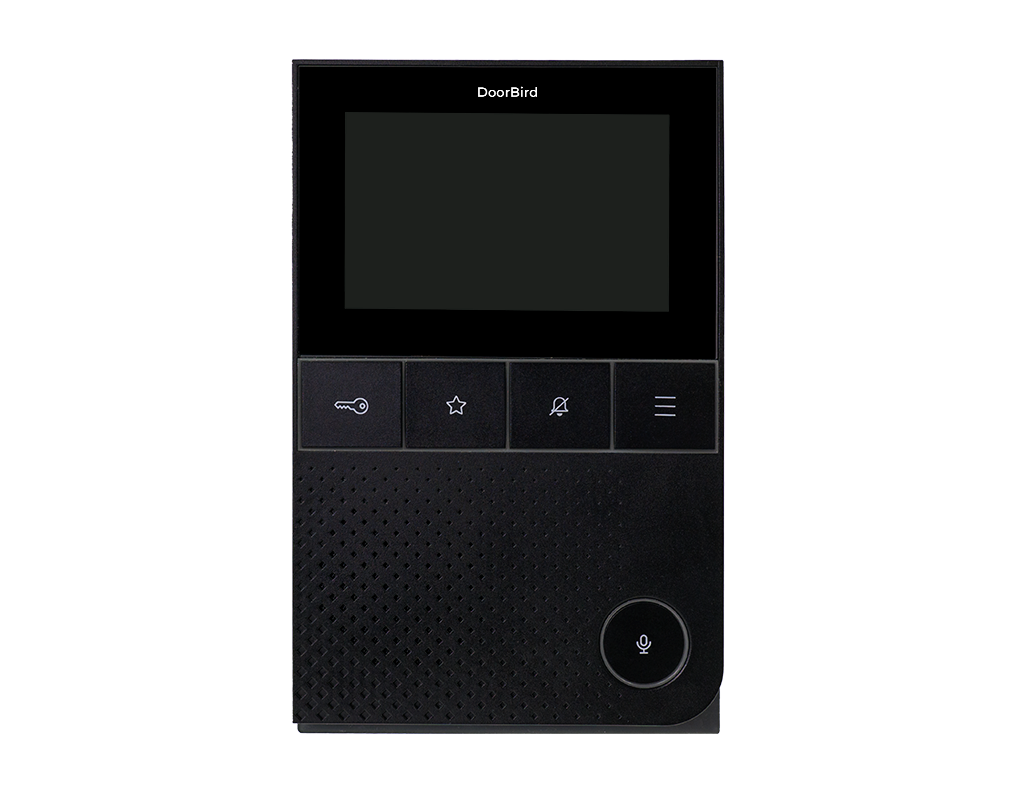

Black indoor video door station with blank screen and control buttons
Black indoor video door station showing app-style menu on touchscreen
Black indoor video door station with weather display on touchscreen

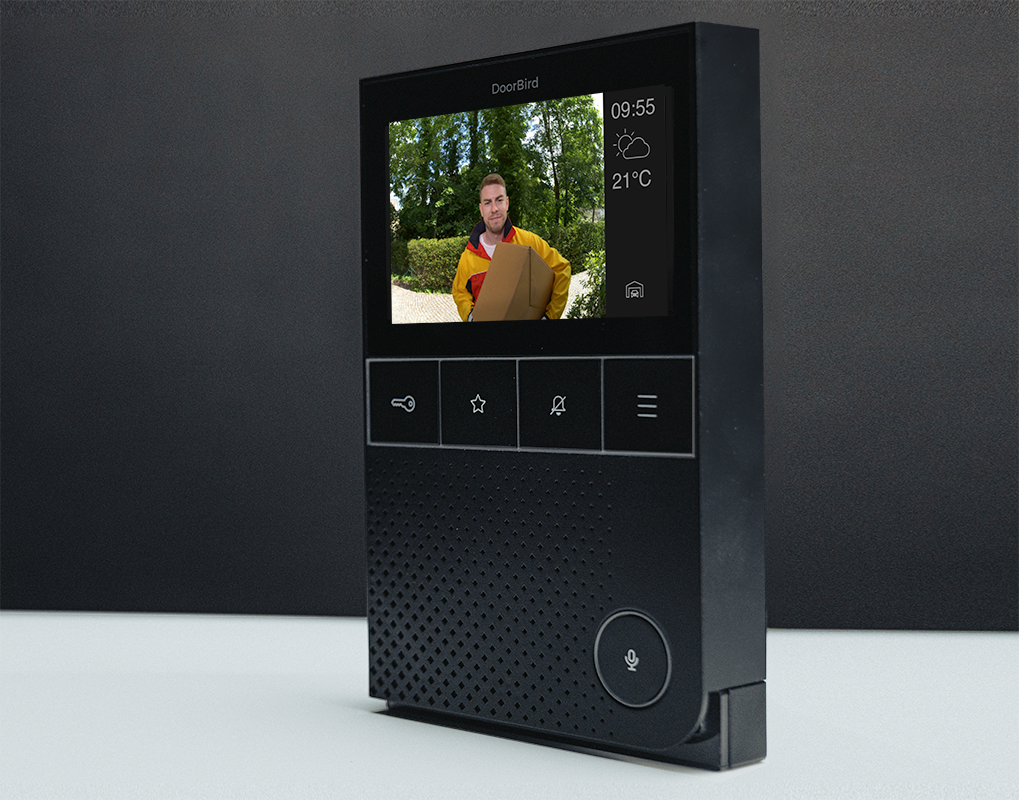

Black indoor video door station showing live visitor feed and time
Roll over image to zoom in Click on image to zoom
Black indoor video door station with touchscreen and call control buttonsBlack indoor video door station with blank screen and control buttonsBlack indoor video door station showing app-style menu on touchscreenBlack indoor video door station with weather display on touchscreenBlack indoor video door station showing live visitor feed and time
Click on image to zoom

DoorBird A1101 IP Video Indoor Station in Black

DoorBirdSKU: 423872677
2 reviews
Price:
$595.12 $699.99SAVE 14%
Color: Black
Out of Stock
No restock estimate
Free shipping — delivered to your door by parcel carrier

Description

DoorBird A1101 IP Video Indoor Station in Black

For door communication in single-family residences and apartment buildings

Polycarbonate, black
(GTIN/EAN: 4260423872677, P/N: 423872677)

Highlights

  • WiFi / LAN connection (PoE capable)
  • 4“ True Color Touch Display
  • 2-way HD Audio, up to 102 dB
  • Room to room communication
  • SIP support
  • Home and building automation control
  • 3 freely configurable bistable switching relays

Features

  • Benefits via IP : Door opener and elevator control, Visitor history (free Cloud Recording), Room to room communication when using several Indoor Stations, SIP support, e.g. for concierge or facility manager calls, Weather forecast display, Home and building automation control (IP, TCP, HTTPS, relays etc.) and Configurable via the DoorBird App worldwide
  • Intuitive User Interface: 4“ True Color Touch Display, and Scratch-resistant tempered Gorilla® glass
  • Two-way Audio Communication: HD Audio, up to 102 dB, and More than 50 doorbell sounds available
  • Compact Housing: 5 hardware buttons for main functions, and Configurable RGB LED status bar
  • WiFi enabled: Works within a WiFi network, Connection via POE or Ethernet possible
  • Further Options: Automatic door opening system, e.g. for offices

DIMENSIONS & WEIGHT
Weight
430g
Dimensions
179.5 x 115 x 25 mm (H x W x D) 7.07 x 4.53 x 0.98 in (H x W x D)
GENERAL INFORMATION
Mounting type
Surface-mounted, Table Stand ”A8003“ sold separately
DESIGN & MATERIALS
Material
  • Polycarbonate
  • white Available in white and black
POWER & CONNECTIVITY
Power supply
15 - 48 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
Connectors
  • LAN/PoE (T+, T-, R+, R-)
  • Digital input (0 V, 0 A (NO)) #1, e.g. for storey-call button
  • Digital input (0 V, 0 A (NO)) #2, e.g. for second storey-call button
  • Bi-stable latching relay #1, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener or elevator
  • Bi-stable latching relay # 2, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener or elevator
  • Bi-stable latching relay # 3, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener or elevator
  • 15 - 48 V DC input (+, -), max. 15
Power consumptions
5W
DURABILITY & ENVIRONMENT
Operating conditions
0 to +55°C / 32 to 131°F Humidity 0 % to 85 % (non condensing)
IN THE BOX
Scope of delivery
  • 1x IP Video Indoor Station
  • 1x Mounting bracket
  • 1x RJ45 Adapter
  • 1x Power supply unit (main adaptor) with up to four country-specific adaptors (100 - 240 V AC to 15 V DC)
  • 1x Quickstart guide with Digital Passport
  • 1x Installation manual
  • 1x Small parts
