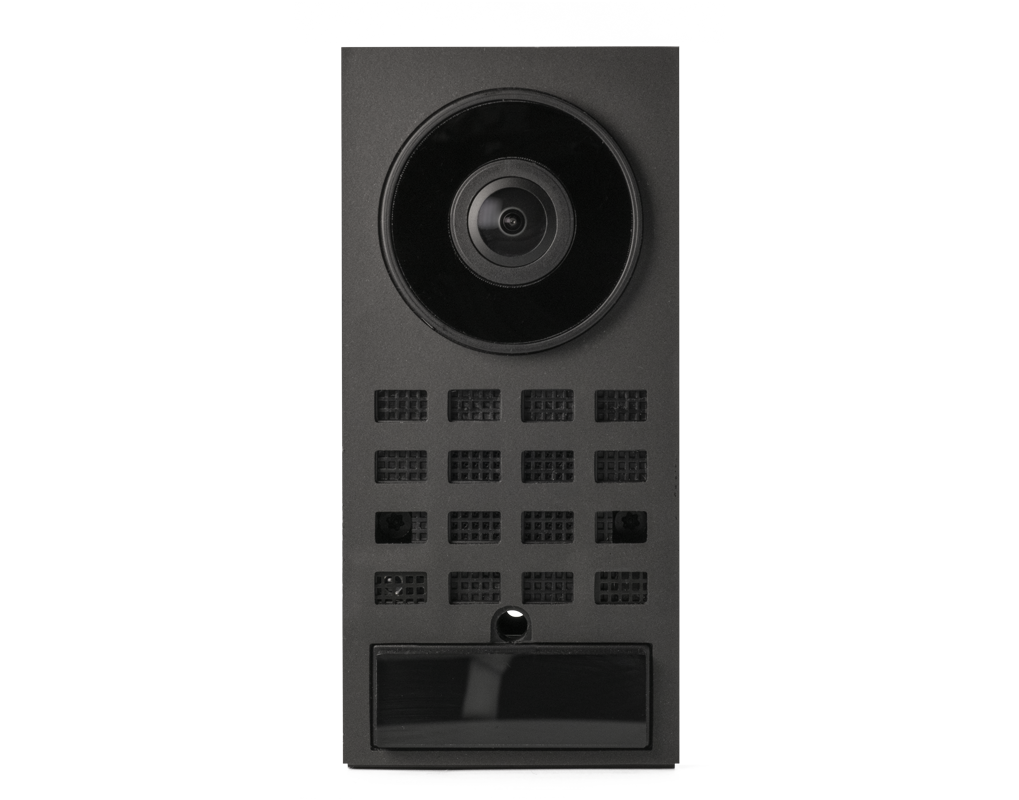

DoorBird D1100E video door station front with large camera, keypad grille, and screen
Roll over image to zoom in Click on image to zoom
DoorBird D1100E exterior video door station front panel with camera lens and call screenDoorBird D1100E IP video door station with camera lens, speaker grille, and displayDoorBird D1100E video door station front with large camera, keypad grille, and screen
Click on image to zoom

Doorbird D1100E IP Video Door Station, Engineering Edition for Integration Purposes

DoorBirdSKU: 423867369
2 reviews
Price:
$797.53 $1,099.00SAVE 27%
Out of Stock
No restock estimate
Free shipping — delivered to your door by parcel carrier

Description

Doorbird D1100E IP Video Door Station, Engineering Edition for Integration Purposes

Engineering Edition for integration purposes

(GTIN/EAN: 4260423867369, P/N: 423867369)

Highlights

  • Call buttons sold separately
  • WiFi / LAN connection (PoE capable)
  • 2-way audio
  • Ultra-wide angle lens, 1080p, night vision, IR LEDs
  • 4D motion sensor
  • 1 freely configurable bistable switching relay

Features

  • Open API - Local interface for integration with third-party systems and SIP
  • Video and audio call - On smartphones, tablets (iOS, Android), IP and landline phones (SIP)
  • Smart Transmission Mode (STM) - Real-time audio / video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G
  • Smart Home & NVR compatible - Control4, Loxone, Crestron, Synology, AVM FRITZ!Fon, URC, QNAP, RTI, ELAN, Fibaro, Bang & Olufsen and others
  • Microphone - Clear voice transmission
  • Automatic door buzzer - For use in medical offices and office environments
  • Free visitor history - Store still images for free, optional video recording available
  • Individual action schedules, e.g.:
    Switch relay 1 for automatic door release Mon-Fri from 9 am until 4 pm when the call button is pressed
    4D motion sensor switches on external lamp between 9 pm and 6 am
  • Geofencing - Automatic door and gate opening when returning home
  • Night vision - With Infrared LEDs
  • HDTV Video - Ultra wide-angle, hemispheric lens, 180°
  • Light sensor - For night vision mode
  • One freely configurable bistable latching relay
    Control one door or one gate via App
    Status configurable via App: temporary or permanent circuit
  • Easy self-install - Quick installation via QR code scan
  • Motion sensor with 4D technology - Distance up to 6 m (19.7 ft) adjustable via App (interval: 1 m/ 3.3 ft)
  • Noise reduction and echo cancellation (AEC, ANR)
  • Easy connection to the network - Connection via a network cable or bell wire via 2-Wire Ethernet PoE Converter “DoorBird A1071” (PoE, network data)
  • WiFi enabled - Works within a WiFi network, no LAN cable needed
DIMENSIONS & WEIGHT
Weight
188 g
Dimensions
115,5 x 56,5 x 27,5 mm (H x W x D) 4.55 x 2.22 x 1.08 in (H x W x D)
POWER & CONNECTIVITY
Power supply
15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
Connectors
  • LAN/PoE (T+, T-, R+, R-)
  • Bi-stable latching relay (potential-free), max. 1-24 V DC/AC, 1 A, e.g. for electric door opener
  • External input for external door opener button
  • One hardware extension module (COM1)
  • 15 V DC input (+, -), max. 15 W
DURABILITY & ENVIRONMENT
Protection Class
IP65
Approvals
CE, FCC, IC, RoHS, REACH, IEC/EN 62368, IEC/ EN 62471, Wi-Fi CERTIFIED™
Operating conditions
25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)
IN THE BOX
Scope of delivery
  • 1x Main Electrical Unit
  • 1x Power supply unit (mains adaptor) with up to 4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC)
  • 1x Screwdriver
  • 1x Quickstart guide with Digital Passport
  • 1x Installation manual
  • 1x Small parts
