For multi-tenant residences and buildings with up to 500 units
Titanium-finish as PVD coating, stainless steel V4A, high-gloss polished
(GTIN/EAN: 4260423888517, P/N: 423888517)
Imagine, you are not at home and your children have locked themselves out or the courier wants to deliver a parcel. With DoorBird this is no longer a problem. Every time someone rings the doorbell you will get a push notification on your smartphone or tablet. Via the DoorBird App you can talk to visitors and also see them live in HD quality. You will never miss a visitor again. With DoorBird you are on the move and yet at home, even if a burglar rings at the door to check if someone is at home
DoorBird is the smart solution for your house entrance. Simply connect your DoorBird IP Video Door Station to your smartphone and talk to your visitor – anywhere you are. The IP Video Door Station can be used as a stand-alone unit or can be integrated into an existing Smart Home platform. Even existing classic installations such as an electric door opener can still be used and controlled via the DoorBird App.
All DoorBird products are designed, developed and produced by Bird Home Automation Group in Berlin, Germany. We manufacture all products with the greatest care and precision, and deliver them to our customers all over the world.
| Front cover | 3 mm (0.12 in) For further materials and colours see material board and Online Shop. |
| Mounting | Flush or surface mount, Mounting backing case available separately |
| Power supply | 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A) |

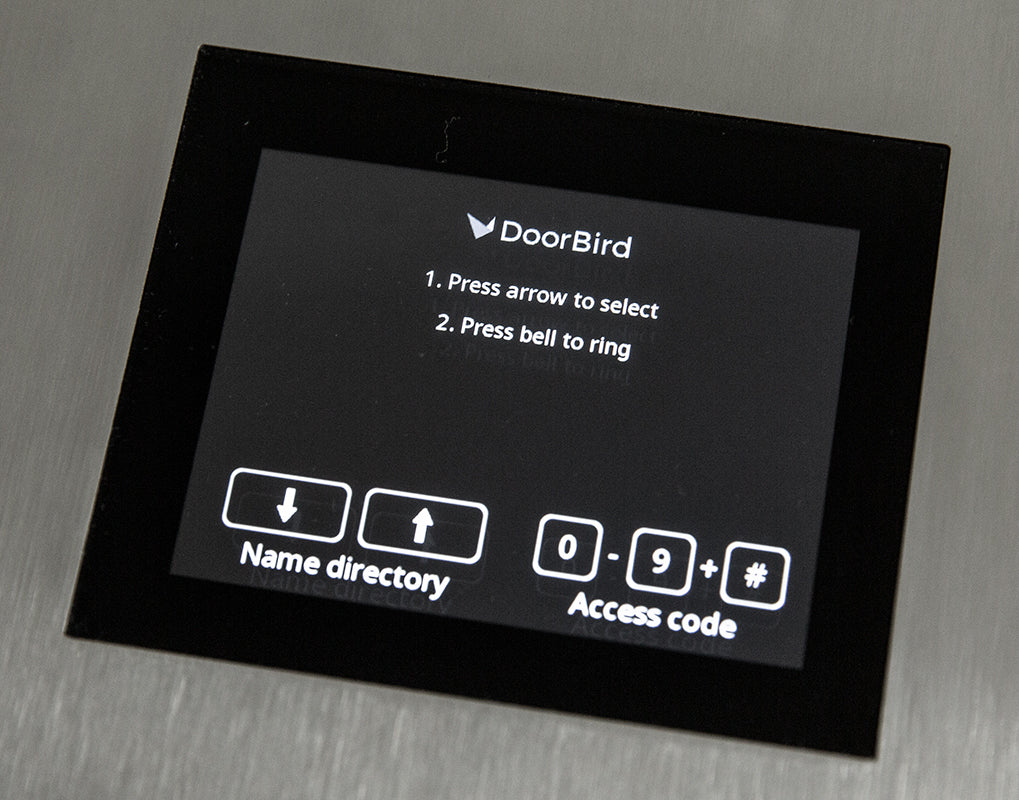

| Display Module | 3.5“ LCD (no touch function), illuminated, for the display of a 2-line free text and the name directory (max. 500 entries) |
| Keypad Module |
16 keys, illuminated, configurable via App, e.g. • Individual PIN codes • Individual events (e.g. switch a relay, push notification, SIP call [audio/ video], HTTP(s) request) • Individual schedules • Up to 500 PIN codes manageable |
| Weight | 2180 g |
| Connections | • RJ45, for LAN/PoE • Bistable latching relay #1, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener • Bistable latching relay #2, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener • External input for external door opener button • 15 V DC input (+, -), max. 15 W • Relays can be expanded / detached with DoorBird I/O Door Controller |
| Protection class | IP65, IK08 |
| Approvals | CE, FCC, IC, UKCA, RoHS, REACH, WEEE, IEC/EN 62368, IEC/EN 62471 |
| Dimensions | 256 x 275.25 x 48.75 mm (H x W x D) 10.08 x 10.13 x 1.92 in (H x W x D) |
| Operating conditions | -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing) |
| Scope of delivery | 1x Main Electrical Unit 1x Front panel 1x RFID key fob 1x Screwdriver 1x Quickstart guide with Digital Passport 1x Installation manual 1x Small parts |
