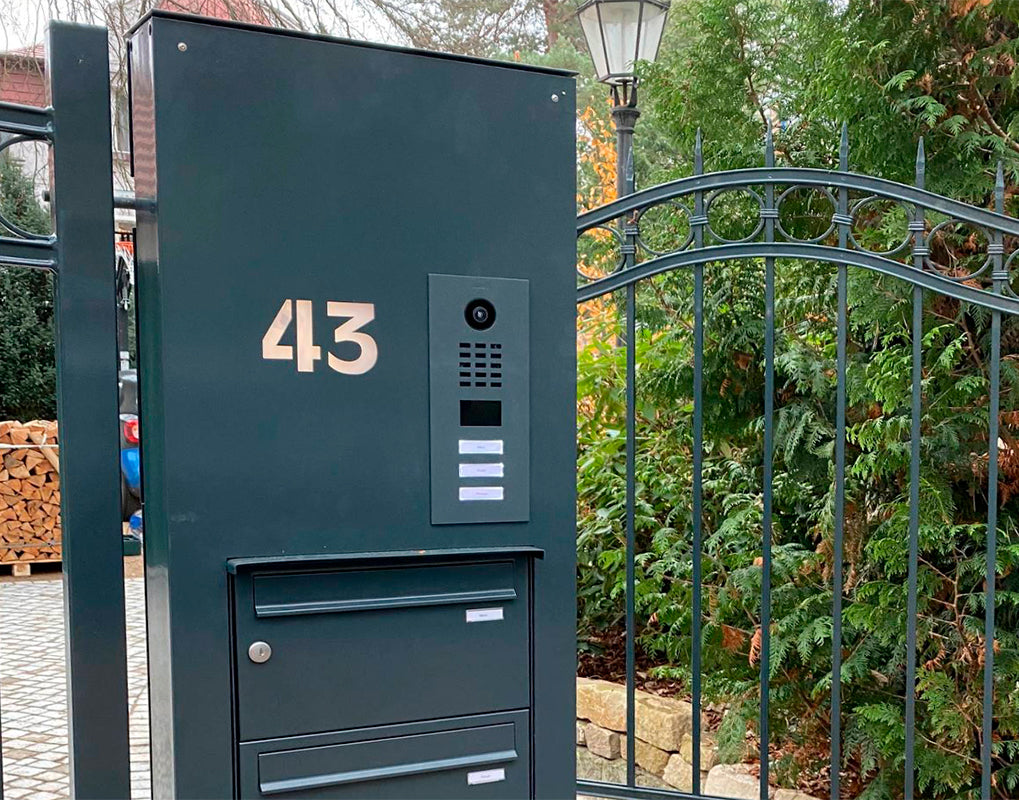

For multi-tenant buildings and businesses with 3 units, 3 call buttons
DB 703, stainless steel, powder-coated, semi-gloss
* Surface- and flush-mount possible, housings sold separately
HOW DOES IT WORK?
Imagine, you are not at home and your children have locked themselves out or the courier wants to deliver a parcel. With DoorBird this is no longer a problem. Every time someone rings the doorbell you will get a push notification on your smartphone or tablet. Via the DoorBird App you can talk to visitors and also see them live in HD quality. You will never miss a visitor again. With DoorBird you are on the move and yet at home, even if a burglar rings at the door to check if someone is at home
SMART HOME STARTS AT THE FRONT DOOR
DoorBird is the smart solution for your house entrance. Simply connect your DoorBird IP Video Door Station to your smartphone and talk to your visitor – anywhere you are. The IP Video Door Station can be used as a stand-alone unit or can be integrated into an existing Smart Home platform. Even existing classic installations such as an electric door opener can still be used and controlled via the DoorBird App.
QUALITY MADE IN GERMANY
All DoorBird products are designed, developed and produced by Bird Home Automation Group in Berlin, Germany. We manufacture all products with the greatest care and precision, and deliver them to our customers all over the world.
Required Accessories: (Sold Separately)
DoorBird Flush-Mounting Housing (Backbox) for D2102V/D2103V/D2101FV Fingerprint 50/D2101FV EKEY IP Video Door Stations (423860711)
DoorBird Surface-Mounting Housing (Backbox) for D2102V/D2103V/D2101FV Fingerprint 50/D2101FV EKEY IP Video Door Stations (423865389)
|
Front Panel |
3 mm (0.12 in) Available in brushed stainless steel V2A / V4A and V2A with bronze and titanium finish, DB 703, RAL 7016, Graphite Black (Raven Polar) |
|
Mounting Type |
Flush- or surface-mounted, mounting housing sold separately |
|
Call Button |
Illuminated |
|
Nameplate |
Plastic. Engravable metal nameplate sold separately |
|
Power supply |
15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A) |
|
Weight |
1327 g |
|
Connectors |
|
|
Weatherproof |
Yes, IP65 |
|
Approvals |
IP65, CE, FCC, IC, RoHS, IK08, REACH, IEC/EN 62368, IEC/EN 62471 |
|
Dimensions |
313 x 131 x 48,75 mm (H x W x D) 12.32 x 5.16 x 1.92 in (H x W x D) |
|
Operating conditions |
-25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non condensing) |
|
Scope of delivery |
1x Main Electrical Unit 1x Front panel 1x RFID key fob 1x Screwdriver 1x Quickstart guide with Digital Passport 1x Installation manual 1x Small parts |
