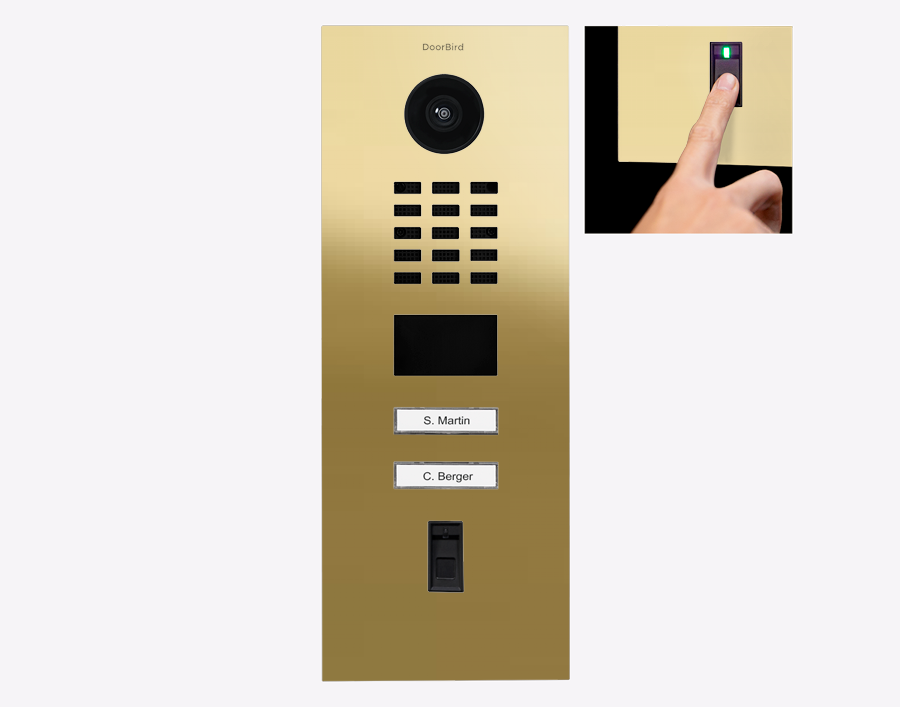

Brass video door station with camera lens, call grid, and fingerprint keypad panel

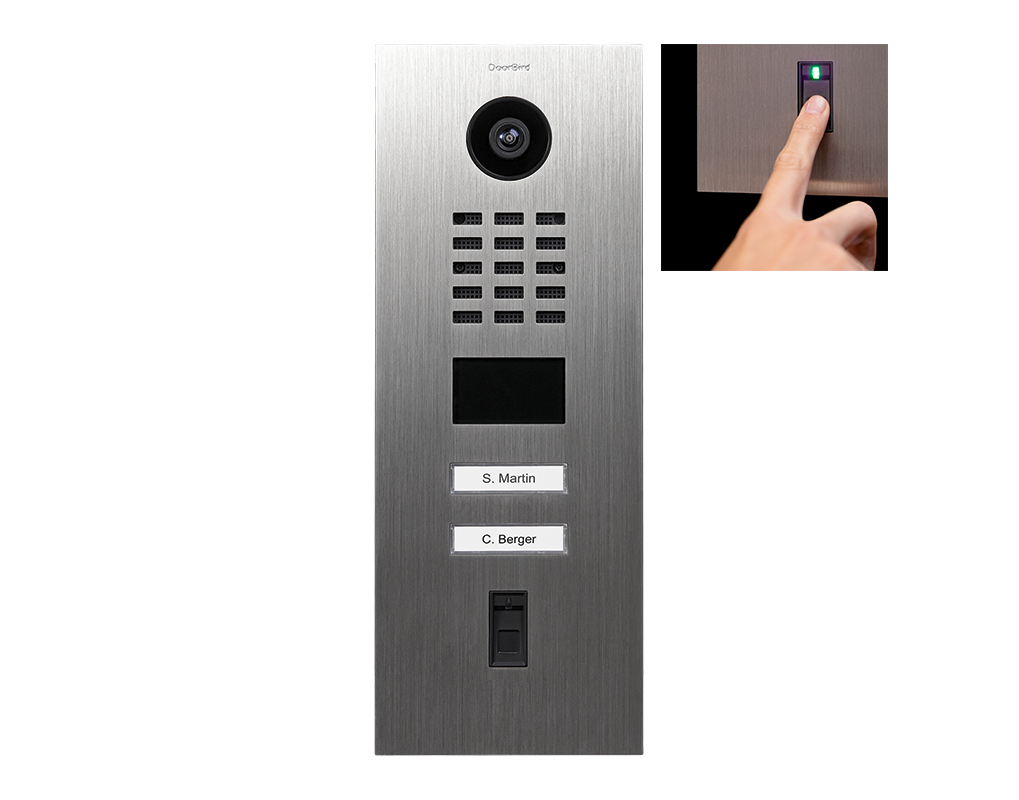

Brushed metal video door station with camera lens, call buttons, and glowing fingerprint reader

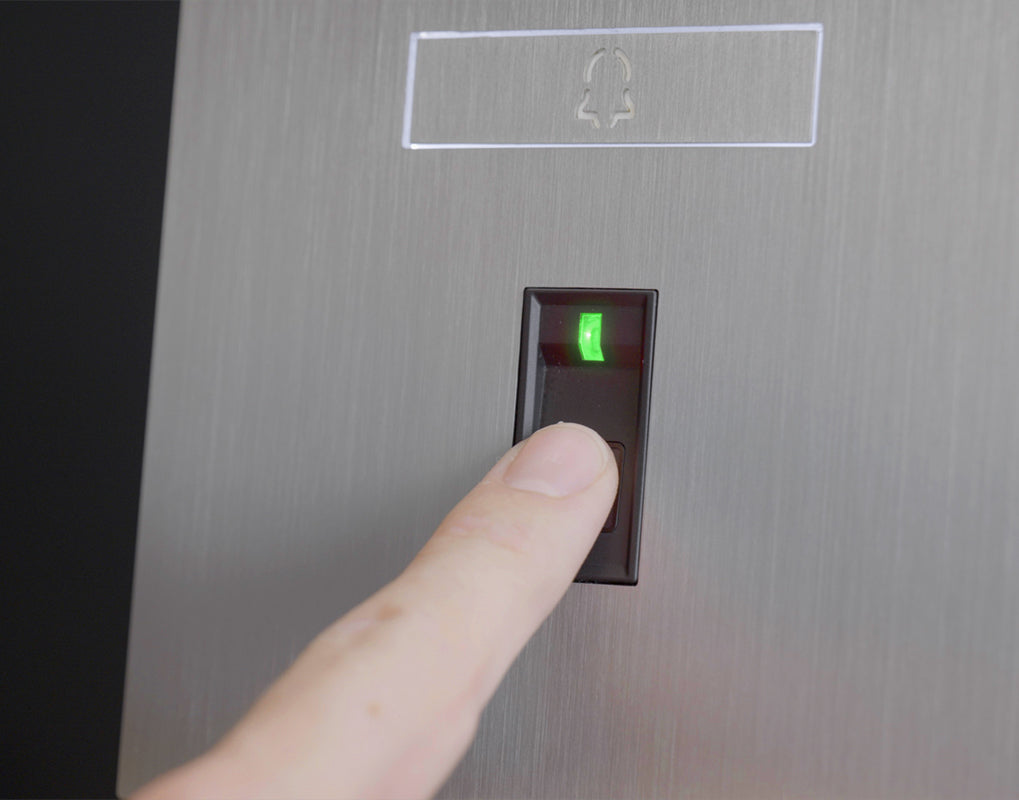

Fingerprint access button being pressed beneath a glowing status window

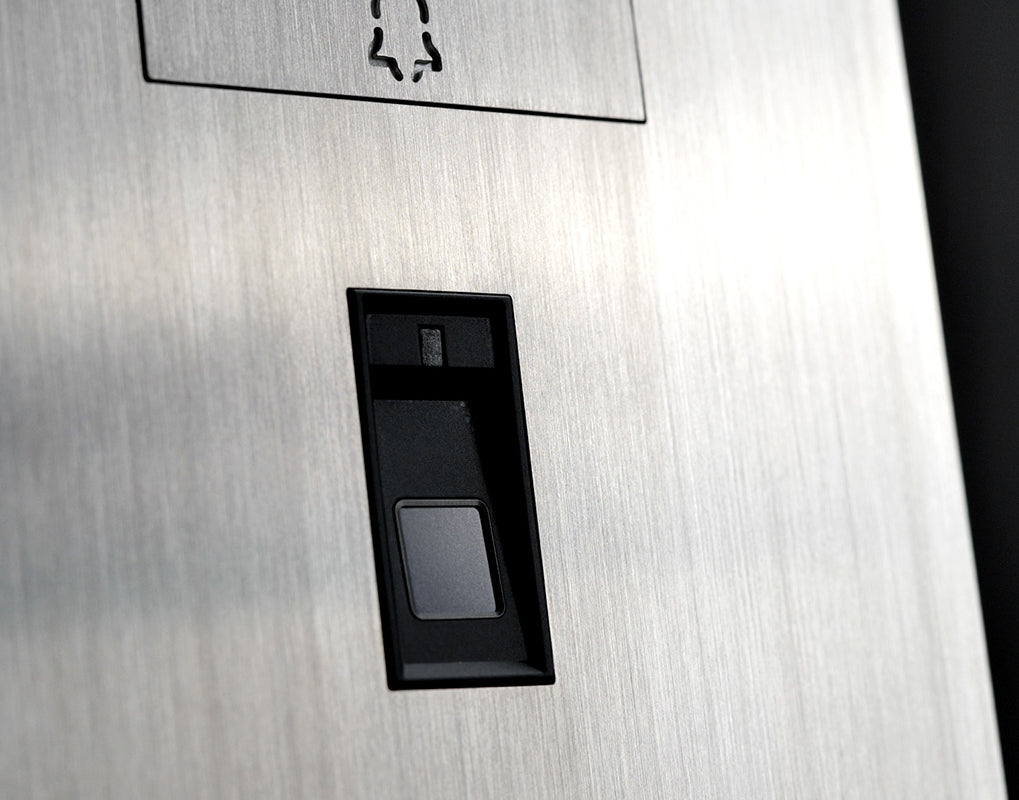

Black fingerprint and access keypad module with rectangular button on metal faceplate

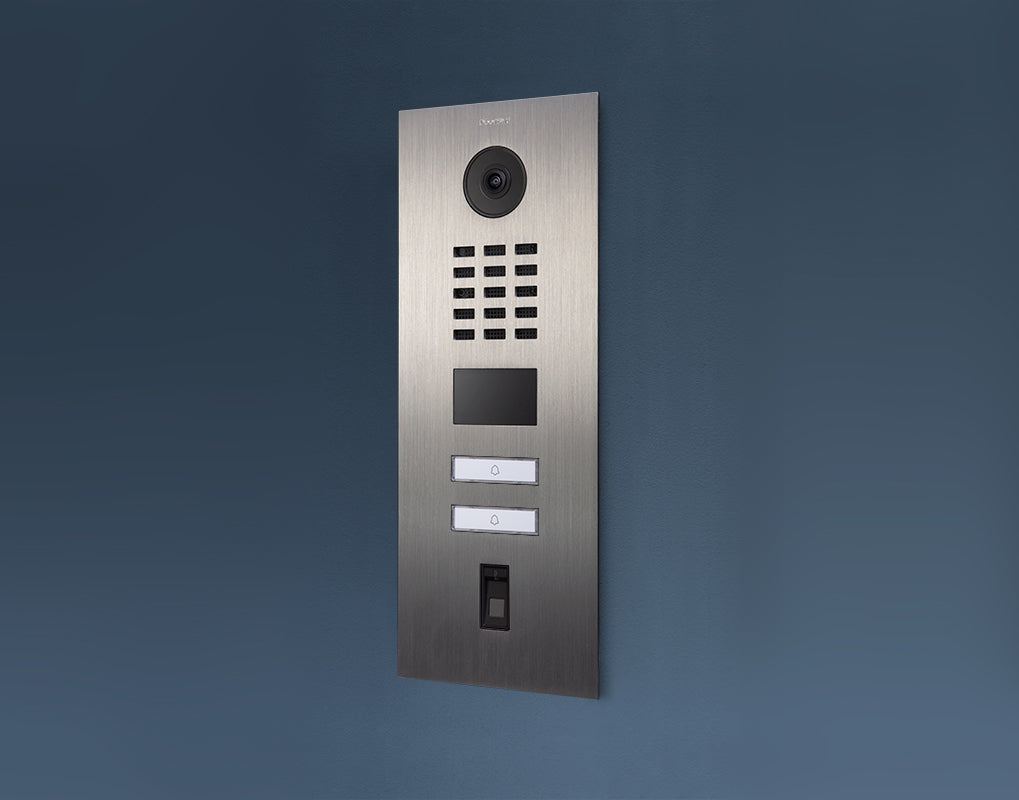

Brushed metal video door station with camera lens, call buttons, and speaker grille

DoorBird D2102FV Fingerprint 50 IP Video Door Station, 2 Call Button in Real Burnished Brass

SKU: 423896666
$4,530.13 $5,723.19

Out of Stock No restock estimate
  • Secure Payment
    Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa
    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Free Shipping*
  • 30-Day Return Policy⁺

Description

DoorBird D2102FV Fingerprint 50 IP Video Door Station, 2 Call Button in Real Burnished Brass

For multi-tenant buildings and businesses with 2 units, 2 call buttons

Real burnished brass
(GTIN/EAN: 4260423896666, P/N: 423896666)

Highlights

  • Surface- and flush-mount possible, housings sold separately
  • LAN connection (PoE capable)
  • 2-way audio
  • Ultra-wide angle lens, 720p, night vision, 12 IR LEDs
  • 4D motion sensor, RFID reader
  • Fingerprint sensor by Fingerprint Cards AB
  • 2 freely configurable bistable switching relays

Features

  • Open API
    Local interface for integration with third-party systems and SIP
  • Video and audio call
    On smartphones, tablets (iOS, Android), IP and landline phones (SIP)
  • Smart Transmission Mode (STM)
    Real-time audio / video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G
  • Smart Home & NVR compatible
    Control4, Loxone, Crestron, Synology, AVM FRITZ!Fon, URC, QNAP, RTI, ELAN, Fibaro, Bang & Olufsen and others
  • Automatic door buzzer
    For use in medical offices and office environments
  • Individual action schedules, e.g.:
    RFID card “abc” has only access on Wednesday from 9 am until 11 am
    4D motion sensor switches on external lamp between 9 pm and 6 am
  • Geofencing
    Automatic door and gate opening when returning home
  • Night vision
    With 12 Infrared LEDs
  • HDTV Video
    Ultra wide-angle, hemispheric lens, 180°
  • Light sensor
    For night vision mode
  • Microphone
    Clear voice transmission
  • Noise reduction and echo cancellation (AEC, ANR)
  • RFID reader
    Configurable remotely via App (e.g. time frame)
  • Motion sensor with 4D technology
    Distance up to 10 m (32.8 ft) adjustable via App (interval: 1 m/ 3.3 ft)
  • Call button
    With backlit nameplate
  • Easy connection to the network
    Connection via a network cable or bell wire via 2-Wire Ethernet PoE Converter “DooBird A1071” (PoE, network data)
  • Two freely configurable bi-stable switching relays
    Two doors or gates can be controlled via App
    Status configurable via App: temporary or permanent circuit
  • Fingerprint reader
    Supported number of fingerprints: 50
    Status LED (RGB)
    Touch sensor
DIMENSIONS & WEIGHT
Weight 1430 g
Dimensions 351,5 x 131 x 49,6 mm (H x W x D) 13.84 x 5.16 x 1.95 in (H x W x D)
GENERAL INFORMATION
Mounting type Flush- or surface-mounted, mounting housing sold separately
DESIGN & MATERIALS
Front panel 3 mm (0.12 in) For further materials and colours see material board and Online Shop.
POWER & CONNECTIVITY
Power Supply 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
Connectors
  • Configurable via App
  • Individual events (e.g. switch a relay, HTTP(s) request)
  • Individual schedules
  • 50 fingerprints manageable
  • Event history Multicolored Status LED
  • Normal mode: –Green + success sound: successfully authenticated –Red + error sound: unrecognized fingerprint (e.g. unknown fingerprint or wet touch sensor field - dry it with a tissue) –Pink: Manipulation prevention (too many failed attempts, locked out for min. 30 seconds)
  • Enrollment mode: –Blue: wait for finger to touch –Green + no sound: scan step successful –Green + success sound: entire scan step successful (enrollment done) –LED goes off: Timeout during enrollment
  • Start-up mode: –Yellow: Hardware test successful –Red: Hardware test not successful (broken)
Connections
  • RJ45, for LAN/PoE
  • Bi-stable latching relay #1, max. 24 V DC / AC, 1 A, e.g. for electric door opener
  • Bi-stable latching relay #2, max. 24 V DC / AC, 1 A, e.g. for electric door opener
  • External input for external door opener button
  • 15 V DC input (+, -), max. 15 W
  • Relays can be expanded / detached with DoorBird I/O Door Controller
FEATURES
Nameplate Illuminated
DURABILITY & ENVIRONMENT
Protection Class IP65, IK08
Approvals CE, FCC, IC, UKCA, RoHS, REACH, WEEE, IEC/EN 62368, IEC/EN 62471
Operating conditions -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)
IN THE BOX
Scope of delivery
  • 1x Main Electrical Unit
  • 1x Front panel
  • 1x RFID key fob
  • 1x Screwdriver
  • 1x Quickstart guide with Digital Passport
  • 1x Installation manual
  • 1x Small parts
