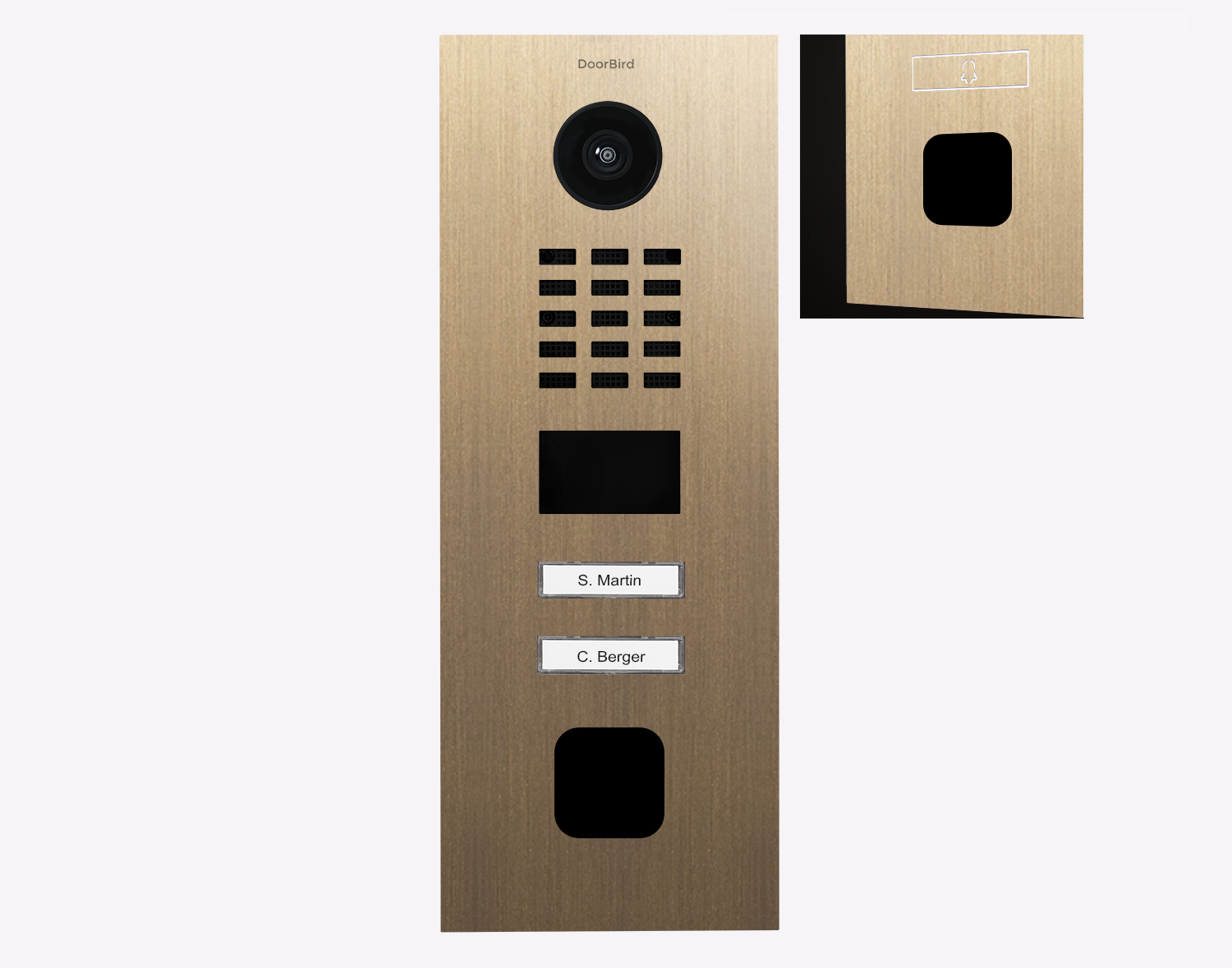

DoorBird D2102FV EKEY Sline IP video door station, burnished brass with two black call buttons
Roll over image to zoom in Click on image to zoom
DoorBird D2102FV EKEY Sline IP video door station, burnished brass with two black call buttons
Click on image to zoom

DoorBird D2102FV EKEY Sline IP Video Door Station, 2 Call Buttons in Real Burnished Brass

DoorBirdSKU: 423903050
2 reviews
Price:
$2,871.11 $3,627.25SAVE 20%
Out of Stock
No restock estimate
Free shipping — delivered to your door by parcel carrier

Description

DoorBird D2102FV EKEY Sline IP Video Door Station, 2 Call Buttons in Real Burnished Brass

For multi-tenant buildings and businesses with 2 units, 2 call buttons

Real burnished brass
(GTIN/EAN: 4260423903050, P/N: 423903050)

Highlights

  • Surface- and flush-mount possible, housings sold separately
  • With cut-out for ekey sLine module (fingerprint reader not included in delivery)
  • LAN connection (PoE capable)
  • 2-way audio
  • Ultra-wide angle lens, 720p, night vision, 12 IR LEDs
  • 4D motion sensor, RFID reader
  • 2 freely configurable bistable switching relays

Features

  • Open API
    Local interface for integration with third-party systems and SIP
  • Video and audio call
    On smartphones, tablets (iOS, Android), IP and landline phones (SIP)
  • Smart Transmission Mode (STM)
    Real-time audio / video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G
  • Smart Home & NVR compatible
    Control4, Loxone, Crestron, Synology, AVM FRITZ!Fon, URC, QNAP, RTI, ELAN, Fibaro, Bang & Olufsen and others
  • Automatic door buzzer
    For use in medical offices and office environments
  • Individual action schedules, e.g.:
    RFID card “abc” has only access on Wednesday from 9 am until 11 am
    4D motion sensor switches on external lamp between 9 pm and 6 am
  • Geofencing
    Automatic door and gate opening when returning home
  • Night vision
    With 12 Infrared LEDs
  • HDTV Video
    Ultra wide-angle, hemispheric lens, 180°
  • Light sensor
    For night vision mode
  • Microphone
    Clear voice transmission
  • Noise reduction and echo cancellation (AEC, ANR)
  • RFID reader
    Configurable remotely via App (e.g. time frame)
  • Motion sensor with 4D technology
    Distance up to 10 m (32.8 ft) adjustable via App (interval: 1 m/ 3.3 ft)
  • Call button
    With backlit nameplate
  • Easy connection to the network
    Connection via a network cable or bell wire via 2-Wire Ethernet PoE Converter “DoorBird A1071” (PoE, network data)
  • Two freely configurable bi-stable switching relays
    Two doors or gates can be controlled via App
    Status configurable via App: temporary or permanent circuit
  • Integration option for ekey sLine fingerprint reader
    Front panel prepared for ekey sLine, not included in delivery
DIMENSIONS & WEIGHT
Weight
  • D2101FV ekey sLine: 1381
  • g D2102FV ekey sLine: 1381 g
Dimensions
313 x 351,5 x 48,75 mm (H x W x D) 12.32 x 13.83 x 1.92 in (H x W x D)
GENERAL INFORMATION
Mounting type
Flush- or surface-mounted, mounting housing sold separately
DESIGN & MATERIALS
Front panel
3 mm (0.12 in) For further materials and colours see material board and Online Shop
POWER & CONNECTIVITY
Power Supply
15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
Connectors
  • RJ45, for LAN/PoE
  • Bi-stable latching relay #1, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener
  • Bi-stable latching relay #2, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener
  • External input for external door opener button (potential-free)
  • 15 V DC input (+, -), max. 15 W
  • Relays can be expanded / detached with DoorBird I/O Door Controller
FEATURES
Nameplate
Illuminated
DURABILITY & ENVIRONMENT
Protection Class
IP65, IK08
Approvals
CE, FCC, IC, UKCA, RoHS, REACH, WEEE, IEC/EN 62368, IEC/EN 62471
Operating conditions
-25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)
IN THE BOX
Scope of delivery
  • 1x Main Electrical Unit
  • 1x Front panel
  • 1x Nameplate for 1 call button, stainless steel, bell symbol (D2101FV ekey sLine)
  • 1x RFID key fob
  • 1x Screwdriver
  • 1x Quickstart guide with Digital Passport
  • 1x Installation manual
  • 1x Small parts
Shipping
  • Free Shipping on all orders.
  • Large Appliances: Ship via Curbside Delivery — the carrier delivers to your property but not inside your home.
  • Small Items: Ship via standard ground delivery (FedEx or similar), such as small appliances, range hoods, sinks, faucets, and accessories.
Full shipping policy
Returns
  • 30-Day Return Policy: Return requests must be submitted within 30 days of your delivery date. We cannot process returns after this period.
  • Return Requirements: Products must be unused, uninstalled, and in their original packaging (including box and pallet) to qualify.
  • Restocking Fee: A restocking fee may apply and varies by brand.
Full returns policy
Authorized DoorBird Dealer
Full manufacturer warranty on every DoorBird product we sell.
Explore DoorBird
DoorBird
DoorBird

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
C
Carl R. (Los Angeles, CA)
High quality construction, works great.

I have installed as main gate access controller. The device is used for gate access via keypad and house call via the ring button. Setup is easy, app driven setup. Works great and love the design. It looks professional versus the other brands made of plastic that look more like toys.

User picture
D
Danny L. (Los Angeles, CA)
Great unit, works very well

I have been using the Doorbird for about 7 weeks now. The unit comes complete with with cables and miniature connectors for Ethernet, power, lock, doorbell, etc. And snap connectors. Was easy to install and operate.

The finish is beautiful, I love how they had so many color options to choose from. The Bronze looks great with our new home.

Home Outlet Direct shipped quickly and made the purchase easy. I recommend for any home that requires this type of security.
