Description
DIMENSIONS & WEIGHT
- Weight
- 1818 g
- Dimensions
- 313 x 131 x 48.75 mm (H x W x D) 12.32 × 5.16 × .92 in (L × W × H)
GENERAL INFORMATION
- Mounting Type
- Flush or surface mount Mounting backing case available separately Please note: To ensure optimal operation of the contactless call button module, weatherproof mounting is recommended. In rare cases, the sensor can be triggered by heavy rain falling directly on the sensor surface
DESIGN & MATERIALS
- Front Panel
- 3 mm (0.12 in) For further information on materials and colours see the materials table on the product page in the online shop.
POWER & CONNECTIVITY
- Power supply
- 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
- Connectors
- RJ45, for LAN/PoE
- Bistable self-latching relay #1, max. 24 V DC/AC, 1 Ampere, e.g. for electrical door opener
- Bistable self-latching relay #2, max. 24 V DC/AC, 1 Ampere, e.g. for electrical door opener
- External input for external door opening button
- 15 V DC input (-/+), max. 15 W
- Relay can be extended/replaced with DoorBird I/O Door Controller.
FEATURES
- Call Button
- Illumination
- As parallel call option to contactless call button module. (Please note: Station features 1 call option. Call button and contactless call module are switched on together and can be assigned to a single action)
- Nameplate
- Stainless steel, bell symbol.Engravable name sign available separately

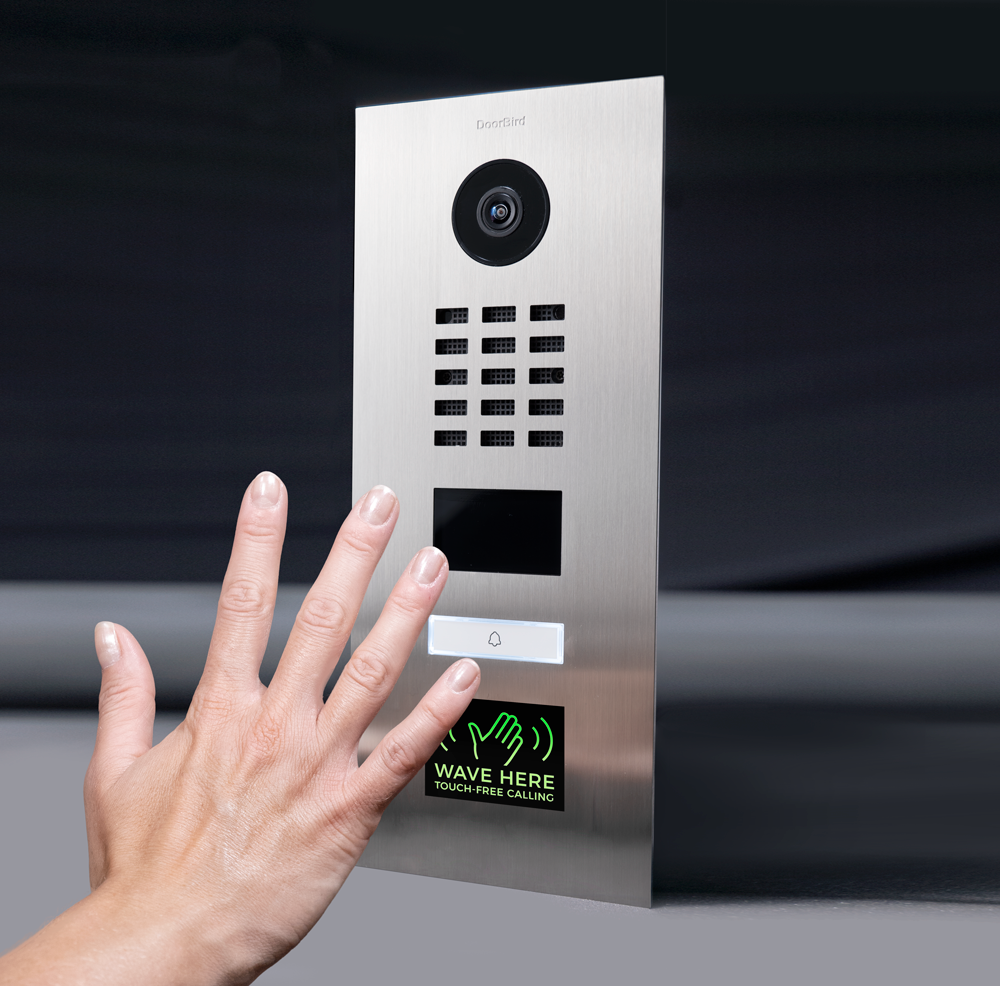

- Contactless Call Button Module
- High-end radar motion sensor for reliable detection at close range
- Two-colour backlight (colour changes to green when motion detected)
- Individual events (e.g. open door, push notification, SIP etc.)
- Interchangeable text fields in 5 languages (DE, EN, ES, FR, IT) included
DURABILITY & ENVIRONMENT
- Protection Class
- IP65, IK08
- Approvals
- CE, FCC, IC, UKCA, RoHS, REACH, WEEE, IEC/EN 62368, IEC/EN 62471
- Operating conditions
- -25 °C to +55 °C / -13 °F to 131 °F Relative air humidity 10% to 85% (non-condensing)
IN THE BOX
- Scope of delivery
- 1x main electrical unit 1x front cover 1x name sign for one call button, stainless steel, bell symbol 1x RFID key fob 1x screwdriver 1x quick-start guide with Digital Passport 1x installation manual 1x set of hardware 4x sensor field cover in German, Spanish, French and Italian
- (English preinstalled)
