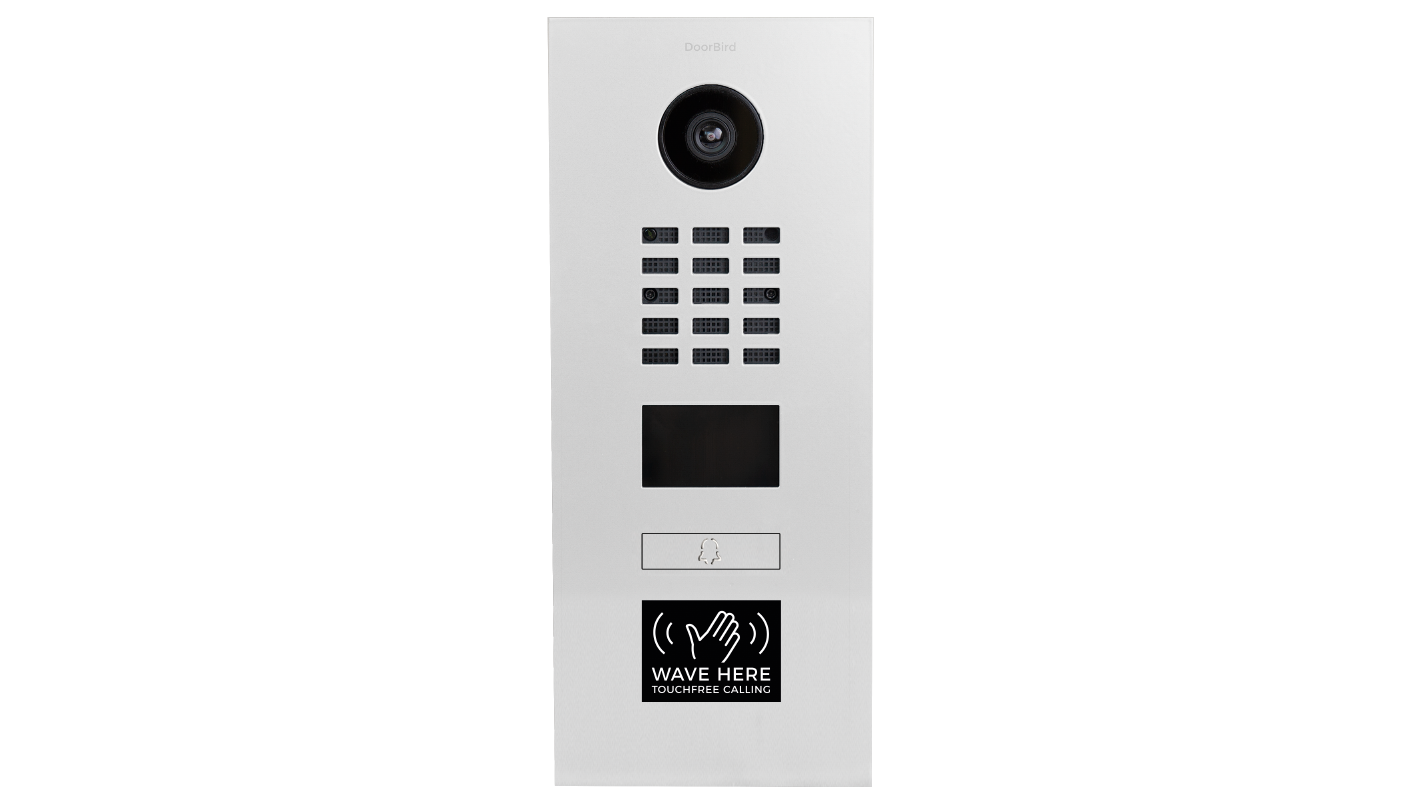

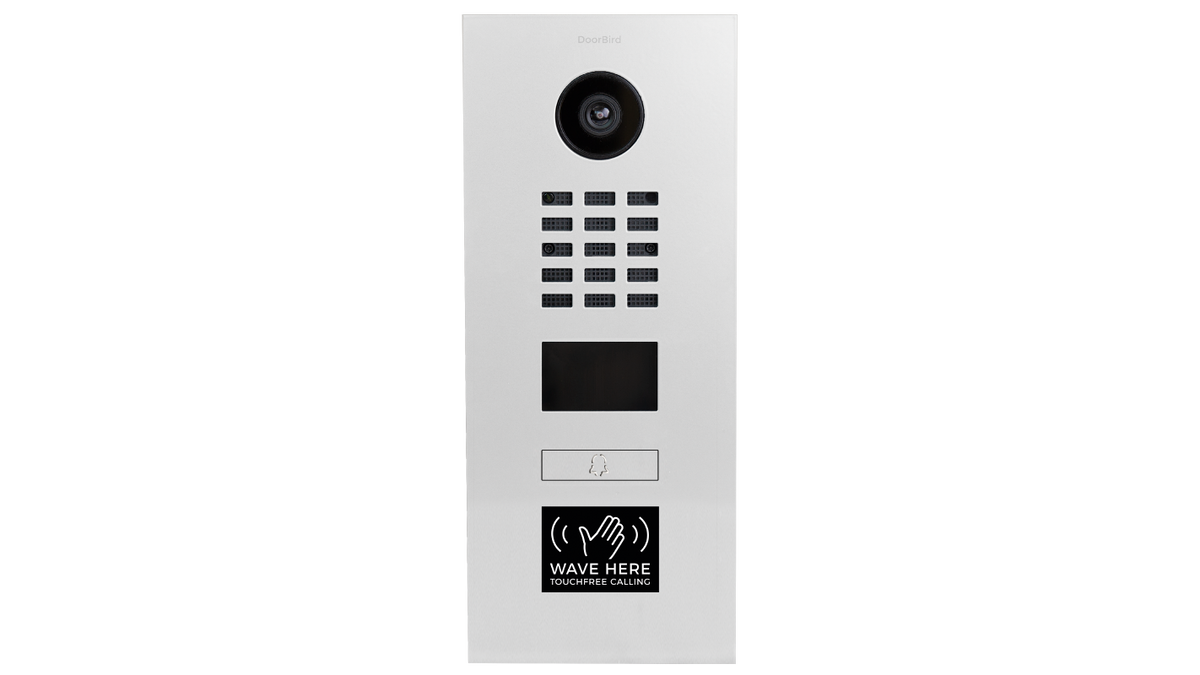

DoorBird D2101TFV Flush Mount IP Video Door Station, 1 Call Button in Stainless Steel, RAL 9016
DoorBird D2101TFV Flush Mount IP Video Door Station, 1 Call Button in Stainless Steel, RAL 9016
Click on image to zoom Click on image to zoom
DoorBird D2101TFV Flush Mount IP Video Door Station, 1 Call Button in Stainless Steel, RAL 9016

DoorBird D2101TFV Flush Mount IP Video Door Station, 1 Call Button in Stainless Steel, RAL 9016

SKU: 423900325
$2,123.44 $2,761.99
Save 23%

Estimated delivery:
  • Secure Payment
    Amazon American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa
    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
  • Free Shipping*
  • 30-Day Return Policy⁺

Description

DoorBird D2101TFV Flush Mount IP Video Door Station, 1 Call Button in Stainless Steel, RAL 9016

For entrances with a high level of foot traffic, 1 contactless call button module, 1 call button

RAL 9016, stainless steel, powder-coated, semi-gloss
(GTIN/EAN: 4260423900325, P/N: 423900325)

Highlights

  • With contactless call button module
  • Surface- and flush-mount possible, housings sold separately
  • LAN connection (PoE capable)
  • 2-way audio
  • Ultra-wide angle lens, 720p, night vision, 12 IR LEDs
  • 4D motion sensor, RFID reader
  • 2 freely configurable bistable switching relays

Features

  • Open API - Local interface for integration with third-party systems and SIP
  • Video and audio call - On smartphones, tablets (iOS, Android), IP and landline phones (SIP)
  • Smart Transmission Mode (STM) - Real-time audio / video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G
  • Smart Home & NVR compatible
    Control4, Loxone, Crestron, Synology, AVM FRITZ!Fon, URC, QNAP, RTI, ELAN, Fibaro, Bang & Olufsen and others
  • Automatic door buzzer - For use in medical offices and office environments
  • Free visitor history - Store still images for free, optional video recording available
  • Individual action schedules, e.g.:
    RFID card “abc” has only access on Wednesday from 9 am until 11 am
    4D motion sensor switches on external lamp between 9 pm and 6 am
  • Geofencing - Automatic door and gate opening when returning home
  • Night vision - With 12 Infrared LEDs
  • HDTV Video - Ultra wide-angle, hemispheric lens, 180°
  • Light sensor - For night vision mode
  • Microphone - Clear voice transmission
  • Noise reduction and echo cancellation (AEC, ANR)
  • RFID reader - Configurable remotely via App (e.g. time frame)
  • Contactless call button
    High-end radar motion sensor for reliable detection at close range
    Personalised events (e.g. door opened, door bell push notification, SIP etc.)
  • Motion sensor with 4D technology - Distance up to 10 m (32.8 ft) adjustable via App (interval: 1 m/ 3.3 ft)
  • Call button - With backlit nameplate
  • Easy connection to the network
    Connection via a network cable or bell wire via 2-Wire Ethernet PoE Converter “DoorBird A1071” (PoE, network data)
  • Two freely configurable bi-stable switching relays
    Two doors or gates can be controlled via App
    Status configurable via App: temporary or permanent circuit
Front Panel 3 mm (0.12 in)
For further information on materials and
colours see the materials table on the product
page in the online shop.
Mounting Type Flush or surface mount
Mounting backing case available separately
Please note: To ensure optimal operation of the
contactless call button module, weatherproof
mounting is recommended. In rare cases, the
sensor can be triggered by heavy rain falling
directly on the sensor surface
Power supply 15 V DC (max. 15 W) or Power over Ethernet
(PoE 802.3af Mode-A)
Call Button
  • Illumination
  • As parallel call option to contactless call button module. (Please note: Station features 1 call option. Call button and contactless call module are switched on together and can be assigned to a single action)
Nameplate Stainless steel, bell symbol.Engravable name sign available separately
Contactless Call Button Module
  • High-end radar motion sensor for reliable detection at close range
  • Two-colour backlight (colour changes to green when motion detected)
  • Individual events (e.g. open door, push notification, SIP etc.)
  • Interchangeable text fields in 5 languages (DE, EN, ES, FR, IT) included
Weight 1818 g
Connectors
  • RJ45, for LAN/PoE
  • Bistable self-latching relay #1, max. 24 V DC/AC, 1 Ampere, e.g. for electrical door opener
  • Bistable self-latching relay #2, max. 24 V DC/AC, 1 Ampere, e.g. for electrical door opener
  • External input for external door opening button
  • 15 V DC input (-/+), max. 15 W
  • Relay can be extended/replaced with DoorBird I/O Door Controller.
Protection Class IP65, IK08
Approvals CE, FCC, IC, UKCA, RoHS, REACH, WEEE, IEC/EN
62368, IEC/EN 62471
Dimensions 313 x 131 x 48.75 mm (H x W x D)
12.32 × 5.16 × .92 in (L × W × H)
Operating conditions -25 °C to +55 °C / -13 °F to 131 °F
Relative air humidity 10% to 85%
(non-condensing)
Scope of delivery 1x main electrical unit
1x front cover
1x name sign for one call button, stainless steel,
bell symbol
1x RFID key fob
1x screwdriver
1x quick-start guide with Digital Passport
1x installation manual
1x set of hardware
4x sensor field cover in German, Spanish,
French and Italian; (English preinstalled)
Data Sheet
App User Manual
Installation Manual
