For single-family homes and businesses with 1 unit, 1 call button

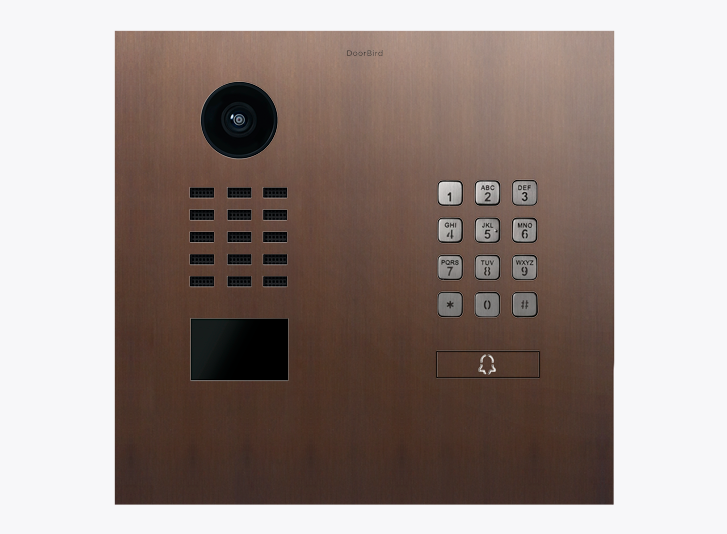

Architectural bronze
(GTIN/EAN: 4260423901261, P/N: 423901261)
| Front panel | 3 mm (0.12 in) For further materials and colours see material board and Online Shop |
| Mounting type | Flush- or surface-mounted, mounting housing sold separately |
| Power Supply | 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A) |
| Call button |
Illuminated |
| Nameplate | Stainless Steel, Bell symbol, engraved through material for illumination, self-adhesive. Engravable metal nameplate sold separately |
| Info Module | 3.5″, illuminated |
|
Keypad Module |
12 keys, illuminated, configurable via App, e.g. • Individual PIN codes • Individual events (e.g. switch a relay, HTTP(s) request) • Individual schedules • Up to 500 PIN codes manageable • 30 most recent entries viewable in history |
| Weight | 2510 g |
| Connectors | • RJ45, for LAN/PoE • Bistable latching relay #1, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener • Bistable latching relay #2, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener • External input for external door opener button • 15 V DC input (+, -), max. 15 W • Relays can be expanded / detached with DoorBird I/O Door Controller |
| Protection Class | IP65, IK08 |
| Approvals | CE, FCC, IC, UKCA, RoHS, REACH, WEEE, IEC/EN 62368, IEC/EN 62471 |
| Dimensions | 256 x 275,25 x 48,75 mm (H x W x D) 10,08 x 10,13 x 1,92 in (H x W x D) |
| Operating conditions | -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing) |
| Scope of delivery | 1x Main Electrical Unit 1x Front panel 1x Nameplate for 1 call button, stainless steel, bell symbol 1x RFID key fob 1x Screwdriver 1x Quickstart guide with Digital Passport 1x Installation manual 1x Small parts |
