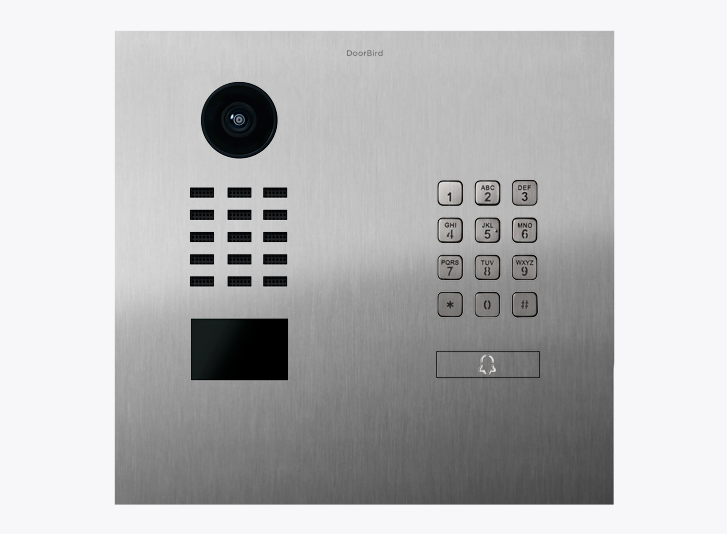

For single-family homes and businesses with 1 unit, 1 call button
Stainless steel V4A (salt-water and grinding dust resistant), brushed
(GTIN/EAN: 4260423901278, P/N: 423901278)
| Front panel | 3 mm (0.12 in) For further materials and colours see material board and Online Shop |
| Mounting type | Flush- or surface-mounted, mounting housing sold separately |
| Power Supply | 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A) |
| Call button |
Illuminated |
| Nameplate | Stainless Steel, Bell symbol, engraved through material for illumination, self-adhesive. Engravable metal nameplate sold separately |
| Info Module | 3.5″, illuminated |
|
Keypad Module |
12 keys, illuminated, configurable via App, e.g. • Individual PIN codes • Individual events (e.g. switch a relay, HTTP(s) request) • Individual schedules • Up to 500 PIN codes manageable • 30 most recent entries viewable in history |
| Weight | 2510 g |
| Connectors | • RJ45, for LAN/PoE • Bistable latching relay #1, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener • Bistable latching relay #2, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener • External input for external door opener button • 15 V DC input (+, -), max. 15 W • Relays can be expanded / detached with DoorBird I/O Door Controller |
| Protection Class | IP65, IK08 |
| Approvals | CE, FCC, IC, UKCA, RoHS, REACH, WEEE, IEC/EN 62368, IEC/EN 62471 |
| Dimensions | 256 x 275,25 x 48,75 mm (H x W x D) 10,08 x 10,13 x 1,92 in (H x W x D) |
| Operating conditions | -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing) |
| Scope of delivery | 1x Main Electrical Unit 1x Front panel 1x Nameplate for 1 call button, stainless steel, bell symbol 1x RFID key fob 1x Screwdriver 1x Quickstart guide with Digital Passport 1x Installation manual 1x Small parts |
*Shipping Policy
I have installed as main gate access controller. The device is used for gate access via keypad and house call via the ring button. Setup is easy, app driven setup. Works great and love the design. It looks professional versus the other brands made of plastic that look more like toys.
I have been using the Doorbird for about 7 weeks now. The unit comes complete with with cables and miniature connectors for Ethernet, power, lock, doorbell, etc. And snap connectors. Was easy to install and operate.
The finish is beautiful, I love how they had so many color options to choose from. The Bronze looks great with our new home.
Home Outlet Direct shipped quickly and made the purchase easy. I recommend for any home that requires this type of security.
- We are an authorized DoorBird dealer
- Industry leading sales and customer service
- Thousands of happy customers
