Description

DoorBird D2101FV Fingerprint 50 IP Video Door Station, 1 Call Button in DB 703 Stainless Steel

For single-family homes and businesses with 1 unit, 1 call button

DB 703, stainless steel, powder-coated, semi-gloss
(GTIN/EAN: 4260423872516, P/N: 423872516)

Highlights

  • Surface- and flush-mount possible, housings sold separately
  • LAN connection (PoE capable)
  • 2-way audio
  • Ultra-wide angle lens, 720p, night vision, 12 IR LEDs
  • 4D motion sensor, RFID reader
  • Fingerprint sensor by Fingerprint Cards AB
  • 2 freely configurable bistable switching relays

Features

  • Open API - Local interface for integration with third-party systems and SIP
  • Video and audio call - On smartphones, tablets (iOS, Android), IP and landline phones (SIP)
  • Smart Transmission Mode (STM) - Real-time audio / video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G
  • Smart Home & NVR compatible - Control4, Loxone, Crestron, Synology, AVM FRITZ!Fon, URC, QNAP, RTI, ELAN, Fibaro, Bang & Olufsen and others
  • Automatic door buzzer - For use in medical offices and office environments
  • Free visitor history - Store still images for free, optional video recording available
  • Individual action schedules, e.g.:
    RFID card “abc” has only access on Wednesday from 9 am until 11 am
    4D motion sensor switches on external lamp between 9 pm and 6 am
  • Geofencing - Automatic door and gate opening when returning home
  • Night vision - With 12 Infrared LEDs
  • HDTV Video - Ultra wide-angle, hemispheric lens, 180°
  • Light sensor - For night vision mode
  • Microphone - Clear voice transmission
  • Noise reduction and echo cancellation (AEC, ANR)
  • RFID reader - Configurable remotely via App (e.g. time frame)
  • Motion sensor with 4D technology - Distance up to 10 m (32.8 ft) adjustable via App (interval: 1 m/ 3.3 ft)
  • Call button - With backlit nameplate
  • Easy connection to the network - Connection via a network cable or bell wire via 2-Wire Ethernet PoE Converter “DoorBird A1071” (PoE, network data)
  • Two freely configurable bi-stable switching relays
    Two doors or gates can be controlled via App
    Status configurable via App: temporary or permanent circuit

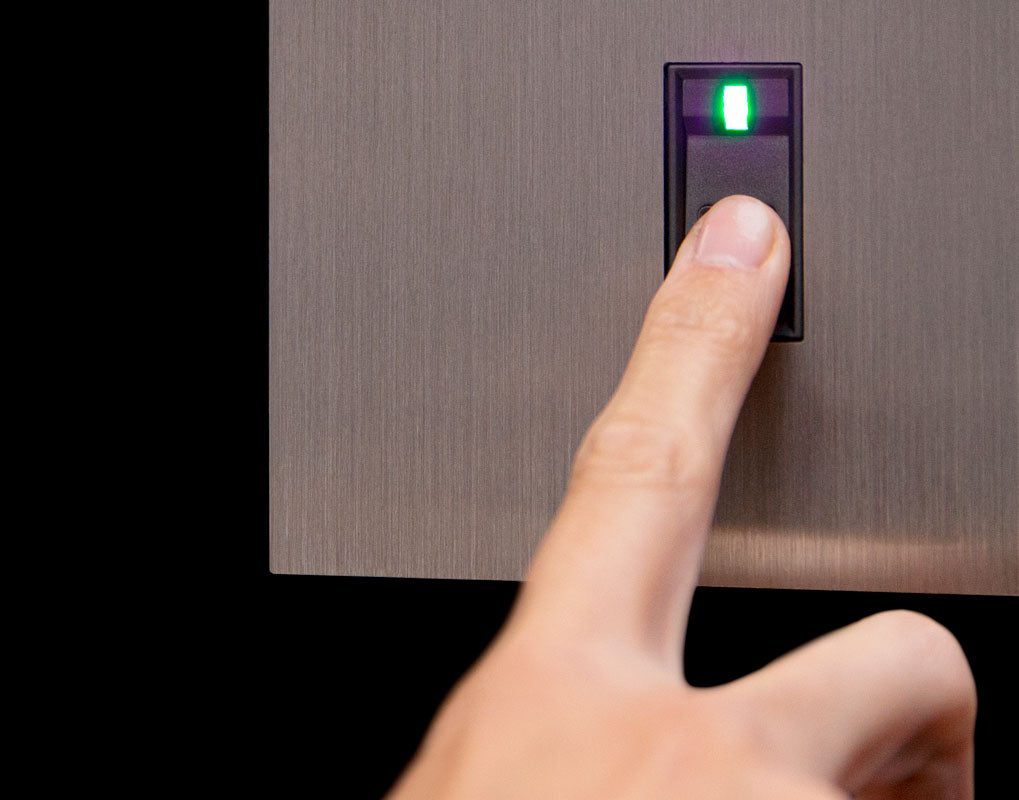

  • Fingerprint reader
    Supported number offingerprints: 50
    Status LED (RGB)
    Touch sensor

How Does It Work?

Imagine, you are not at home and your children have locked themselves out or the courier wants to deliver a parcel. With DoorBird this is no longer a problem. Every time someone rings the doorbell you will get a push notification on your smartphone or tablet. Via the DoorBird App you can talk to visitors and also see them live in HD quality. You will never miss a visitor again. With DoorBird you are on the move and yet at home, even if a burglar rings at the door to check if someone is at home

Smart Home Starts At The Front Door

DoorBird is the smart solution for your house entrance. Simply connect your DoorBird IP Video Door Station to your smartphone and talk to your visitor – anywhere you are. The IP Video Door Station can be used as a stand-alone unit or can be integrated into an existing Smart Home platform. Even existing classic installations such as an electric door opener can still be used and controlled via the DoorBird App.

Quality Made In Germany

All DoorBird products are designed, developed and produced by Bird Home Automation Group in Berlin, Germany. We manufacture all products with the greatest care and precision, and deliver them to our customers all over the world.

Front Panel

3 mm (0.12 in)
For further materials and colours see material
board and Online Shop.

Mounting Type

Flush- or surface-mounted, mounting housing sold separately

Power supply

15 V DC (max. 15 W) or Power over
Ethernet (PoE 802.3af Mode-A)

Call Button

Plastic
Metal cover plate and engraving available

Fingerprint Reader Module 50

Configurable via App
  • Individual events (e.g. switch a relay, HTTP(s) request)
  • Individual schedules
  • 50 fingerprints manageable
  • Event history

Multicolored Status LED

Normal mode:

  • Green + success sound: successfully authenticated
  • Red + error sound: unrecognized fingerprint (e.g. unknown fingerprint or wet touch sensor field dry it with a tissue)
  • Pink: Manipulation prevention (too many failed attempts, locked out for min. 30 seconds)

Enrollment mode:

  • Blue: wait for finger to touch
  • Green + no sound: scan step successful Green + success sound: entire scan step successful (enrollment done)
  • LED goes off: Timeout during enrollment

Start-up mode:
  • Yellow: Hardware test successful
  • Red: Hardware test not successful (broken)

Weight

1407 g

Connectors

  • RJ45, for LAN/PoE
  • Bistable latching relay #1, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener
  • Bistable latching relay #2, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener
  • External input for external door opener button
  • 15 V DC input (+, -), max. 15 W
  • Relays can be expanded / detached with DoorBird I/O Door Controller

Weatherproof

Yes, IP65

Approvals

CE, FCC, IC, UKCA, RoHS, REACH, WEEE, IEC/EN 62368, IEC/EN 62471

Dimensions

313 x 131 x 48,75 mm (H x W x D)
12.32 x 5.16 x 1.92 in (H x W x D)

Operating conditions

-25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non condensing)

Scope of delivery

1x Main Electrical Unit

1x Front panel

1x Nameplate for 1 call button, plastic, transparent

1x RFID key fob

1x Screwdriver

1x Quickstart guide with Digital Passport

1x Installation manual

1x Small parts
