Description
DIMENSIONS & WEIGHT
- Weight
- 1407 g
- Dimensions
- 313 x 131 x 48,75 mm (H x W x D) 12.32 x 5.16 x 1.92 in (H x W x D)
GENERAL INFORMATION
- Mounting type
- Flush- or surface-mounted, mounting housing sold separately
DESIGN & MATERIALS
- Front panel
- 3 mm (0.12 in) For further materials and colours see material board and Online Shop.
POWER & CONNECTIVITY
- Power Supply
- 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
- Connectors
- RJ45, for LAN/PoE
- Bi-stable latching relay #1, max. 24 V DC / AC, 1 A, e.g. for electric door opener
- Bi-stable latching relay #2, max. 24 V DC / AC, 1 A, e.g. for electric door opener
- External input for external door opener button
- 15 V DC input (+, -), max. 15 W
- Relays can be expanded / detached with DoorBird I/O Door Controller
FEATURES
- Call button
- Plastic Metal cover plate and engraving available separately,
- Nameplate
- Illuminated

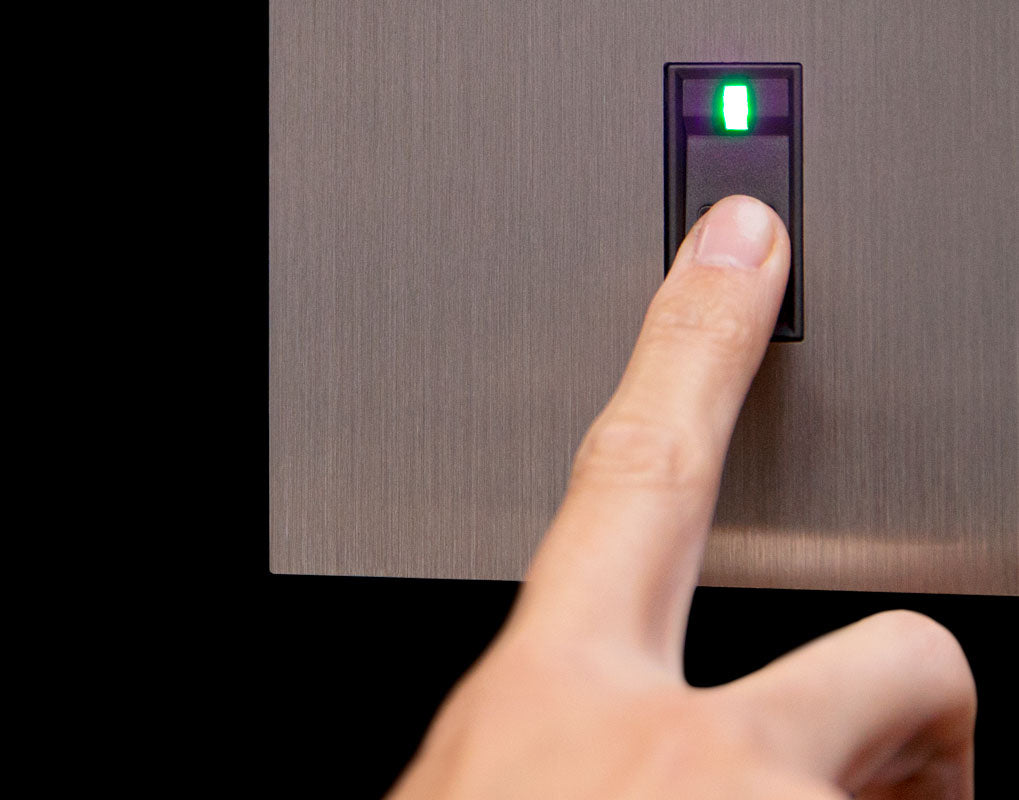

- Fingerprint Reader Module 50
- Configurable via App
- Individual events (e.g. switch a relay, HTTP(s) request)
- Individual schedules
- 50 fingerprints manageable
- Event history Multicolored Status LED
- Normal mode: –Green + success sound: successfully authenticated –Red + error sound: unrecognized fingerprint (e.g. unknown fingerprint or wet touch sensor field - dry it with a tissue) –Pink: Manipulation prevention (too many failed attempts, locked out for min. 30 seconds)
- Enrollment mode: –Blue: wait for finger to touch –Green + no sound: scan step successful –Green + success sound: entire scan step successful (enrollment done) –LED goes off: Timeout during enrollment
- Start-up mode: –Yellow: Hardware test successful –Red: Hardware test not successful (broken)
DURABILITY & ENVIRONMENT
- Protection Class
- IP65, IK08
- Approvals
- CE, FCC, IC, UKCA, RoHS, REACH, WEEE, IEC/EN 62368, IEC/EN 62471
- Operating conditions
- -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)
IN THE BOX
- Scope of delivery
- 1x Main Electrical Unit
- 1x Front panel
- 1x Nameplate for 1 call button, stainless steel, bell symbol
- 1x RFID key fob
- 1x Screwdriver
- 1x Quickstart guide with Digital Passport
- 1x Installation manual
- 1x Small parts
