For single-family homes and businesses with 1 unit, 1 call button
Architectural bronze
(GTIN/EAN: 4260423896130, P/N: 423896130)
| Front panel | 3 mm (0.12 in) For further materials and colours see material board and Online Shop. |
| Mounting type | Flush- or surface-mounted, mounting housing sold separately |
| Power Supply | 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A) |
| Call button |
Plastic Metal cover plate and engraving available separately, |
| Nameplate | Illuminated |
|

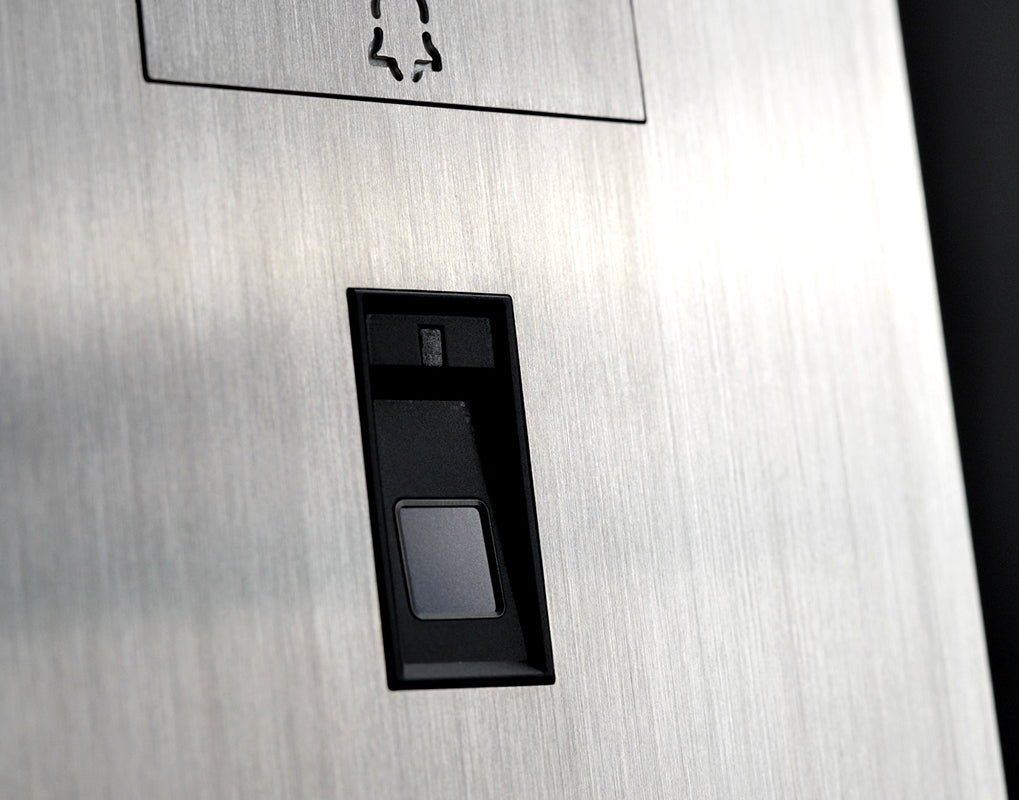

Fingerprint Reader Module 50 |

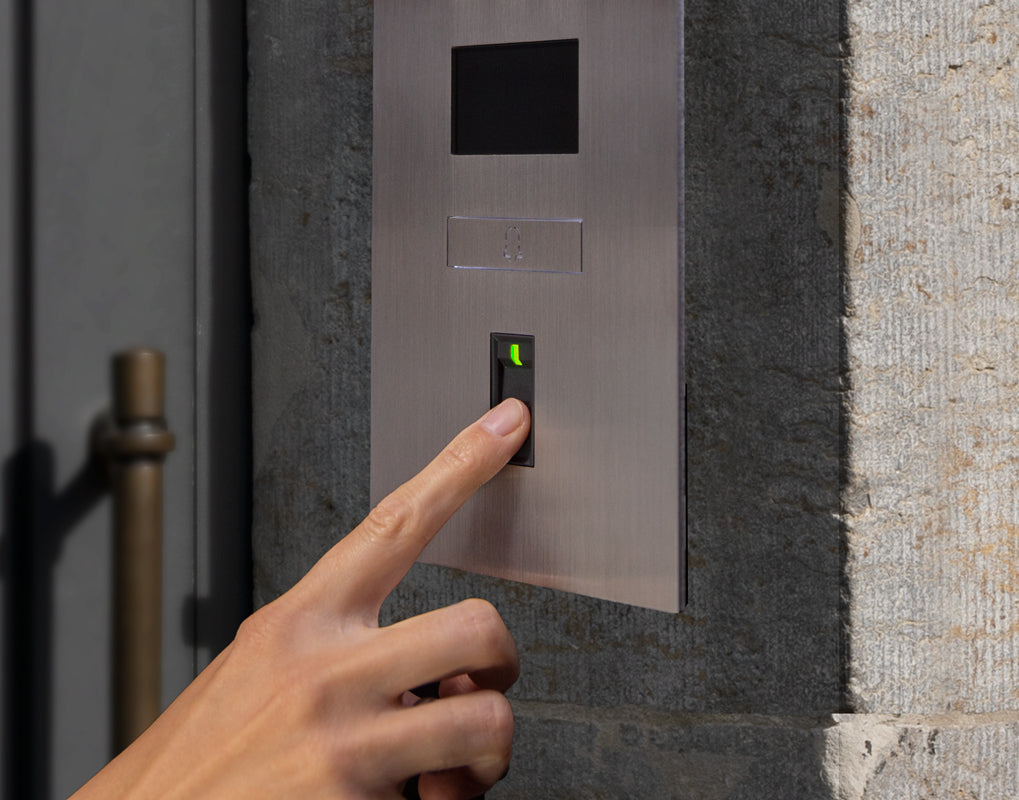

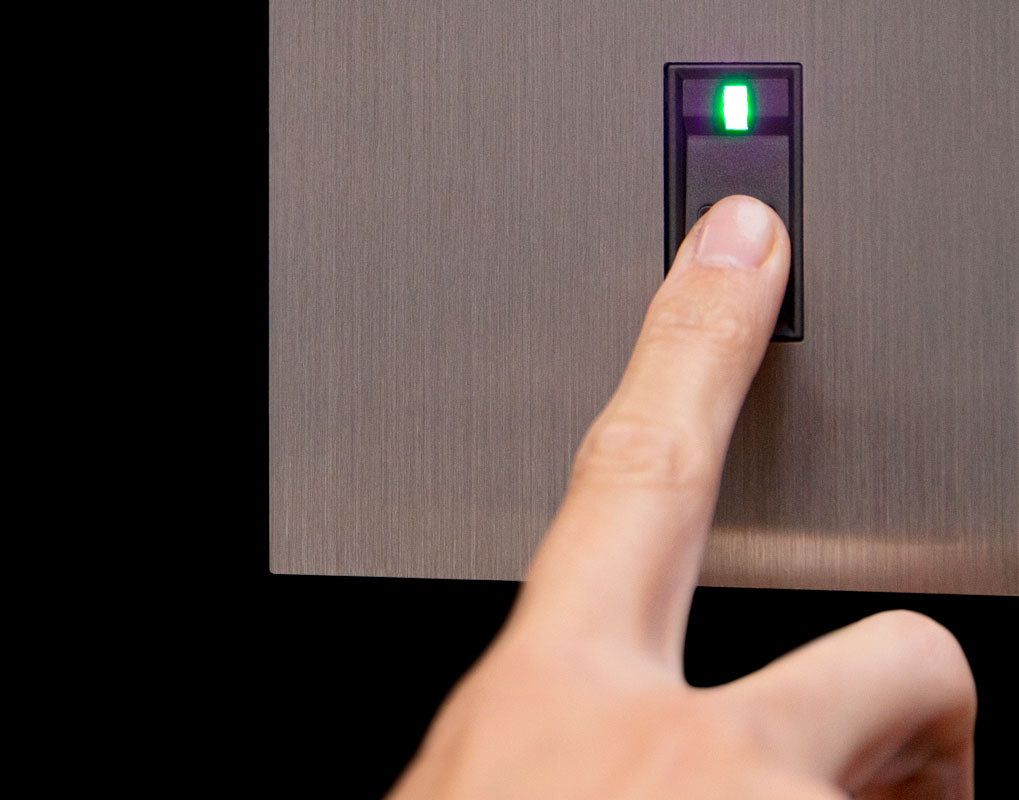

Configurable via App • Individual events (e.g. switch a relay, HTTP(s) request) • Individual schedules • 50 fingerprints manageable •Event history Multicolored Status LED •Normal mode: –Green + success sound: successfully authenticated –Red + error sound: unrecognized fingerprint (e.g. unknown fingerprint or wet touch sensor field - dry it with a tissue) –Pink: Manipulation prevention (too many failed attempts, locked out for min. 30 seconds) •Enrollment mode: –Blue: wait for finger to touch –Green + no sound: scan step successful –Green + success sound: entire scan step successful (enrollment done) –LED goes off: Timeout during enrollment •Start-up mode: –Yellow: Hardware test successful –Red: Hardware test not successful (broken) |
| Weight | 1407 g |
| Connectors | RJ45, for LAN/PoE • Bi-stable latching relay #1, max. 24 V DC / AC, 1 A, e.g. for electric door opener • Bi-stable latching relay #2, max. 24 V DC / AC, 1 A, e.g. for electric door opener • External input for external door opener button • 15 V DC input (+, -), max. 15 W • Relays can be expanded / detached with DoorBird I/O Door Controller |
| Protection Class | IP65, IK08 |
| Approvals | CE, FCC, IC, UKCA, RoHS, REACH, WEEE, IEC/EN 62368, IEC/EN 62471 |
| Dimensions | 313 x 131 x 48,75 mm (H x W x D) 12.32 x 5.16 x 1.92 in (H x W x D) |
| Operating conditions | -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing) |
| Scope of delivery | 1x Main Electrical Unit 1x Front panel 1x Nameplate for 1 call button, stainless steel, bell symbol 1x RFID key fob 1x Screwdriver 1x Quickstart guide with Digital Passport 1x Installation manual 1x Small parts |
*Shipping Policy
I have installed as main gate access controller. The device is used for gate access via keypad and house call via the ring button. Setup is easy, app driven setup. Works great and love the design. It looks professional versus the other brands made of plastic that look more like toys.
I have been using the Doorbird for about 7 weeks now. The unit comes complete with with cables and miniature connectors for Ethernet, power, lock, doorbell, etc. And snap connectors. Was easy to install and operate.
The finish is beautiful, I love how they had so many color options to choose from. The Bronze looks great with our new home.
Home Outlet Direct shipped quickly and made the purchase easy. I recommend for any home that requires this type of security.
