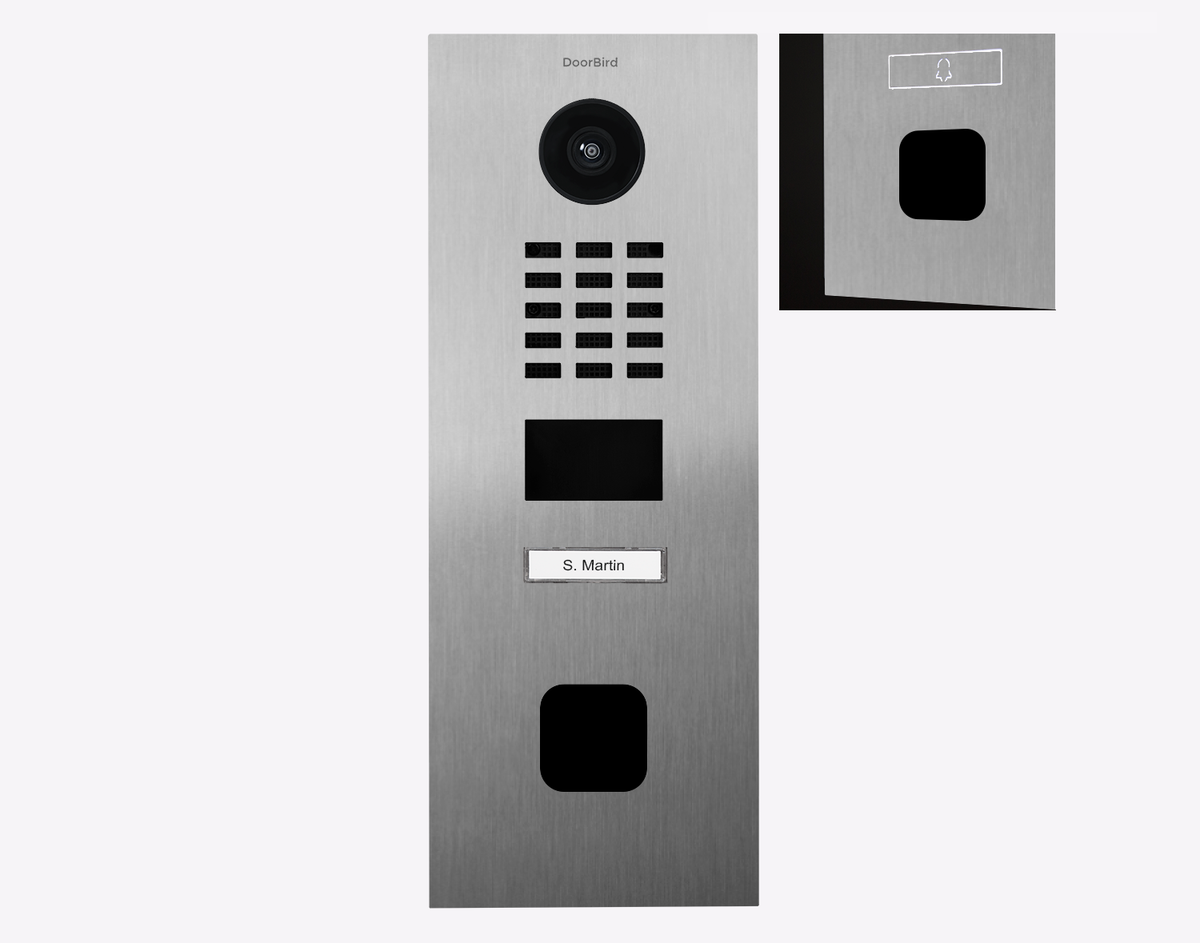

DoorBird stainless steel IP video door station with camera, keypad and nameplate
Roll over image to zoom in Click on image to zoom
DoorBird stainless steel IP video door station with camera, keypad and nameplate
Click on image to zoom

DoorBird D2101FV EKEY Sline IP Video Door Station in Stainless Steel V4A

DoorBirdSKU: 423902428
2 reviews
Price:
$1,417.77 $1,791.15SAVE 20%
Out of Stock
No restock estimate
Free shipping — delivered to your door by parcel carrier

Description

DoorBird D2101FV EKEY Sline IP Video Door Station in Stainless Steel V4A

For single-family homes and businesses with 1 unit, 1 call button

Stainless steel V4A (salt-water and grinding dust resistant), brushed
(GTIN/EAN: 4260423902428, P/N: 423902428)

Highlights

  • Surface- and flush-mount possible, housings sold separately
  • With cut-out for ekey sLine (fingerprint reader not included in delivery)
  • LAN connection (PoE capable)
  • 2-way audio
  • Ultra-wide angle lens, 720p, night vision, 12 IR LEDs
  • 4D motion sensor, RFID reader
  • 2 freely configurable bistable switching relays

Features

  • Open API
    Local interface for integration with third-party systems and SIP
  • Video and audio call
    On smartphones, tablets (iOS, Android), IP and landline phones (SIP)
  • Smart Transmission Mode (STM)
    Real-time audio / video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G
  • Smart Home & NVR compatible
    Control4, Loxone, Crestron, Synology, AVM FRITZ!Fon, URC, QNAP, RTI, ELAN, Fibaro, Bang & Olufsen and others
  • Automatic door buzzer
    For use in medical offices and office environments
  • Free visitor history
    Store still images for free, optional video recording available
  • Individual action schedules, e.g.:
    RFID card “abc” has only access on Wednesday from 9 am until 11 am
    4D motion sensor switches on external lamp between 9 pm and 6 am
  • Geofencing
    Automatic door and gate opening when returning home
  • Night vision
    With 12 Infrared LEDs
  • HDTV Video
    Ultra wide-angle, hemispheric lens, 180°
  • Light sensor
    For night vision mode
  • Microphone
    Clear voice transmission
  • Noise reduction and echo cancellation (AEC, ANR)
  • RFID reader
    Configurable remotely via App (e.g. time frame)
  • Motion sensor with 4D technology
    Distance up to 10 m (32.8 ft) adjustable via App (interval: 1 m/ 3.3 ft)
  • Call button
    With backlit nameplate
  • Easy connection to the network
    Connection via a network cable or bell wire via 2-Wire Ethernet PoE Converter “DoorBird A1071” (PoE, network data)
  • Two freely configurable bi-stable switching relays
    Two doors or gates can be controlled via App
    Status configurable via App: temporary or permanent circuit
  • Integration option for ekey sLine fingerprint reader
    Front panel prepared for ekey sLine, not included in delivery
DIMENSIONS & WEIGHT
Weight
  • D2101FV ekey sLine: 1381
  • g D2102FV ekey sLine: 1381 g
Dimensions
313 x 351,5 x 48,75 mm (H x W x D) 12.32 x 13.83 x 1.92 in (H x W x D)
GENERAL INFORMATION
Mounting type
Flush- or surface-mounted, mounting housing sold separately
DESIGN & MATERIALS
Front panel
3 mm (0.12 in) For further materials and colours see material board and Online Shop.
POWER & CONNECTIVITY
Power Supply
15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
Connectors
  • RJ45, for LAN/PoE
  • Bi-stable latching relay #1, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener
  • Bi-stable latching relay #2, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener
  • External input for external door opener button (potential-free)
  • 15 V DC input (+, -), max. 15 W
  • Relays can be expanded / detached with DoorBird I/O Door Controller
FEATURES
Call button
Plastic Metal cover plate and engraving available separately,
Nameplate
Illuminated
DURABILITY & ENVIRONMENT
Protection Class
IP65, IK08
Approvals
CE, FCC, IC, UKCA, RoHS, REACH, WEEE, IEC/EN 62368, IEC/EN 62471
Operating conditions
-25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)
IN THE BOX
Scope of delivery
  • 1x Main Electrical Unit
  • 1x Front panel
  • 1x Nameplate for 1 call button, stainless steel, bell symbol (D2101FV ekey sLine)
  • 1x RFID key fob
  • 1x Screwdriver
  • 1x Quickstart guide with Digital Passport
  • 1x Installation manual
  • 1x Small parts
