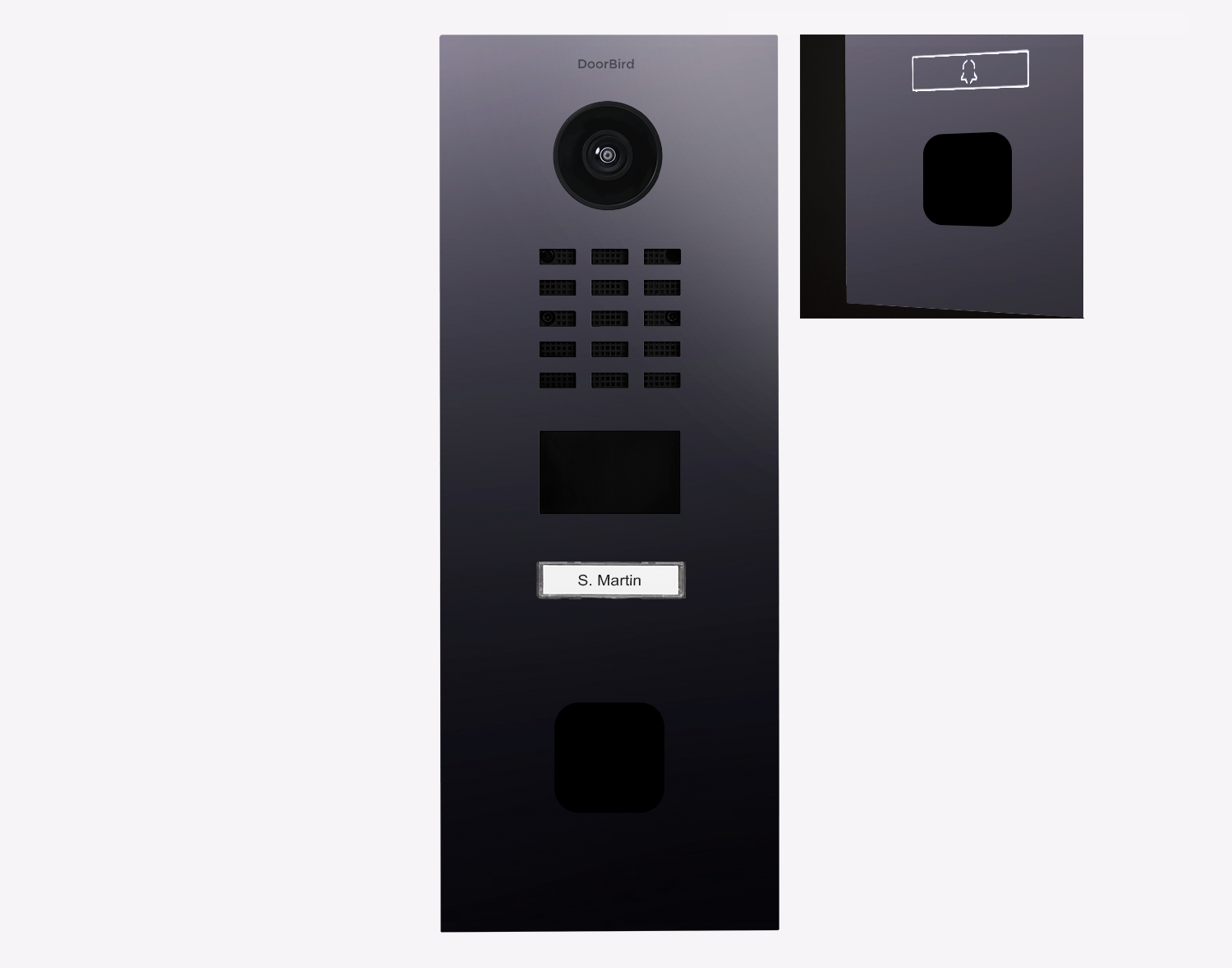

For single-family homes and businesses with 1 unit, 1 call button
Titanium-finish as PVD coating, stainless steel V4A, high-gloss polished
(GTIN/EAN: 4260423902497, P/N: 423902497)
Front panel | 3 mm (0.12 in) For further materials and colours see material board and Online Shop. |
Mounting type | Flush- or surface-mounted, mounting housing sold separately |
Power Supply | 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A) |
Call button |
Plastic Metal cover plate and engraving available separately, |
Nameplate | Illuminated |
Weight | D2101FV ekey sLine: 1381 g D2102FV ekey sLine: 1381 g |
Connectors | • RJ45, for LAN/PoE • Bi-stable latching relay #1, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener • Bi-stable latching relay #2, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener • External input for external door opener button (potential-free) • 15 V DC input (+, -), max. 15 W • Relays can be expanded / detached with DoorBird I/O Door Controller |
Protection Class | IP65, IK08 |
Approvals | CE, FCC, IC, UKCA, RoHS, REACH, WEEE, IEC/EN 62368, IEC/EN 62471 |
Dimensions | 313 x 351,5 x 48,75 mm (H x W x D) 12.32 x 13.83 x 1.92 in (H x W x D) |
Operating conditions | -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing) |
Scope of delivery | 1x Main Electrical Unit 1x Front panel 1x Nameplate for 1 call button, stainless steel, bell symbol (D2101FV ekey sLine) 1x RFID key fob 1x Screwdriver 1x Quickstart guide with Digital Passport 1x Installation manual 1x Small parts |
