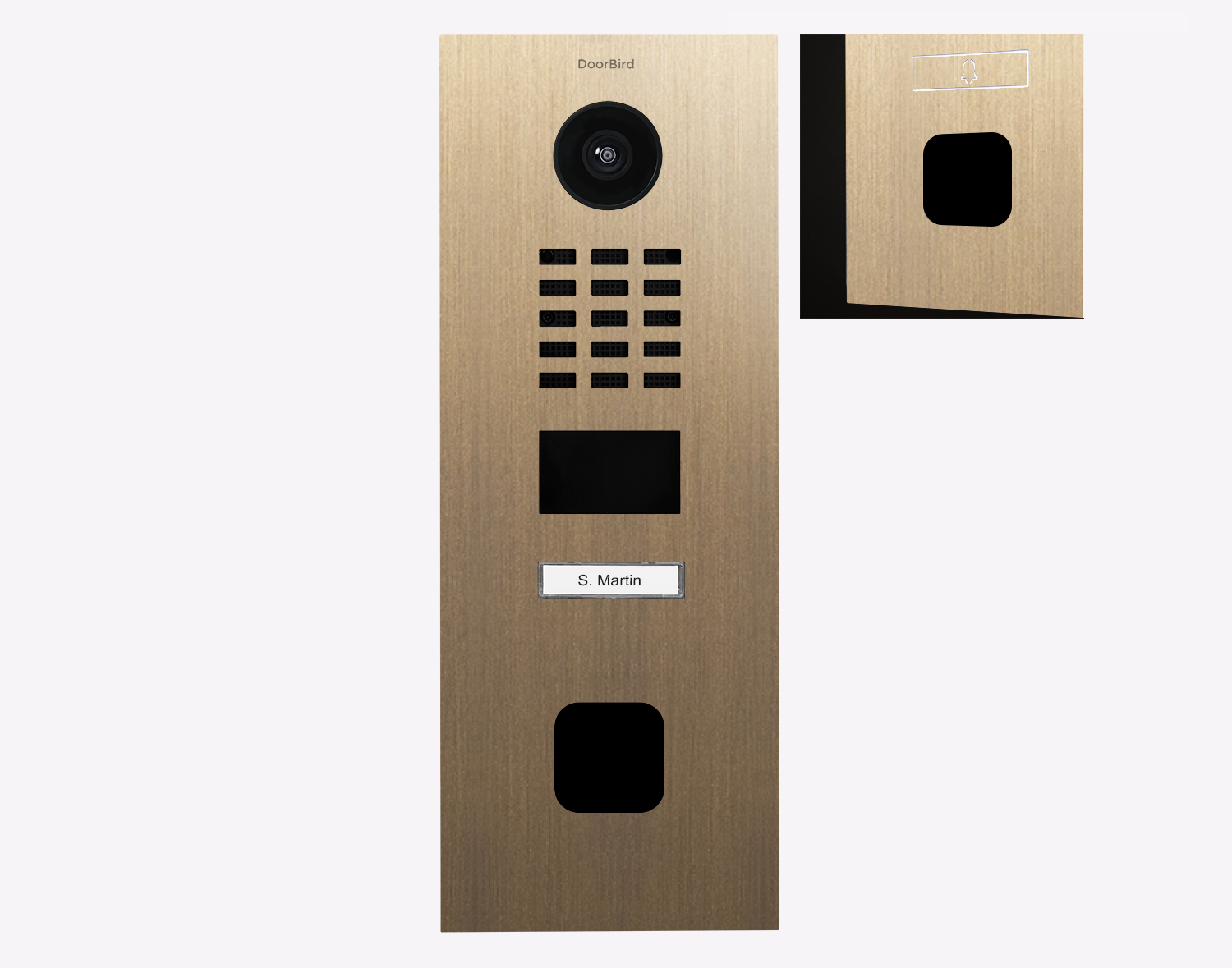

DoorBird D2101FV EKEY Sline IP Video Door Station in Real Burnished Brass

Name: DoorBird D2101FV EKEY Sline IP Video Door Station in Real Burnished Brass
Brand: DoorBird
SKU: 423902466
Price: 2465.67 USD
Availability: OutOfStock
Rating: 5.0 (2 reviews)

| Authorized Dealer

SKU: 423902466

$2,465.67 $3,115.03

Out of Stock No restock estimate

Secure Payment

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Free Shipping*
30-Day Return Policy⁺

DoorBird D2101FV EKEY Sline IP Video Door Station in Real Burnished Brass

For single-family homes and businesses with 1 unit, 1 call button

Real burnished brass
(GTIN/EAN: 4260423902466, P/N: 423902466)

Highlights

Surface- and flush-mount possible, housings sold separately
With cut-out for ekey sLine (fingerprint reader not included in delivery)
LAN connection (PoE capable)
2-way audio
Ultra-wide angle lens, 720p, night vision, 12 IR LEDs
4D motion sensor, RFID reader
2 freely configurable bistable switching relays

Features

Open API
Local interface for integration with third-party systems and SIP
Video and audio call
On smartphones, tablets (iOS, Android), IP and landline phones (SIP)
Smart Transmission Mode (STM)
Real-time audio / video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G
Smart Home & NVR compatible
Control4, Loxone, Crestron, Synology, AVM FRITZ!Fon, URC, QNAP, RTI, ELAN, Fibaro, Bang & Olufsen and others
Automatic door buzzer
For use in medical offices and office environments
Free visitor history
Store still images for free, optional video recording available
Individual action schedules, e.g.:
RFID card “abc” has only access on Wednesday from 9 am until 11 am
4D motion sensor switches on external lamp between 9 pm and 6 am
Geofencing
Automatic door and gate opening when returning home
Night vision
With 12 Infrared LEDs
HDTV Video
Ultra wide-angle, hemispheric lens, 180°
Light sensor
For night vision mode
Microphone
Clear voice transmission
Noise reduction and echo cancellation (AEC, ANR)
RFID reader
Configurable remotely via App (e.g. time frame)
Motion sensor with 4D technology
Distance up to 10 m (32.8 ft) adjustable via App (interval: 1 m/ 3.3 ft)
Call button
With backlit nameplate
Easy connection to the network
Connection via a network cable or bell wire via 2-Wire Ethernet PoE Converter “DoorBird A1071” (PoE, network data)
Two freely configurable bi-stable switching relays
Two doors or gates can be controlled via App
Status configurable via App: temporary or permanent circuit
Integration option for ekey sLine fingerprint reader
Front panel prepared for ekey sLine, not included in delivery

DIMENSIONS & WEIGHT
Weight	D2101FV ekey sLine: 1381 g D2102FV ekey sLine: 1381 g
Dimensions	313 x 351,5 x 48,75 mm (H x W x D) 12.32 x 13.83 x 1.92 in (H x W x D)
GENERAL INFORMATION
Mounting type	Flush- or surface-mounted, mounting housing sold separately
DESIGN & MATERIALS
Front panel	3 mm (0.12 in) For further materials and colours see material board and Online Shop.
POWER & CONNECTIVITY
Power Supply	15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
Connectors	RJ45, for LAN/PoE Bi-stable latching relay #1, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener Bi-stable latching relay #2, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener External input for external door opener button (potential-free) 15 V DC input (+, -), max. 15 W Relays can be expanded / detached with DoorBird I/O Door Controller
FEATURES
Call button	Plastic Metal cover plate and engraving available separately,
Nameplate	Illuminated
DURABILITY & ENVIRONMENT
Protection Class	IP65, IK08
Approvals	CE, FCC, IC, UKCA, RoHS, REACH, WEEE, IEC/EN 62368, IEC/EN 62471
Operating conditions	-25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)
IN THE BOX
Scope of delivery	1x Main Electrical Unit 1x Front panel 1x Nameplate for 1 call button, stainless steel, bell symbol (D2101FV ekey sLine) 1x RFID key fob 1x Screwdriver 1x Quickstart guide with Digital Passport 1x Installation manual 1x Small parts
